Smart Electric Water Heater, 1300-4000W Adjustable Power, Instant Hot Water, Touch Screen Temp Control, Remote Control

Specification

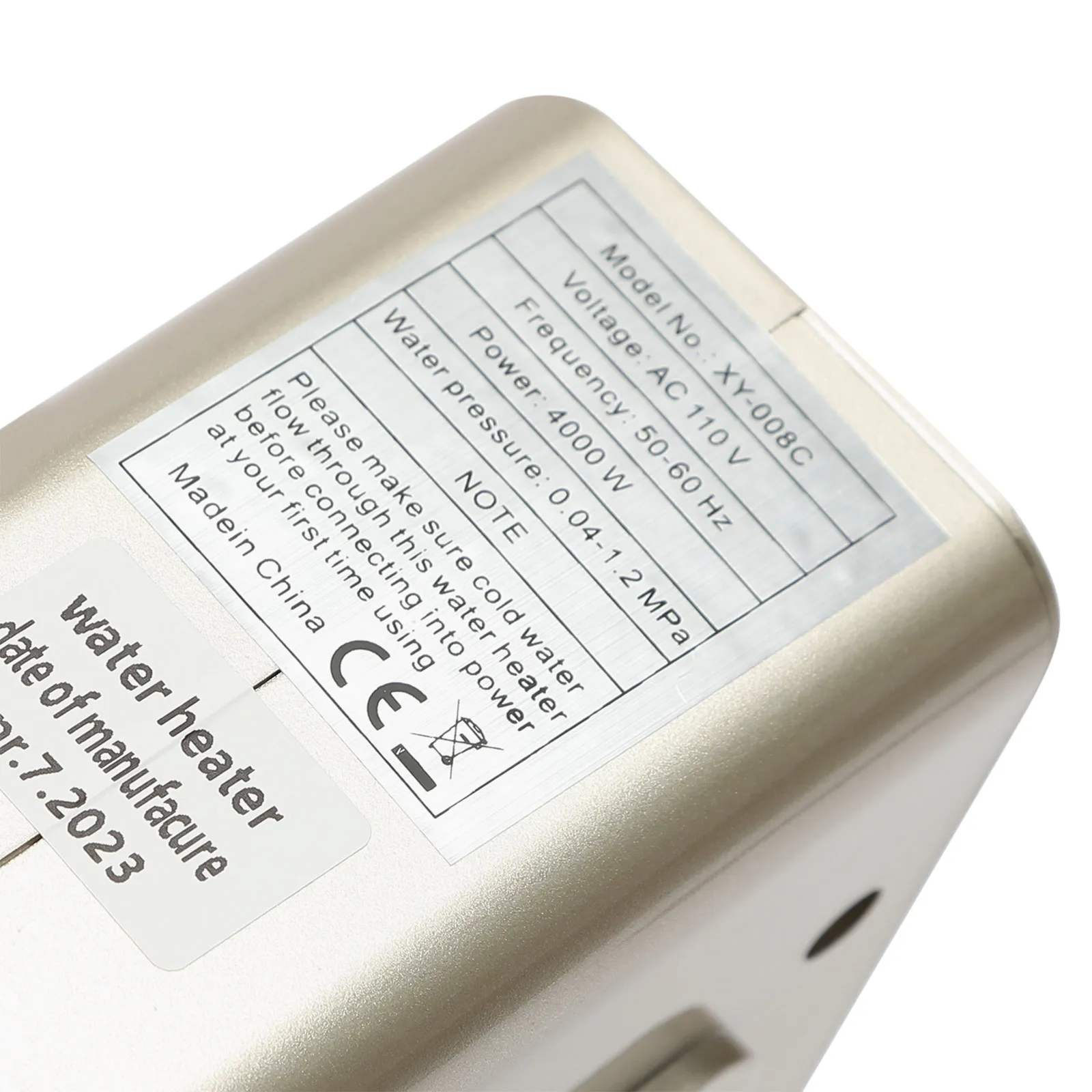

Model: XY-008C
Color: Gold
Material: ABS, Cast Aluminum, Copper
Style: Modern
Voltage: AC 110V (Without Plug), 50-60Hz
Power: 1300W/2600W/4000W
Current: 0-36A
Water Pressure: 0.04-1.2 MPa
Installation Angle: 360°
Temperature Adjustment Range: 30-55℃/86-131℉
Waterproof Level: IPx4
Control Mode: Intelligent Control
Features: Constant Temperature, Variable Frequency
Display Screen Type: Touch Screen
Water Inlet: Bottom Water Inlet
Interface Diameter: 2cm/0.7inch
Cable Requirements: 3 Wires(Live Wire&Ground Wire&Neutral Wire), 4mm²
Control Distance: Max 3m/9.8ft
Net Weight: 1.7kg/3.7lbs
Gross Weight: 2kg/4.4lbs
Package Size: 26.5*25*9.5cm/10.4*9.8*3.7inch

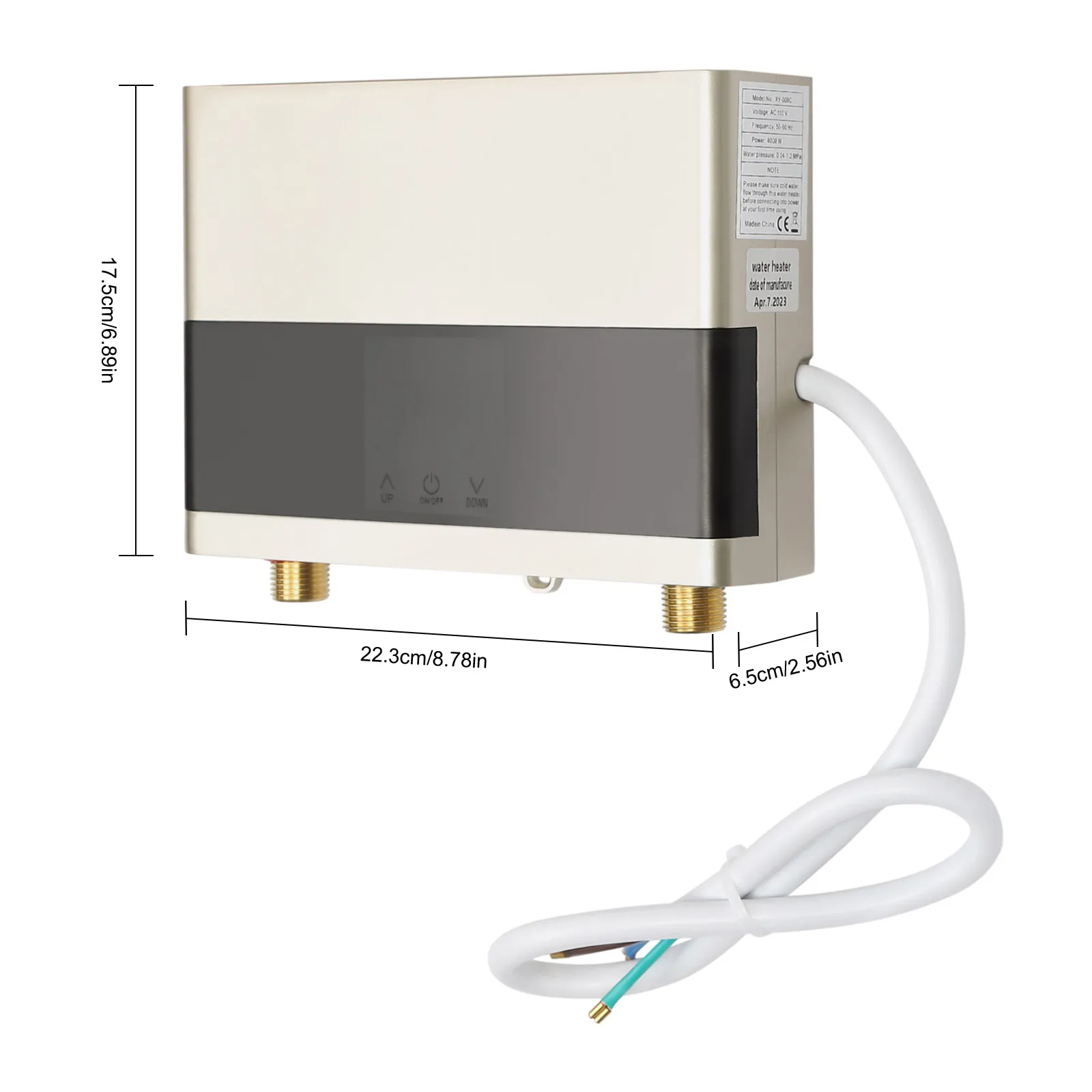

Product Size: 22.3*17.5*6.5cm/8.7*6.8*2.5inch

Installation
1.Drill four holes on the wall with an electric drill (not included).
2.Insert expansion screws into the holes.
3.Insert the screws and tighten them.
4.Hang the product on the screw.
5.The installation is complete.

Package Included
1* Electric Water Heater
1* Remote Control
1* English Manual
Other Accessories for Assembly

Notes
1.Please take care to ensure that cold water flows through the unit before connecting to the power supply to avoid dry heat.
2.Please note that when wiring, be sure to distinguish between the ground and zero wires.
3.The maximum load of a typical household socket is only 27amp (3000W), which cannot accommodate the power consumption of a water heater. The product is not equipped with a plug and requires the use of a control wire with a contact greater than or equal to 40amp as the main gate to provide sufficient power and ensure safety.
4.It is normal that the expansion screw will blow up after the force is applied.
5.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Description

The cold water may make your hands cold when cooking in winter, make it difficult to clean the oil stains on the dishes, and let you feel uncomfortable washing your face. Are you still troubled by these problems? Healthy hot water can make your life full of warmth. This electric water heater can bring you and your family plenty of constant-temperature water for a more comfortable experience.

Key Features

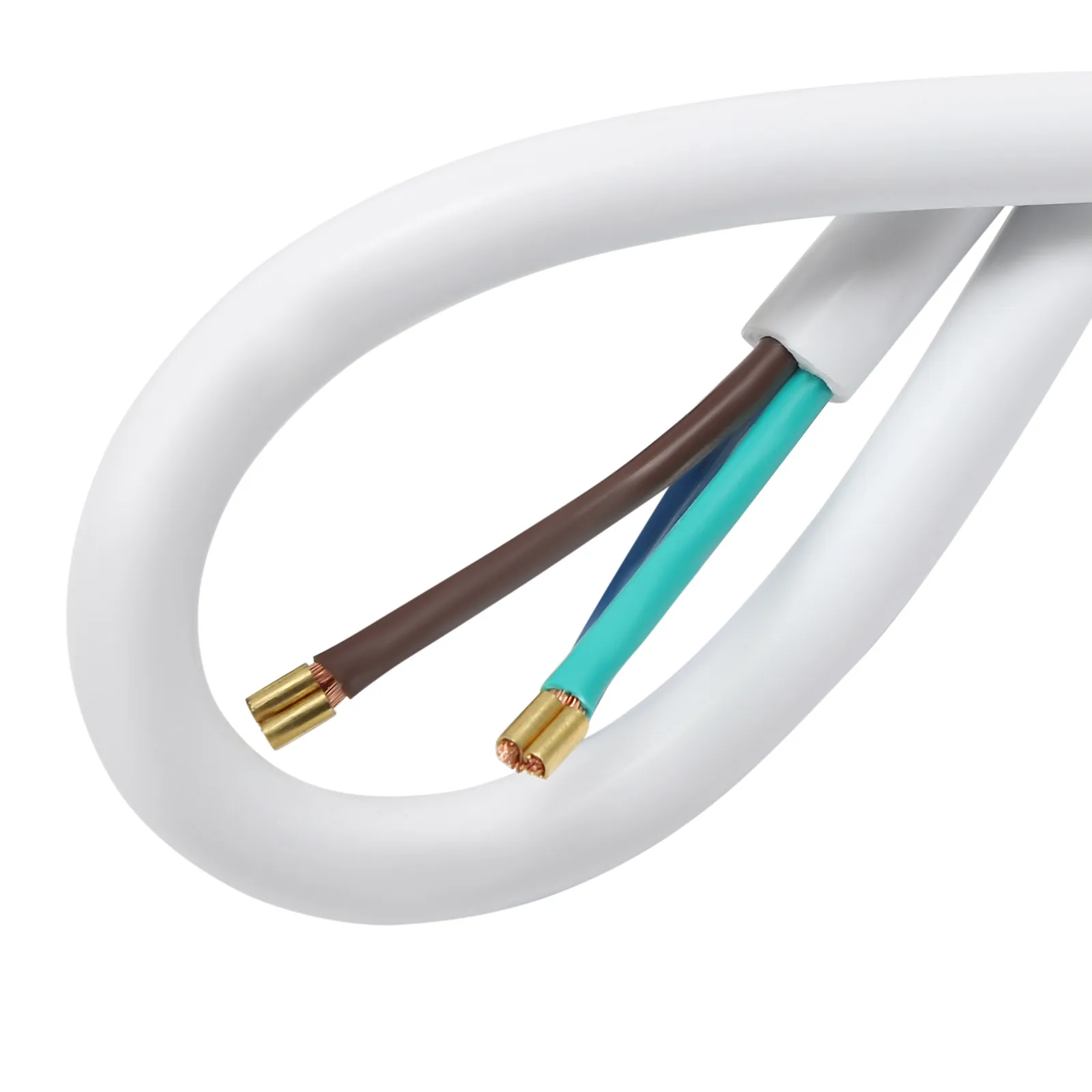

High-quality Materials: This product is made of high-quality ABS with good insulation, which is strong, durable, and not easy to deform. Meanwhile, the pure copper power line has good stability, corrosion resistance, strong conductivity, oxidation resistance, and low circuit loss.

High Efficiency: It has a high power of 1300-4000W and can heat water efficiently, evenly, and permanently. Meanwhile, this product adopts cast aluminum heating to provide you with hot water in just about few seconds without preheating, saving you lots of time and effort.

Adjustable Design: The power of this product can be adjusted and the display screen can display 35 (1300W), 45 (2600W), and 55 (4000W), allowing you to easily grasp the usage status of this product. Meanwhile, the touch control panel allows you to adjust the temperature within 86-131℉, making it suitable for seasonal temperatures.
And the touch screen can control the on/off of the water heater, and convert the display to Fahrenheit/Celsius.

High Safety: It has lots of protection functions, including high-temperature protection, anti-dry burn protection, ground protection, water&electricity isolation, anti-over-voltage protection, and a double anti-electricity wall. And the electrical system and fluid system are completely separated to prevent leakage and water pipe corrosion, allowing you to use this product safely.

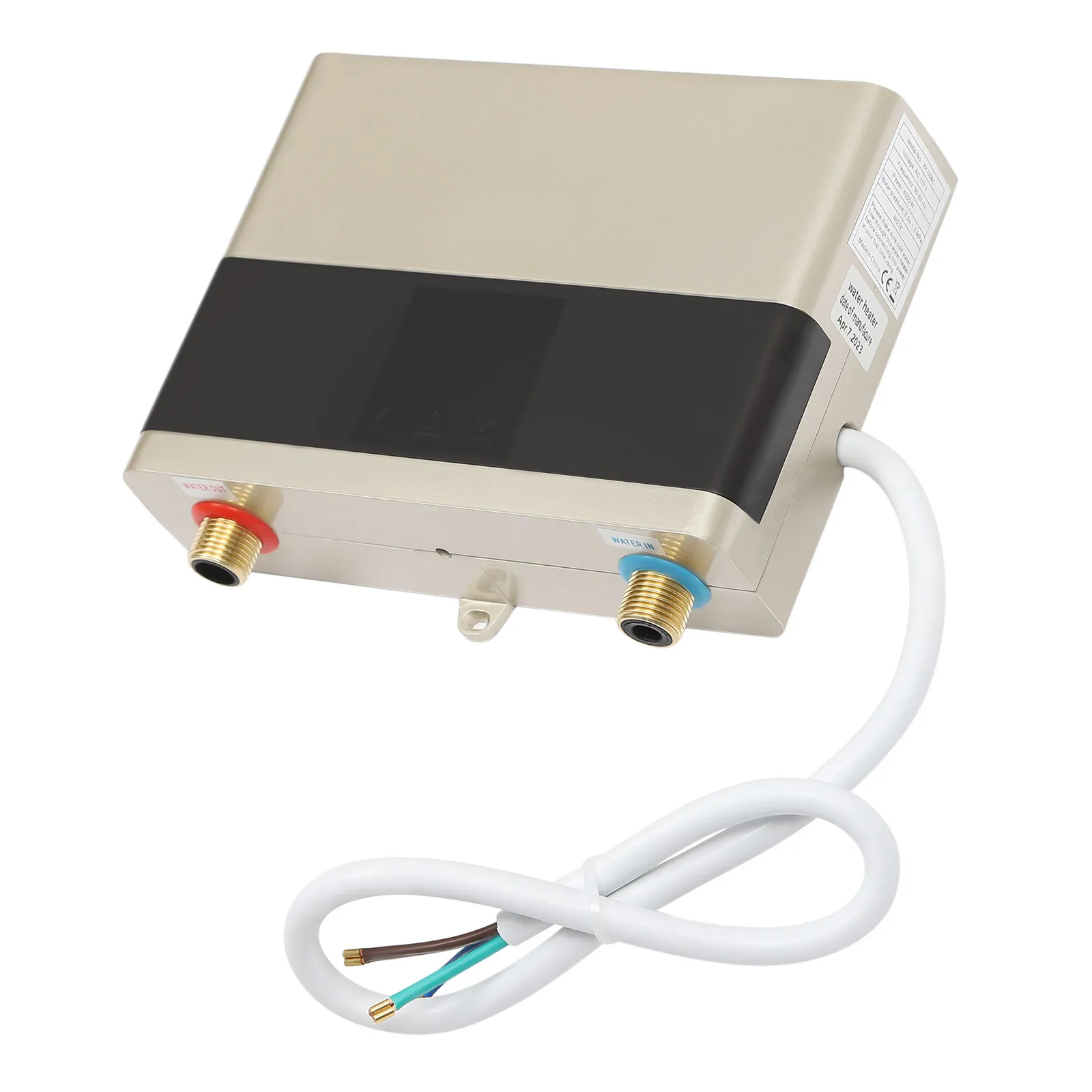

Space-saving and Energy-saving: It doesn't need to store water and only starts to work when hot water is needed, saving you lots of electricity and water. You only need to connect the lower port to the water inlet/outlet pipe (red: outlet pipe/blue: inlet pipe). Also, it is compact (8.7*6.8*2.5 inches) and can be installed at an angle of 360°, making it suitable for small spaces to avoid wasting space.

Work Stably: It is suitable for water pressure of 0.04-1.2 MPa, so it can work stably even under low water pressure. You can use it normally even on high floors or during peak water usage.

Highly Waterproof: It has a waterproof grade of IPx4, making it available to work in a wet environment.

Thermostat Function: The thermostat function prevents the water from getting too cold or too hot, allowing you to set the temperature in the proper range.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

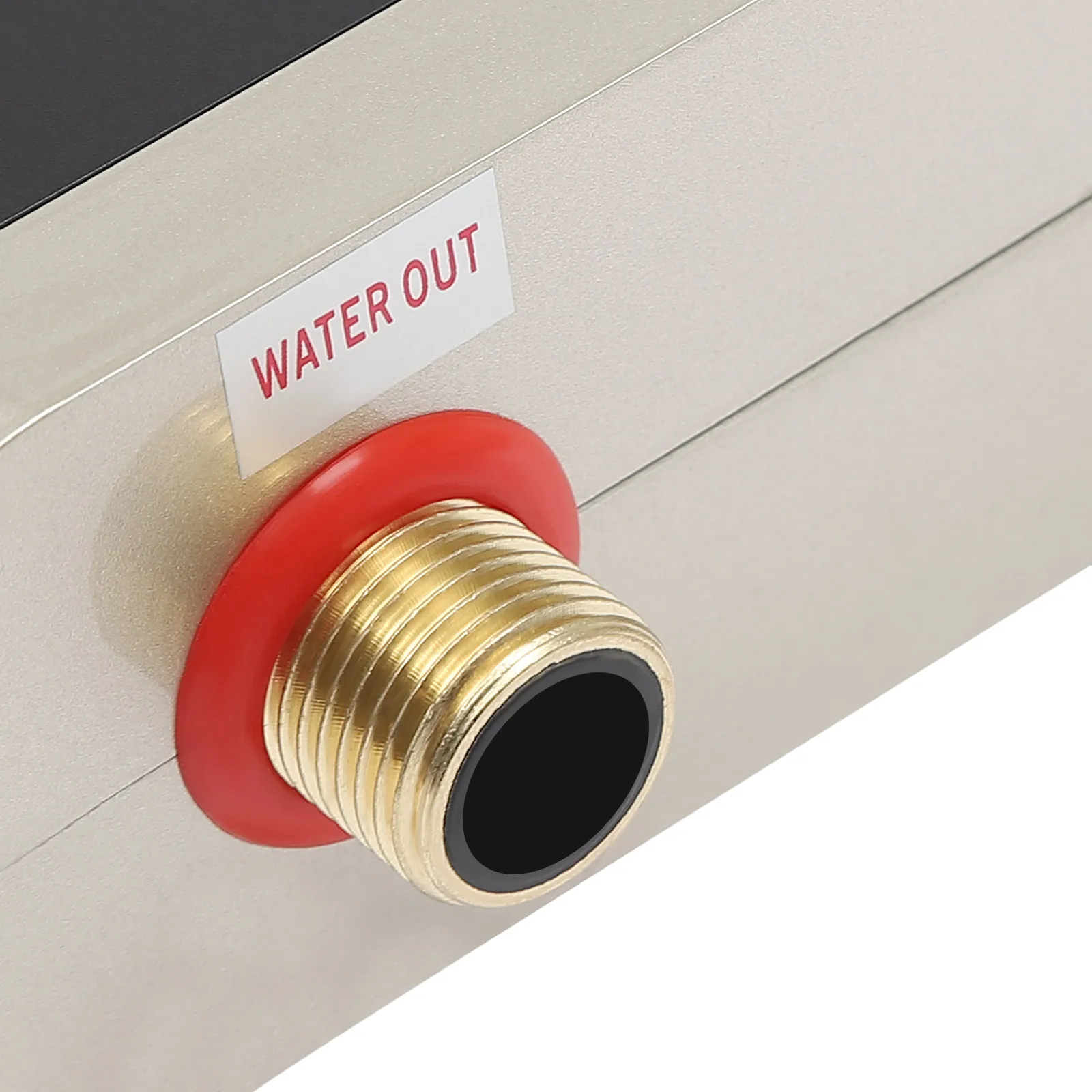

Universal Interface: The 0.7" diameter interface has good universality and allows for easy installation.

Gourd Holes: Gourd holes on the back make the product easy to install on the wall and not easy to fall off.

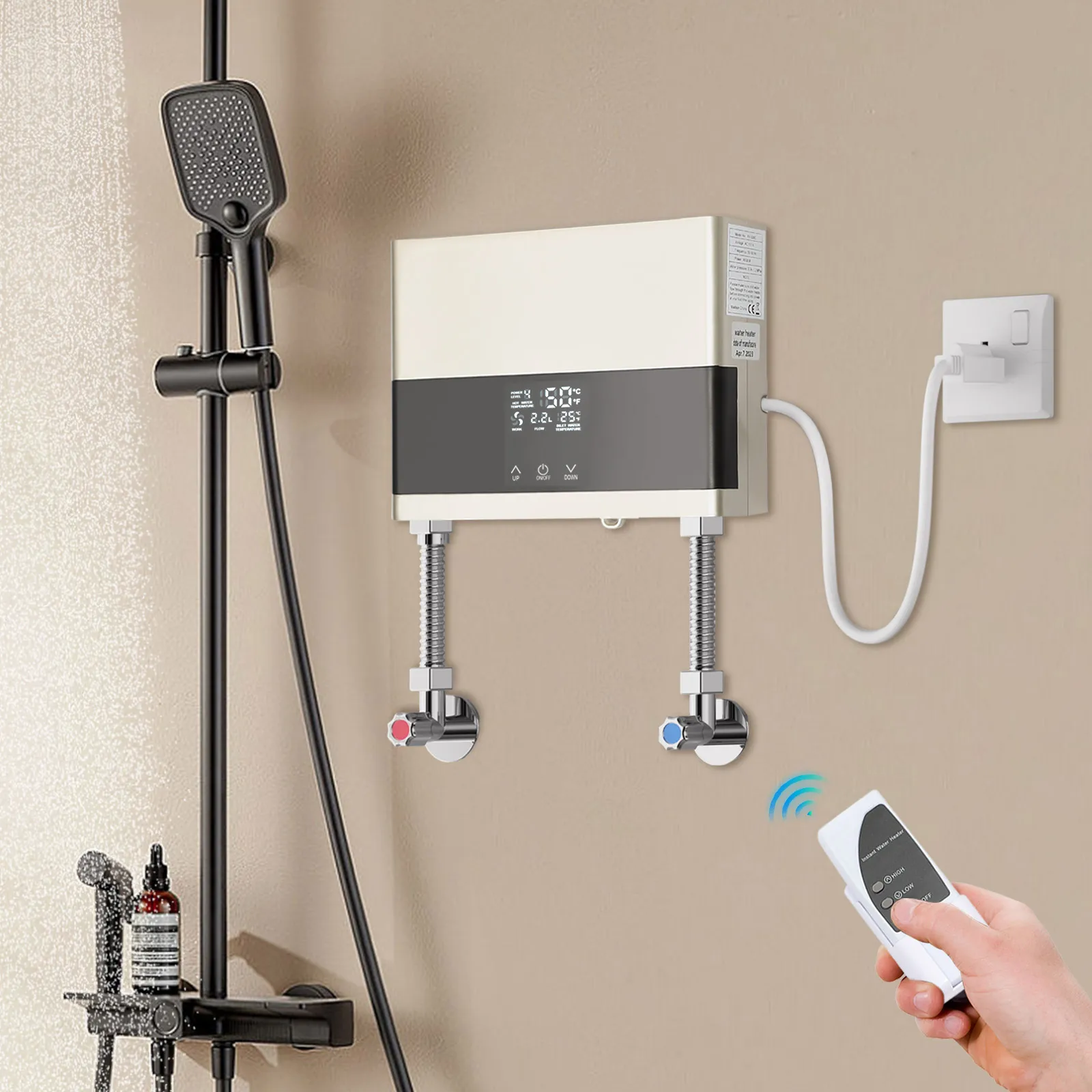

Remote Control: This can facilitate remote control of the water heater within 9.8ft, bringing you great convenience.

Filter Screen: The filter screen at the water inlet can filter coarse impurities such as sand or hair in the water.

Application

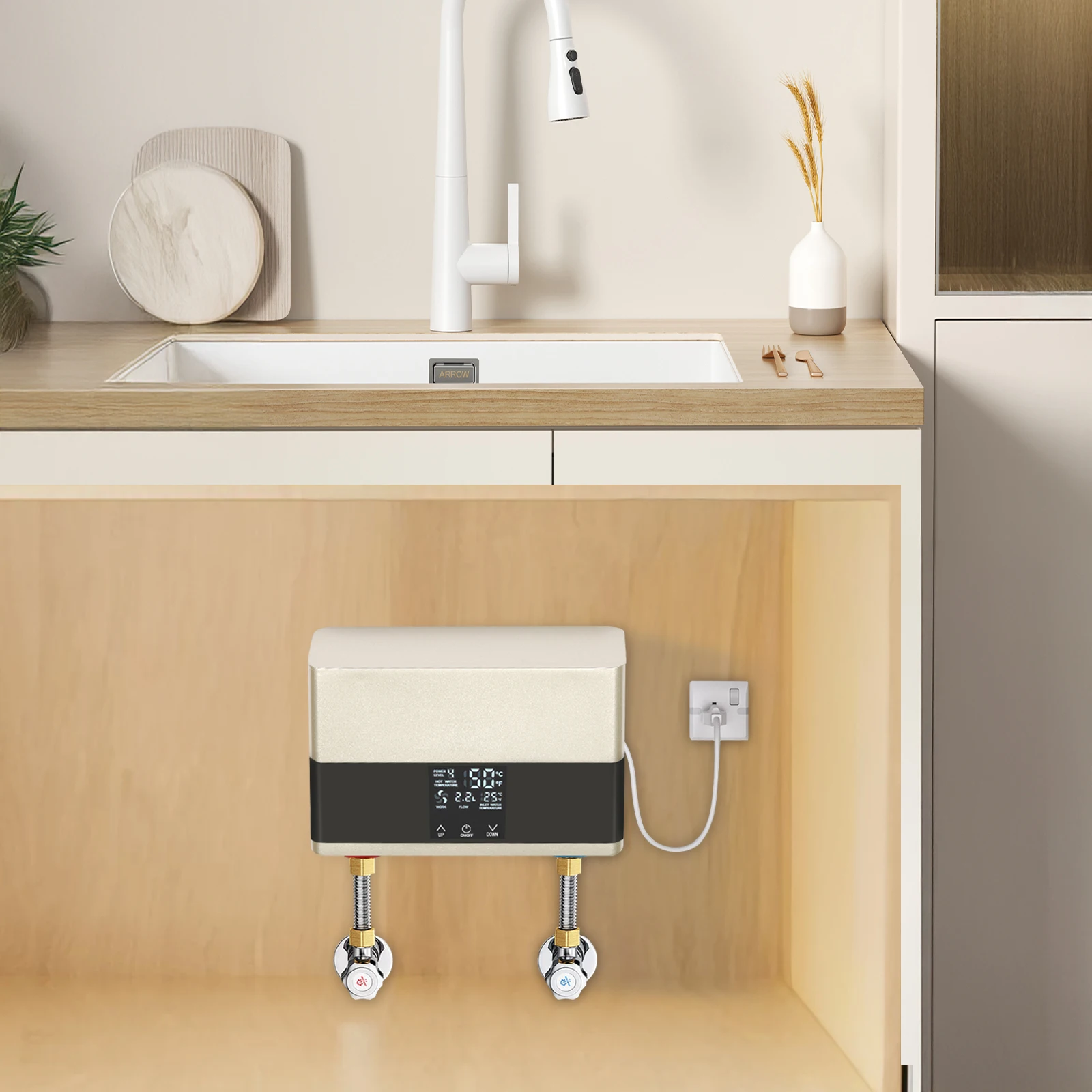

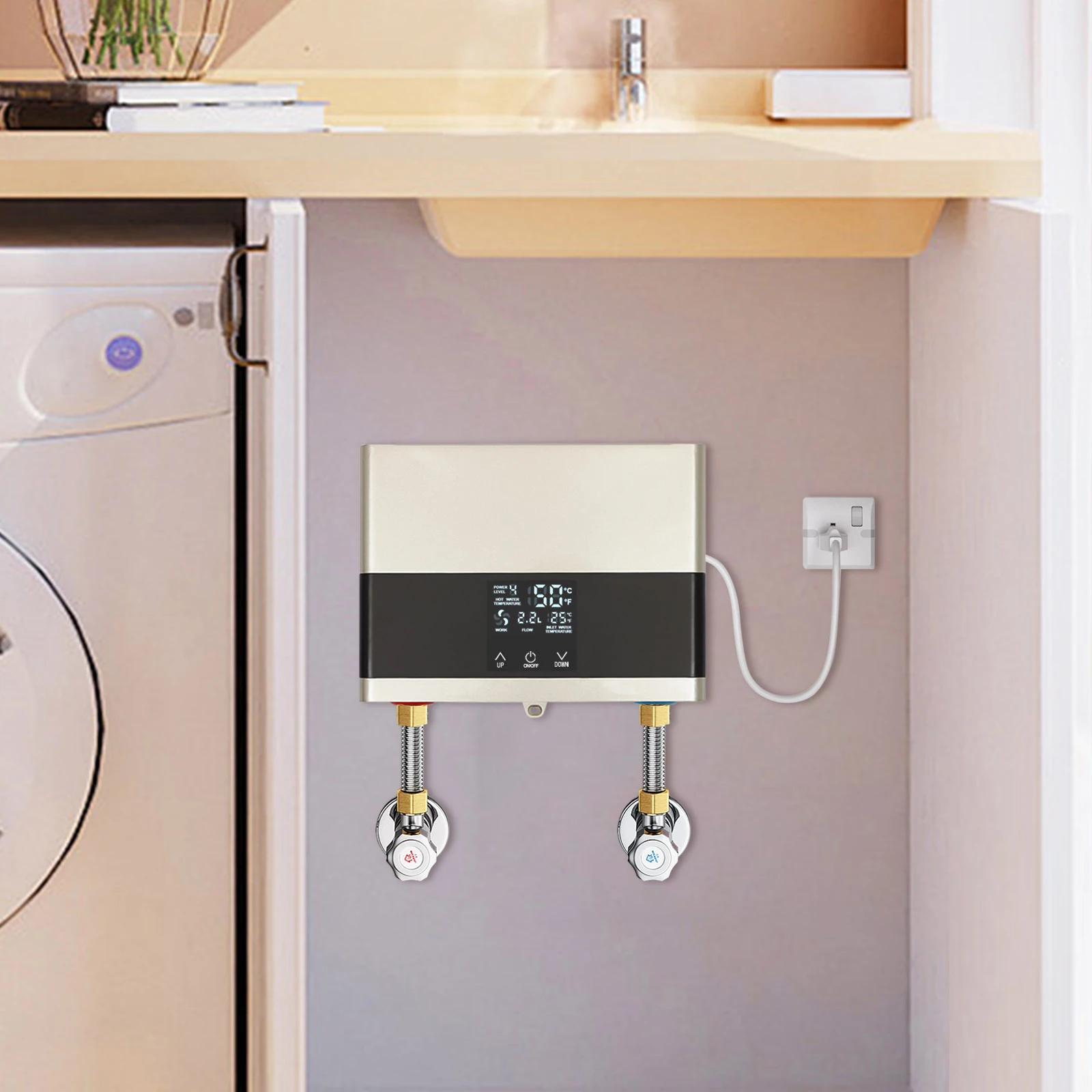

It is suitable for kitchens, bathrooms, restaurants, hotels, etc.
