QIACHIP 433MHz Wireless Remote Control Switch Long Range Mini Receiver 3.6V 12V 24V and 433 MHz Transmitter LED Remote Control

Application environment:

Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

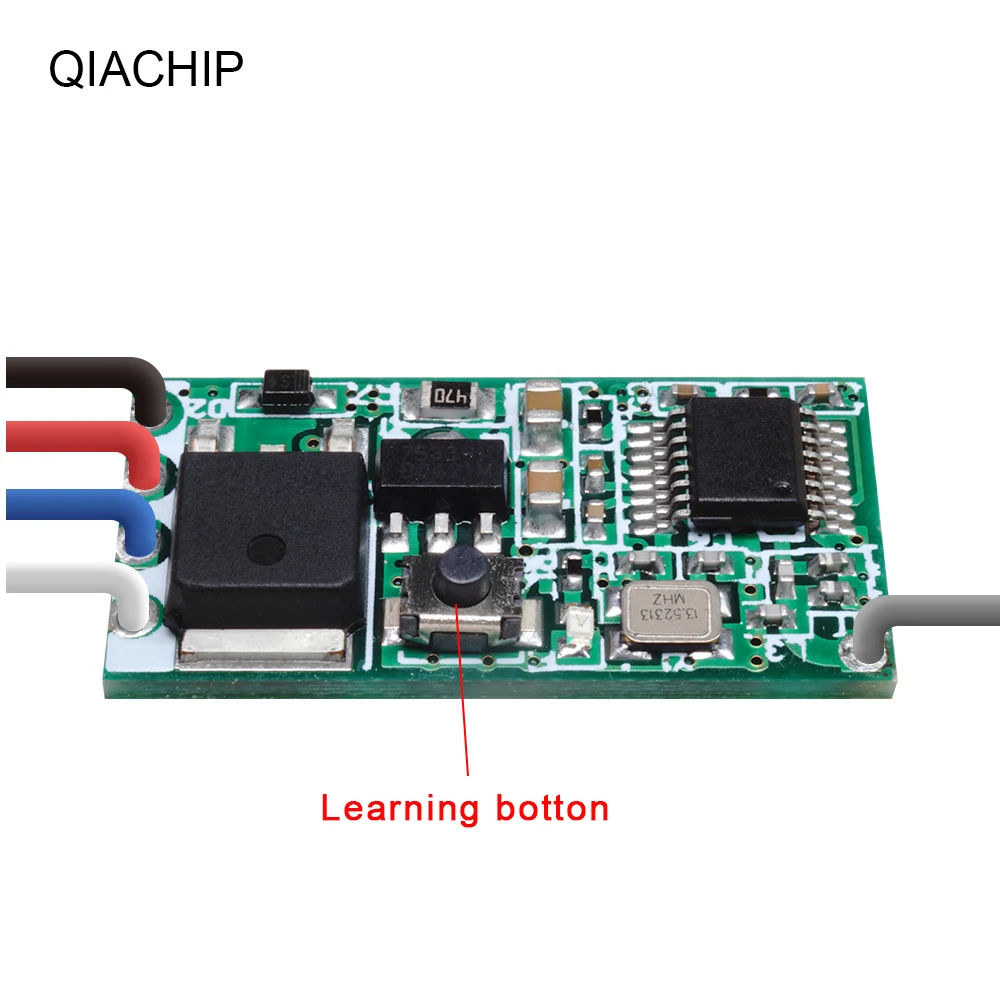

Features of the receiver:

·Wireless control LED lamp string, Christmas tree light string, light control switch

·Long range working voltage

·Ultra low power,High sensitive response.

.Operating Voltage: DC 3V-24V

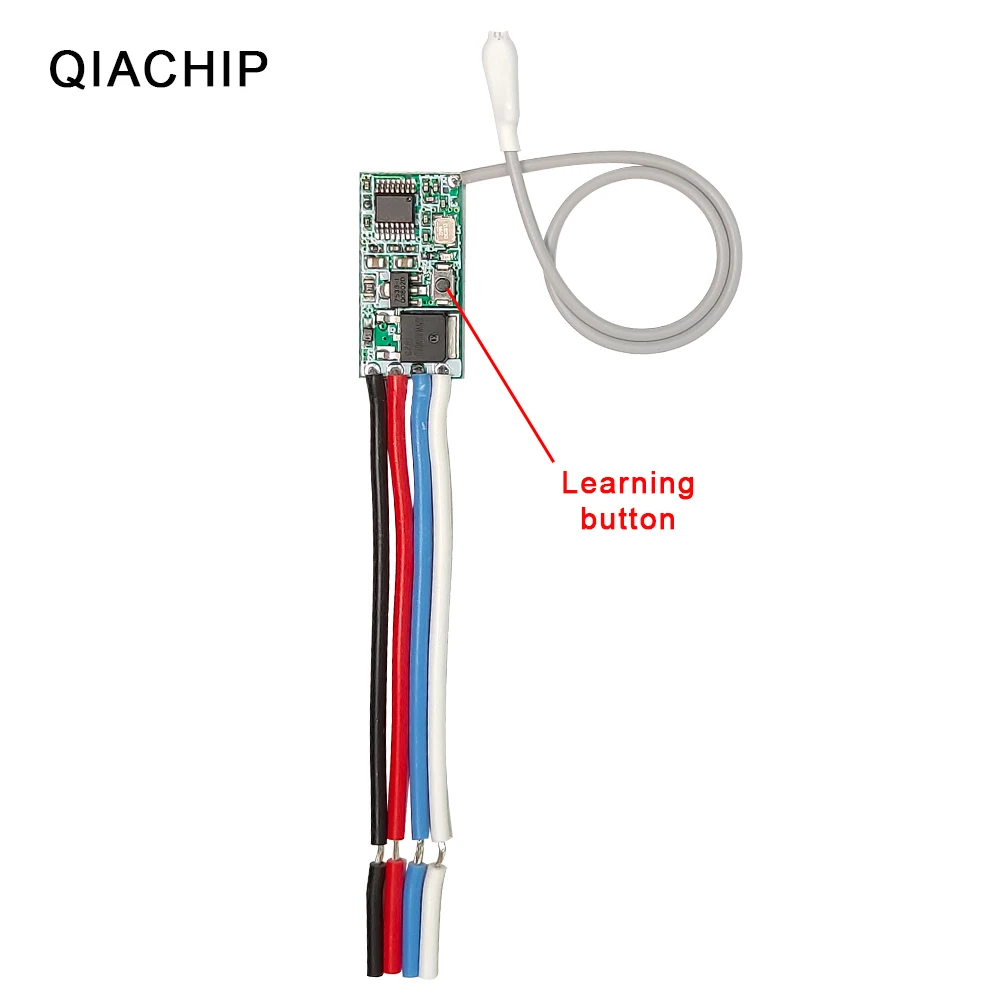

.Encoding : EV1527 1527 Learning code

.Customizable special code: MCU type.Optional fixed encoding type: PT2262 / EV1527 / HT6P20B (Minimum order:500pcs)

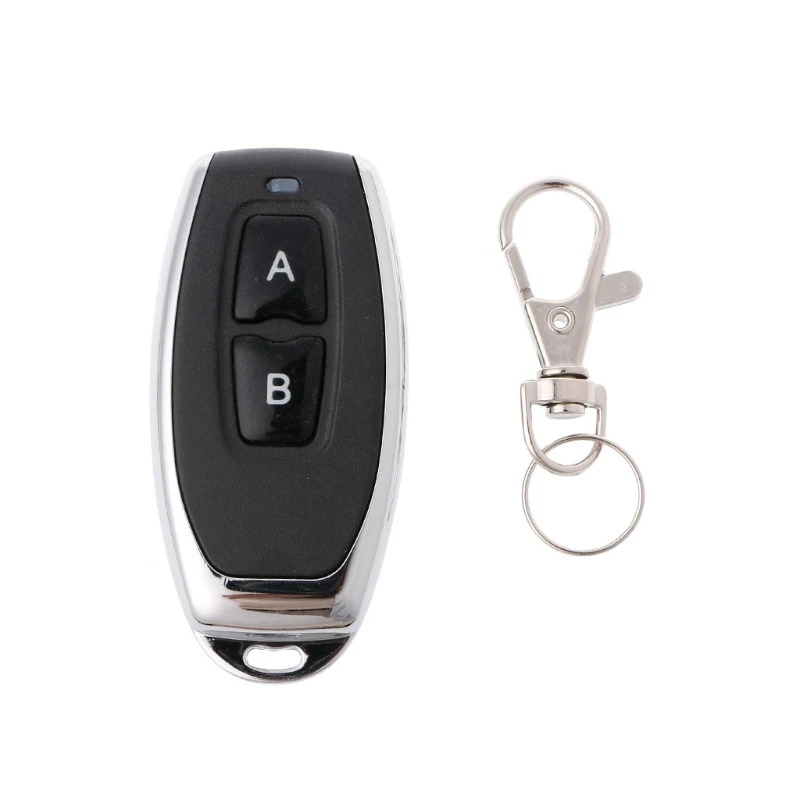

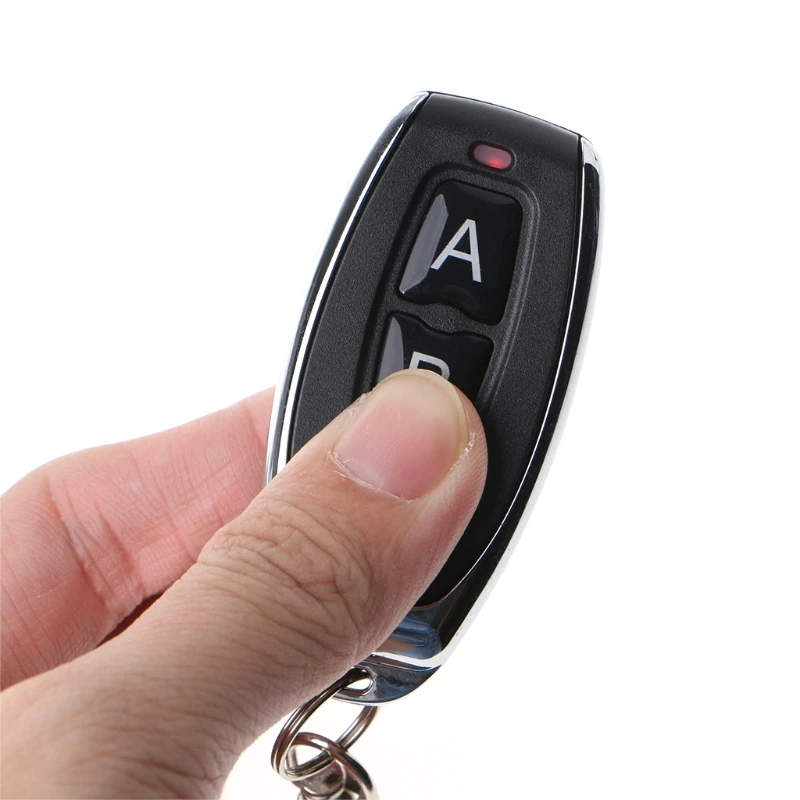

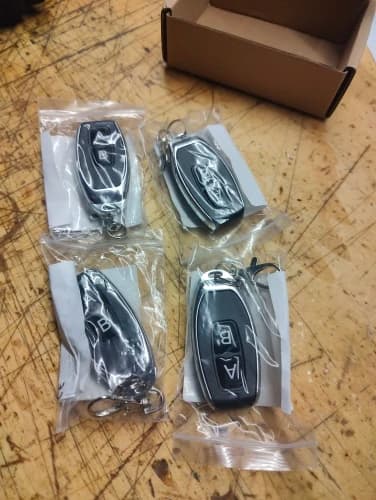

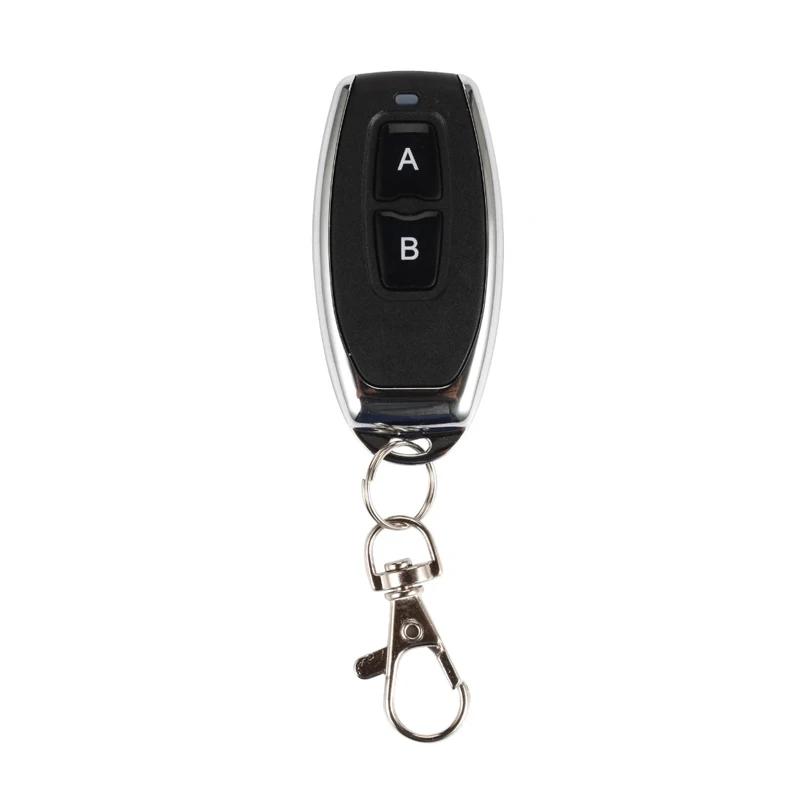

Specifications Of The Remote Control:

Operating RF Frequency: 433MHz

Coded System: 1527 Learning Code

Working Voltage: DC 6V

Working Current: 12mA

Transmitting Power: 10mW

Wireless Operating Distance: 50m(Free Space)

Color: Black

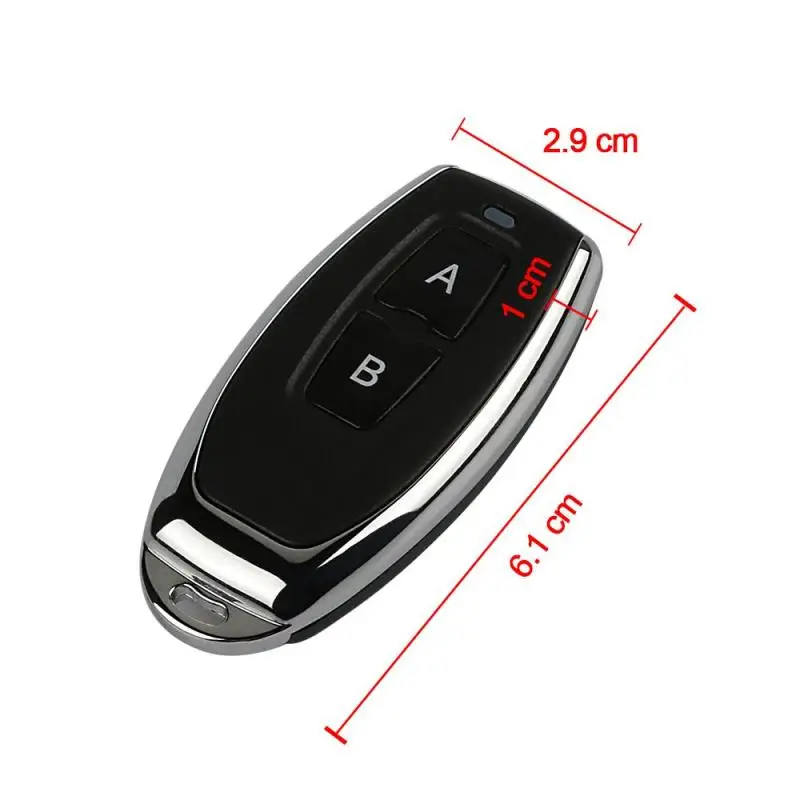

Main Item Size: 6.2 * 2.9 * 1.2cm / 2.44 * 1.14 * 0.47in

Main Item Weight: 25g/0.98oz

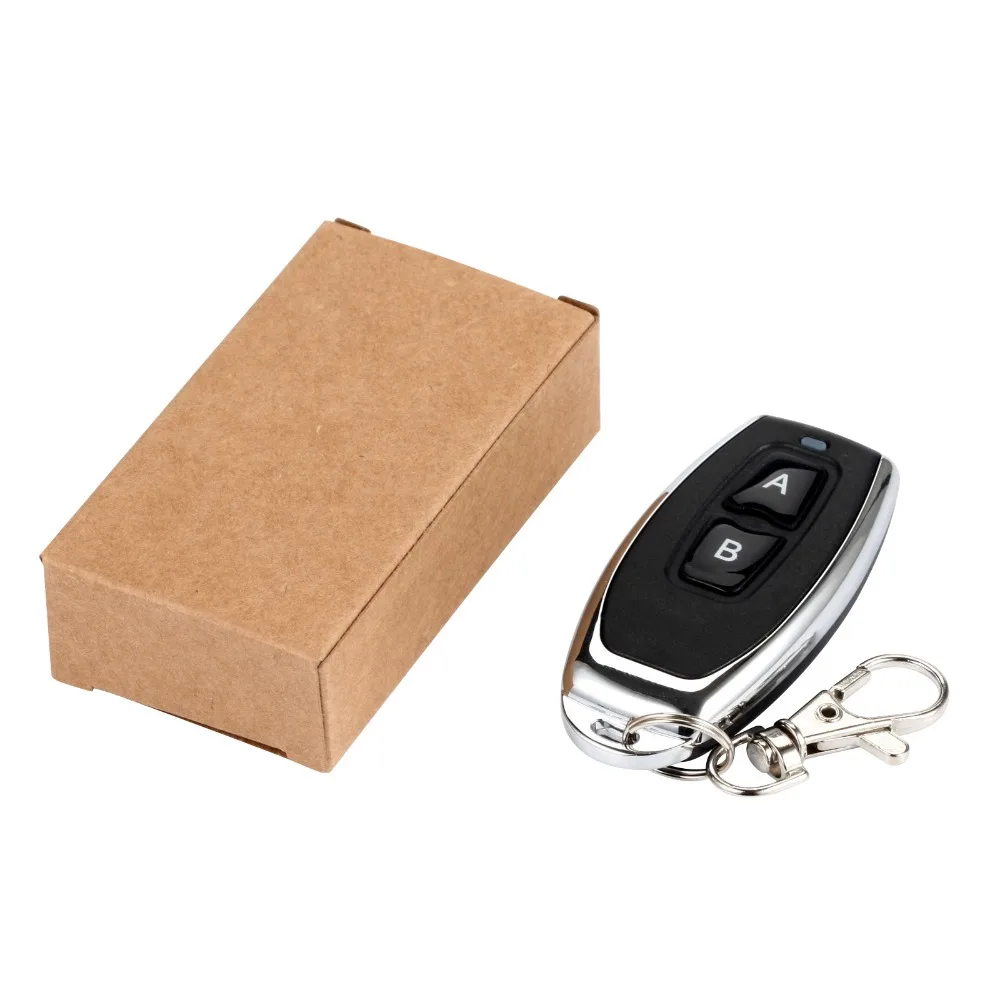

Package Size: 6.5 * 3.2 * 1.5cm / 2.55 * 1.25 * 0.59in

Package Weight: 30g/1.05oz

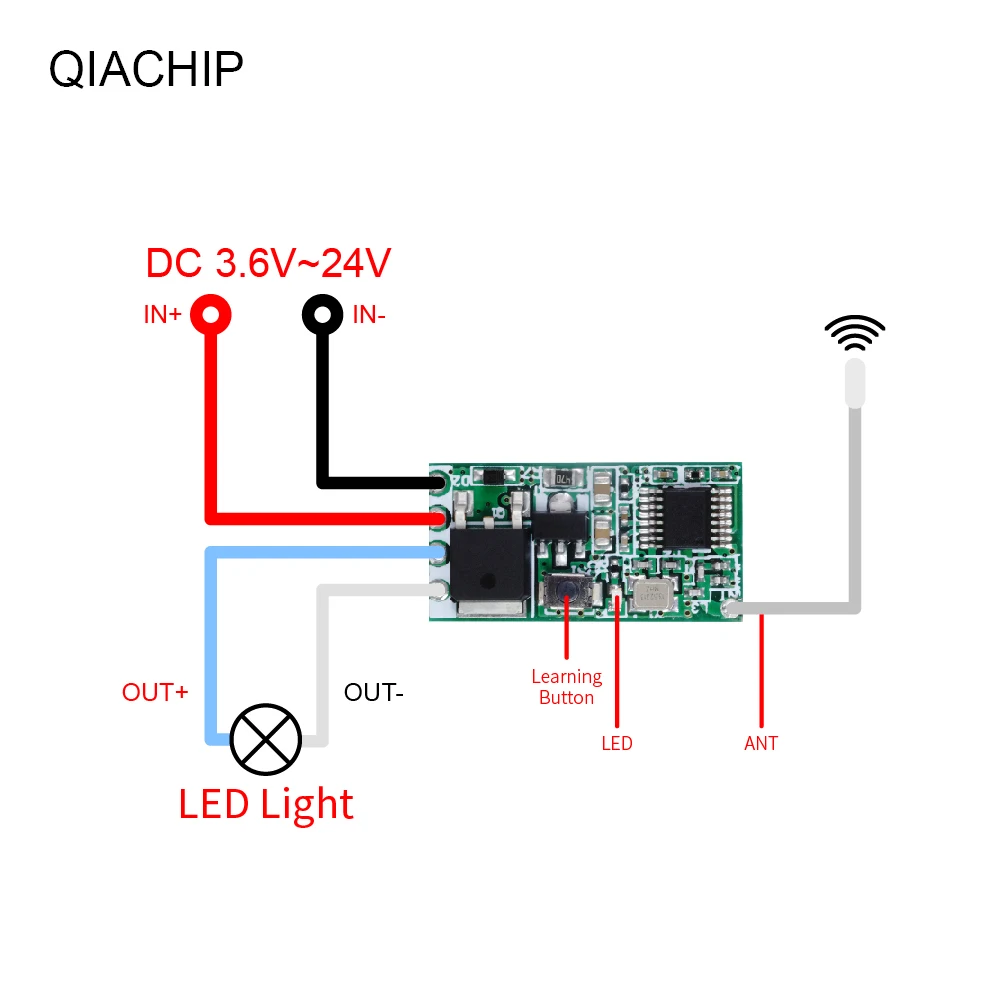

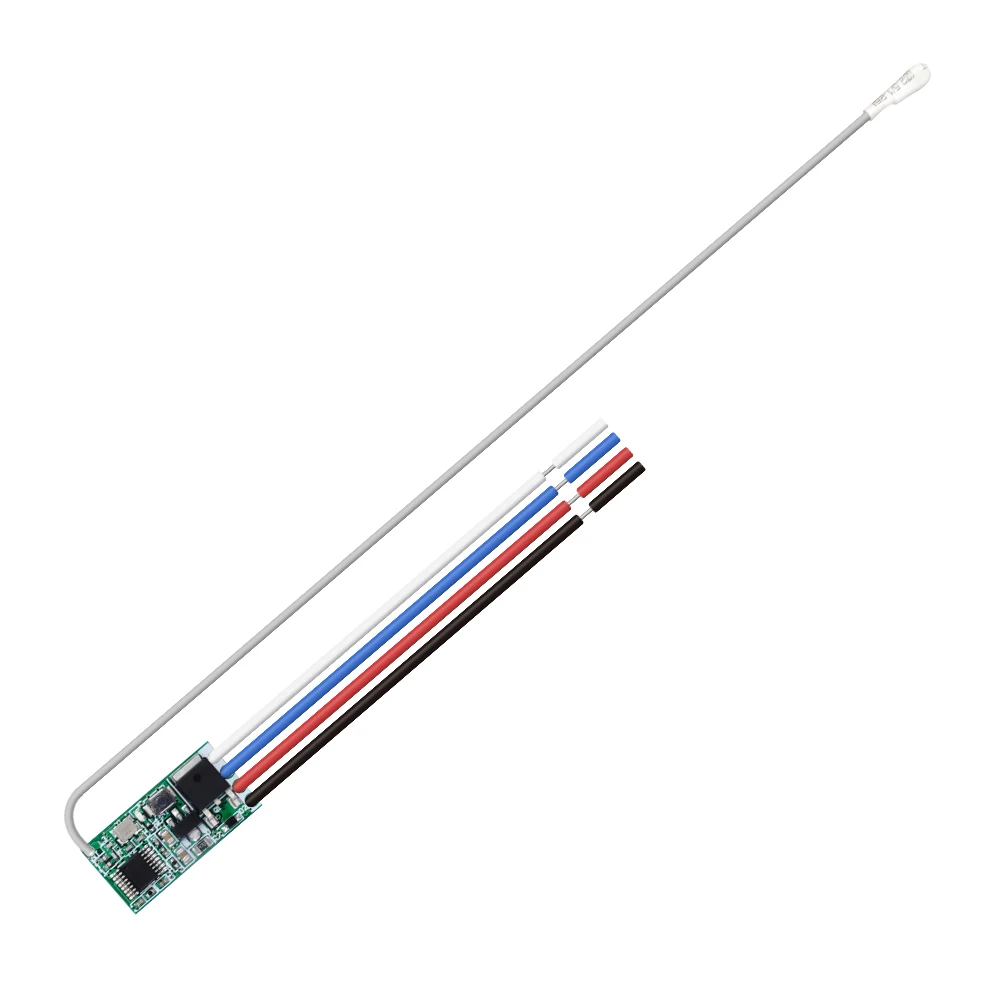

Specification:

Working voltage: DC 3.6V~24V

Maximum load:2A

Static current: 3.6 mA ~ 5.5mA

Working frequency: 433MHz

Reception sensitivity: ≥ -107dBm

Output DC3.6V~DC24V

Size: 26mm x 13mm x 4mm (length × width × high)
