8T Hydraulic Crimping Tool 4-70mm² Wire Crimper Copper Aluminum Terminals with 8 Dies

Description

Our hydraulic crimping tool can help you efficiently complete crimping work. Its hydraulic device can generate a pressure of up to 45KN and can crimp multiple specifications of copper aluminum terminals, with a good crimping effect and fast speed. The toolbox allows you to take it wherever you want, making it convenient and effortless to use.

Key Features

Build to Last: This product is made of high-quality cast iron and plastic that have been polished, electroplated, and sprayed. It has high density, is not easy to break with long service life.

Fast & Efficient: This product adopts a dual-speed oil inlet design, and the plunger adopts a leak-proof oil seal, which can quickly generate a hydraulic pressure of 45KN, improving your working efficiency.

Thoughtful Design: It can be adjusted to control the pressure of the hydraulic oil return, thus indirectly affecting the strength of the crimping action and helping to realize a more precise crimping effect. It can also quickly release the pressure in the hydraulic system, avoiding damage to the hydraulic system caused by prolonged high pressure, while also ensuring the safety of the operator.

Complete Set: 8 sets of dies allow you to cope with wider working requirements without needing repeat order placing, saving your time and effort.

Flexible Operation: The narrower crimping head (4.3*2.6in) can be inserted into some narrow positions, and 180 ° rotation allows you to operate more flexibly.

Convenient to Assemble: It uses a C-shaped guide groove design for the crimping head, which is more convenient for installing dies and can better fix them without easy misalignment.

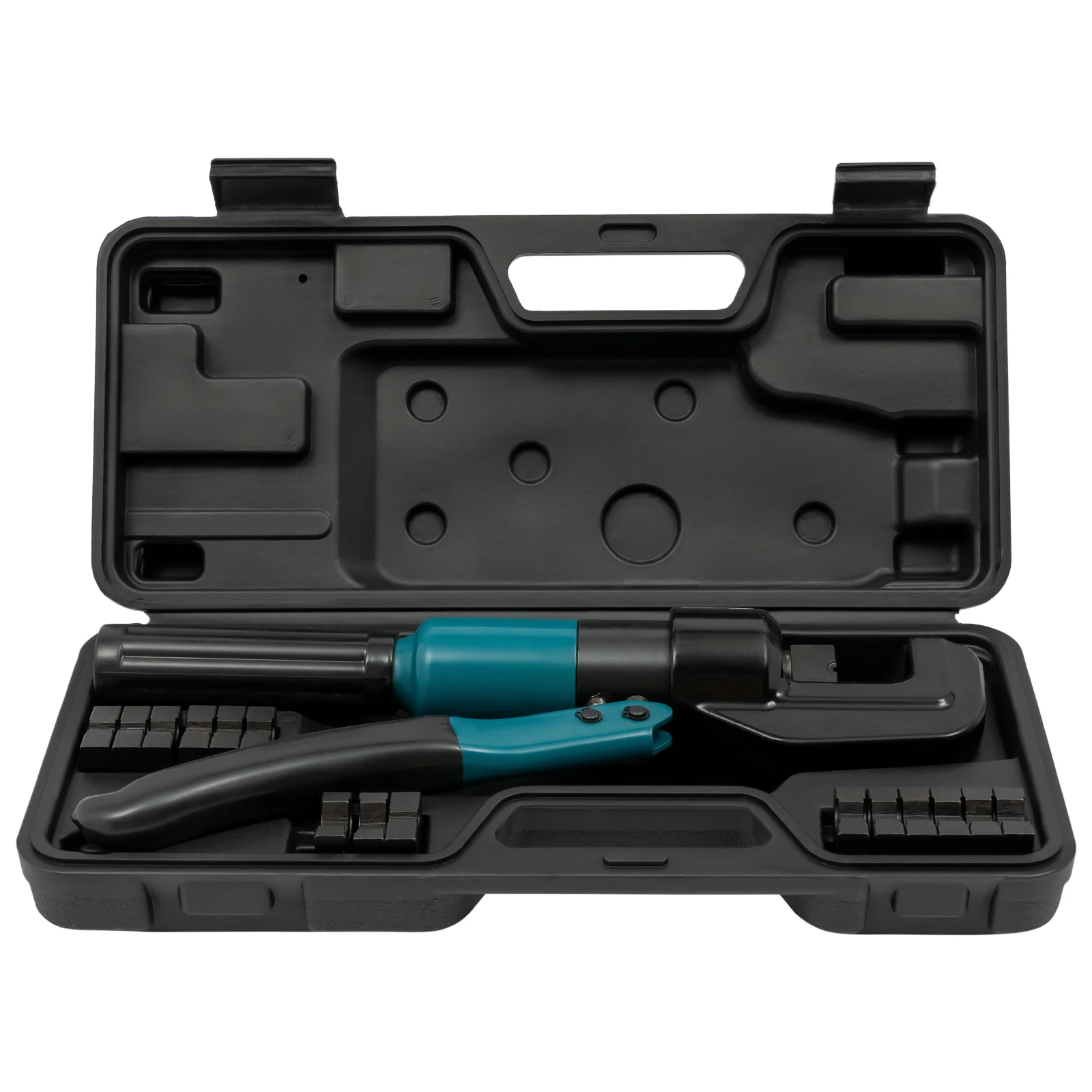

Easy to Carry: This product is equipped with a toolbox with slots to hold the tools, allowing you to take them to the desired place without worrying about damage or loss.

Comfortable User Experience: The ergonomic handle, combined with an anti-slip design, can reduce fatigue during work, making you a comfortable user experience.

Details

Oil Seals: In case of oil leakage in the product, you can directly replace the internal oil seal to ensure its sealing and performance.

Thickening Dies: Thickening design can make crimping easy, and ensure long-term use without breaking.

Application

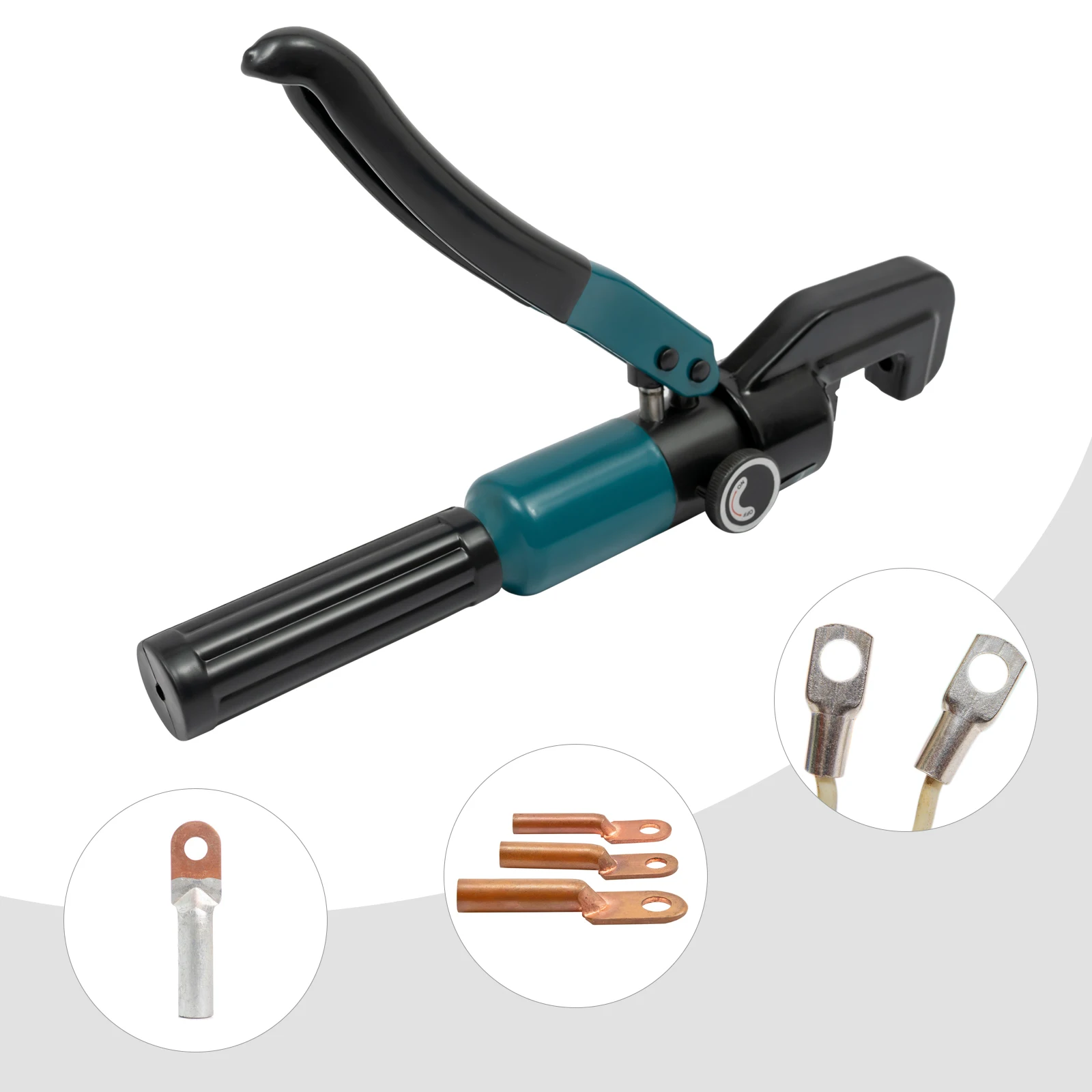

This product is suitable for power emergency repair, electrical cabinet boxes, copper aluminum terminal crimping, automotive battery installation, and railing wiring, and can be widely used in property management, automotive repair shops, automotive manufacturing plants, construction sites, and other places.

How to Use

1. Turn off the oil return knob and insert the die

2. Insert the wiring terminals and adjust the oil return knob to "ON".

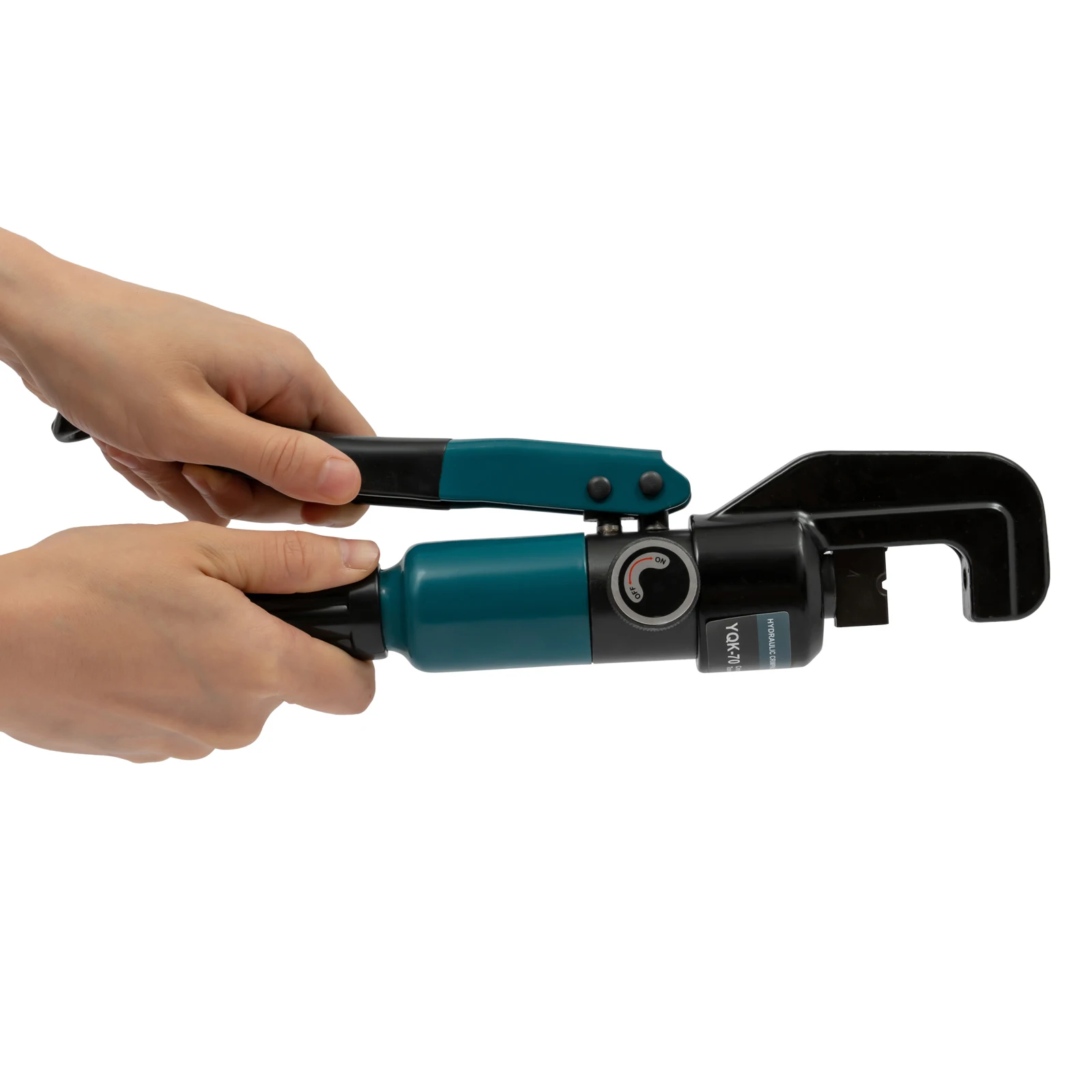

3. Press the handle repeatedly.

4. Adjust the knob to "OFF" and remove the terminal.

Specification

Model: YQK-70

Material: Cast Iron, Plastic

Process: Polishing, Electroplating, Spray Molding

Color: Black

Crimping Form: Hexagonal

Assembly Required: Yes

Operation Mode: Handheld

Applicable Material: Copper Aluminum Terminals
Number of Dies: 8 Sets
Output: 8T/17636.98lbs/45KN
Stroke: 10mm/0.39in
Crimping Range: 4-70mm²
Die Specification: 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm²

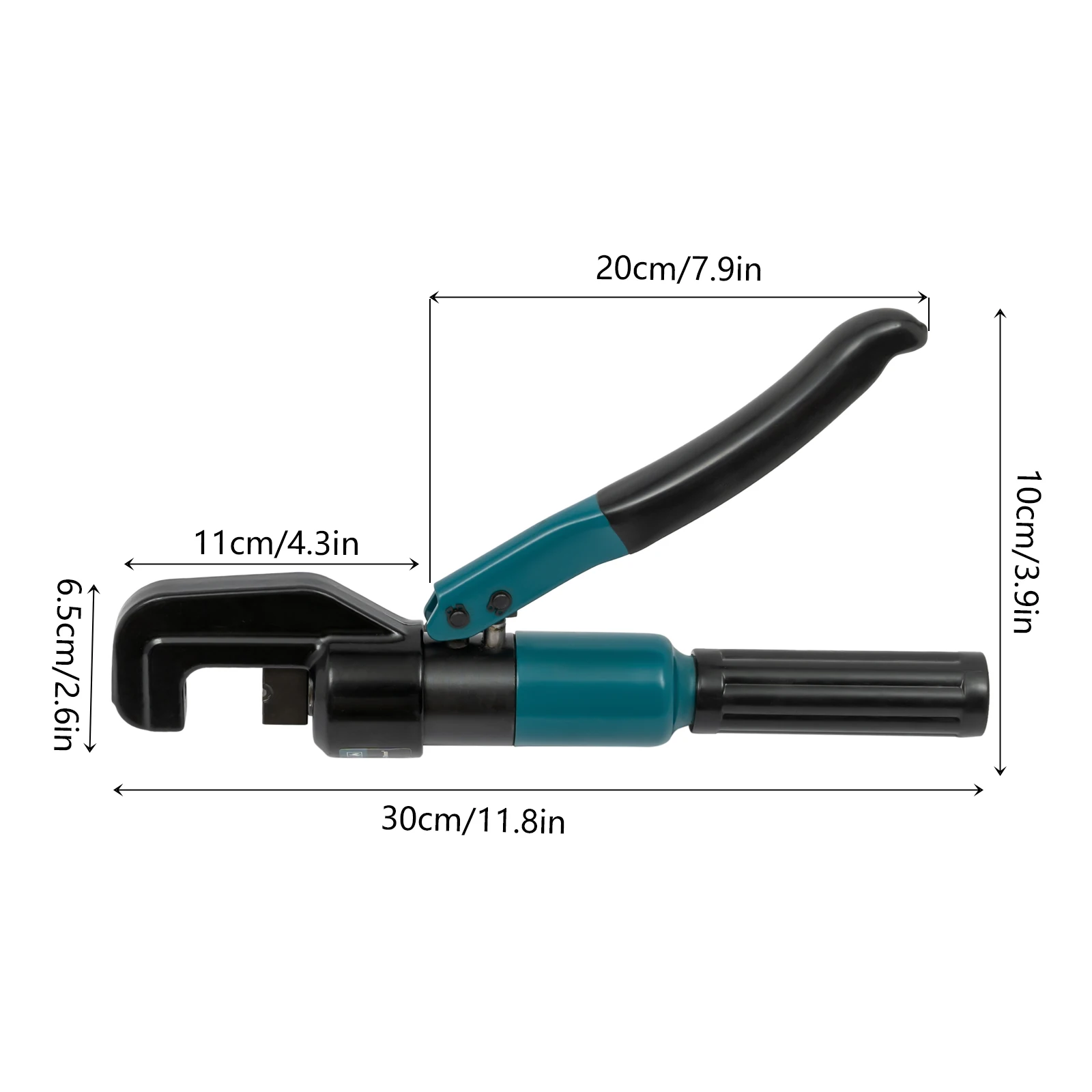

Crimping Head Size: 11*6.5cm/4.3*2.6in
Handle Length: 20cm/7.9in
Tool Case Size: 33.5*15*7cm/13.2*5.9*2.8in
Product Size: 30*10cm/11.8*3.9in
Package Size: 35*8.5*18cm/13.78*3.35 *7.09in
Gross Weight: 3kg/6.61lbs

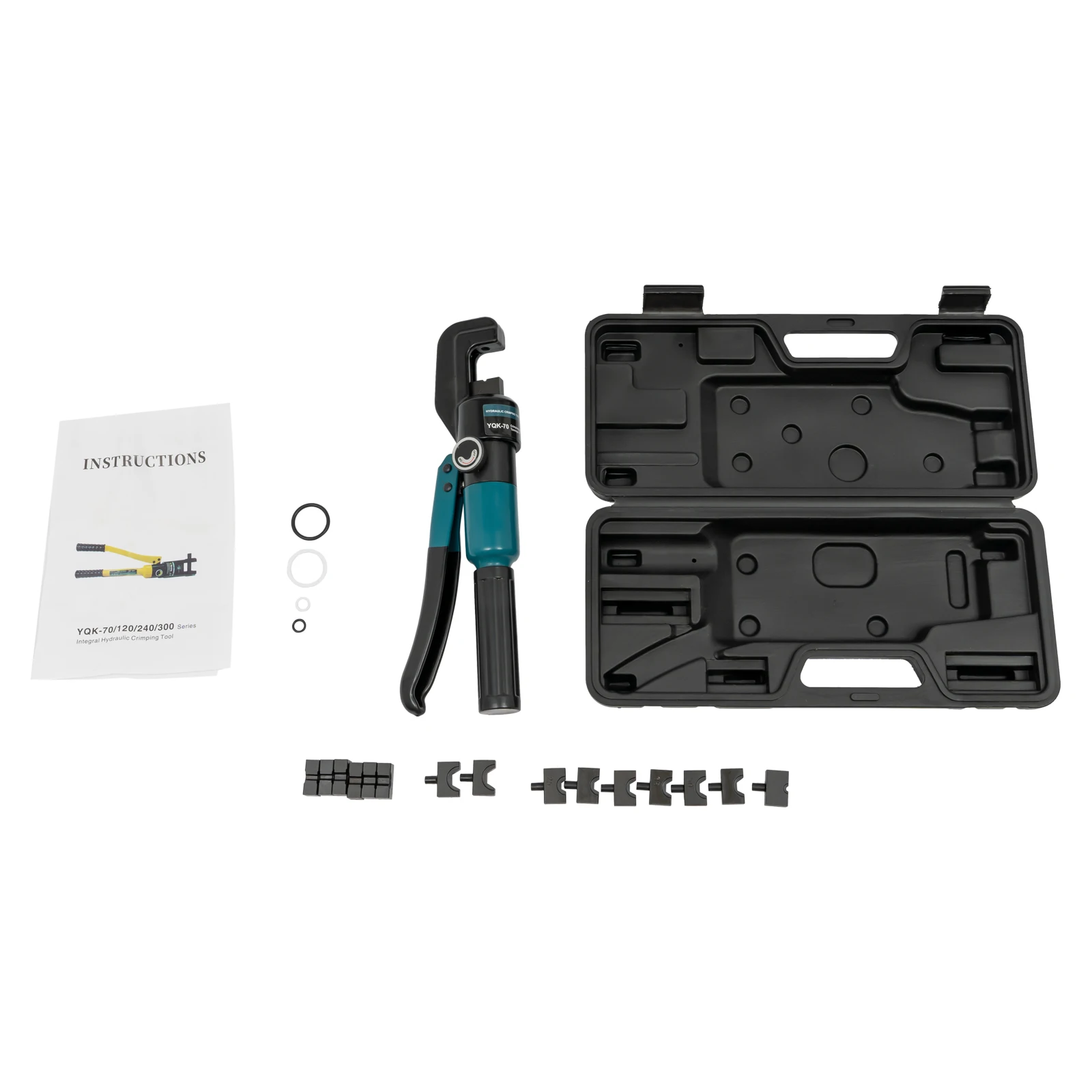

Package Included
1 * Hydraulic Crimping Tool
1 * Tool Case
8 Sets * Dies (One is Already Installed)
4 * Oil Seals
1 * English Manual

Notes
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.To prevent you from operating without a die after receiving the product, this product has already installed half of a die on the crimping head when leaving the factory. It is strictly prohibited to start crimping without installing the die to avoid damaging the product.
3.When using it outside, please observe the usage space. If the space is too small, the product may not fit in or get stuck.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
