Frame Shortening Kit Short Bed Conversion for 1963-72 Chevy GMC C10

Frame Shortening Kit Short Bed Conversion for Chevy 1963-72 and for GMC C10

Introduction

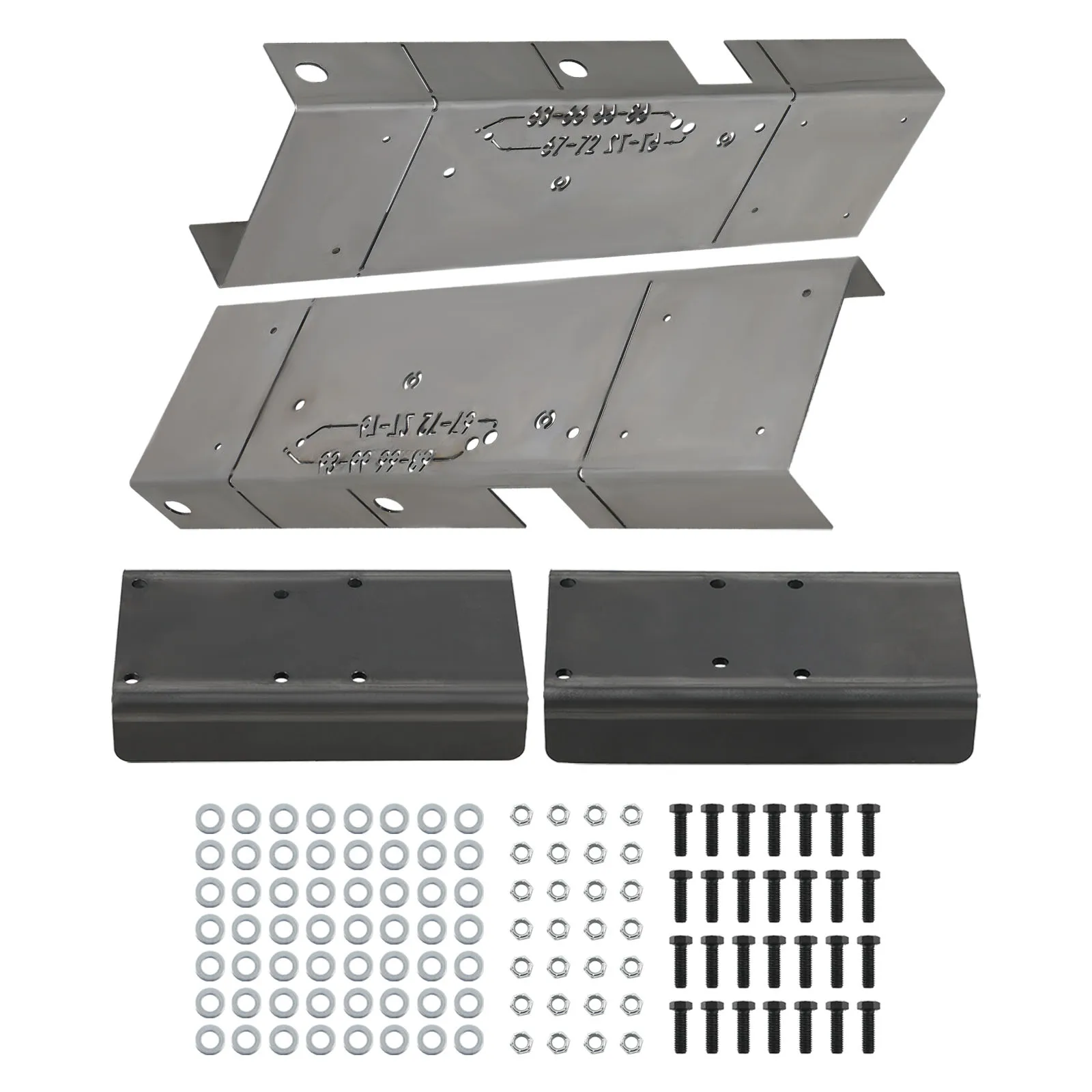

This for 1963-72 Chevy C10 long bed to short bed frame conversion includes a laser etched steel template

with all hole locations clearly marked and high strength steel inner "C" channel brace and all necessary hardware to install the kit.

Application

Will Also Work on 3/4 Ton Coil Spring Trucks, 67-72 3/4 ton trucks will require changing the Cab Mounts to 1/2 ton C10 Mounts

Driveshaft will need to be Shortened before re-installation

Not designed to work on 133" wheelbase trucks

Will not work on 4x4 Trucks

Welding Required

Requires Short Bed Parking Brake Cables and Lines

Converts 128" Wheelbase Trucks to 115" Wheelbase

Feature

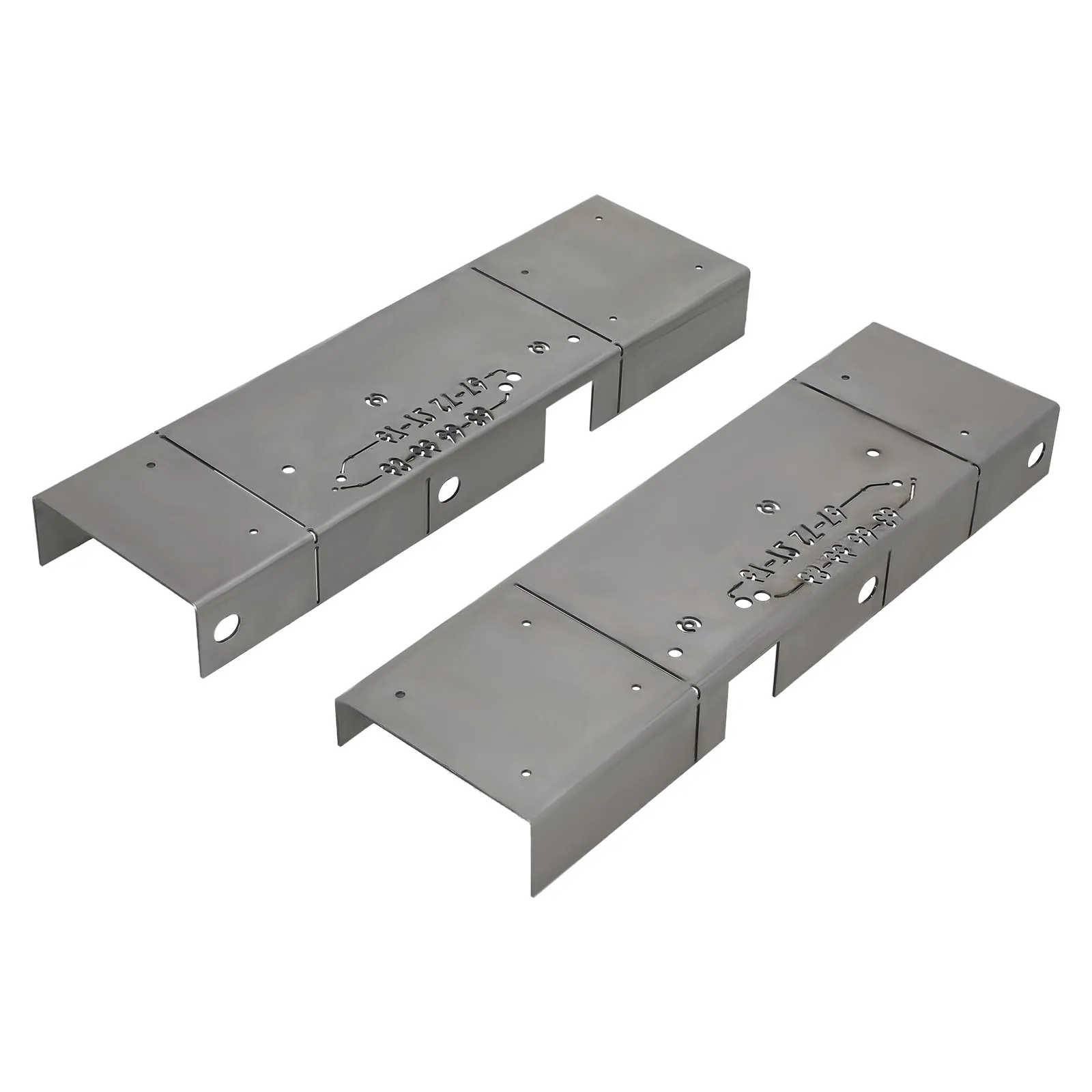

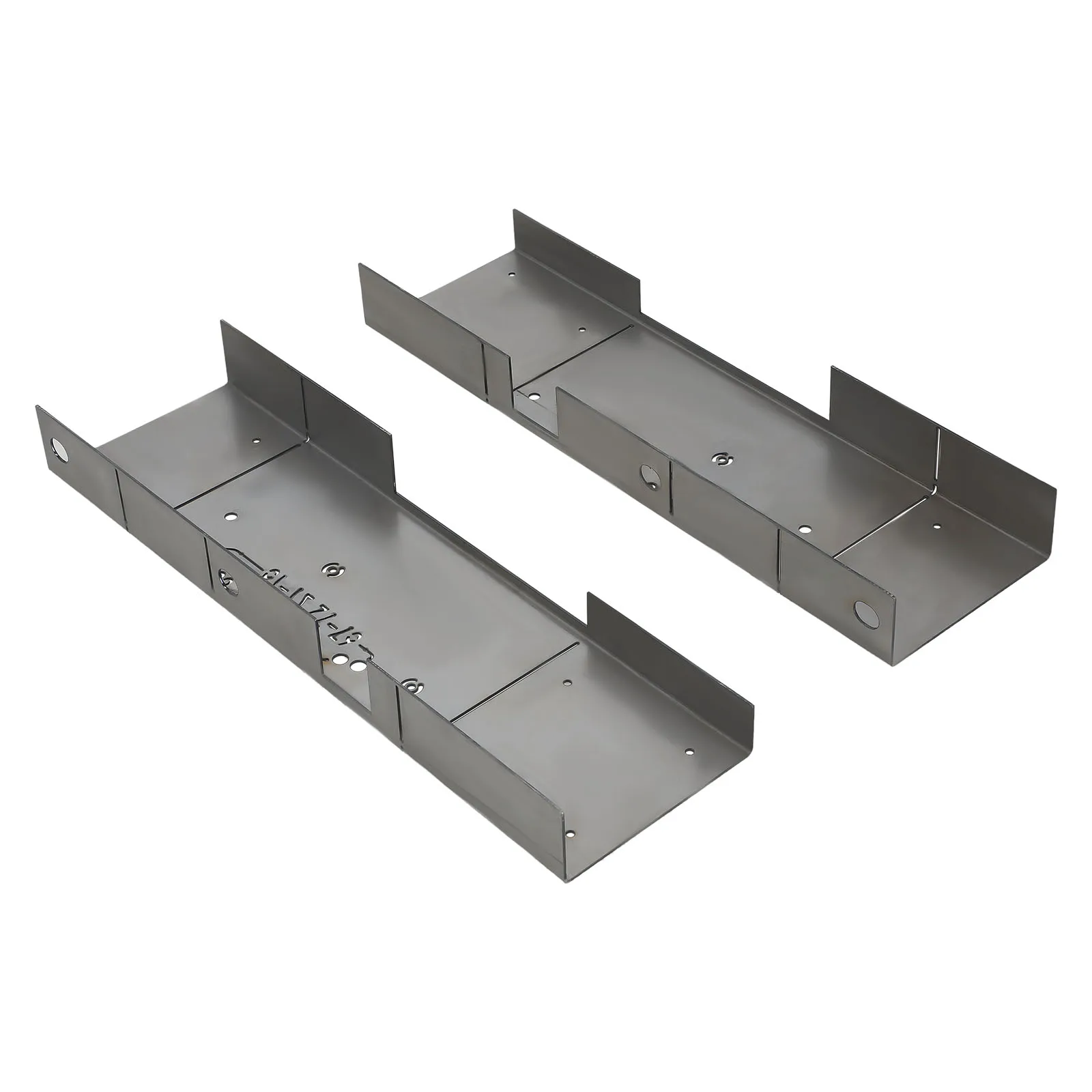

Templates For Cutting And Drilling Frame

1/4" Thick Plate (thickest on the market) NOT 3/16" LIKE OTHER KITS AND 4.8 POUNDS HEAVIER MATERIAL

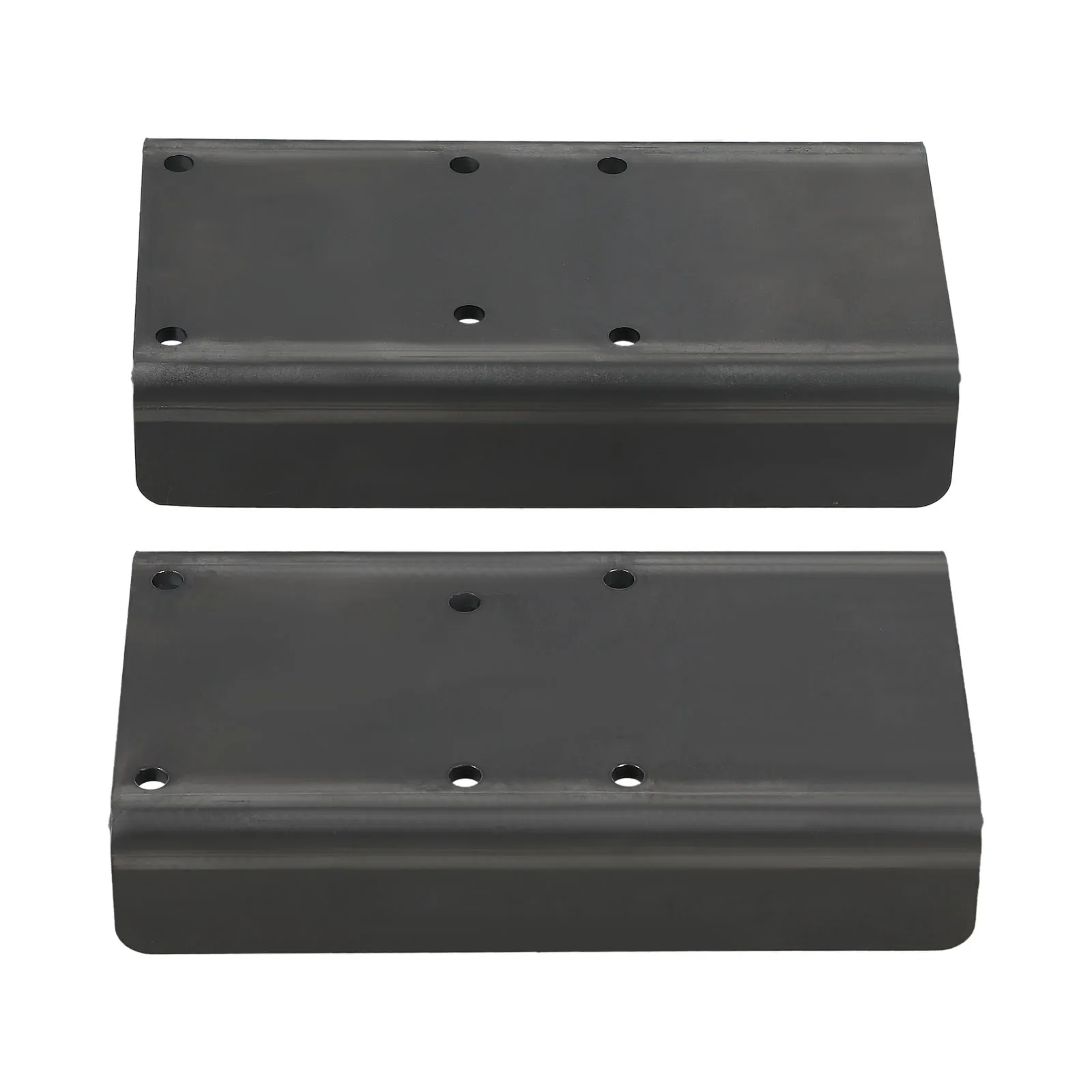

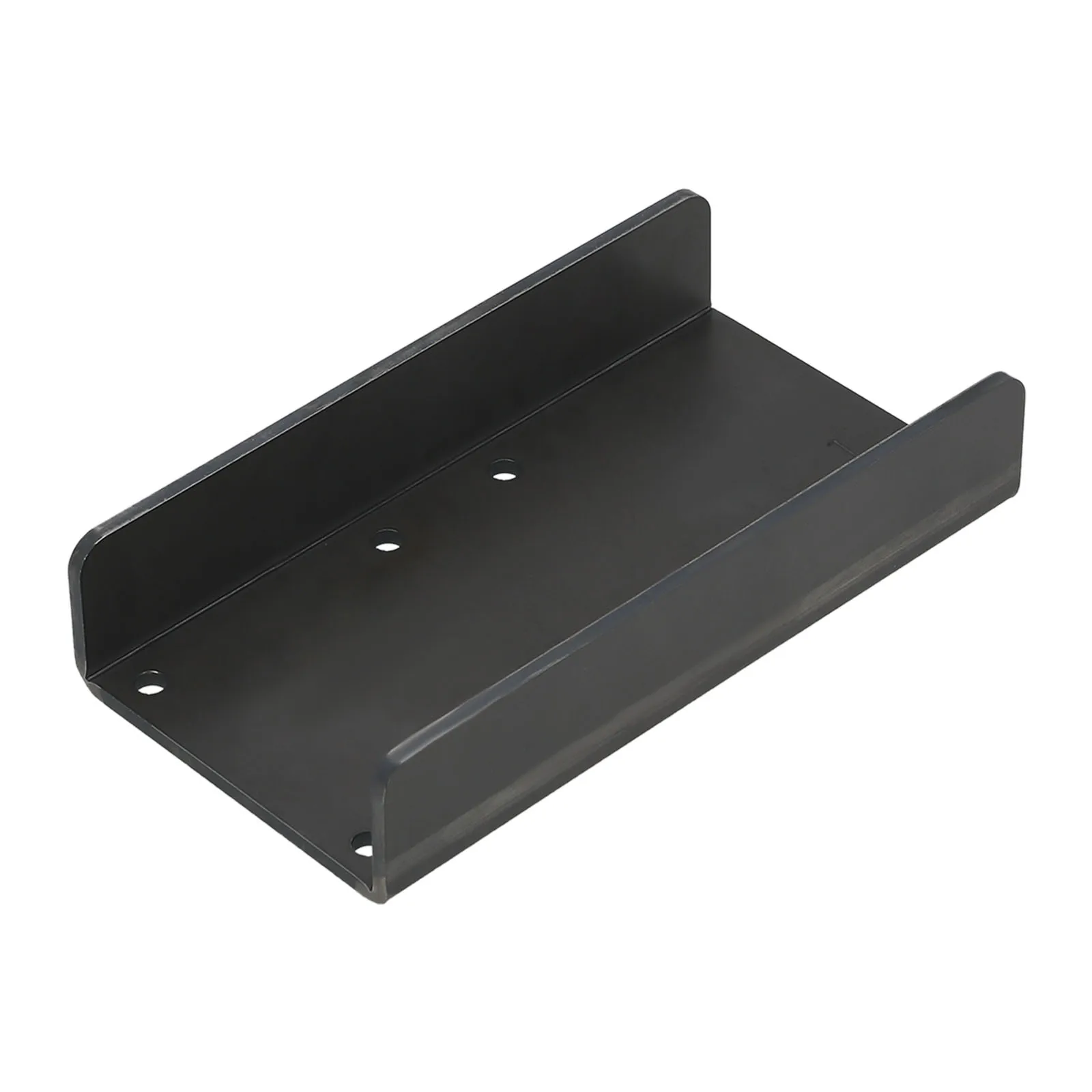

Laser Cut C-Channel to Reattach Shortened Frame

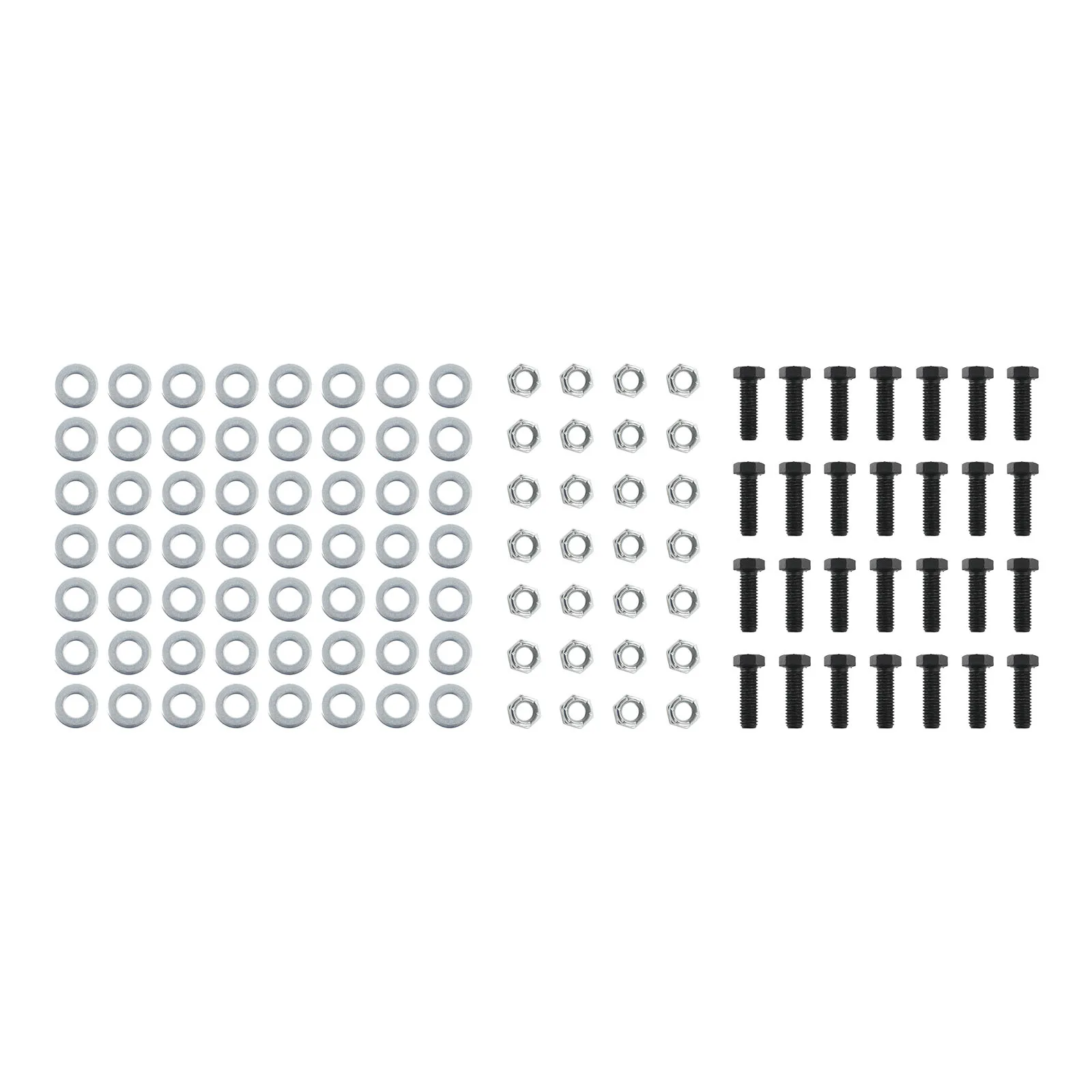

All Grade 8 Mounting Hardware
