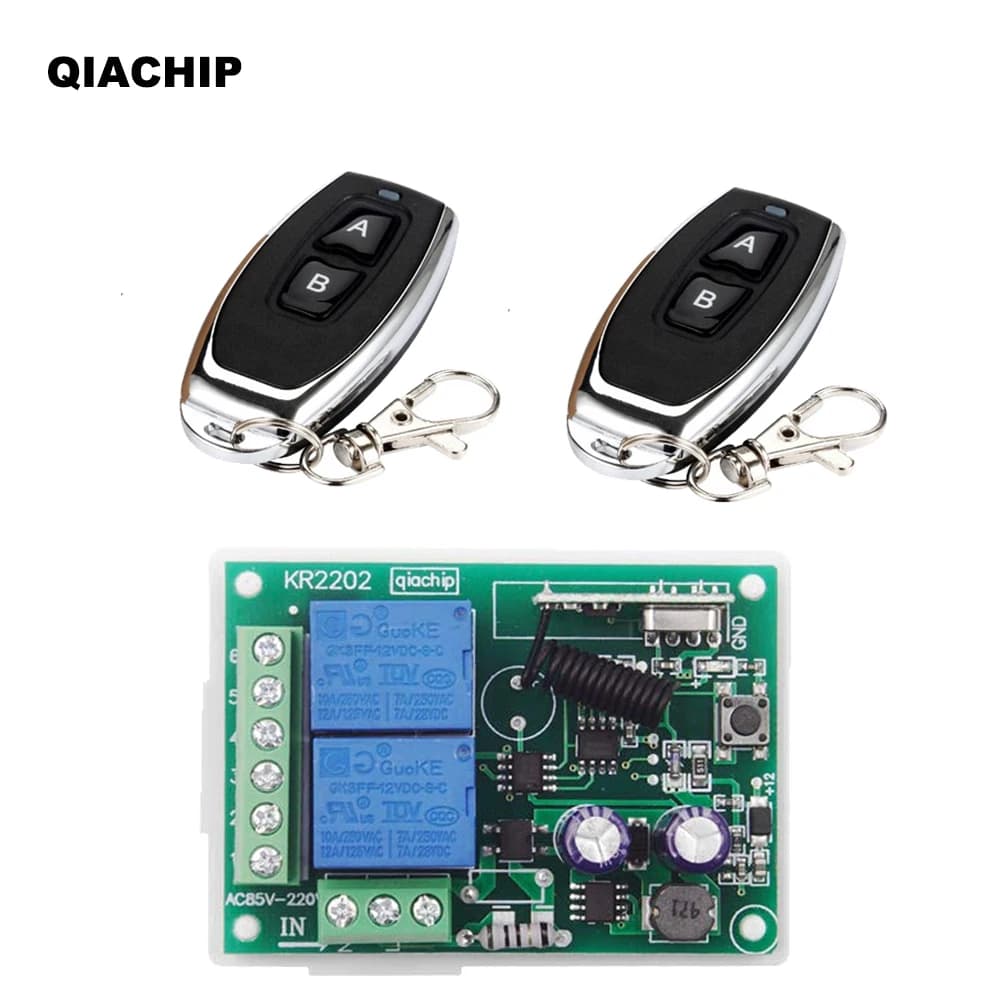

QIACHIP 433 MHz AC 110V 220V 2CH RF Remote Control Switch Controller + Universal RF Relay Receiver For Light Garage Door Opener

RF 433 Mhz Wireless Remote Control Switch Relay 220v 2 channels Receiver and Transmitter for Motor Garage Door Gate Curtain

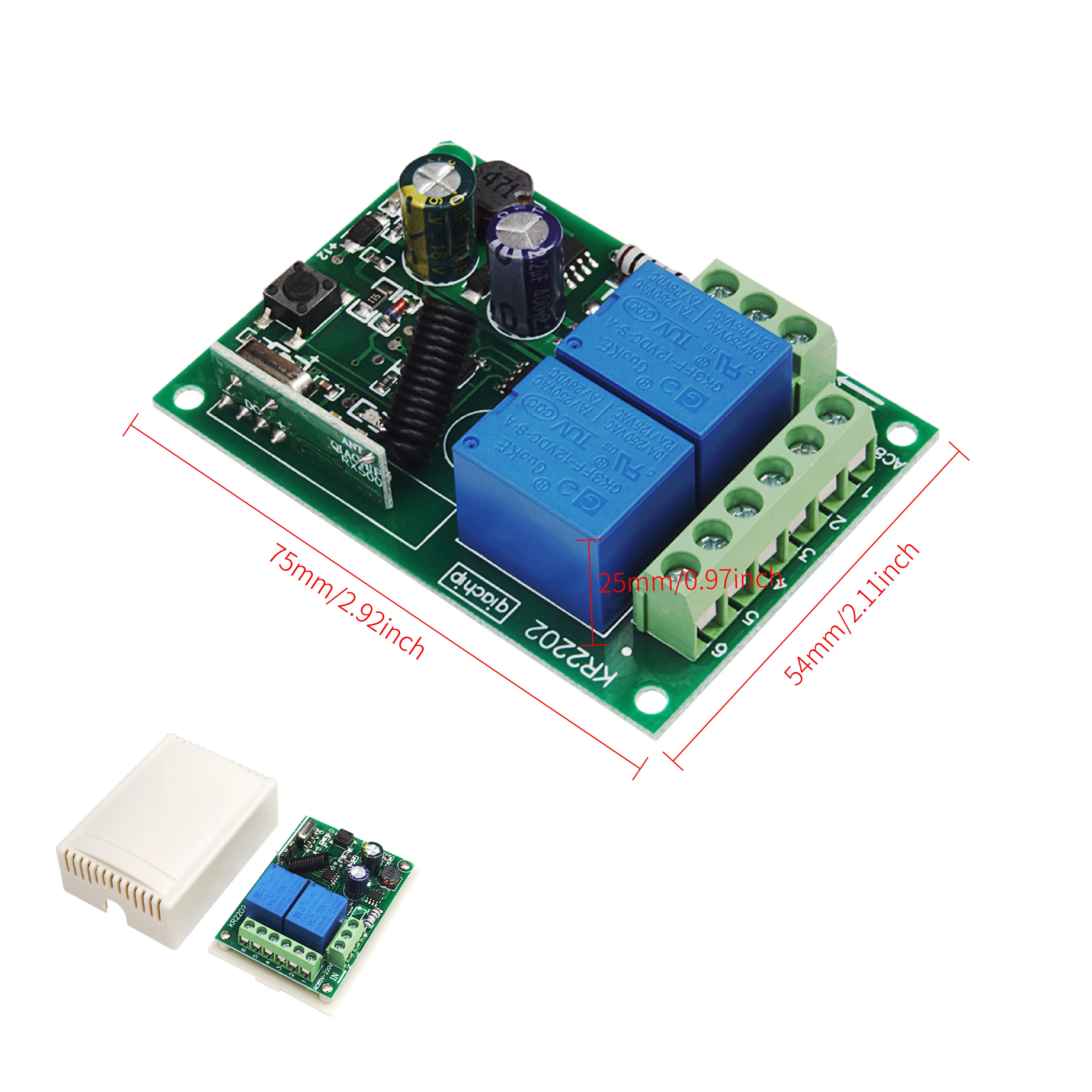

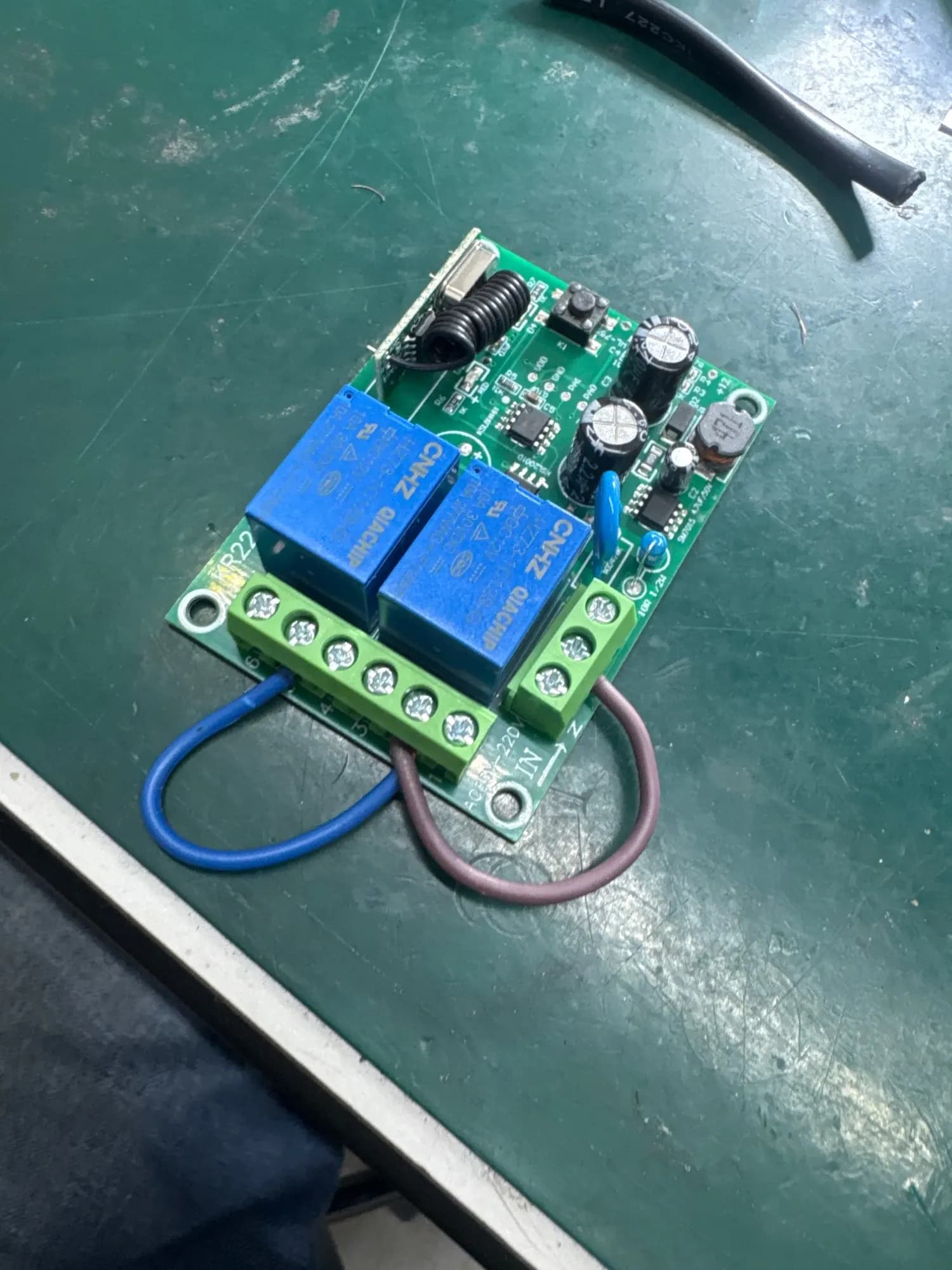

Technical Data Of Receiver

Model Number:KR2202-4

Input voltage: 220V

Working current: 10A

Maximum load power: 1100W x 2

Frequency: 433Mhz

Support encoding format: EV1527

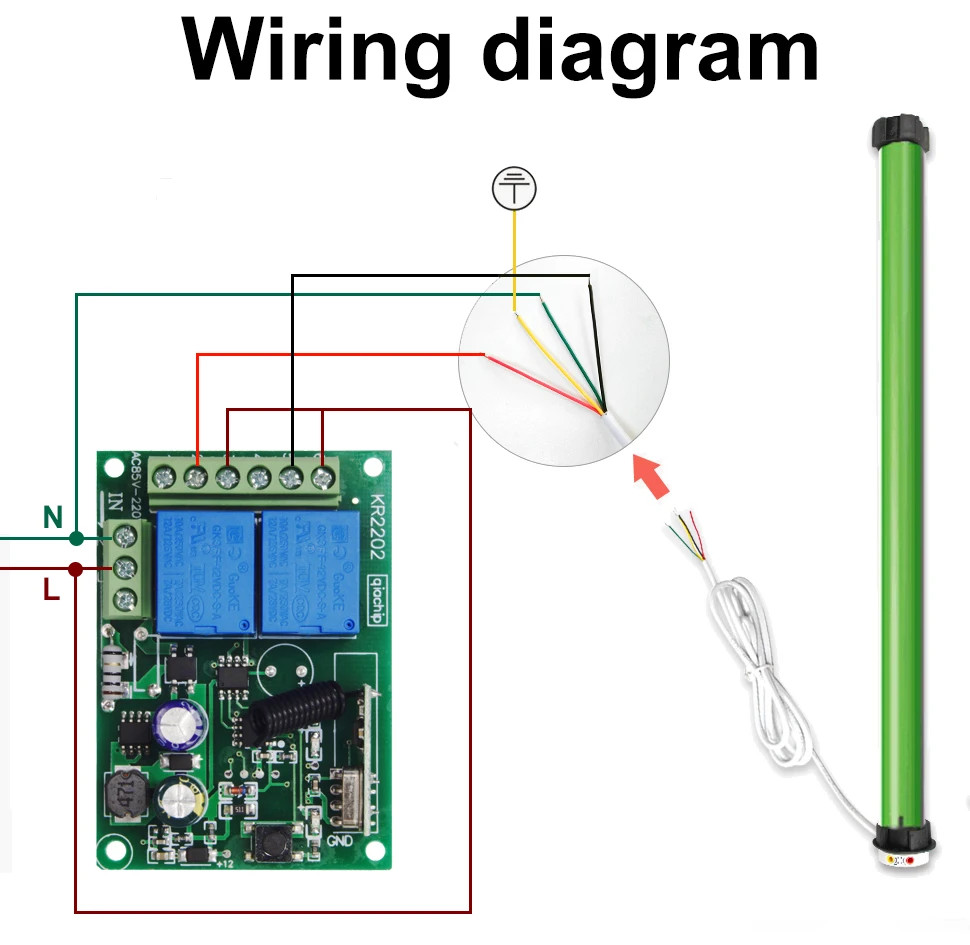

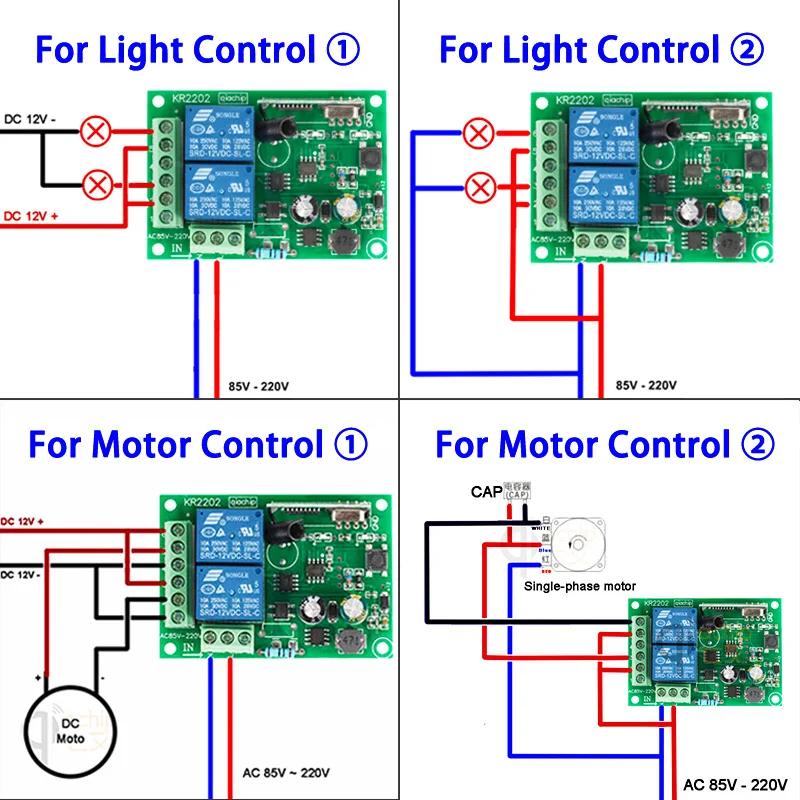

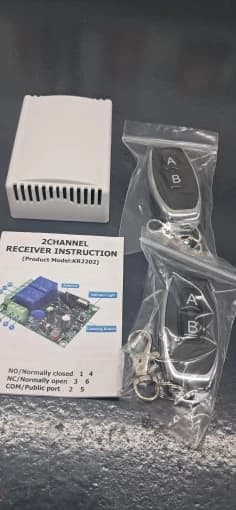

Wiring method: NC COM NO

Operating Mode

You can match the Remote Control with the Receiver Switch Module in 3 modes.

Remote mode 1: Momentary Mode

Press and hold on one button -> ON; Release the button -> OFF

Details:

Press one button (on the remote control) , the relay (on the receiver board) turn to switch-on ;

Release the button, the relay turn to switch-off

Remote mode 2: Toggle Mode

Press one button -> ON; Press the same button again -> OFF

Details:

Press one button (on the remote control) once , the relay (on the receiver board) turn to switch-on ;

Press the same button again , the relay turn to switch-off.

Remote mode 3: Latched Mode

Press button "A" -> ON; Press button "B" -> OFF(at the same time another channel ON)

Details:

Press one button (on the remote control) once, the relay (on the receiver board) turn to switch-on ;Press the another button, the relay turn to switch-off( at the same time another channel ON ).

Set Up

- Part 1:Delete the existing data about remote mode
Note: When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about remote mode for the first application.
Press the learning button on the Receiver Switch Module board 8 times , the existing data are deleted successfully.After deleted the data, all the remote control cannot work any more.

- Part 2: Set up the Remote Mode

Set up : Momentary Mode

STEP 1Press the learning button on the Receiver board once.Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2Press one button on the Remote Control , the LED on the receiver board will flash on then off indicating the button was learned.

STEP 3Press another button on the Remote Control, watching the LED go on and off again.Wait 3 seconds, the LED will turn on again, indicating system is ready for use.

Set up :Toggle Mode

STEP 1Press the learning button on the Receiver board twice.Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2Press one button on the Remote Control, the LED on the receiver board will flash on then turn off , indicating the button was learned.

STEP 3Press another button on the Remote Control , watching the LED go on and off again.Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

Set up :Latched Mode

STEP 1Press the learning button on the Receiver board 3 times.

STEP 2Press one button on the Remote Control,

STEP 3Press another button on the Remote ControlWait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
