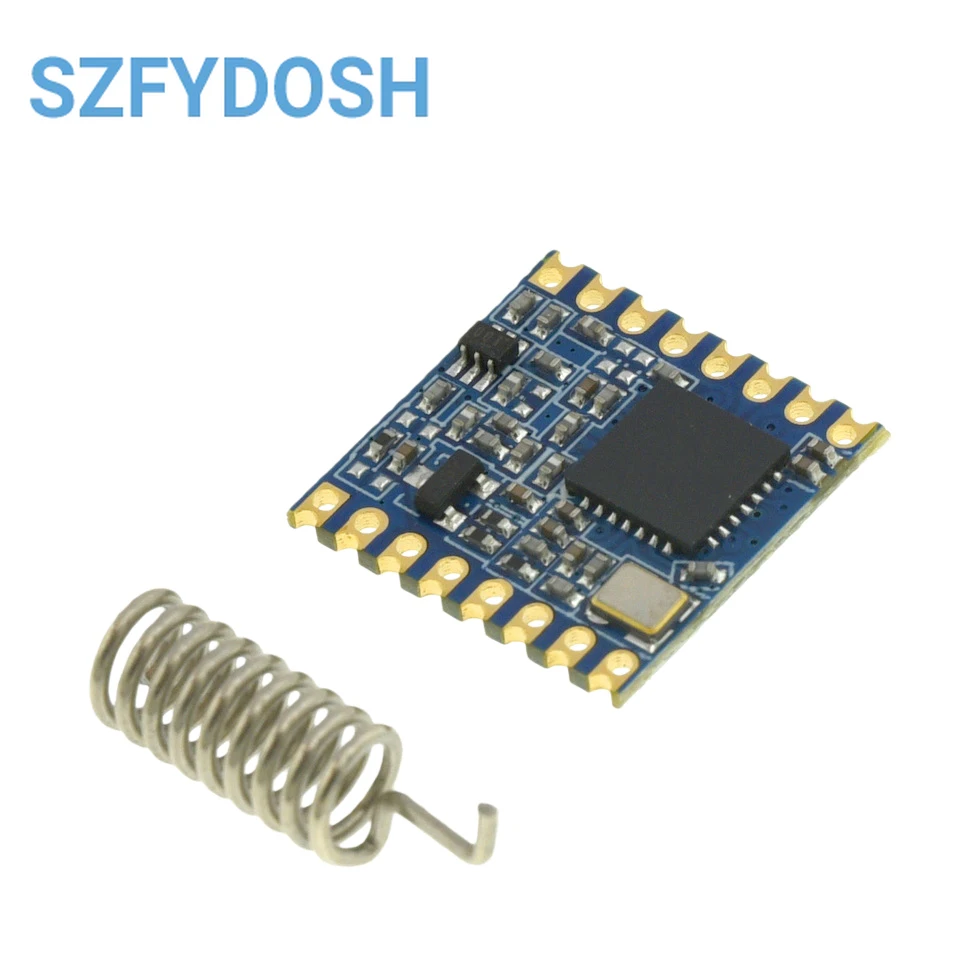

Lora Module SX1276 SX1278 868M/915Mhz Wireless loraTransceiver Module spread Spectrum Long-Range Wireless Communication
5.94$
5.94$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
SX1276 Wireless Transceiver Module Lora 868Mhz Modulespread Spectrum Long-Range Wireless Communication LORA/GFSK
Module function
FSK / GFKS technology, LoRa (remote) spread spectrum technology
Half-duplex communication
Super anti-interference (channel rejection ratio: 56db)
High receiver sensitivity -139dbm.
ISM multi-band, do not need to apply the frequency of free use.
Multi-frequency optional, a variety of transmission rates. Can be used in FDMA and FM technology.
Intelligent reset, low-voltage monitoring, wake-up time, low-power mode, sleep mode
Low power receive current: 10-12mA
256-bit FIFO TX / RX
RSSI channel detection function
Transmission Mode: FIFO / Direct Mode (Recommended FIFO Packet Mode)
Configuration: AFC / Wake on Air / Low Power / Carrier Sense / FEC Error Correction / AEC Encryption
Ultra-long-distance transmission as far as 3KM open
Product Pictures
Customer Reviews
46 ratings
fast delivery (5)
as described (3)
fragile without antenna (2)
compact size (1)
affordable price (1)
excellent performance (1)
Customer photos (3)
Buyer from Latvia
September 27, 2026
Variant: Color:868M
Ok
Buyer from Peru
September 20, 2026
Variant: Color:915M
It arrived on time and in good condition, thank you very much.
Translated by AliExpress ·
Buyer from Italy
August 11, 2026
Variant: Color:868M
Delivered to Italy 8 days after the order was placed everything is fine
Translated by AliExpress ·
a***r
June 2, 2026
Variant: Color:868M

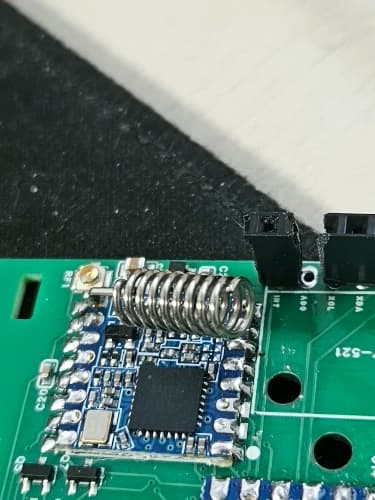

Tut's modules are, as usual, quite small, but therefore fit very well into small and discreet installations.
Translated by AliExpress ·
J***s
April 7, 2026
Variant: Color:915M
EXCELLENT.
Translated by AliExpress ·
g***r
March 3, 2026
Variant: Color:868M

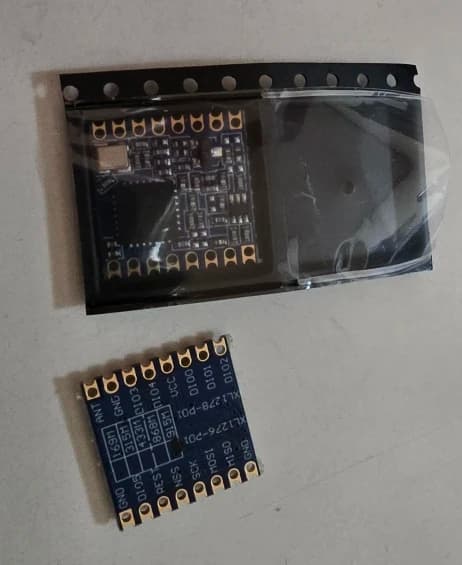

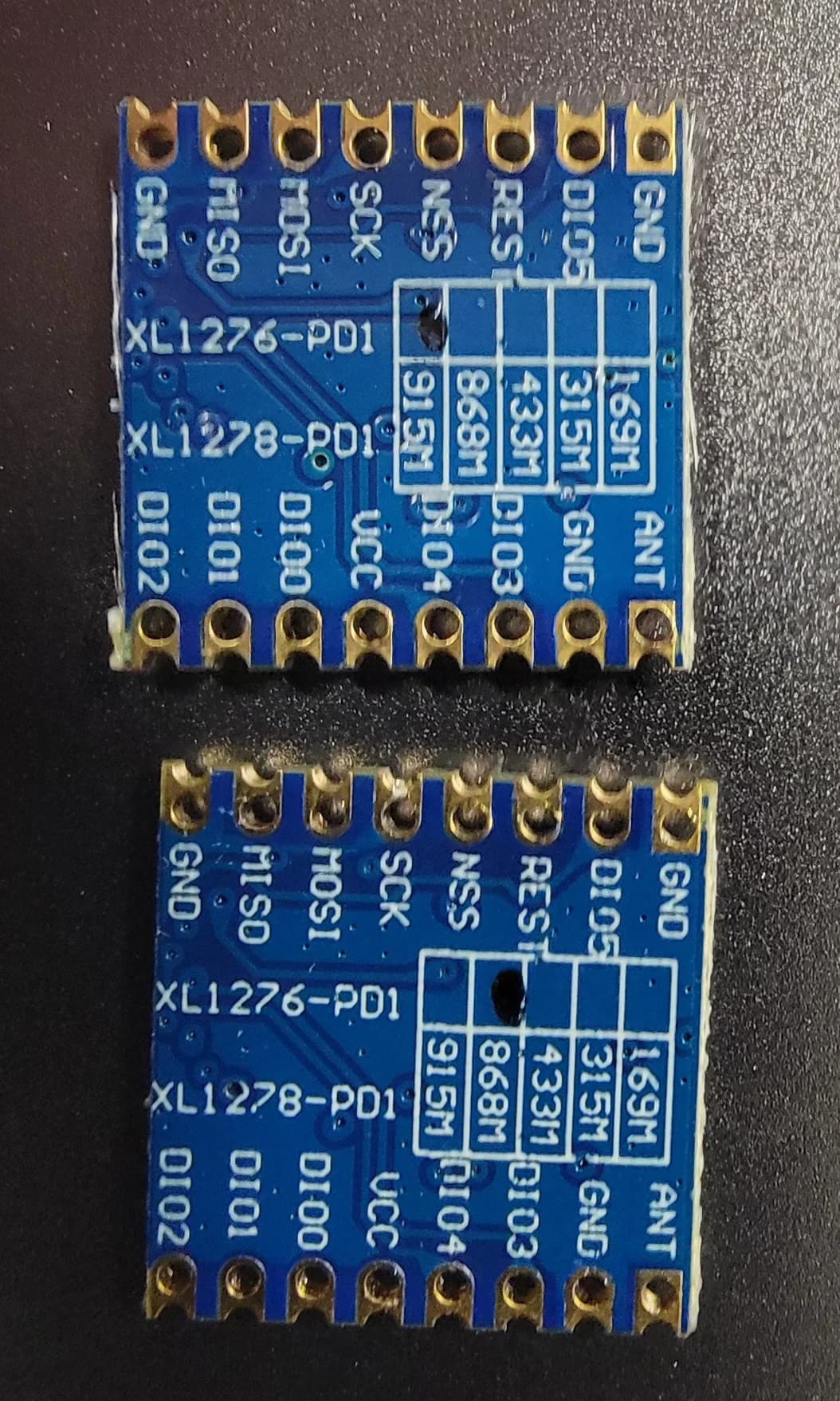

I ordered 2 SX1278 modules at 868MHz and received 2 different ones.... I was not able to test the product properly. But delivered quickly.
