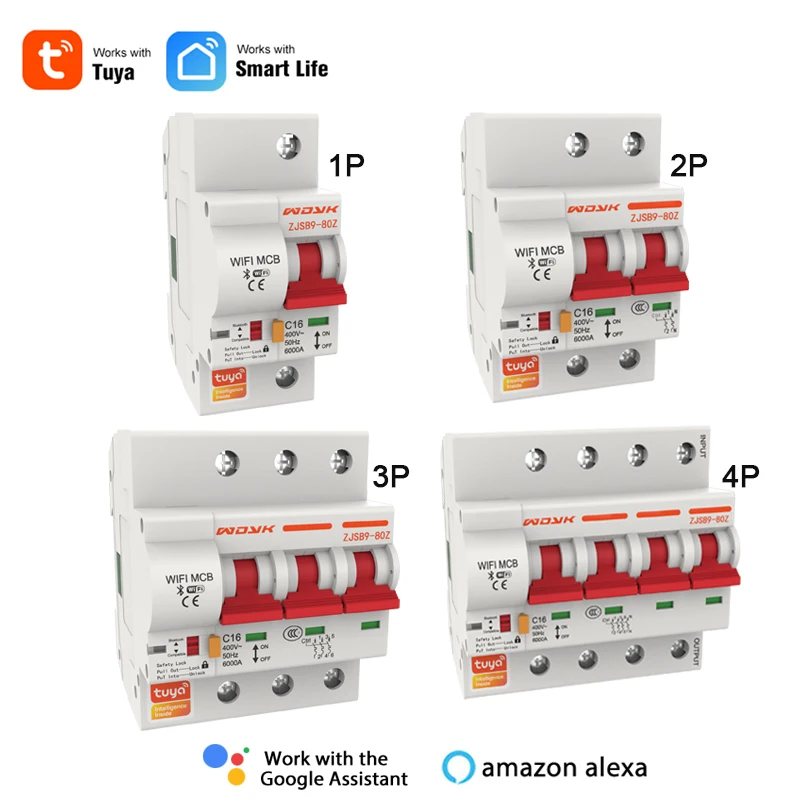

Tuya Smart 1 2 3 4 Phase Din Rail WIFI Circuit Breaker Smart Home Switch,63A MCB,Overload Short Circuit Protection,Alexa Remote

NOTE

1P 2P circuit breaker working voltage :
AC 220V 50/60HZ
3P 4P circuit breaker working voltage:
AC 380-440V 50/60hz
This Type do not have leakage protection function.Only have Short Circuit Protection and Overloard Protection.

Notice

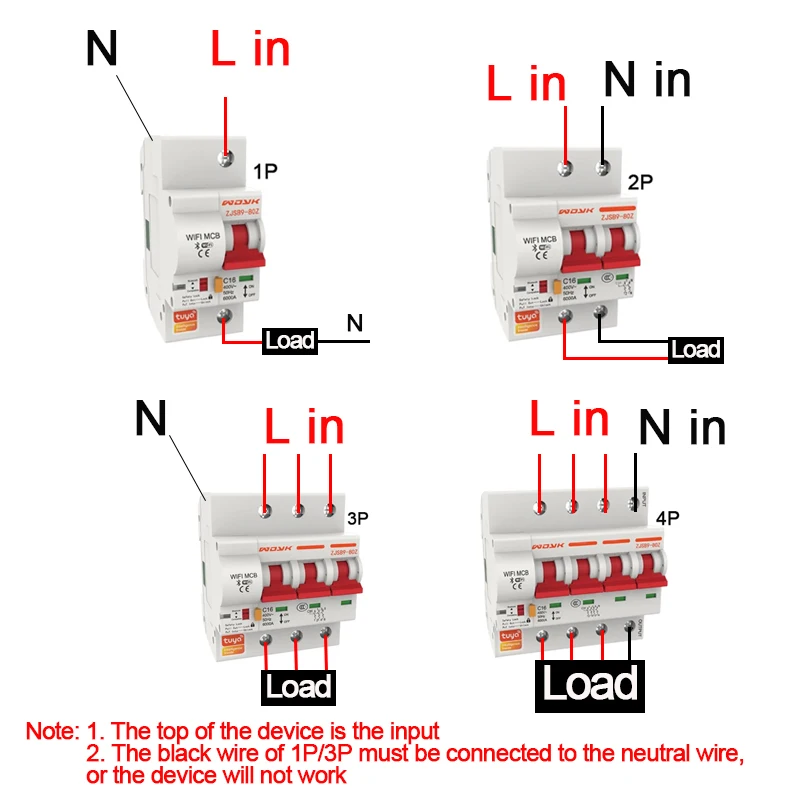

This top port is input port, and the bottom port is output port.Please don't reverse, otherwise the handle can't push up.
The black wire of 1P/3P must be connected with Neutral wire,or the device can't work.
If you home distribution box is such situation,the input line is in the below, and the output is in the above.
This situation needs to turn the circuit breaker upside down.

Feature

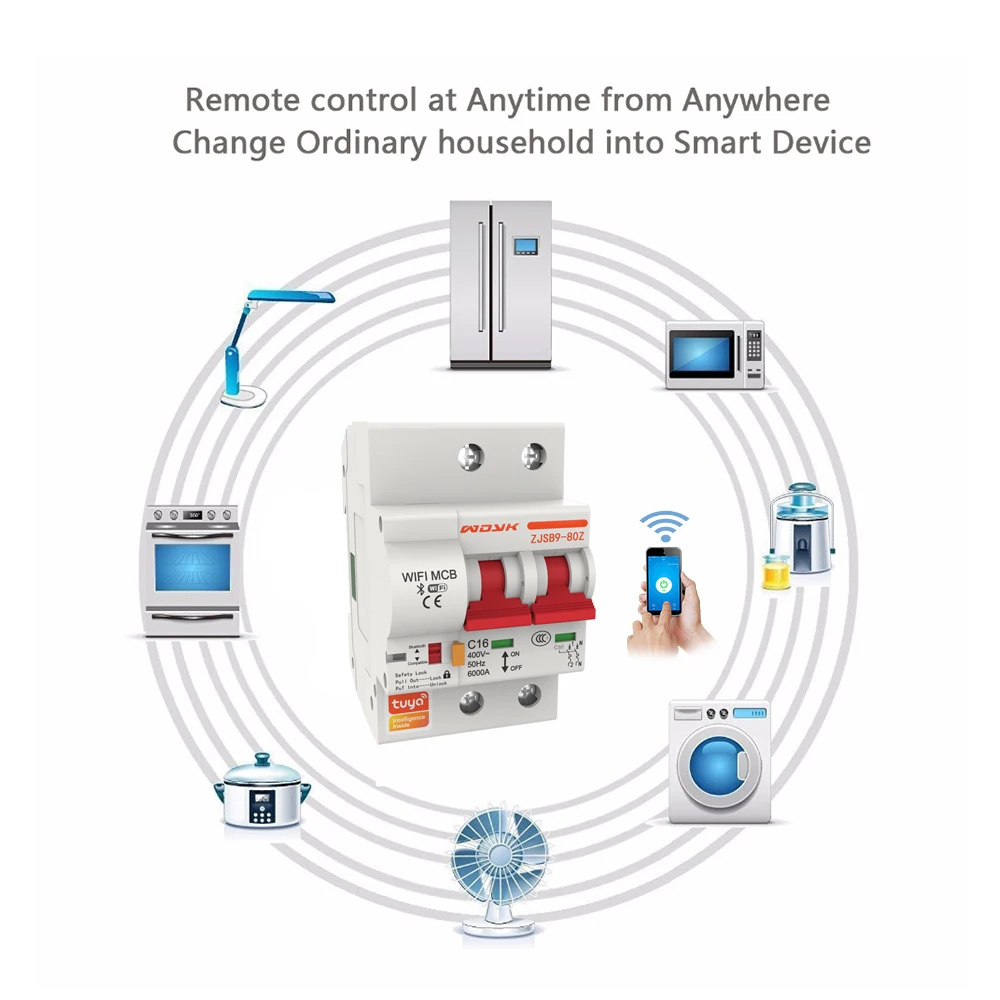

APP Remote contro by smartphone anytime anywhere.

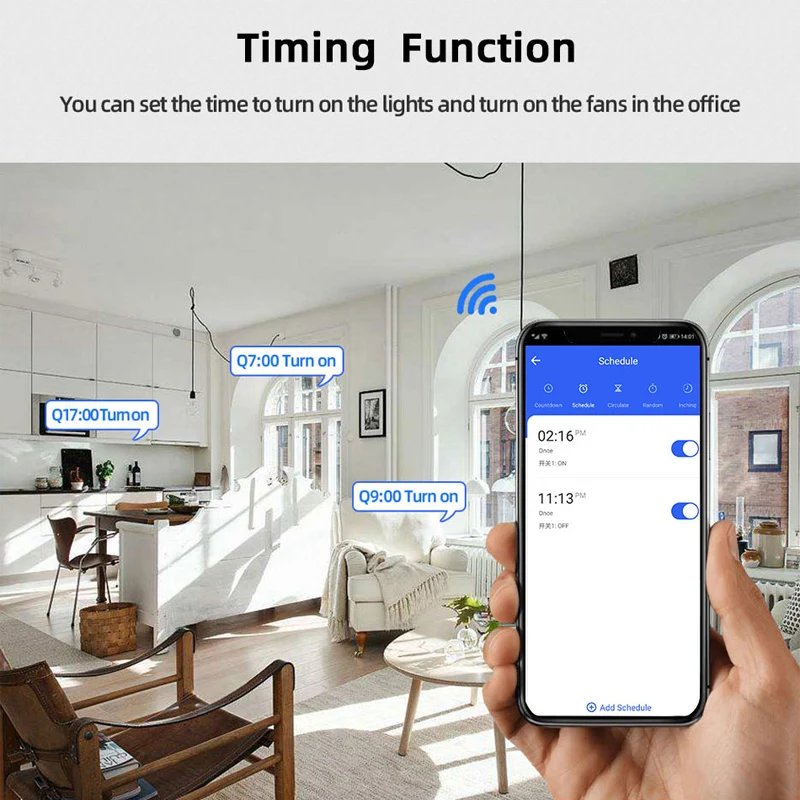

Time Schedule ON/OFF

Voice control by Amazon Alexa and Google home

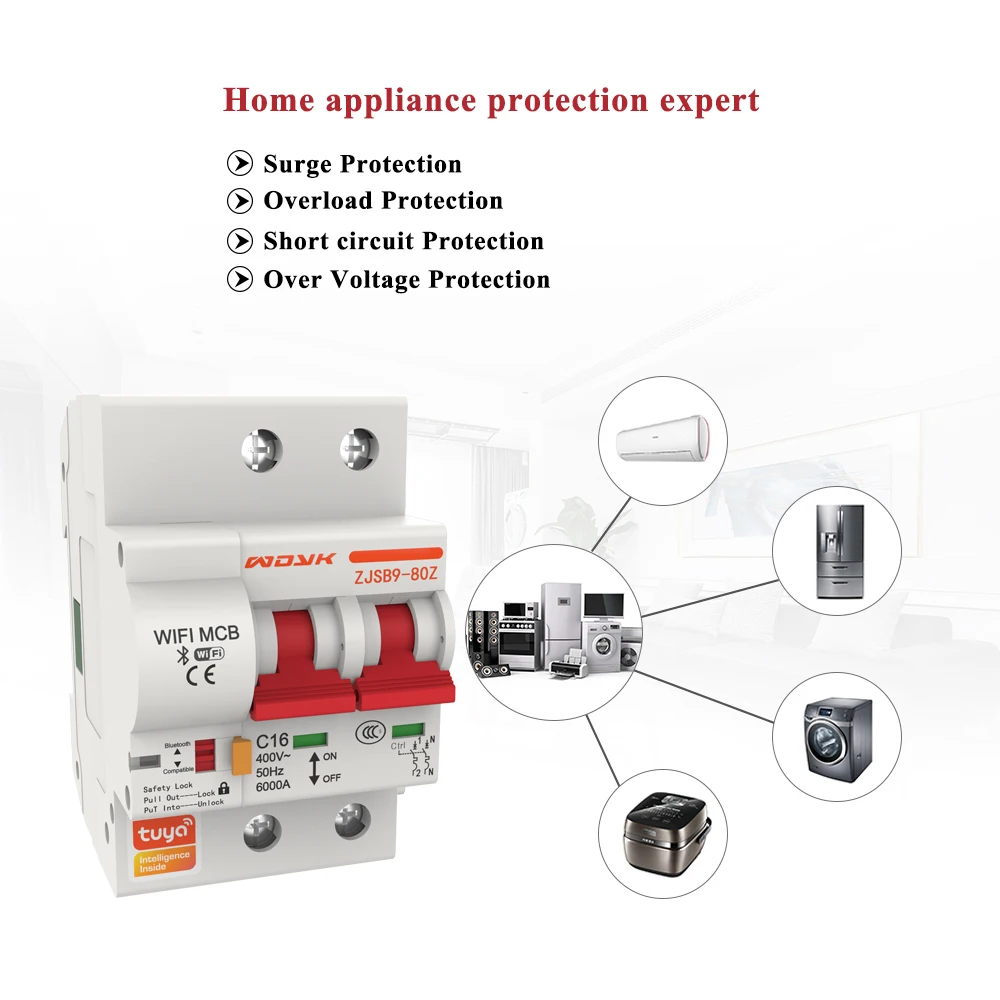

Overload protection
short circuit protection

APP Remote Control

Voice Control

Application

The ZJSB9-80Z WIFI Intelligent recloser circuit breaker can be widely used in household, factostudent dormitory, farmland, and it can remote control water pump, watheater, underfloor heating equipment, etc.

Function

The ZJSB9-80Z circuit breaker is suitable for 50HZ,230V/400V,0-125A circuit ,and it have many fuctions such as overload protection, short-circuit protection and isolating protection.
This intelligent recloser circuit breaker have the function such as remotely switched off/on by smart phone, timely switch off/on, switch off/on in time delay, switch off/on incycle.
