22.5792MHz 24.576Mhz MUSETEC Custom Clock Upgrade Crystek 957

Musetec customized high-performance clock is suitable for digital audio applications.



■ Product description———————————————————————————

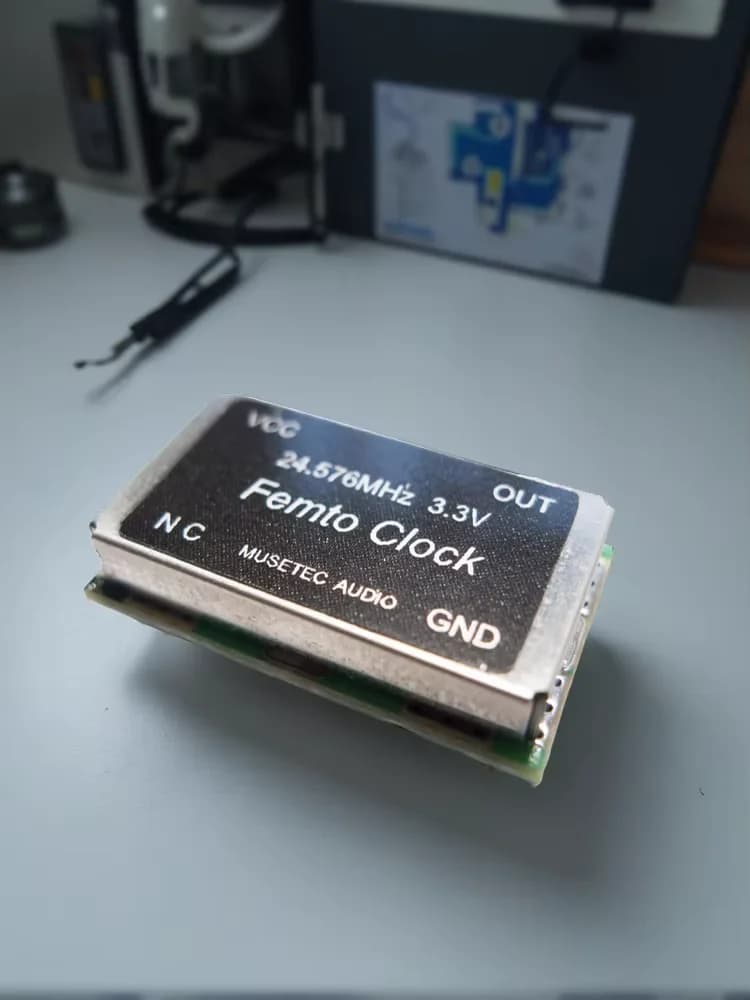

The high-performance clock specially customized by Musheng is used to upgrade the Crystek CCHD957 series used in Musheng's own products. Use four-pin pin installation method. The size is different from Crystek 957.

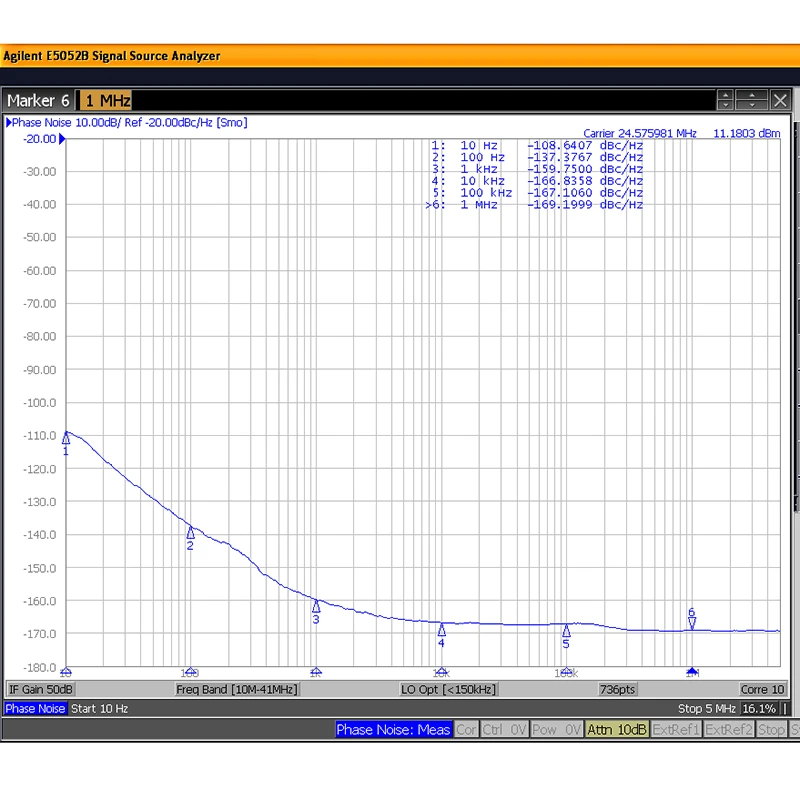

The most sensitive indicator in digital audio applications is phase noise. The new clock is nearly 10dB lower than the Crystek CCHD957 series at 10Hz. The sound accuracy, fineness, purity and other aspects have improved significantly. (The picture below shows the new custom clock and Crystek CCHD957 in turn)

1. The supply voltage is 3.3V.（This crystal has a precision voltage regulator inside, which can support 3.3~5V power supply range）

2. The size is 20*14mm (length * width).
