AVATTO WiFi/ZigBee Smart Dimmer Switch Module 1/2 Gang Dimmer Light Switch Module APP Remote Control For Tuya Alexa Google Home

Please review in detail

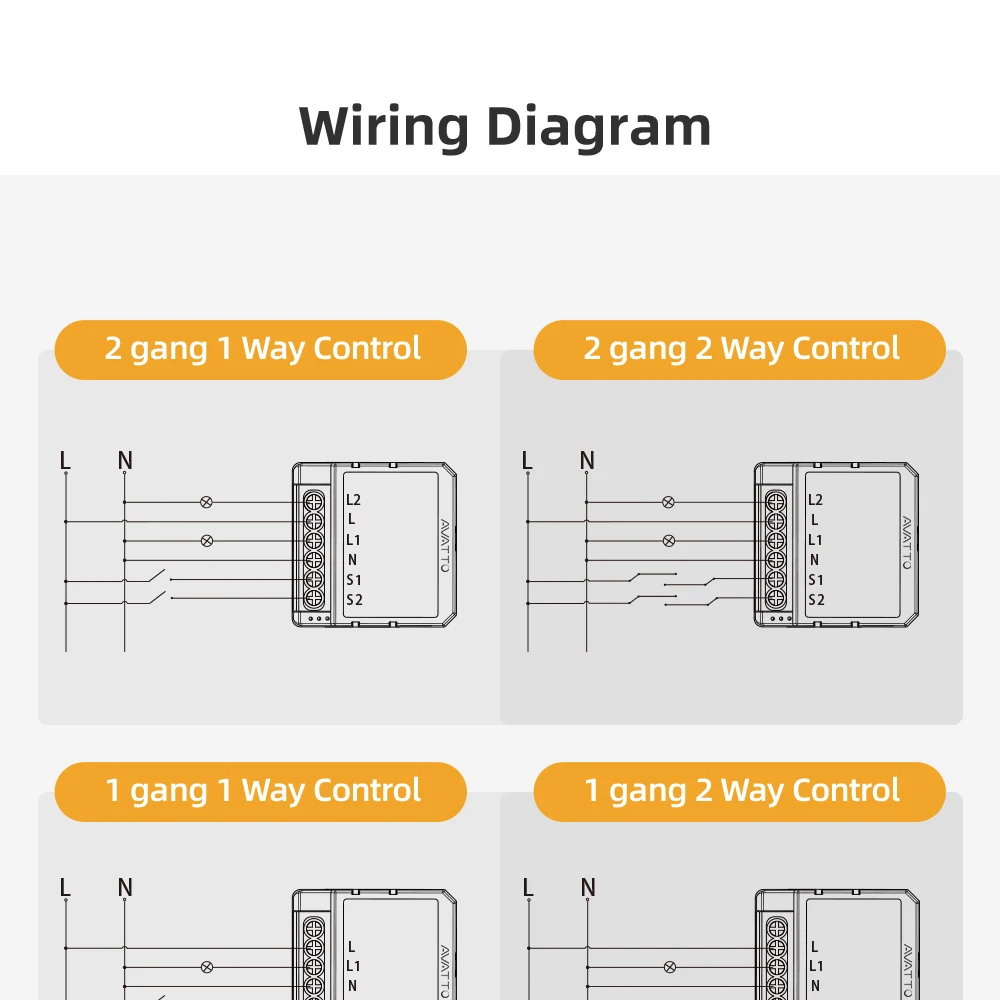

1.Power Supply: N: Neutral wire, L: Live wire, L1: Channel 1, L2: Channel 2, S1: Switch 1, S2: Switch 2; Voltage Range: AC100-240V. (Refer to the manual for cable connection methods)。

2.Connection Methods:
① WiFi Version: Press and hold the button on top of the device until the indicator light flashes, putting the device into pairing mode. Use the mobile app to connect. Use the AVATTO app, which supports Tuya/Smart Life. (WiFi must be 2.4G)。

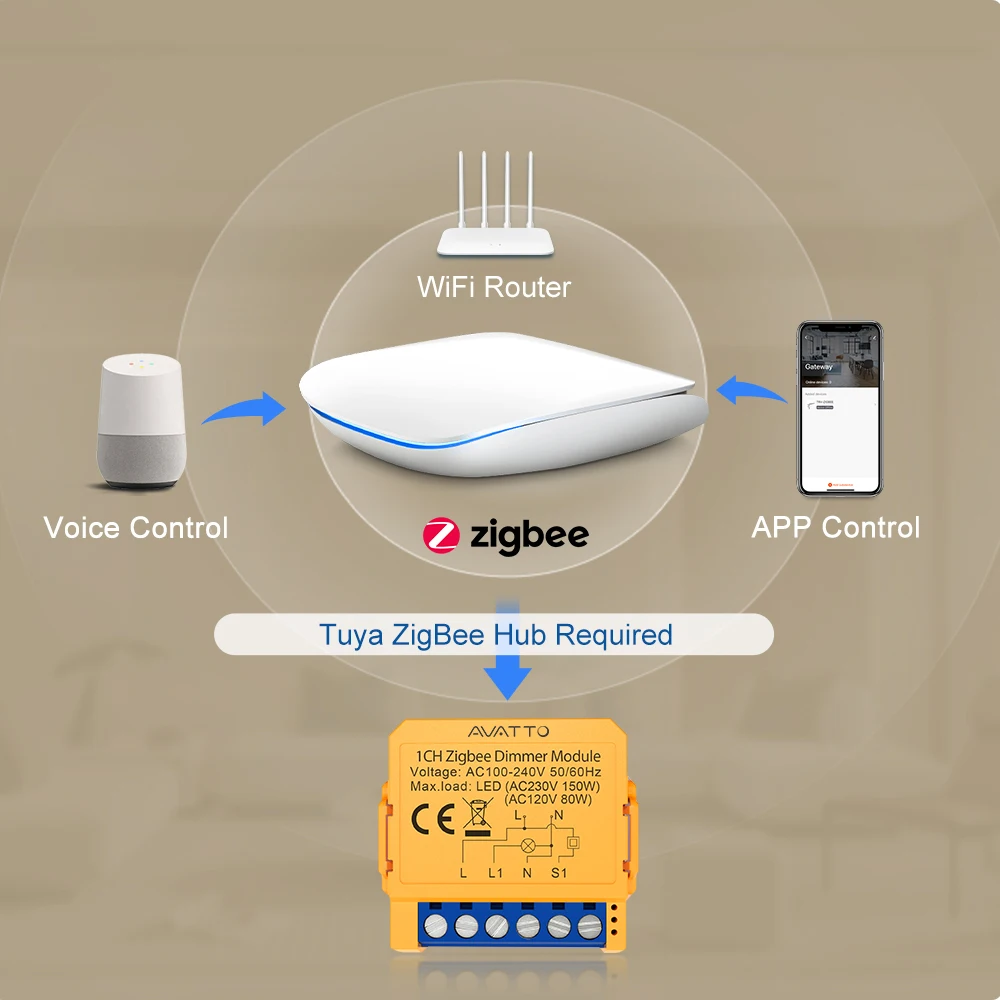

② ZigBee Version: Press and hold the button on top of the device until the indicator light flashes, putting the device into pairing mode. Use the mobile app to connect via the gateway. Use the AVATTO app, which supports Tuya/Smart Life. (The ZigBee version requires a gateway for connection; WiFi must be 2.4G)。

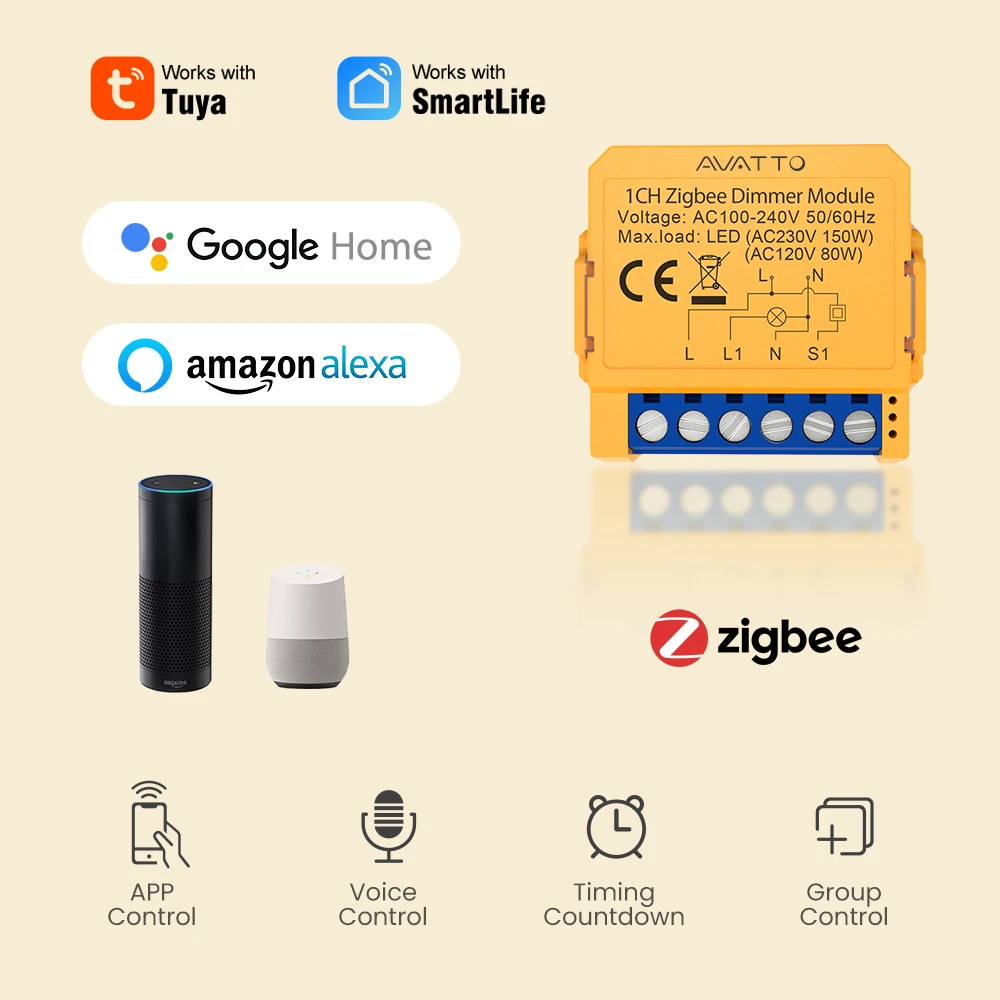

3.Voice Control: After connecting to the app, authorize the voice assistant in the app, and then you can control the device via voice commands。

4.Notes:
① The light bulb must have dimming functionality and must comply with the device's power range. (Supports triode dimmable LED or tungsten filament bulbs)。
② The button on the device cannot adjust the brightness of the bulb. An external switch must be connected to adjust the brightness。
③ After connecting an external switch, the corresponding external switch type must be selected in the app。

5.Customer Support: If you encounter any issues, please contact our store’s customer service promptly. Our professional support team will assist you in resolving the problem。

AVATTO WiFi/ZigBee Smart Dimmer Switch Module 1/2 Gang Dimmer Light Switch Module APP Remote Control For Tuya Alexa Google Home

HIGHLIGHT

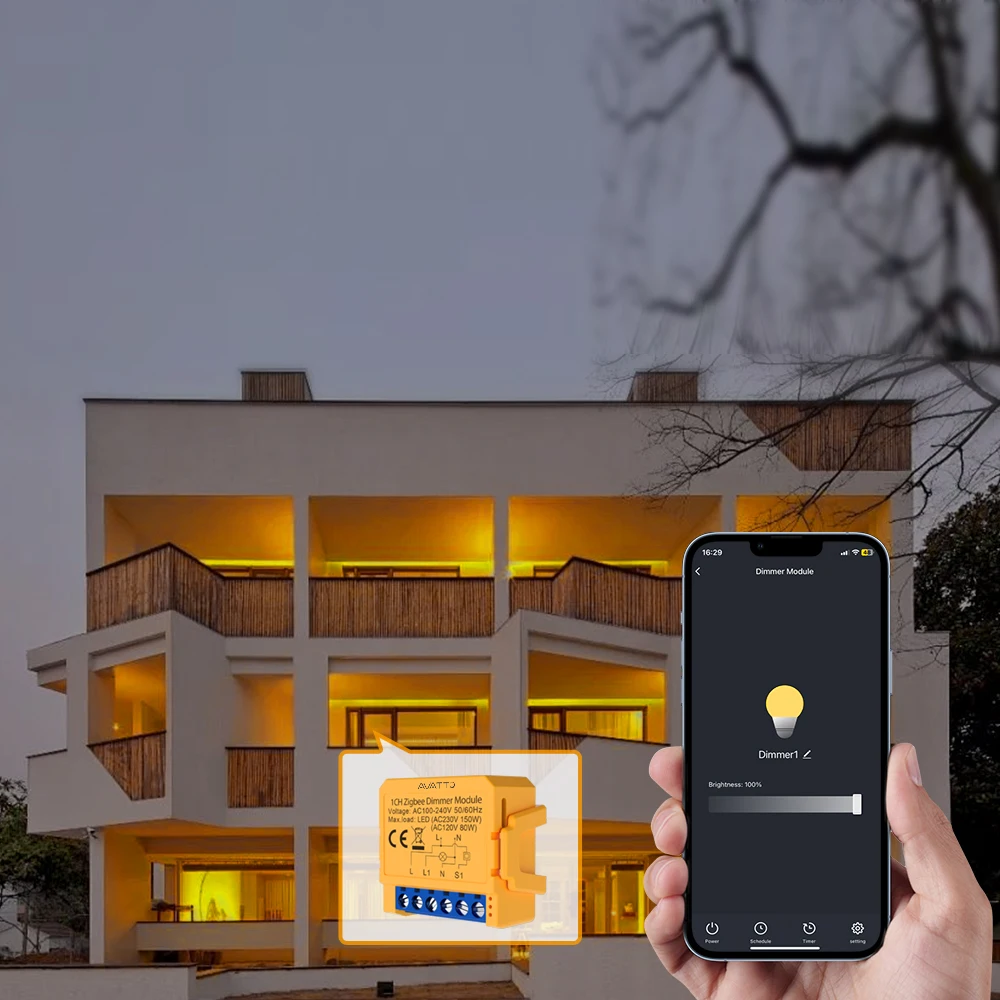

【APP Remote Control】---Control the light switch anywhere/anytime via phone APP
【Voice Control】---A simply command to voice control the light switch
【Timer/Schedule/Countdown】---Smart and DIY your daily life to maximum extend
【Stepless Dimming】---Dim your lamp brigntness from 0% to 100% for different scene sleeping, working, watching movie, party etc
【Group-Control Function】---Multi dimmer switch in different room can set in a grouprealize group control function
【Family Share Function】---Create a smart home together with your family members
【2 Way Control Function】---2 switch control 1 light
【Easy to install】---Compatible with 98% of Installation box

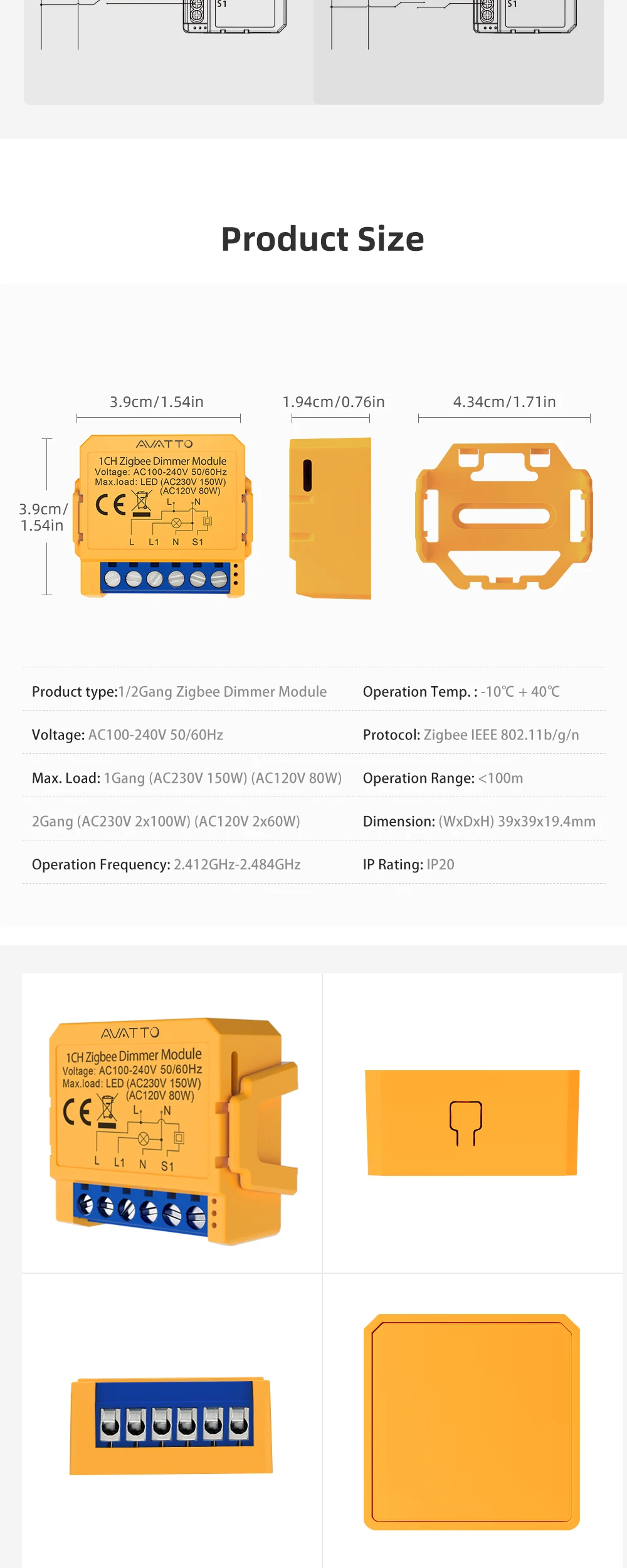

SPECIFICATION
Product type：1/2Gang Zigbee Dimmer Module
Operation Temp：-10℃ +40℃
Voltage：AC100-240V 50/60Hz
Protocol：Zigbee IEEE 802.11b/g/n
Max. Load：1Gang (AC230V 150W) (AC120V 80W)/2Gang (AC230V 2x100W) (AC120V 2x60W)
Operation Range：<100m
Operation Frequency：2.412GHz-2.484GHz
IP Rating：IP20

Zigbee Smart Light Switch Module

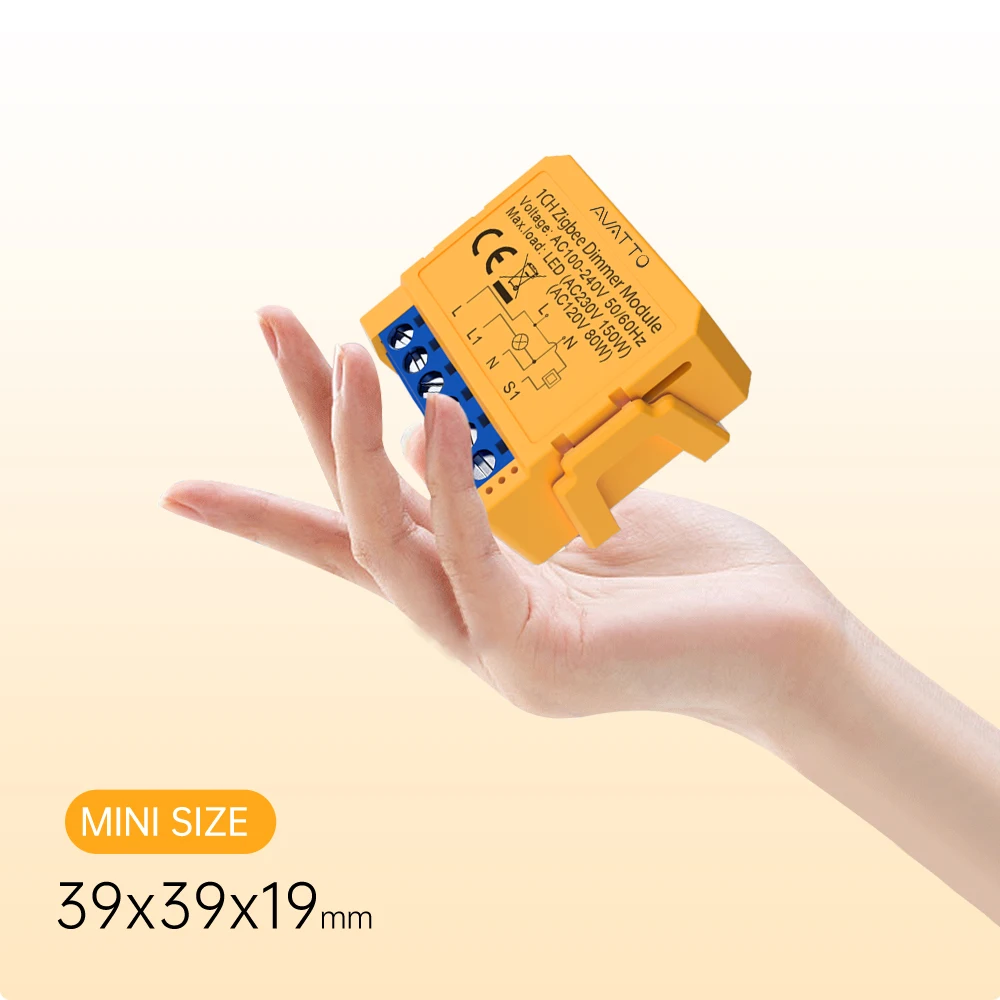

Ultra Mini Size DIY Light Switch Module

compatible with 95% of installation box on market

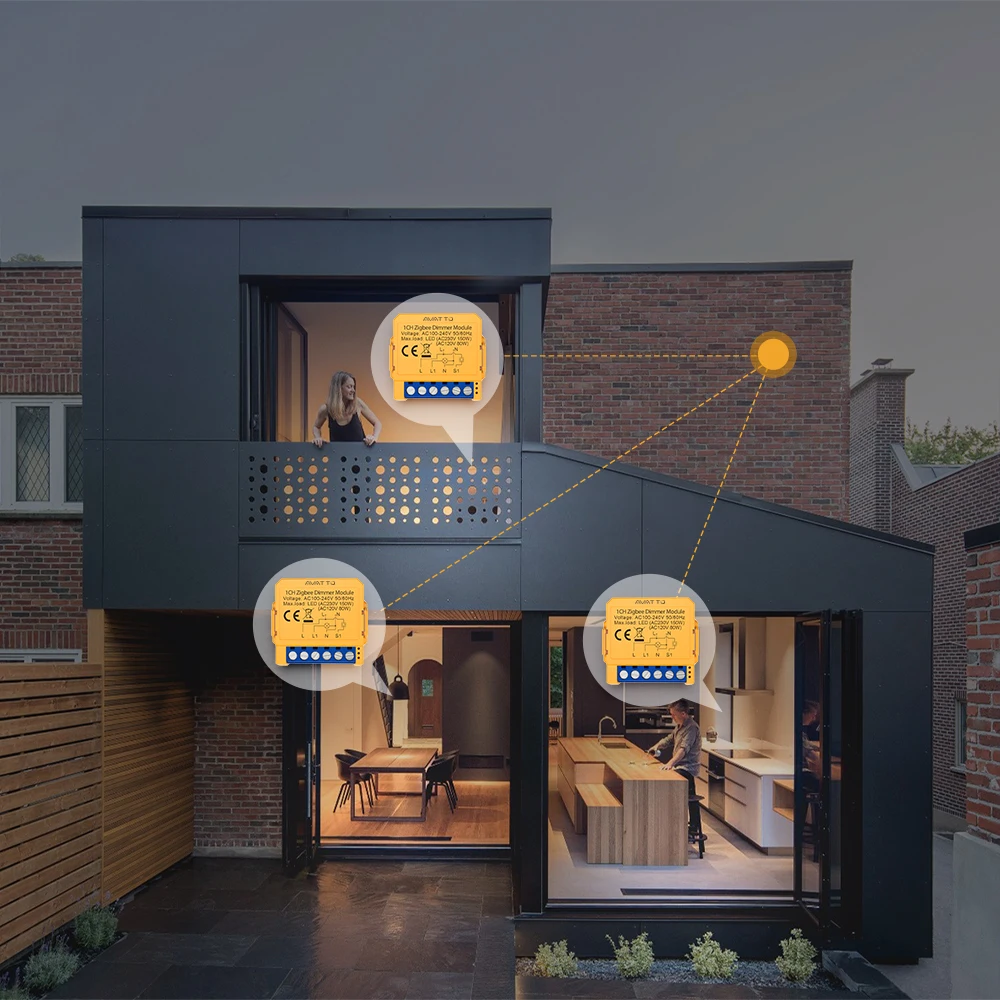

Group-Control Function

Multi dimmer switch in different room can set in a group realize group control function

Voice Control

A simply command to voice control the light switch

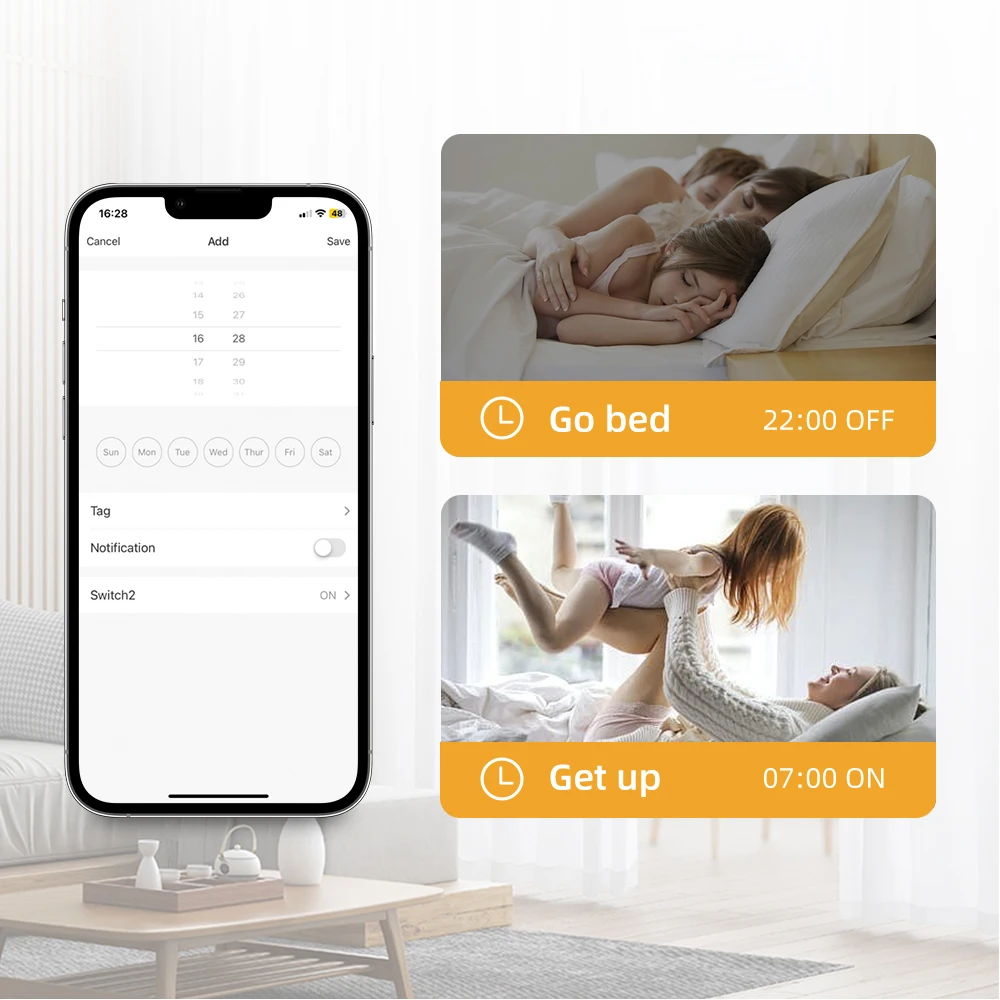

Timer/Schedule/Countdown

Smart and DIY your daily life to maximum extend

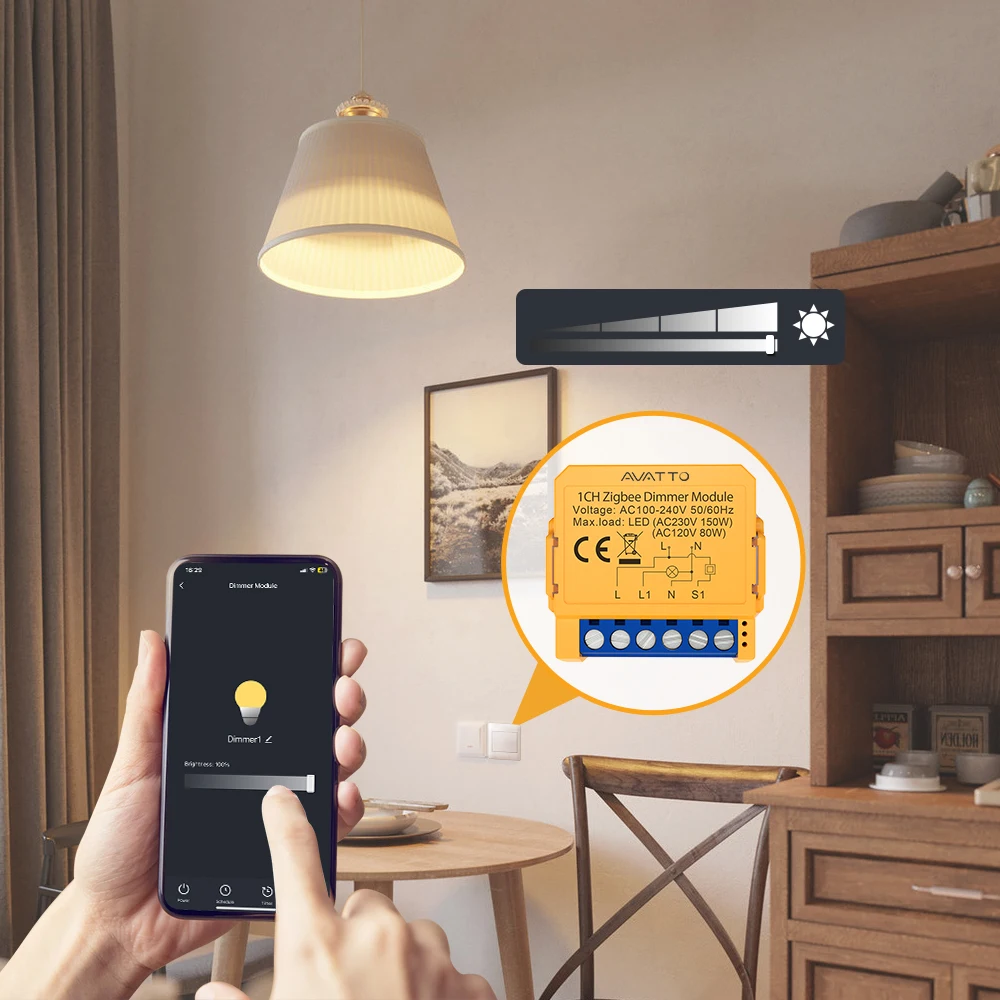

Stepless Dimming

Dim your lamp brigntness from 0% to 100% for different scene sleeping, working, watching movie, party etc

Group-Control Function

Multi dimmer switch in different room can set in a group realize group control function

Family Share Function

Create a smart home together with your family members

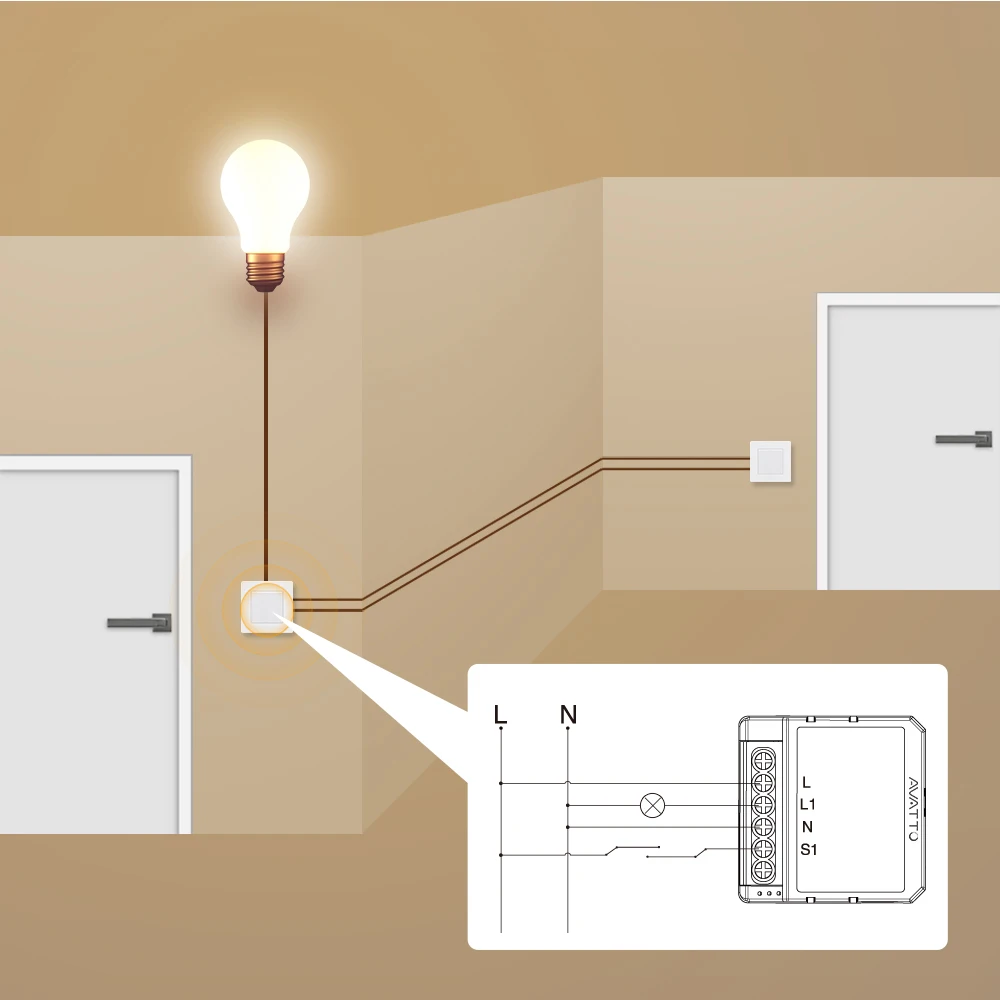

2 Way Control Function

2 switch control 1 light

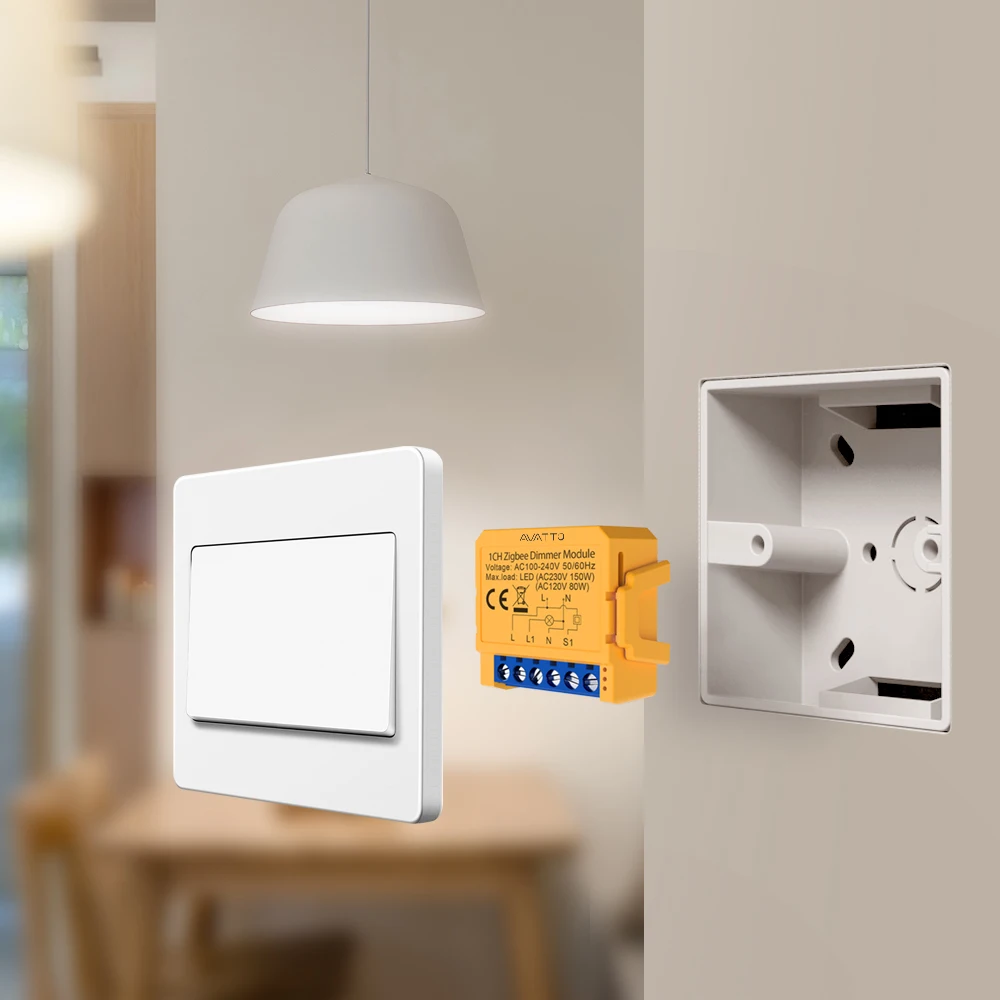

Easy to install

Compatible with 98% of Installation box
