WS2811 Horse Running COB LED Strip 20M 15M 10M 24V Water Flow LED Tape Ribbon Light with Banlanx APP SP636E Touch Controller Set

F​AQ, Very Very important !!!

Q​: Why some of led strip is not working well when it is over 10m ?​

A: That means you need to increase pixel number in BanlanX APP " Pixel Setting"


Q​: Why some of led strip flickering ?

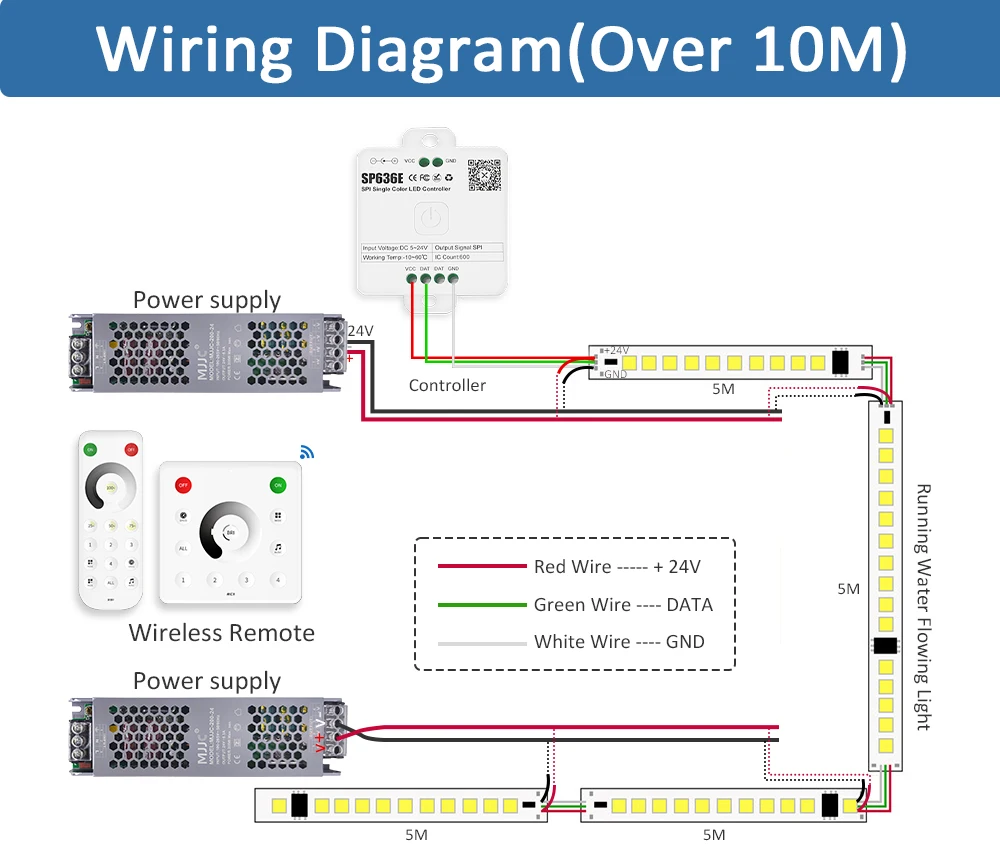

A​: That means ultra-long led strip (Over 10m) made voltage-drop, so you have to connect the power supply to the two ends of led stirp, provide enough the voltage each 5meters or 10 meters.

Features:

1.WS2811 horse running led strip is Low power consumption, Super-bright but running with low temperature

2.All the light spread and completely smooth, luminous very even

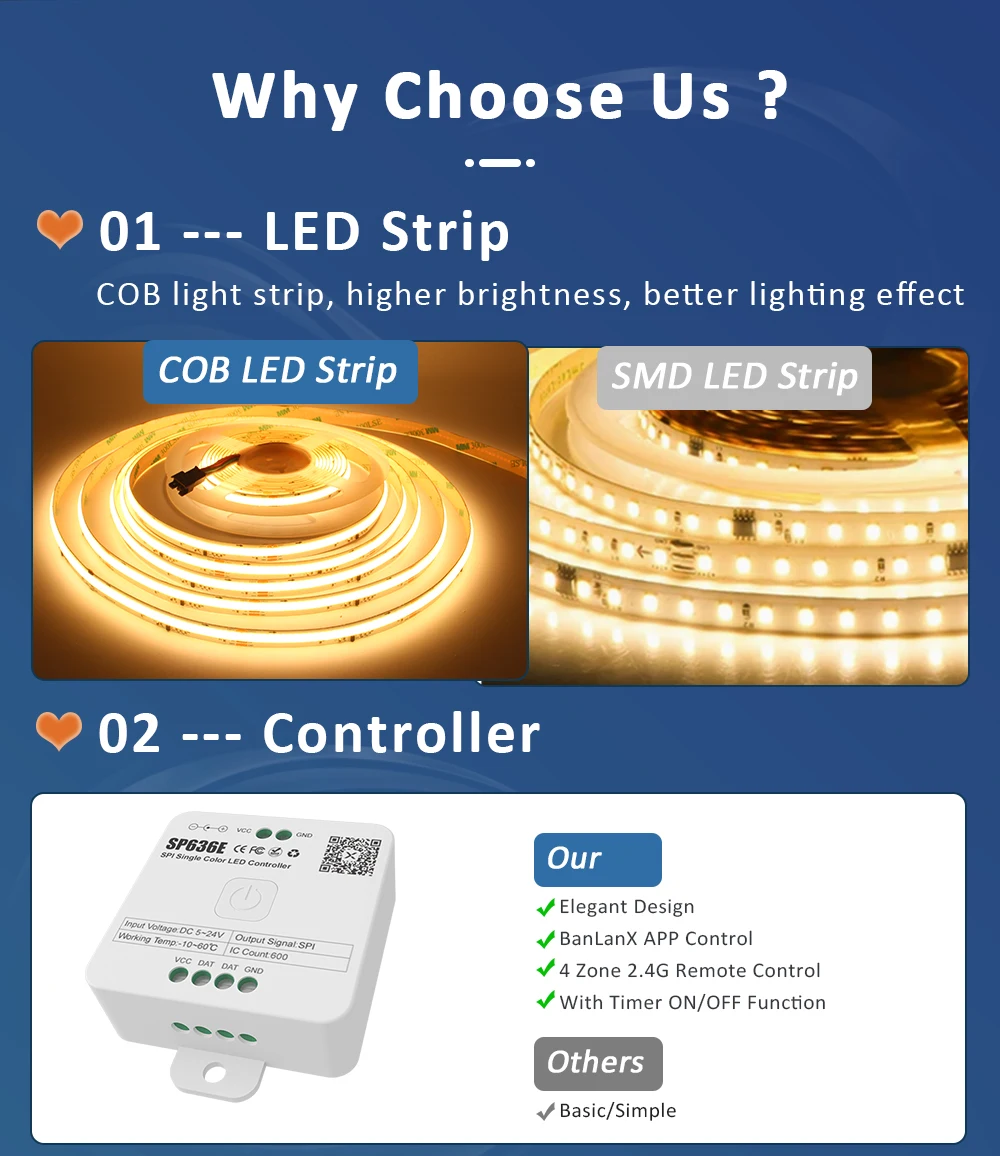

3.LED Type: COB LED Strip Light with IC Control 15 LED Chip,

4.Long Lifespan >50,000 hours

5.Certified by both RoHS / CE / UL588 tested approved.

6."BanlanX" APP control and 2.4G remote control.

7. Sync and 4-Zone control independently.

8. With Timer ON/OFF function.

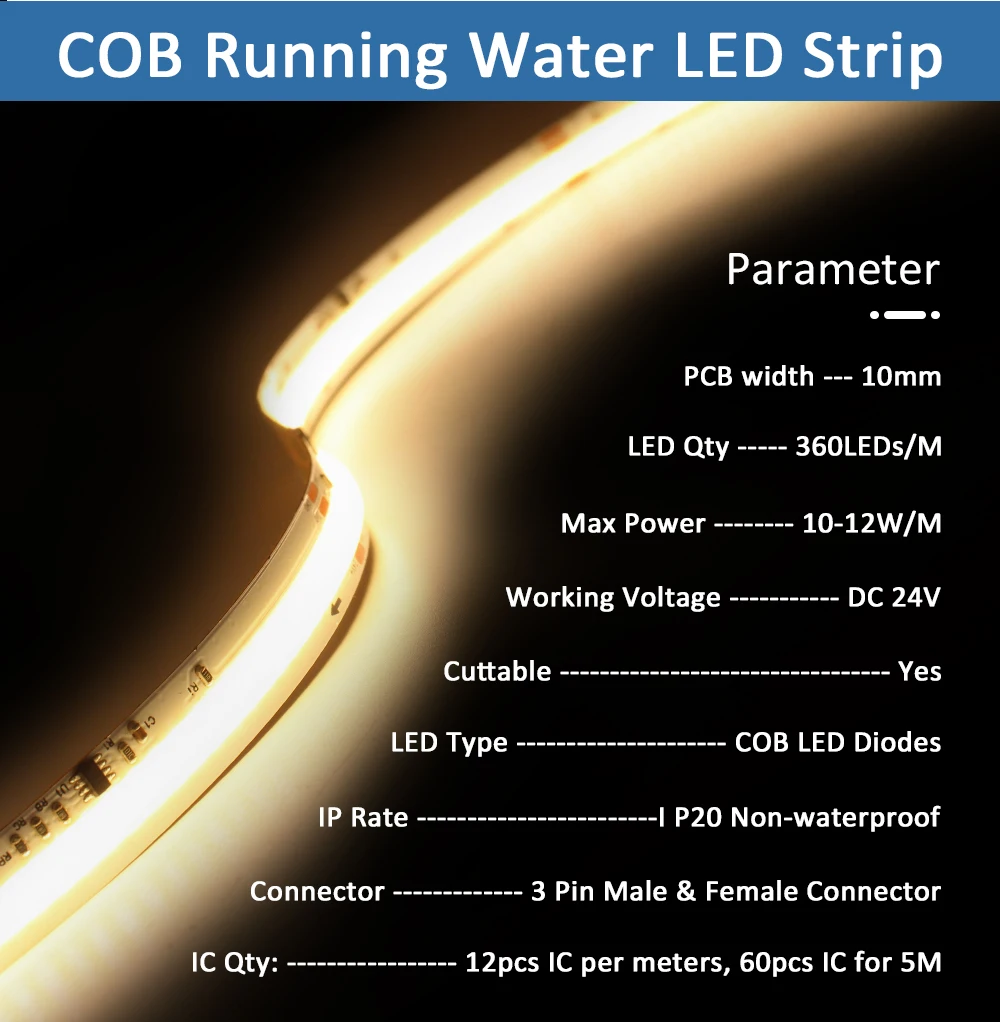

2811 COB LED Strip Specifications:

LED Type: COB LED Diodes

LED Qty: 360LEDs/M

PCB width:10mm

Max Power: 10-12W/M

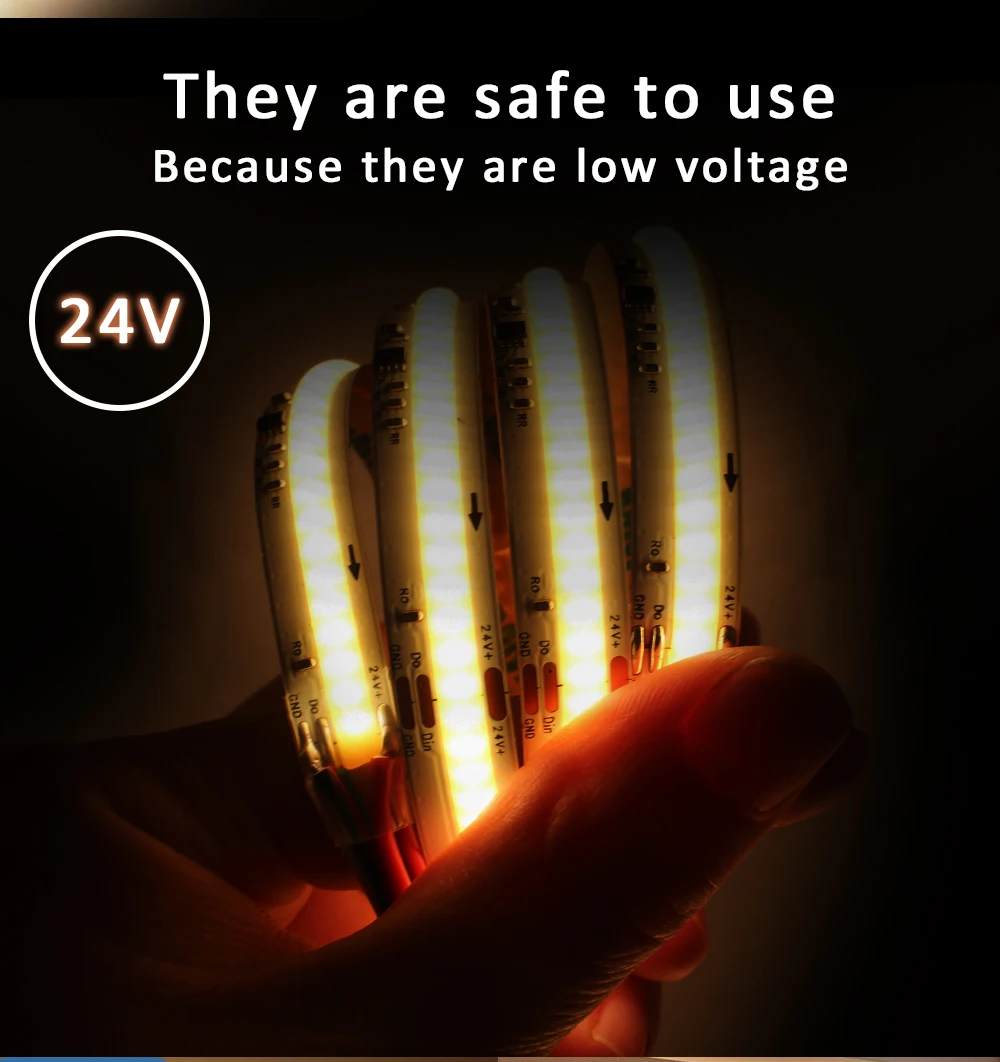

Working Voltage: DC 24V

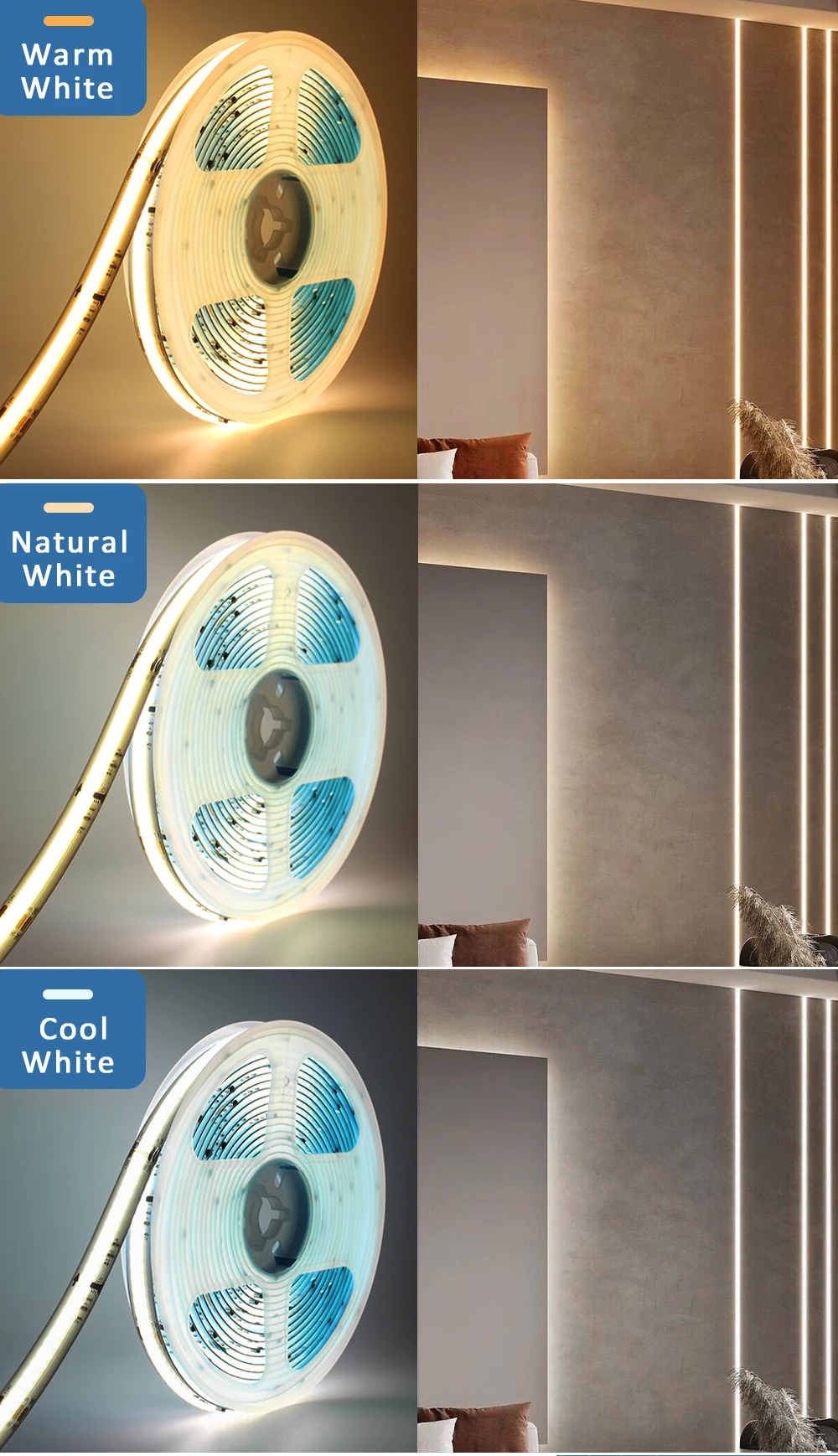

Color: Cool White / Warm White / Natural White

Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K

IP Rate: IP20 Non-waterproof

Connector: 3 Pin Male & Female Connector

Package: 5M/Roll

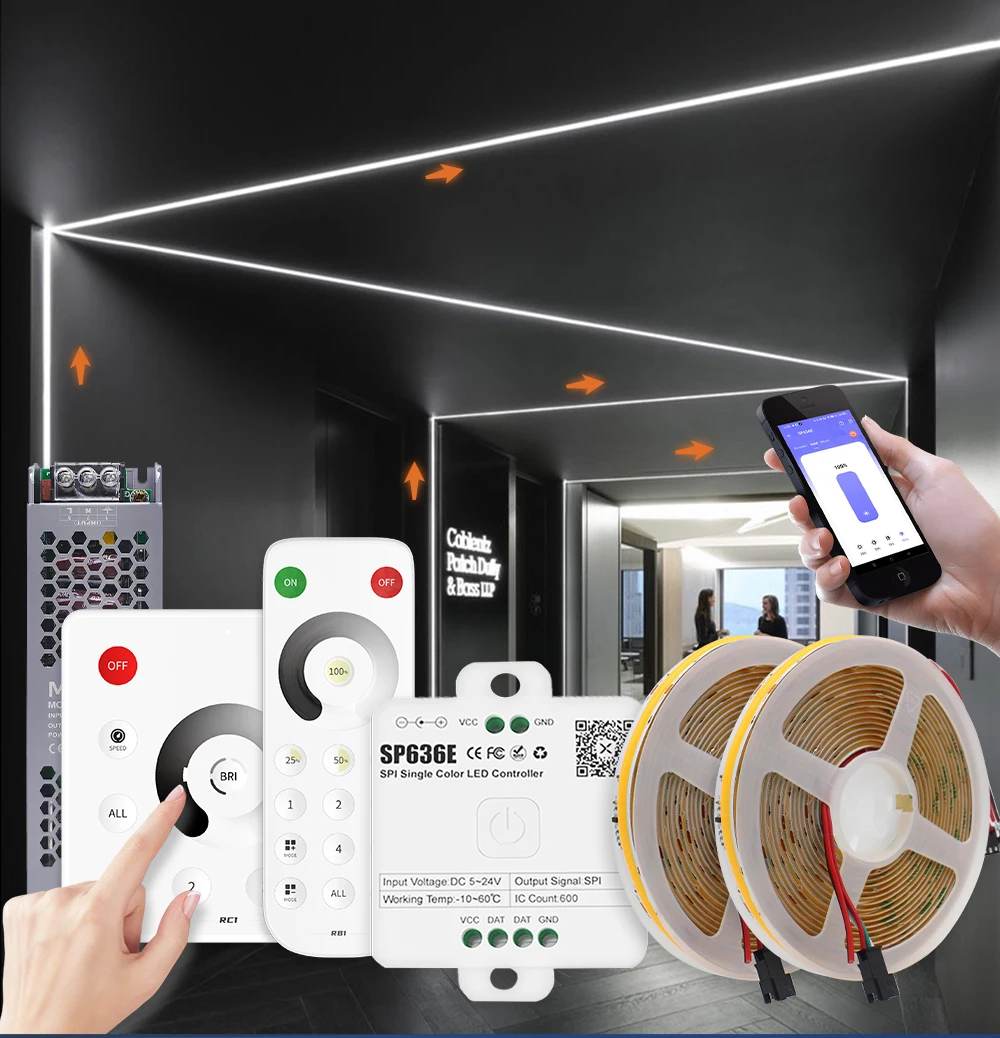

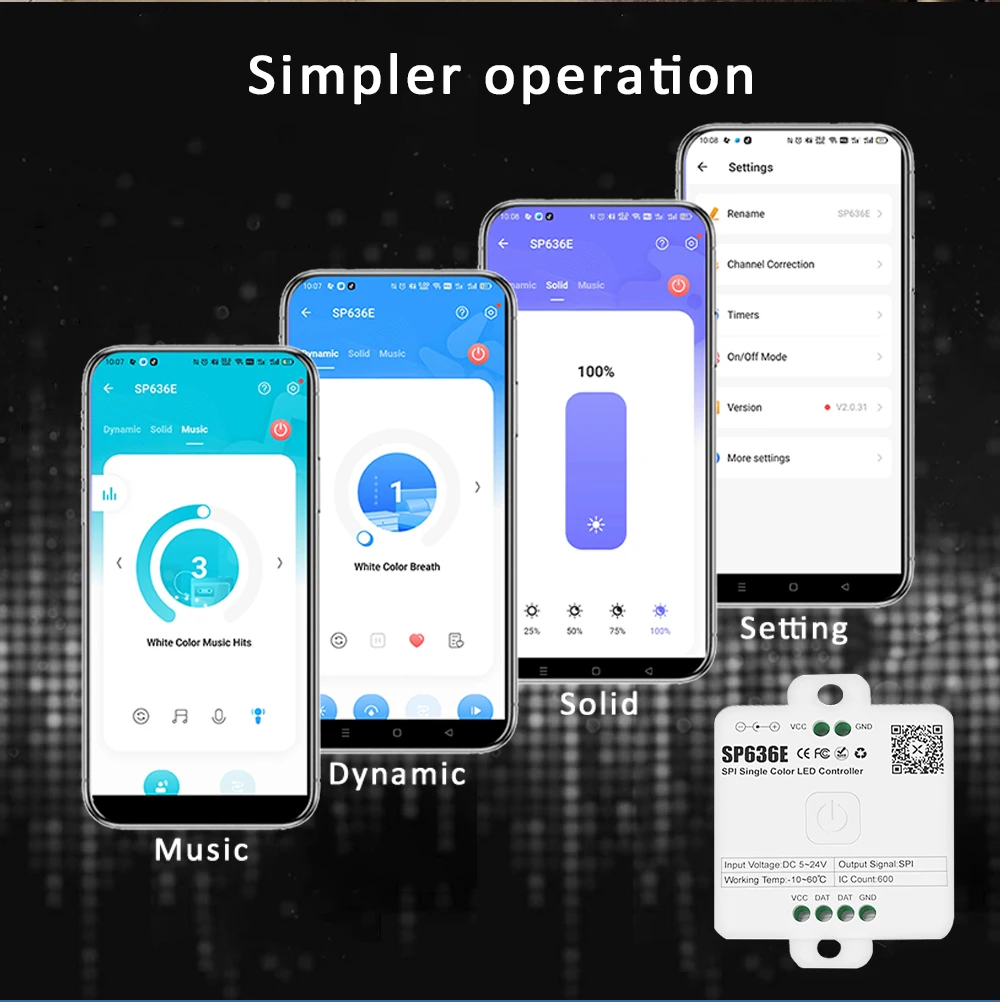

SP636E LED Pixel Controller with RB1/RC1 Remote:

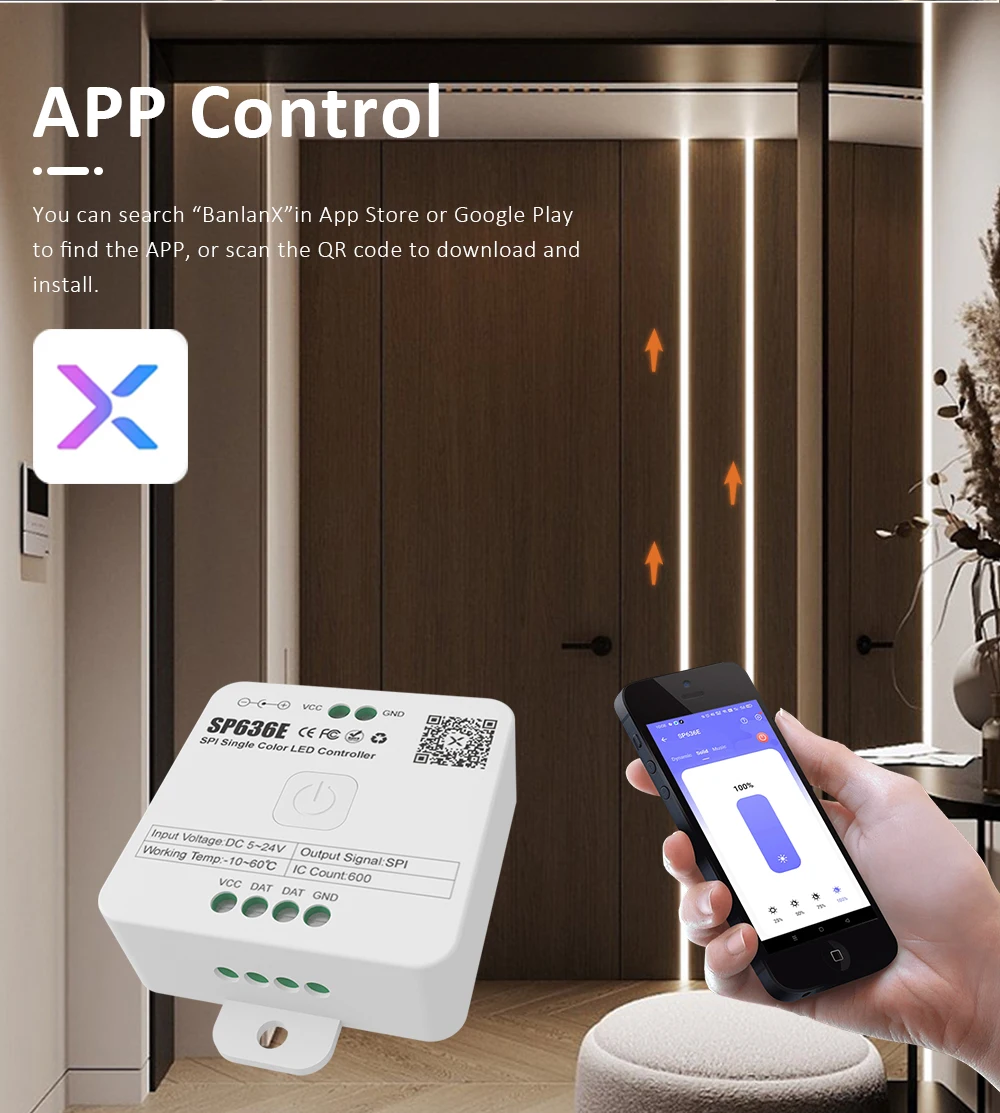

1. Support "BanlanX" APP control,2.4G touch remote control(RB1) and 2.4G touch 86-type control panel(RC1).
2. Max control 600 Pixels(IC)
3. Speed/Brightness is adjustable

4. Built-in a variety of pure white light dynamic effects and music effects,with multiple adjustable parameters.

5. Capture music through the phone microphone, player streamer and on-board microphone.
6. Support effect collection
7. With a variety of ON/OFF animation effects
8. With ON/OFF timer function
9. Support OTA firmware upgrade.

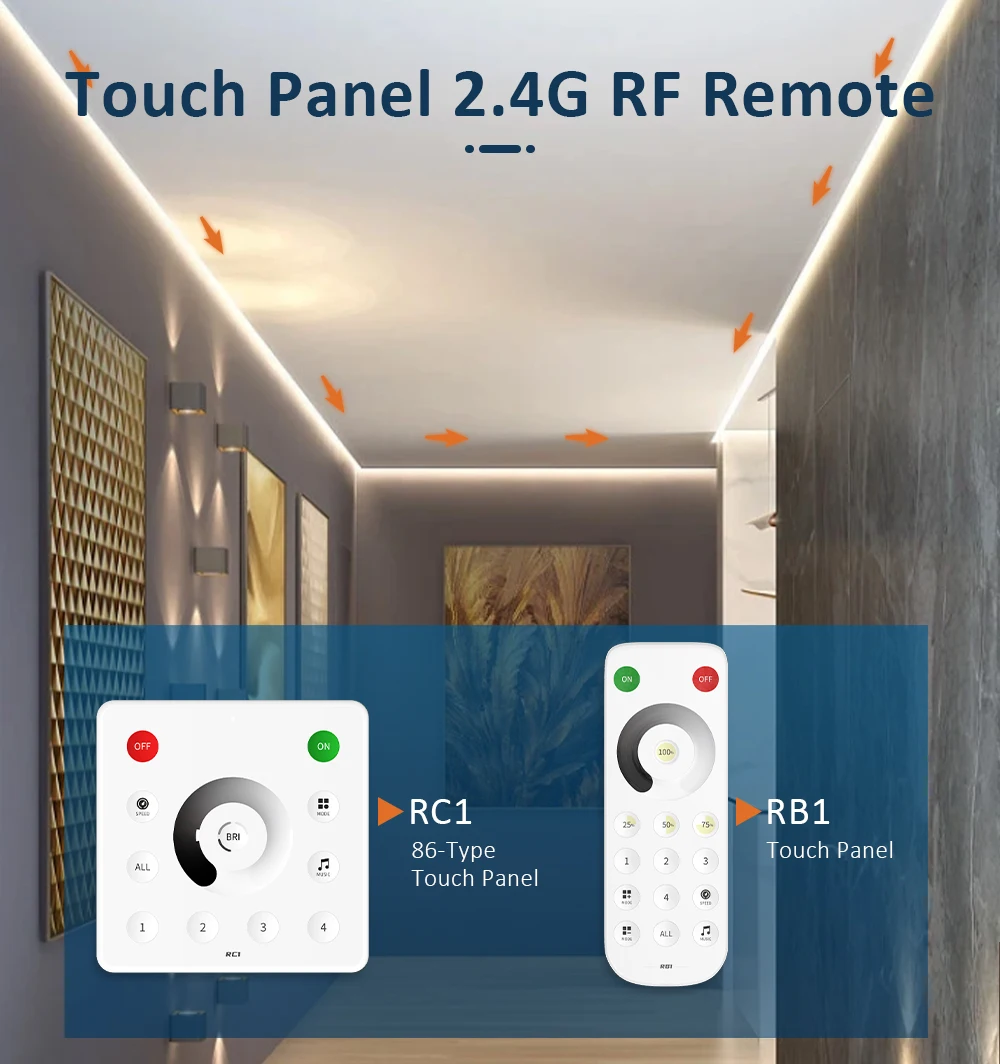

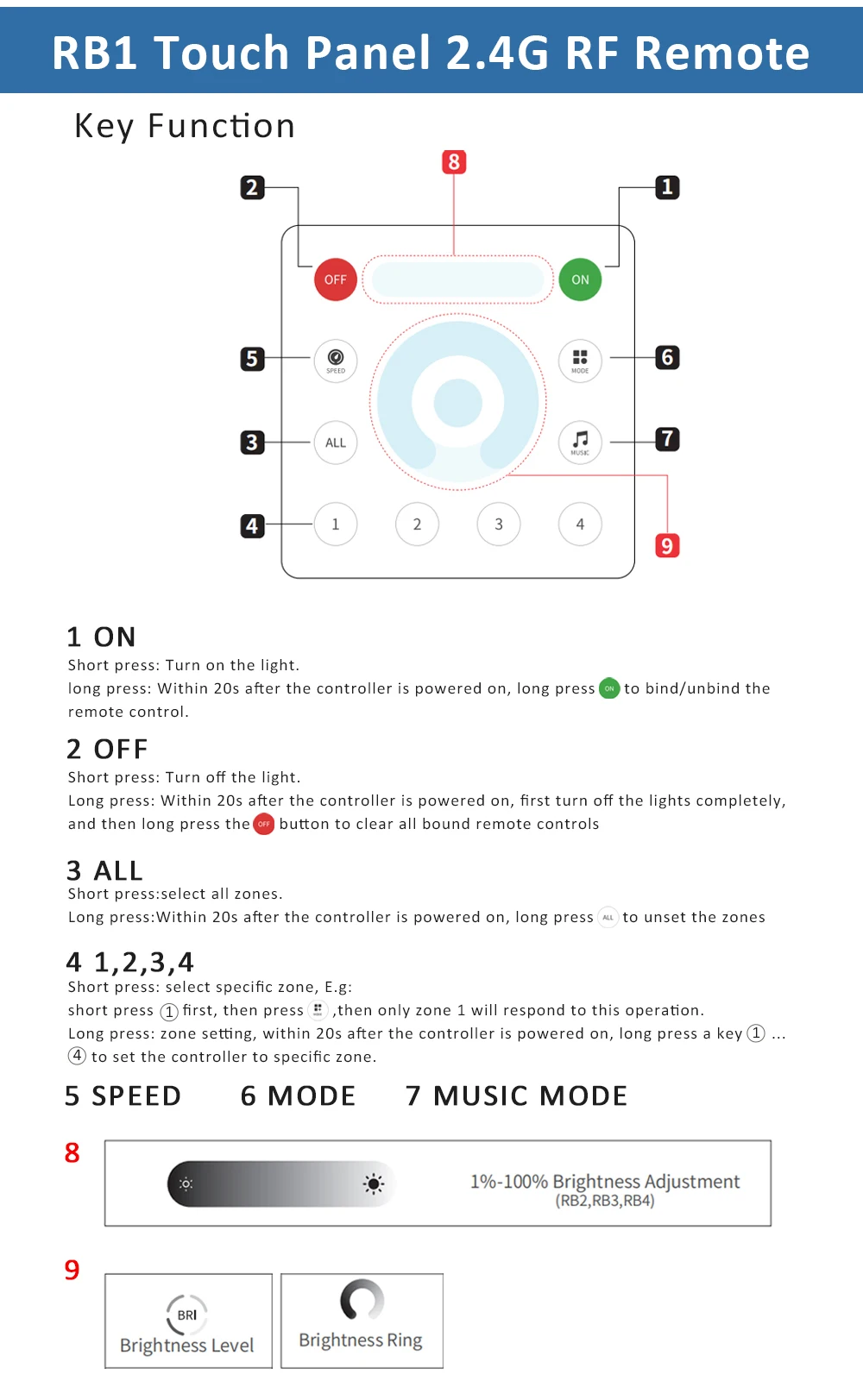

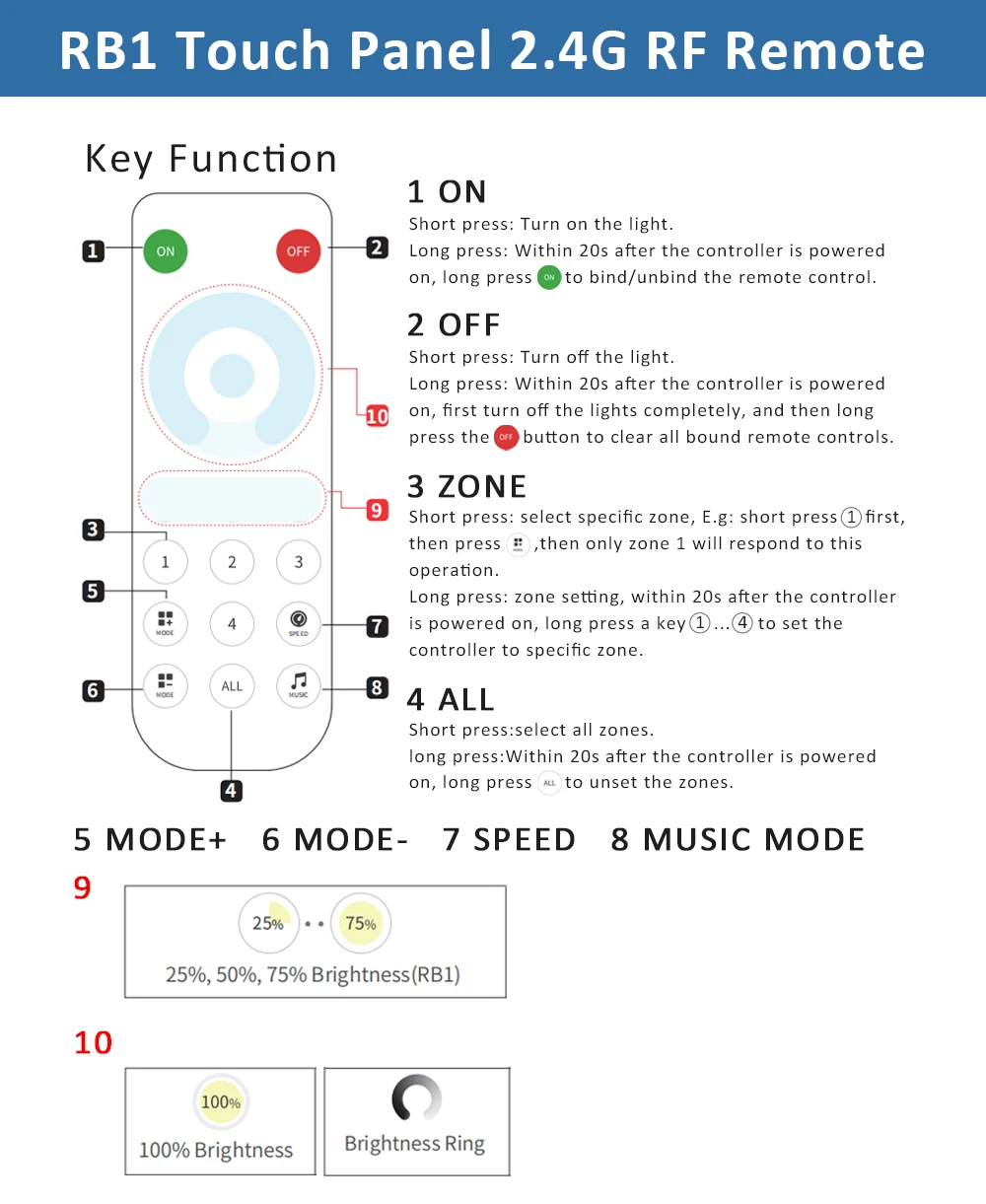

Work with 2.4G Touch Remote Control:

The SP636E controller work with RB1 and RC1 2.4G touch remote control
​1. Support one-to-many control, one remote control can control multiple controllers,sync or independently.
​2. Support many-to-one control,each Sp636E controller can be set up to max 5 remote controls.

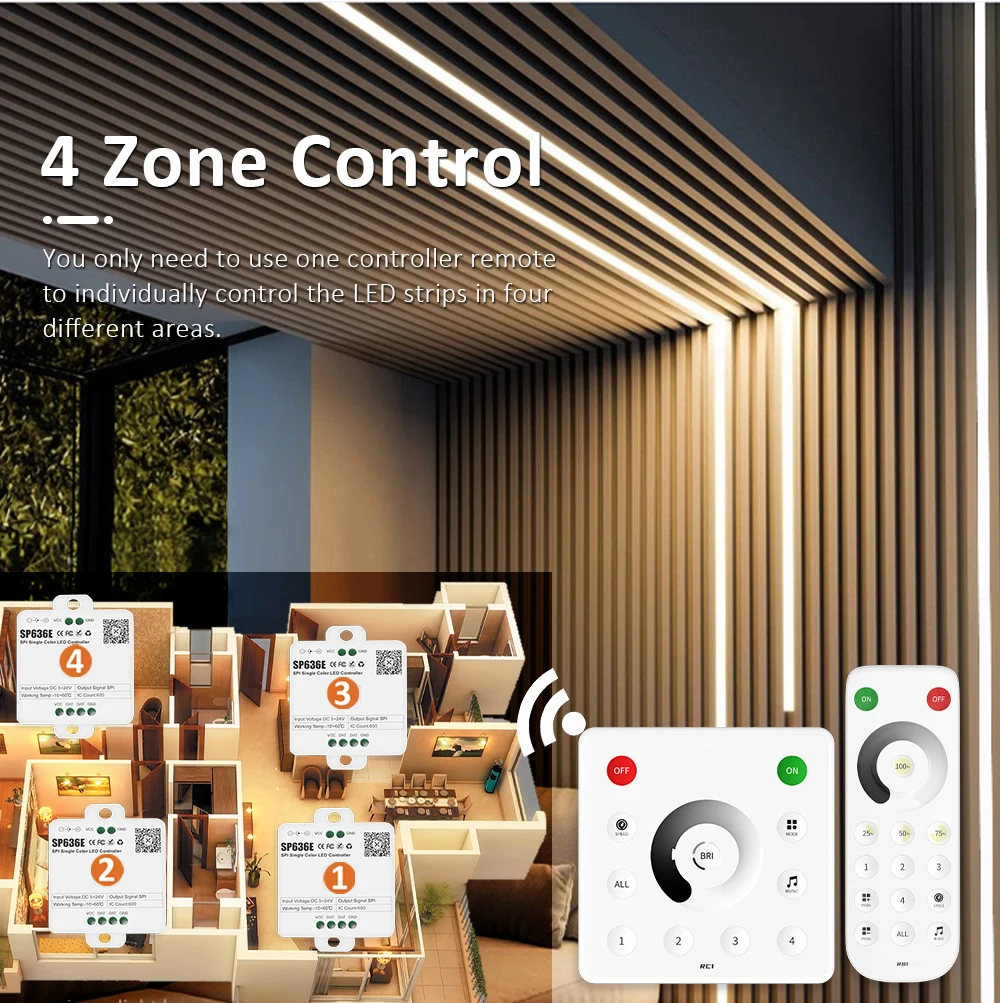

​3. Support Sync control and 4-Zones control independently. (such as 4 rooms, 4 different effects)

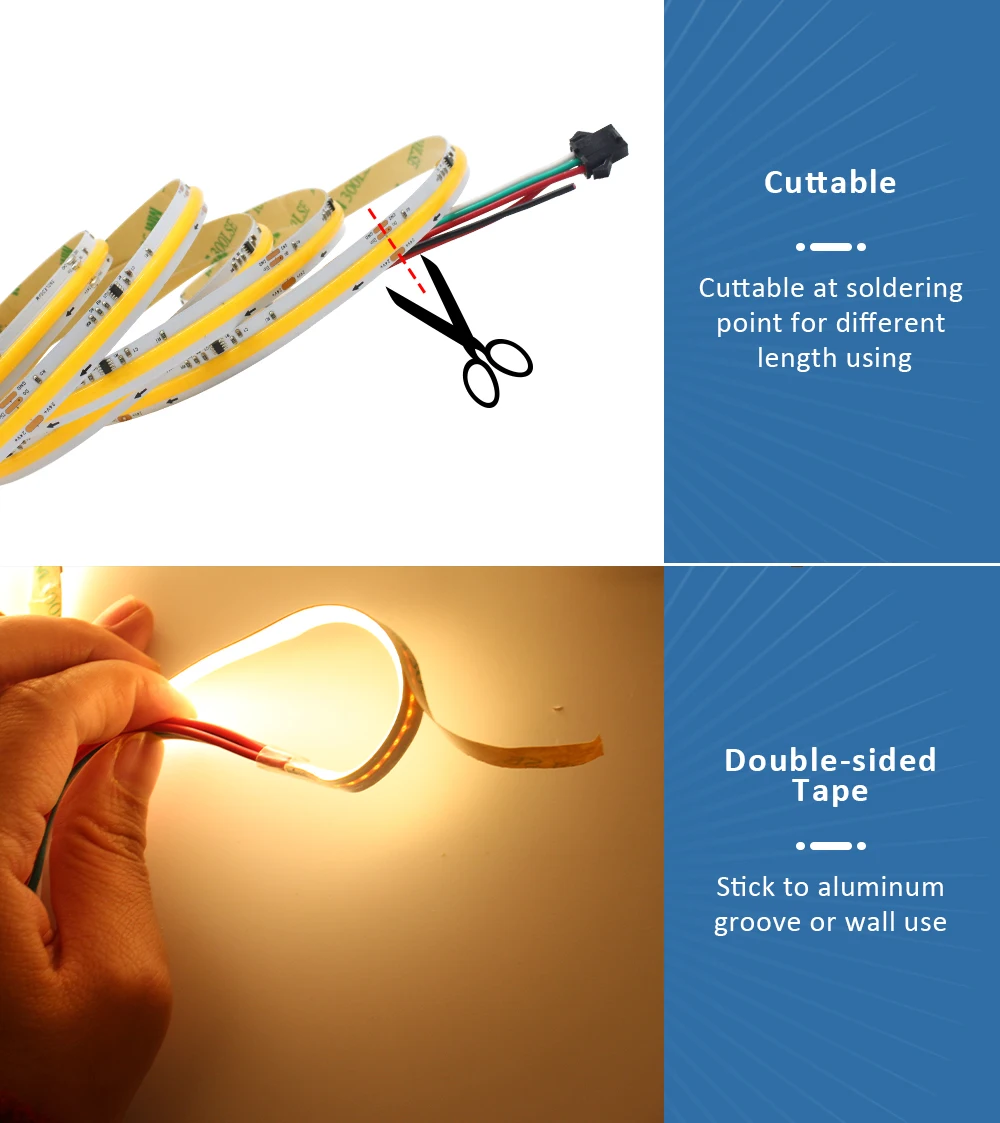

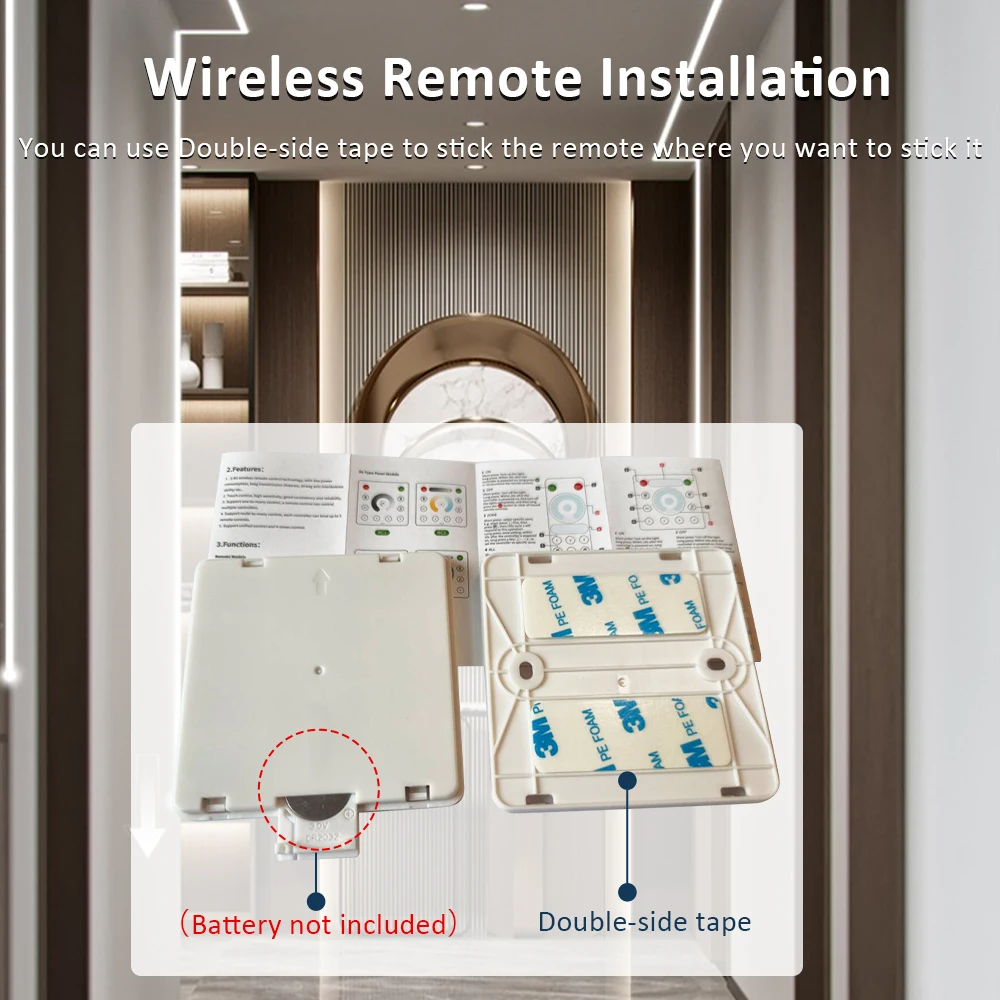

​4. With Double-side tape on the back,easy to install at anywhere

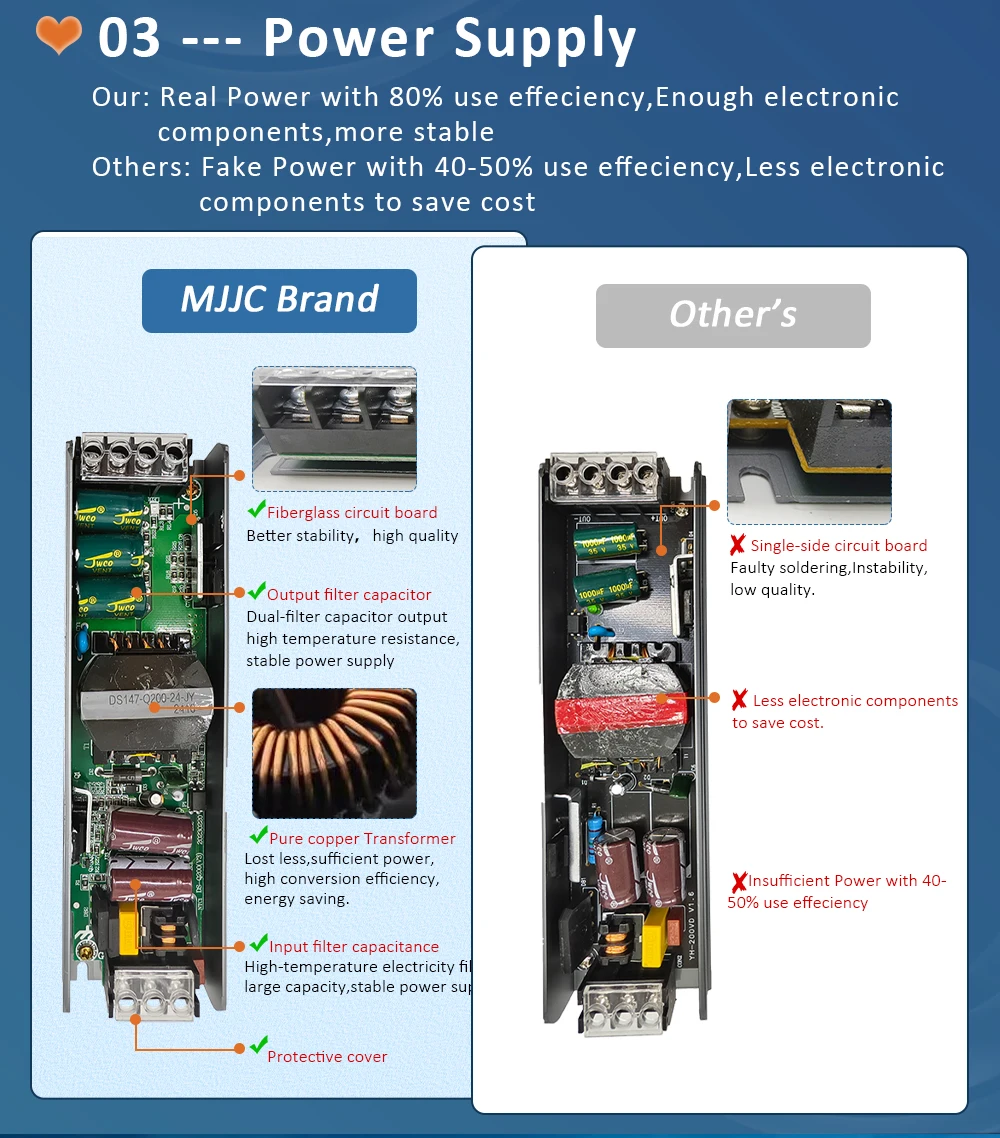

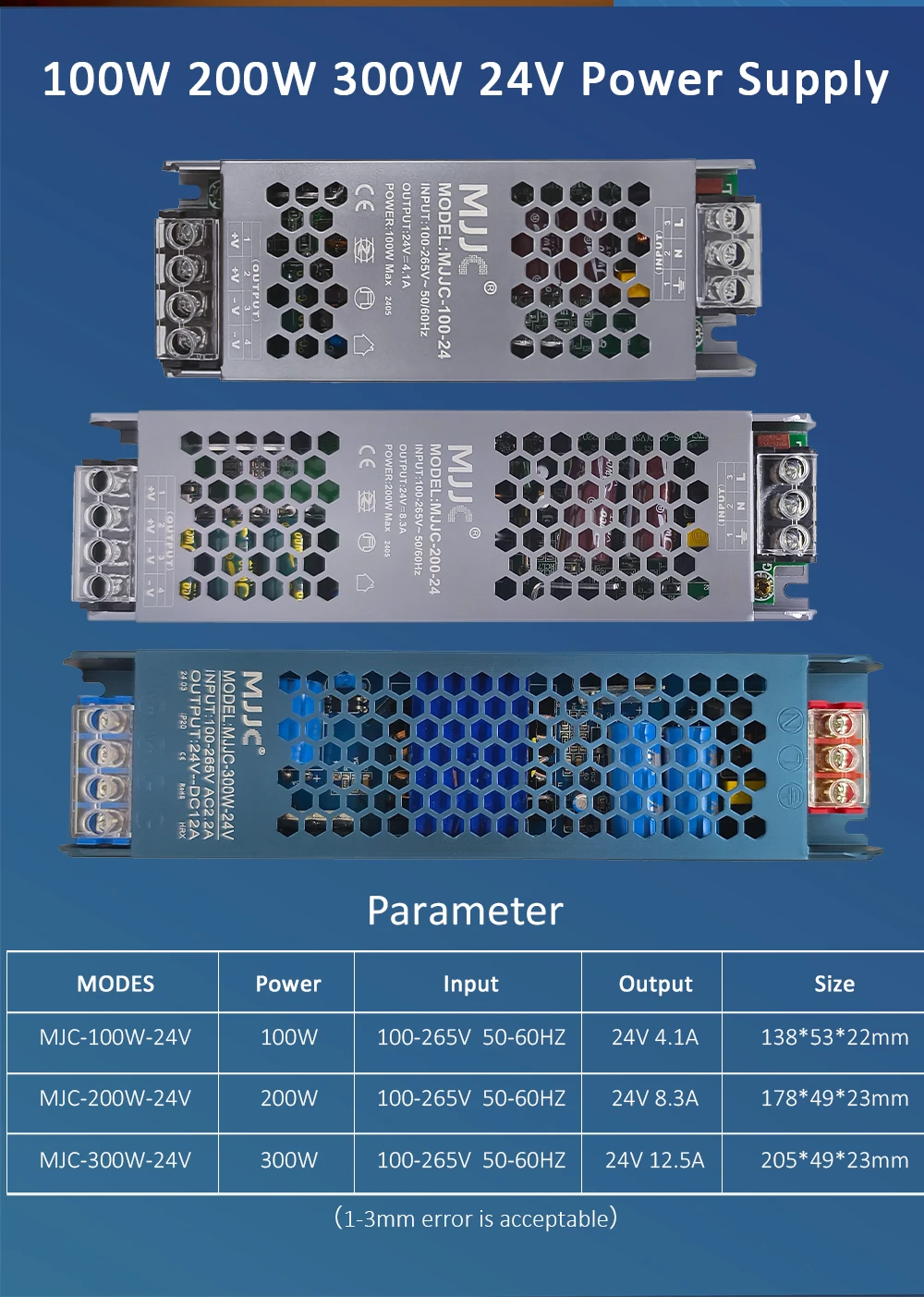

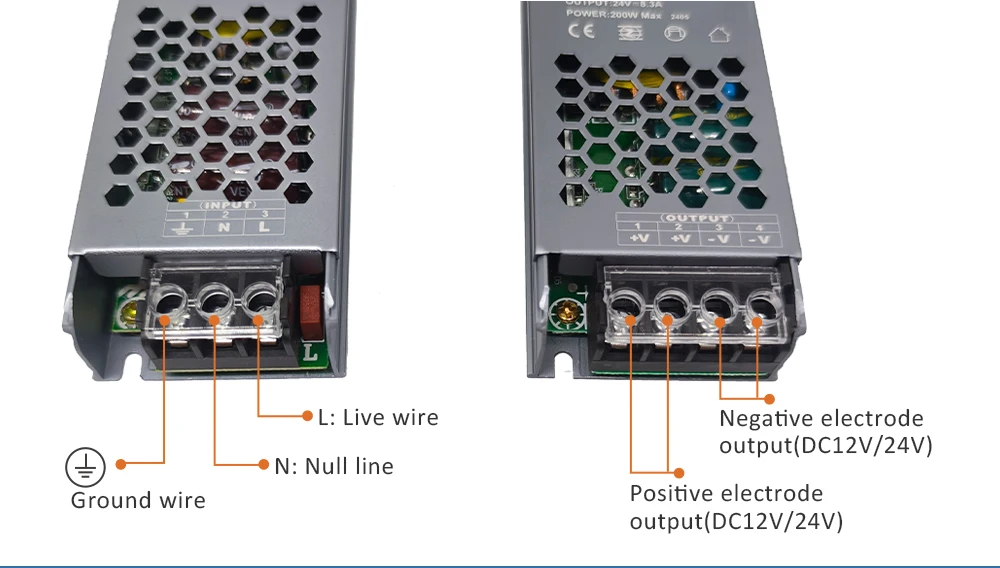

Power Supply:

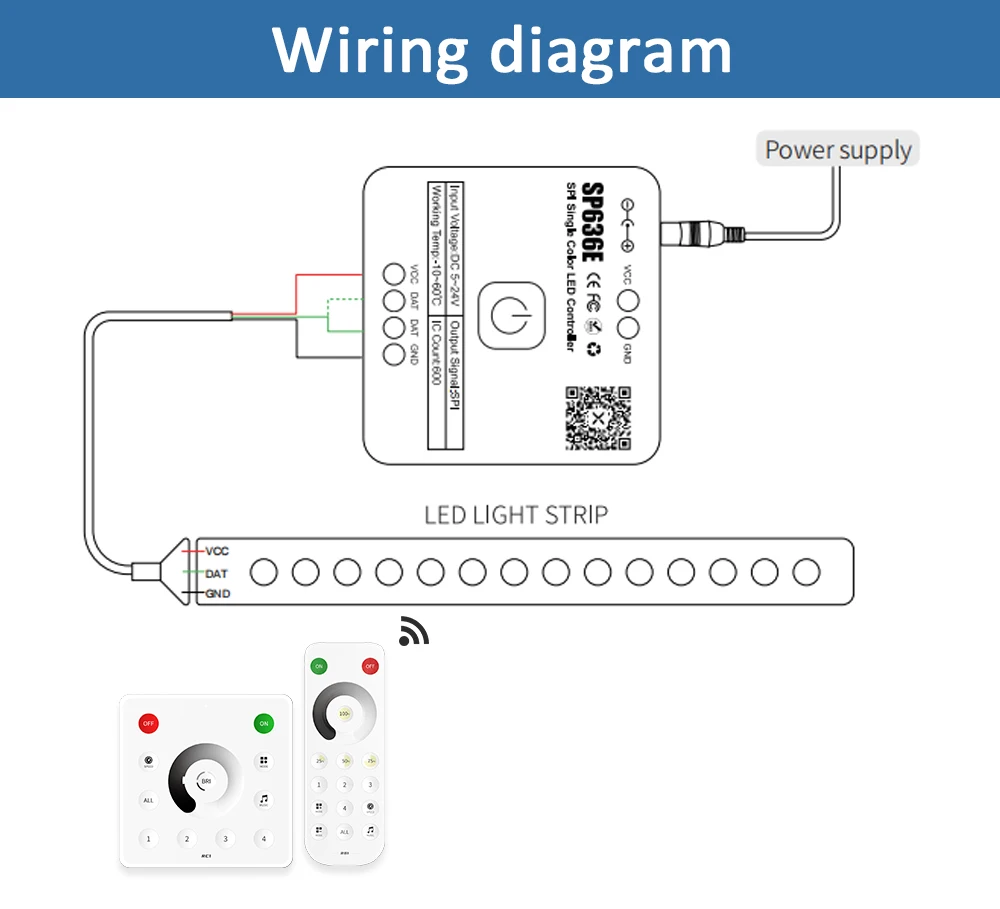

We used high quality DC 24V 100W -300W LED power supply,100% real power output. 1pc DC24V 300W power supply can drive max 20 meters WS2811 horse running pixel led strip.Meanwhile, you have to connect all led strip to the power supply,in case of flickering.

Application:

Making led screen,Rooms Staris Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,the city lighting project, entertainment and leisure places lighting.
