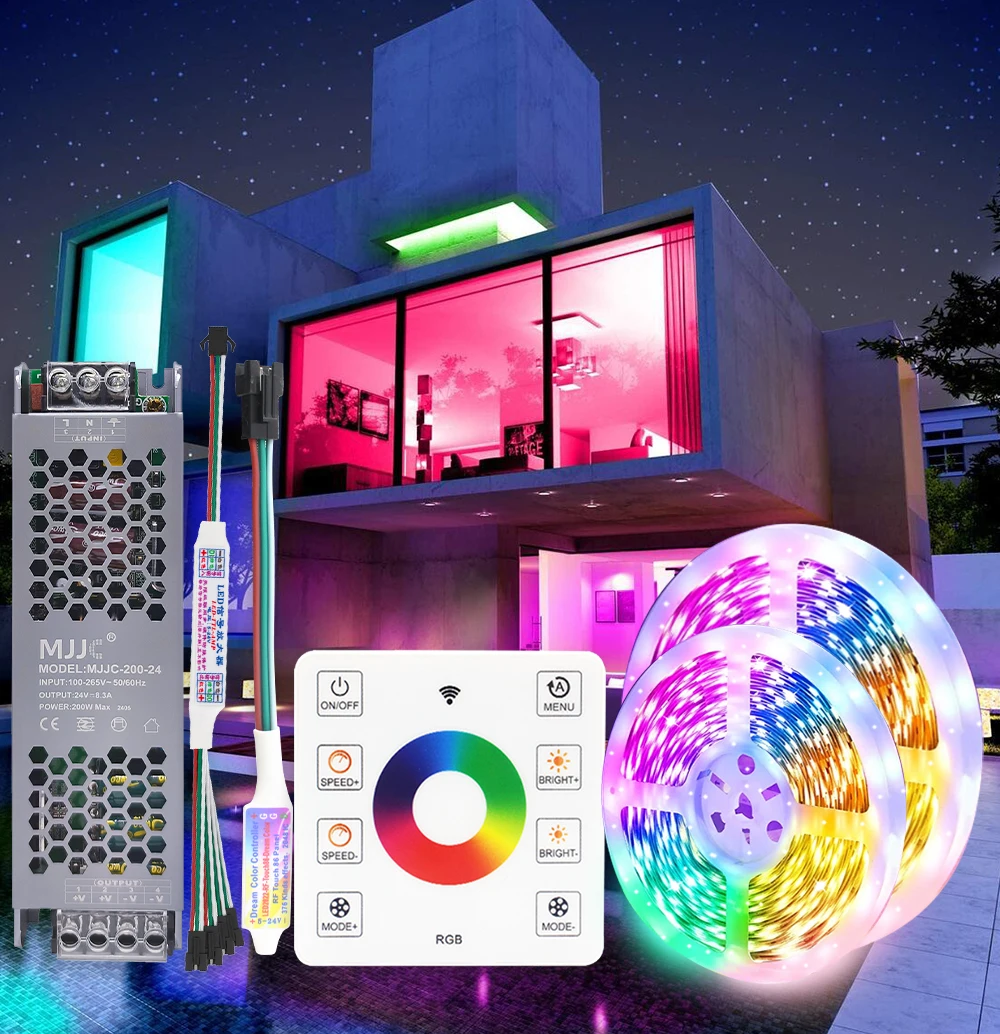

LED Strip RGBIC 5050 24V WS2811 5M 10M 15M 20M RGB IC Horse Running Water Flowing Lights Tape Diode Ribbon Room Decoration Lamp

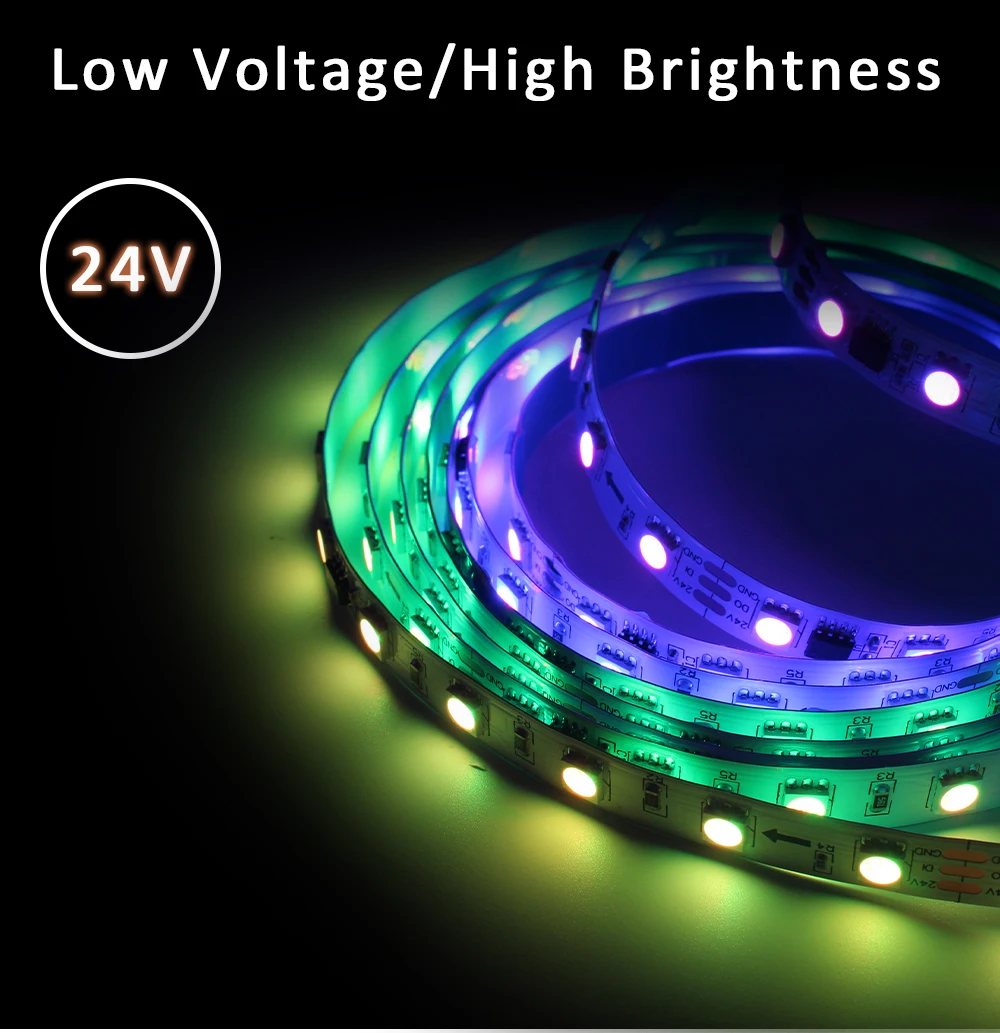

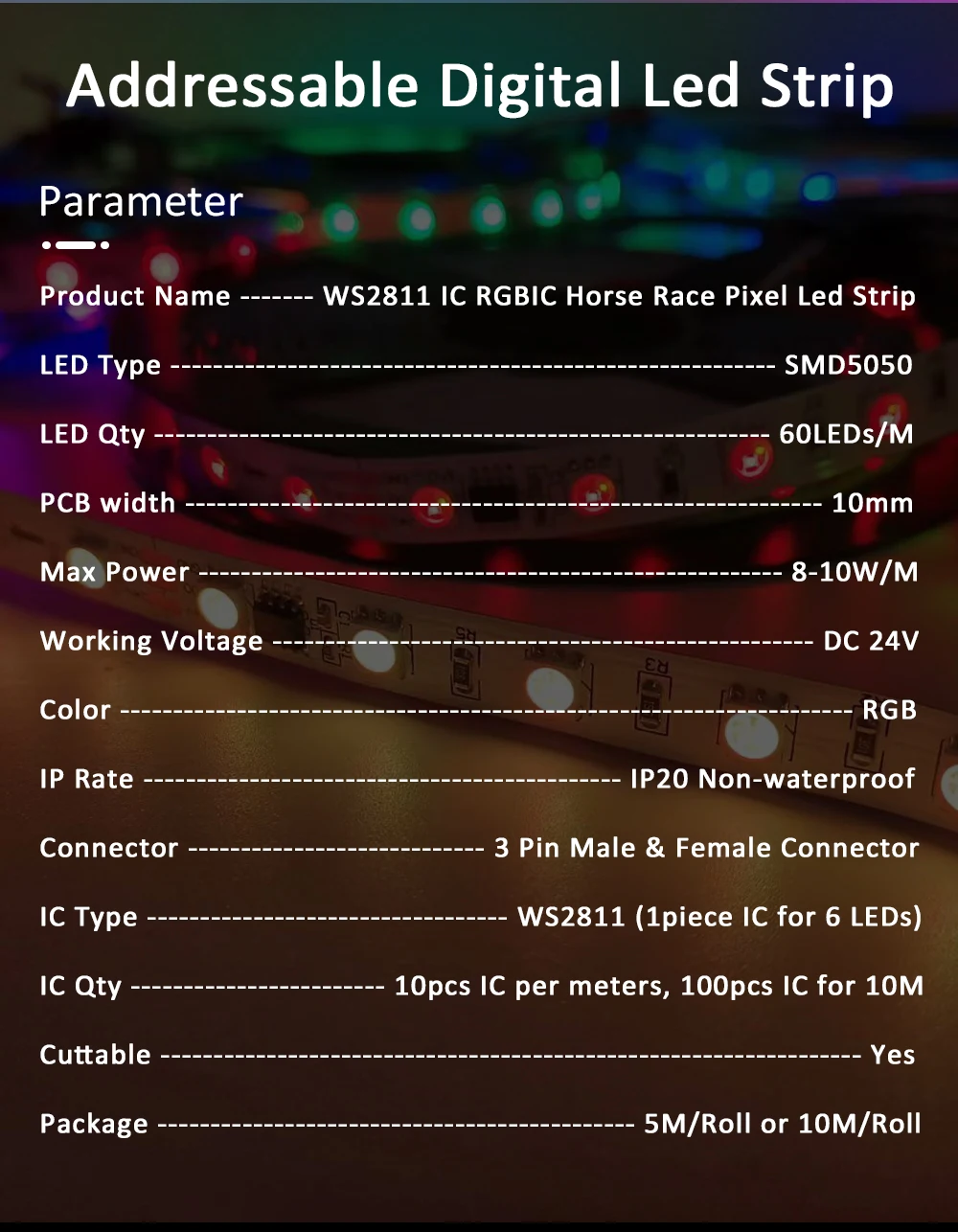

*** Addressable Digital Led Strip Light

Product Name: WS2811 IC RGBIC Horse Race Pixel Led Strip

LED Type: SMD5050

LED Qty: 60LEDs/M

PCB width:10mm

Max Power: 8-10W/M

Working Voltage: DC 24V

Color: RGB

IP Rate: IP20 Non-waterproof

Connector: 3 Pin Male & Female Connector

IC Type: WS2811 (1piece IC for 6 LEDs)

IC Qty:10pcs IC per meters, 100pcs IC for 10M

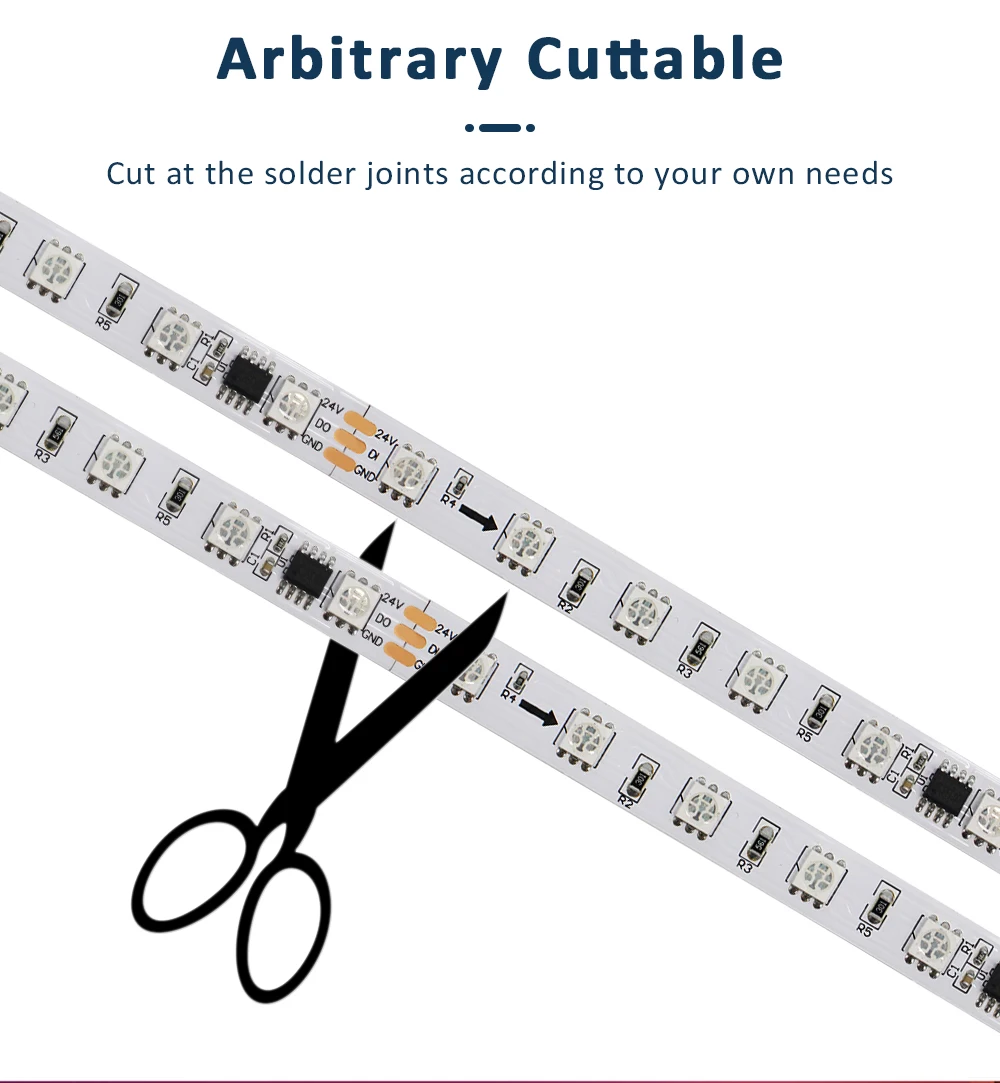

Cuttable Size: 100mm per unit Cuttable

Package: 5M/Roll

Connection:

Red Wire: +24V
Green Wire:DI/DATA

White/Black wire: GND / -24V

Very Important:

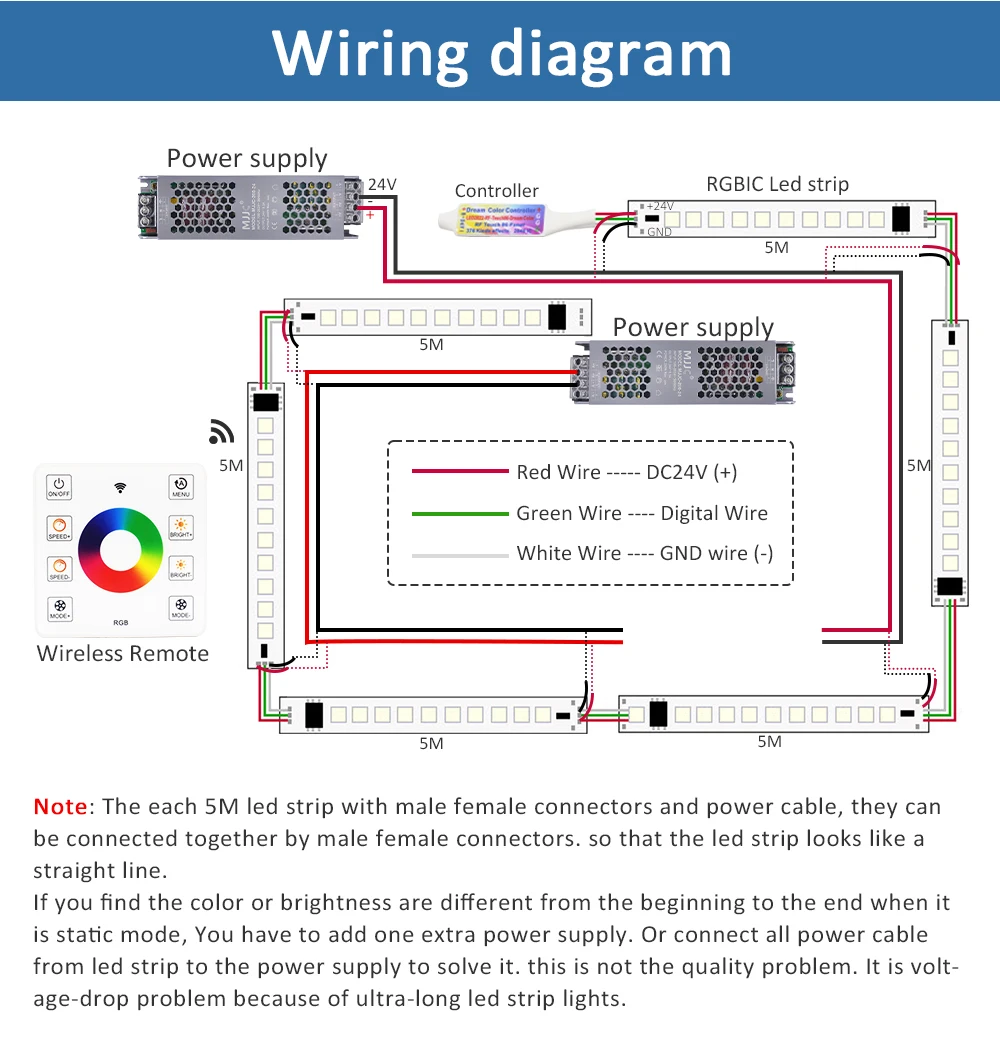

Make sure do correct connection as the following Wiring Diagram !

IF Not, Your led strip will not working perfectly.

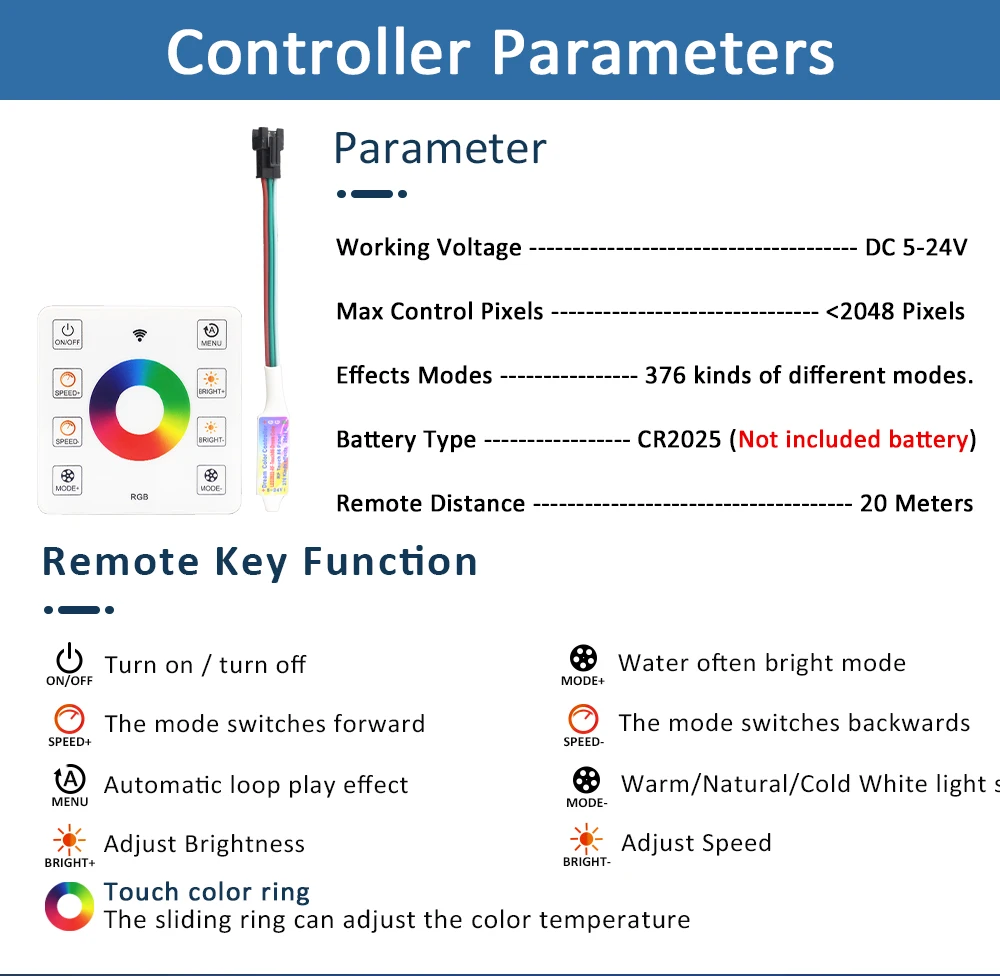

*** RGBIC RF Touch LED Controller

Working Voltage: DC 5-24V

Max Control Pixels <2048 Pixels

Effects Modes: 376 kinds of different modes.Most of effects are running water when you turn ON. Also with Pause and Auto-play function.

Battery Type: CR2025 ( The remote is not with battery)

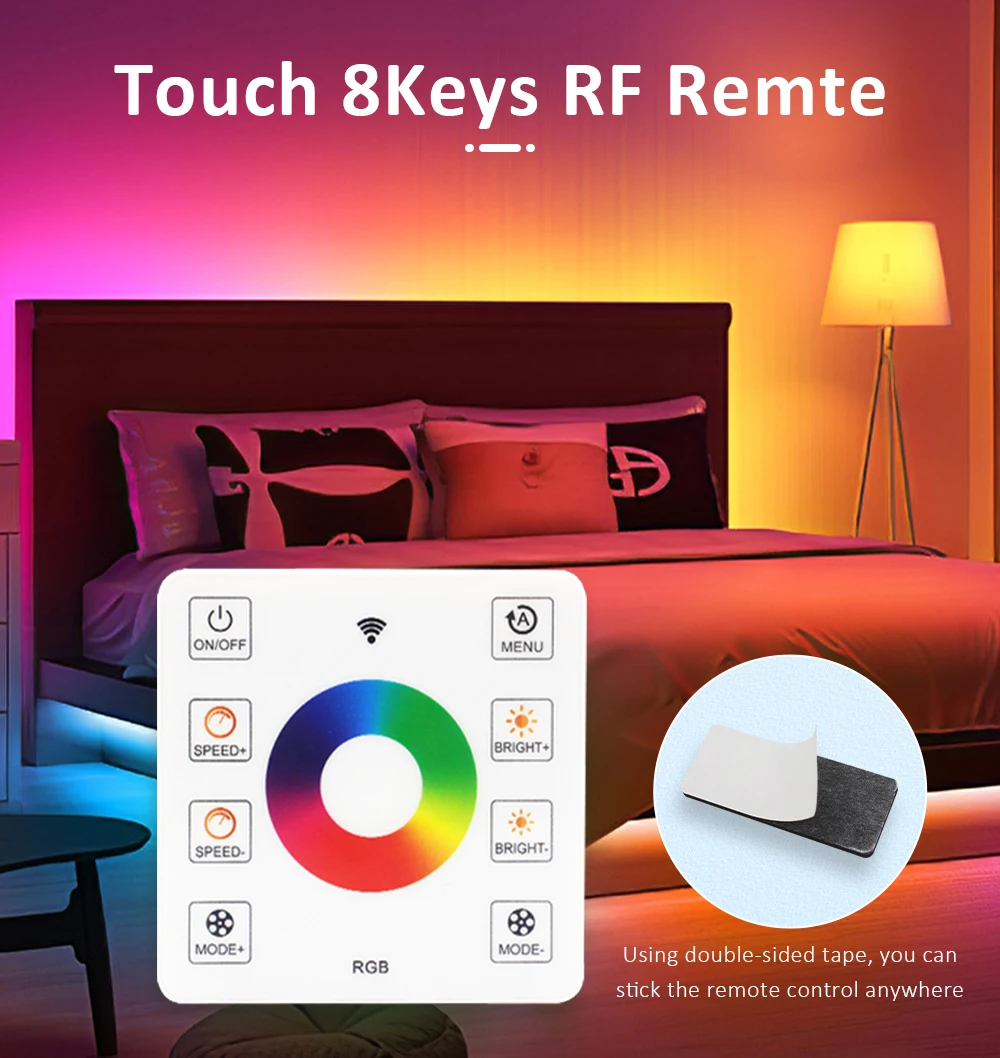

8 Keys Function: ON/OFF , Speed UP/Down, Mode+/Mode-, MENU, Brightness UP/Down, Touch color ring in the middle to adjust the static color.

Remote Distance: 20 Meters

How to adjust the pixel number ?

Step 1: Power Off the lights.

Step 2: Long press " MENU" 5 seconds enter into pixel setting menu

Step 3: Press "Mode+" to increase the pixels number,till the whole led strip are light ON. Press "Mode-" to decrease the pixel number.

Step 4: Press "ON/OFF" key to Save !

How to adjust the wire-Order of RGB led strip ?

Each factory maybe have a different wire-order for RGB led strip, normally it is +RBG,+GRB,+GBR,+RGB,etc. If you press Red, the Led strip light Green or Blue color, that means you have to adjust the wire-order of led strip light.
Let us do as the following steps:
Step 1: Power OFF the lights
Step 2: Long press " MENU" 5 seconds enter into the setting menu.
Step 3: Press " Bright +" to adjust the order,till the led strip are Sequentially light RED, Green, Blue order. Press " Bright-" to reset the order (Convenient batch adjustment).
Step 4: Press " ON/OFF" key to Save.

How to pair the remote to the controller, make it work independently ,never disturbed each other?

Learning:
Step 1: Cut OFF the power supply.
Step 2: Long Press "MODE+",meanwhile Powering -ON, the led strip will quick flash 3 times. learing sucessfully. Now only the just learning remote can control this controller, others cannot.

Delete:
Step 1: Cut OFF the power supply.
Step 2: Long press " Speed+", meanwhile Powering ON. the led strip will slow flash 3 times, delete sucessfully. Now all remote controls are universal.

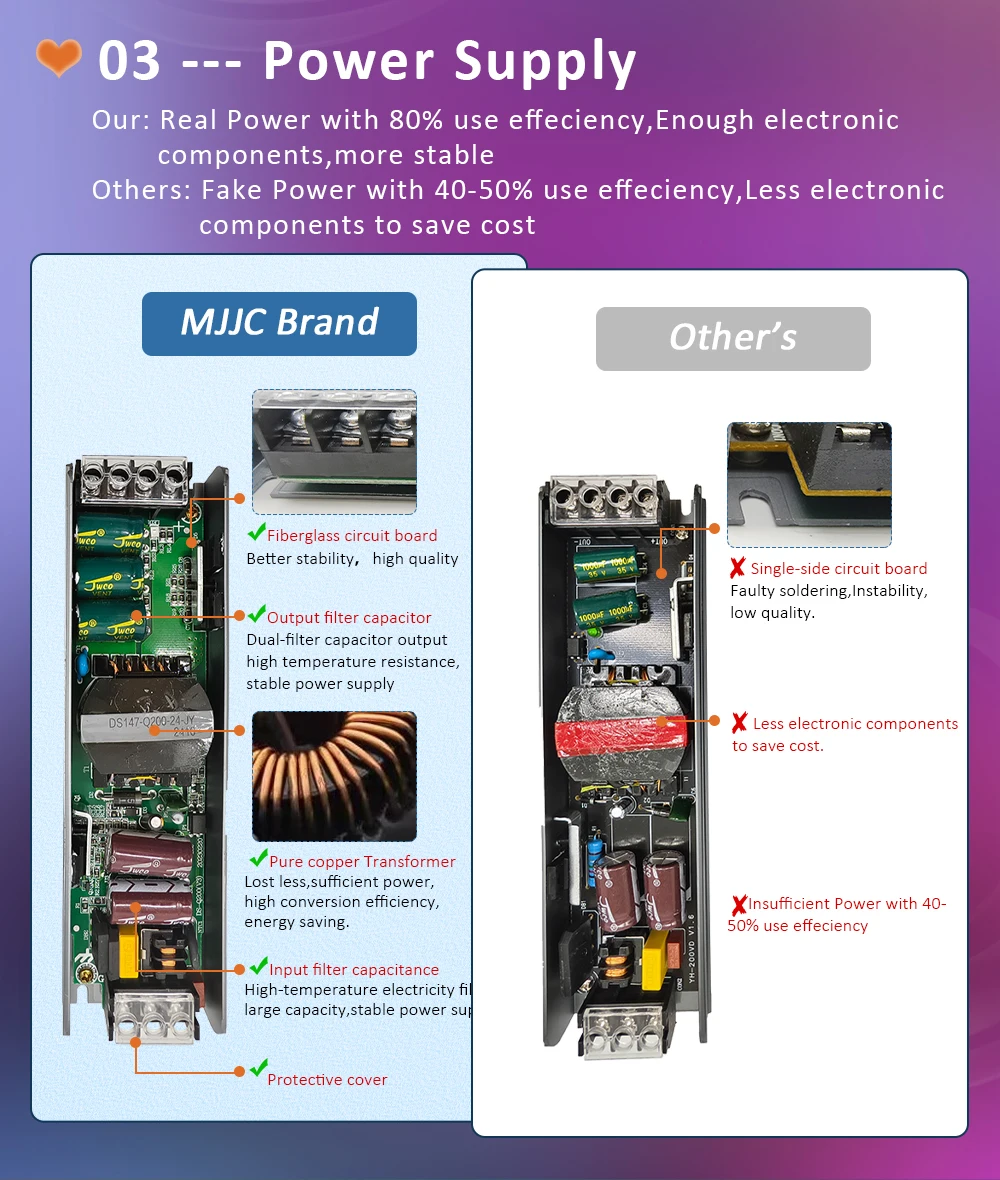

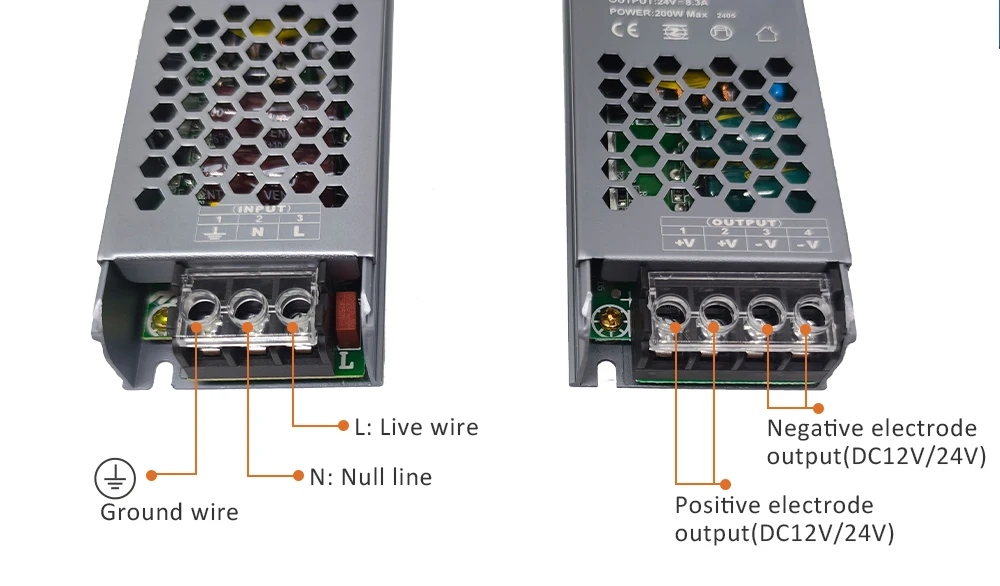

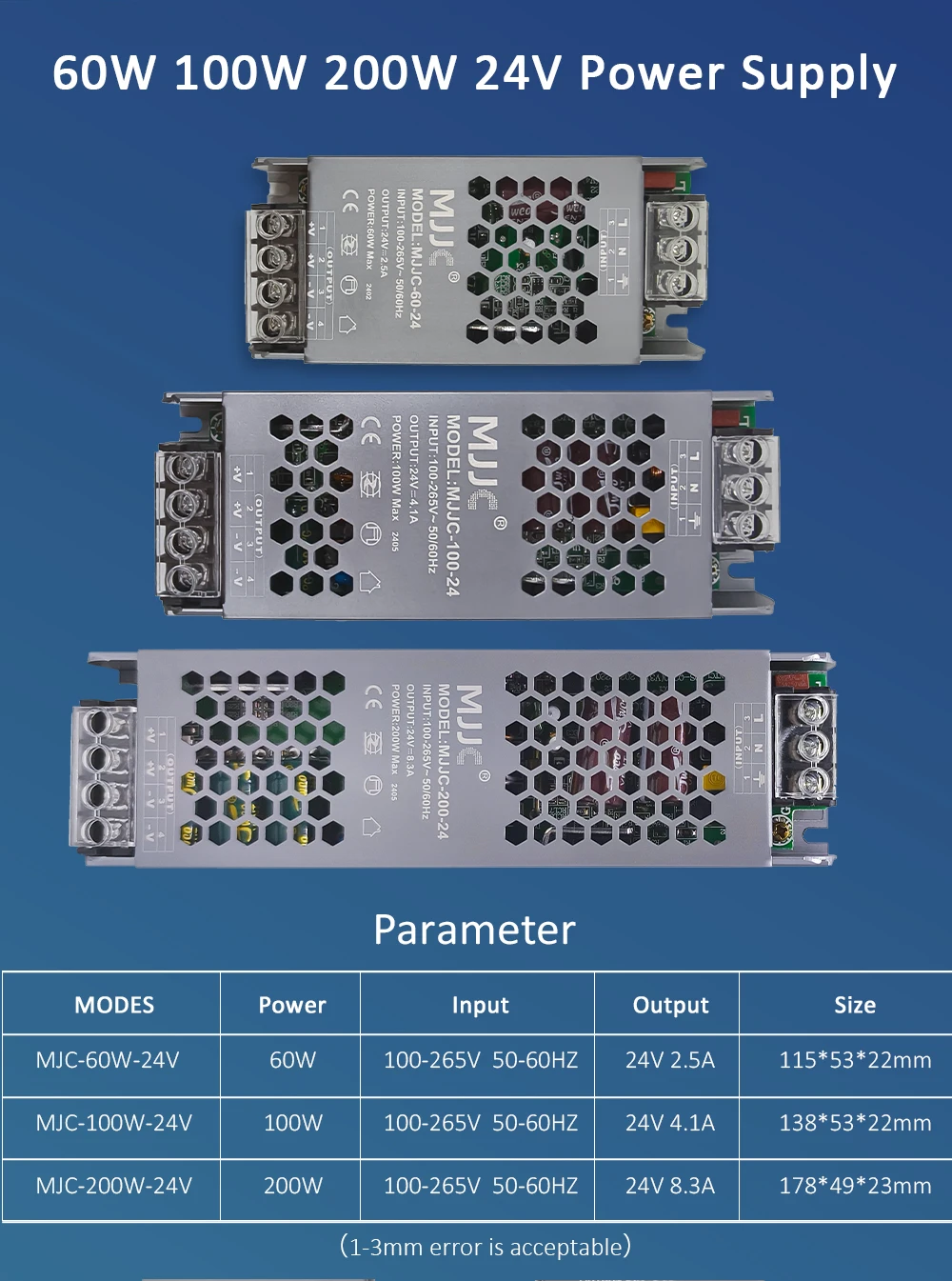

*** Power Supply

We used MJJC power supply,with high quality power supply, 100% enough power outputs,stable and long-life span.
The Power : 100W / 200W / 300W
Input Voltage: 100-265V AC, widely voltage used.
Output Voltage: DC 24V

How to choose the power supply ? we suggest.

1pc 60W power supply can used for 5M  24V 60LEDs/m RGBIC Led Strip Lights.
1pc 100W power supply can used for 10MM 24V 60LEDs/m RGBIC Led Strip Lights.
1pc 200W power supply can used for 15M-20M 24V 60LEDs/m RGBIC Led Strip Lights.
IF your projects is more than 20m, we suggest you can add some extra power supply in another end of led strip, to avoide the voltage-drop, so that to keep the same birhgntess of the whole led strip.

1. The each 5M led strip with male female connectors and power cable, they can be connected together by male female connectors. so that the led strip looks like a straight line.
2. If you find the color or brightness are different from the beginning to the end when it is static mode, it maybe need to add extra power supply. Or connect all power cable from led strip to the power supply to solve it.
