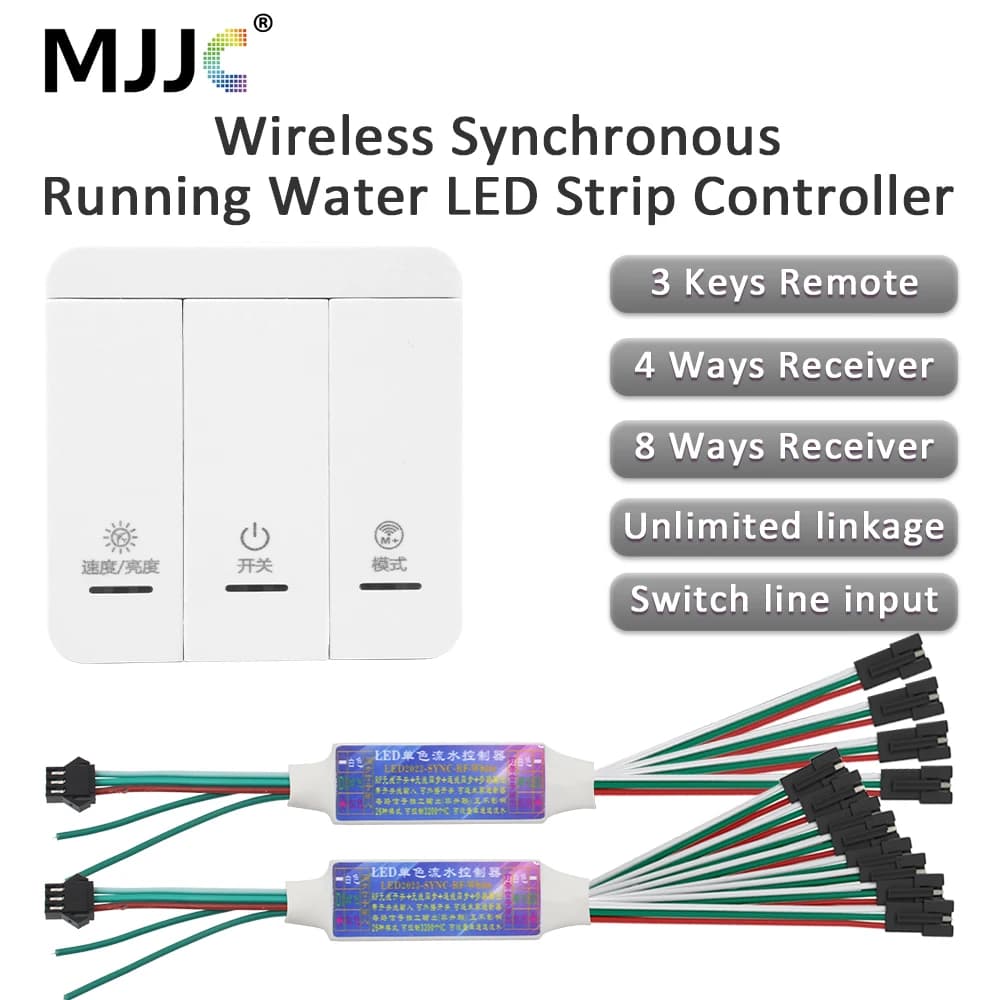

DC 5-24V Horse Racing LED Strip Controller 3 Keys Panel Sync Control WS2811 1903 IC SMD2835 Single Color COB Running Water Light

*** Product Parameters:

Product Name: Single Color Horse Race Led Strip Controller

Working Voltage: DC5-24V ( The controller dont connect to the power supply)

Control Distance: < 20m

Battery Type: CR2032 button cell ( Not included)

Modes: 26 Different modes built-in controller.

With Switch Input ( Green Wire): Turn ON,the lights running, Turn OFF, the lights backflow.

Max Pixel Control:Max Control Pixels:3200pcs Pixels,if more than 3200pcs pixels,just add extra receiver or amplifier to realize sync working.

Installation: With 2pcs double-side tape,anywhere to stick.

3Keys Remote Function: ON/OFF, Model Key, Brightness UP/Down,Speed UP/Down

*** Features:

1. one receiver can be controlled by max 6pcs 3keys panel remotes.

2. Two receivers can be connected together,realize sync working. The wire between two receiver can be up to max 10metes for extension.

3. The controller can be work with normal switch, Turn ON/OFF by the switch without remote.It also can connect to Mihome Smart Switch to realize voice control.

*** Sync Projects:

Wire Connection Sync Working: 99.99% sync (Recommend)

Wireless connection sync working: Maybe has delay

*** How to setting pixels?

Step 1: Turn OFF the lights

Step 2: Long press "Mode" keys 5 seconds,press "Speed" keys to increase the pixels quantity, Press "Mode" keys to decrease the pixels quantity.

Step 3: Press " ON/OFF" to save, Exit.

Default factory setting is 80pixels,max up to 3200pixels. If you found some led strip is not light, please kindly do pixel setting as above steps.

*** How to pair Remote to the Receiver,make them working independently ?

Step 1: Turn on the power supply.

Step 2: Long press "Mode"keys 3seconds within 2seconds after powering ON.

Step 3: Sucessfully if the led strip quick flash 3 times.

1pc receiver can be controlled by max 6pcs panel remote.

*** What kind of led strip it can be used for ?

24V WS2811 120/126Leds/234leds/m horse race led strip,24V WS2811 360LEDs/M COB horse race led strip
