LED Dimmer 12V 5V 24V 36V 8A PWM Wireless RF Switch with 2.4G Brightness Adjustment Touch Remote for Single Color LED Strip V1

Features:

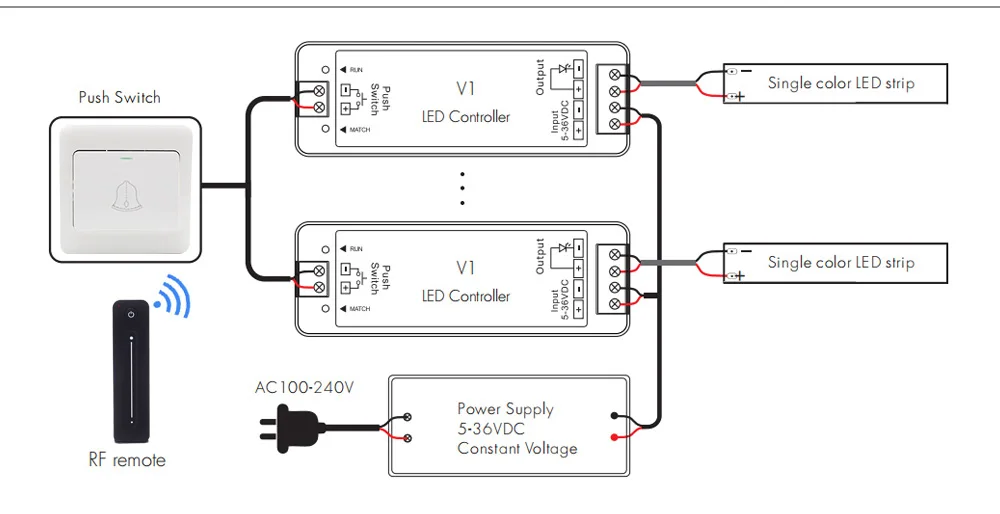

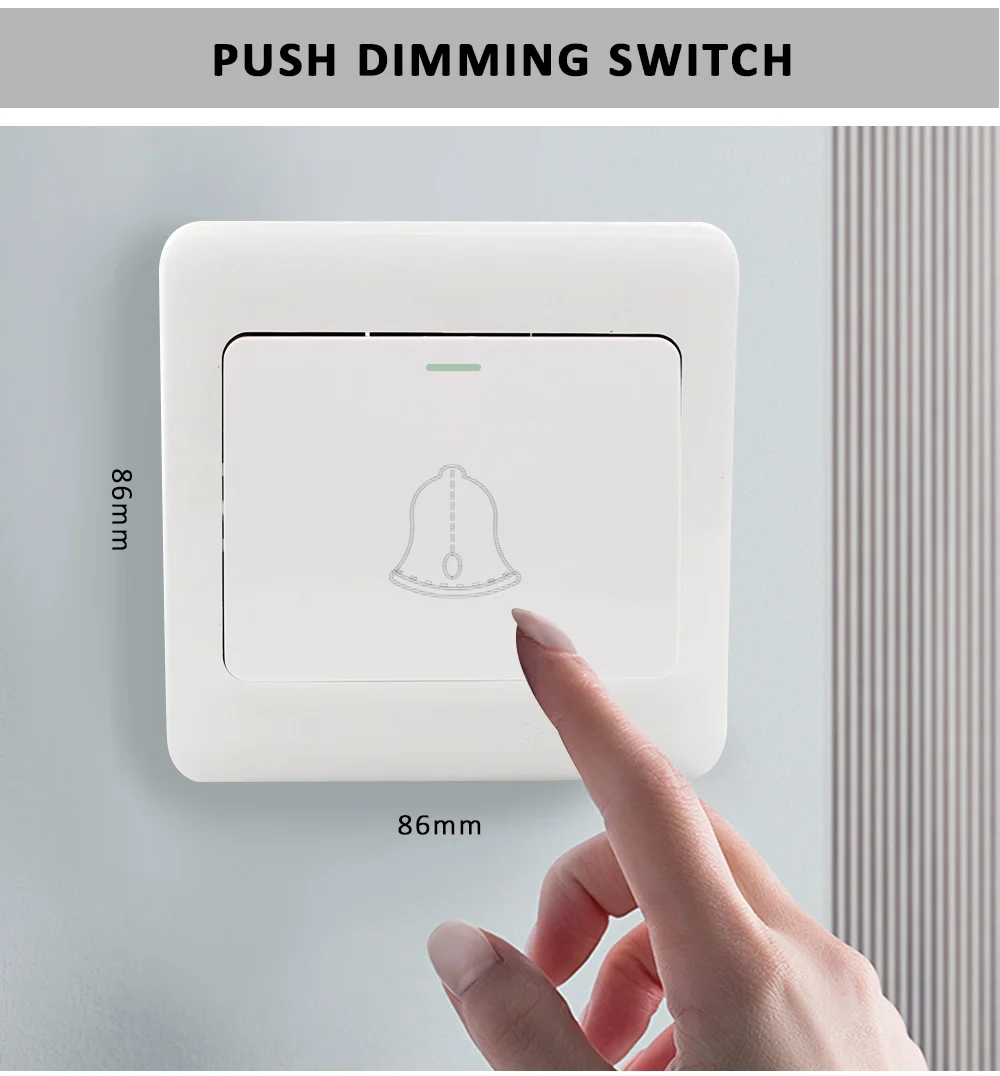

● Remote control or connected with external push switch to achieve on/off and dimming function

● Ultra sensitive brightness adjustment touch slide

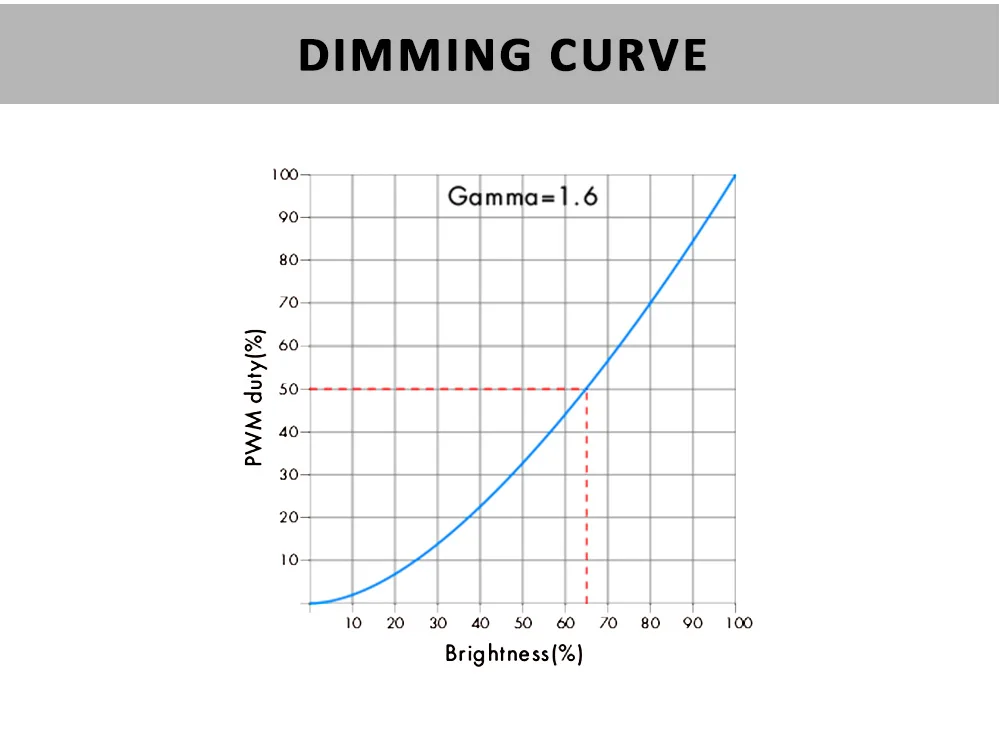

● Smooth dimming and switch without any flickering

● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance

● Synchronize on multiple number of controllers

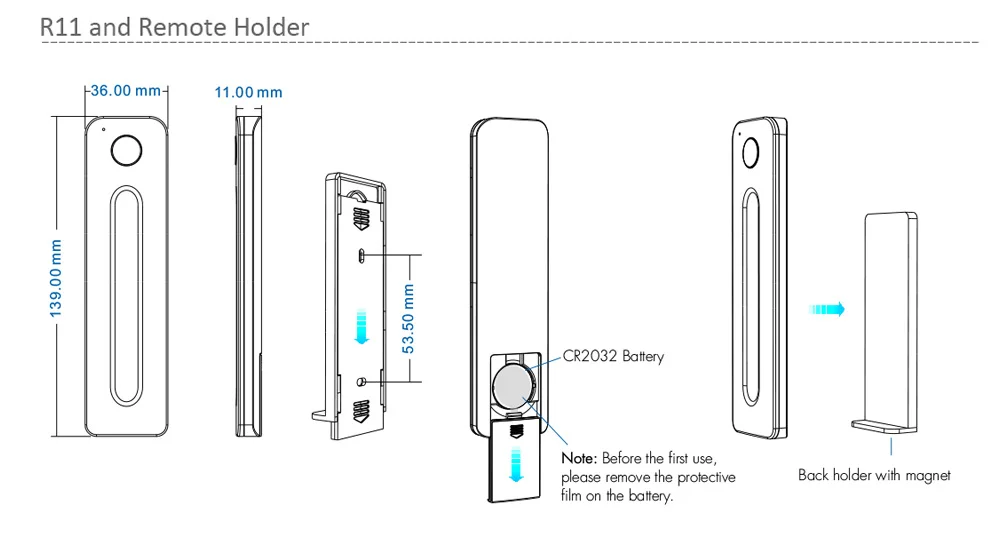

● Magnet on the back which can be easily stuck on back holder or any metal surfaces

Match Remote Control:

End user must be pair the remote to the receiver before using,the steps as follows:

*** Match:

Short press match key, immediately press on/off key of the remote.

*** Delete:

Press and hold match key for 5s to delete all match,

The light blinks 5 times means all matched remotes

were deleted.

Main Functions:

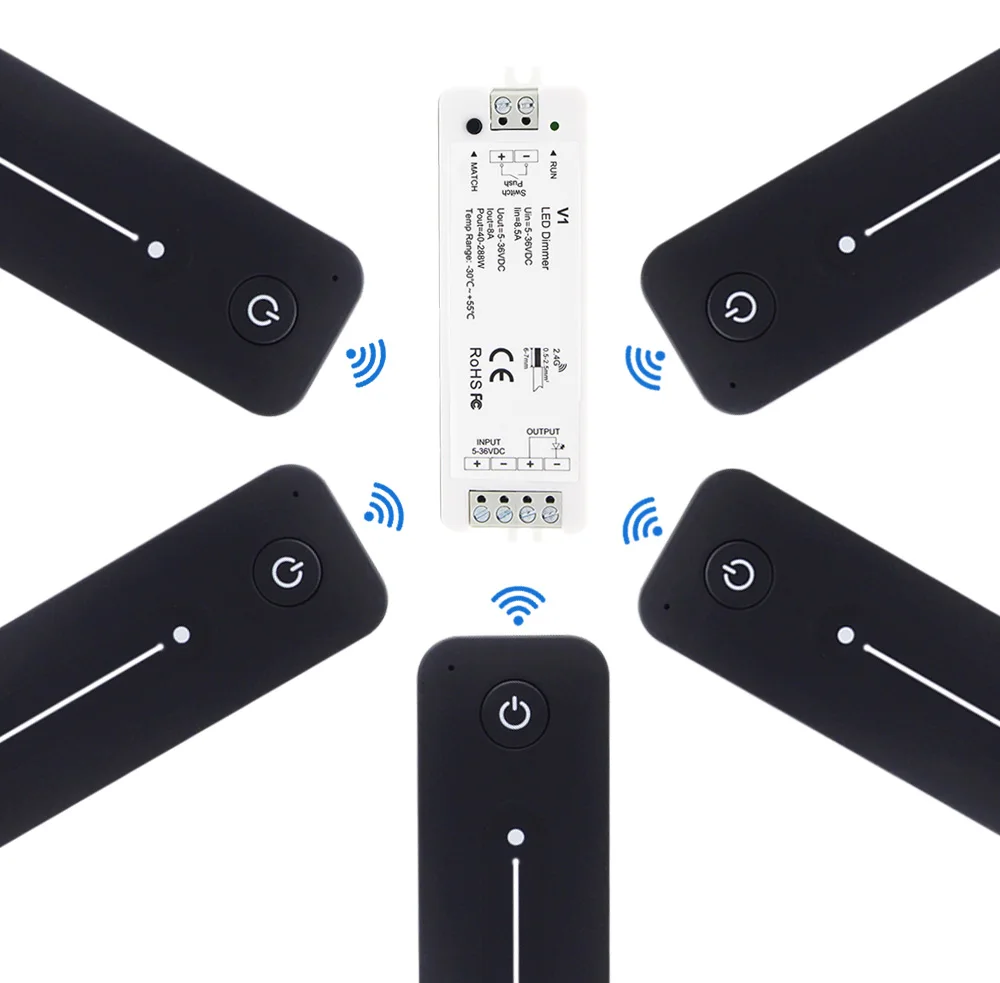

One V1 receiver can be controlled by max 10 pieces remote within 30m distance

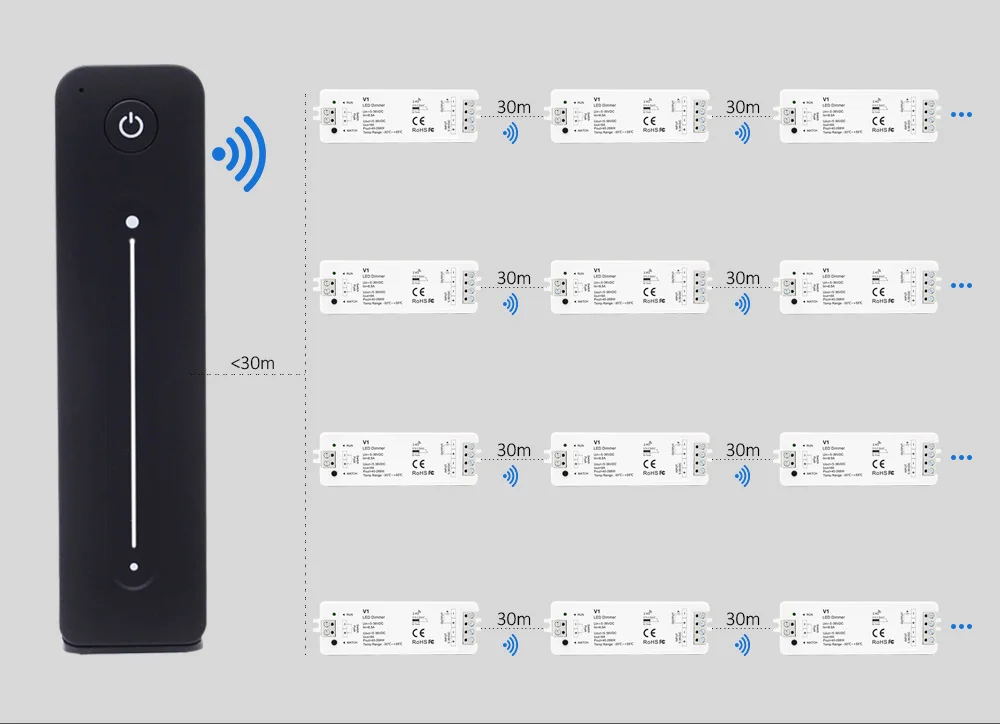

Auto-transmitting:

One receiver can transmit the signals from the remote to another receiver within 30m,

as long as there is a receiver within 30m, the remote control distance can be limitless.

Auto-synchronization:

Multiple receivers within 30m distance can work synchronously when they are controlled

by the same remote.

Receiver placement may offer up to 30m communication distance. However, we recommend for indoor applications

that receiver placements should be no further apart than15m.

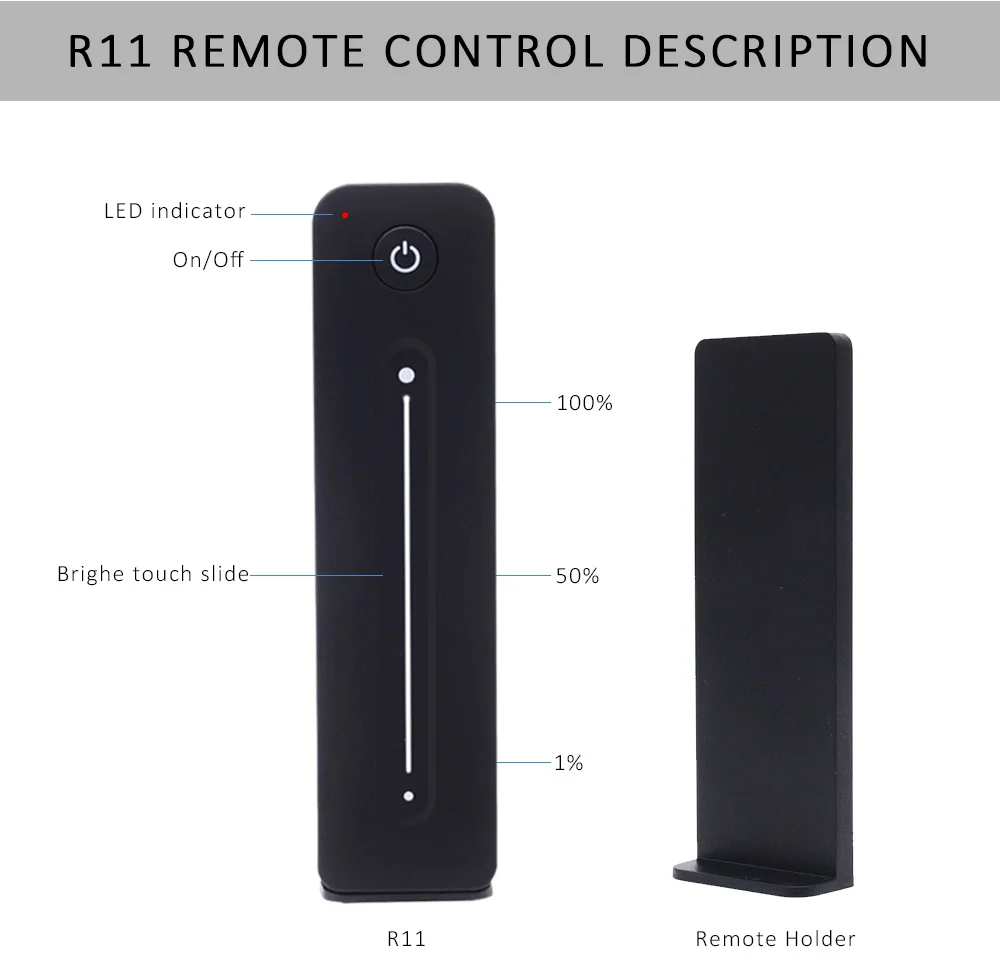

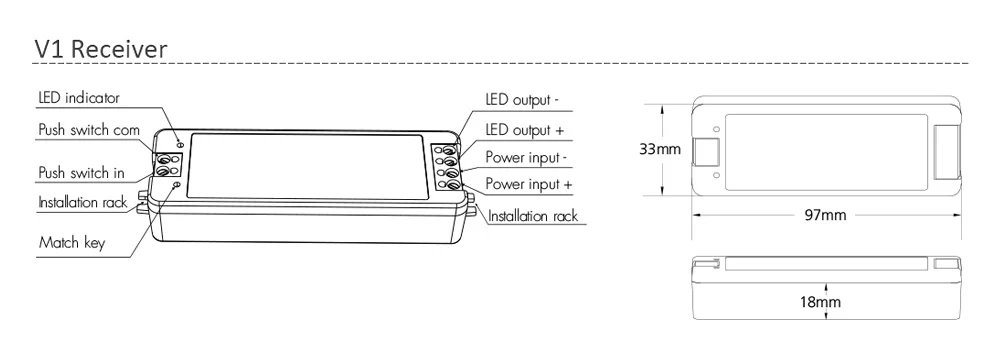

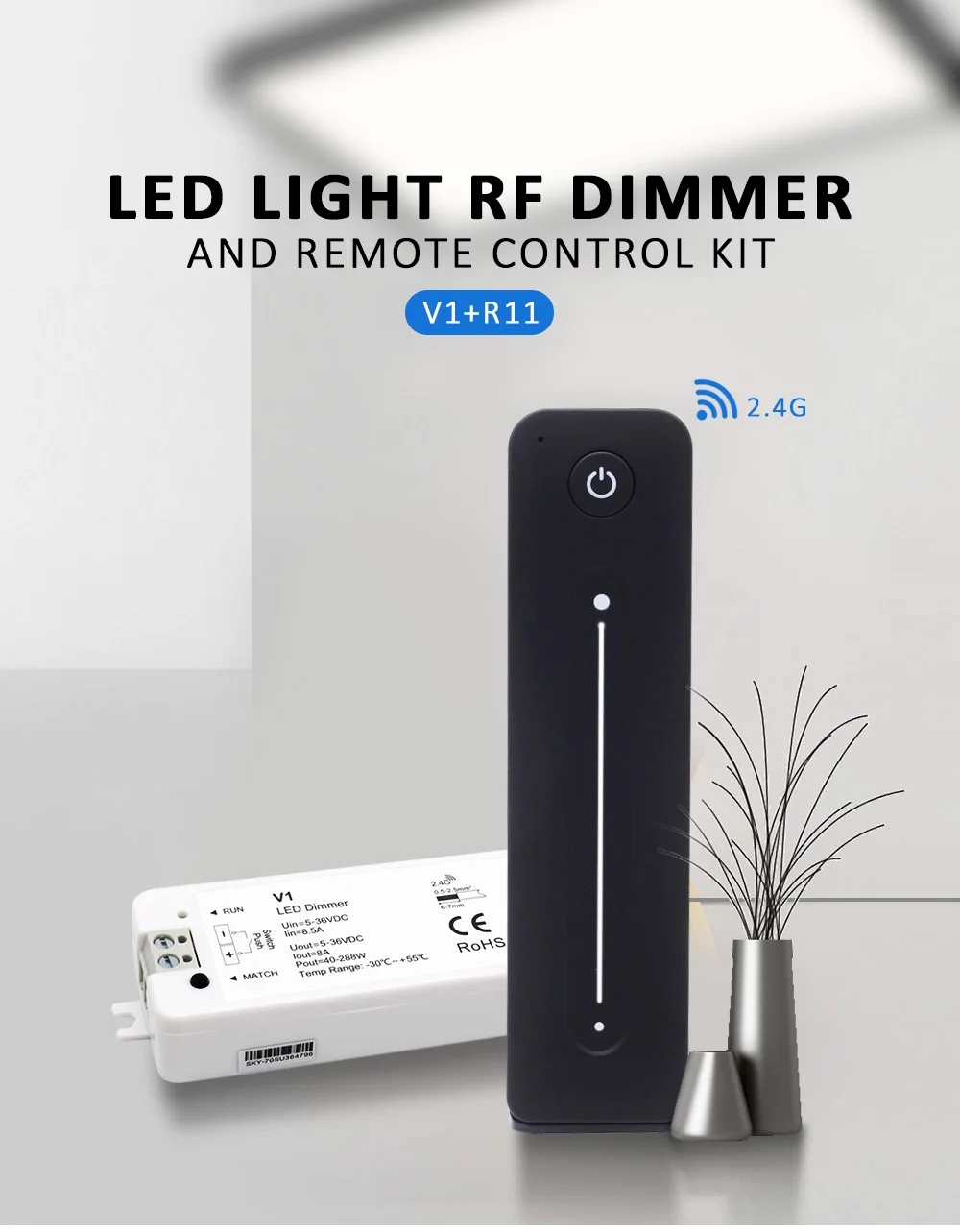

V1 (Receiver) and R11 (Sender):

* To extend battery life, no operation after 20 seconds, the touch slide will enter sleep state.

* If the light is on, long press on/off key exceed 1 second, then touch slide to dimming.

* If the light is off, short press on/off key to turn on light, then touch slide to dimming.

***Note: The battery is not included, because of the safety consideration during the shipping, hope you understand.
