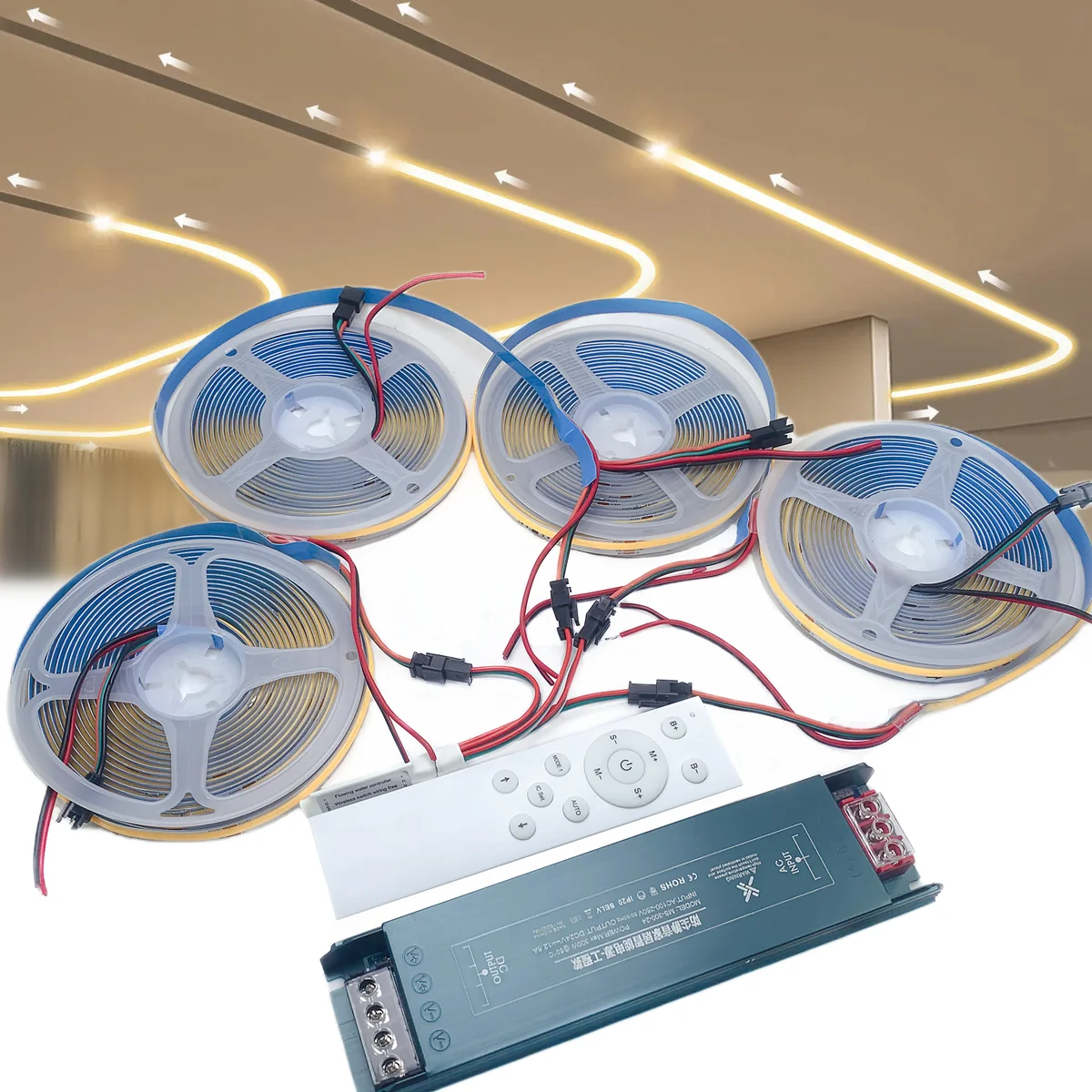

WS2811 COB Running Water Flowing LED Strip Light Horse Race Chasing Tape Wireless Remote Controller DC24V Power 20M 10M Full Set

WS2811 COB Running Water Flowing LED Strip Light Horse Race Chasing Tape Wireless Remote Controller DC24V Power 20M 10M Full Set

Description

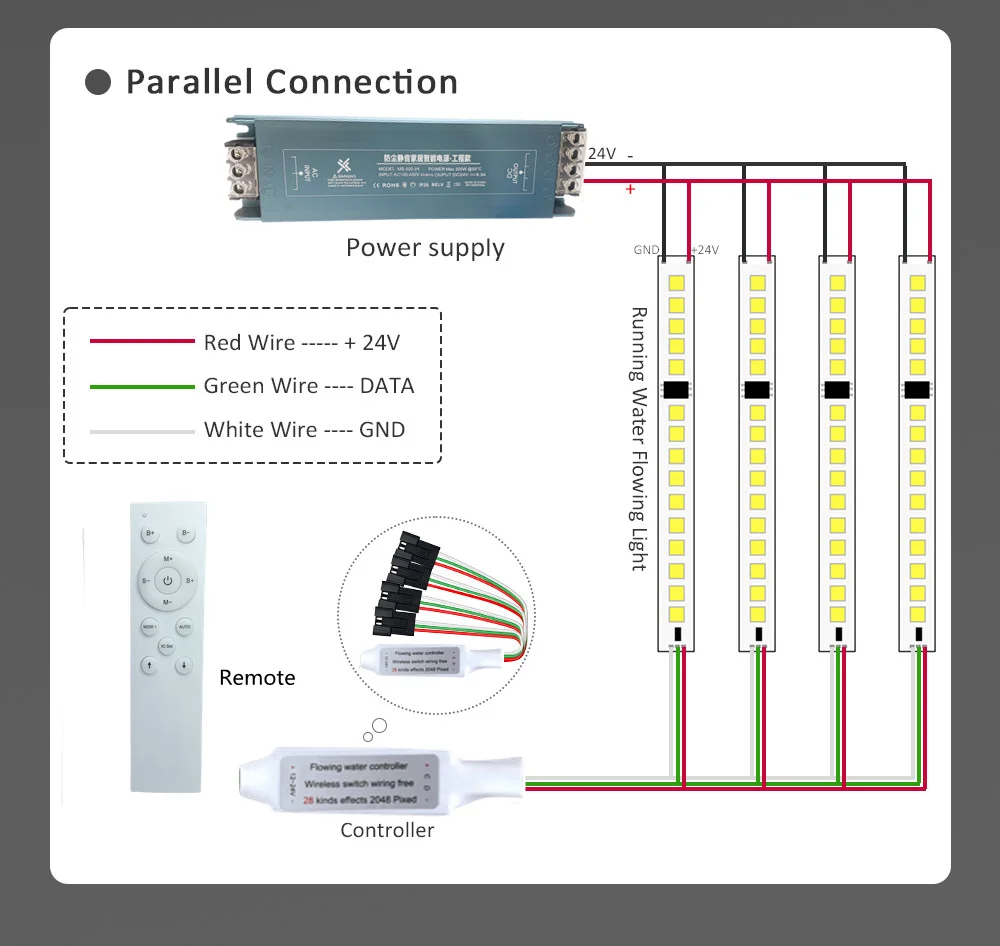

Connection Note:

When the led strip is over 10m,please kindly connect power wire to the two ends of led strip, to keep the same brightness.

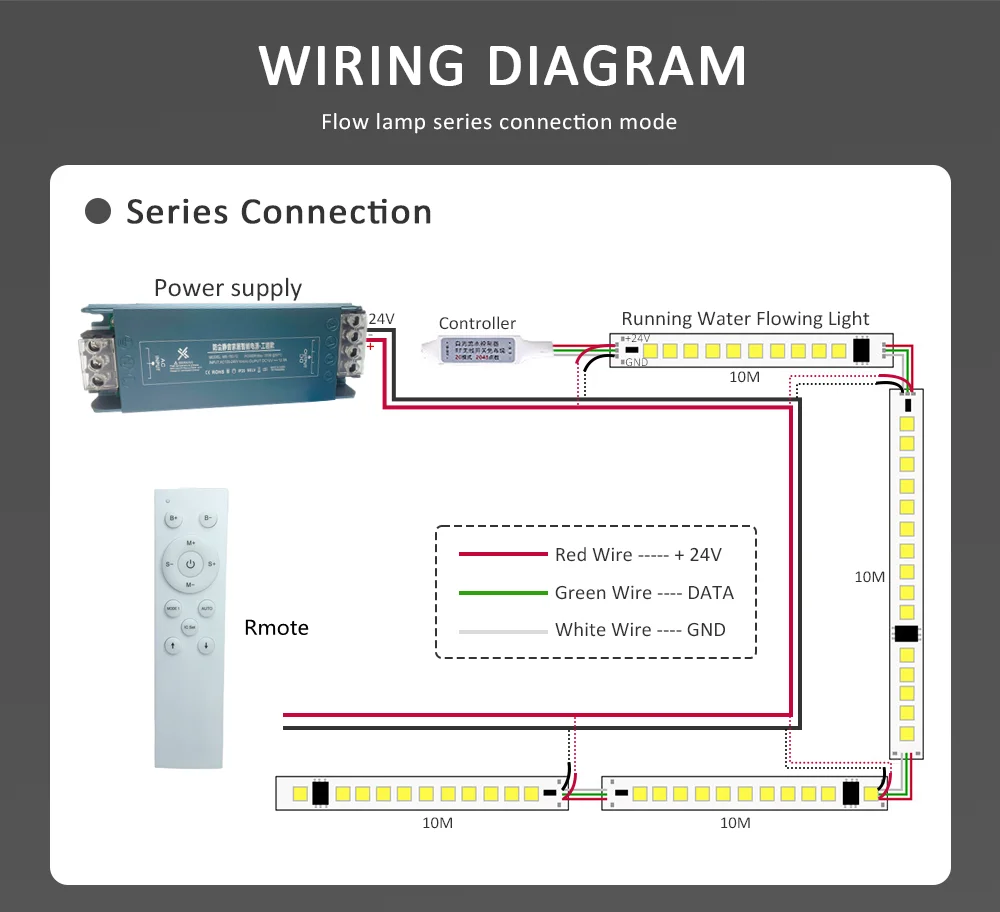

There is wiring diagram in the following of this page.

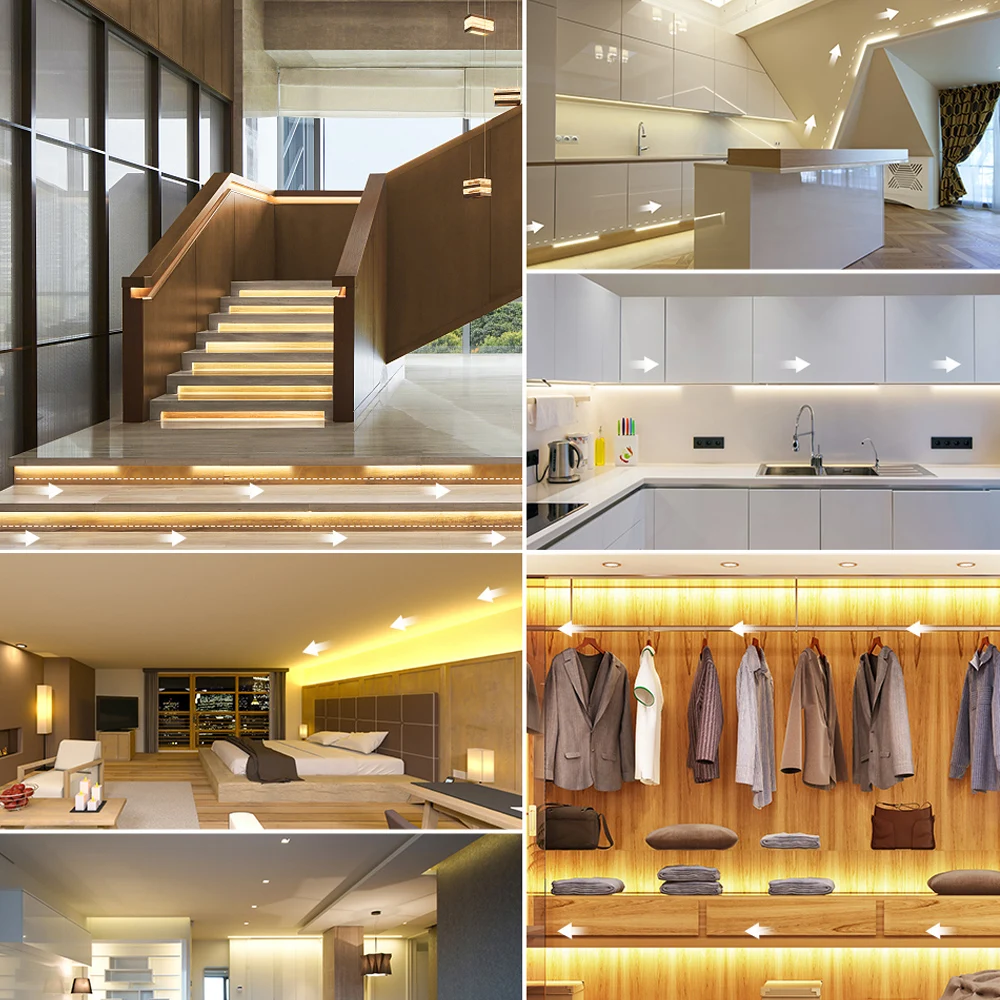

Application

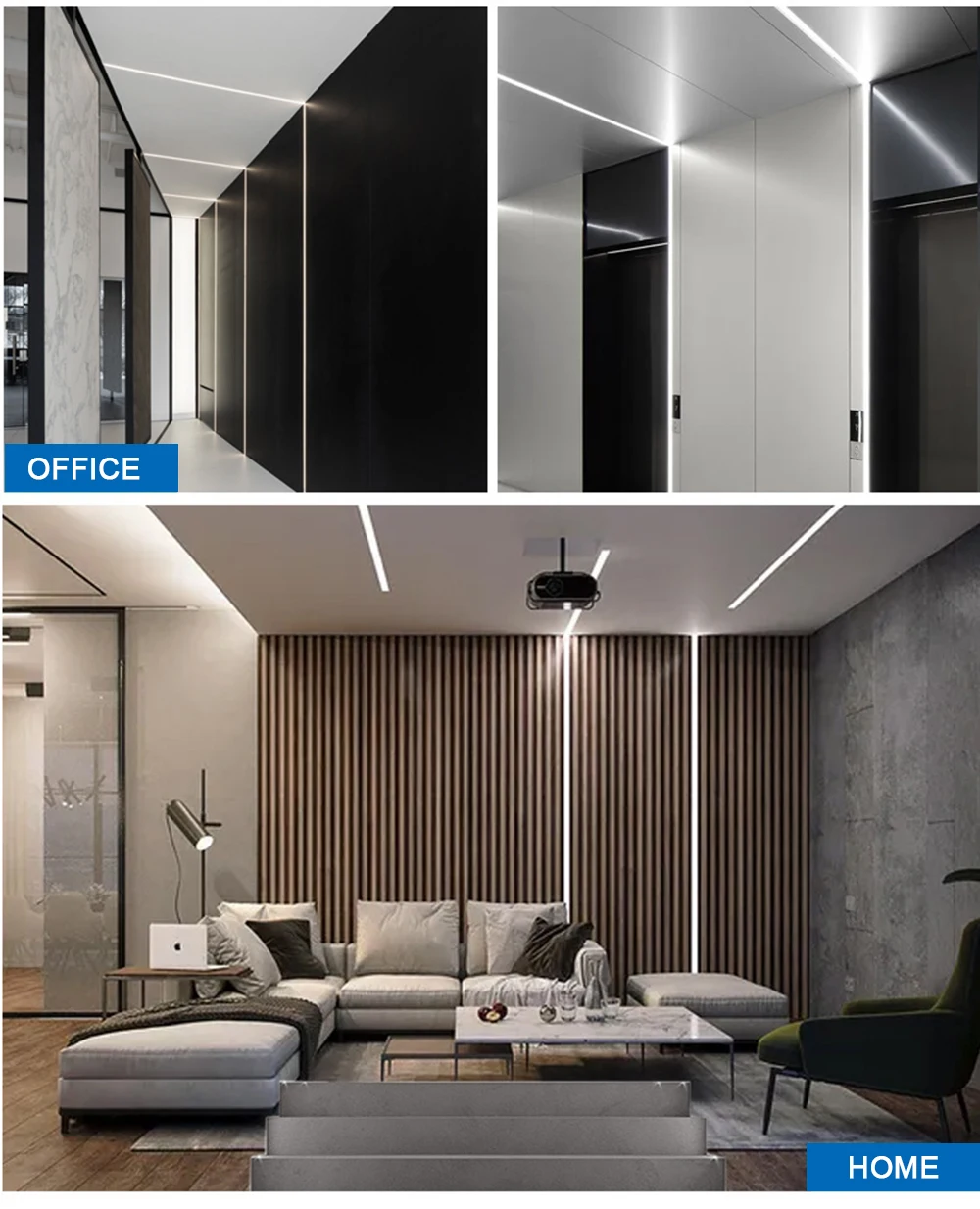

Making led screen,Rooms Staris Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,the city lighting project, entertainment and leisure places lighting.

DC 24V Power Supply:

Input Voltage: 110V / 220V AC

Output Votage: 24V DC

Output Power: 100W/150W/200W/300W

Features: No Noise, Real power output, long life-span.

* Advise: 24V 100W power supply used for 5M, 24V 150W power supply used for 10M,24V 200W power supply used for 15m,24V 300W power supply used for 20m

Horse Race Led Strip Controller:

Remote Wireless Pixel Controller:

Product parameters:

* Working voltage: DC 12-24V

* Number of points controlled : the maximum can control 2048 pixels

* Remote control distance: 15 meters(with 86 box base)

* Battery model: AAA buttn battery (battery is not included )

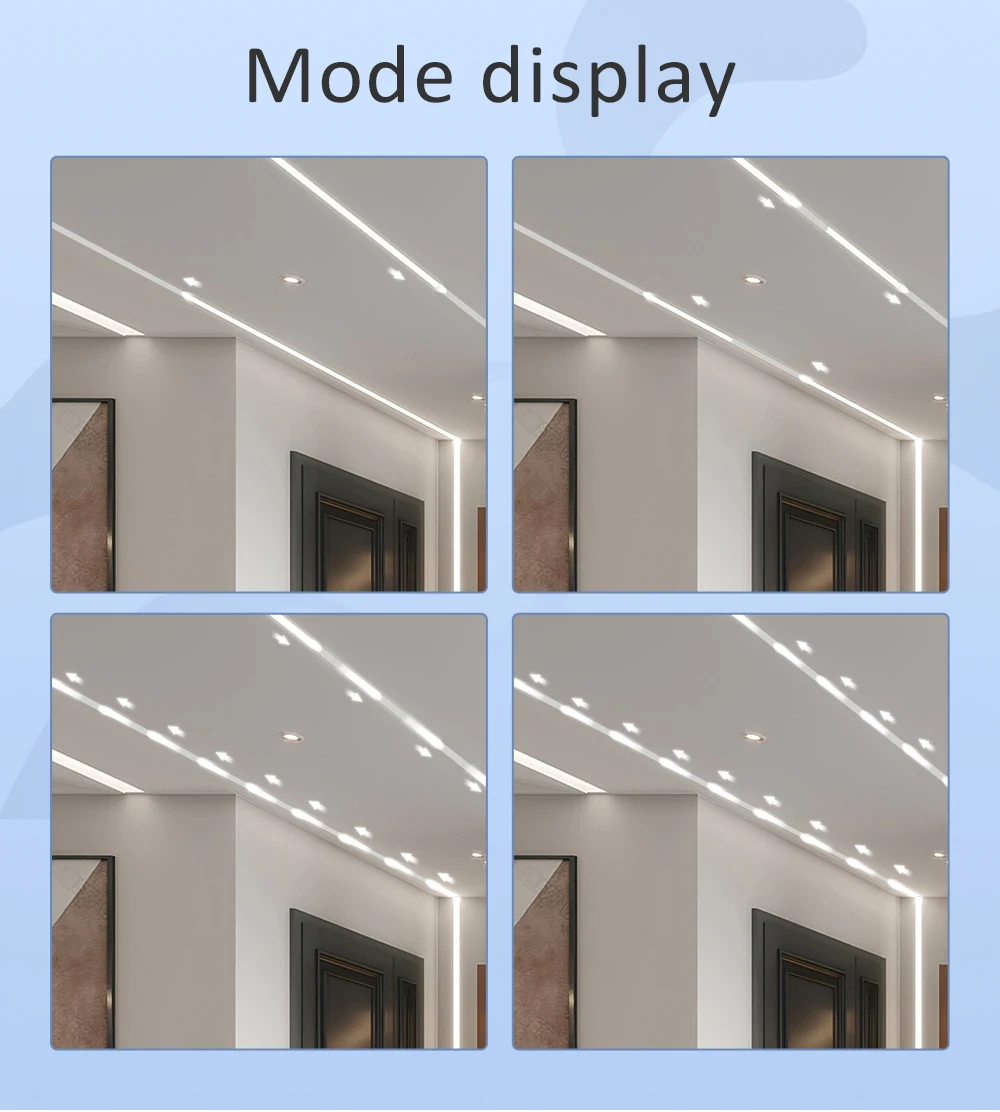

* Effect mode: 28 kinds(each mode has lights on and water flow,lights off and backflow)

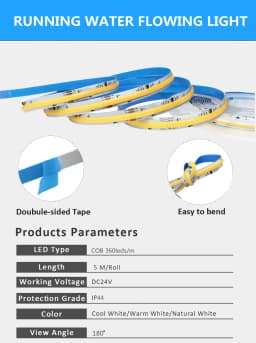

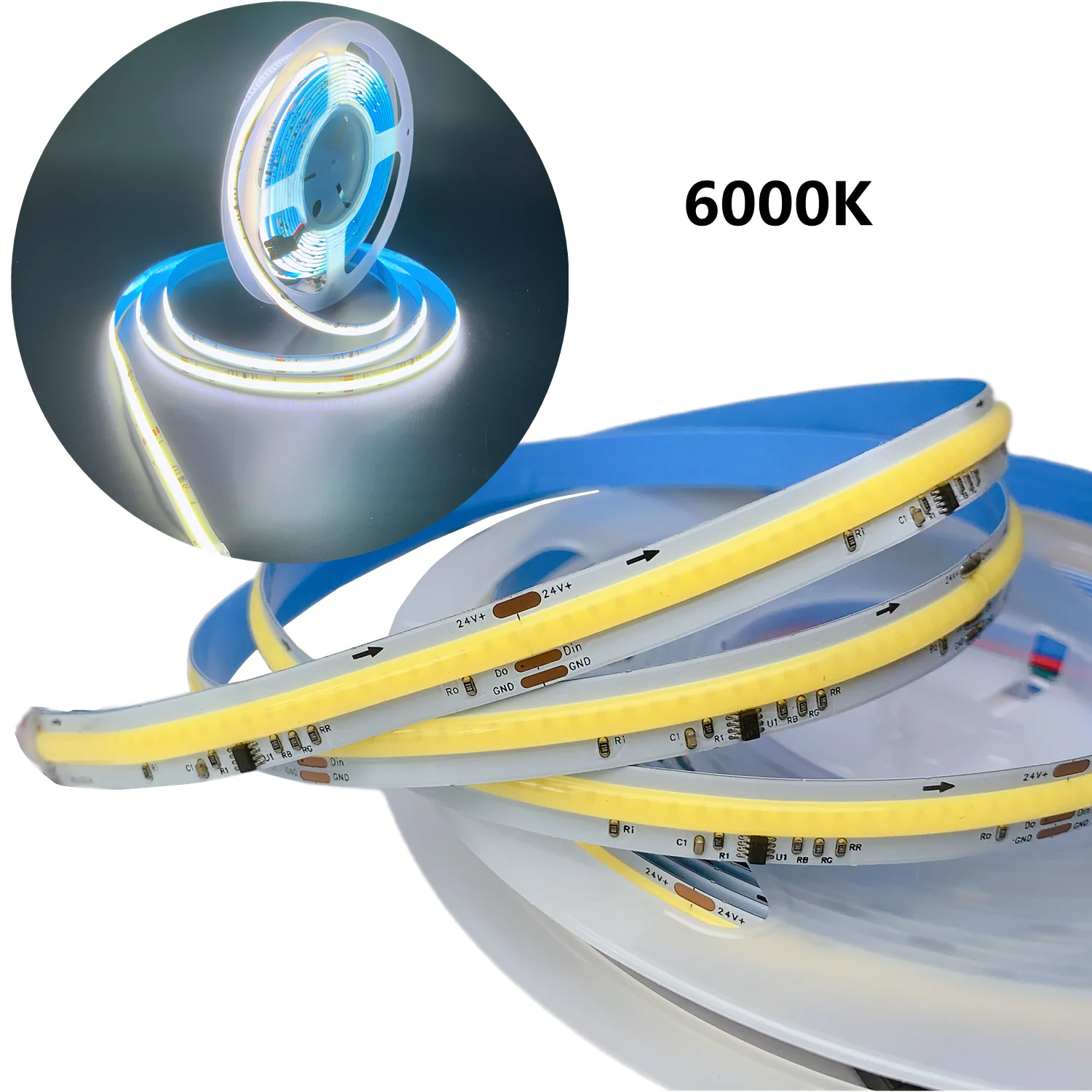

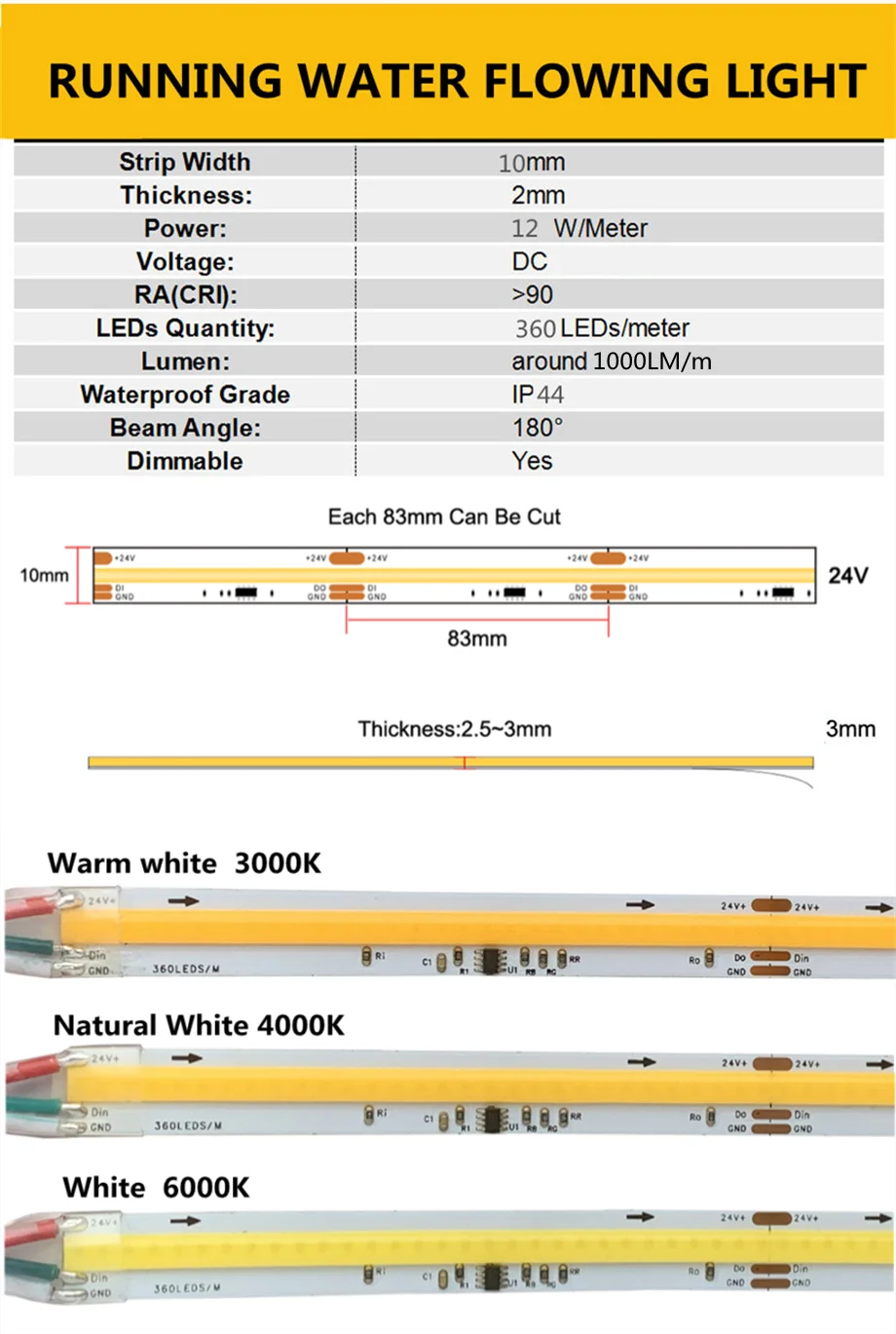

LED Type: COB LED Diodes

LED Qty: 360LEDs/M

PCB width:10mm

Max Power: 12W/M

Working Voltage: DC 24V

Color: Cool White / Warm White / Natural White

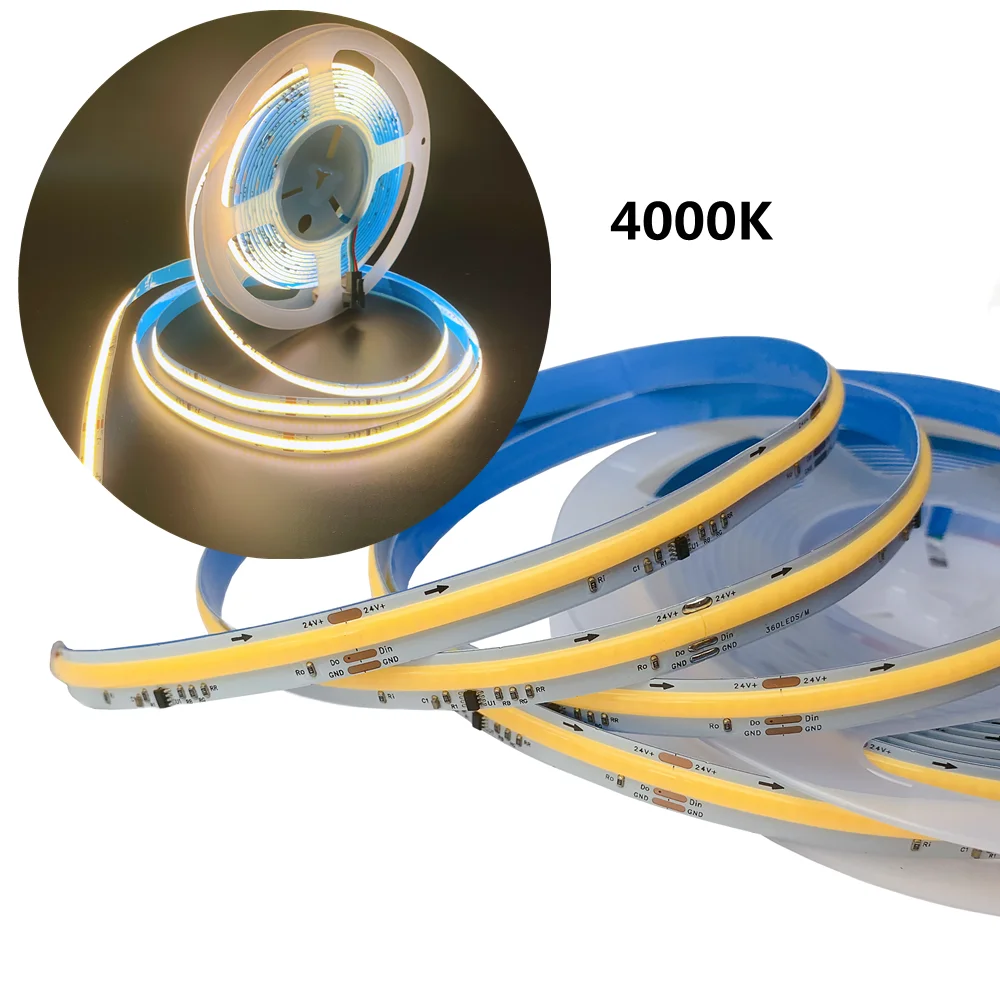

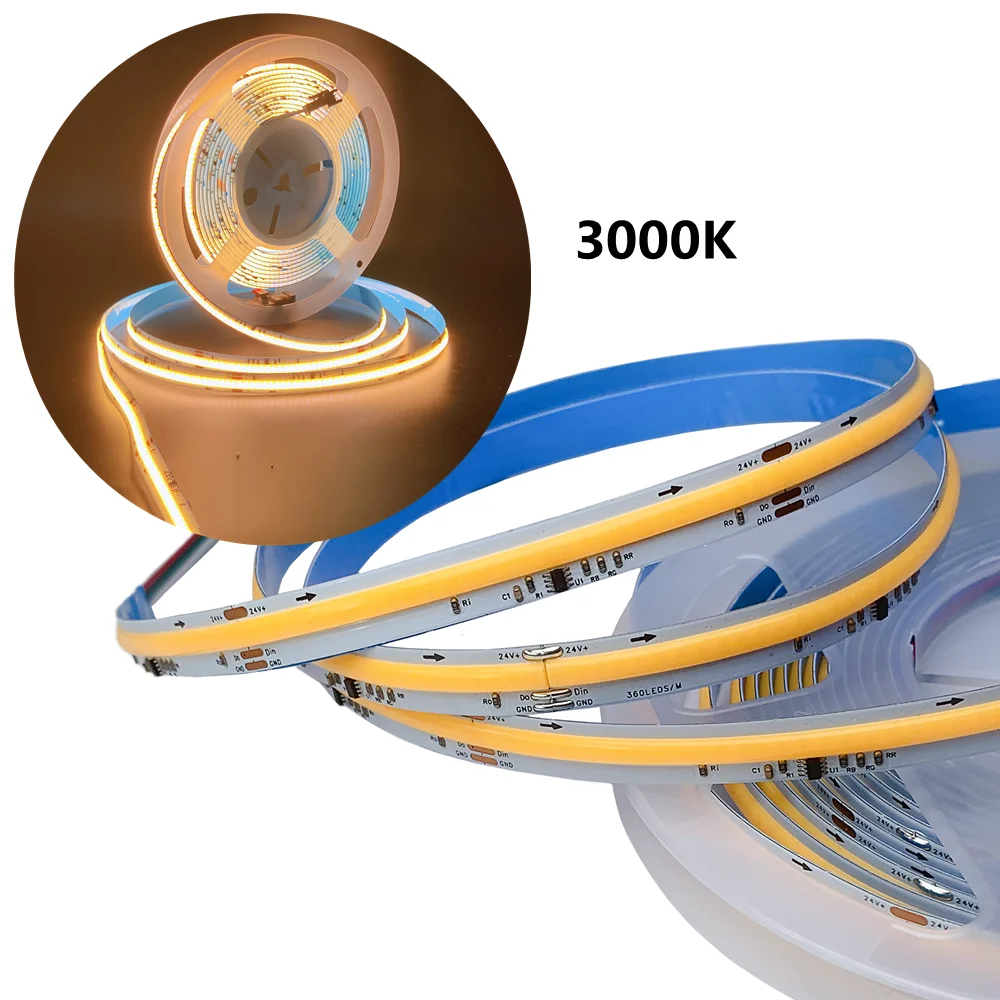

Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K

IP Rate: IP44 waterproof

Connector: 3 Pin Male & Female Connector

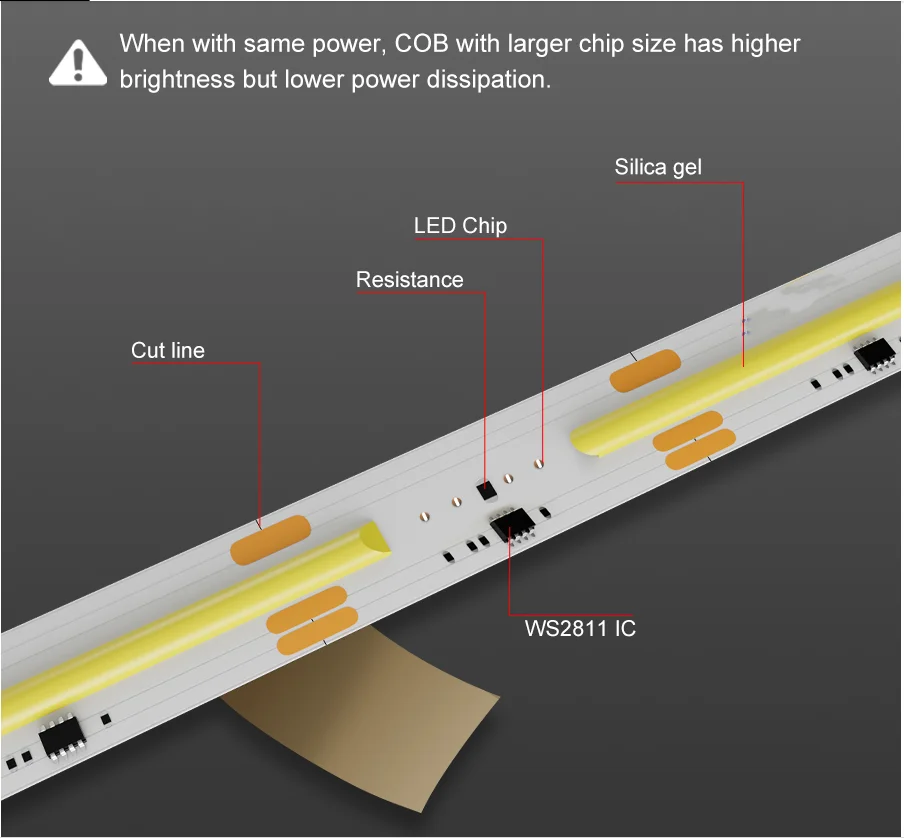

IC Qty:12pcs IC per meters, 60pcs IC for 5M

Package: 5M/Roll
