16A Relay Receiver Smart Switch Mini DIY Wireless Remote Control Light Switches RF 433MHz Automation Module for Home Led Lamp

Not compatible with WiFi & ZIGBEE!!!

Controller parameter

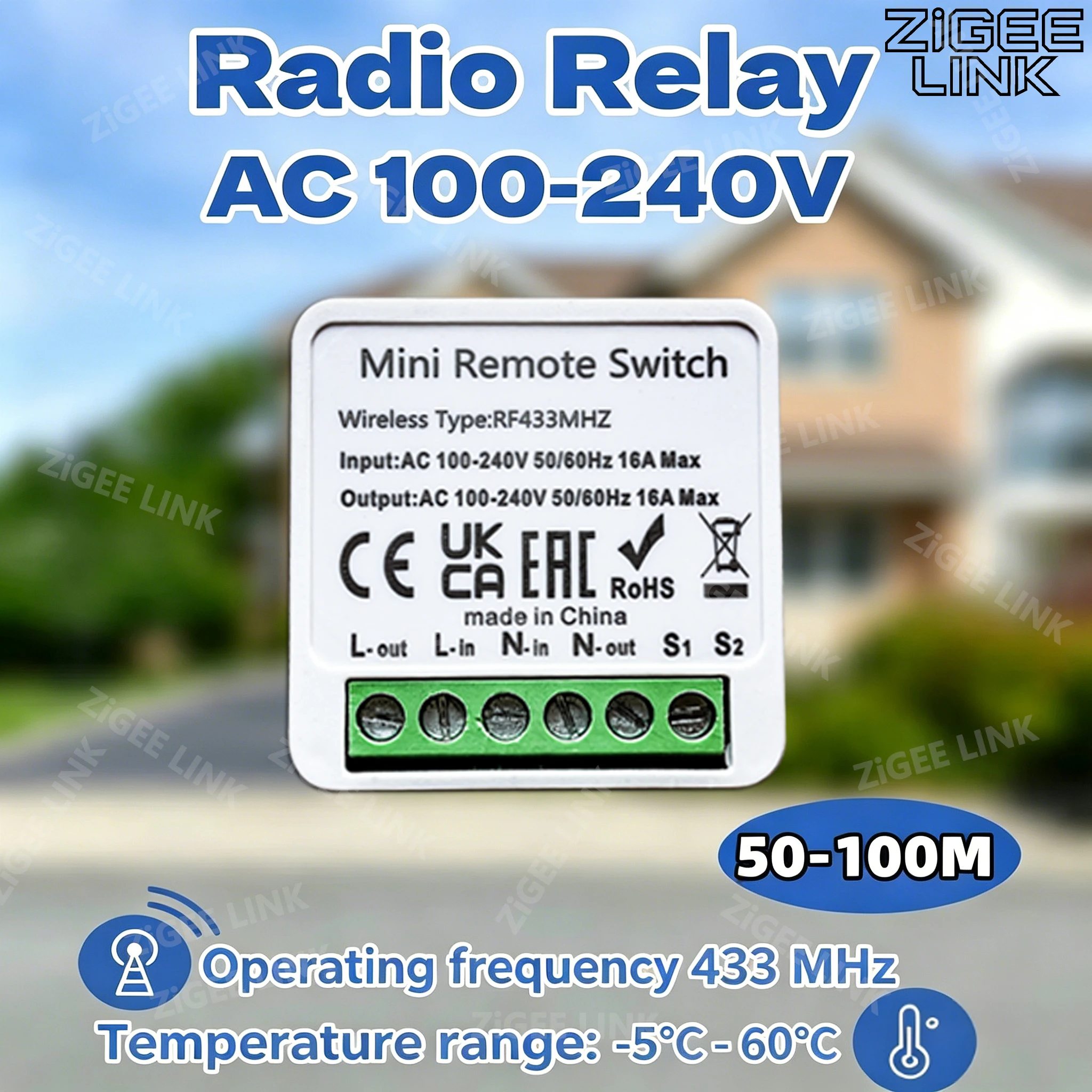

Working voltage: AC85-240V 60HZ/50HZ

Working frequency: 433.92MHZ

Power consumption in standby mode:<0.3W

Maximum current:10A

Receiving sensitivity: -108dBM

Working way: wireless control

Coding way: learning code

Modulation: ASK

Working temperature: -10℃~+70℃

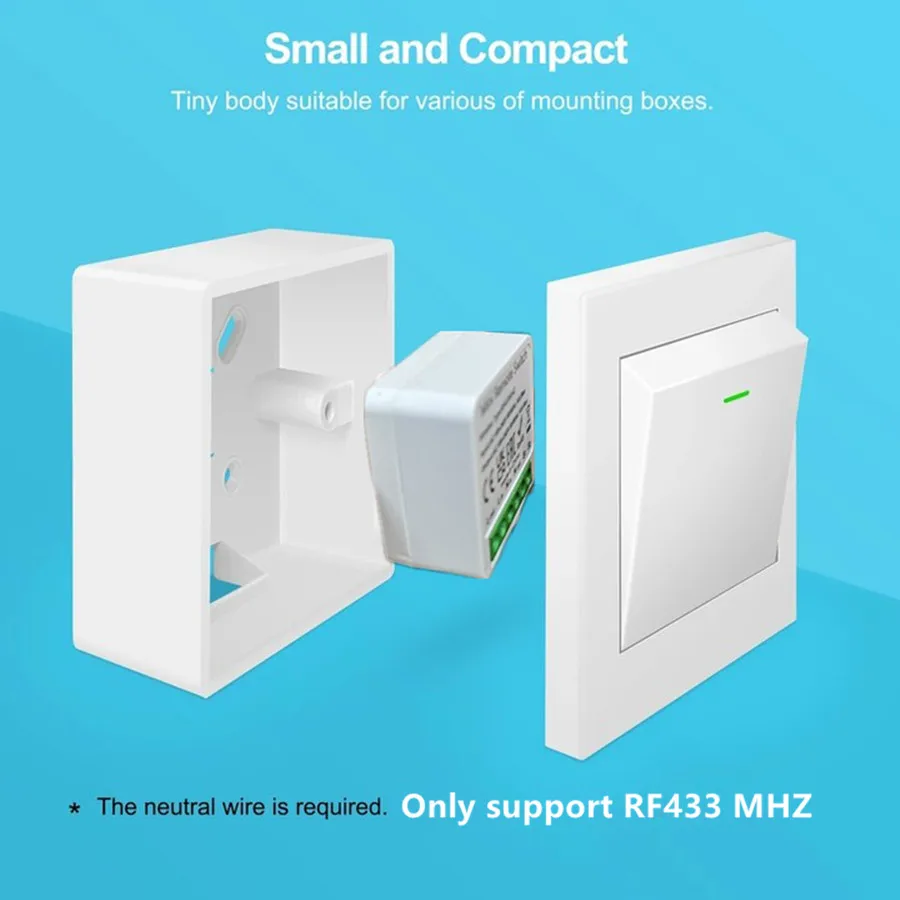

Out size: 67*41.2*25.7(mm)

Body size: 47.4*41.2*25.7 (mm)

distance:20-100m(in open area)

Pairing method

(1) Pairing code - Only can set Toggle Mode

Manual pairing method: press the controller code key for 2 times and the LED flashes to enter the code matching mode.

At this time, press the remote control switch 2 times, and the light is successfully controlled and paired;

(2) Clearing mode

Manual code clearing method: press the controller key for 8 times,and the LED flashes to clear the code successfully.
