RF433Mhz 30A Wireless Remote Control On OFF Switch AC 75-220V DC 9-72V Transmitter For Water Pump Motor LED Electric Appliance

Remote control Transmitter

Operating voltage: DC12V (23A/12V battery x1)
Transmitting frequency: 433MHz
Encoding Type: Fixed code
Receiver sensitivity: > -105dB
Transmission distance : 100M (Open field)
Size: approx 55*28*10mm

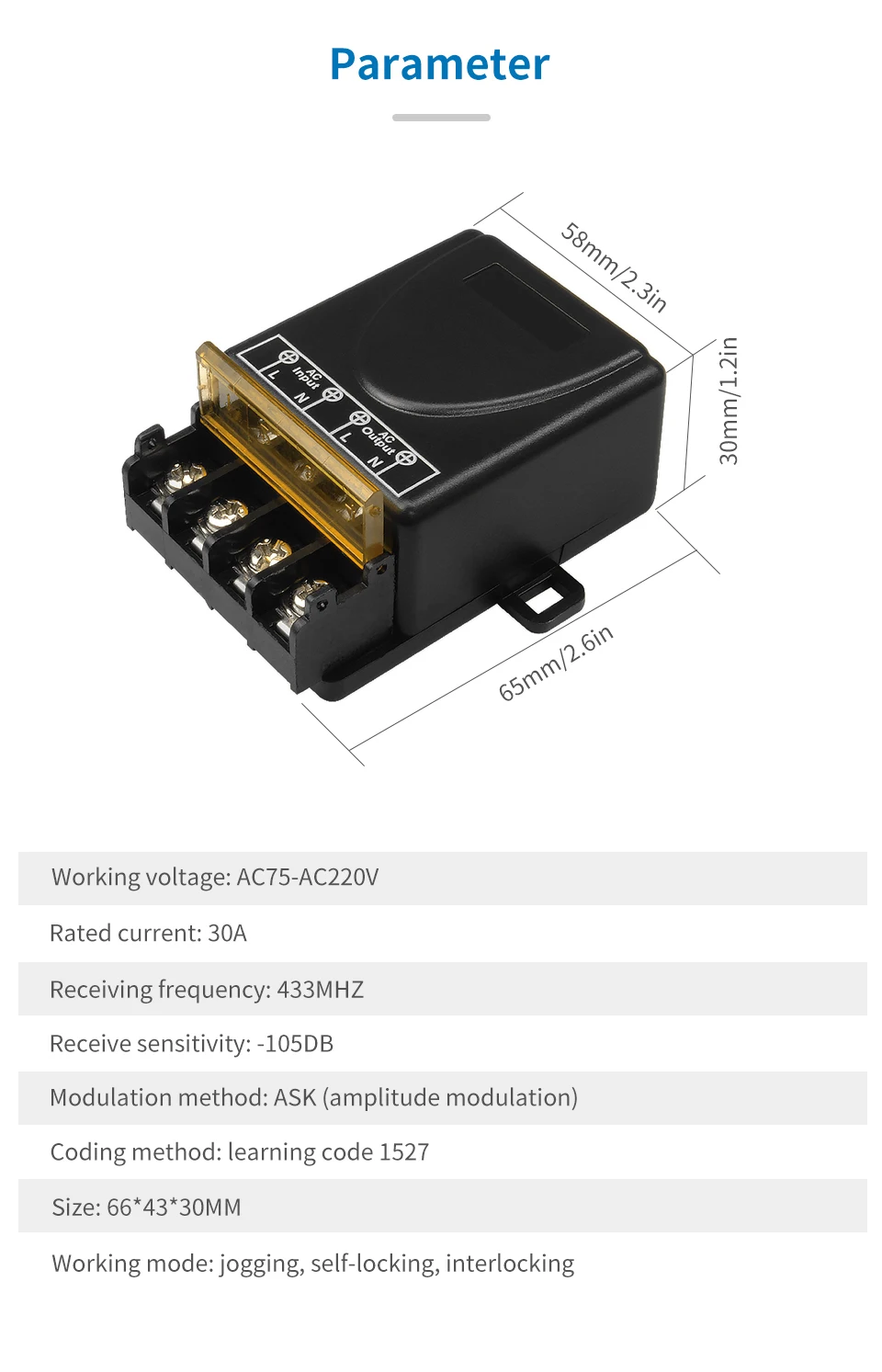

Receiver board

Operating voltage: AC 75V - 240V or DC 9-72V
Output voltage = Operating voltage
Operating frequency: 433MHz(Same with Remote control)
Encoding Type: learning code(you can buy extra 315MHz remote controllers for this receiver)
Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)
Box size: approx 65 x 45 x 28mm

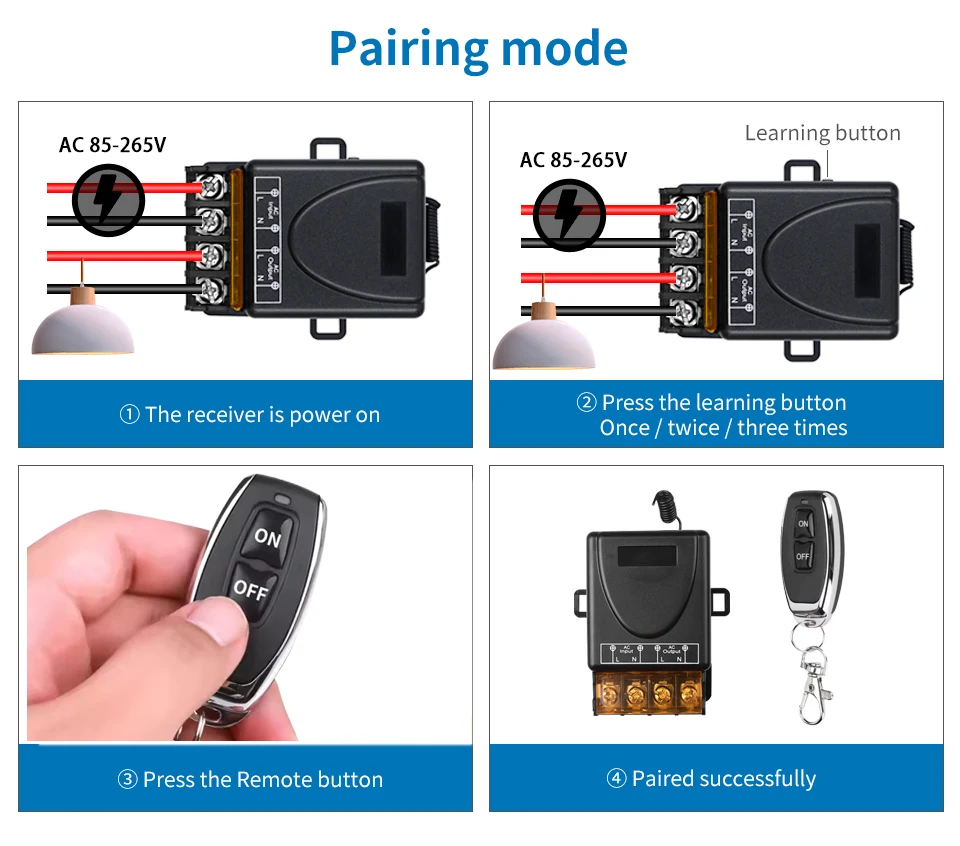

About Learning Method:

Input 12V for the Receiver ,
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5s): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10s): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15s): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

About Clearing Method:

Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code.

AC 75-220V 30A

Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A

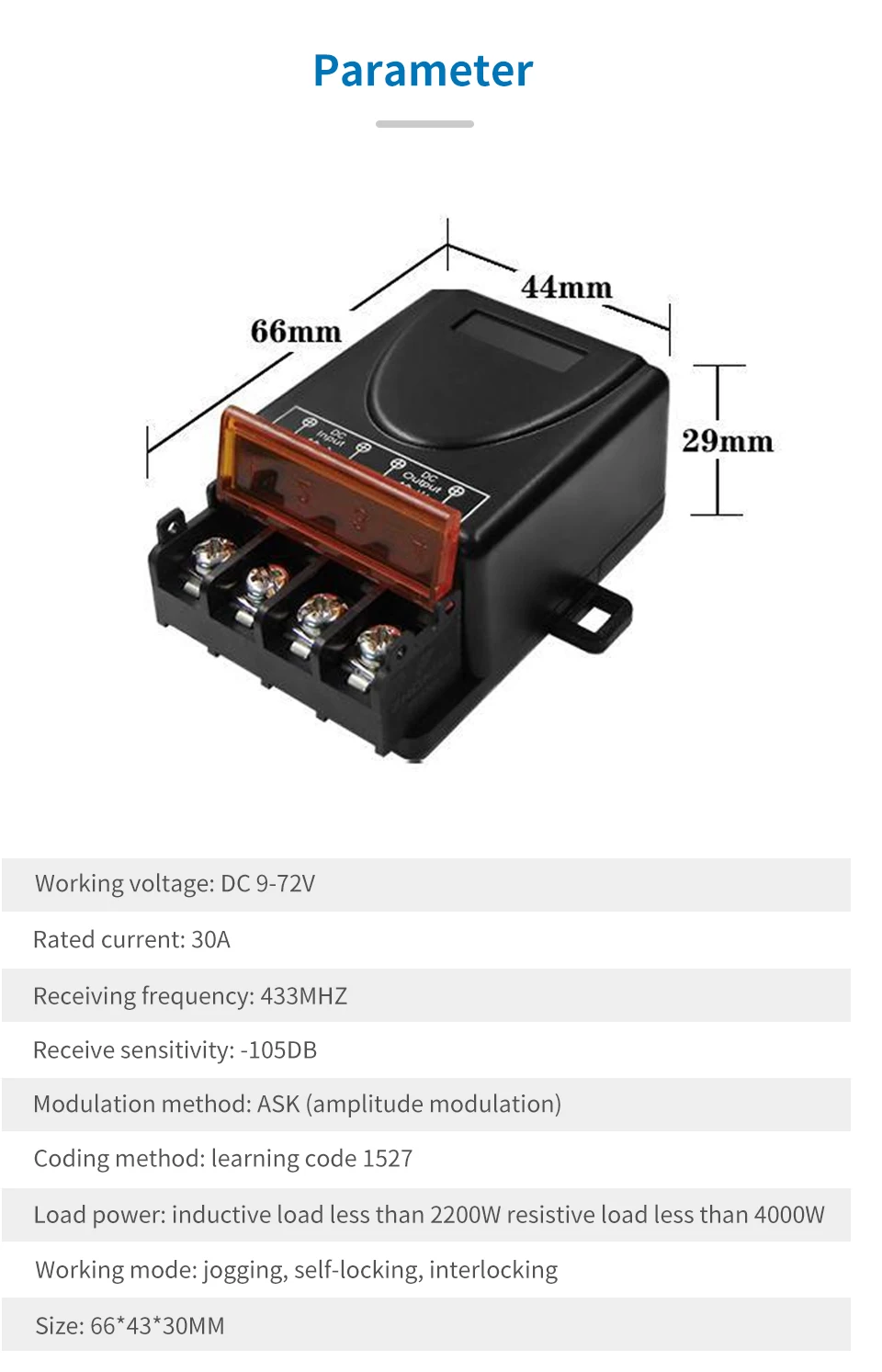

DC 9-72V 30A

Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A
