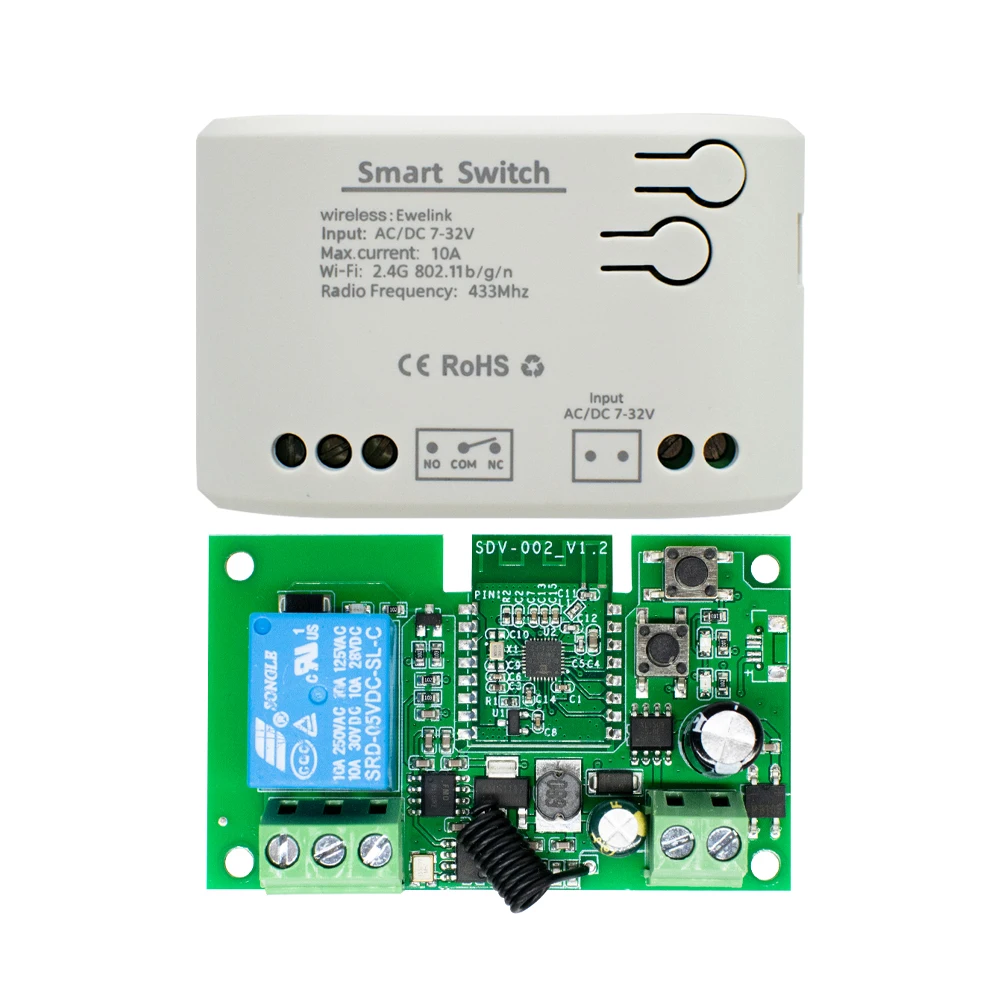

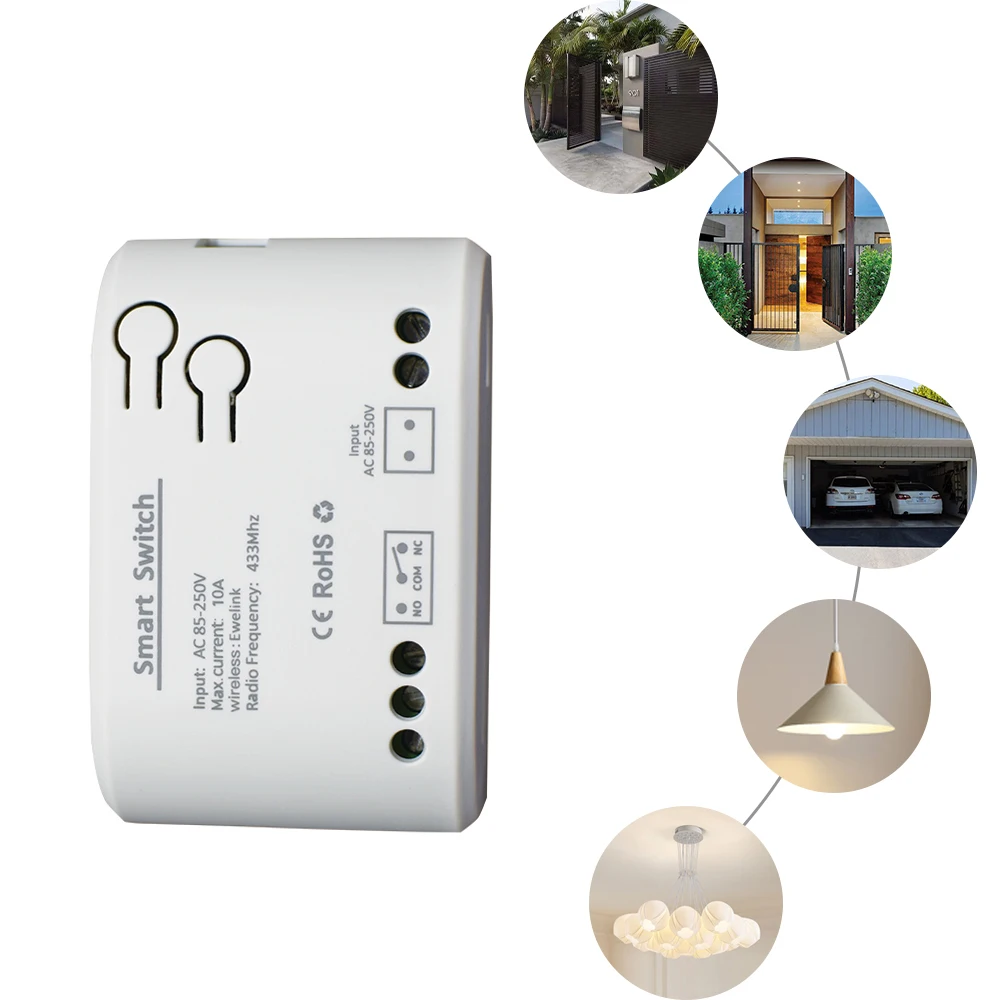

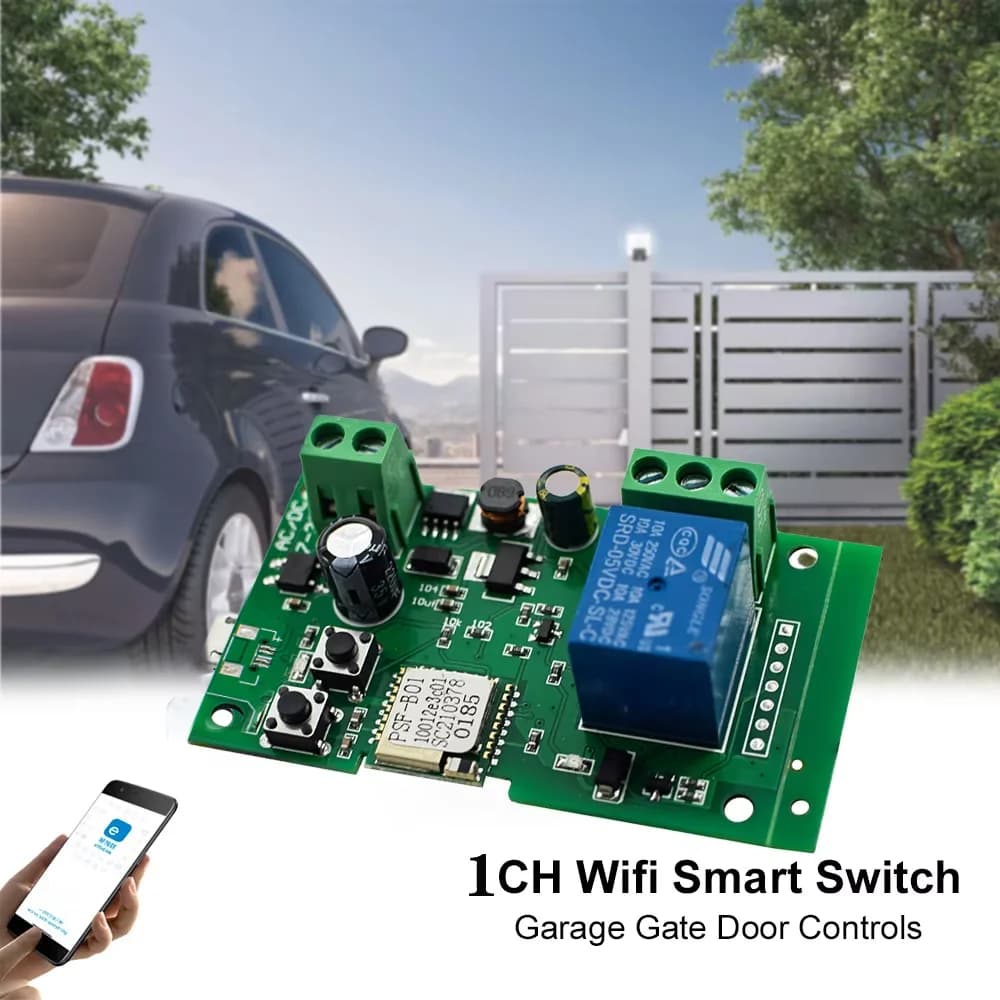

Ewelink WIFI Garage Door Opener Controller Smart Switch On Off Relay Module Gate Open Voice Control Alexa Google Home

Use for

1.Remotely give a pulse signal to turn on and turn off Lights,Lamps.PC(Computer) and other home appliance.
2.Remotely give a pulse signal to turn onand turn off Garage Door,Door Access,Sliding Door.

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.

Features:

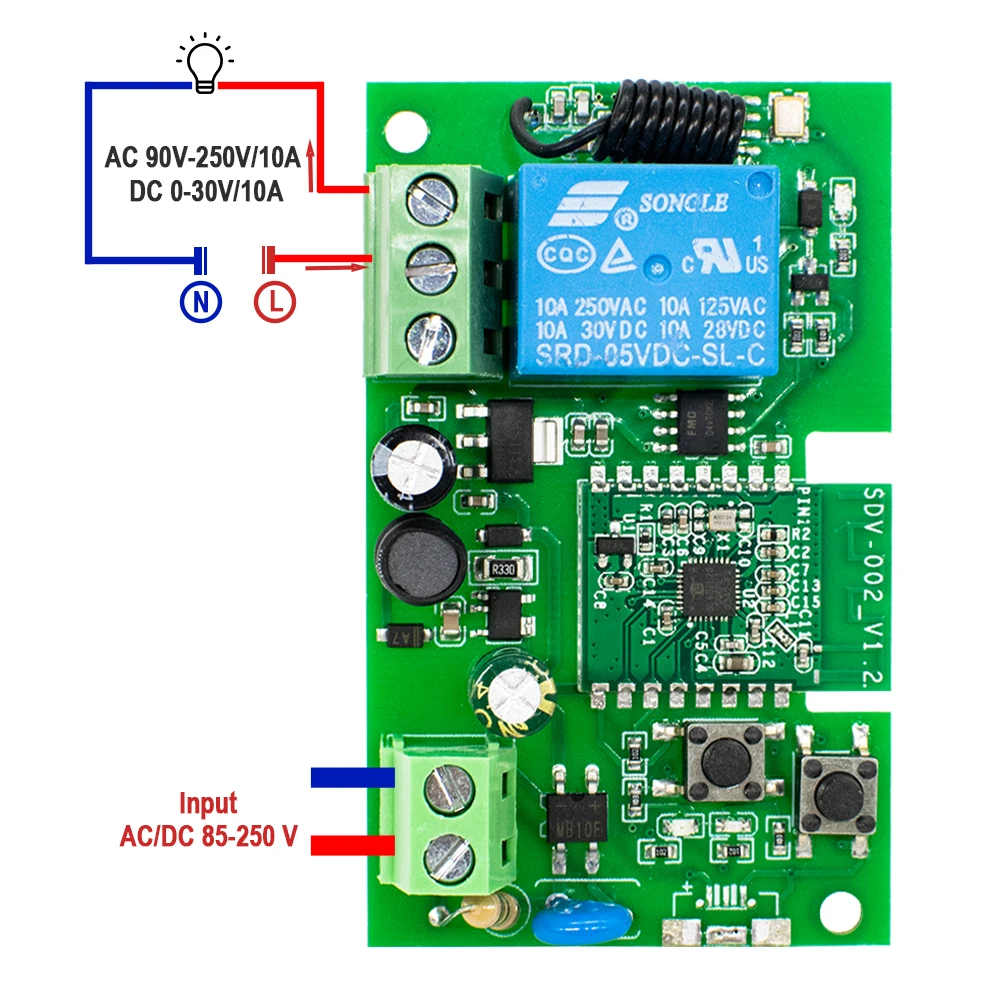

【Dry Contact/Passive Output】
No matter the power you supply in the input, the output don't have any voltage
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.
【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.
【Multiple Share】
One device can control by Multiple phones,you can share the wifi module with your fam
【Scene Linkage】
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then all smart device will be automatically turn on/off at the same time.

Different Ways to Control the WIFI Module

【APP Remote Control】
You can control the connectted home appliance in EWELINK anywhere and anytime.Such as light, electric kettle, electric rice cooker, electric curtain, etc.
【RF433 Control】The WIFI Module support RF433 Frequency,and you can control the WIFI module by RF433mhz remote controller.
【2.4Ghz WIFI Control】
You could control the module in your smart phone by 2.4Ghz WIFI
【Mobile Network Control】
As soon as you add the device in APP by 2.4Ghz WIFI,you could control the device in your smart phone by 2G/3G/4G Mobile Network.
(Note:The router need to online and the WIFI module need to keep a close distance with the router)
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn it on/off the connectted home appliances .

Supported functions include

Timing Schedules
Device Sharing
Group Management
Works with Alexa
Works with Google Home, Google Nest

Note: we have change the WiFi module from PSA to PSF recently. PSF is more powerful.

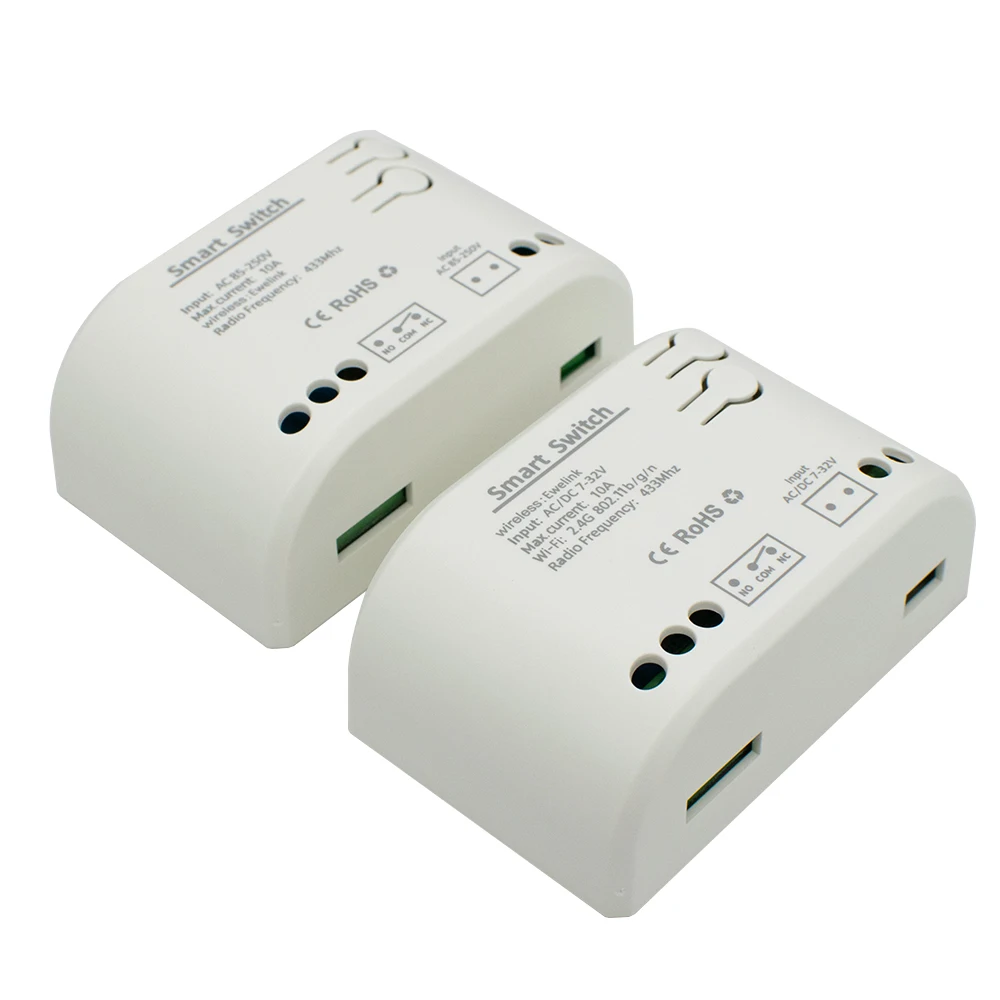

Description:

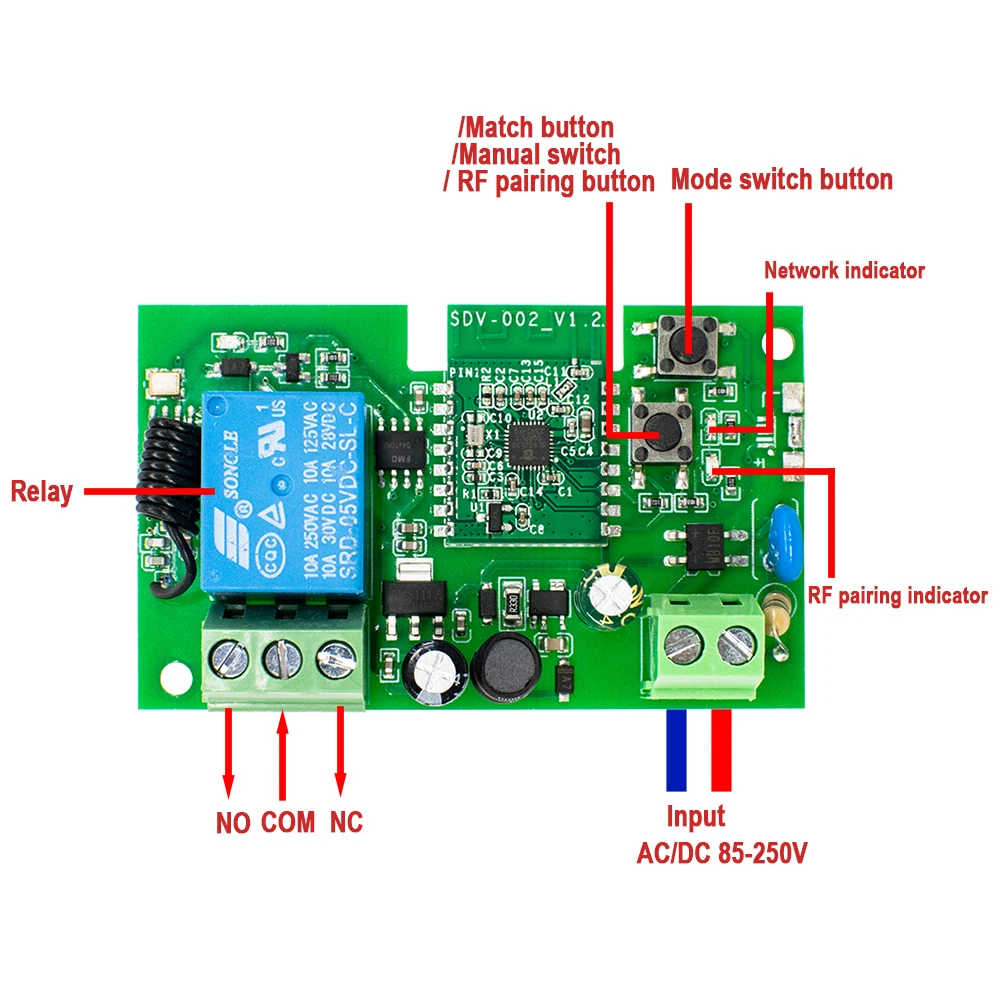

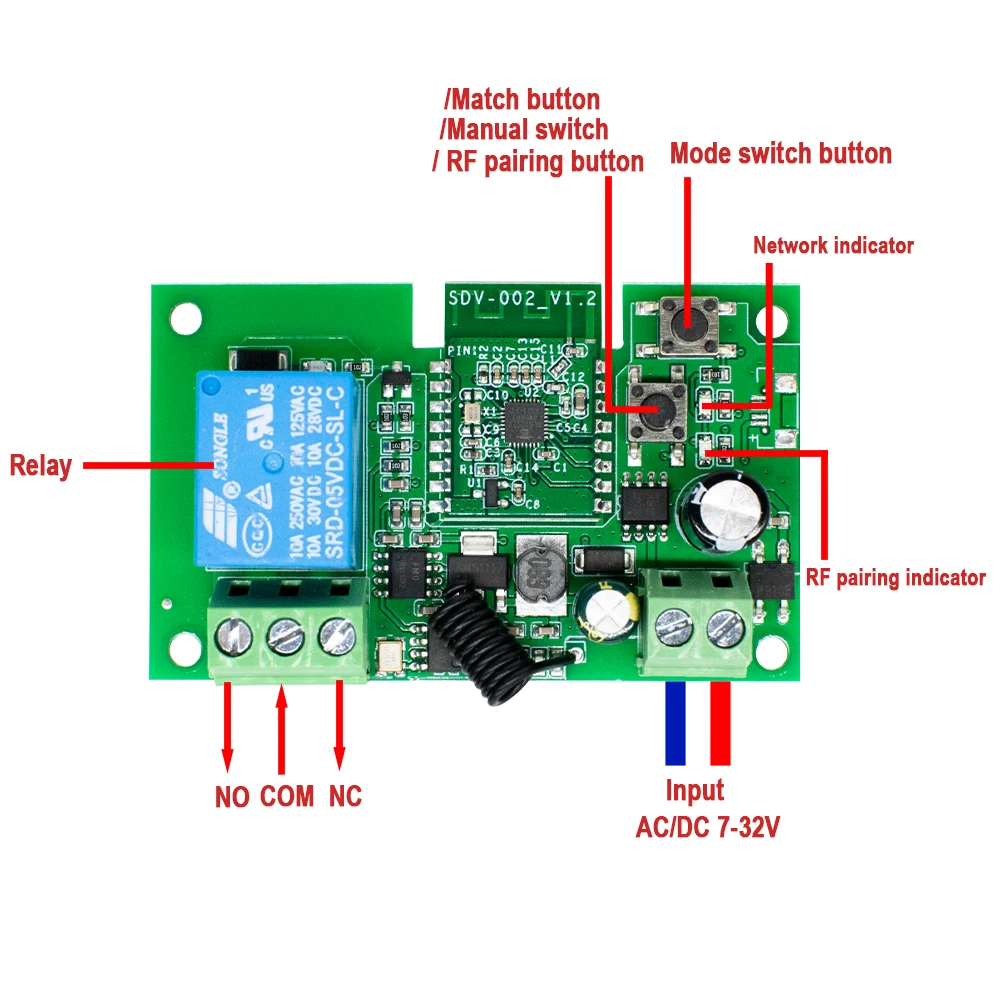

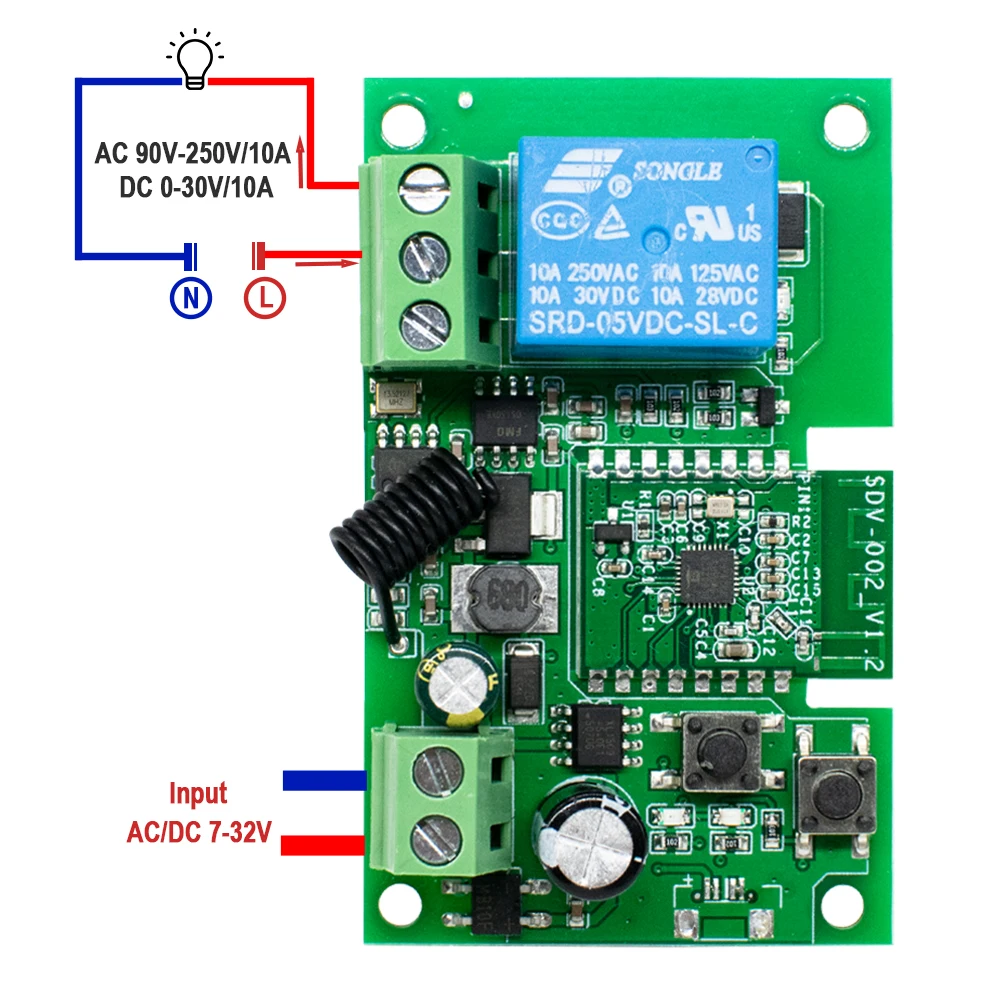

Input 1:(screw terminal port):AC 85-250V
Input 2:(screw terminal port):AC/DC 7-32V
NO,NC,COM Output:Passive Output(Dry contact)
Working frequency: 50-60Hz
RF433 Frequency
Working temperature: -20-70℃
Wifi standards/ protocol :IEEE 802.11b/g/n, WIFI 2.4Ghz
Total load power: 22000W
Max current:10A

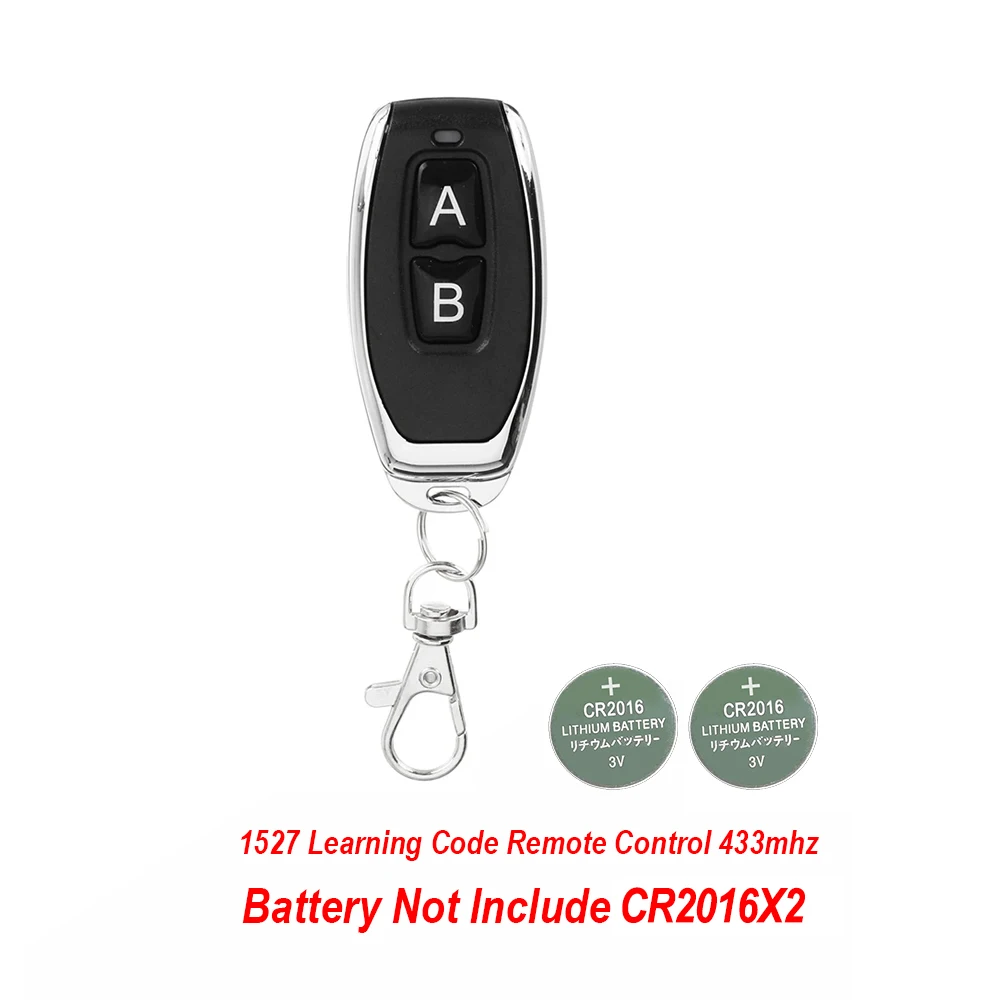

About the remote control：

1. The remote control is sent without batteries.
2. The remote control requires 2 pcs CR2016 batteries.
3. These WiFi switches only support 1527 learning code 433MHz remote controllers.
