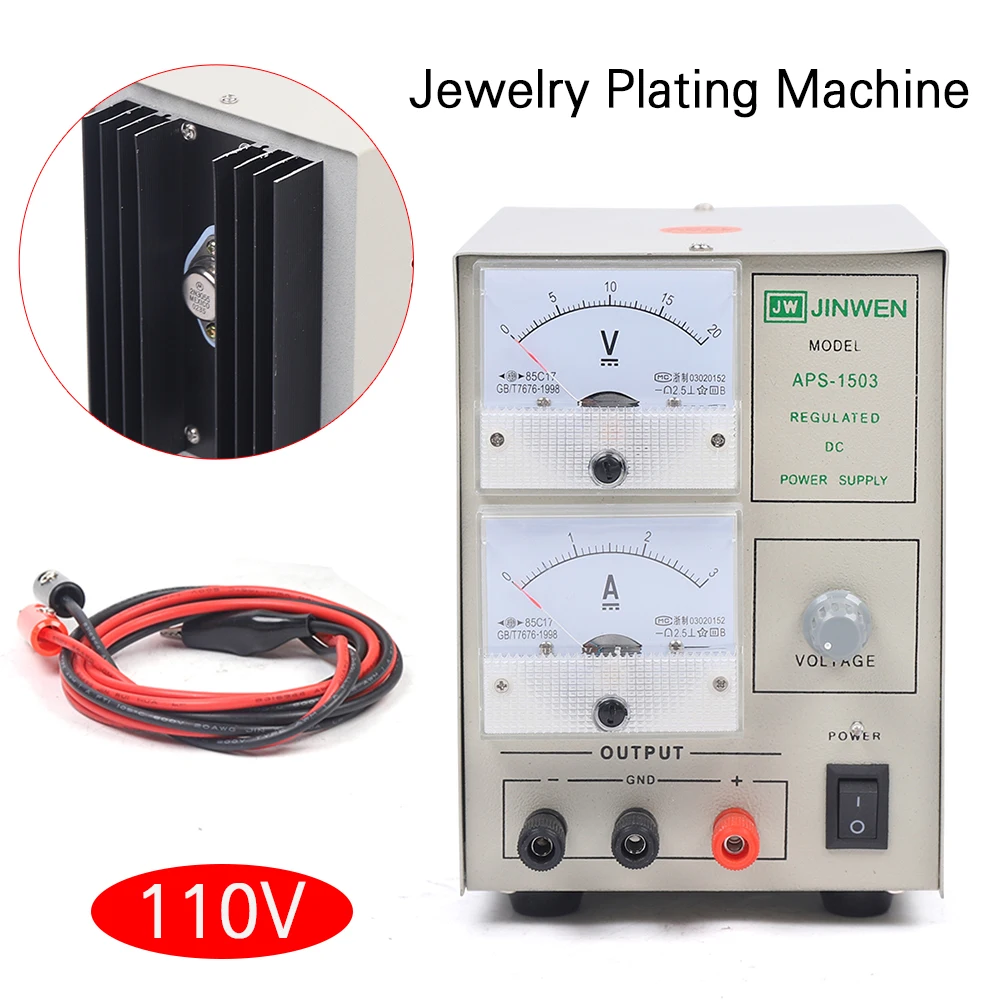

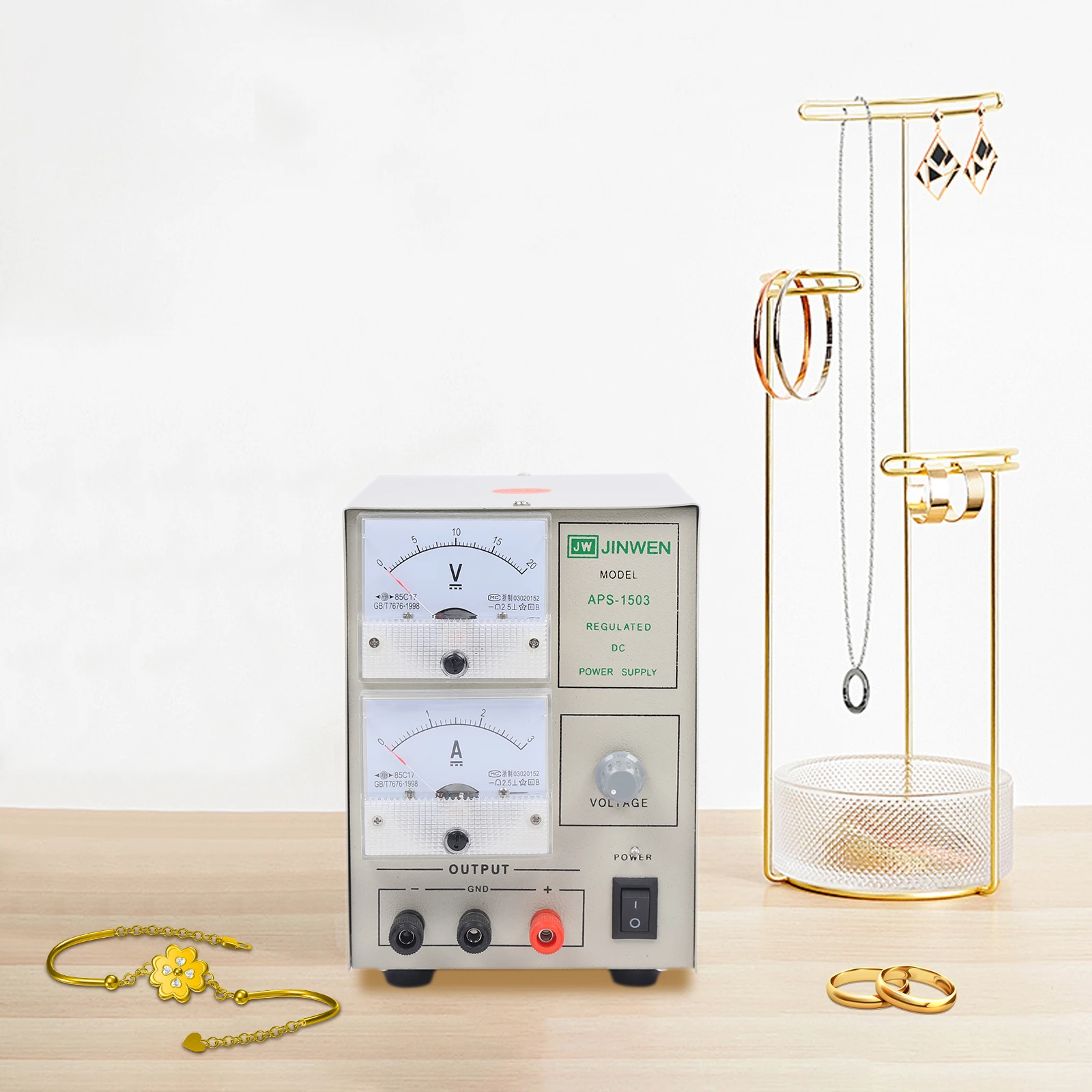

Jewelry Craft Kit Gold Plating Machine Jewelry Plater Electroplating Kit Automatic Voltage Regulation Overcurrent Protection

Description

Our electroplating machine is stylish and practical. It is made of premium material and is durable. Whether it is a professional jewelry workshop or a personal enthusiast who loves handmade jewelry, it is a good helper. It will be an efficient, professional, and safe performance to help you create exquisite jewelry works so that each piece of jewelry shines a unique charm!

Specifications

Material: Metal
Process: Baking Paint
Shape: Rectangular
Color: Grey White
Style: Modern
Assembly Required: No
Mounting Type: Tabletop
Power Source: Corded Electric
Plug Type: EU/US Standard
Voltage: 220V/110V
Maximum Adjustable Voltage: 20V
Maximum Adjustable Current: 3A
Power Cord Length: 90cm/35.43 in
Product Size: 16.2*17*11.7cm/6.38*6.69*4.61in
Package Size: 26*15.5*21cm/10.24*6.1*8.27 in
Gross Weight: 3 kg/6.61 lbs
Net Weight: 2.85kg/6.28 lbs

[The US version is 110V and the European version is 220V. Shipments are made by region]

Package Included

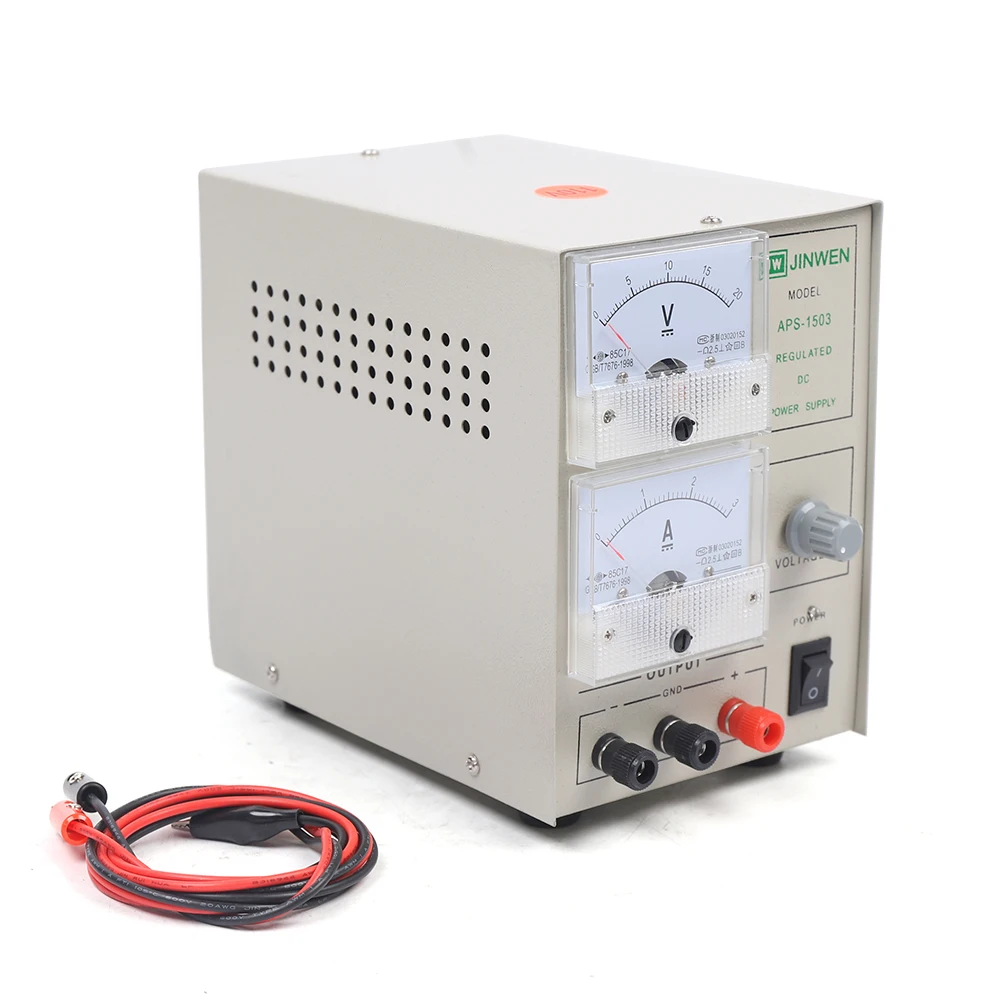

1* Electroplating Machine
2 * Conductive Connecting Wires

Application

The product can be plated with copper, nickel, chromium, gold, silver, electrophoresis, stainless steel, etc. It is widely used in jewelry, clocks and watches, handicrafts as well as electronics, instruments, meters, and other industrial fields.

Electroplating Steps

1.Polish items requiring plating with a cloth wheel and sander(not included).
2.Clean items to be plated with an ultrasonic cleaner(not included) with dewaxed water (heated).
3.Polishing with a polishing machine(not included).
4.Then use a steam cleaner(not included) to clean it.
5.Electrolysis and electroplating procedures are completed.

Silver Plating Method

Positive (+): titanium mesh
Negative (-): clip jewelry
1: Follow the electrolytic cleaning salt procedure to clean first.
2: After electrolysis, 3 beakers (not included) cleanings are required.
3: 0.12 lbs of silver salt, 54% 500cc distilled water(not included).
Temperature: 104°F, Voltage: 3V
The electroplated items need to be shaken, the recommended electroplating time is: 3-5 seconds.

Gold Plating Method (14K. 18K. 24K)

Temperature: 158-176°F
The electroplated items need to be shaken, and the recommended gold plating time is: 20-50 seconds.
Accessories for electroplating: beaker, titanium mesh, gold plating machine, water line, electric furnace, thermometer (all not included).

Platinum Plating Method

Positive (+): titanium mesh
Negative (-): clip jewelry
Voltage: 3-4V
Temperature: 86-104°F
The electroplated items need to be shaken at the beginning, the recommended platinum time: is 90-120 seconds.

Key Features

Premium Material: It is mainly made of high-class metal, with a baking paint process, which is impact-resistant, and scratch-resistant, with high durability and reliability, ensuring long-term use.

Excellent Electroplating Effect: The product can coat your jewelry in a short time with a smooth and uniform film, and stable output, which does not damage the surface of the workpiece, making the workpiece achieve a good finish.

Adjustable Design: Voltage and current are adjustable, you can adjust the voltage(Max. 20V) and current(Max. 3A) according to different jewelry materials and plating needs so that each plating can achieve the ideal result.

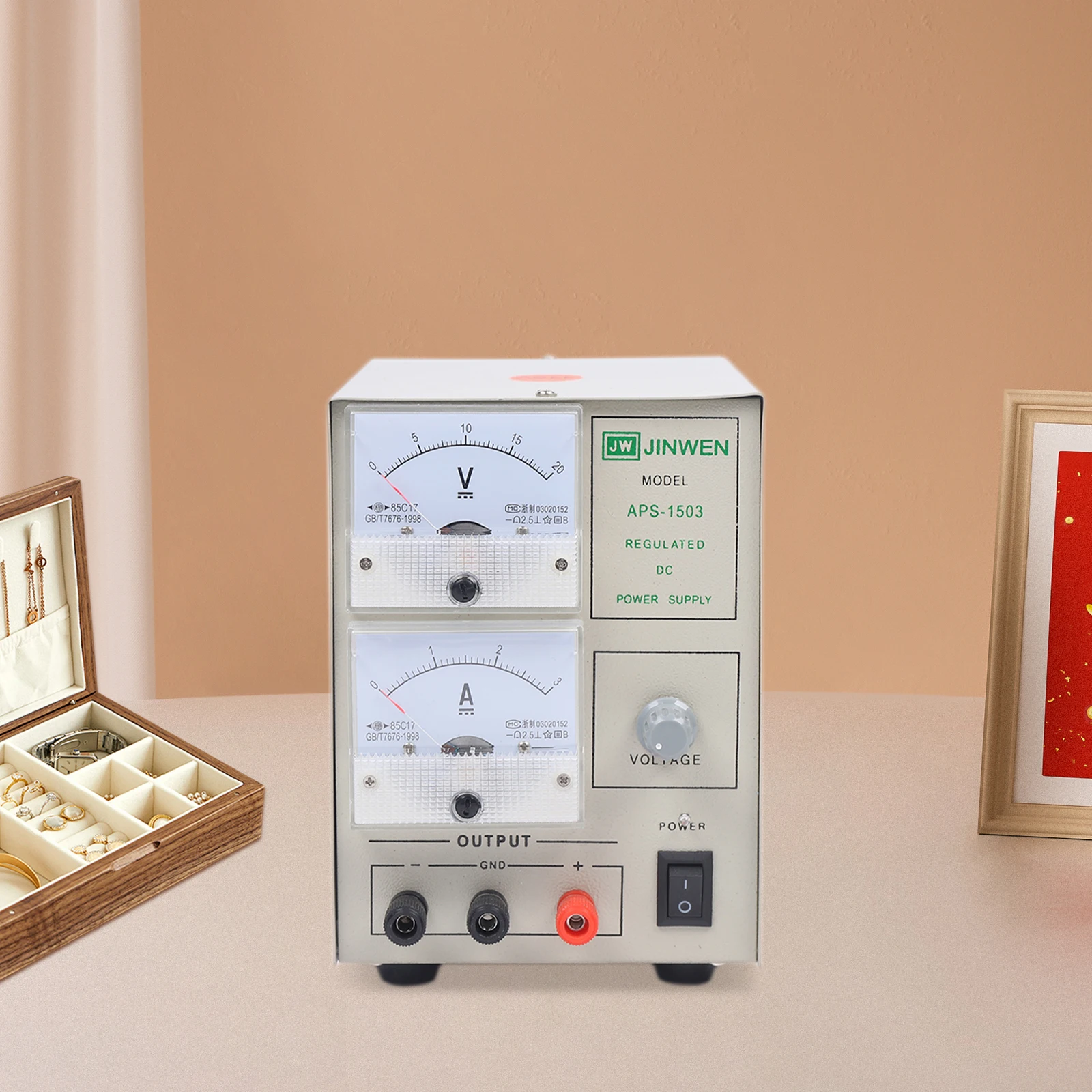

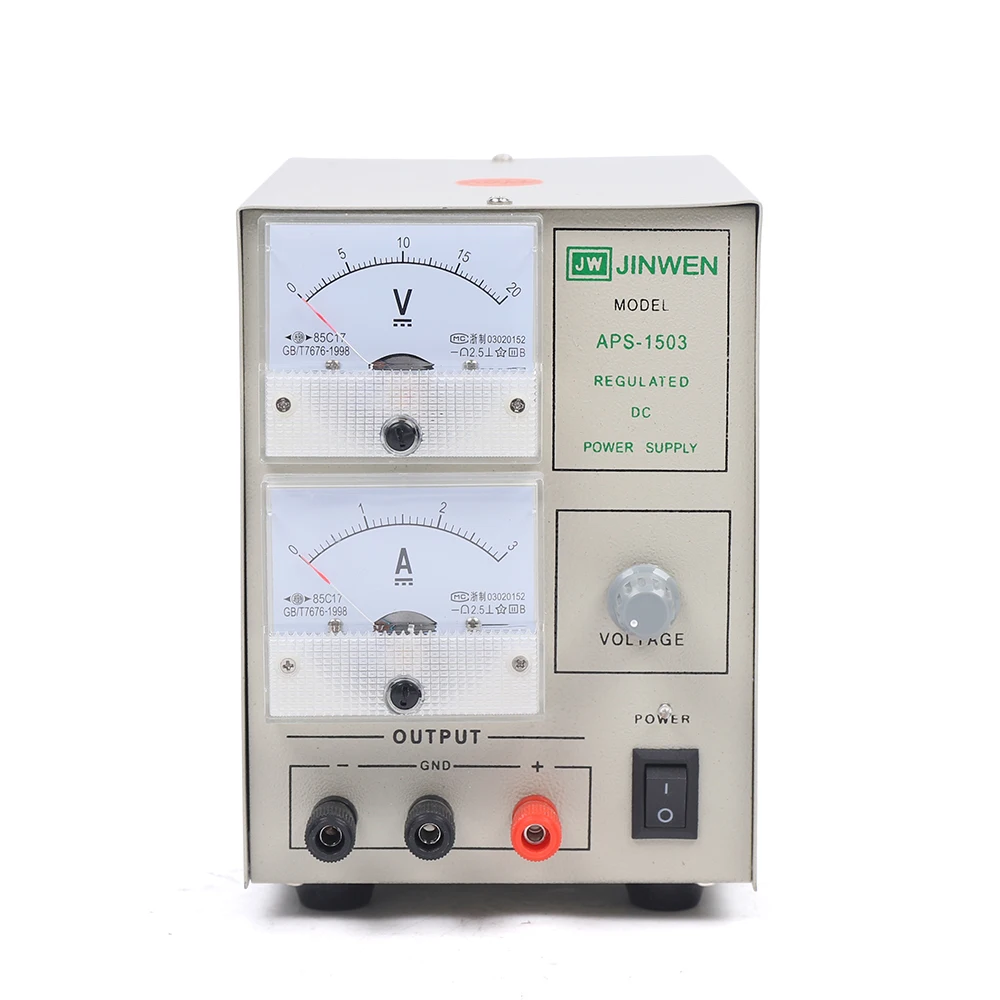

Convenient to Use: With a clear dial, you can understand the voltage and current at a glance, for your convenience.

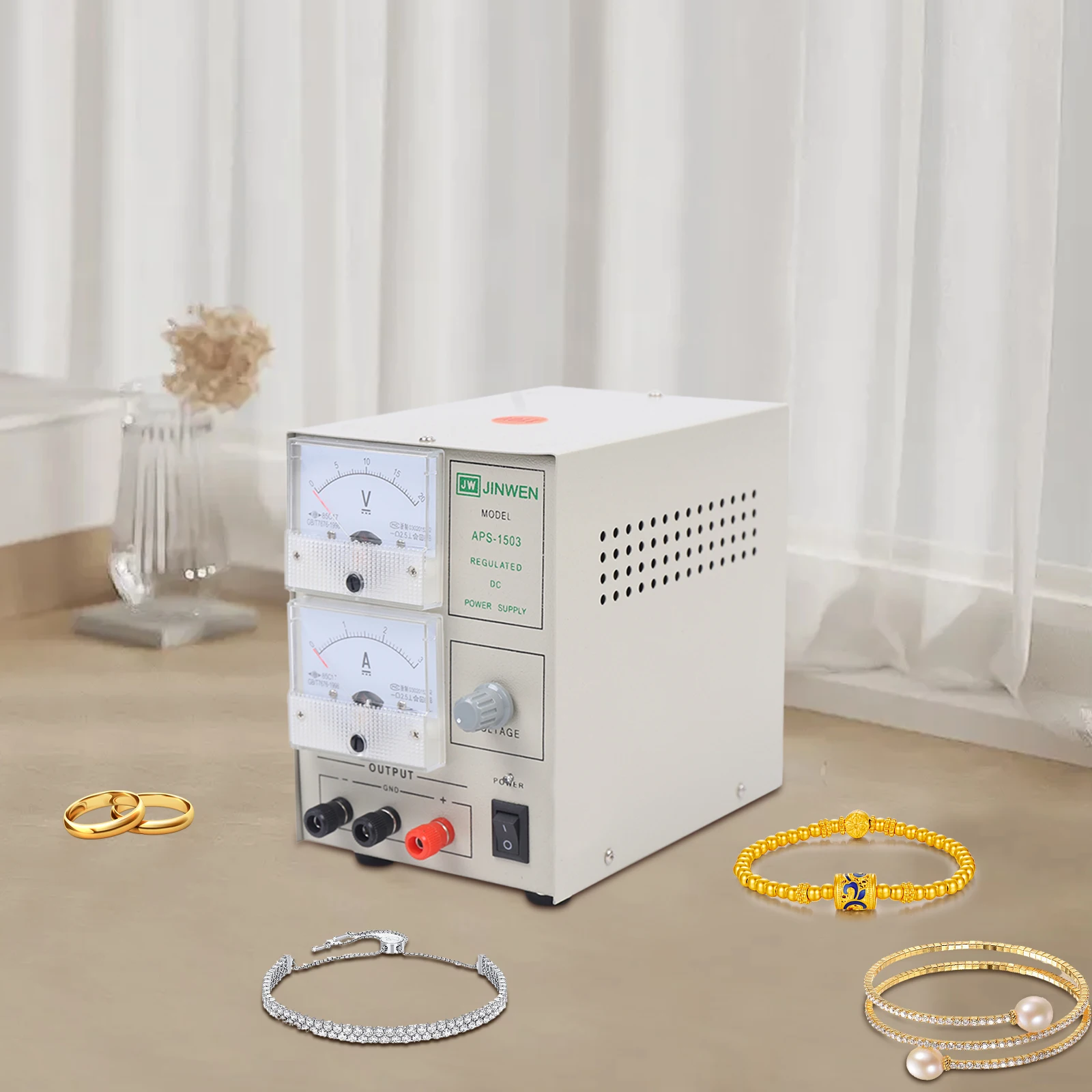

Safe and Reliable: The heat dissipation holes on the side effectively ensure the heat dissipation performance of the product during long-term operation, to ensure safe use. The conductive connecting wire is made of quality material, which is comfortable to feel and has strong conductivity, and human contact will not cause electric shock for safe use.

Ready to Go: The product is already assembled, so you can use it after receiving it by connecting the power supply, which is very time-saving and convenient!

Compact & Portable: Thanks to its compact size (6.38*6.69*4.61 inches) and lightweight (6.28 lbs), you can use it well on the countertop without taking up too much space.

Good Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details
Smooth Edges: The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

Anti-slip Feet: They provide a solid support for the product, improving the safety of use.

Notes

1.Please note that this product does not include jewelry, etc.
2.Please note that all silver salt, electrolytic cleaning salt, and beaker cleaning must use pure distilled water.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
