Multi-mode RC Remote Electronic AUX Channel On/Off Switch Car LED PWM Controlled Switch Receiver Control Module

Package included:

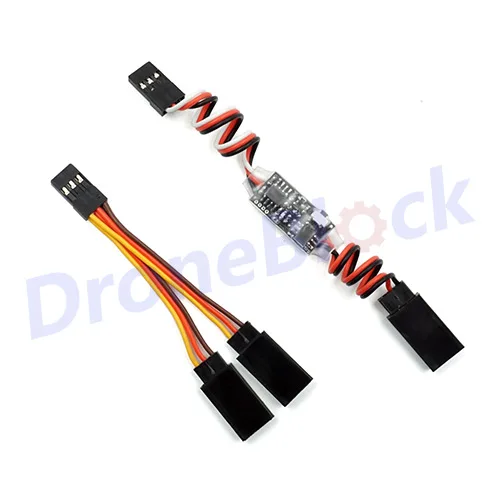

RC Remote Electronic AUX Channel On/Off Switch x 1
Y cable x 1

Features:
This small lightweight electronic switch is extremely handy for switching on and off
auxiliary
functions on all sorts of models. Plug the single lead into one of your spare channels for switching lights, bomb dropping, smoke systems, canopy operation,
and
other applications
.
Status LED: indicate on/off status of the switch and working mode
Always remember last working mode when power on
Mode button: change working mode
   when input signal <1200us, LED(load) power off
   when input signal >1800us
   mode 1: LED(load) solid on
   mode 2: LED(load) turn on and off  slowly
   mode 3: LED(load) turn on and off  quickly
   mode 4: LED(load) on and off like double flashing
   mode 5: LED(load) change like breathing

Specifications:
Input voltage:3.9 to 15V
Output voltage: equal input voltage
Max output current: 4A
Weight: 4g
Length: 25cm
Input connector: JR type plug
Output connector: Futaba type socket

​
