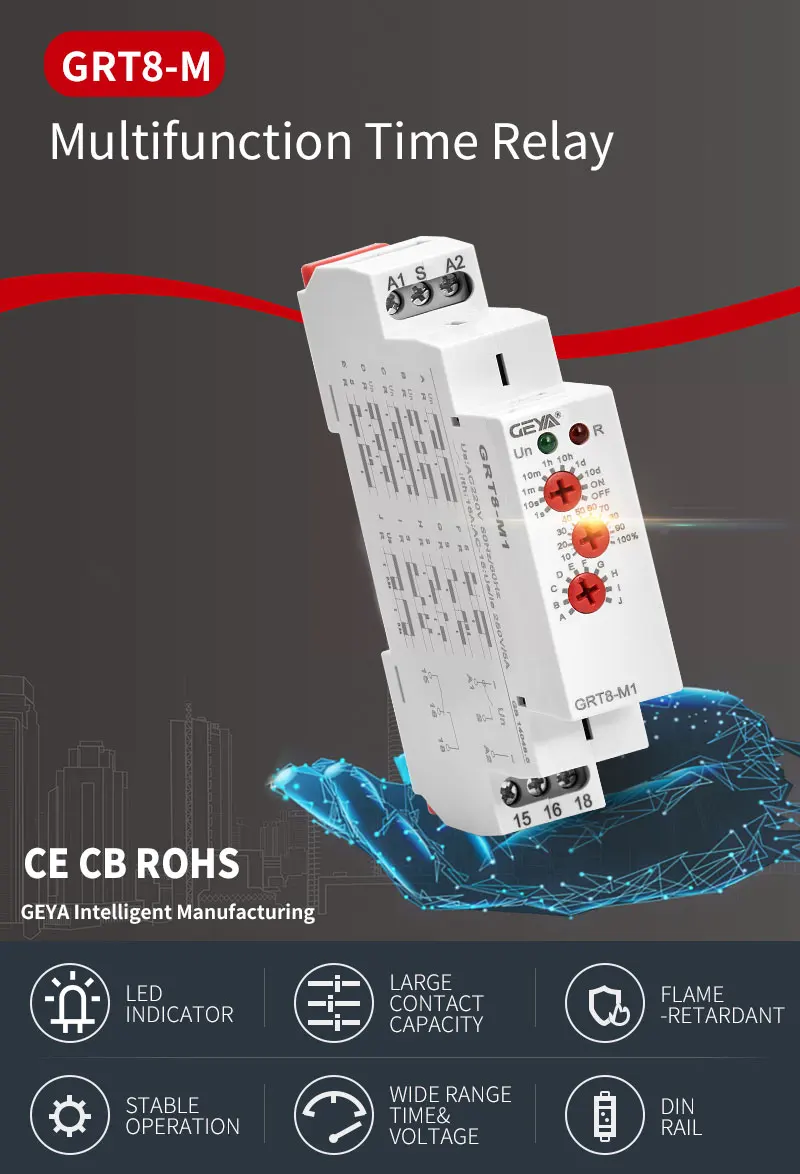

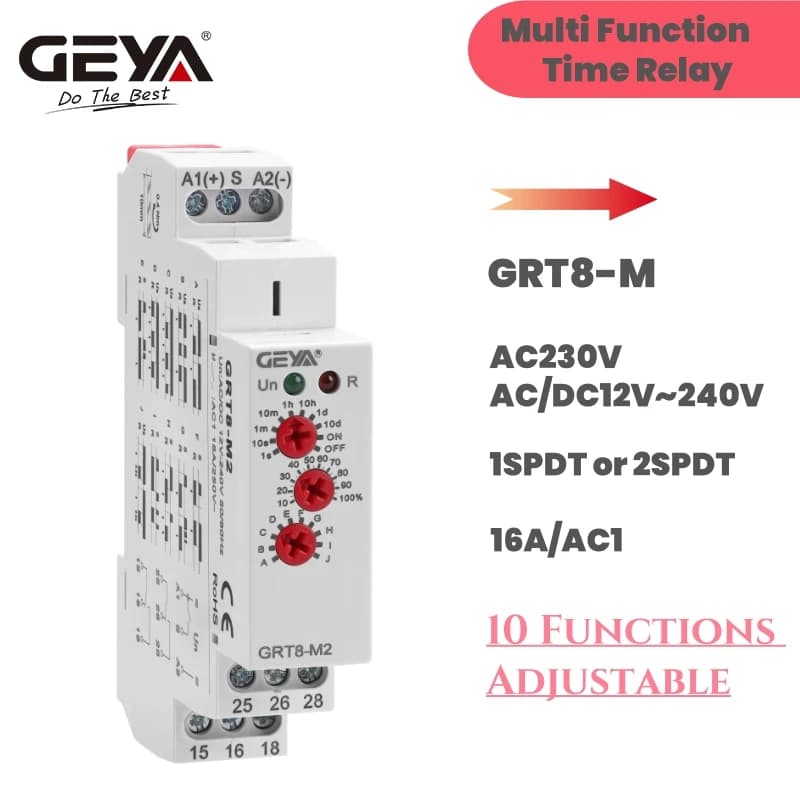

GEYA GRT8-M 16A Multifunction Timer Relay with 10 Function Choices AC DC 12V 24V 220V 230V Time Relay

GEYA GRT8-M Din Rail Type Multifunction Time Relay AC220V OR DC12V DC24V DC240V with 10 Functions Timer 16A SPDT

General
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

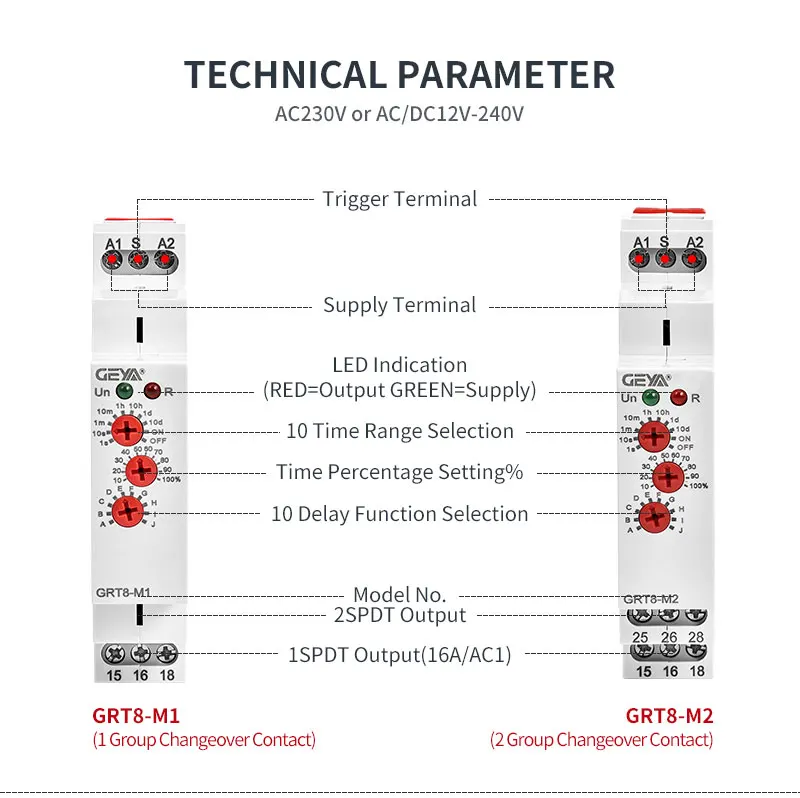

- GRT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)
-10 Functions:
5 time functions controlled by supply voltage ( A B C D J )
4 time functions controlled by control input ( E F G H )
1 function of latching relay ( I )
-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off
- 1-MODULE 18mm, DIN rail mounting, convenient install.

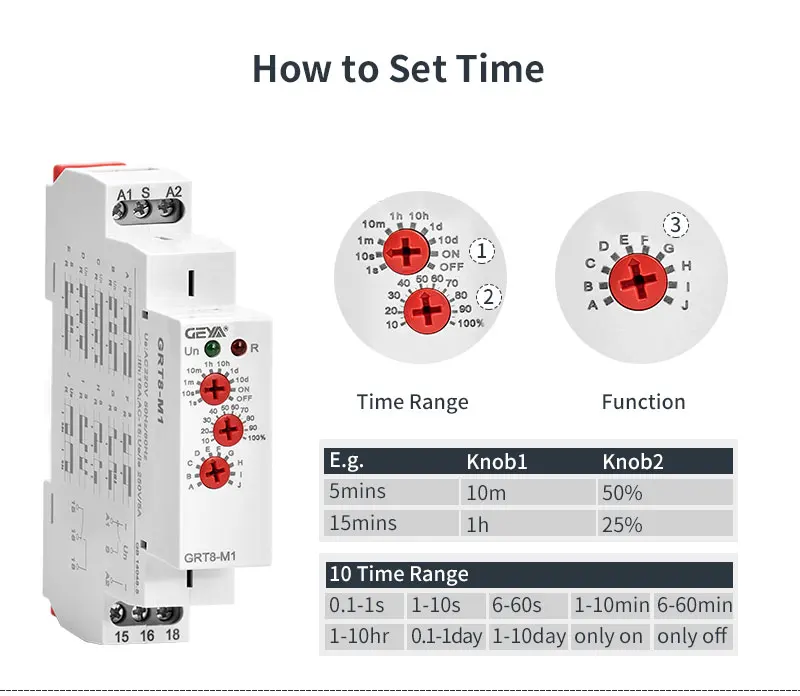

How to Set Time?

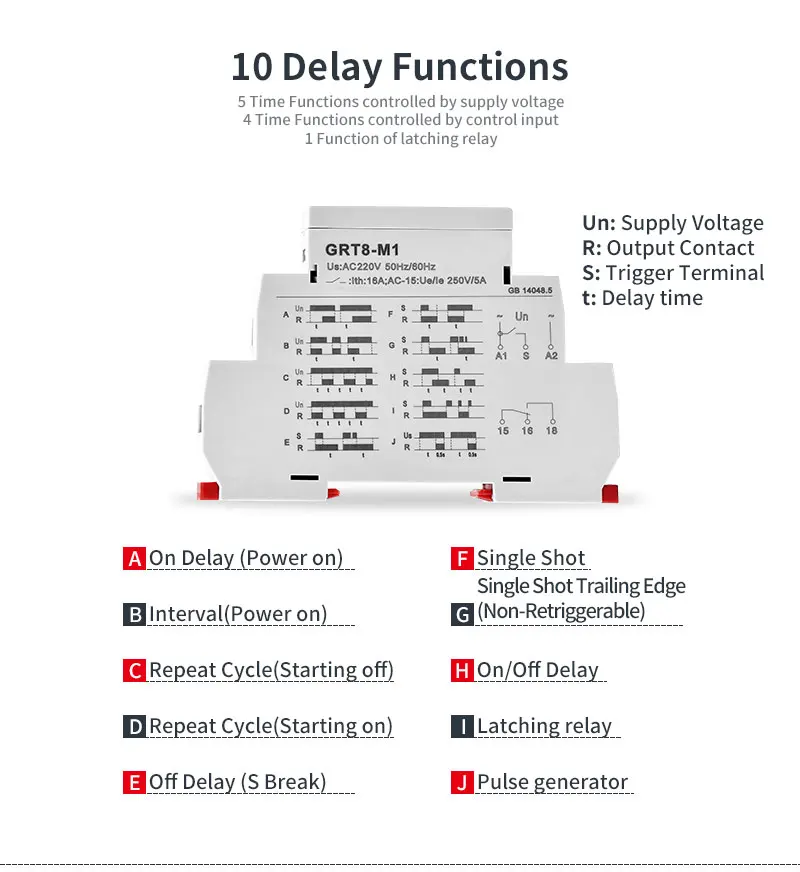

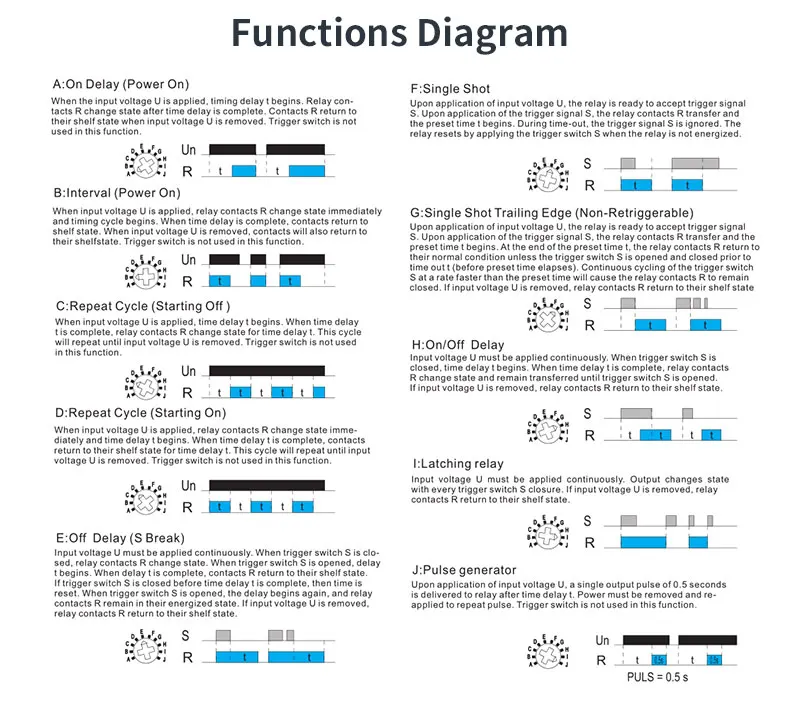

GRT8-M Time Relay 10 Functions

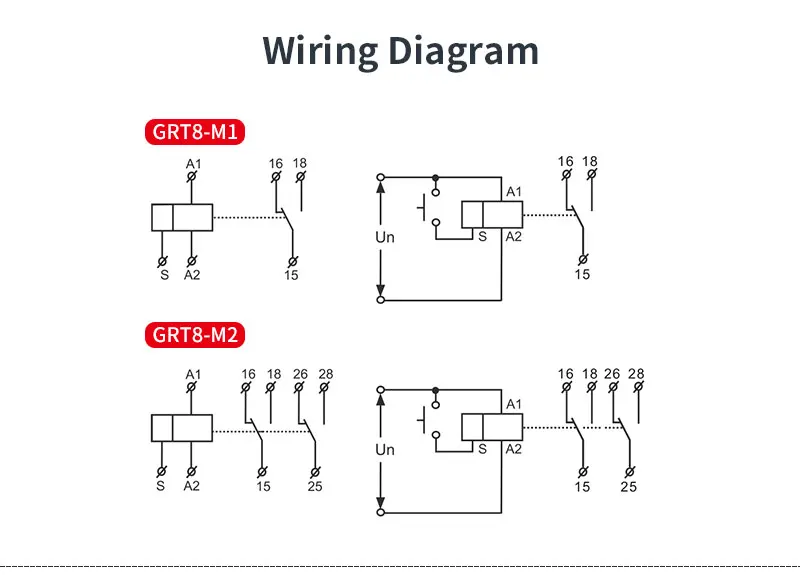

Wiring Diagram

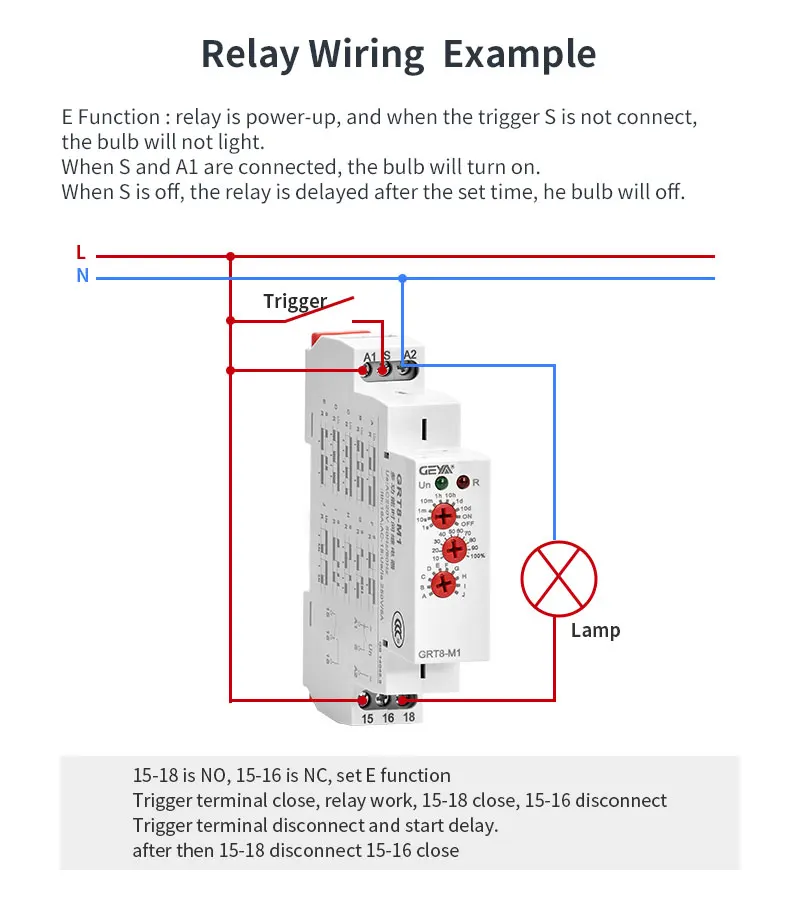

Wiring Example

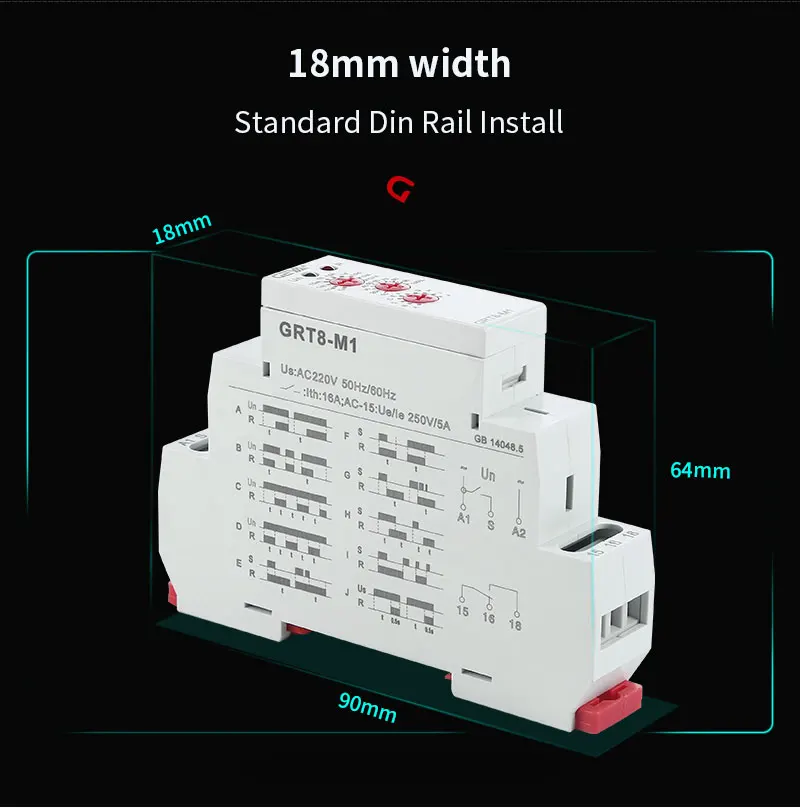

Standard Din Rail Size

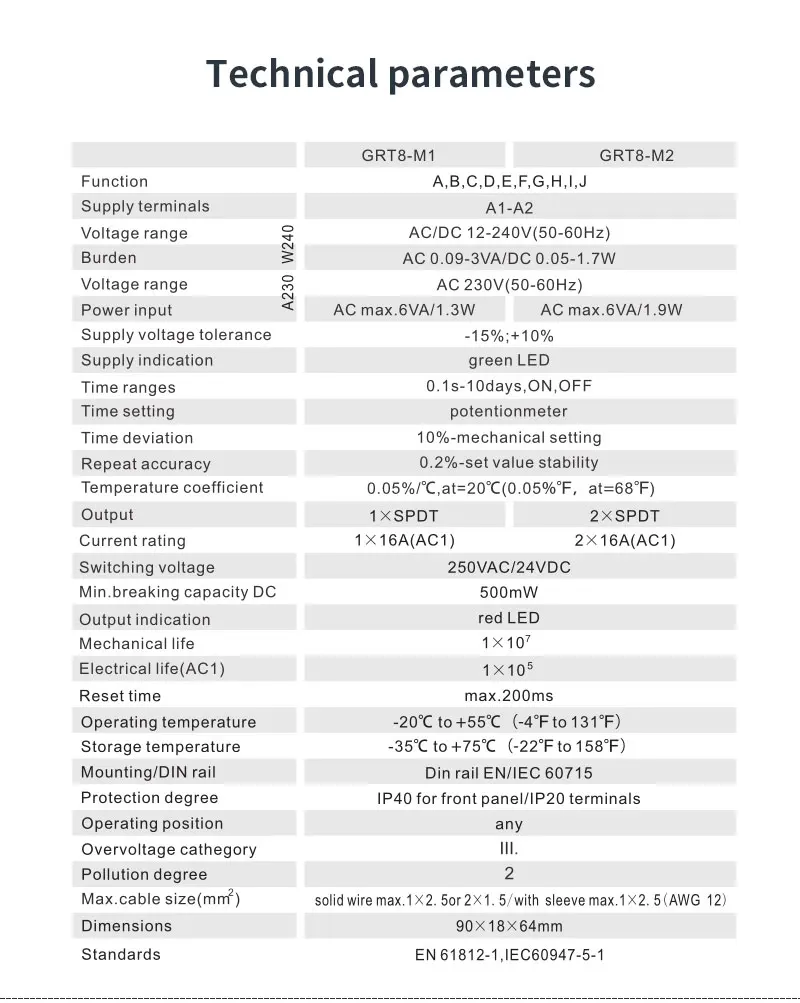

Technical Data
