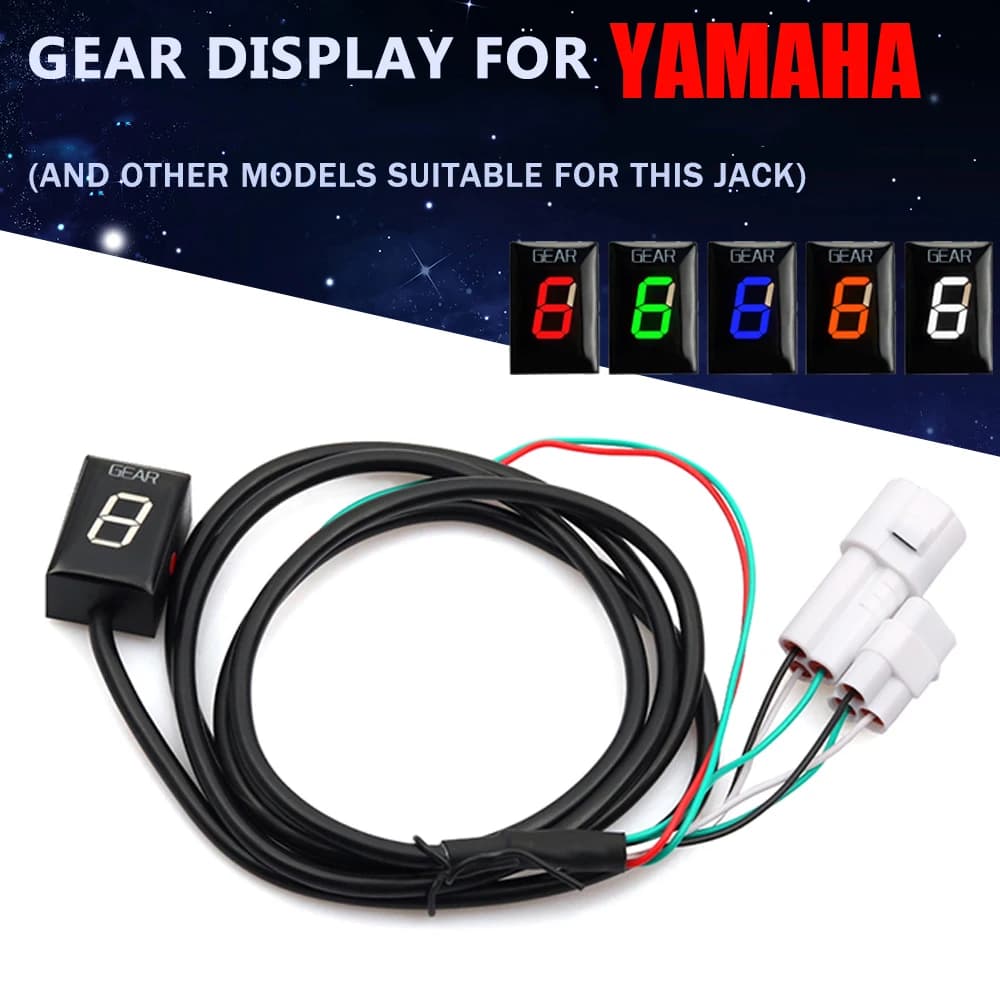

Motorcycle Gear Display Indicator For Yamaha XJ6 FZ6 FZ8 R1 R6 FZ400 FZS XJR400 FZ1 MT01 MT-03 FZ8 FZ16 fjr1300 xjr 1300 Xvs950A

If you have any problems, please contact with us, we will try our best to deal with it.

Fitment:

For YAMAHA FZ8{nonABS}(2010-2015)

For YAMAHA Bolt{non-ABS}(2013-2016)

For YAMAHA YZF-R1(1999-2008)

For YAMAHA Bt1100 Bulldog(2002-2006)

For YAMAHA Dlverslon{non-ABS} (2009-2015)

For YAMAHA Dyag Star(1999-2006)

For YAMAHA Fjr1300{non-ABS}(2001-2005

For YAMAHA Fjr1300{ABS}(2003-2005

For YAMAHA Fz-16/FZ-S(2008-2015)

For YAMAHA Fz400(1997-2002)

For YAMAHA Fz6{non-ABS}(2003-2012)

For YAMAHA FZ6r(2009-2016)

For YAMAHA Stryker(2011-2016)

For YAMAHA Fz8{non-ABS}(2010-2015)

For YAMAHA Fz1(2001-2016)

For YAMAHA Fzh150(2015)

For YAMAHA Fzn150(2015)

For YAMAHA Fz1n 2006

For YAMAHA Fzs600 Fazer(1998-2003)

For YAMAHA Fzs1000 Fazer(2005-2015)

For YAMAHA Mt-01(2005-2012)

For YAMAHA Mt-03{non-ABS}(2006-2016)

For YAMAHA Ralder(2006-2016)

For YAMAHA Roadllner(2006-2015)

For YAMAHA Road Star(1999-2014)

For YAMAHA Royal Star{All Varlants}(1996-2013)

For YAMAHA V-Star{950cc and above}(All)

For YAMAHA Warrior(2002-2012)

For YAMAHA Wr250r/x(2008-2016)

For YAMAHA Wr450r/x(2008)

For YAMAHA Xt660(2004-2015)

For YAMAHA Xv1600A wlld star(1999-2005)

For YAMAHA Xvs950A Mldnlght Star(2009-2016)

For YAMAHA Xvs1300A Mldnlght Star(2007-2015)

For YAMAHA Yzf-R6(2001-2016)

For YAMAHA Yzf-R6s(2006-2009)

For YAMAHA Stratollner(2006-2015)

For YAMAHA TDM900{non-ABS}(2002-2013)

For YAMAHA TDM900{ABS}(2002-2006)

For YAMAHA Xj6{non-ABS}(2009-2015)

For YAMAHA Xjr400(2002-2007)

For YAMAHA Xjr1300(2004-2016)

For YAMAHA Xv1900A Mldnlght Star(2006-2015)

For YAMAHA Xvs1100 Drag Star(1999-2006)

For YAMAHA Ys250 Fazer(All)

（Fits EFI motorcycles. if you encounter any problems, please do contact me first, I very much hope to help you solve the problem, thank you）

Description:

Condition:100% Brand New

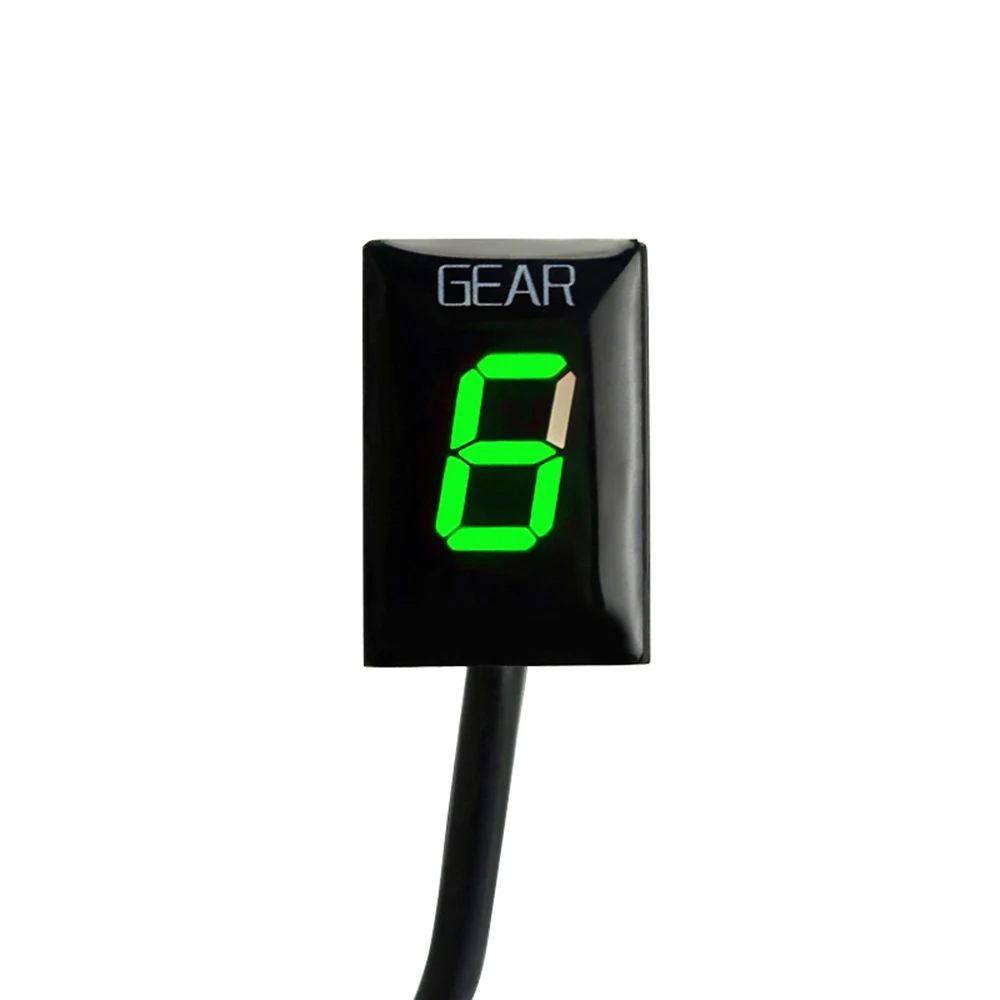

Item Name:Speed Gear Display Indicator

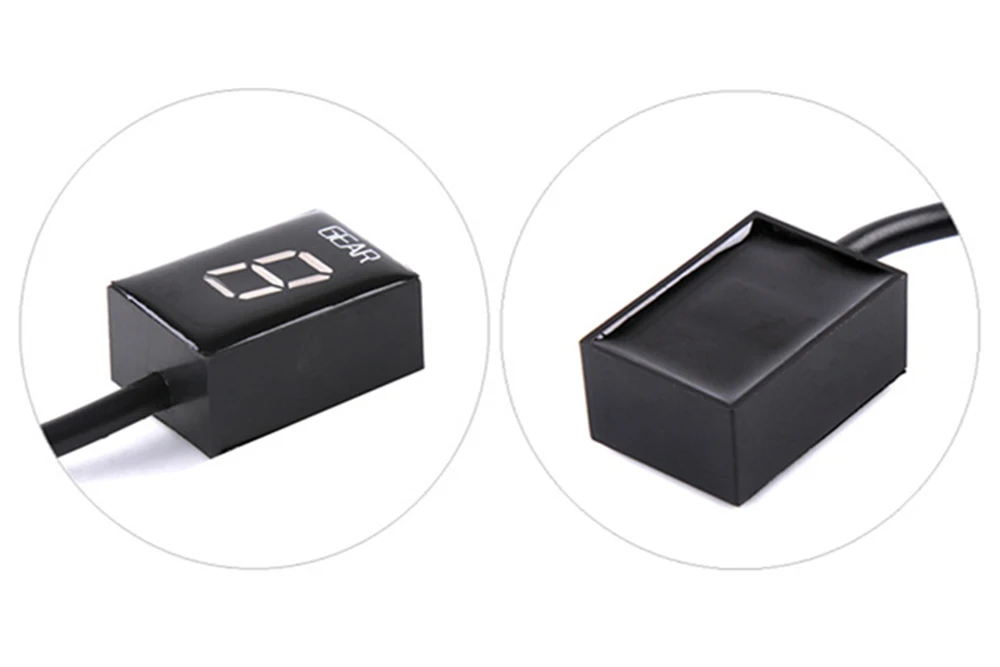

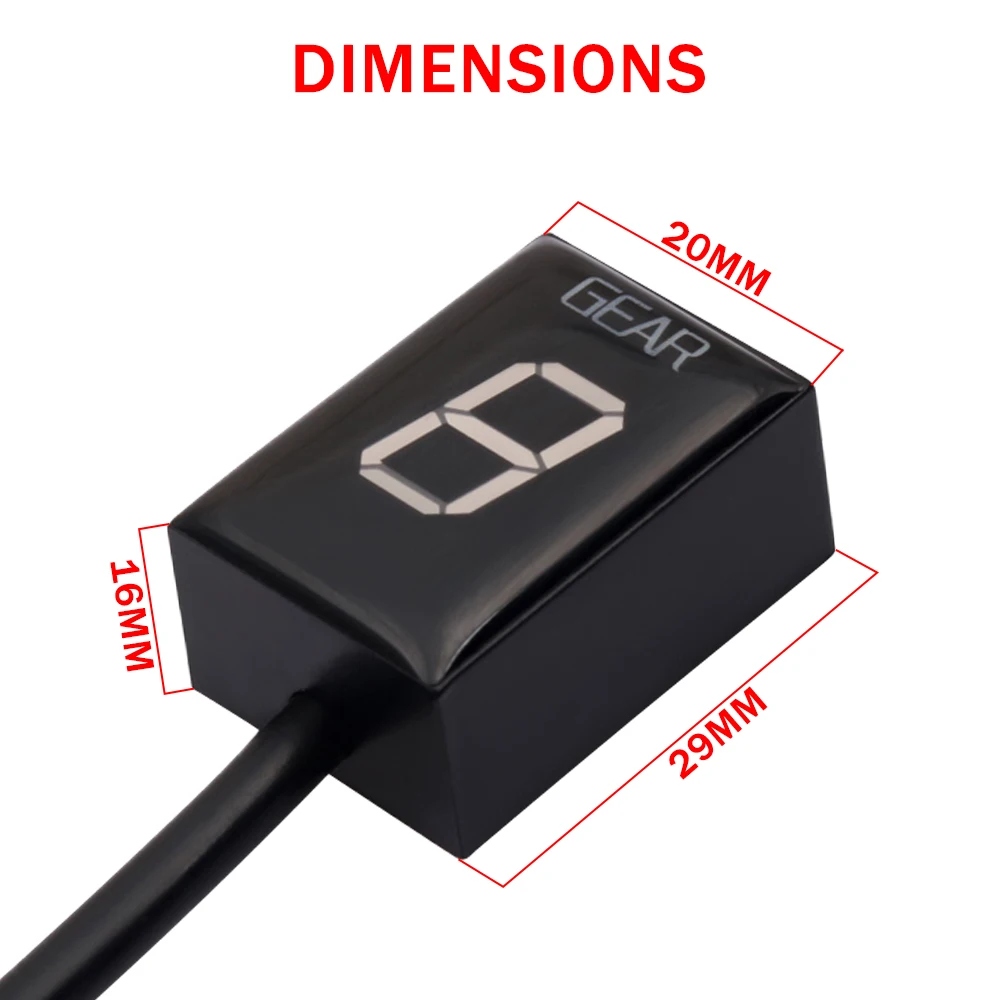

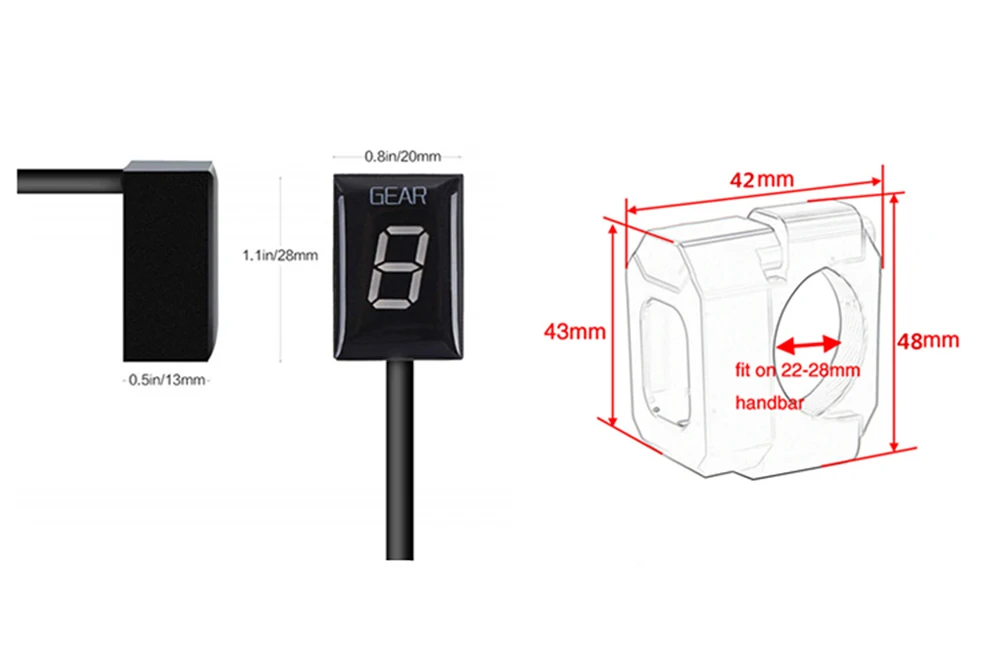

Size:4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

Feature:

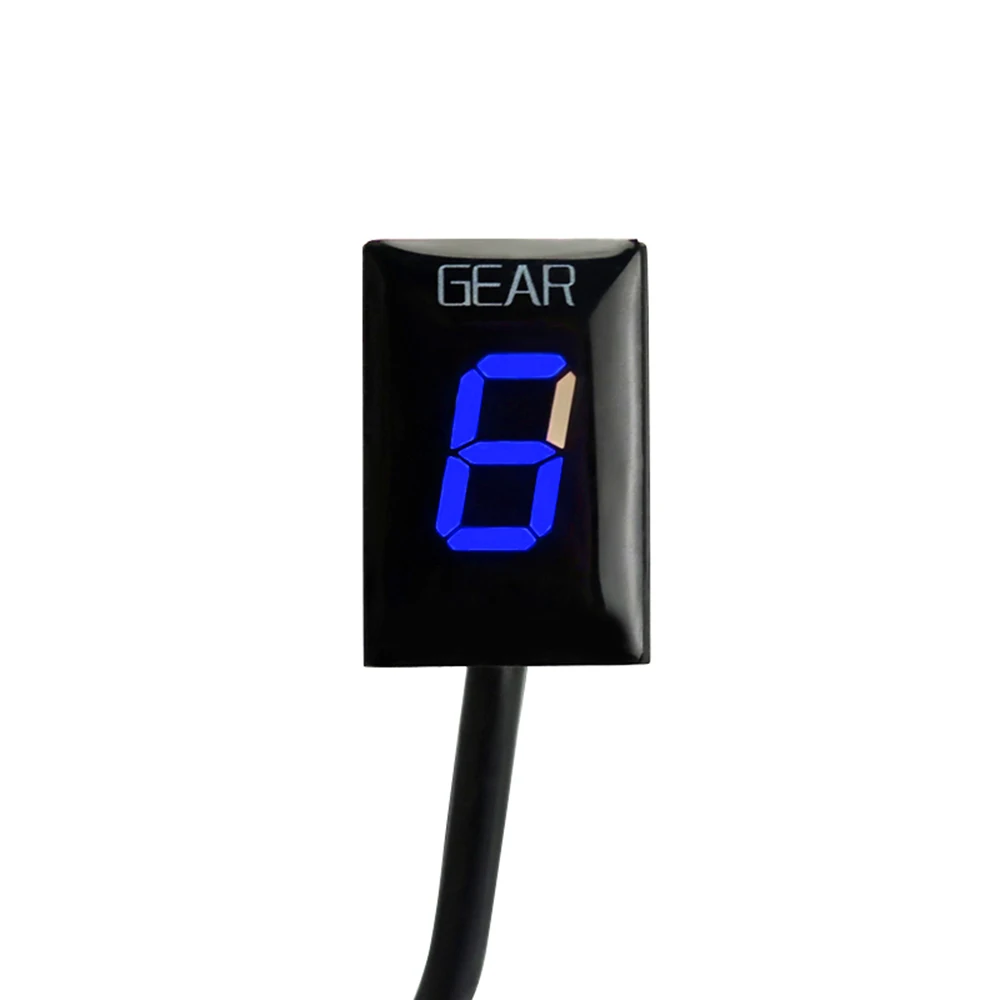

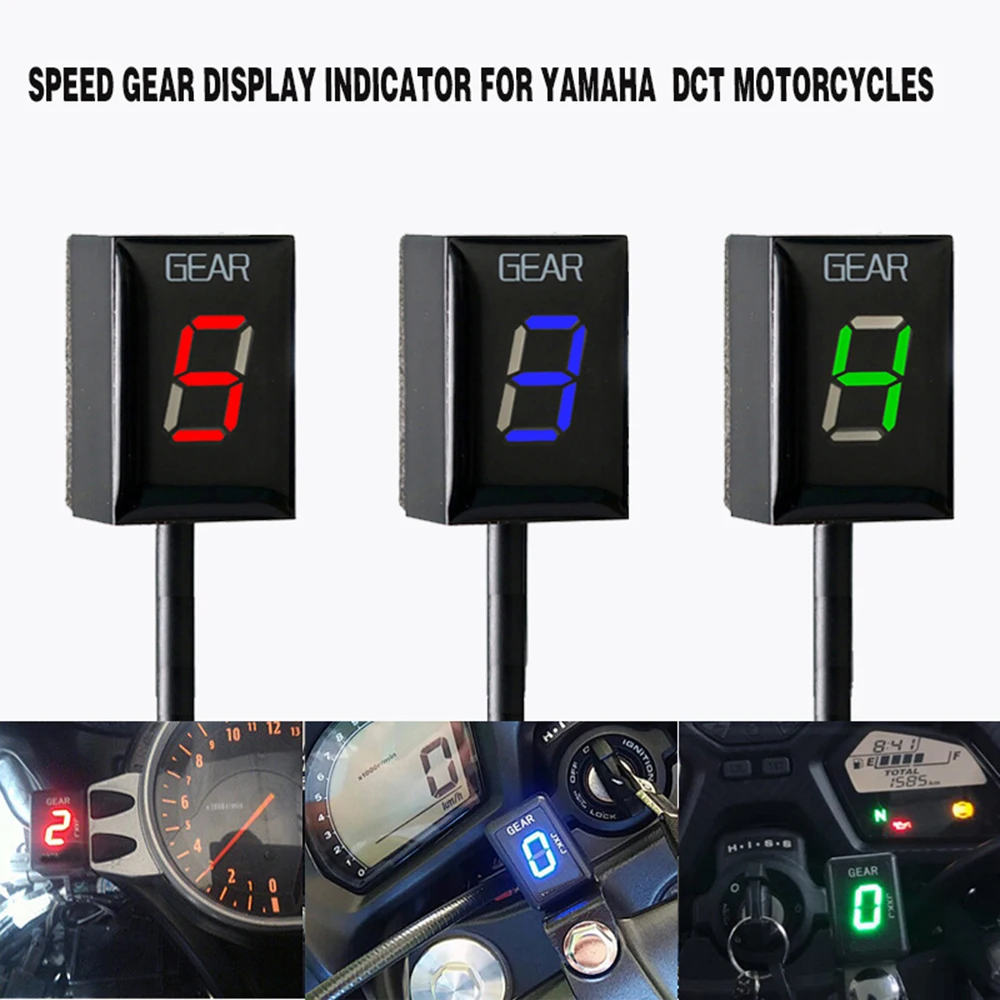

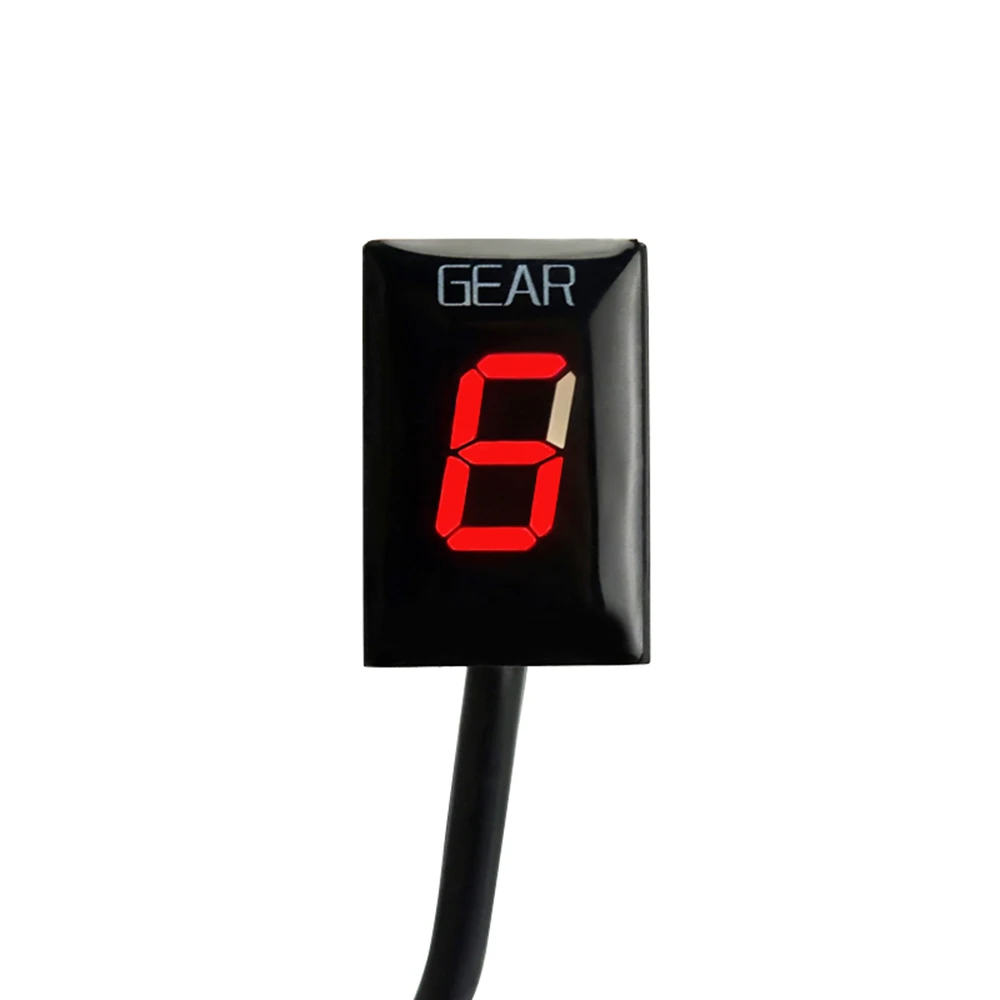

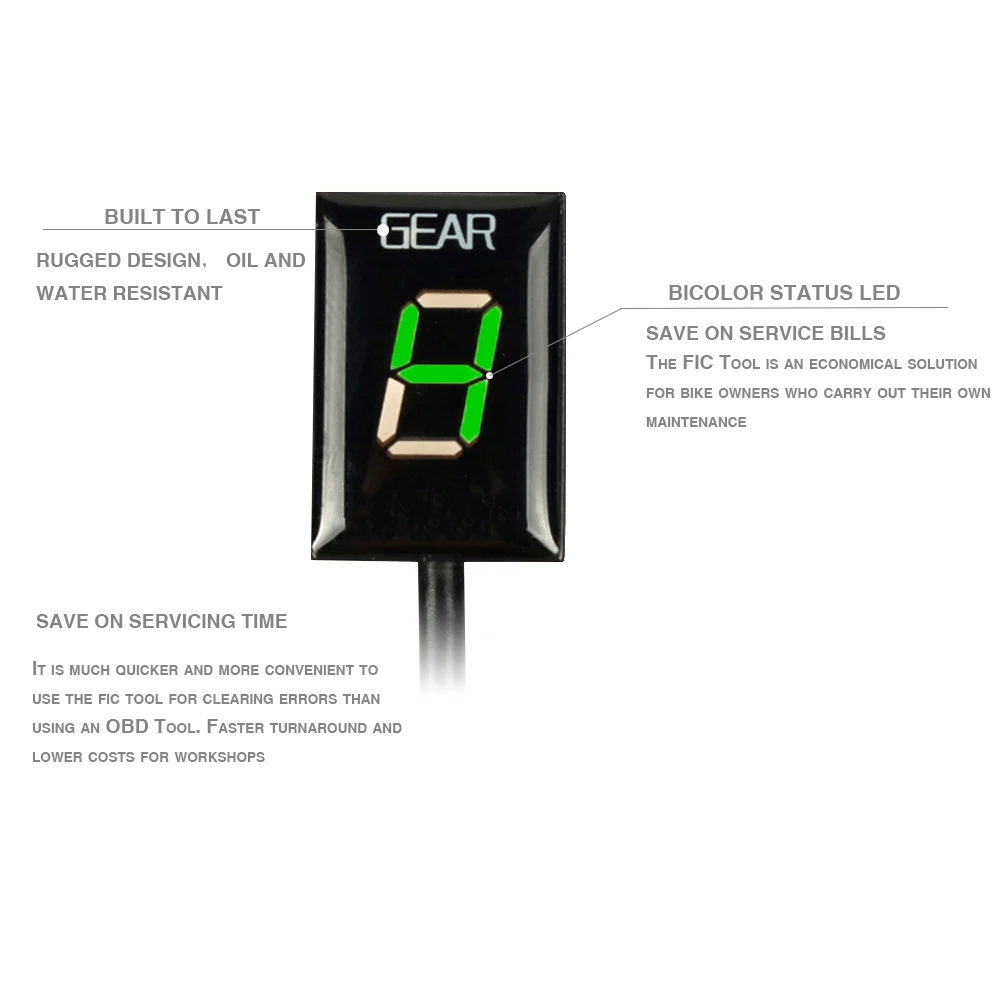

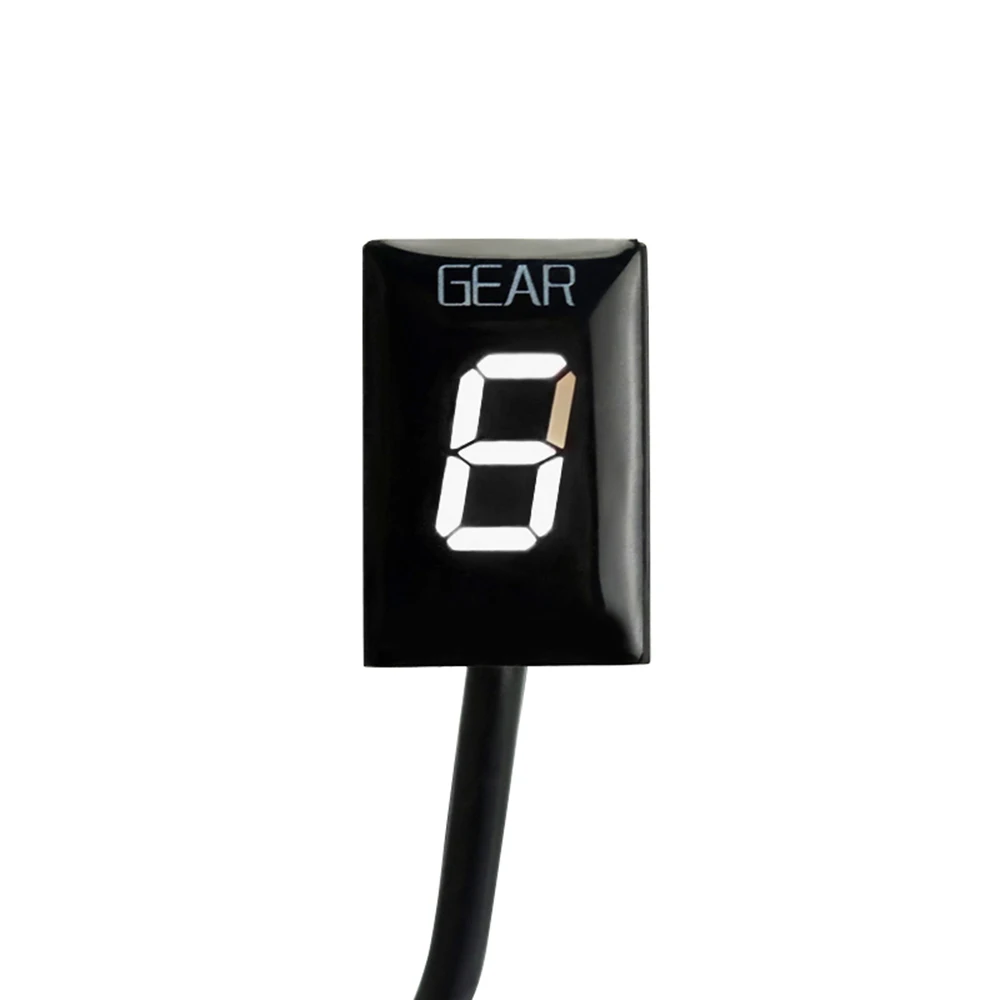

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

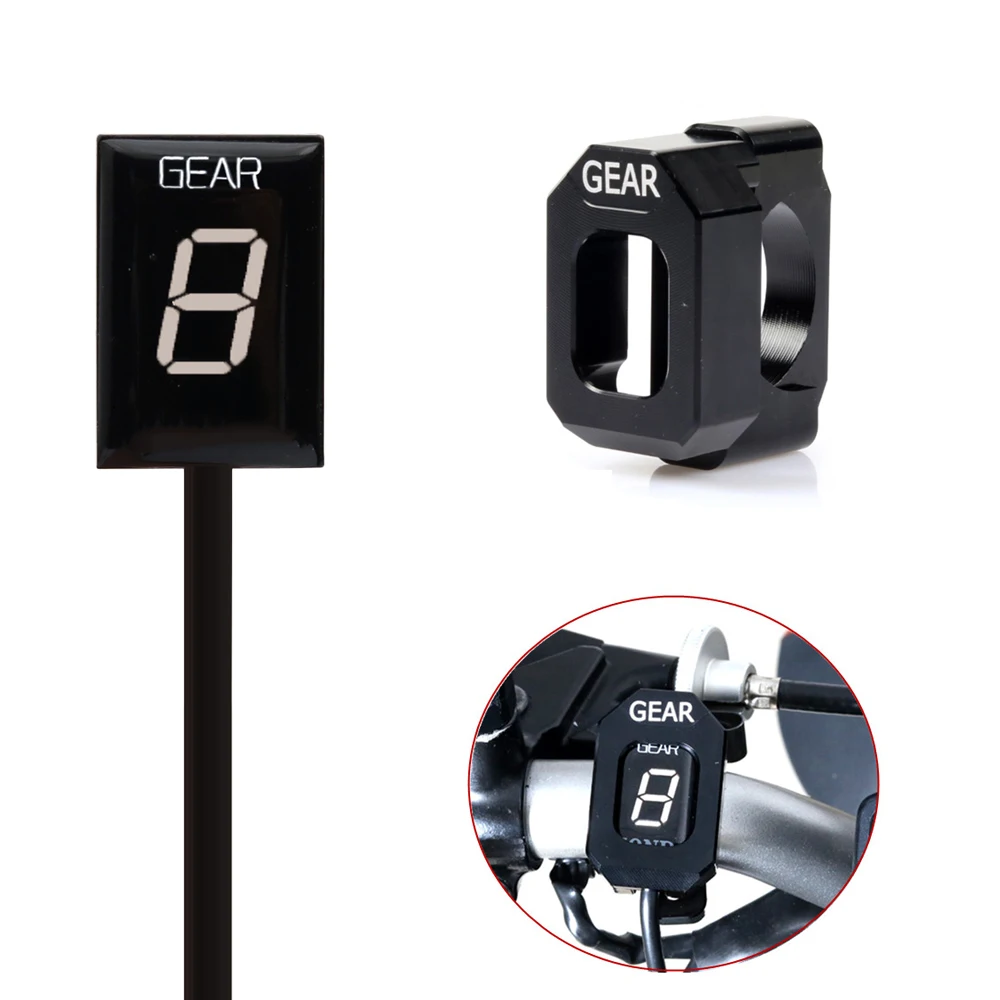

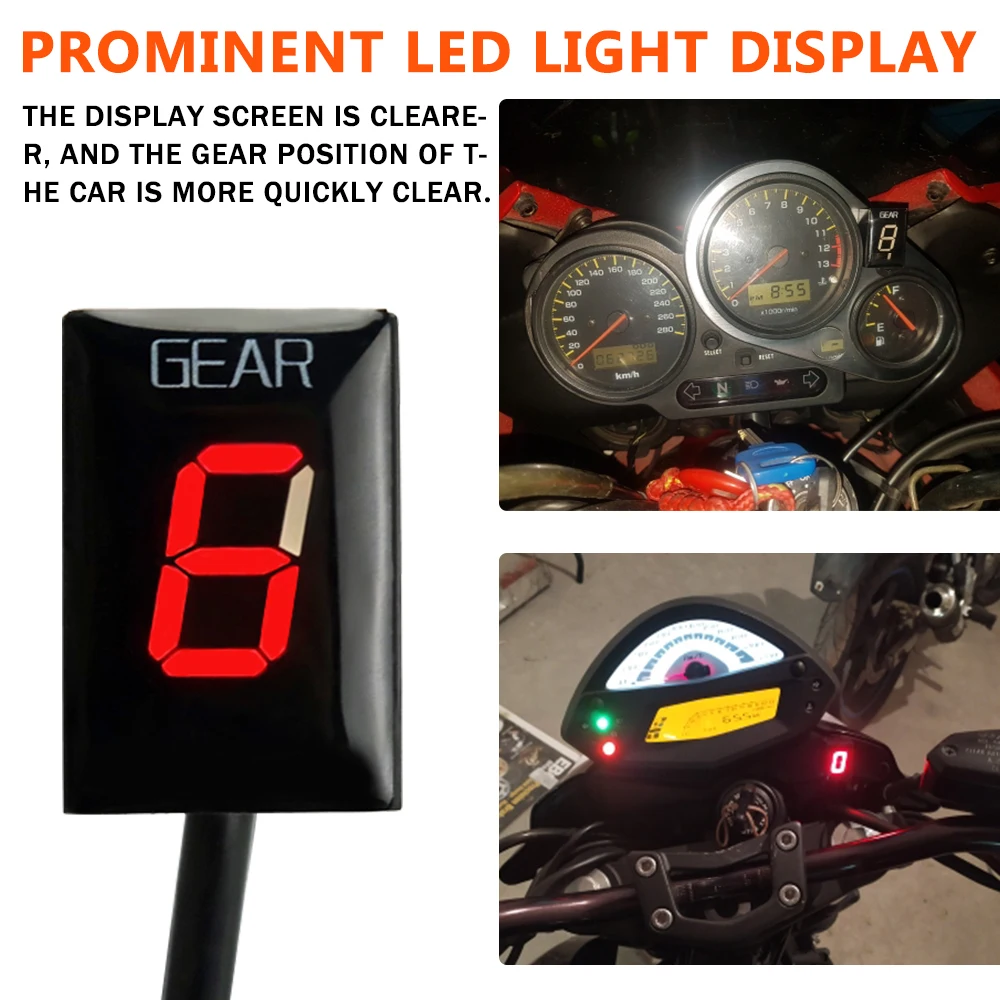

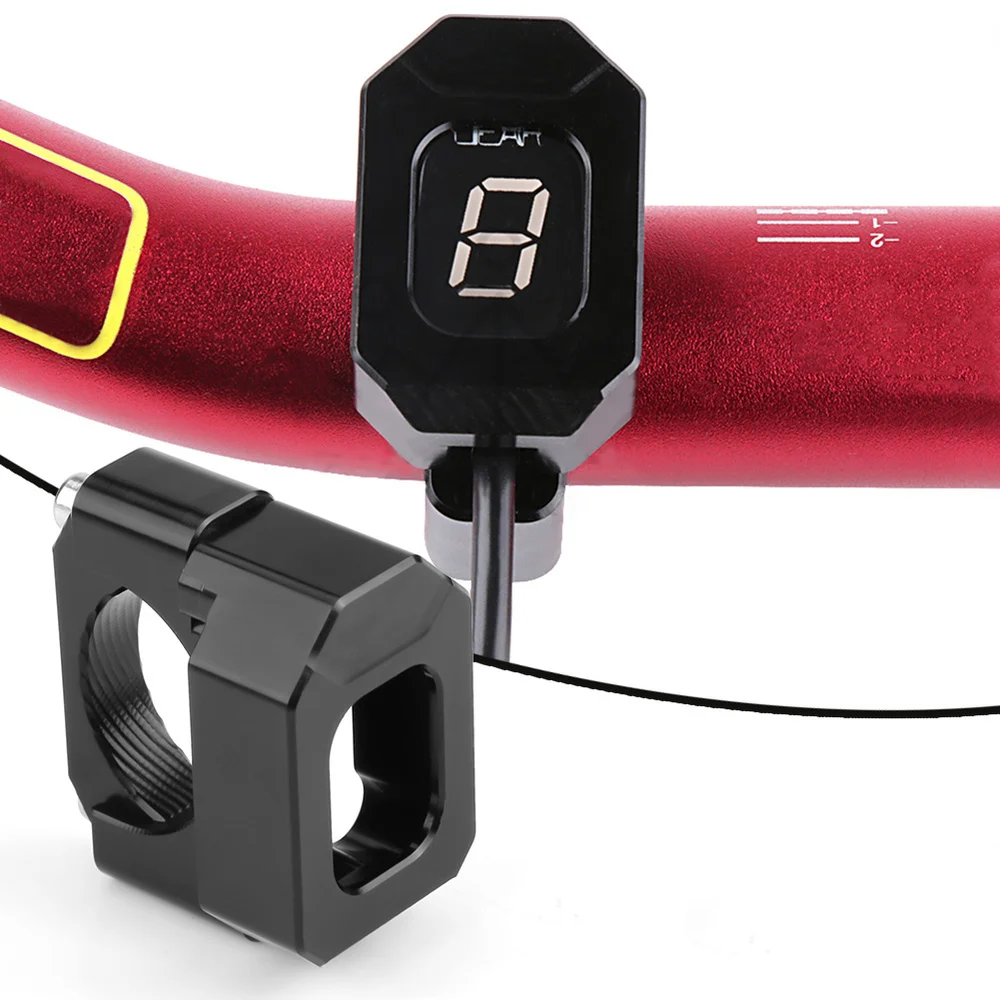

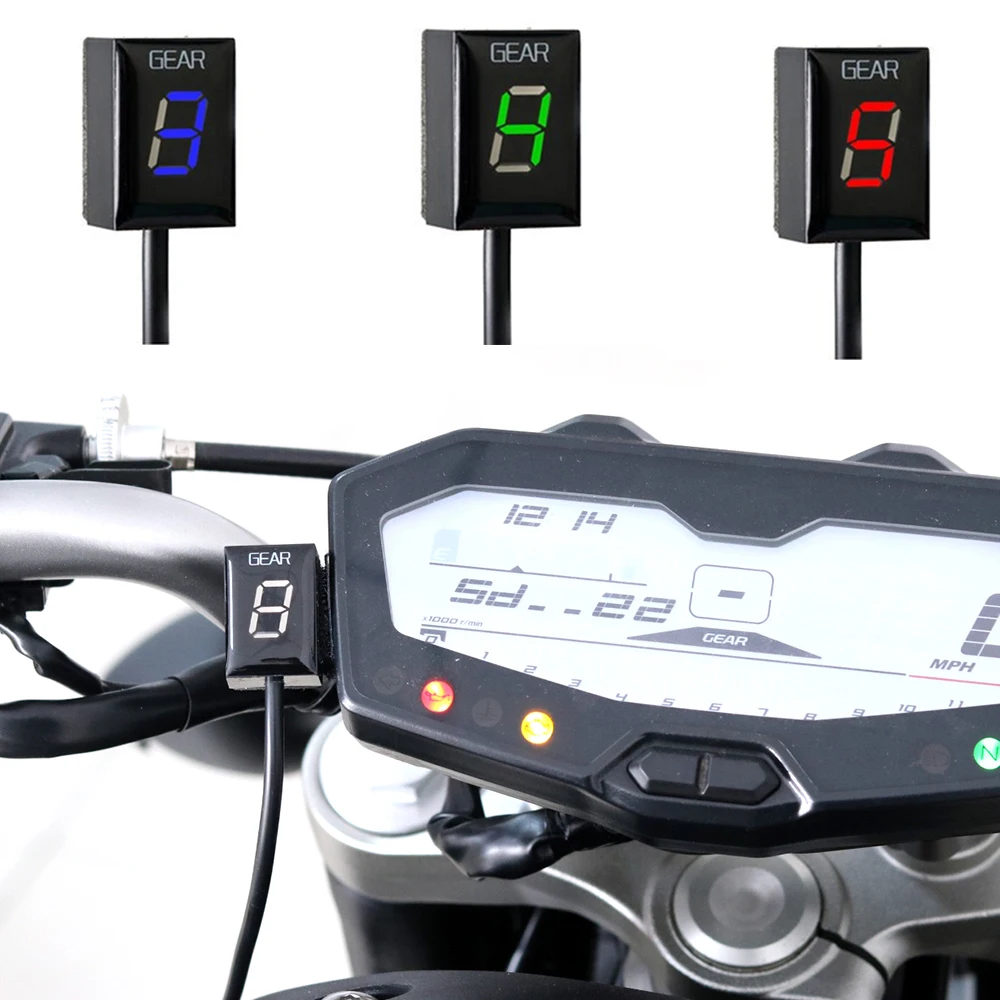

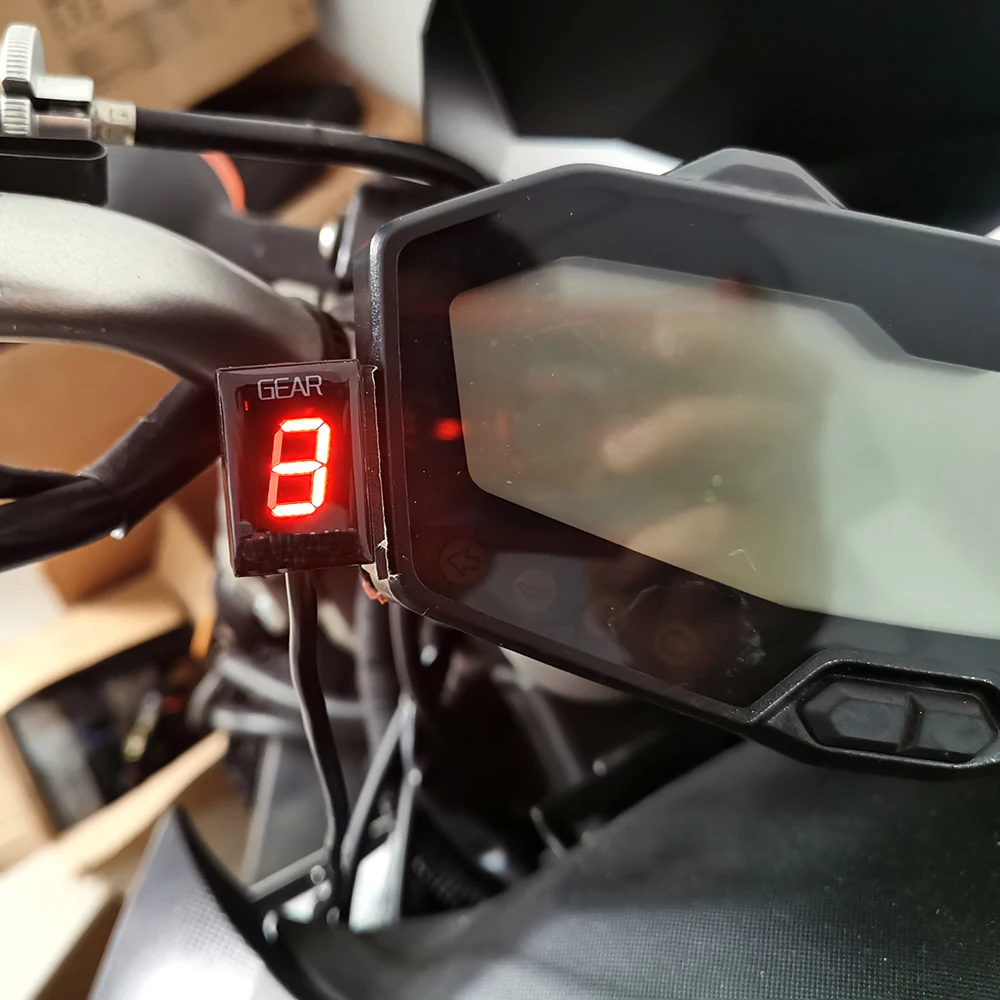

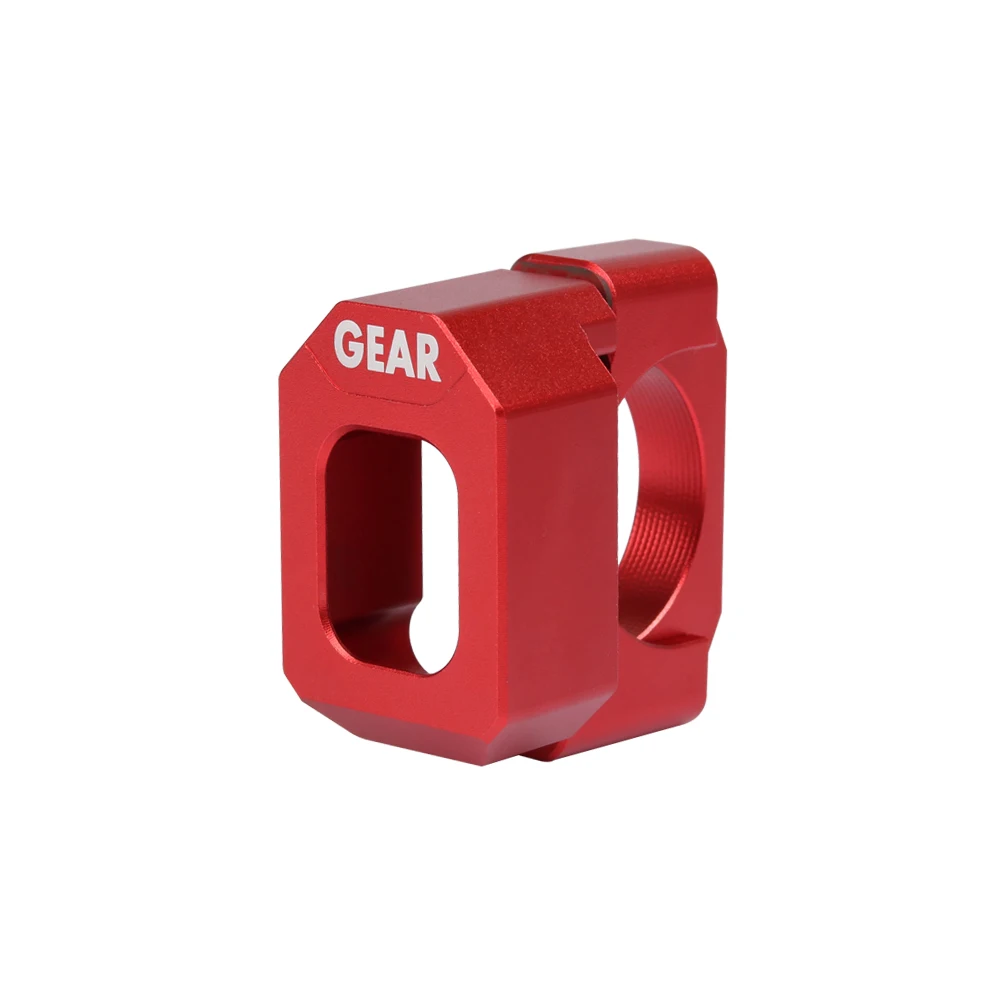

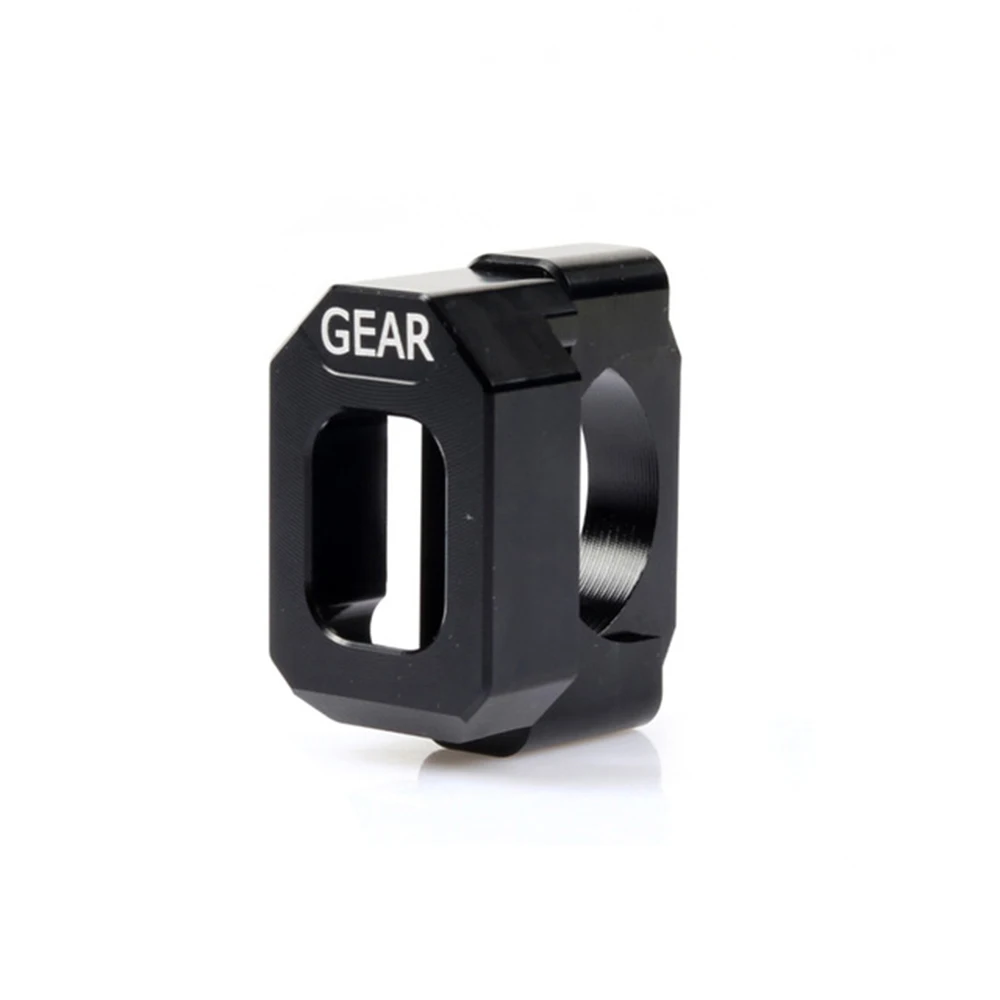

Display can be mounted anywhere

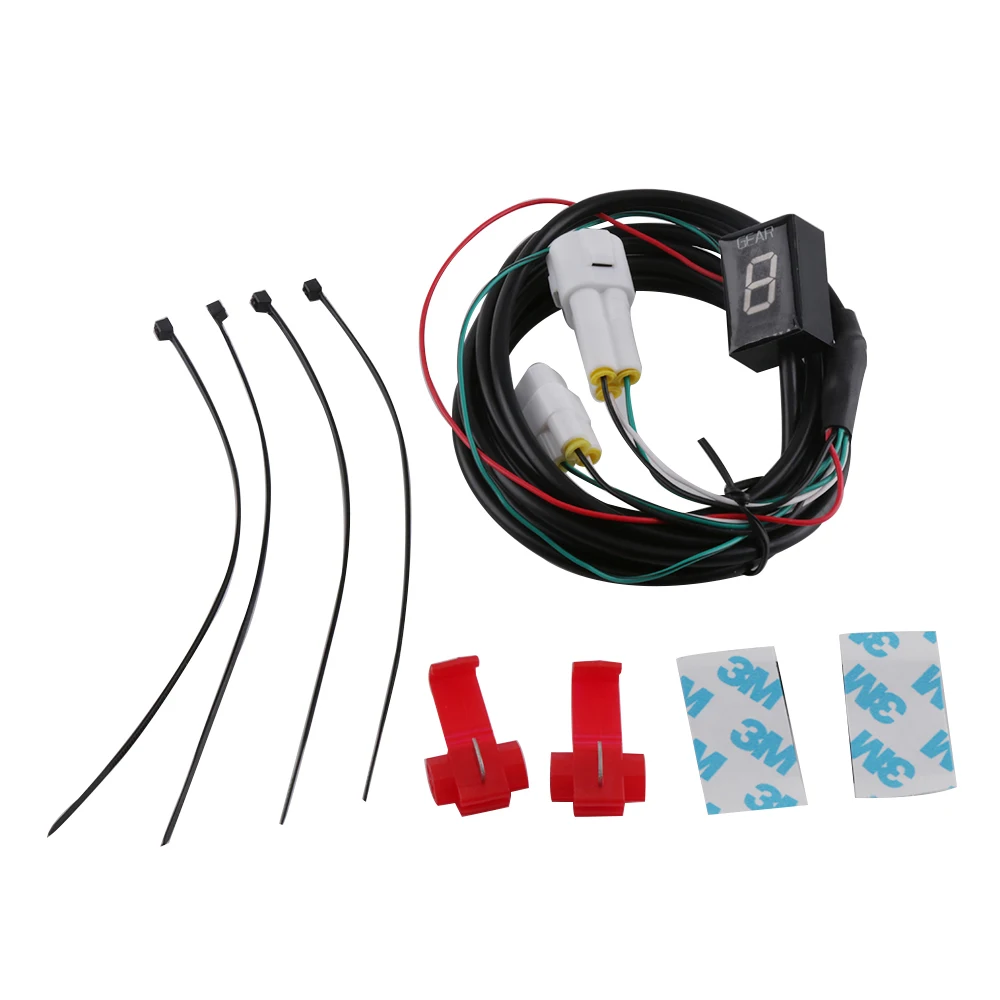

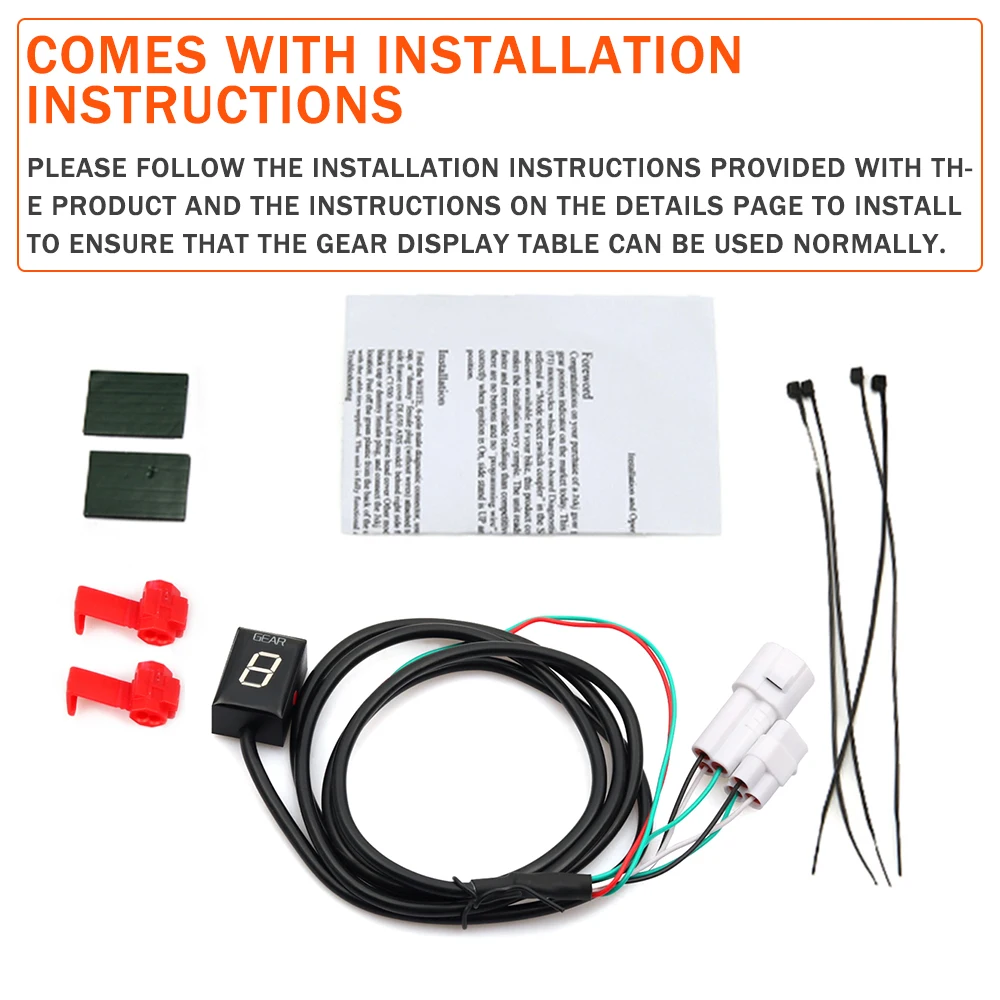

Install:

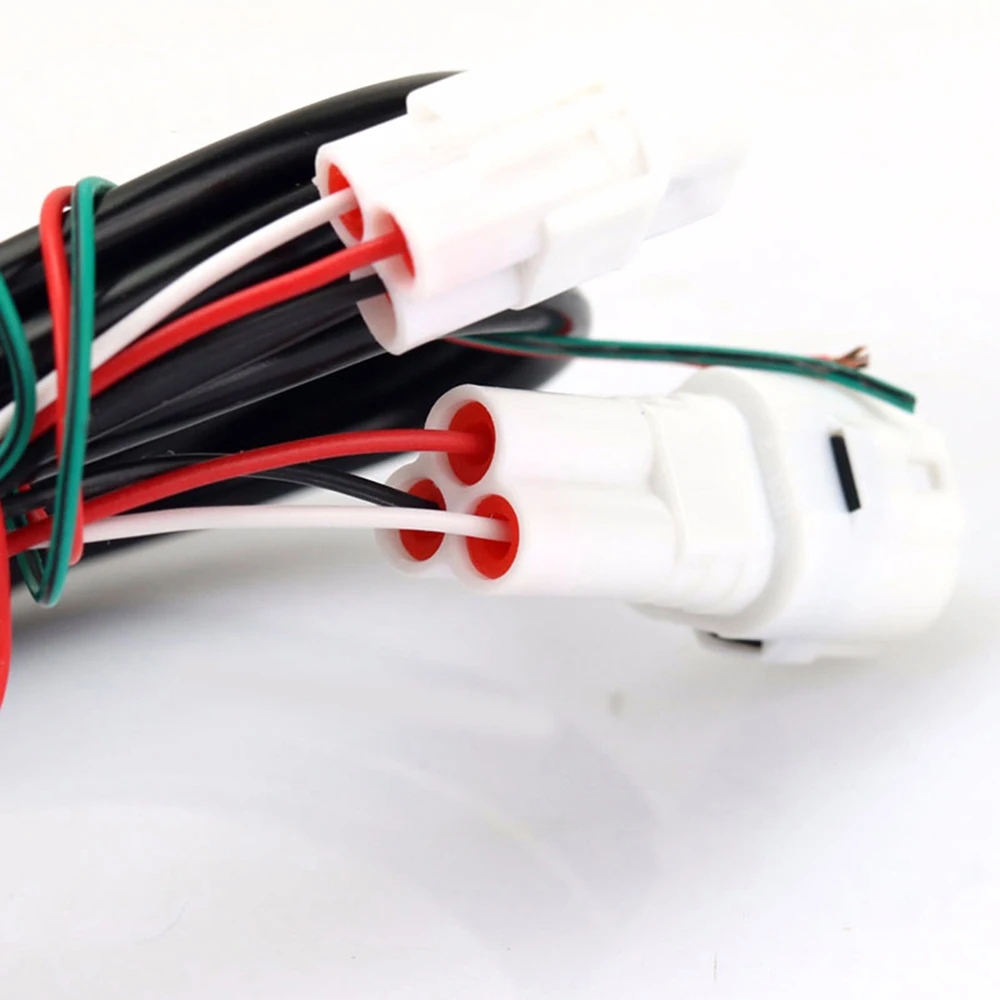

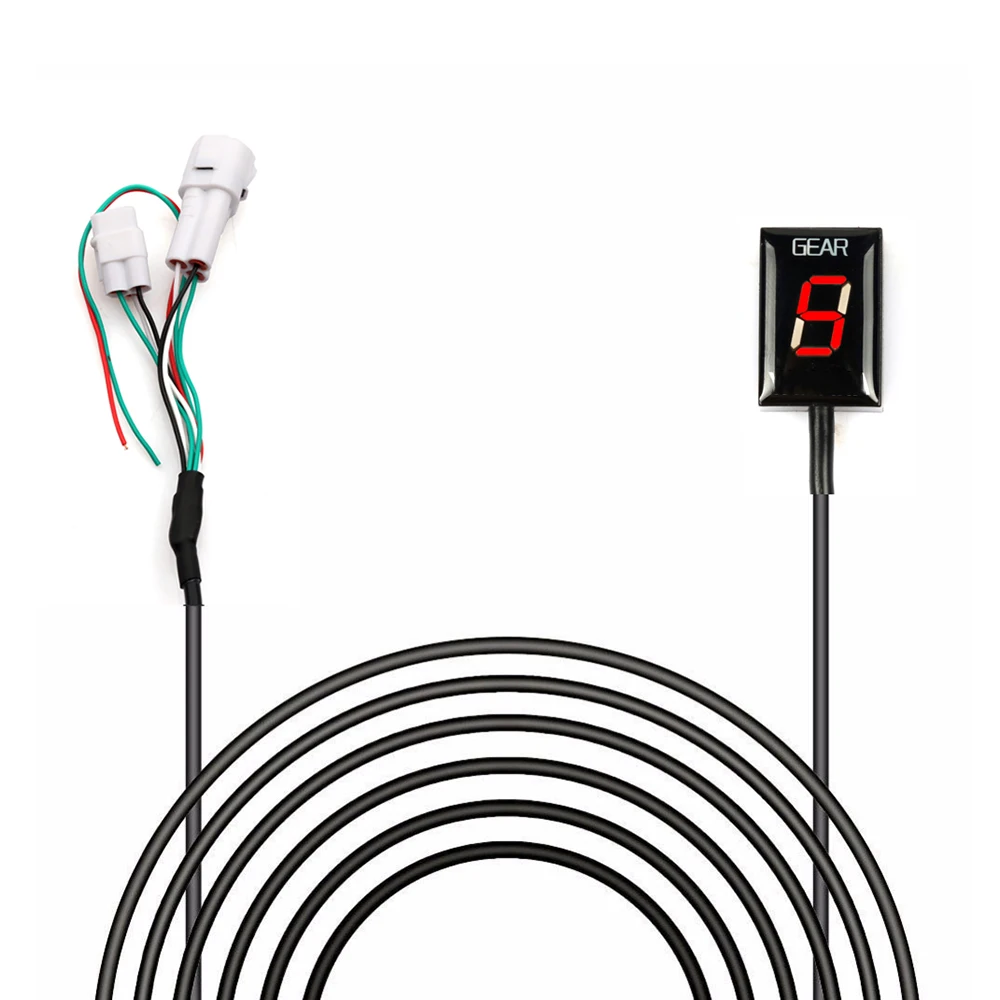

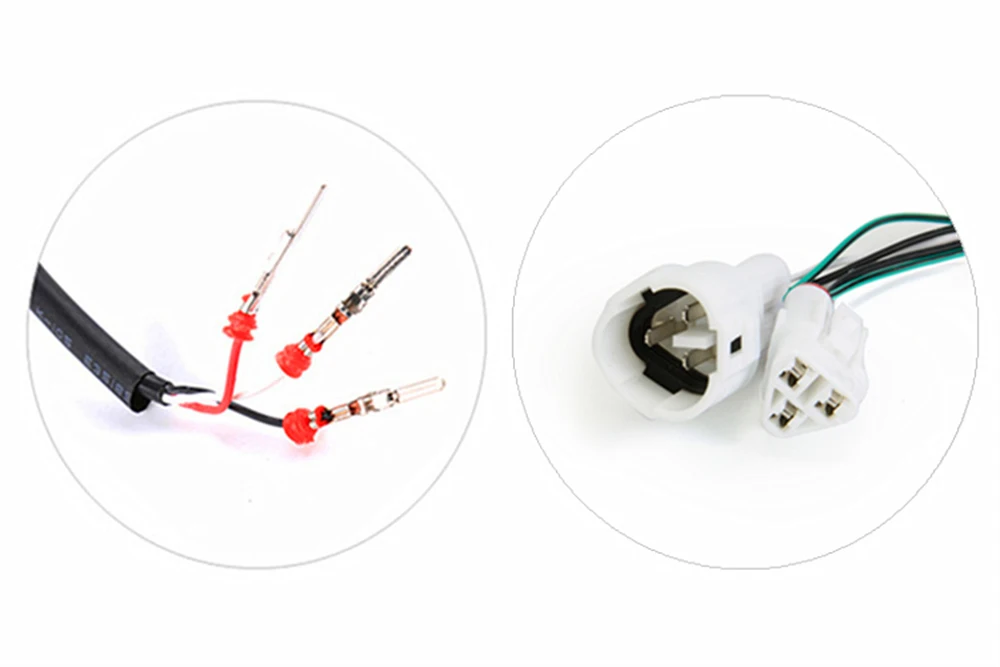

To find the gear display plug as Smoku technology to the product and then connected to a power line and speed signal line is inserted in the tank below!When the monitor is in place,check that the cable is not subject to steering damage!

Set up:

-You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

-Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

the screen displays L, indicating that learning is started.

accelerate through the handle throttle slowly

-The display will blink “1”.Select first gear, release the clutch, and keep the RPM above idle speed. The display is blinking faster while the unit is learning the gear.

-When the display shows “2”, select second gear.

Repeat this process until all gears are thought (5 or 6).

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.

(If there is an error in the learning process, please reset gear indicator, thank you)

Rest:

If some gears are not indicated correctly, reset the unit and set it up again. If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator), probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row, while the display is counting up and shows 3 ,4 or 5.You can power on/off the display by turning the ignition key on/off. On the next power up, the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.
