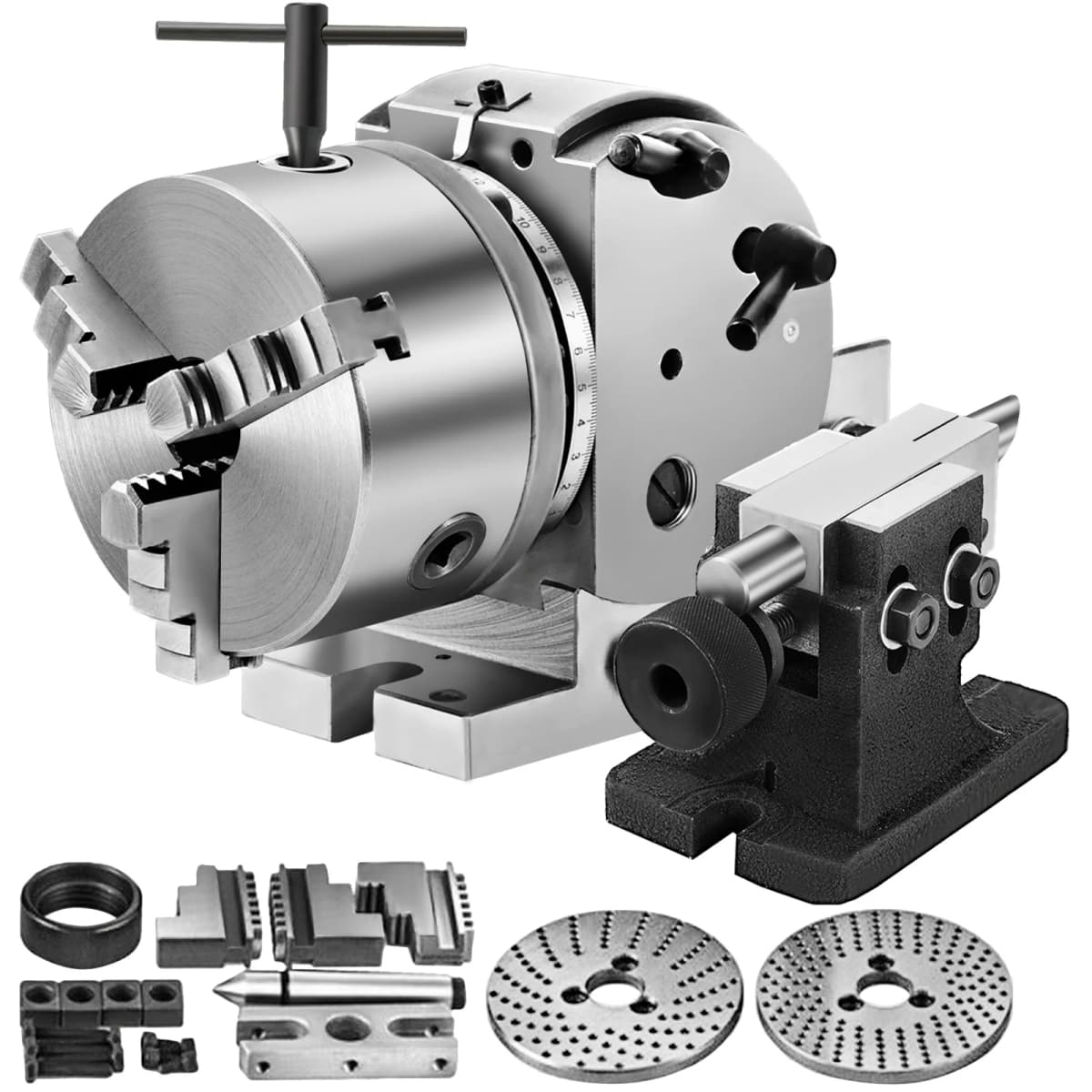

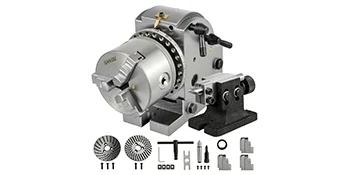

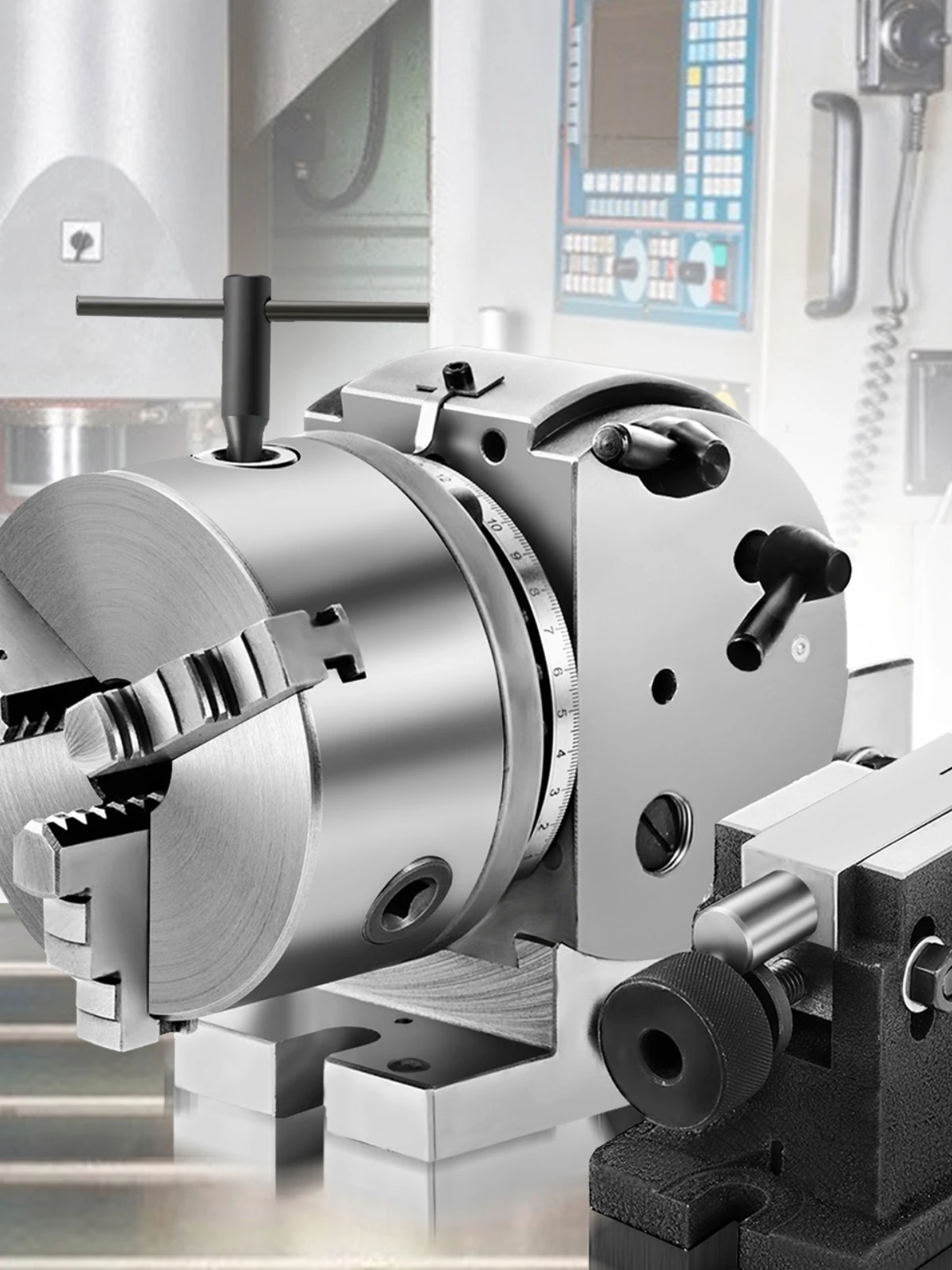

SucceBuy Dividing Head Precision Semi Universal BS-0 5" / 4" 3-Jaw Indexing Head Tailstock & Chuck for Drilling Milling Grinding

Product Description

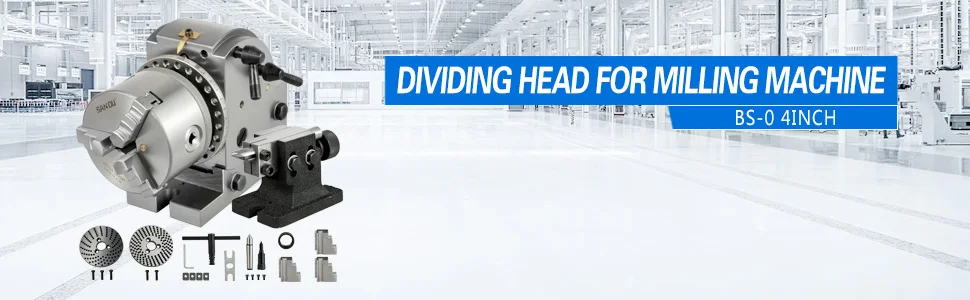

4'' or 5'' Dividing Head for Milling Machine

Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexding.

Adjustable Angle

Solid Construction

Clear & Accurate

MT2 Tailstock Adjustable

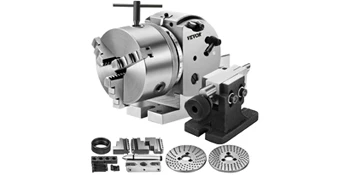

Rich Dividing Head Set

Tough Equipment & Tools, Pay Less

SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose SucceBuy?

Premium Tough Quality

Incredibly Low Prices

Fast & Secure Delivery

30-Day Free Returns

24/7 Attentive Service

Key Features

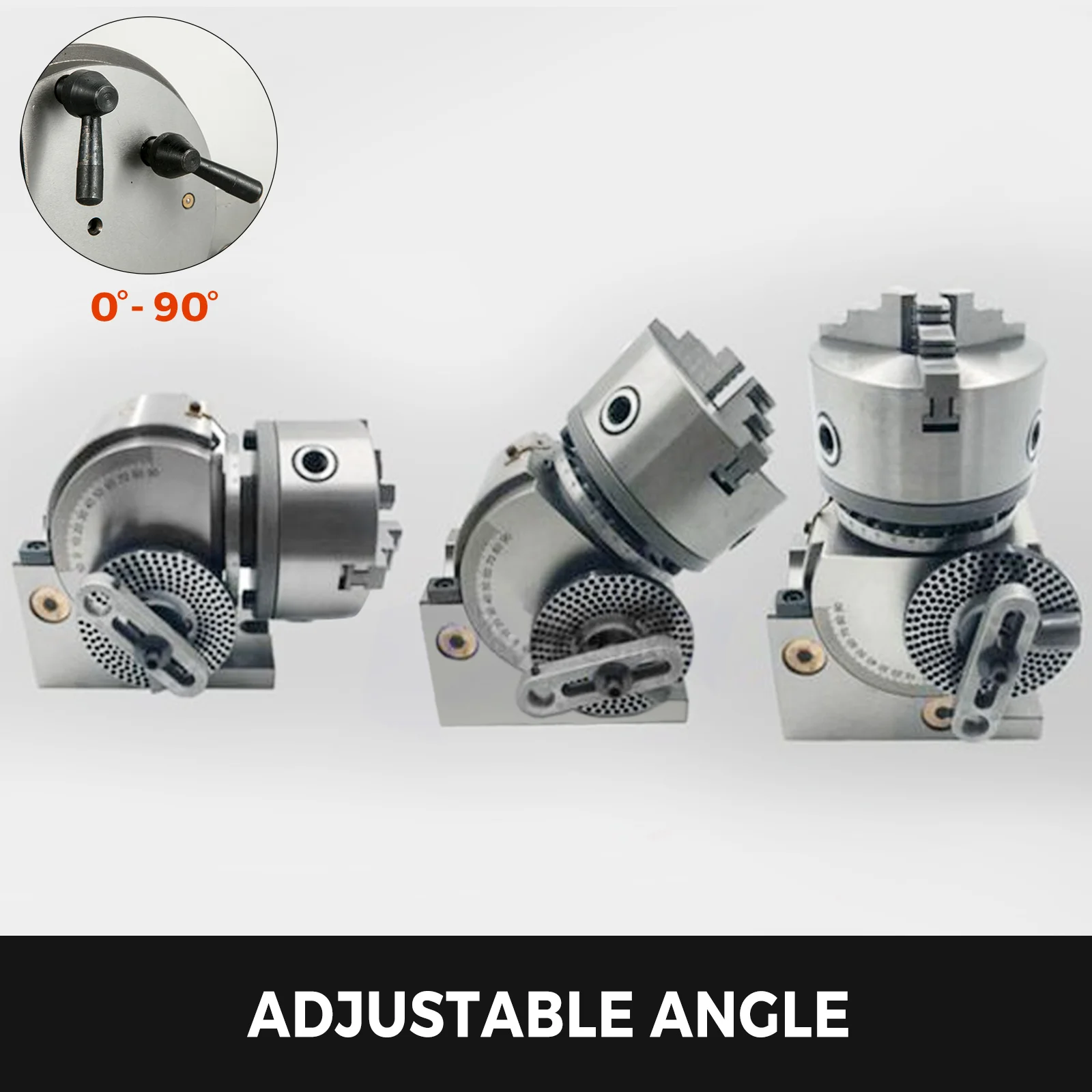

Adjustable Angle

You can adjust the different angle(0-90 degrees)as you need with the handle, Vertical & horizontal milling machine with headstock chuck for a lathe. Center Height: 4"/100mm.

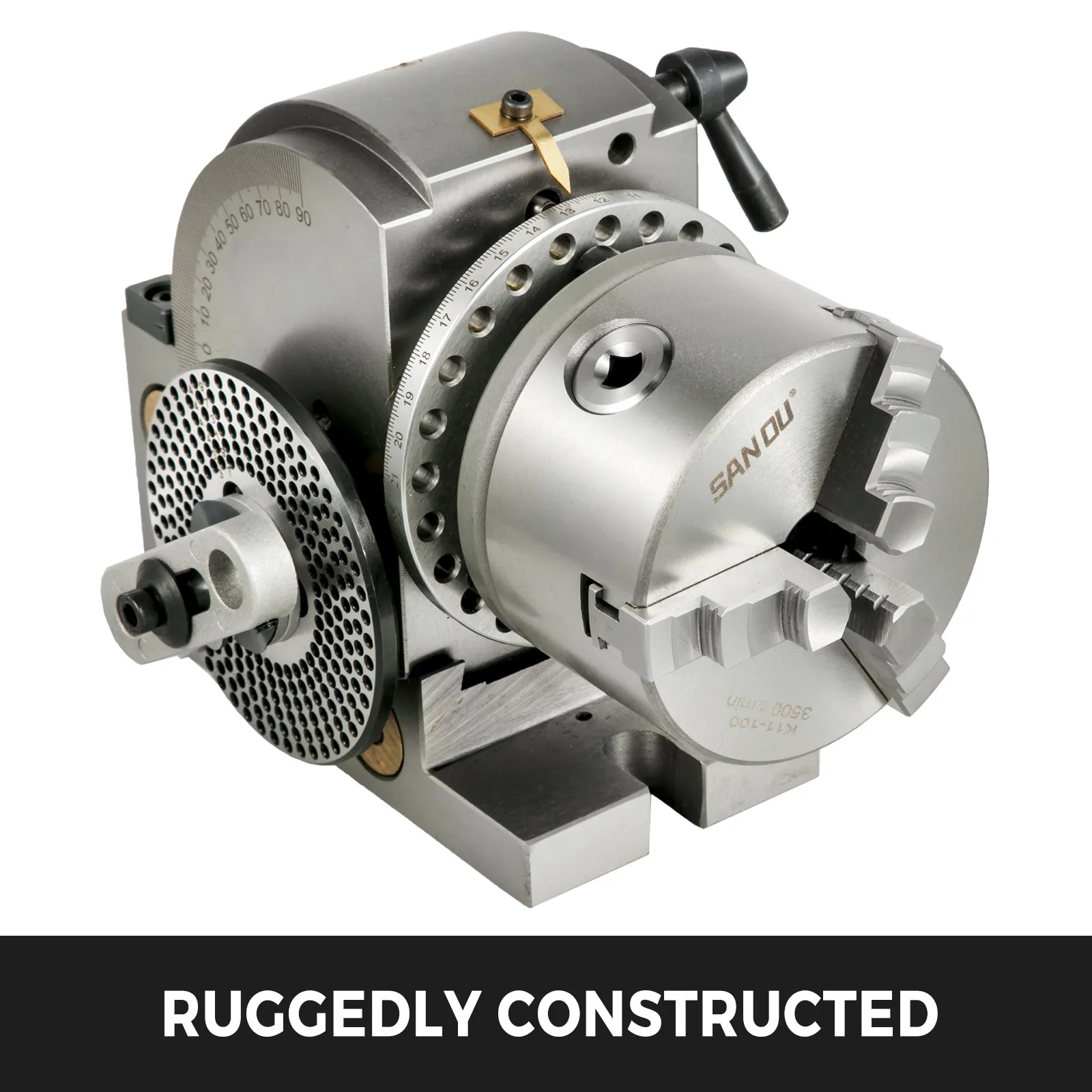

Ruggedly Constructed

Ruggedly constructed hardened and ground worm gear. Designed for long service time. Reduction Ratio: 1:40.

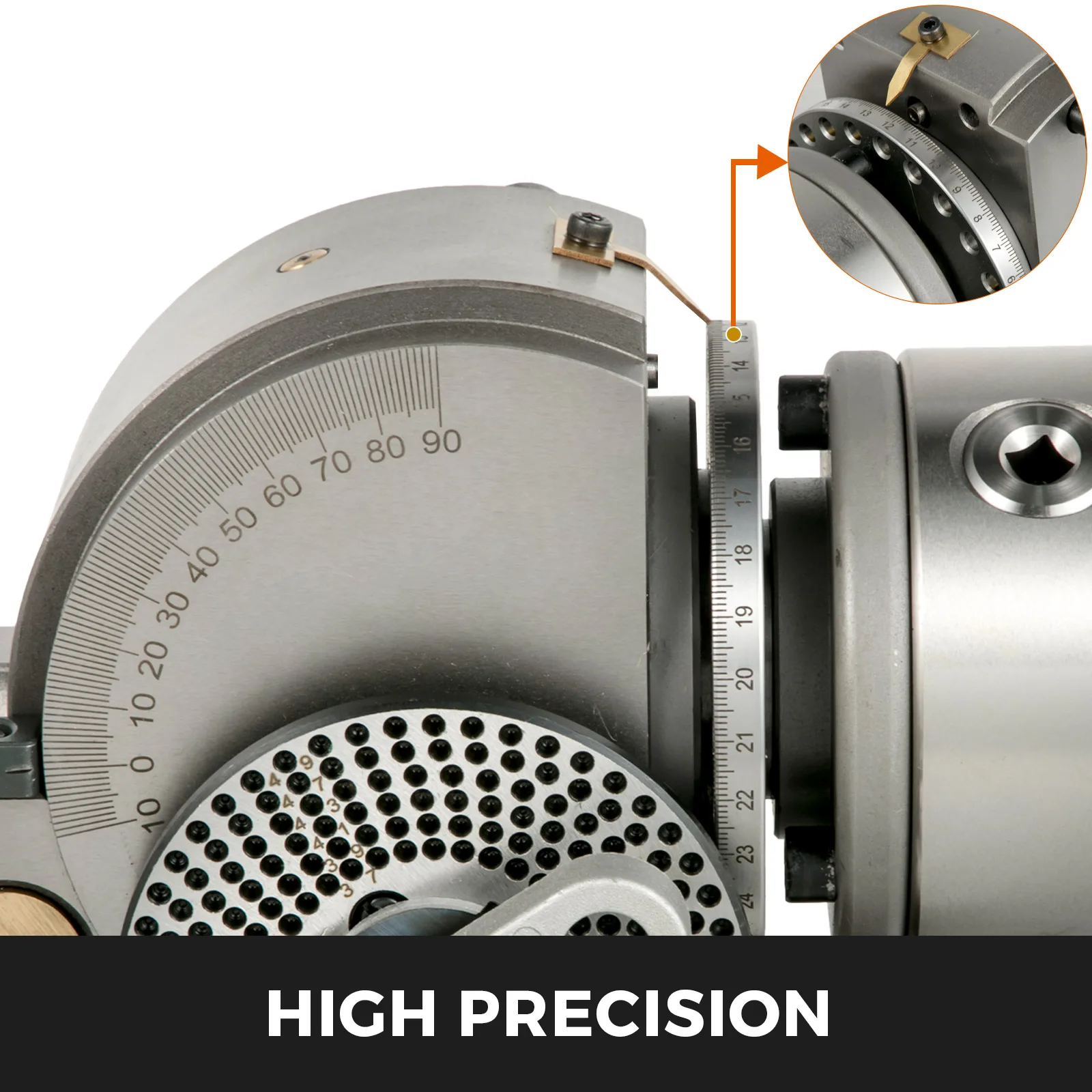

High Precision

Designed with a rotary table and indexing chuck, two dials with precise scales help you to adjust the angle more accurate.

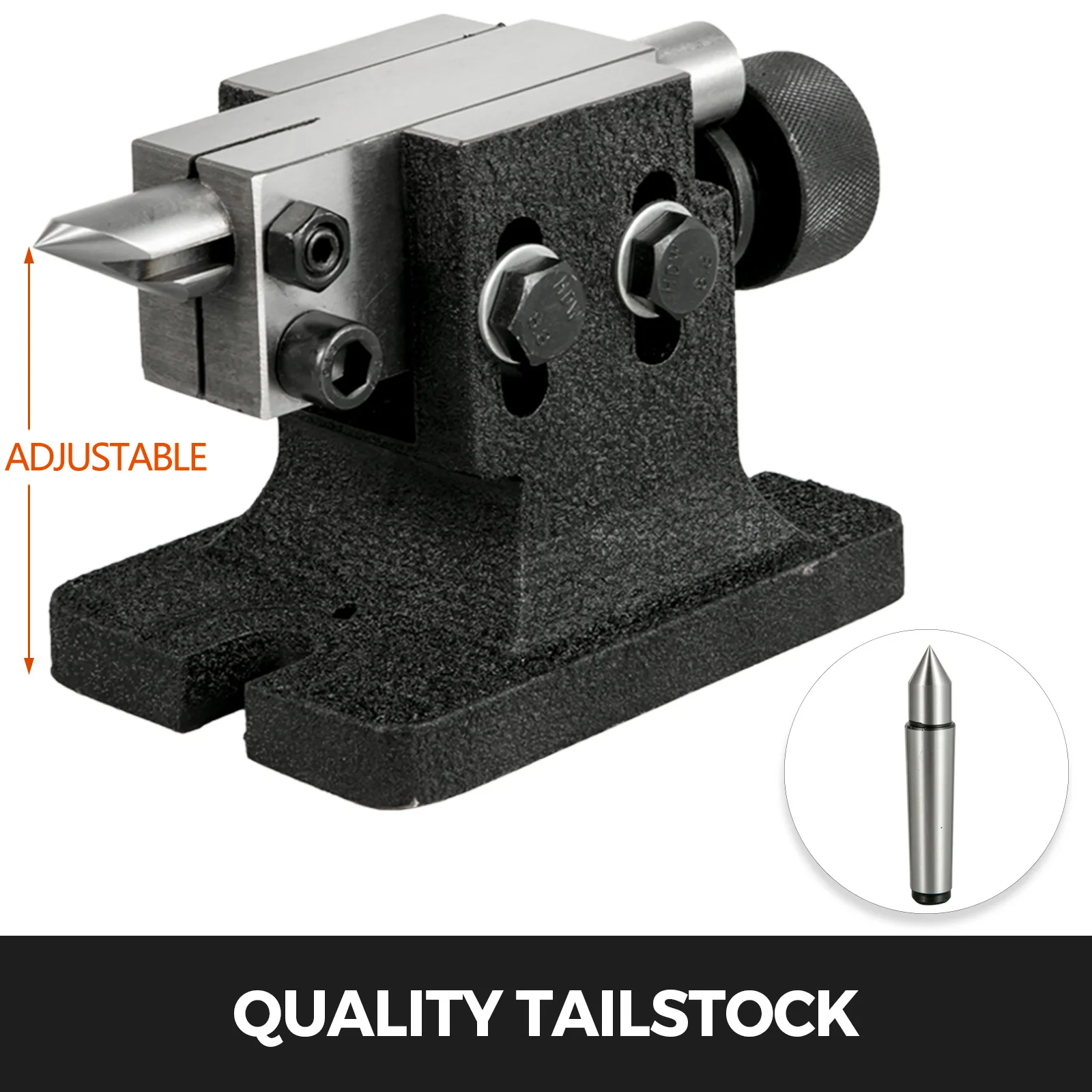

Quality Tailstock

MT2 tailstockBall bearing precision, smooth turning. One more dead center for free.

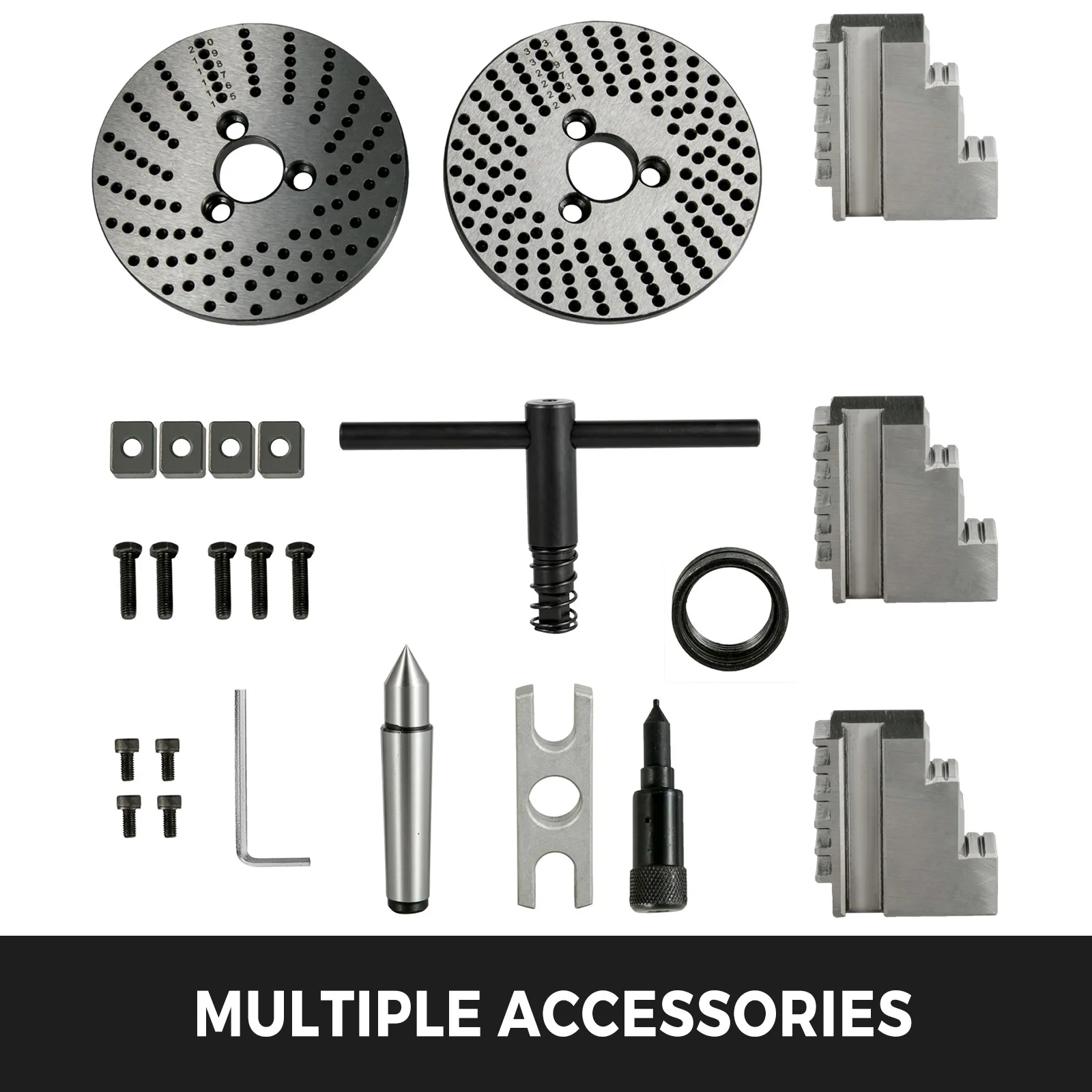

Multiple Accessories

3 dividing plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380. And a set of operation tool provides extra help.

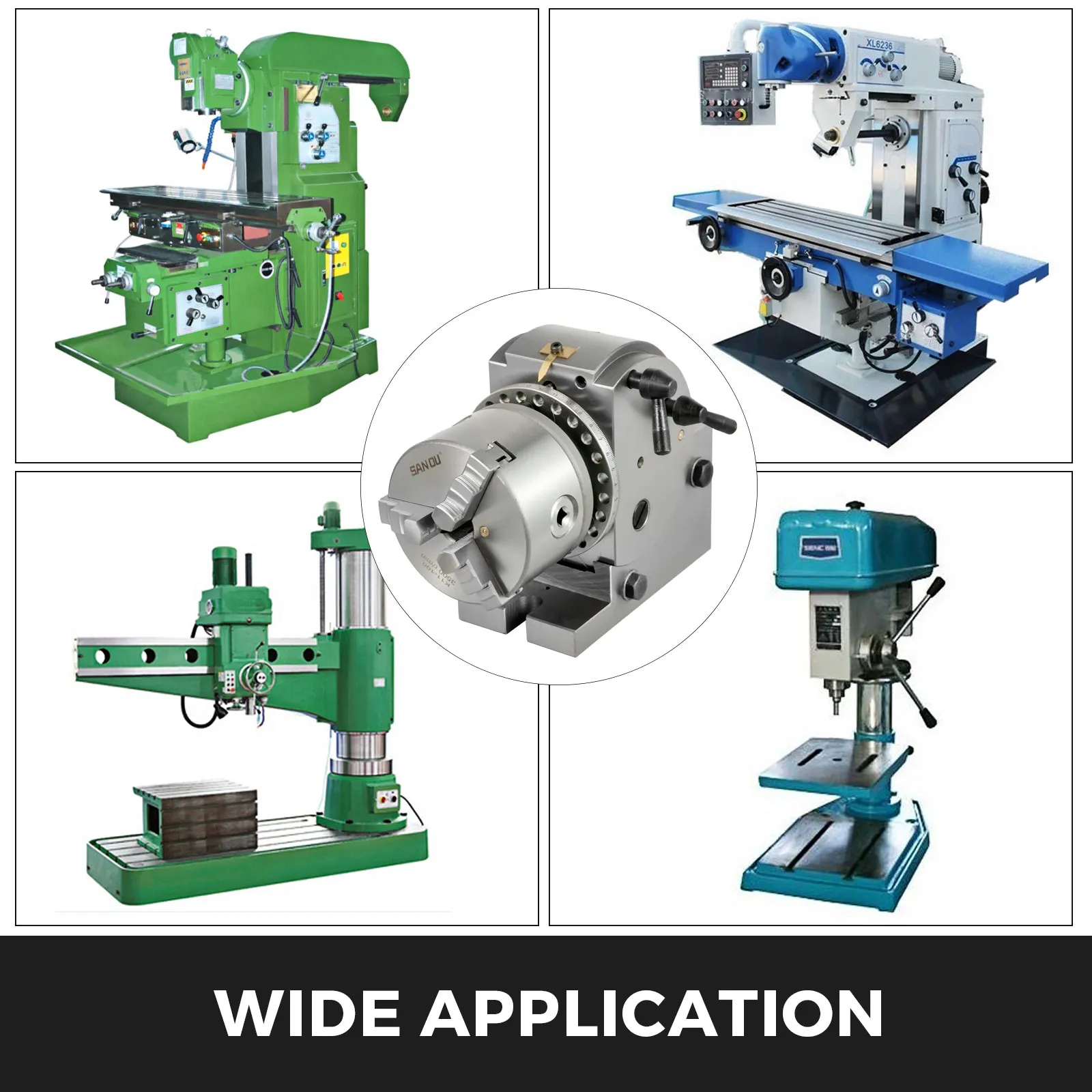

Wide Application

Ideal choice for various uses in milling, grinding and drilling work.

With 4In 3-Jaw Chuck Specifications

Chuck Diameter: 4"/100mm
Center Height: 4"/100mm
Material: HT200
Reduction Ratio: 1:40
Tailstock: MT2

With 4In 3-Jaw Chuck Package Content

1 x Dividing Head
1 x Tailstock
Some Related Accessories

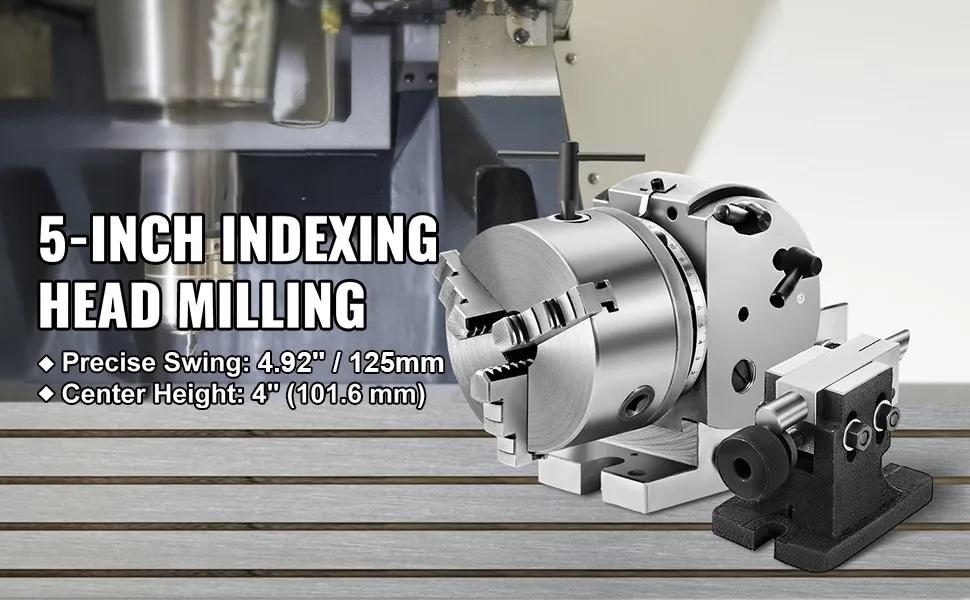

With 5In 3-Jaw Chuck Specifications

Swing: 4.92" (12.5 cm)
Center Height: 3-15/16" (10 cm)
Headstock Taper: MT2
Net Weight: 50.7 lbs (23 kg)

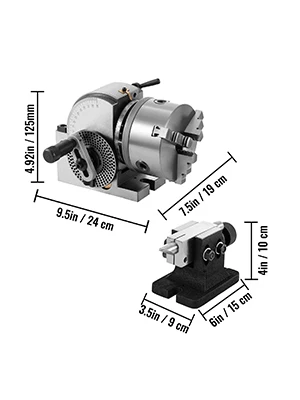

Headstock Dimensions: 9.5" x 7.5" x 4.92" ( 24 x 19 x 12.5 cm)
Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

With 5In 3-Jaw Chuck Package Content

1 x Dividing Head
3 x Dividing Plates
1 x Tailstock
1 x 125 mm 3-Jaw Chuck

Features & Details——With 4In 3-Jaw Chuck

【ADJUSTABLE DIVIDING HEAD】- The semi-universal dividing head features 4" 3-jaw chuck, Spindle Hole Diameter: 18mm. The headstock is adjustable from the horizontal position to 90 degrees upward. Center Height: 4"/100mm. Free 3 more jaws for 4" chuck.
【SOLID CONSTRUCTION】- Made from HT200 to be a long life. The rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40.
【CLEAR & ACCURATE】- Laser engraving scales. The quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
【MT2 TAILSTOCK ADJUSTABLE】- Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. Tailstock: MT3. One free dead center.
【RICH DIVIDING HEAD SET】- 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.

Features & Details——With 5In 3-Jaw Chuck

Solid Cast Iron Construction: Swing: 4.92"/125 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long-term use. Its delicate parts work perfectly, mathematically dividing the materials to be cut.
Easy of Adjustment: The headstock of the dividing head for the milling machine can tilt from 10 degrees below horizontal to 90 degrees vertical so that you can handle the stuff of different sizes by changing its angle.
High Precision Indexing Plate: The universal dividing head comes with a direct indexing plate and an interchangeable one on the head, and two replacement interchangeable ones with different numbers of holes. It's the dividing plates that set the precise distance between cuttings.
Strong Workpiece Support: The coming package also includes a tailstock that will give strong support to the long metal stick you are going to deal with, providing a more stable working condition.
Versatile Application: The rotary indexer is used on the tables of milling machines and other machine tools, including drill presses, grinders, and boring machines.
