5A 5.5A Active Equalizer Balancer Lifepo4 / Lipo/ LTO Battery Energy Equalization Capacitor 3S 4S 5S 6S 7S 8S 14S 16S 20S 24S

Attention:

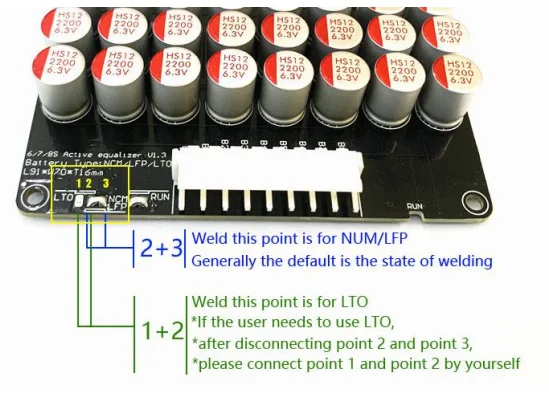

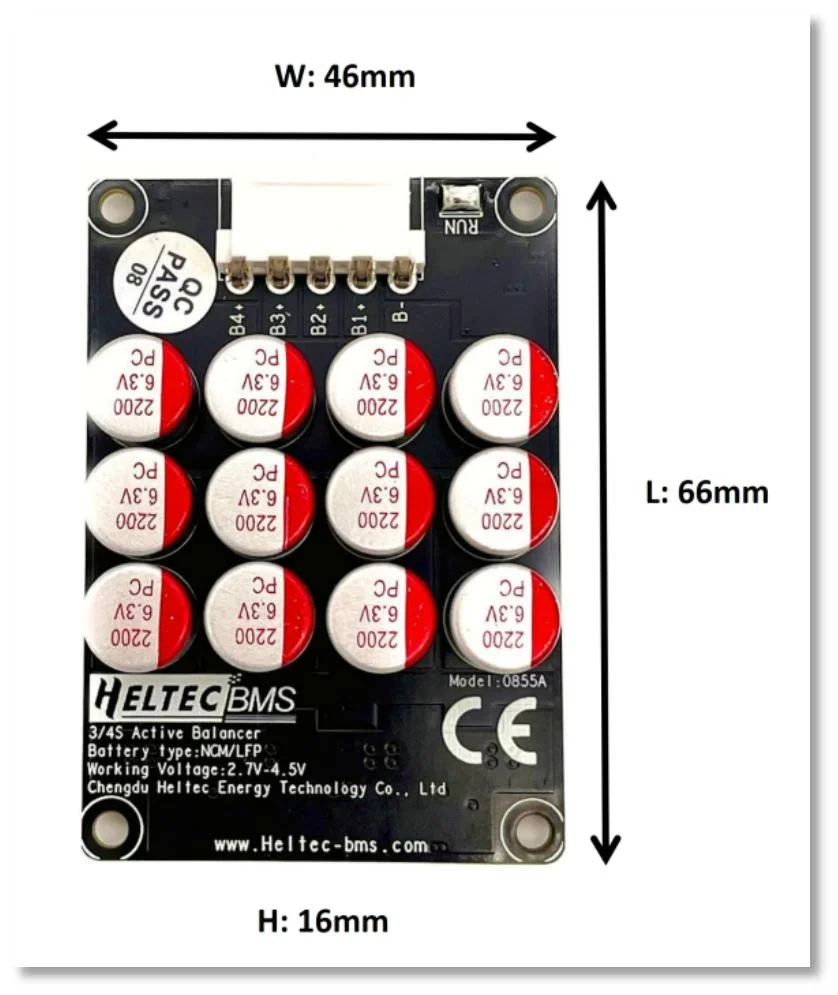

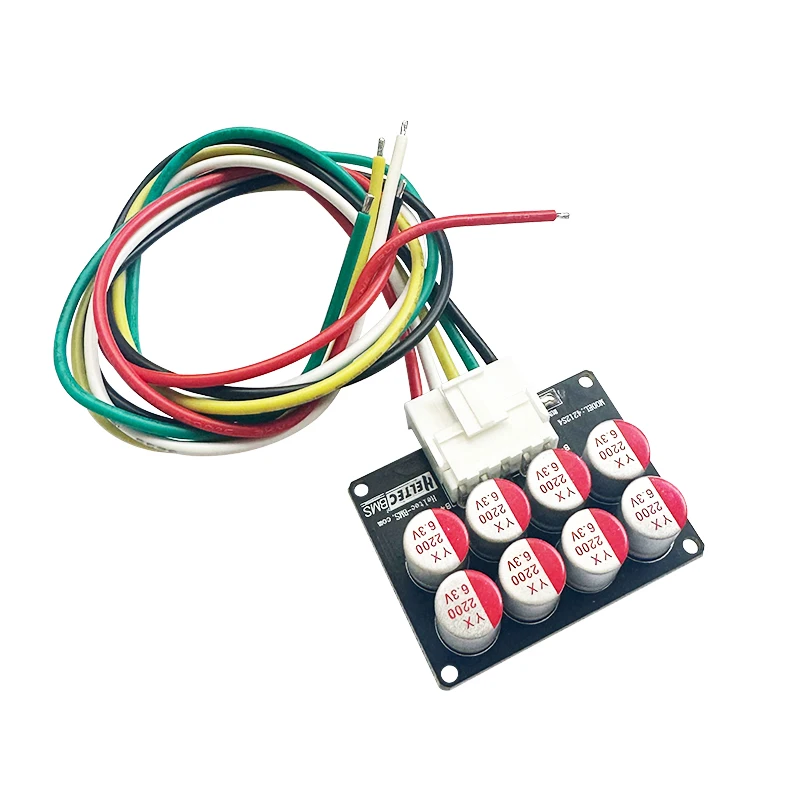

0855A (3-4S) only use for NCM/LFP,can not use for LTO

The 5A capacitor equalizer with a screen version cannot reduce the number of strings to use

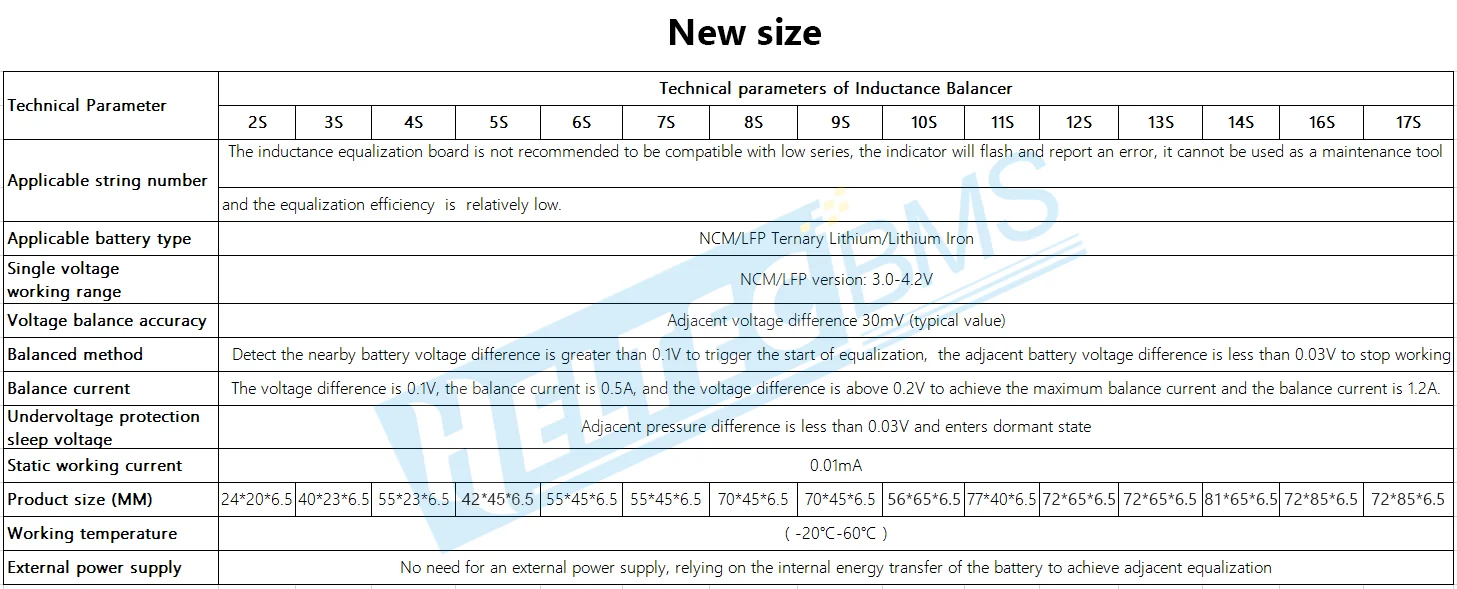

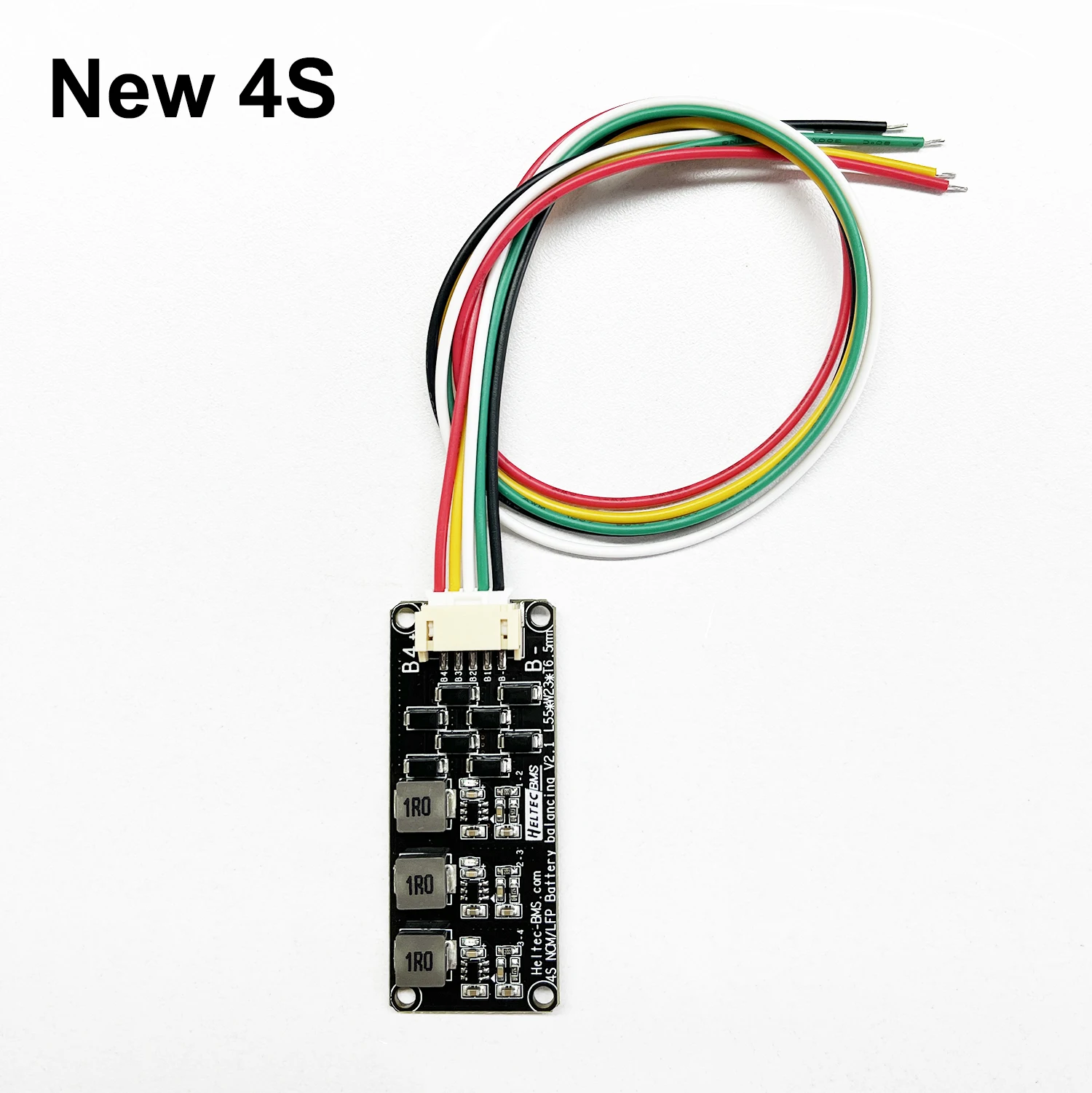

2-4S Inductive 1.2A balancer

strings: 2S-N

Inductive balancer balance start condition: Nearby battery voltage difference bigger than 0.1V

Balance stop: nearby battery voltage difference below0.3V

Only balance nearby battery

need whole group balance should choose below capacitor balance

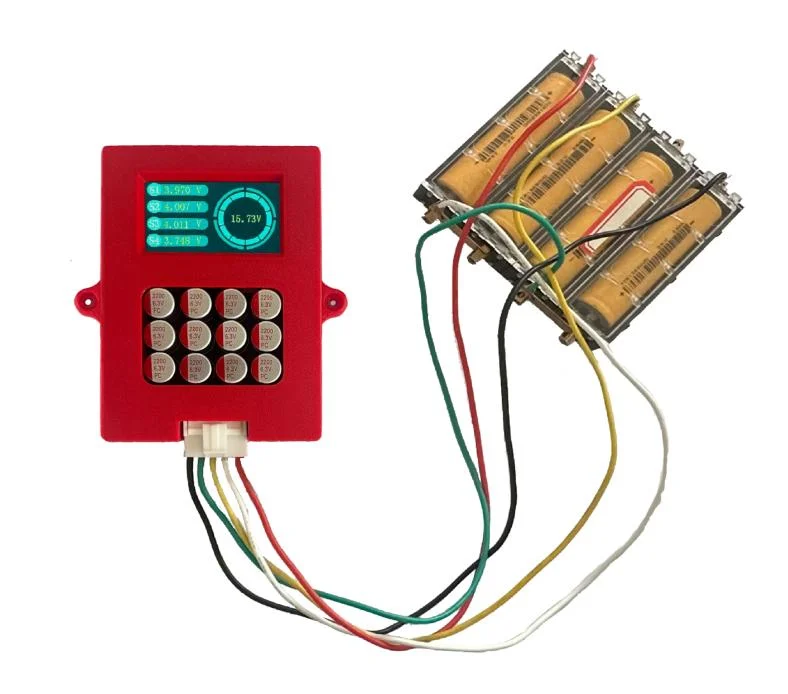

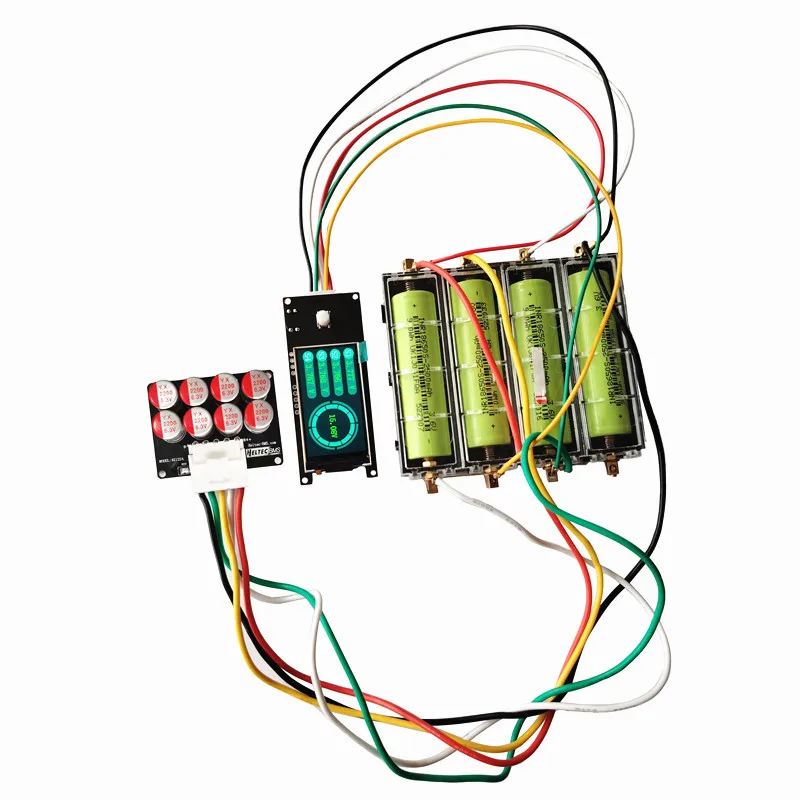

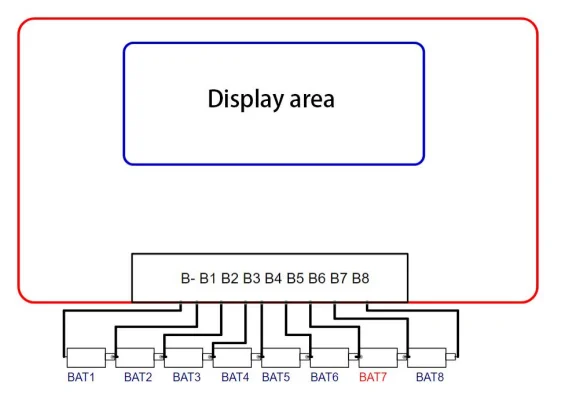

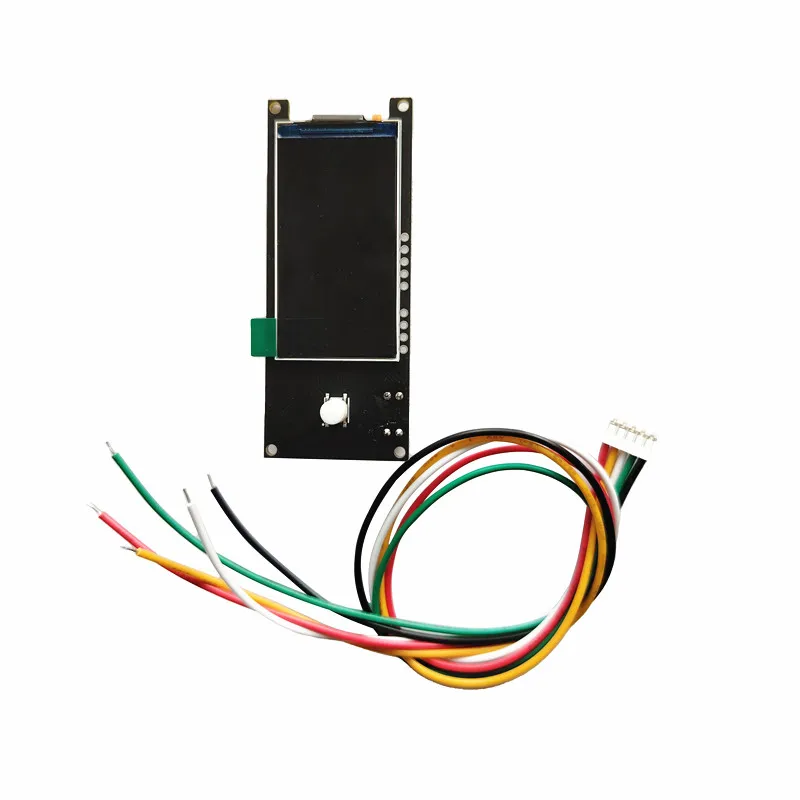

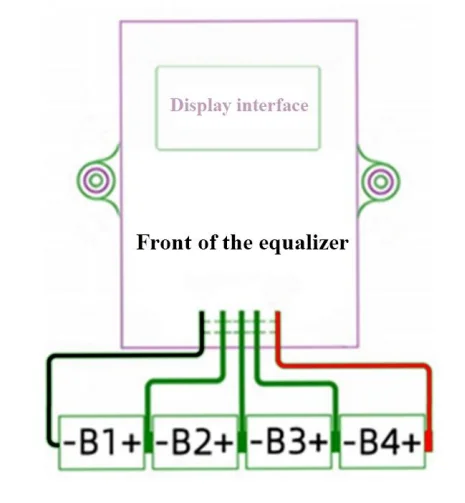

TFT Voltage collection Display

This display is used to collect battery volatage 3S-4S

The accuracy of a single string is 0.001V, and the total voltage is 0.01V

Display can be flipped up and down through switches

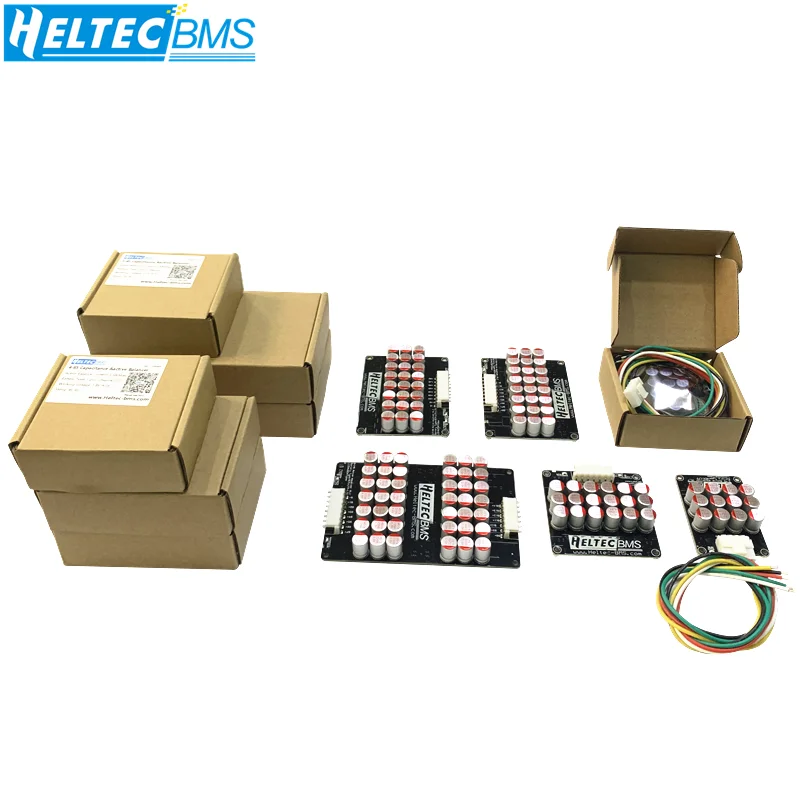

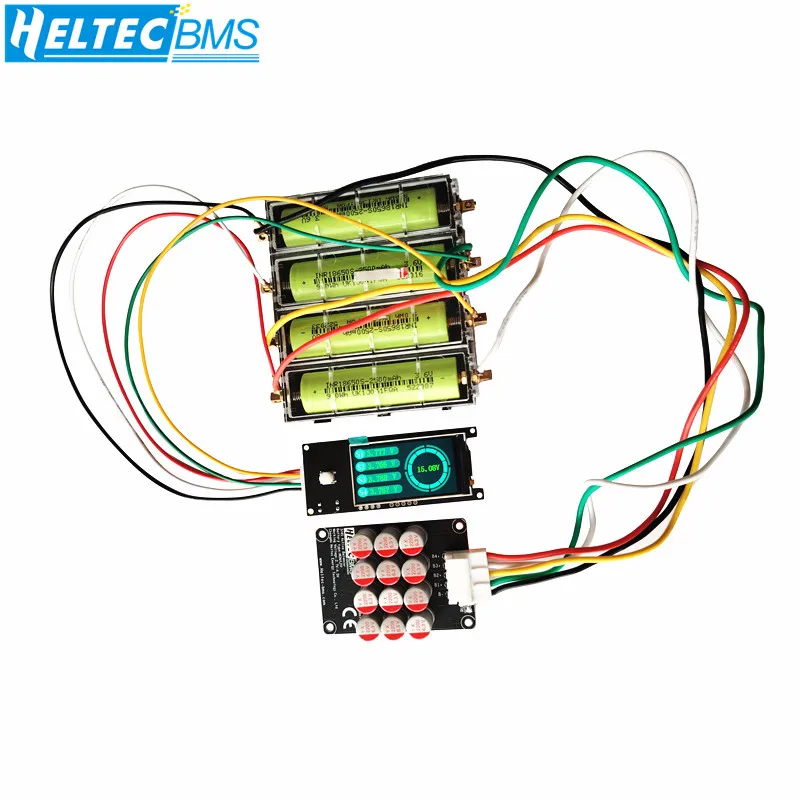

3A Capacitor Active balancer

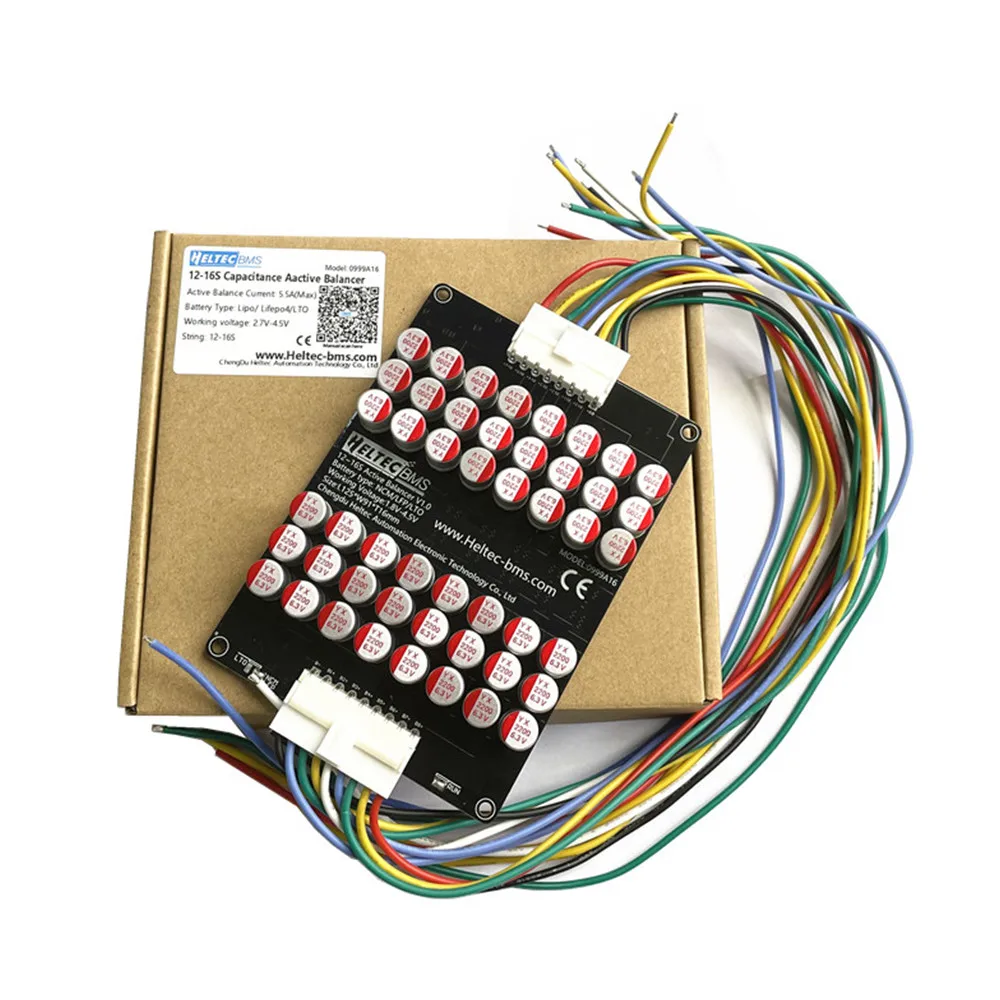

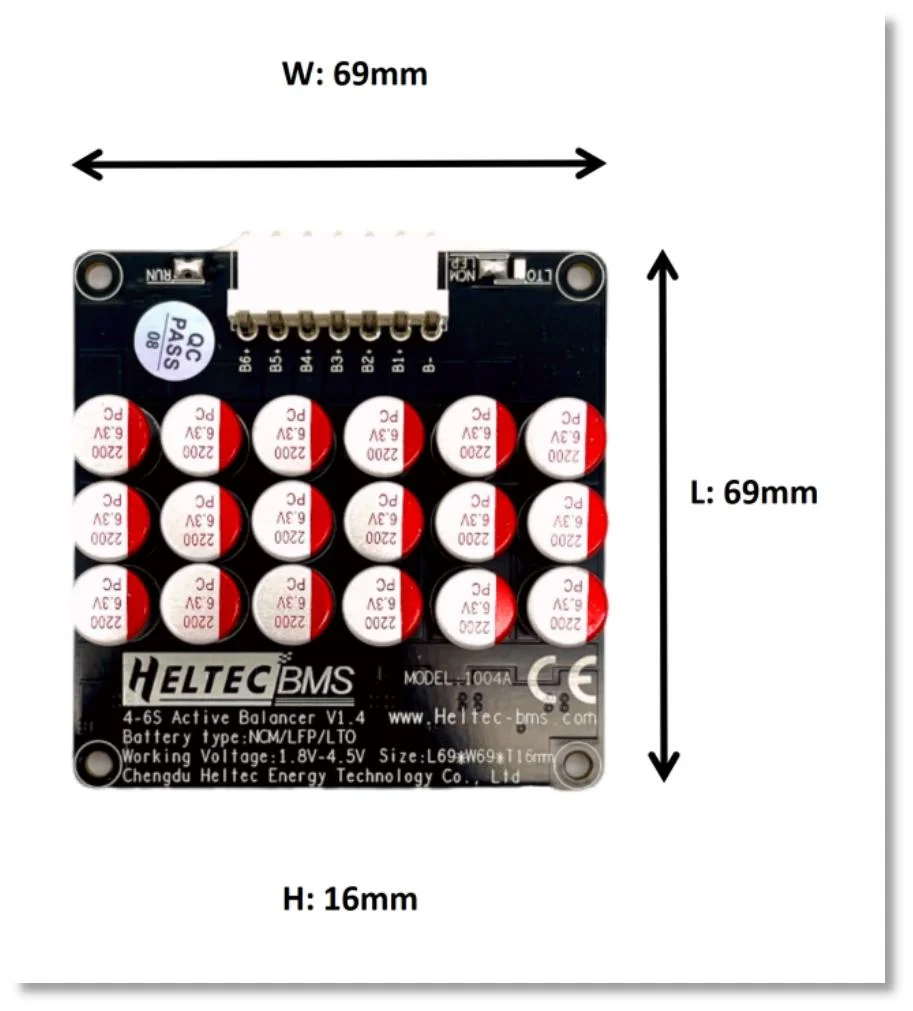

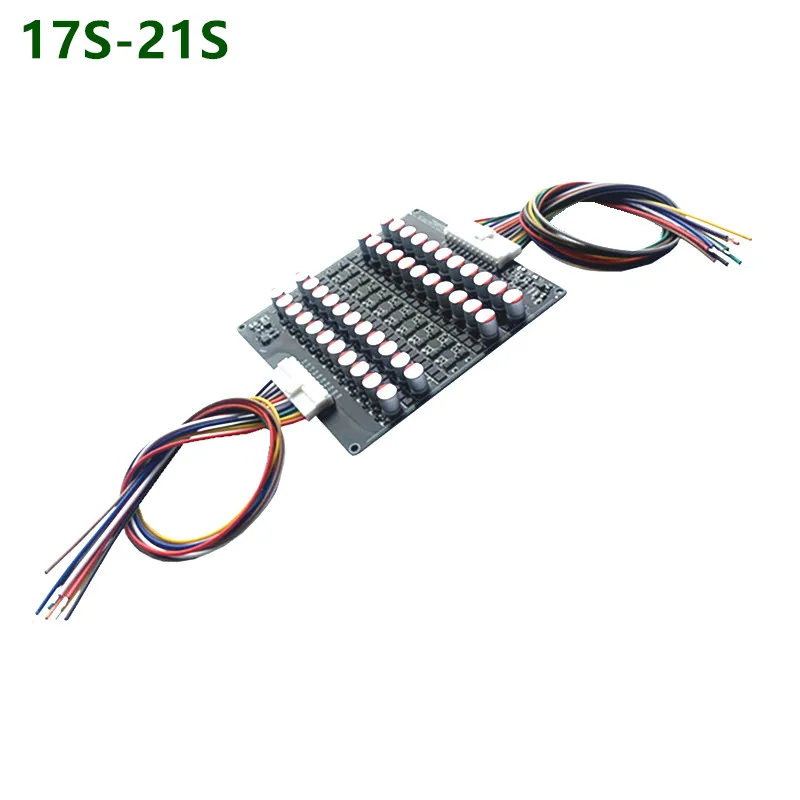

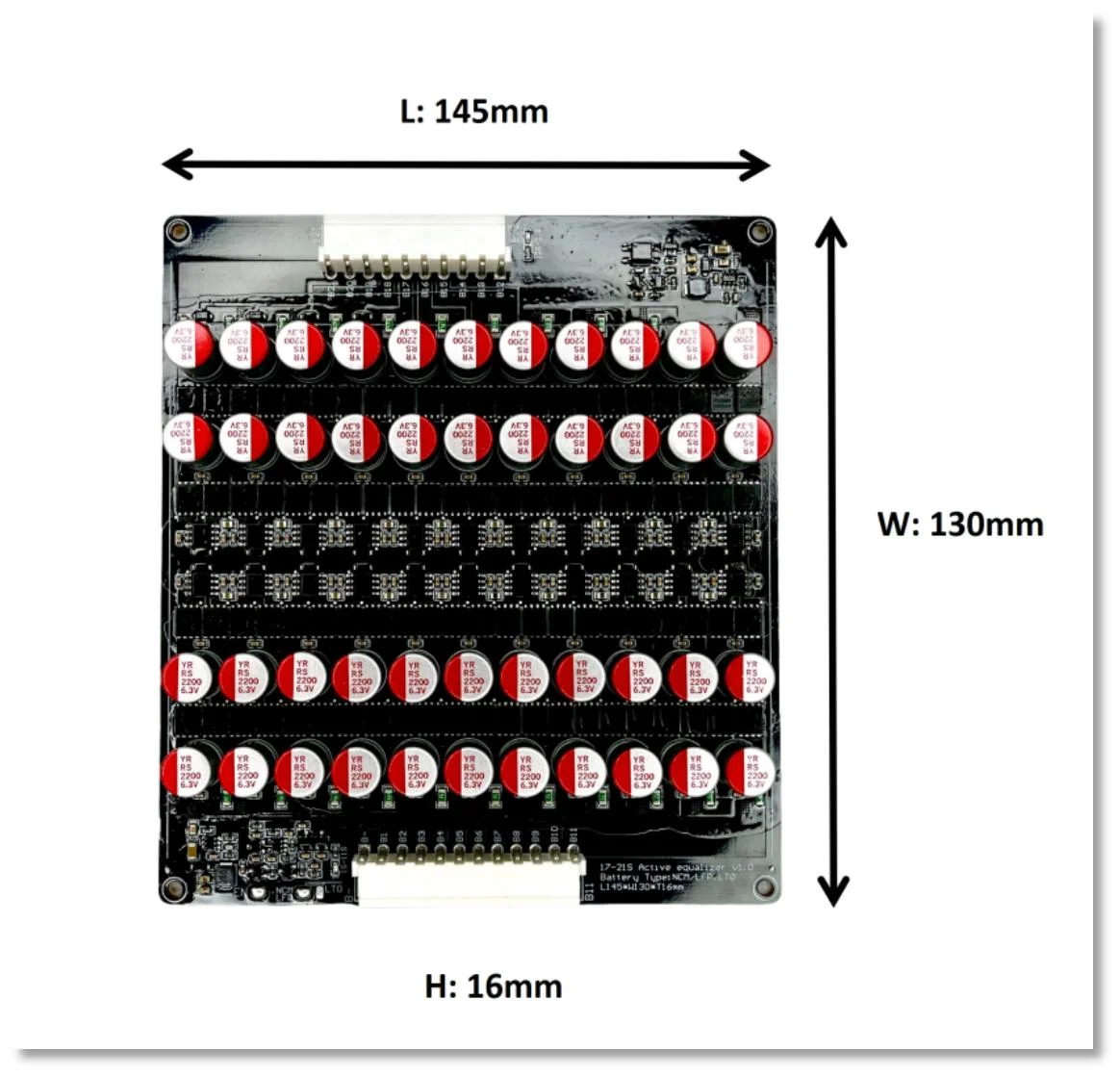

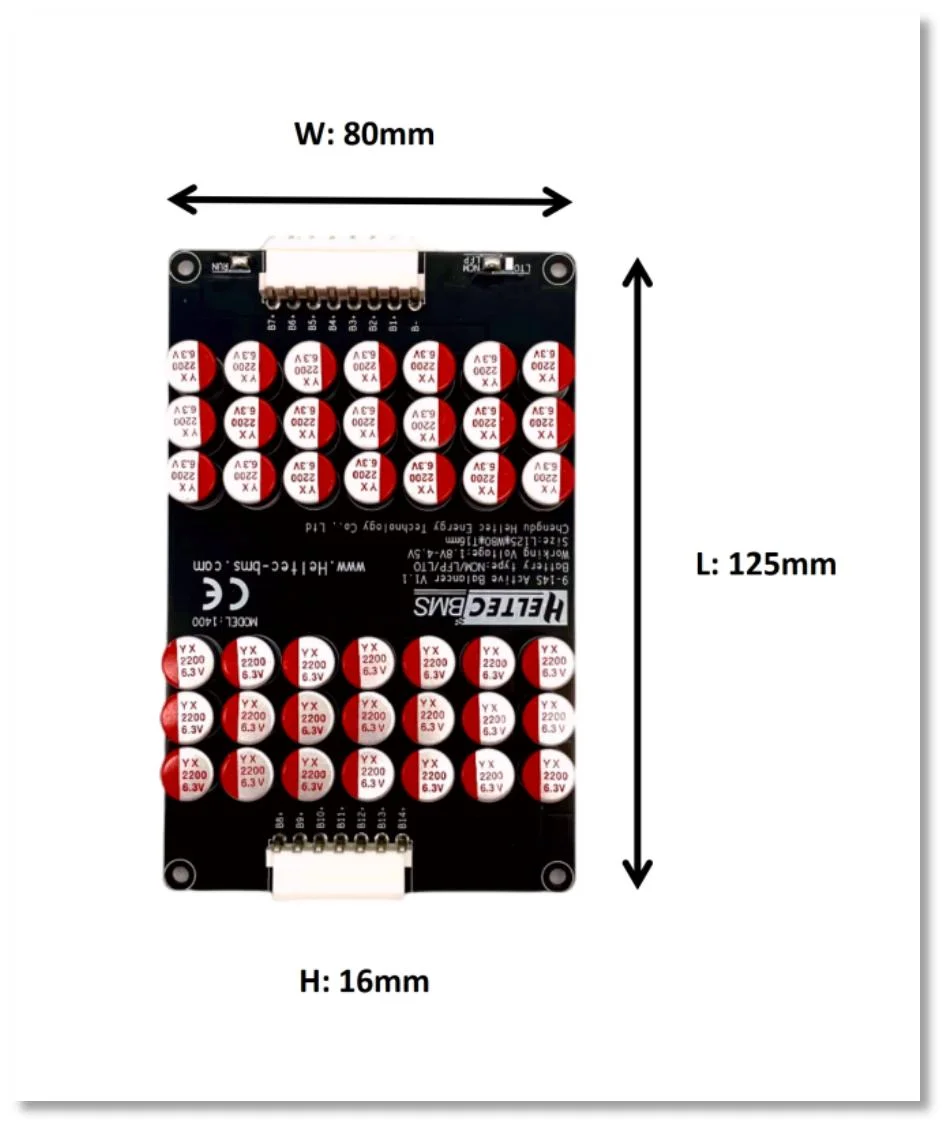

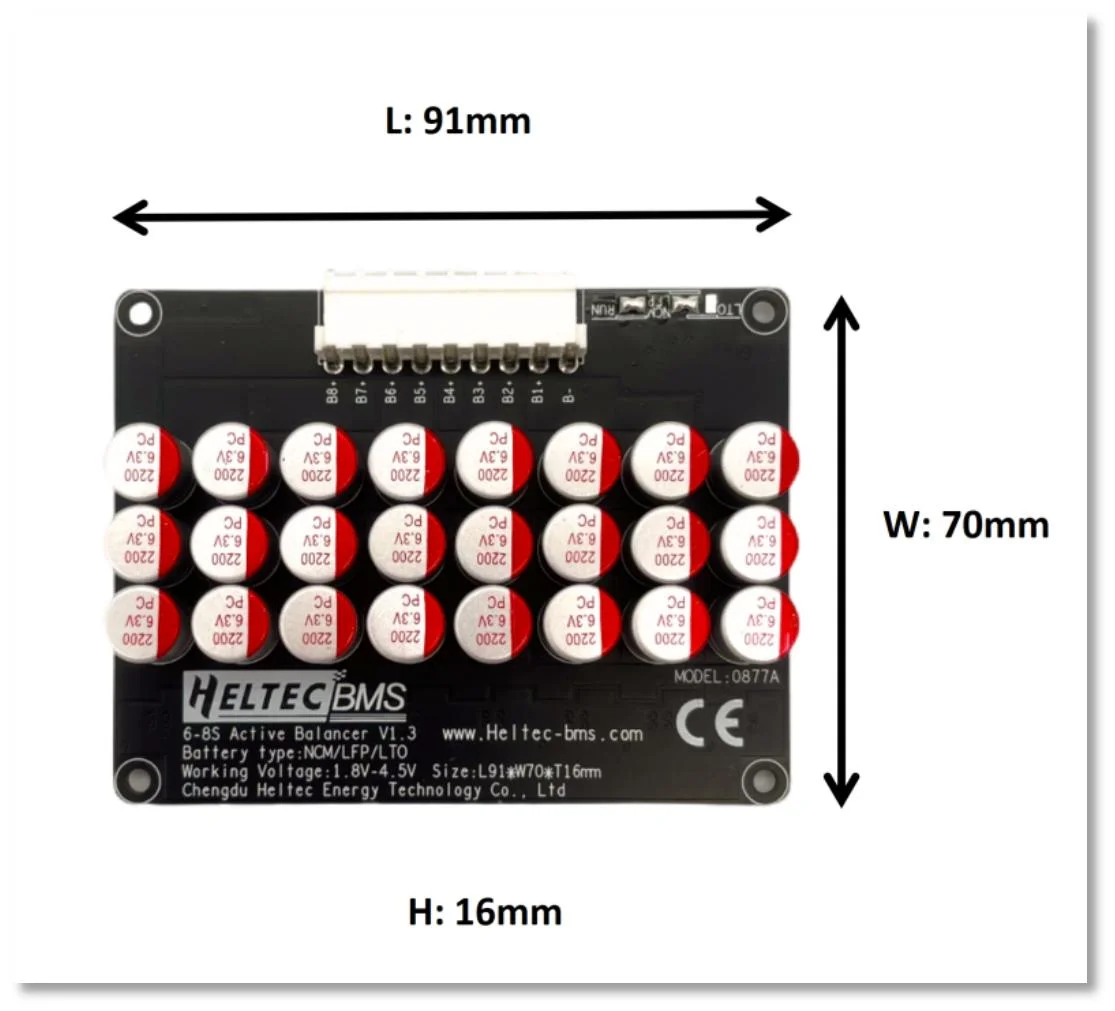

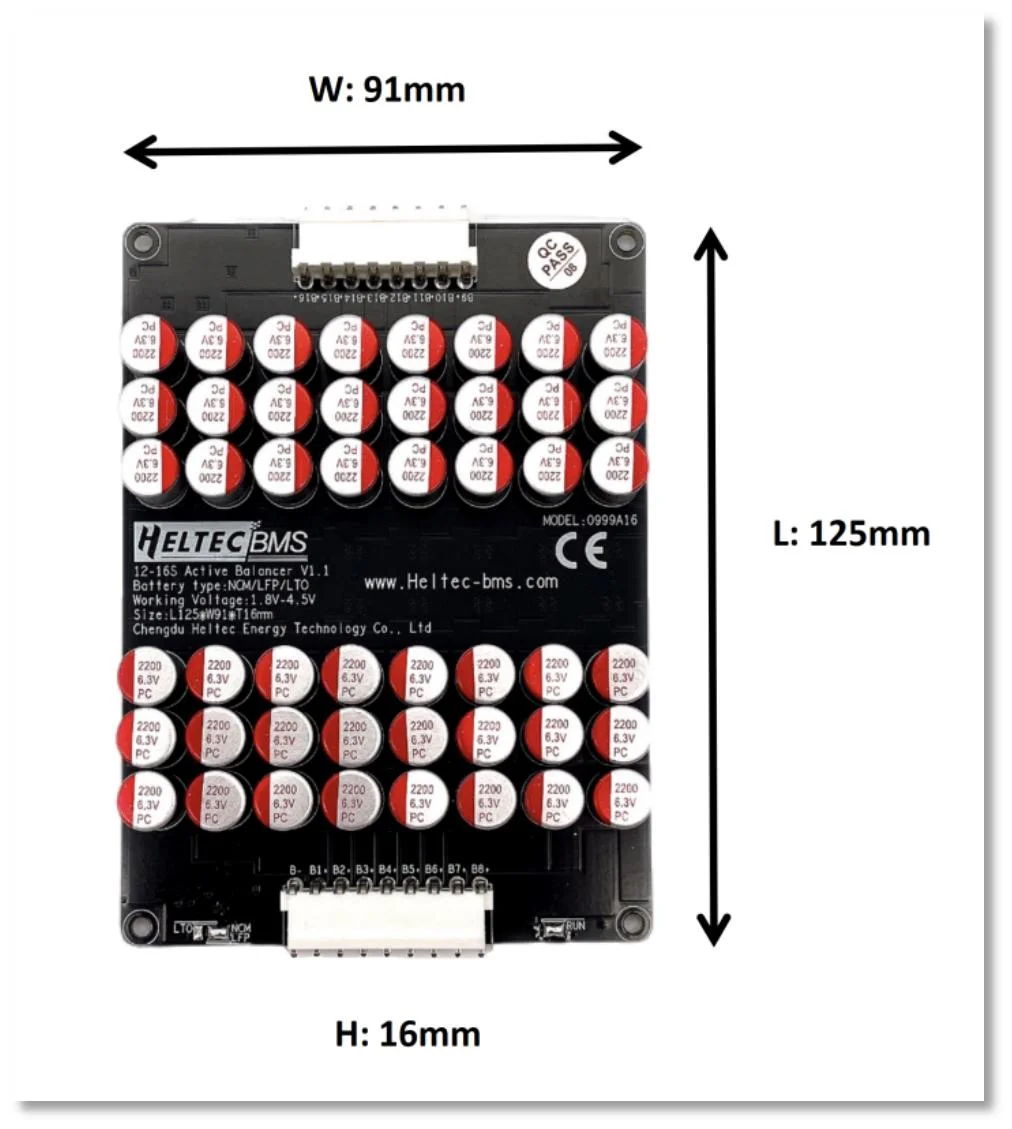

5A Capacitor Balancer

Measured fault battery pack combination 4 string 25Ah equalization curve

As the battery battery cycle times increase, the battery capacity decay speed is inconsistent, causing the battery voltage to be seriously out of balance. The battery barrel effect will cause the battery to charge. The BMS system detects that the battery has entered the overcharge protection in advance. In fact, only one of the batteries is full, or let The BMS system detects that the battery enters the over-discharge protection state, which is actually caused by over-discharge of one of the lower-voltage batteries. After the device acts, each battery voltage reduces the capacity attenuation caused by the battery barrel effect and prolongs the problem. The battery pack has a service life.

Feature

3-4S only use for NCM/LFP

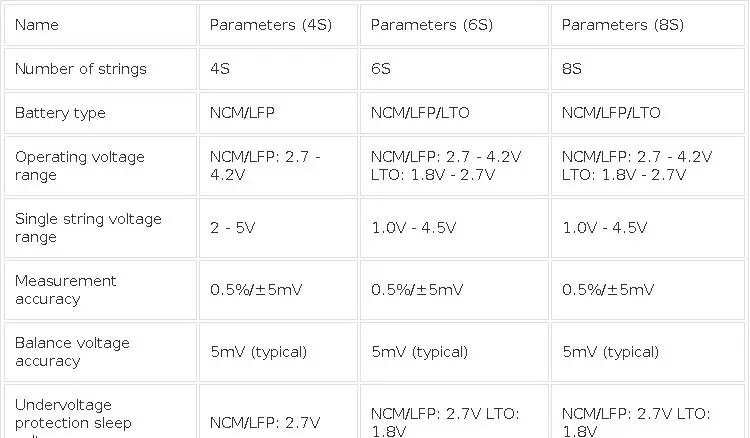

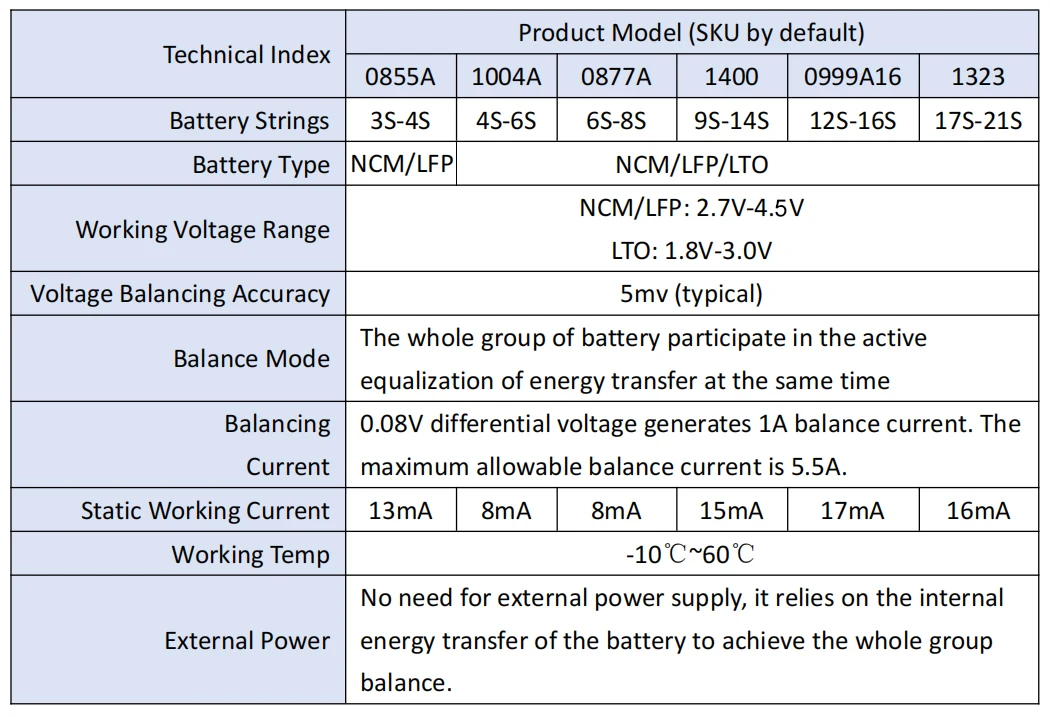

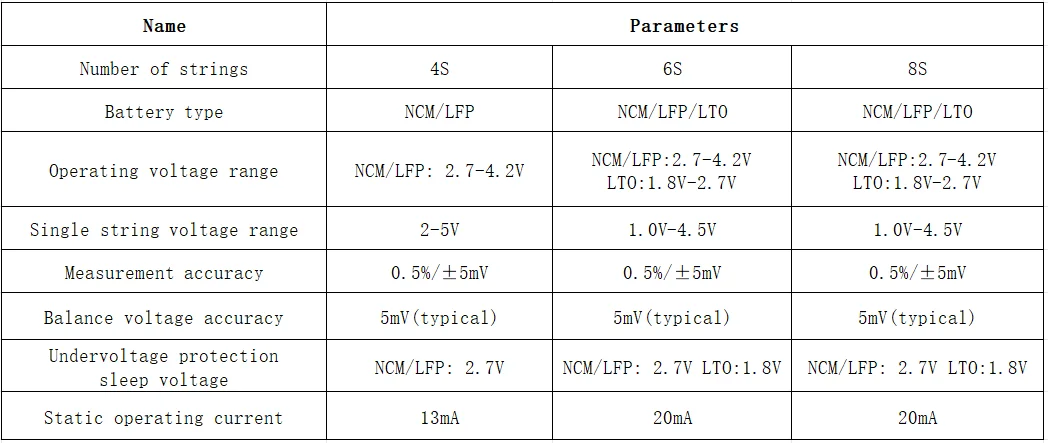

Working voltage: 1.8V-4.5V

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

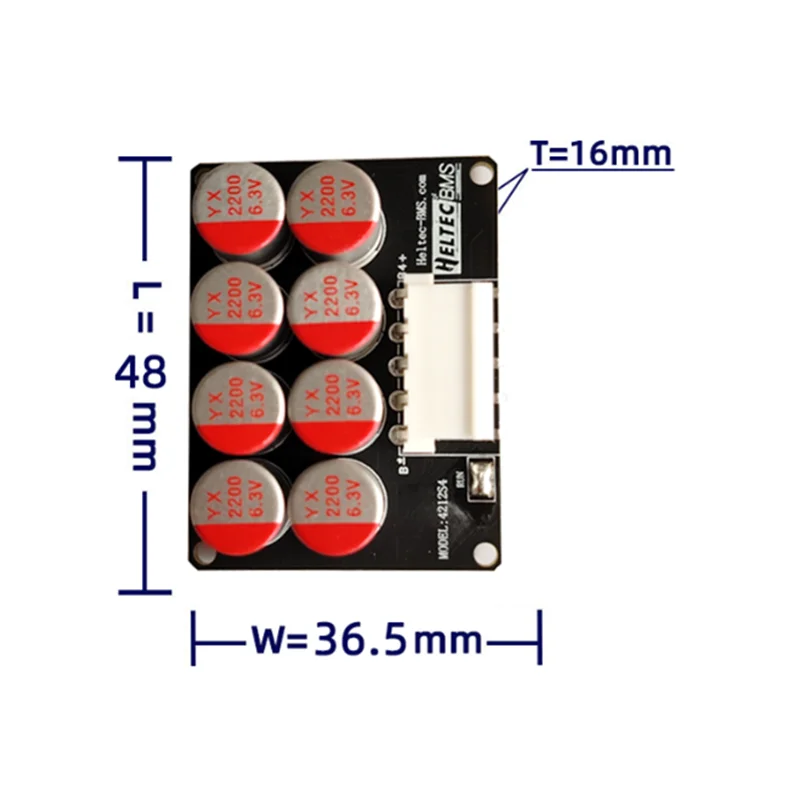

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate.

for all means suitable for ternary lithium, lithium iron phosphate, lithium titanate

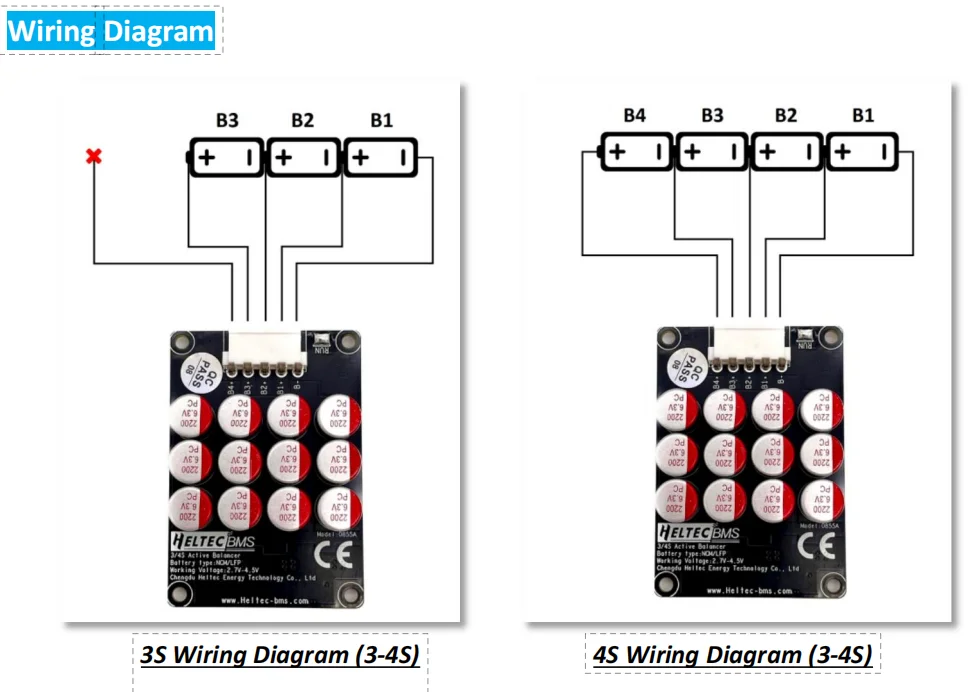

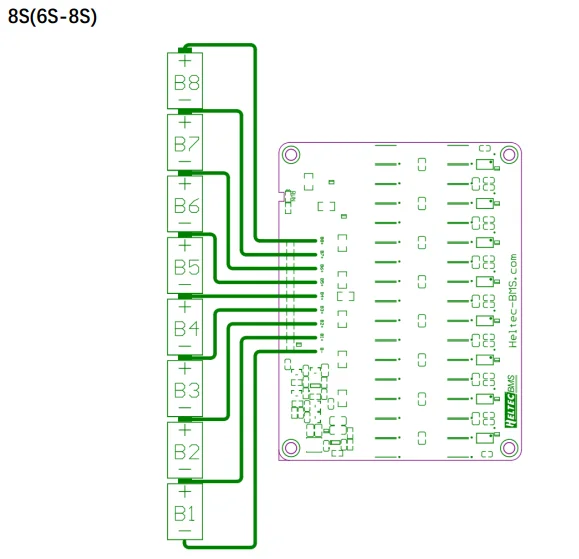

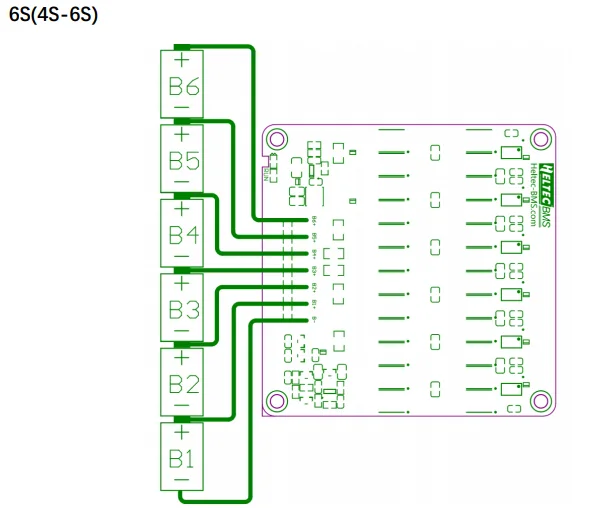

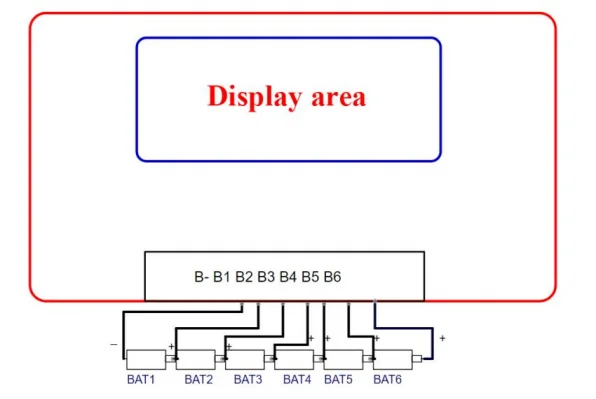

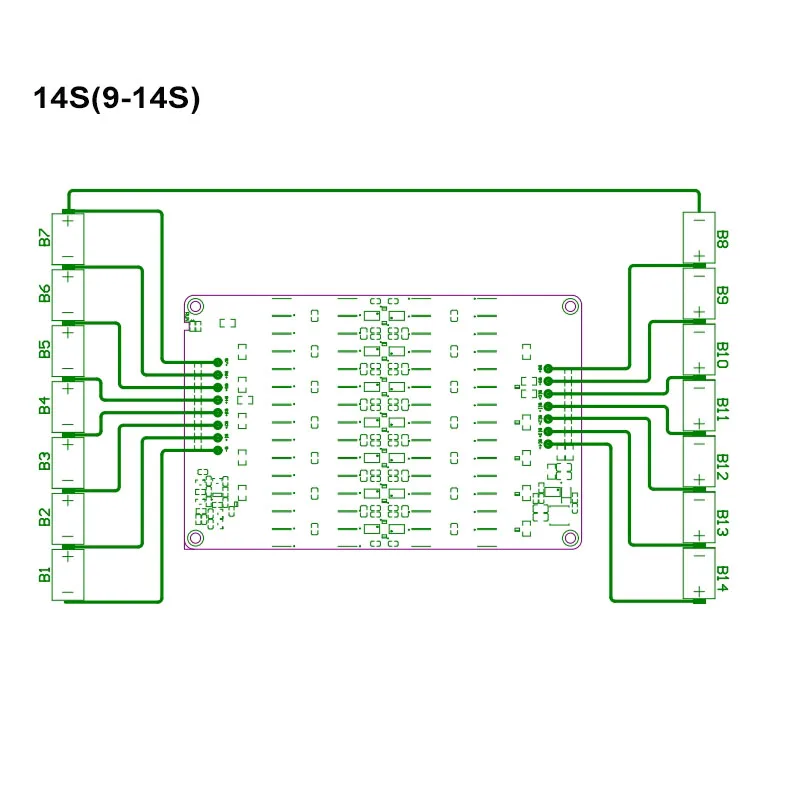

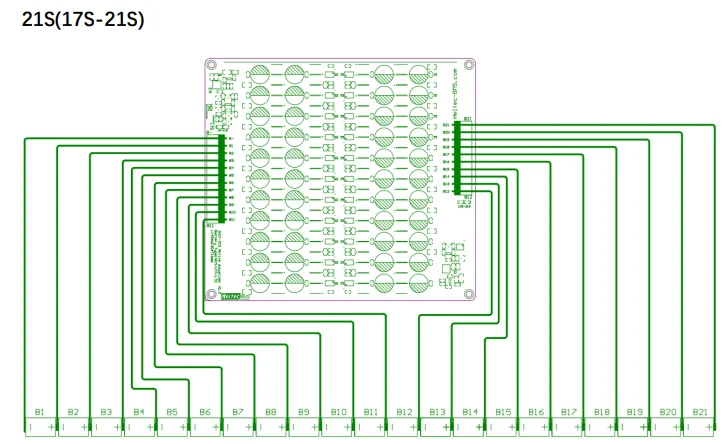

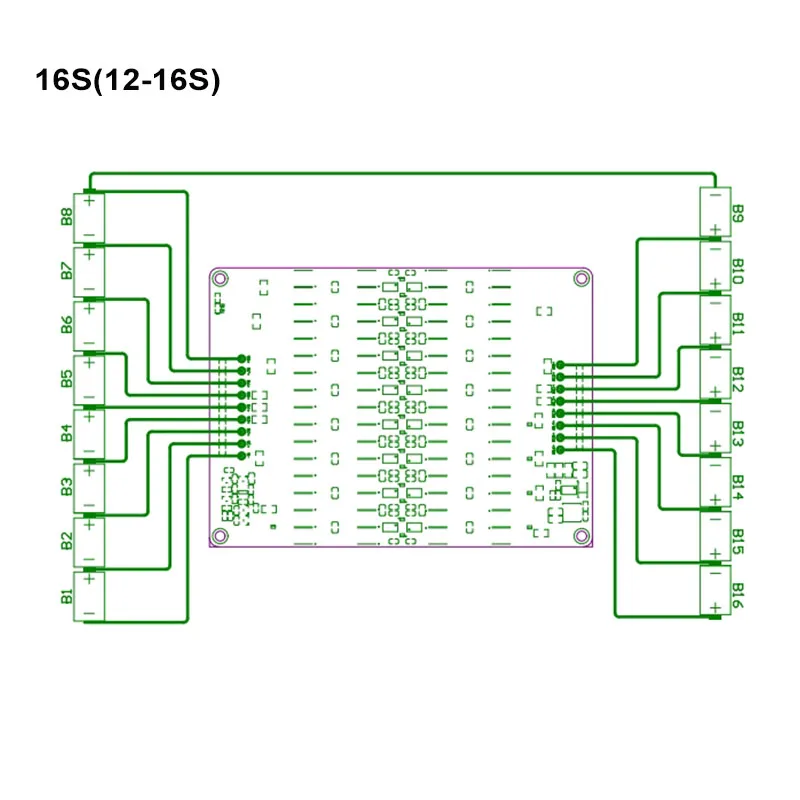

Connection

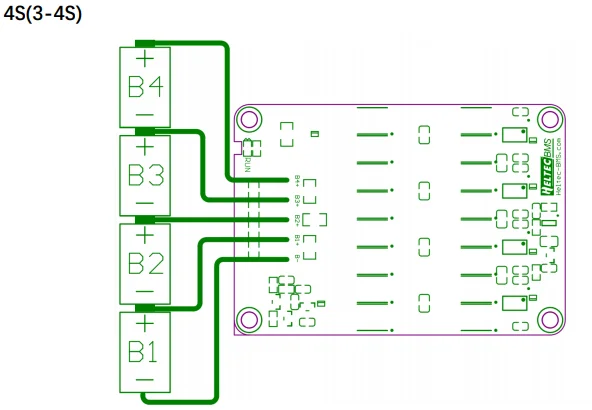

When it is necessary to reduce the number of strings used, a vacant wire can be left unconnected to the battery, such as 3-4S

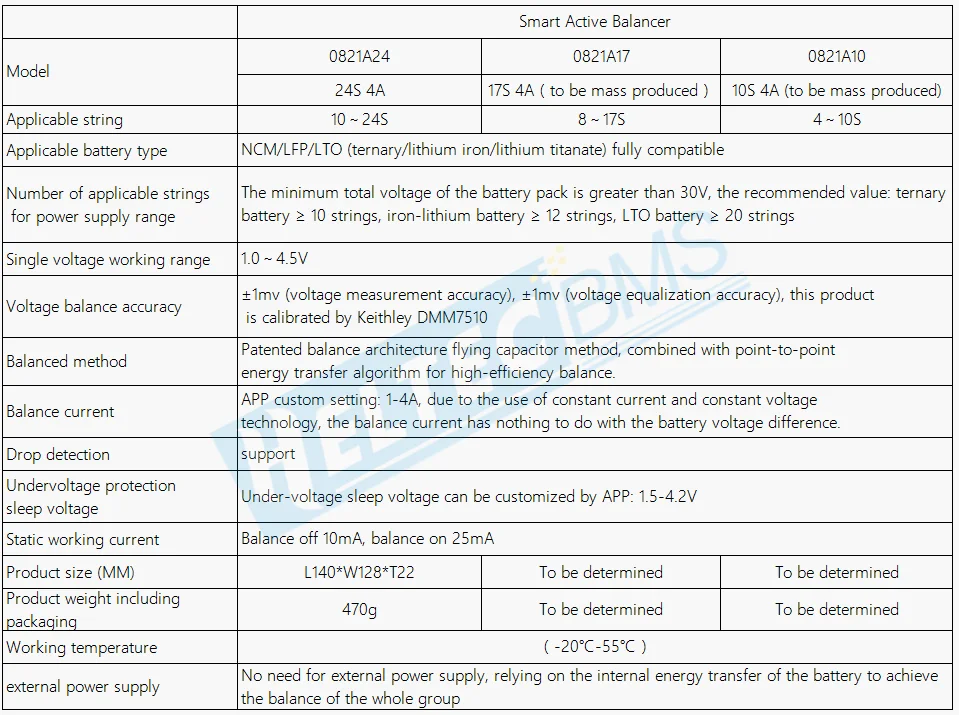

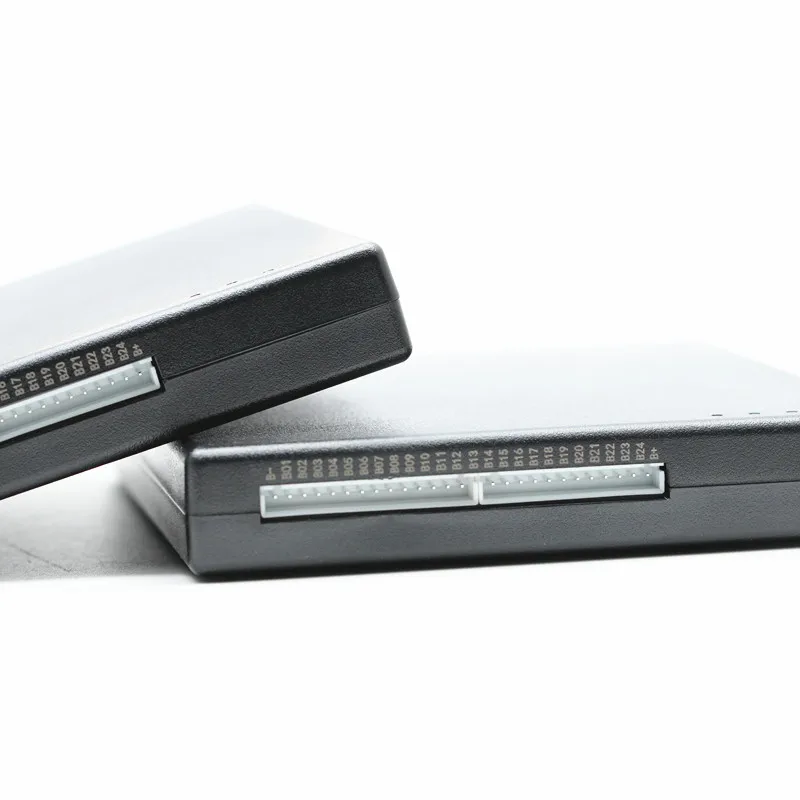

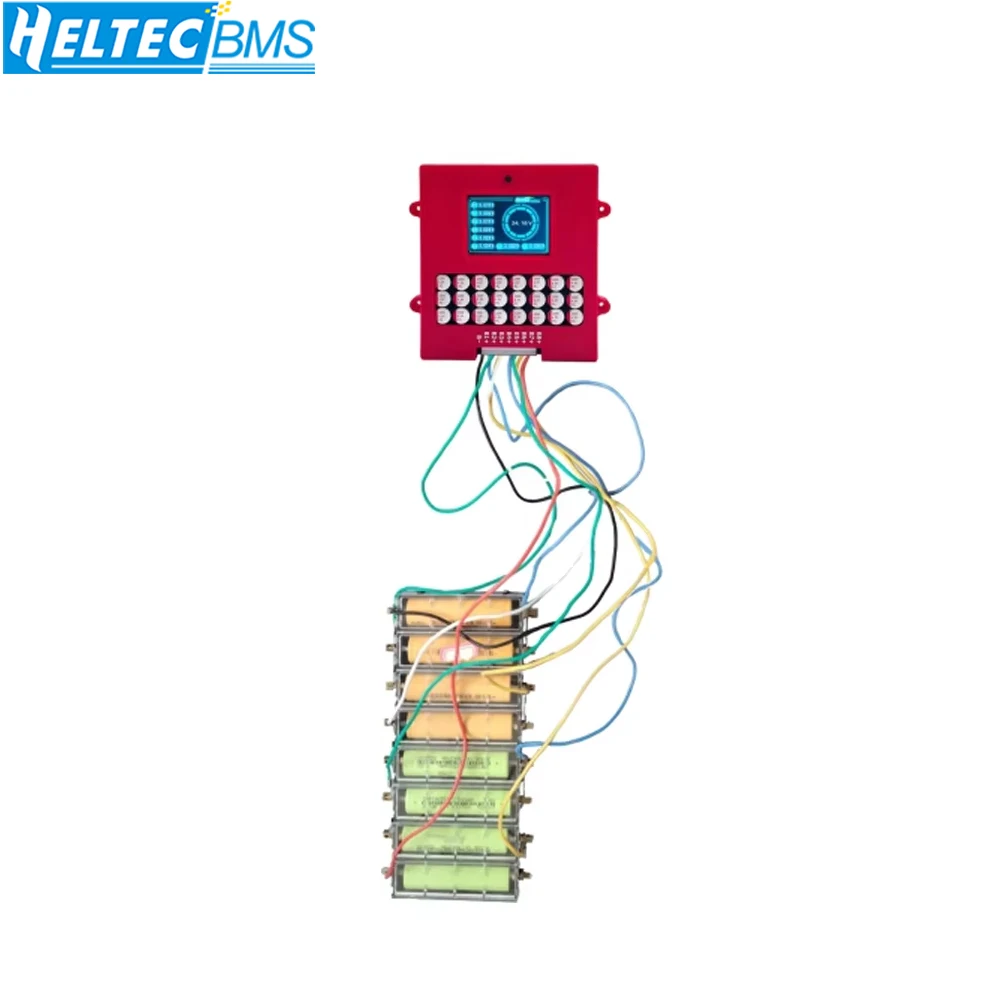

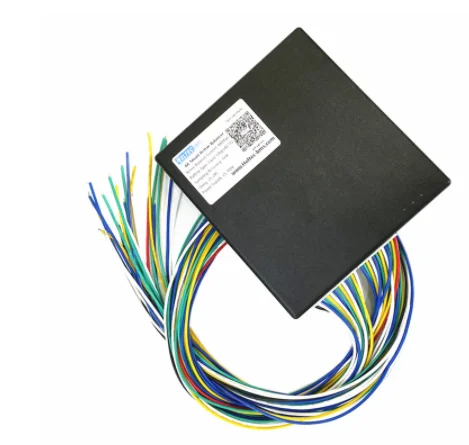

Smart Balancer 10-24S 4A

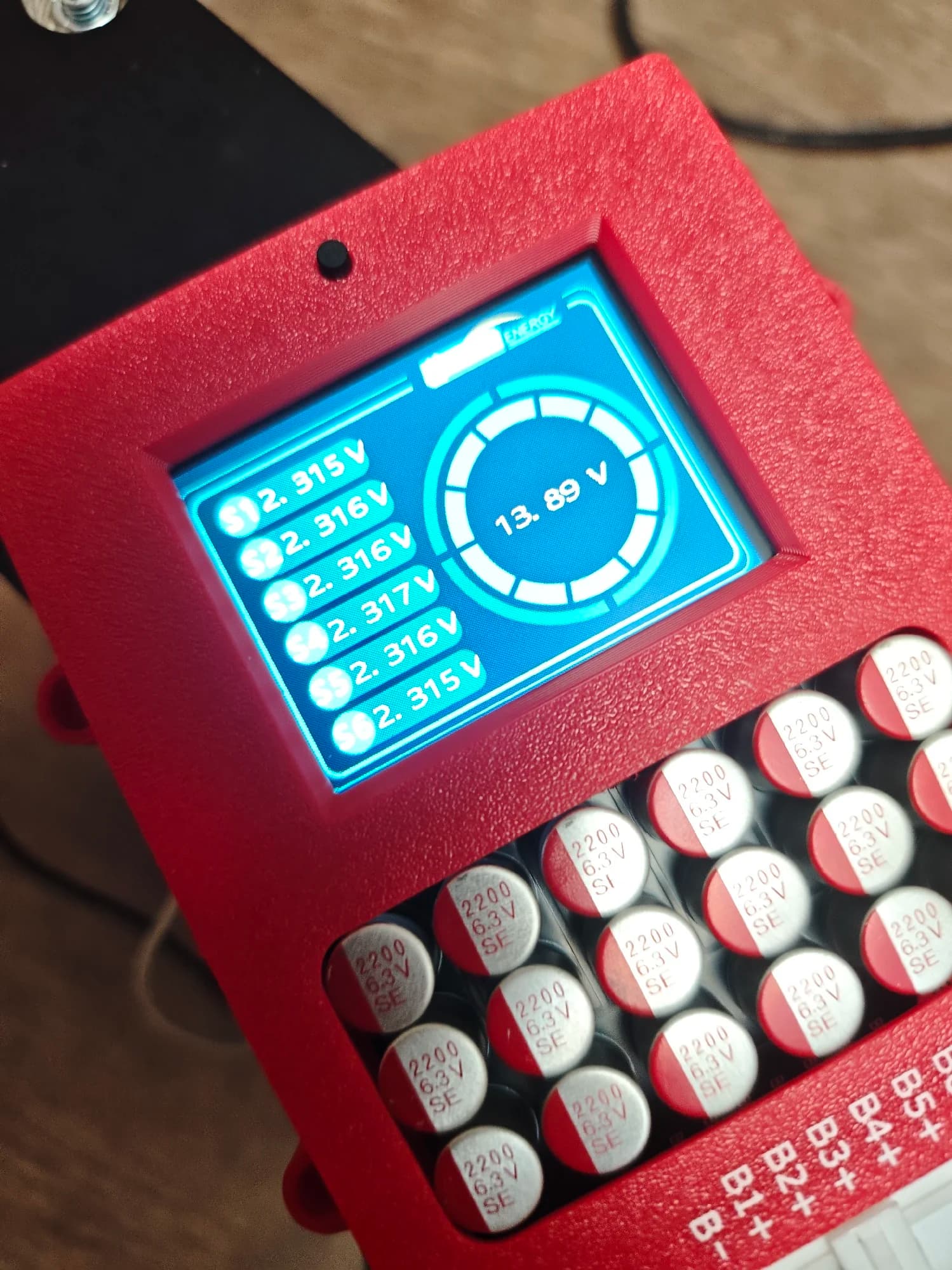

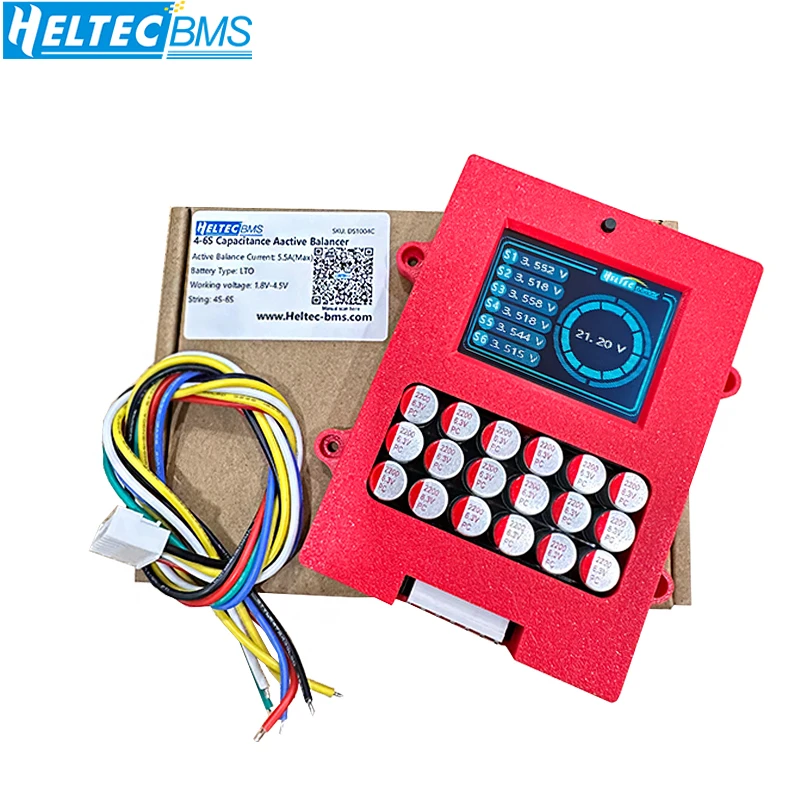

Active Balancer with Voltage Display Screen
