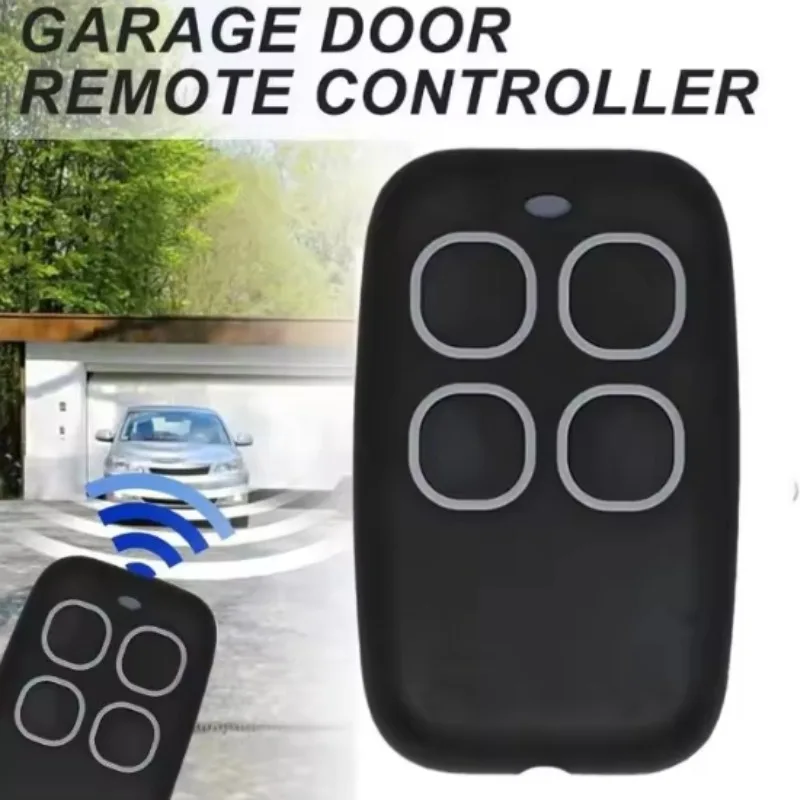

Multi-frequency 280MHz-868MHz Copier Transmitter Compatible with TOP432NA, TOP432EV, TOP432EE Garage Door Remote Manual Button

LYX-SJ04 Multi-Function Remote Control Cloner

Product Overview

The LYX-SJ04 is a high-performance multi-function remote control cloner that supports an ultra-wide frequency range of 280MHz-868MHz. It can copy both rolling code and fixed code (including 1527 encoding) remote signals. Utilizing advanced digital decoding technology, it offers a high success rate for copying and is simple to operate, making it an ideal choice for replacing or backing up remote controls.

Key Features

✅ Ultra-Wide Frequency Support: 280MHz-868MHz, compatible with most remote devices on the market.

✅ Dual-Mode Copying: Supports rolling code and fixed code (1527) replication.

✅ Ultra-Low Power Consumption: Operating current ≤15mA, ensuring long battery life.

✅ Long-Distance Transmission: Transmission range of 50-100 meters in open areas.

✅ Four-Key Full Copying: Supports independent copying of up to 4 keys.

Technical Specifications

Operating Voltage: DC 3V (CR2032 battery)

Operating Current: ≤15mA

Transmission Distance: 50-100 meters (open area)

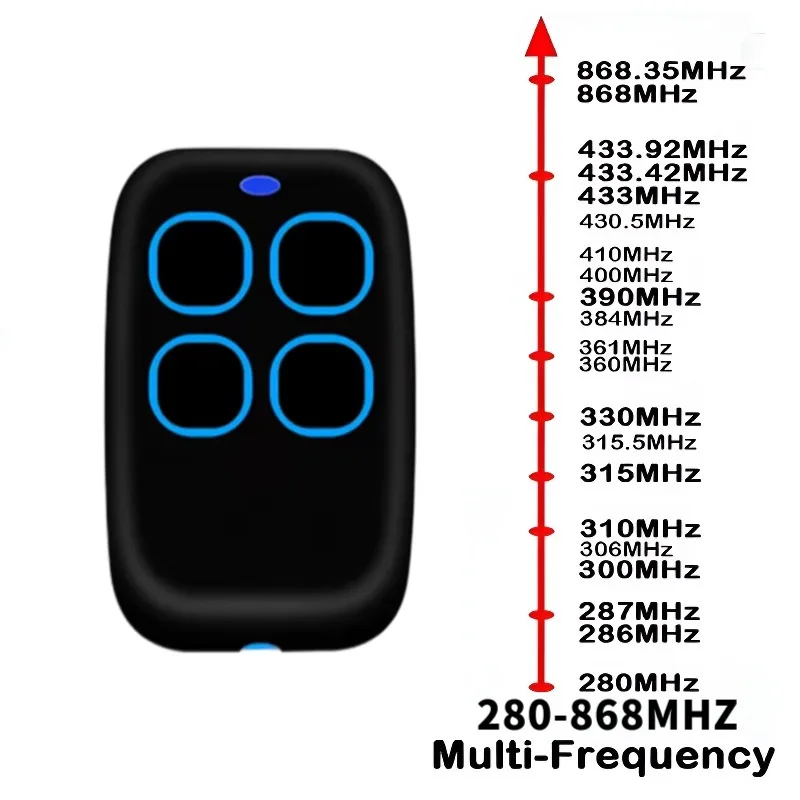

Operating Frequency: 280MHz-868MHz

Encoding Format: Copy replication

Housing Material: ABS engineering plastic

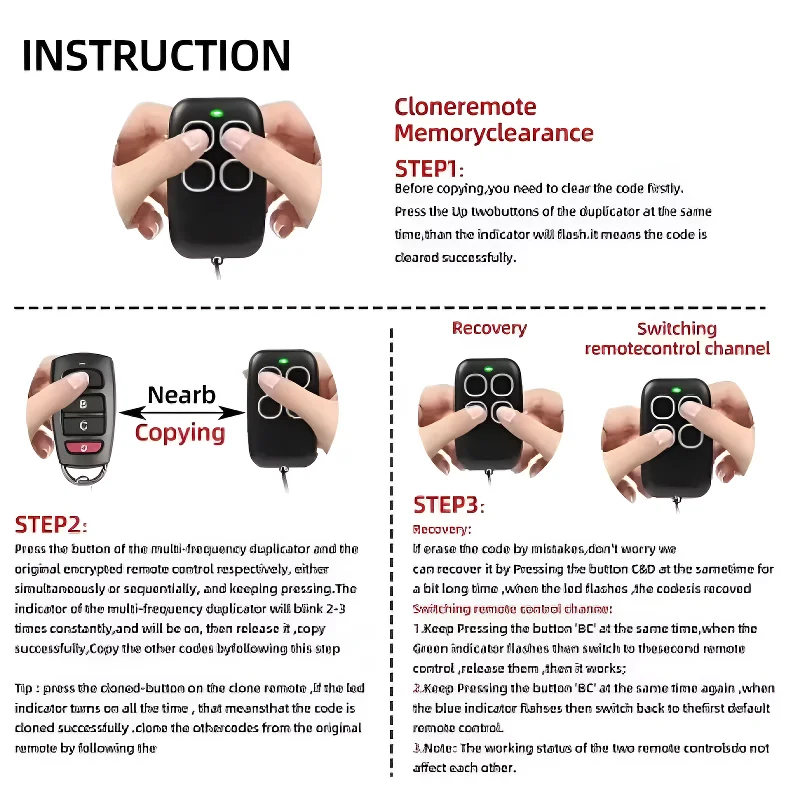

Copying Steps

Rolling Code/Fixed Code Copying Method:

Press and hold buttons A and B simultaneously, release button B, and then press button B three times consecutively.

Release all buttons, and the LED will start flashing red.

Place the original remote control close to the cloner (distance ≤3cm).

Press the button on the original remote control and wait for the cloner's red LED to turn blue.

Press the corresponding button on the cloner to confirm (e.g., press the first button to copy the first key).

The LED turning off indicates successful copying of that key.

Repeat steps 3-6 to copy other keys (a 4-key remote requires copying each key separately).

After copying, re-pair the cloner with the receiver for use.

Applications

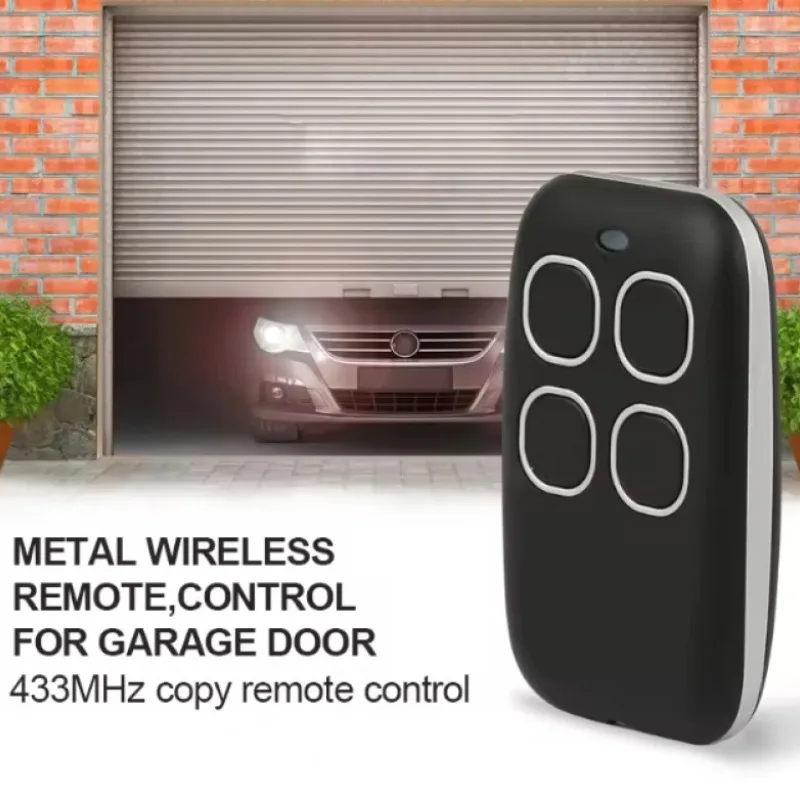

Garage door remote control replication

Access control system remote backup

Smart home remote management

Industrial equipment remote copying

Car remote control backup

Precautions

⚠️ Ensure the original remote control has sufficient power during copying.

⚠️ Keep the two devices in close contact (≤3cm) during the copying process.

⚠️ Some highly encrypted remotes may not be copyable.

⚠️ Always re-pair with the receiver after copying.

⚠️ Comply with local radio management regulations.

Package Contents

LYX-SJ04 Cloner Main Unit ×1

User Manual ×1
