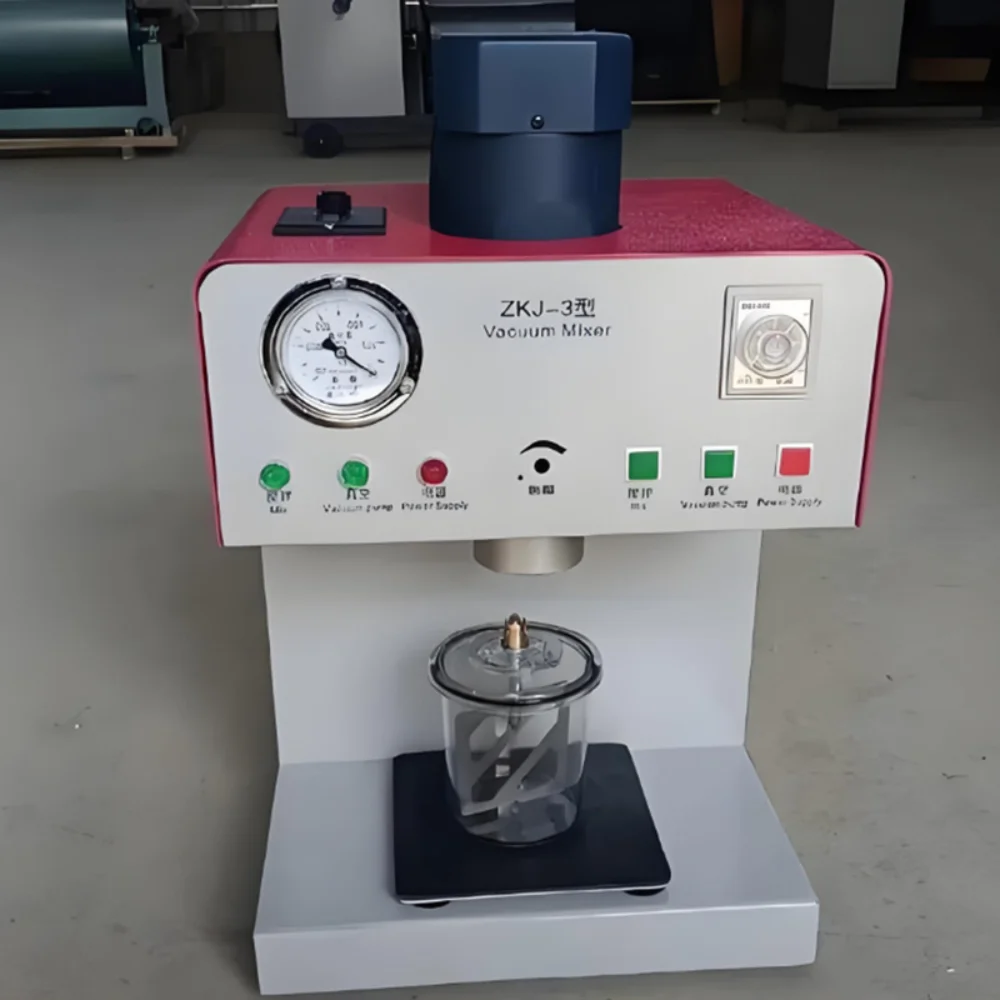

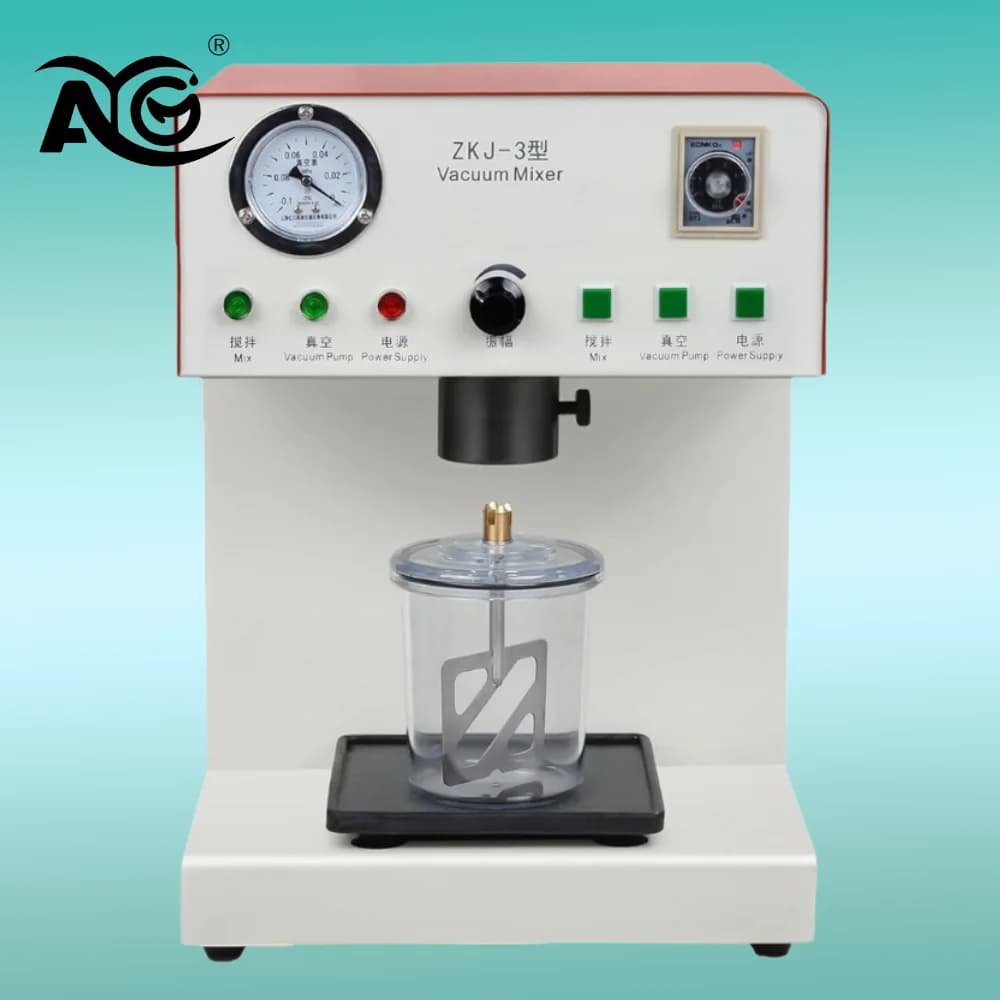

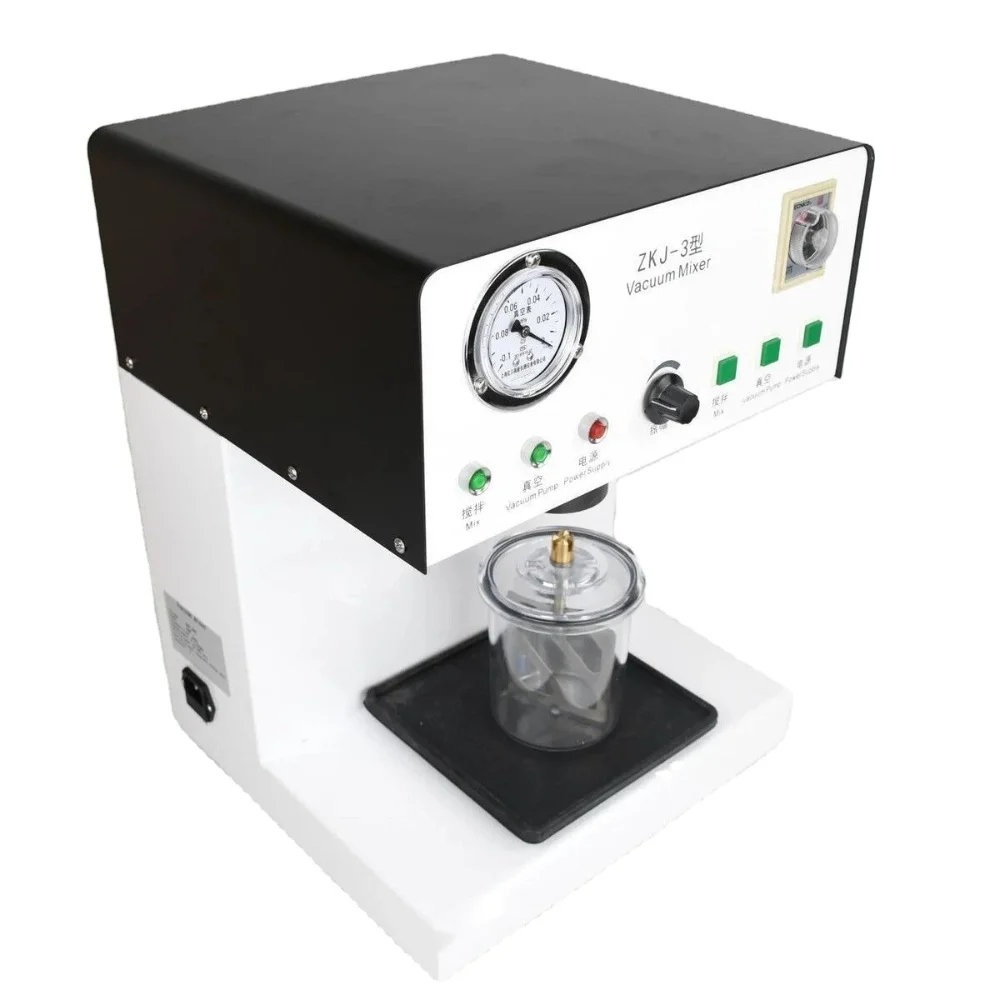

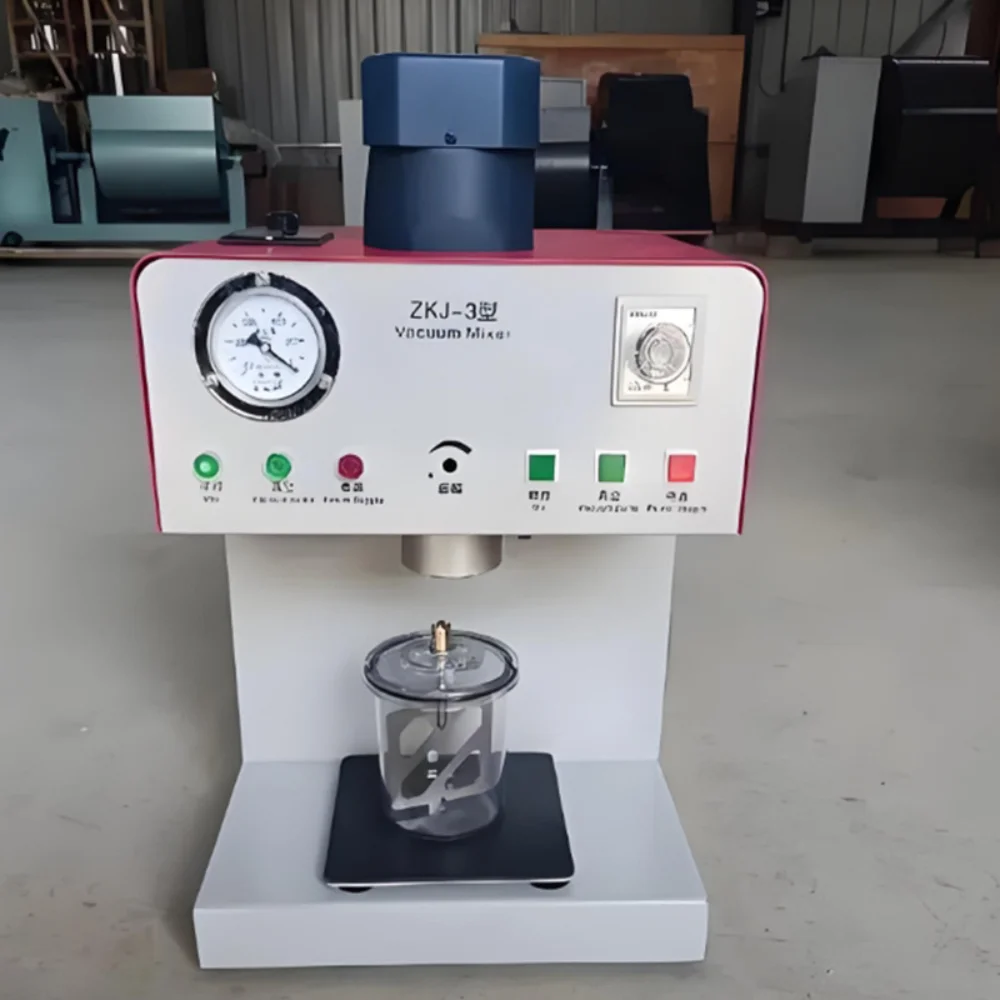

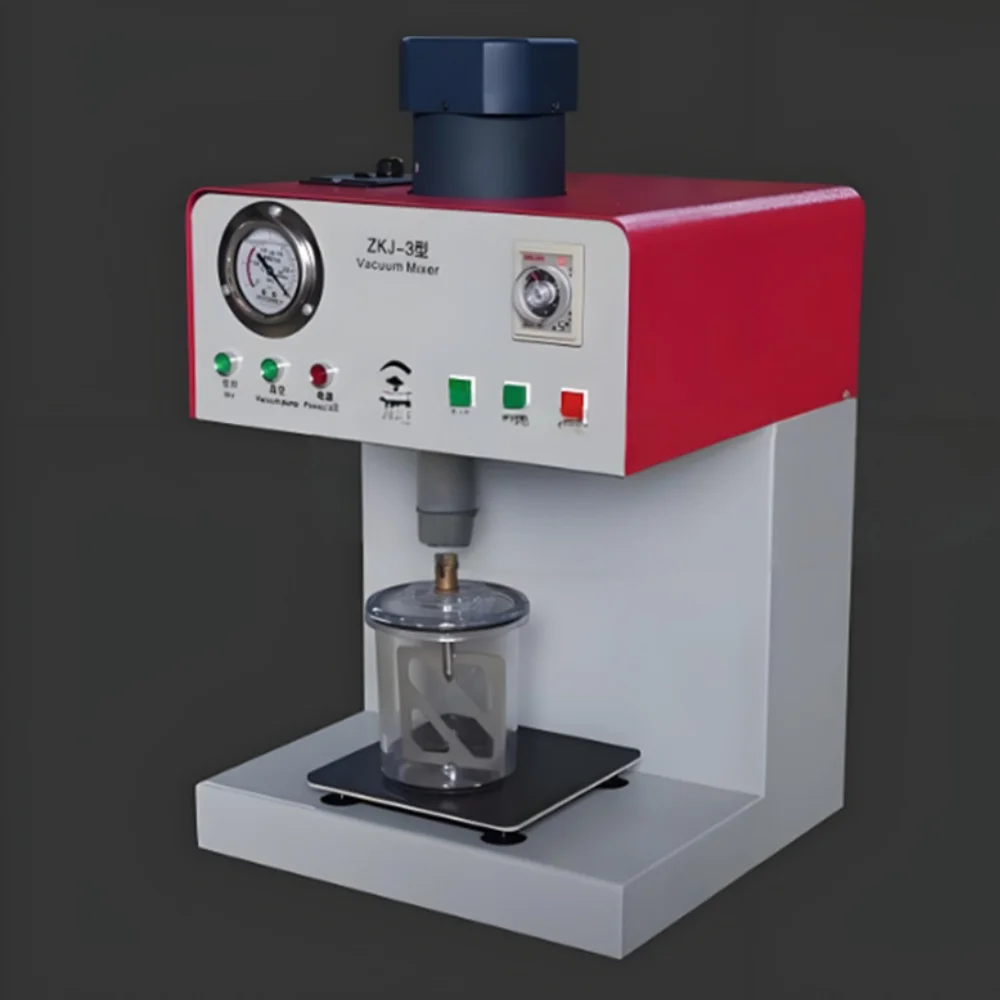

AG Dental Vacuum Mixer - Dental Lab Equipment Lab Compact Gypsum Stirrer with Vacuum Pump & Mixing Cup for Bubble-Free Casts​

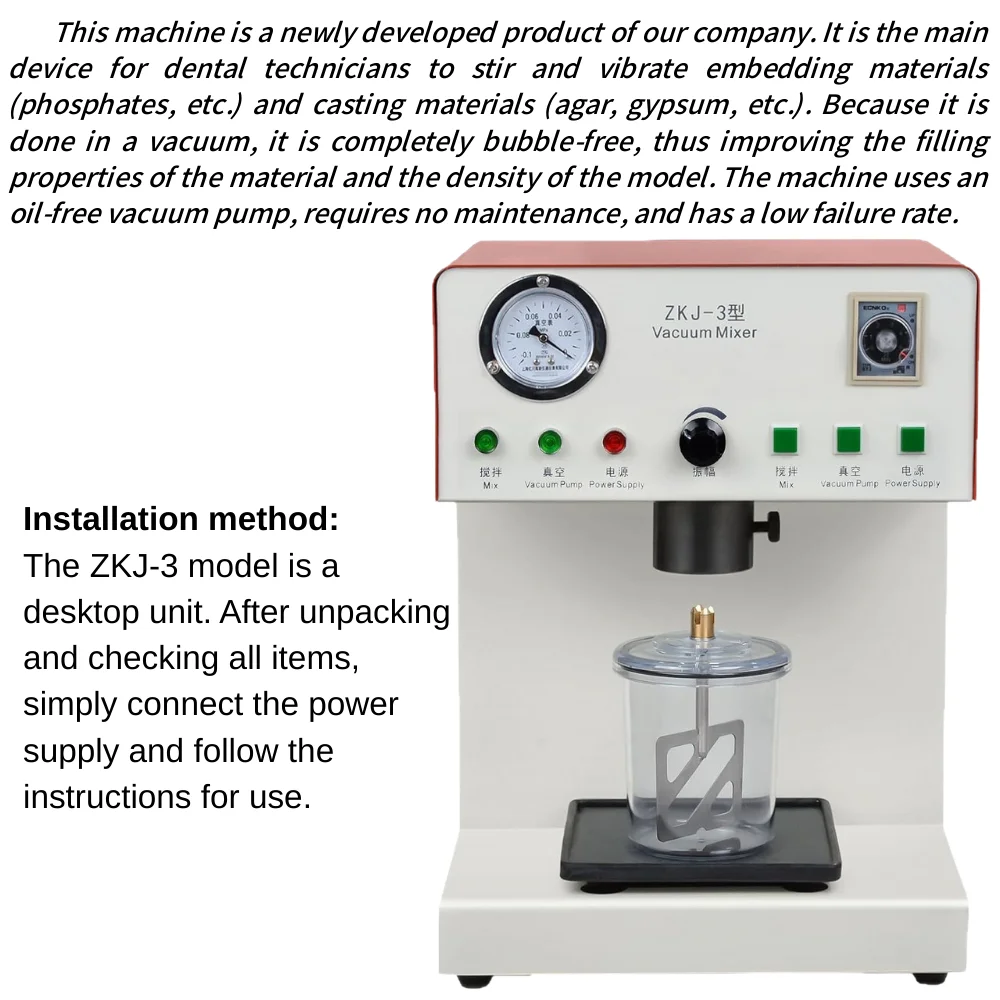

This model is our company's latest newly developed product. It serves as the primary apparatus for dental technicians to mix and agitate embedding materials (such as phosphates) and casting materials (such as agar or plaster). Since the process is completed under vacuum conditions, it achieves complete bubble-free results, thereby enhancing material flowability and model density. This machine utilizes an oil-free vacuum pump, requiring no maintenance and featuring low failure rates.
I. Main Technical Specifications:
Power Supply: 220V AC, 50Hz
Power Consumption: 150W
Effective Volume: 500ml
Vacuum Level: ≤0.085MPa
Weight: 25kg

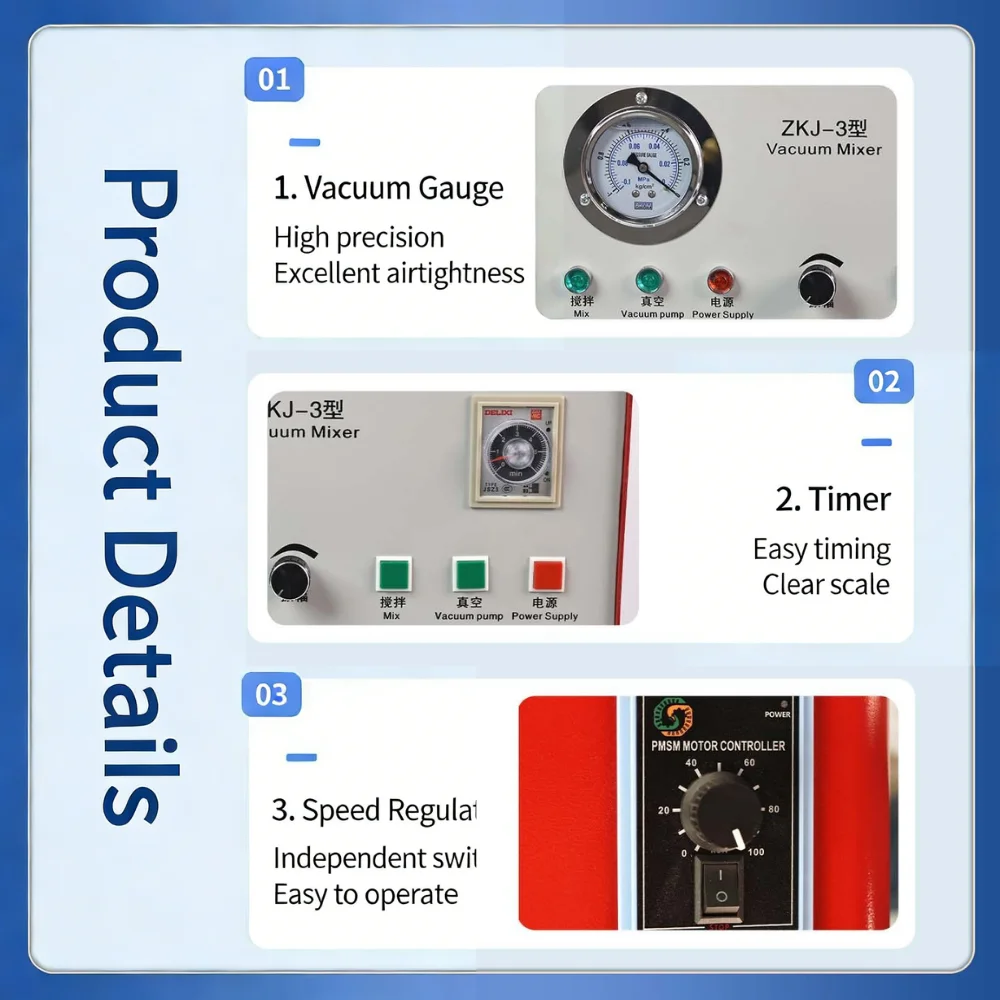

Agitation Mode: Steplessly adjustable
Dimensions: Length × Width × Height
350 × 320 × 580 mm
Stirring Speed: 270 rpm
Installation Method:
The ZKJ-3 model features a tabletop structure. After unpacking and inventory verification, connect the power supply and follow the operating procedure steps.
III. Usage Instructions:
1. Connect to power supply.
2. Pre-mix materials in the mixing tank to a paste consistency. Align the mixing tank with the mixing sleeve base, gently push it into the slot, hold the mixing cylinder, tighten the vent needle valve, press the + vacuum switch and mixing switch. The unit will operate in vacuum mixing mode. Release your hand; mixing duration is adjustable.

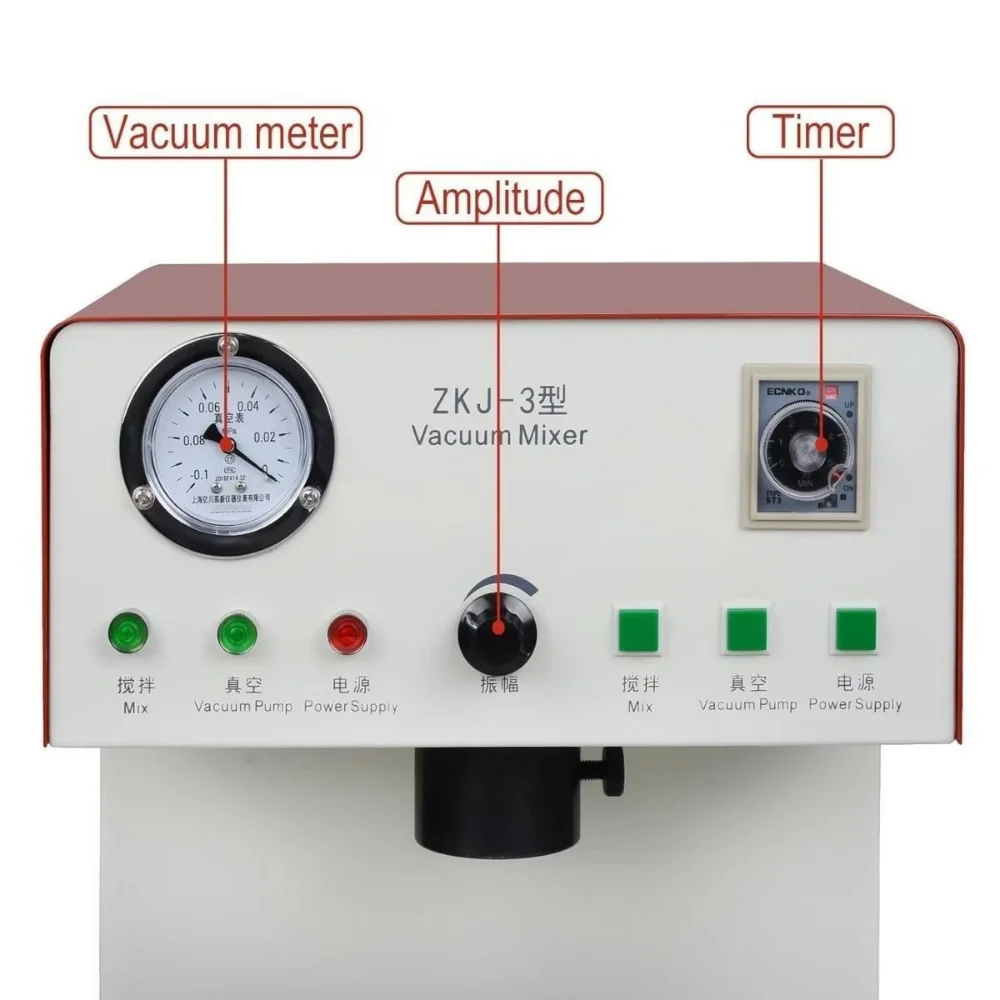

3. After mixing, turn off the power switch. Hold the mixing tank, loosen the vent needle valve, and remove it. 4. To activate vibration, adjust the amplitude knob as needed. IV. Precautions:
1. Thoroughly read the instruction manual before using any mixer model to understand operating procedures and precautions, preventing unnecessary damage.
2. Never operate the vacuum pump without a load to avoid shortening its service life.
3. For any malfunctions, seek repair from experienced professionals.
4. Regularly inspect the machine's safety grounding. Ensure the protective grounding in the power supply plug switch maintains good contact with the equipment housing.
5. Avoid filling the mixing tank with embedding material beyond 2/3 of its capacity to prevent material from being sucked into the air pathway and causing blockages.
Note: When the package arrives at the customs of your country, you need to pay taxes and pick up the package.
