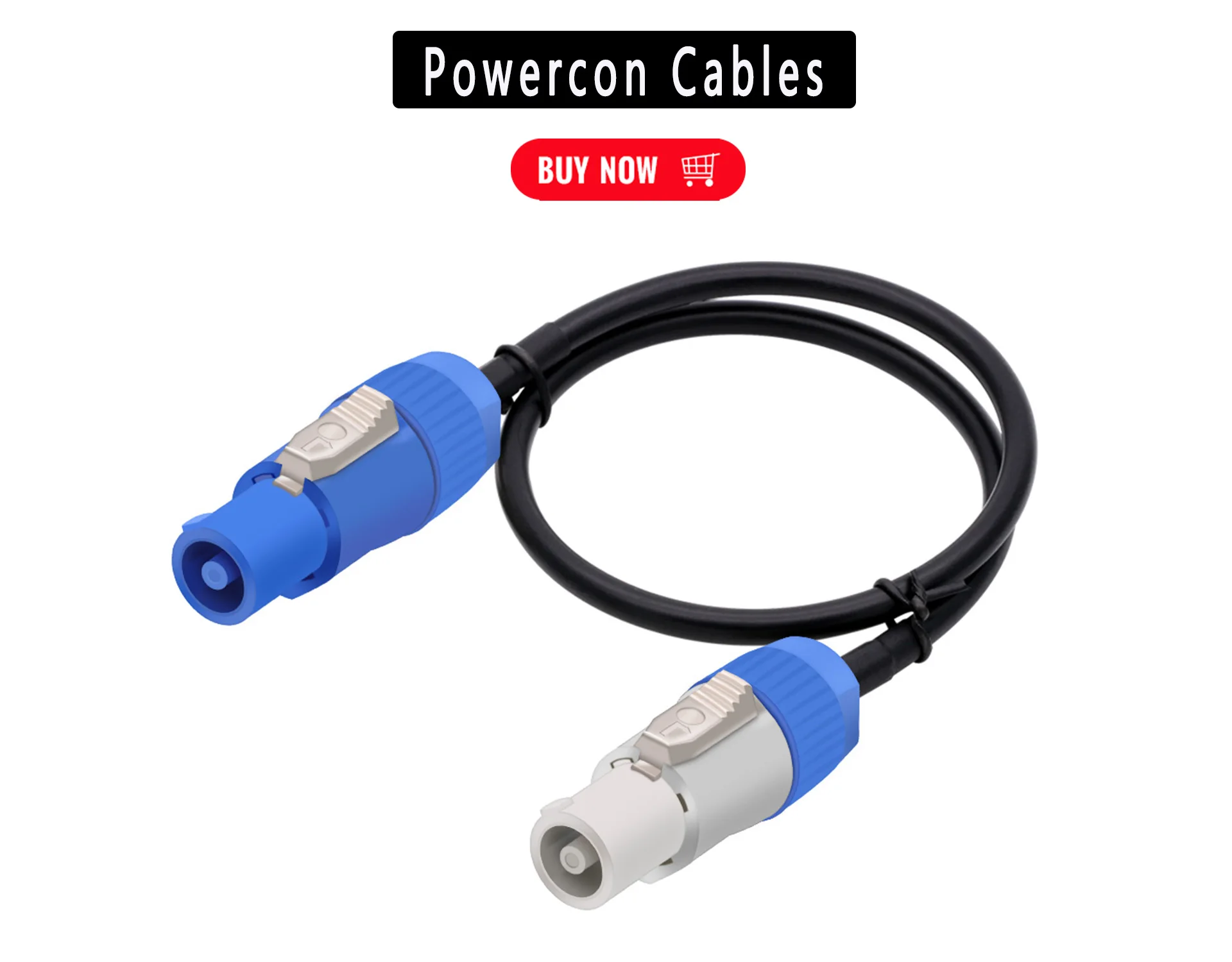

1PC Powercon Connector 3 pins 20A 250V NAC3FCA NAC3FCB Male Plug For Electric Drill LED Screen Stage Lighting Power Connecting

Powercon Connector Lockable Cable Connector + Chassis Socket for Electric Drill LED Screen Stage Lighting Power Connecting

Fireproof, flame retardant. Power plug, safety is the key!

*Name: Power set connector

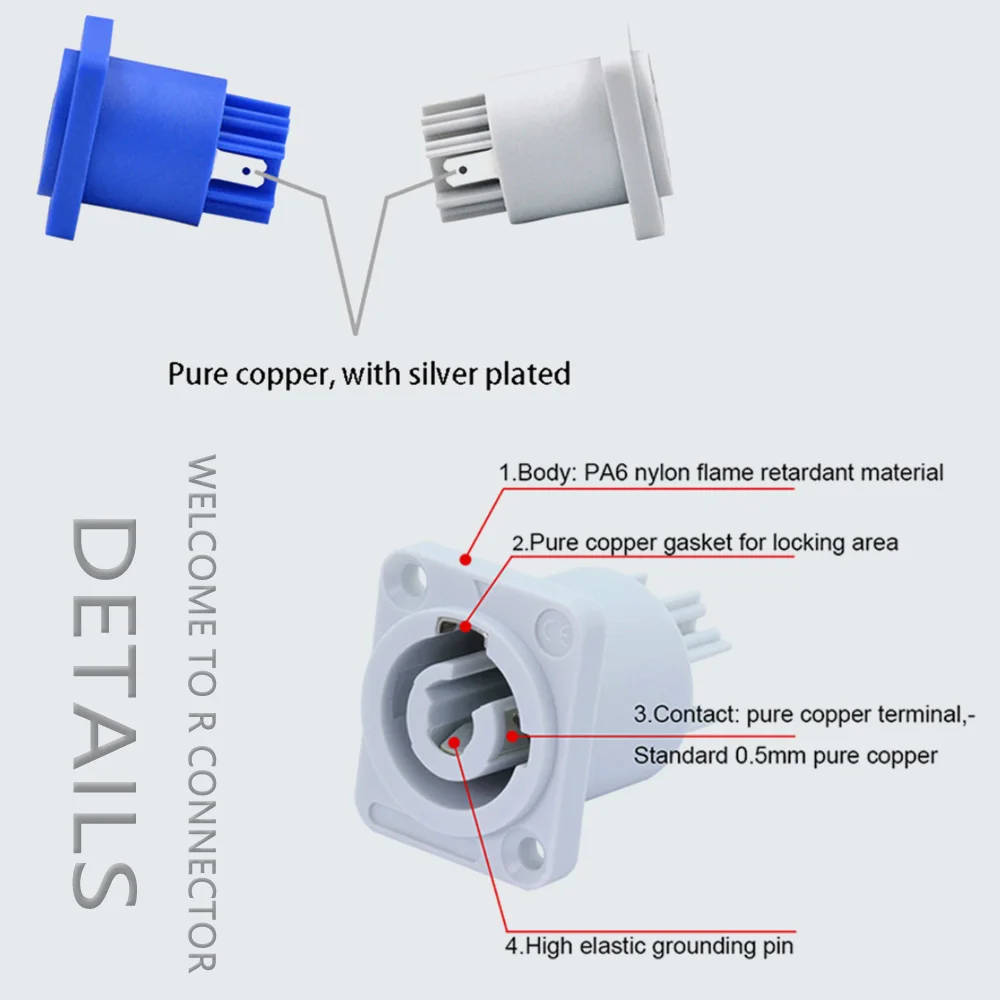

*Material:pure copper + ABS materials

*PA66 grade, environmentally friendly

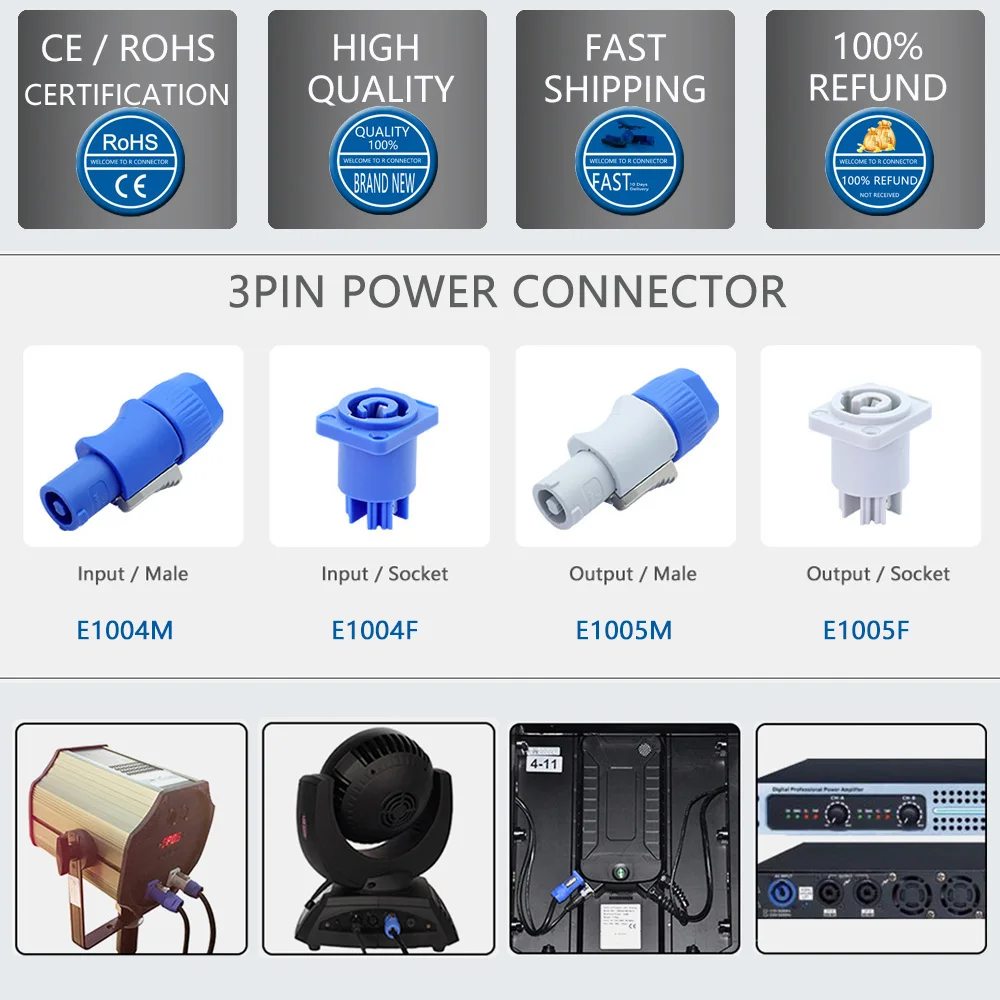

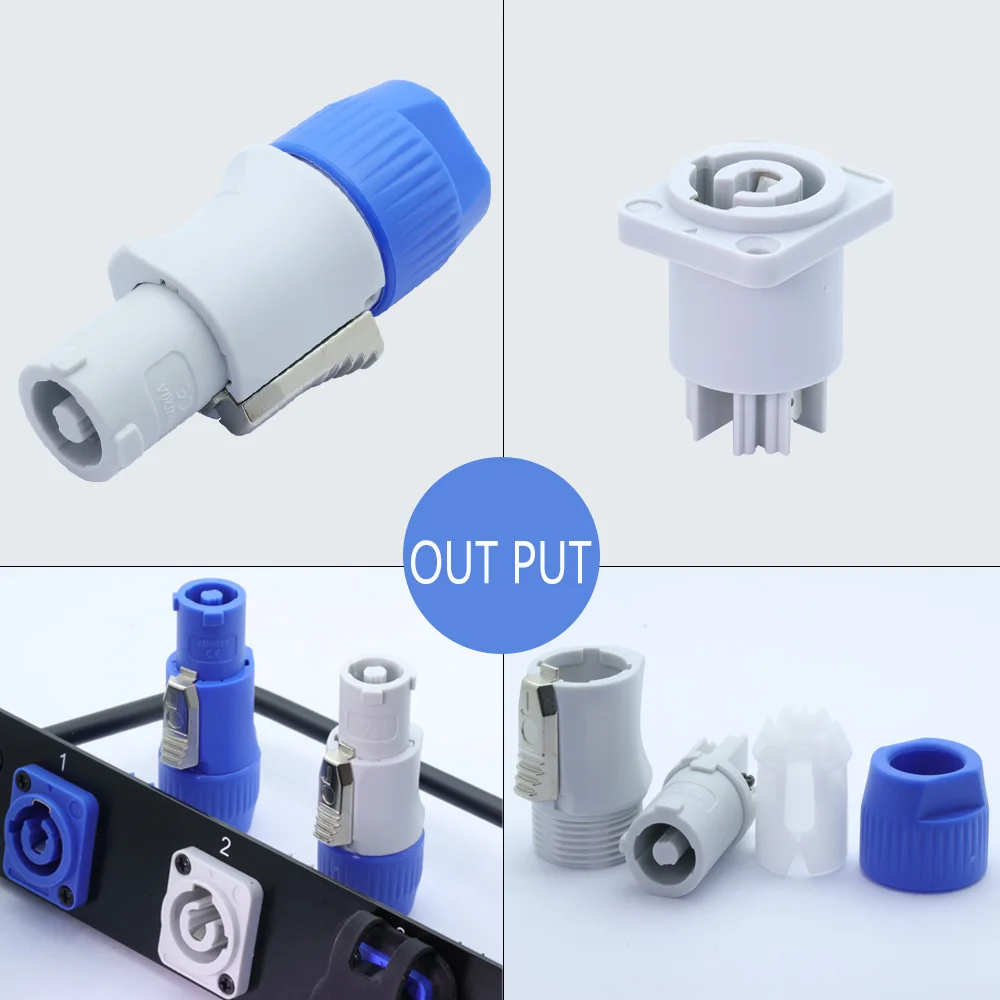

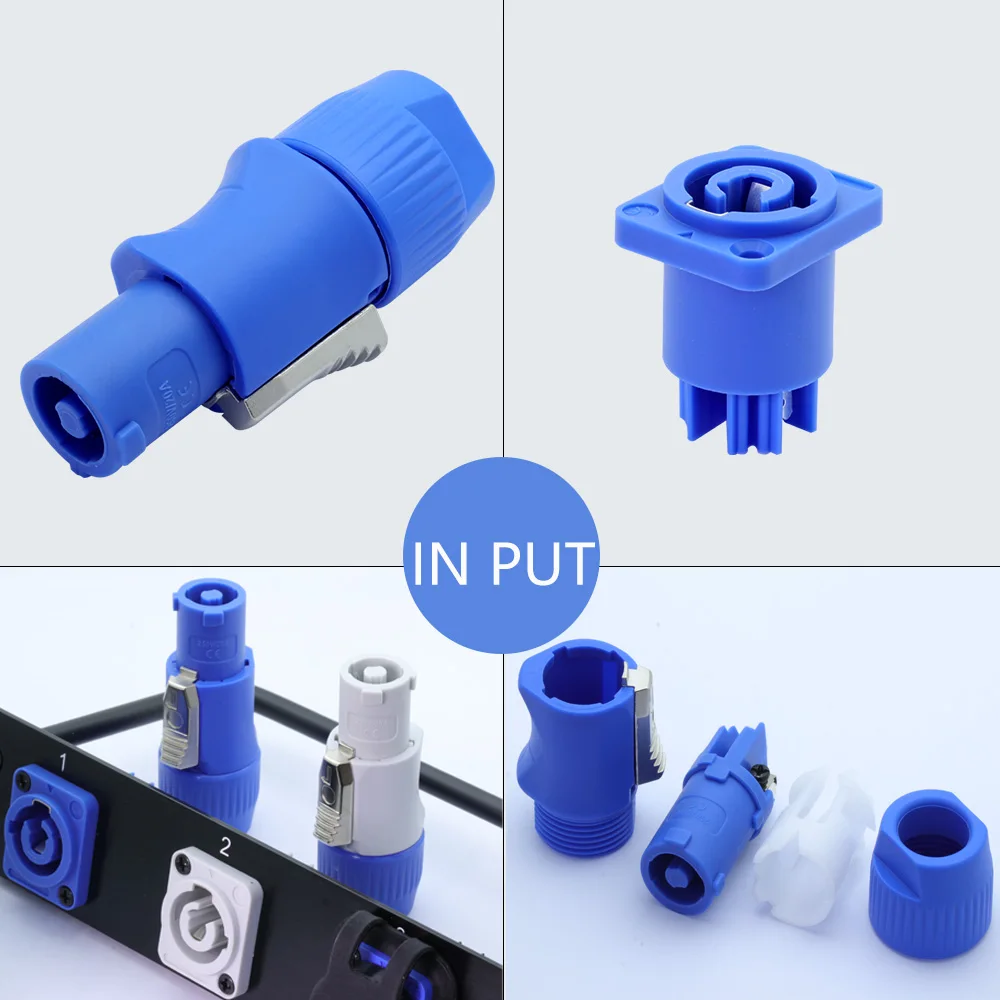

*Color: Power-in(NAC3FCA+NAC3MPA-1, Blue) / Power-out(NAC3FCB+NAC3MPB-1, Light Grey)Available

*WithCE/RoHSCertificate

Electrical parameters:

*Contact resistance (internal): <=3m ohms

*Dielectric strength (external): 4/2.8 Kvac

*Insulation resistance: >0.1G ohm

*Electronic contact: 2P+E

*Rated current:20A

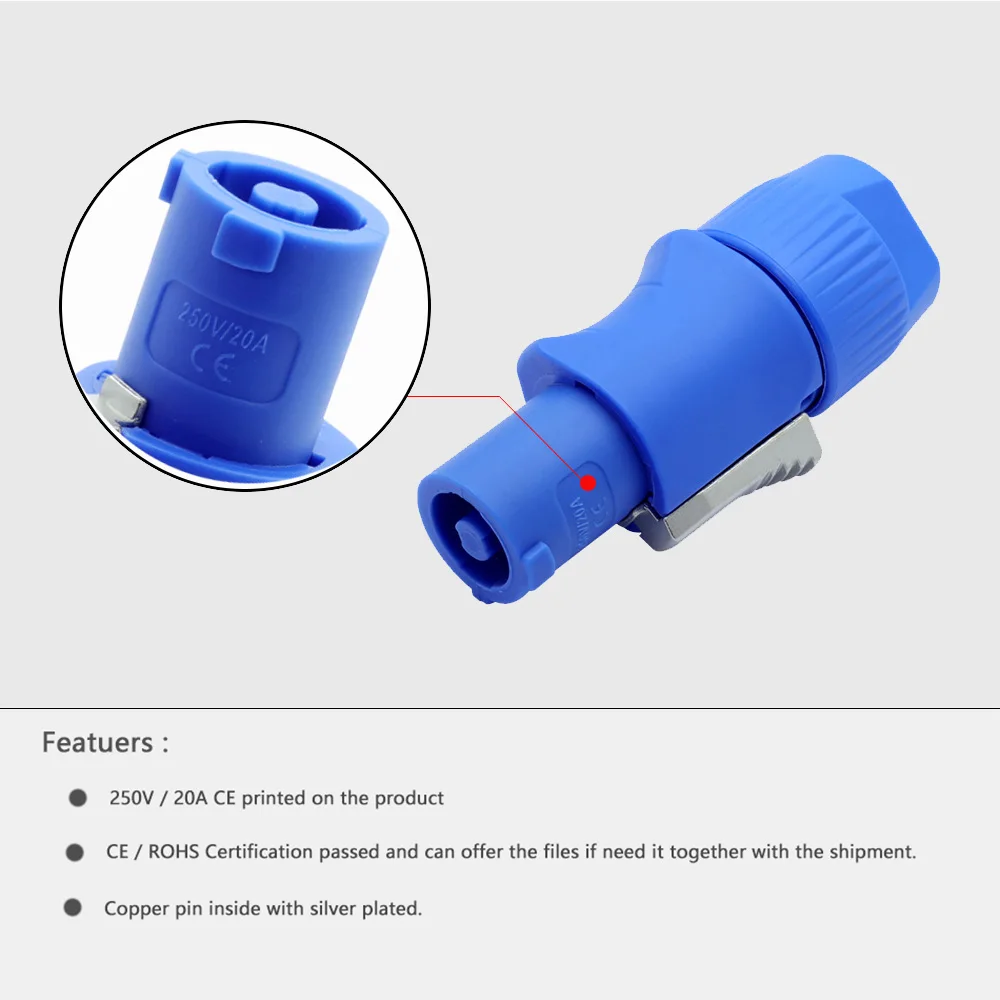

*Rated voltage:250V

Mechanical parameters:

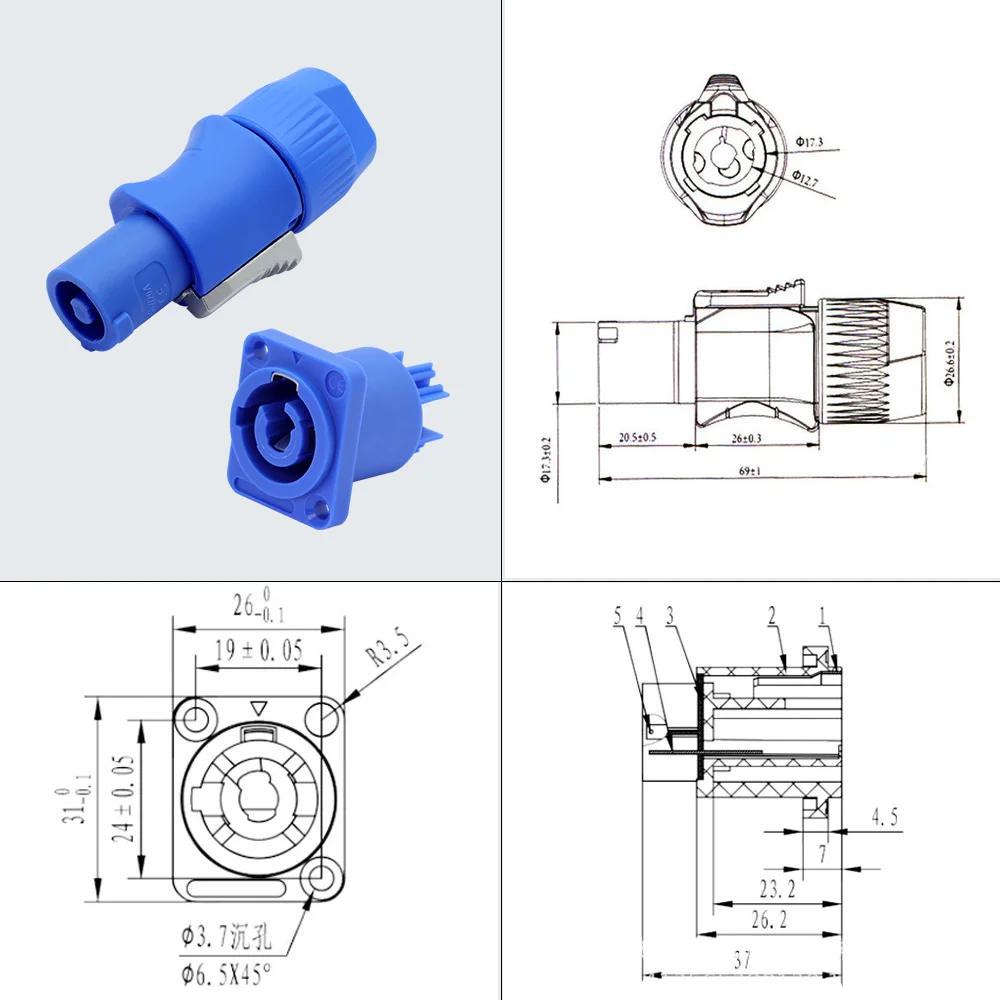

*Cable diameter: 5-12 (mm)

*Service life: >1000 (based on the number of connections)

Product advantages:

Its locking system is superior to the standard non-lockable MAIN connector

Features and characteristics:

*Lockable 20A/250V AC device coupler

*Linear, uncharged and pre-grounded three contacts

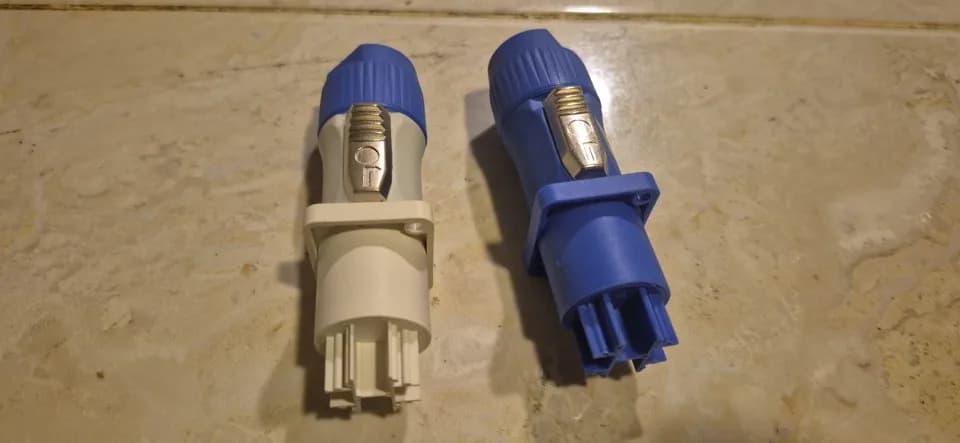

*Power input (blue) and power output (white) have different lock keys to avoid short circuit

*Fast and convenient rotary locking system

*Ergonomic design
