433Mhz Wireless Remote Control Switch AC 110V 220V 10A Relay 1CH Receiver Controller and 2botton RF 433 Mhz Transmitter

NOTE: The LED indicator light on the remote control is red in the video, but it is actually blue,

don't worry, the functionality is the same

Specifications Of The Transmitter:

Remote control Transmitter

Operating voltage: DC12V (23A/12V battery x1)

Transmitting frequency: 433MHz

Encoding Type: Fixed code

Receiver sensitivity: > -105dB

Transmission distance : 100M (Open field)

Size: approx 55*28*10mm

Specifications Of The Receiver:

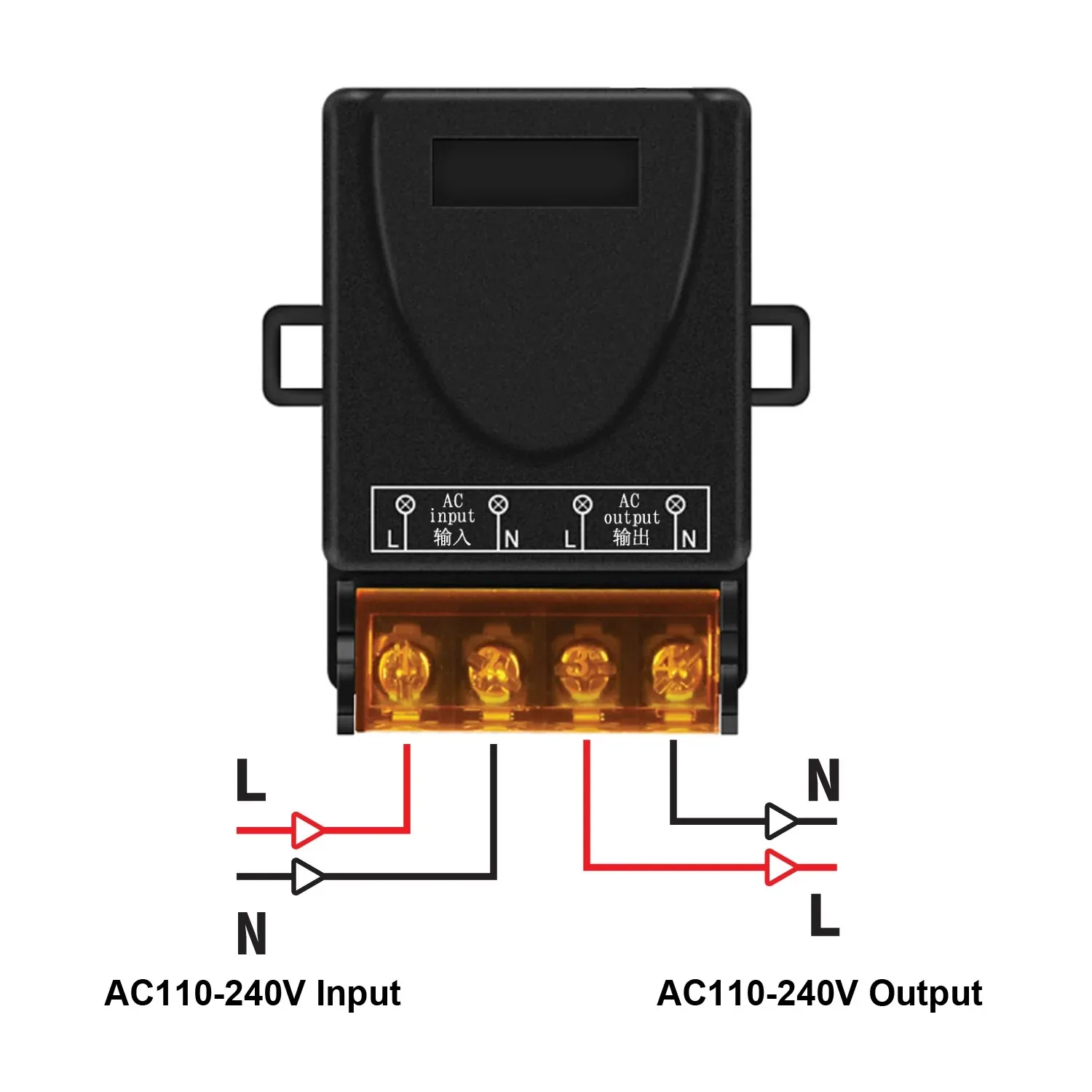

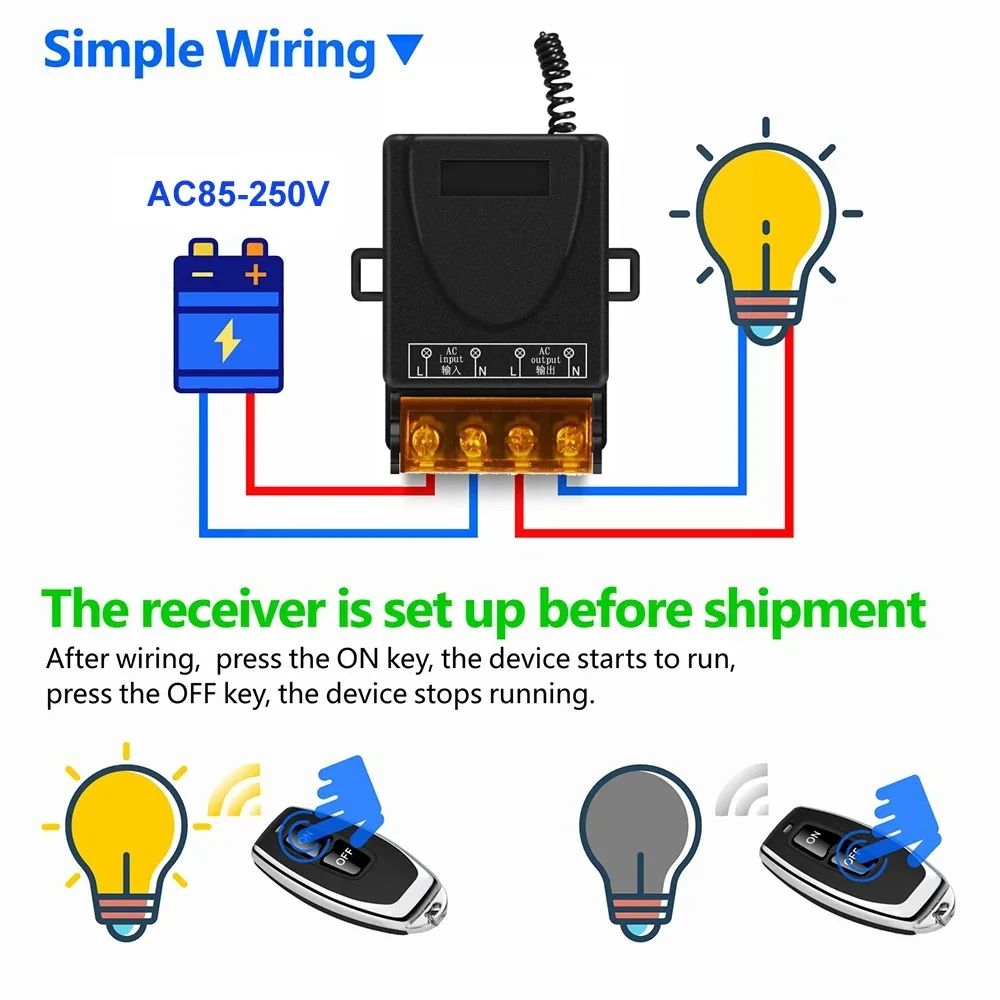

Operating voltage: AC 110V - 240V

Output voltage = Operating voltage

Operating frequency: 433MHz(Same with Remote control)

Encoding Type: learning code

Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

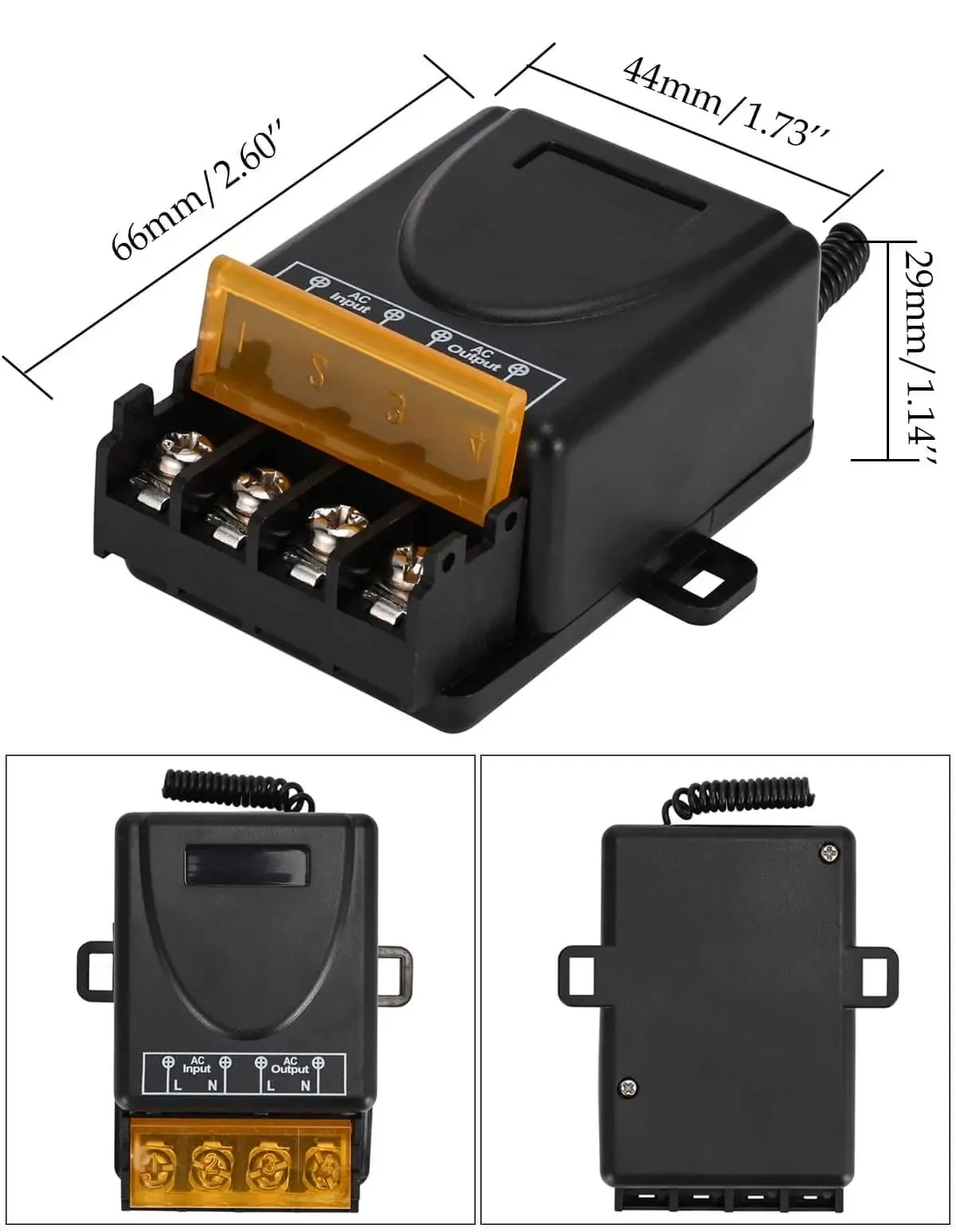

Box size: Approx 65x45x28m

About Working way:

Momentary: Relay: Press and hold -> On; Release -> Off.

Toggle: Relay: Press -> On; Press same button again -> Off·

Latched: Relay: Press -> On; Press other button -> Off.

Delay time :

Press remote control button, the corresponding relay actuates and keeps working until the time out.

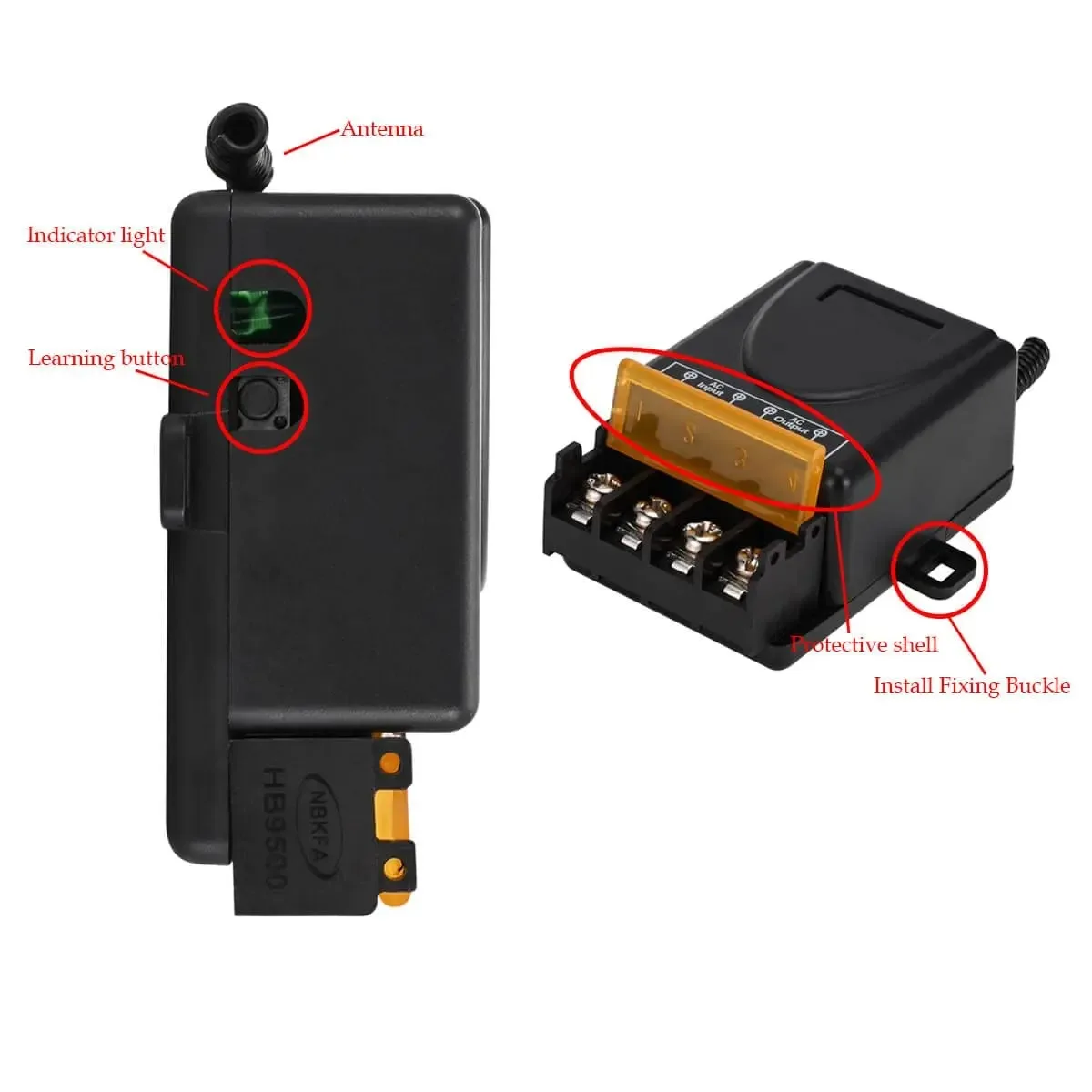

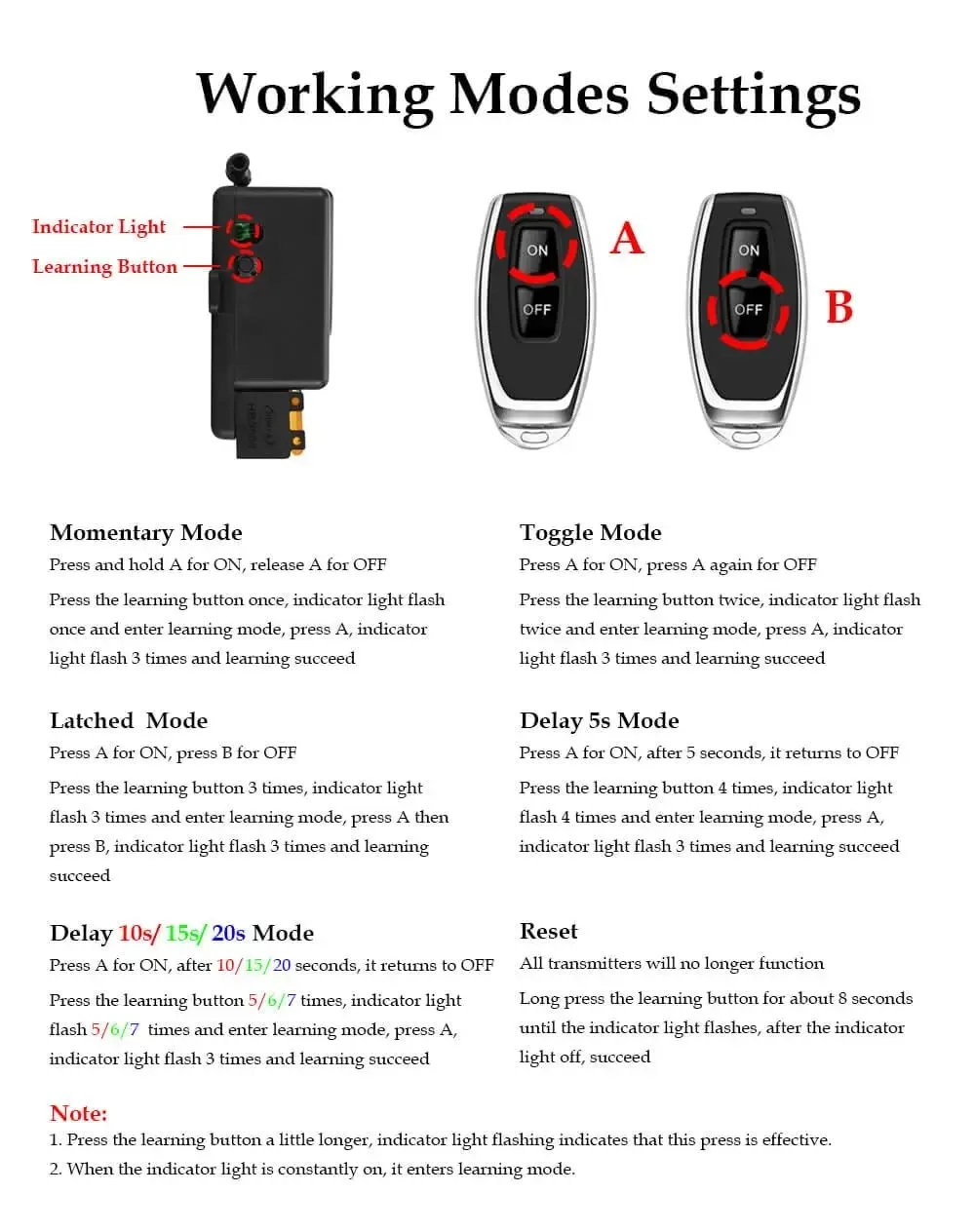

About Learning and clearing Method:

Input 12V for the Receiver ,

Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
