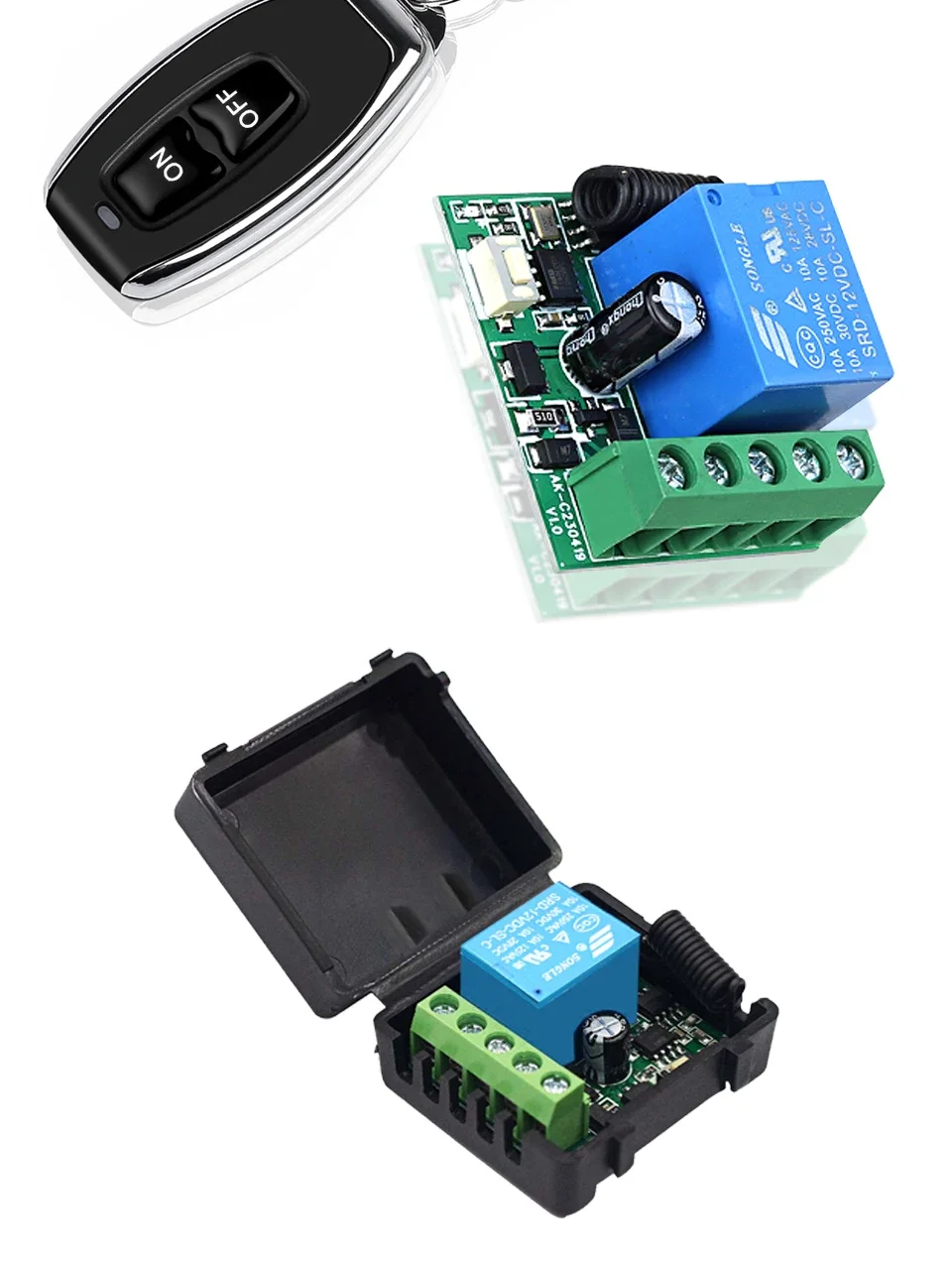

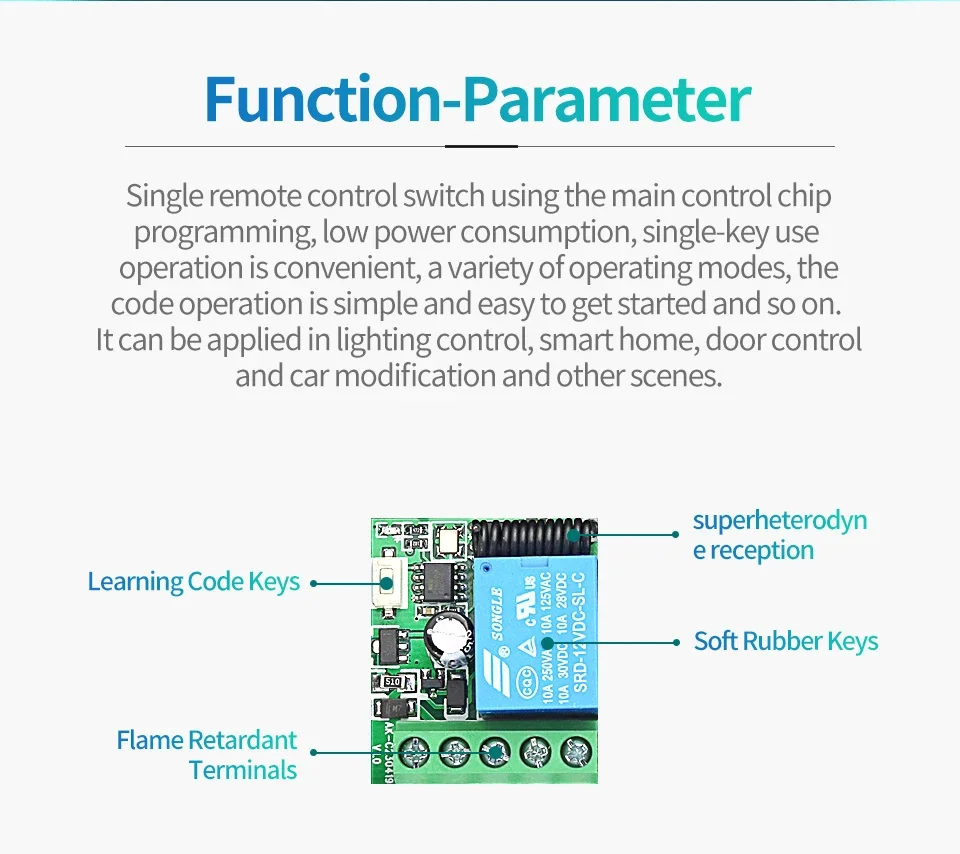

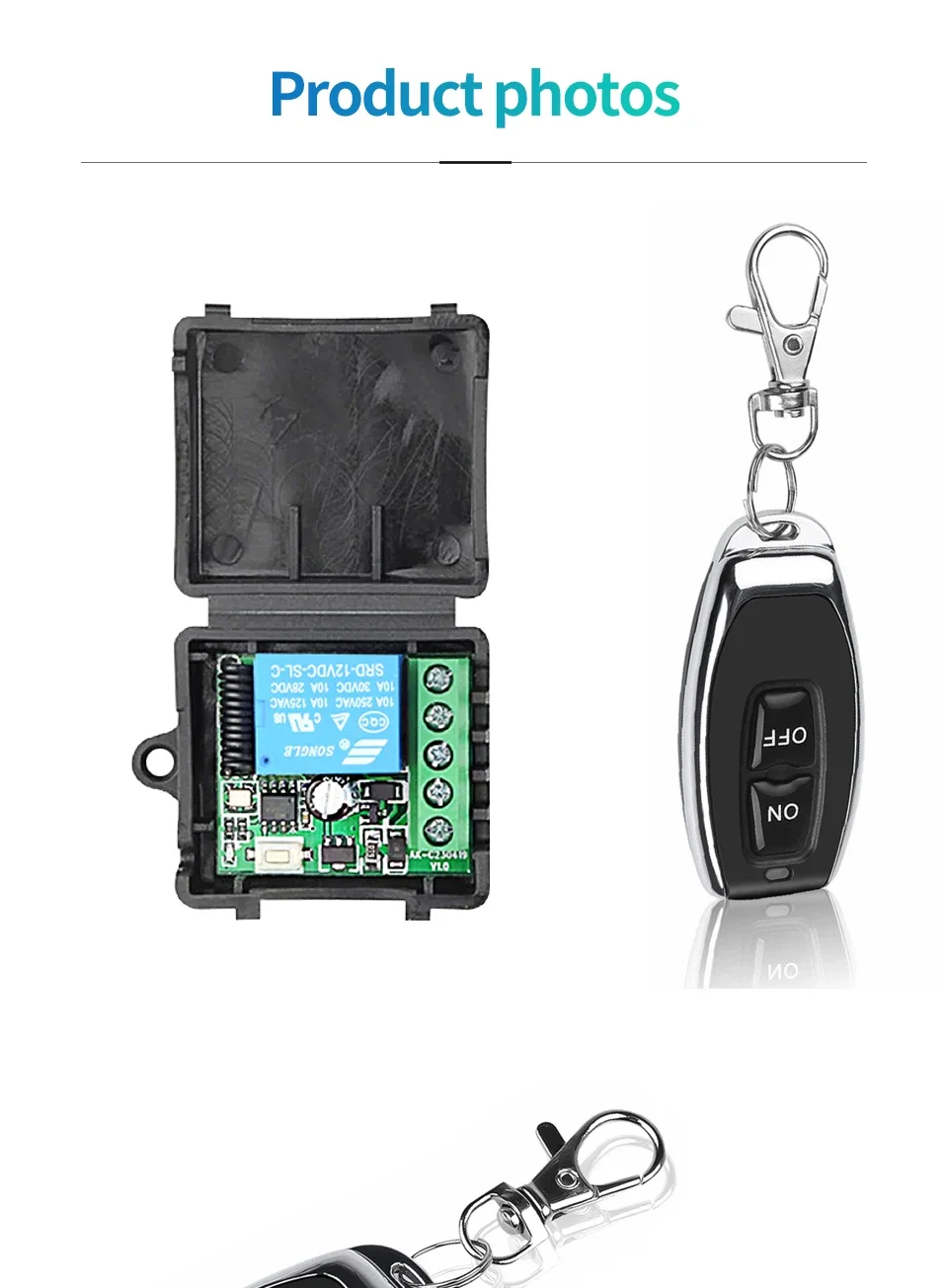

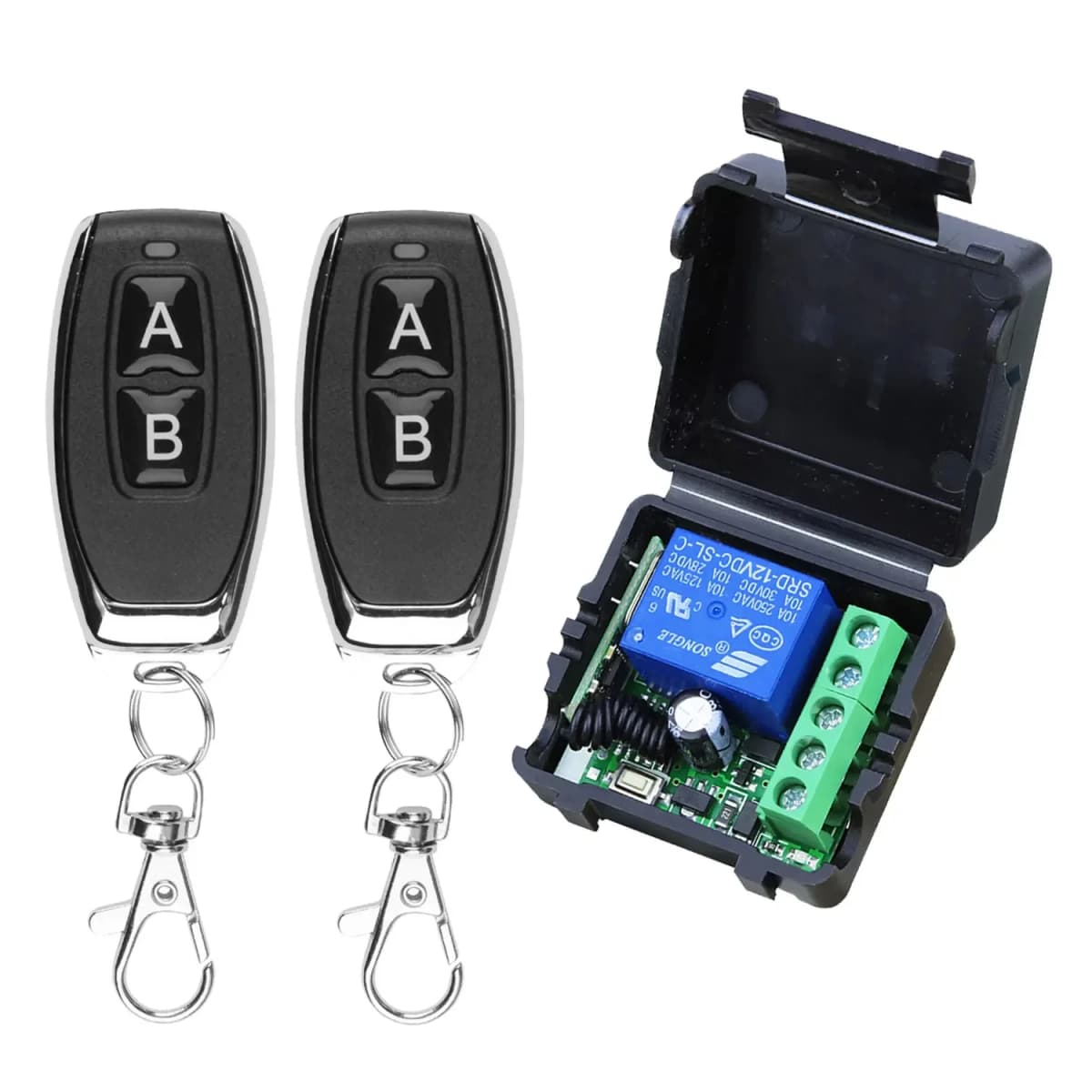

10A Relay Receiver Mini Module Remote Control f 433Mhz Universal Gate Remote Control Switch DC 12V or Gate LED Garage Door

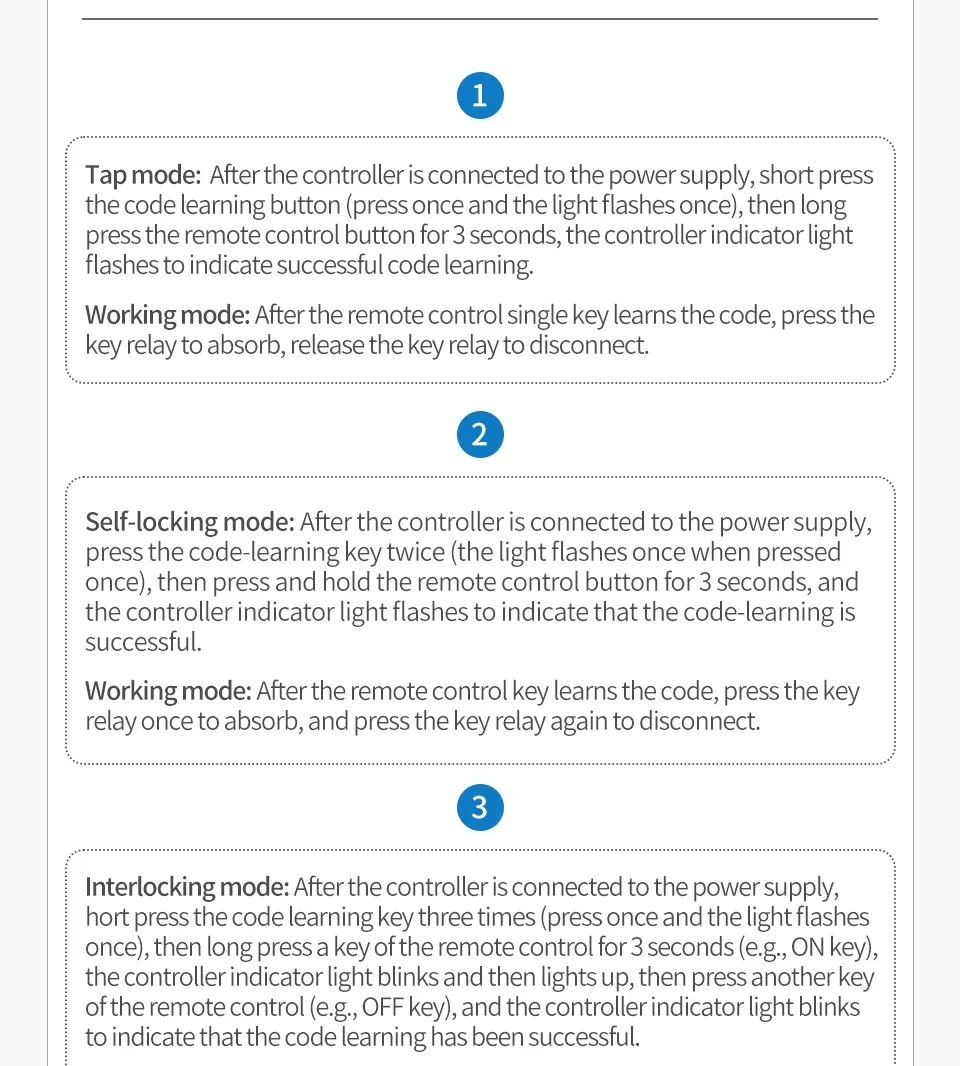

About Working Mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.

Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.

Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

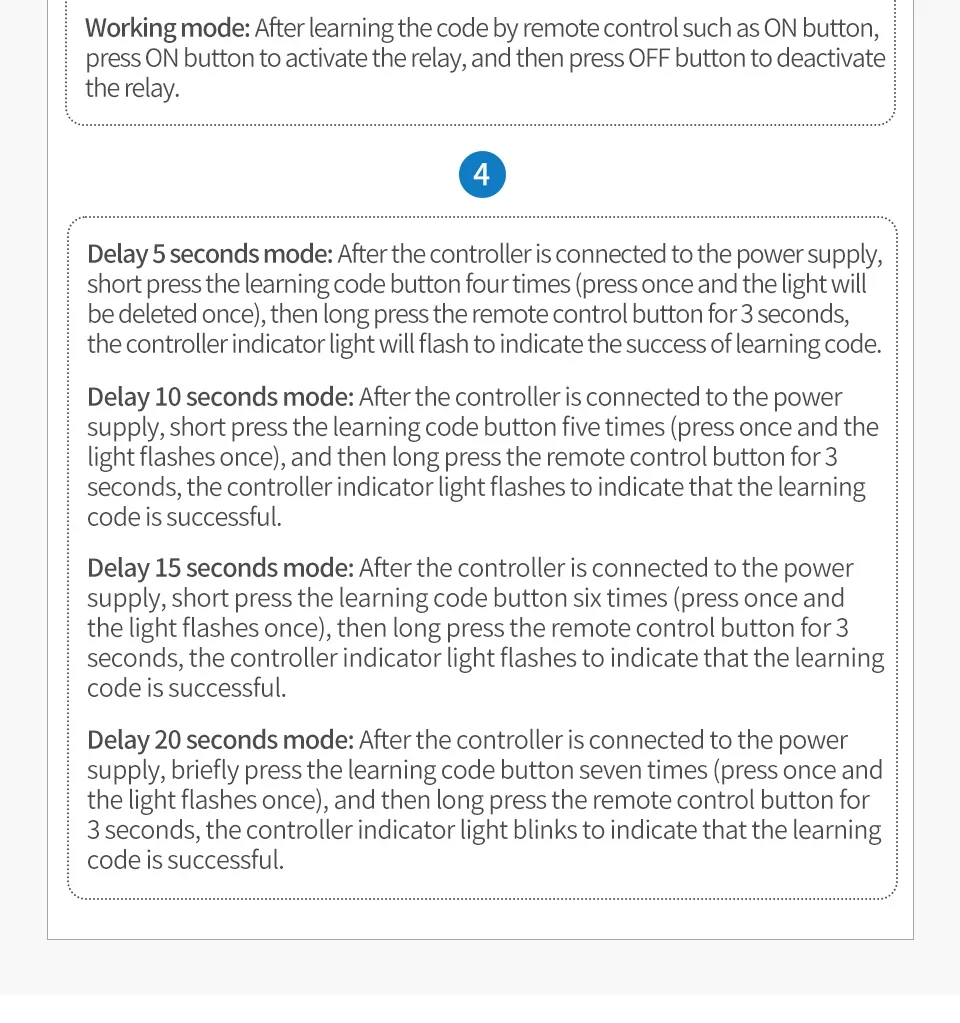

Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s

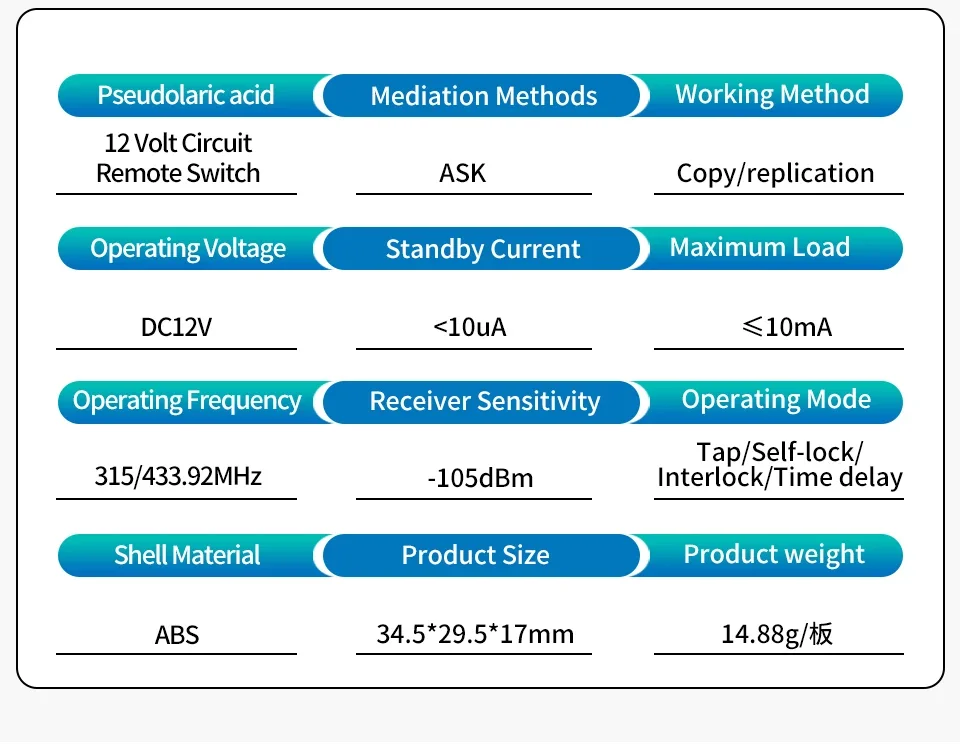

Specifications:

Receiver(switch)

Input voltage: DC 12V

Working current: 10A

Maximum load power: 110W

Frequency: 433Mhz

Support encoding format: EV1527

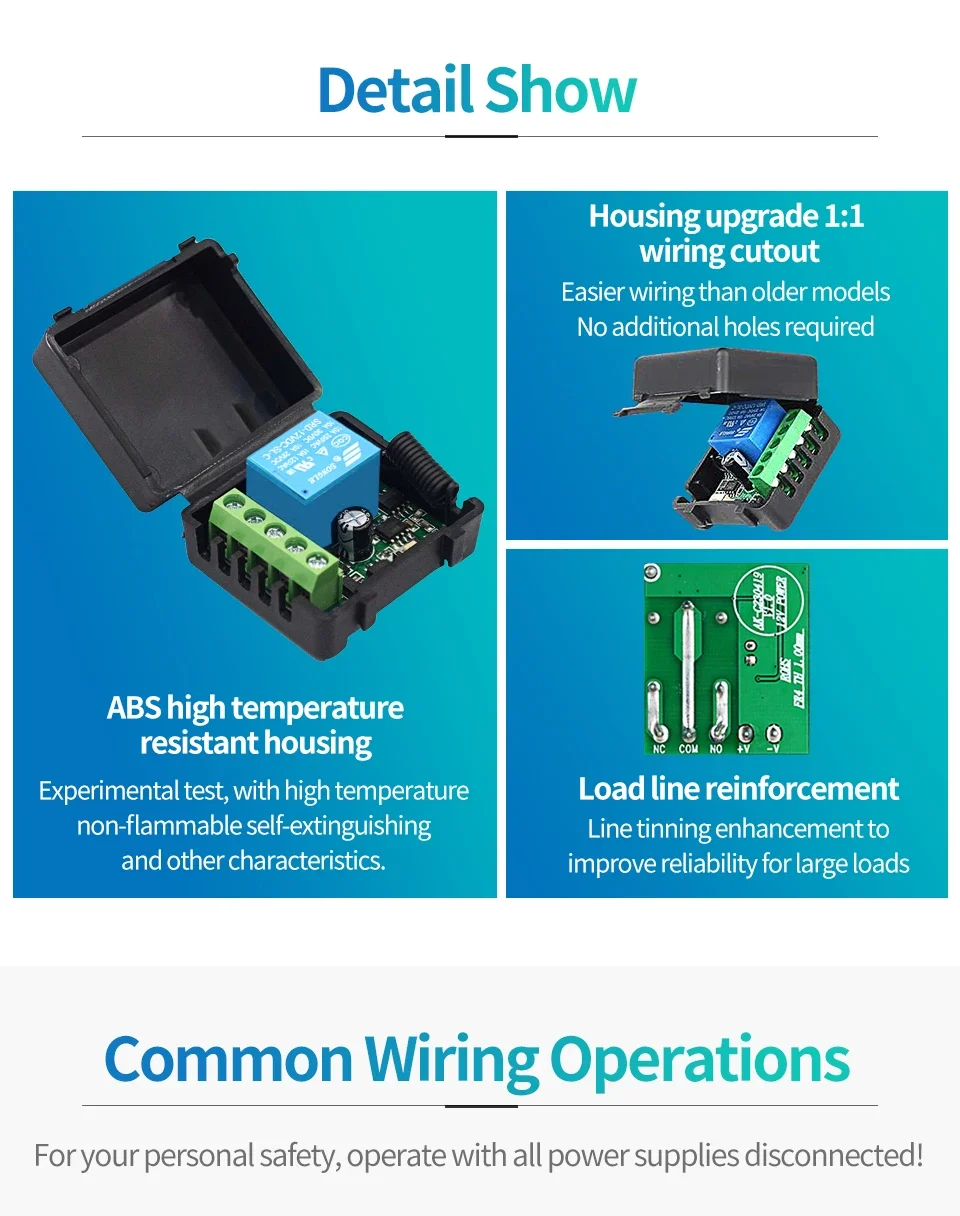

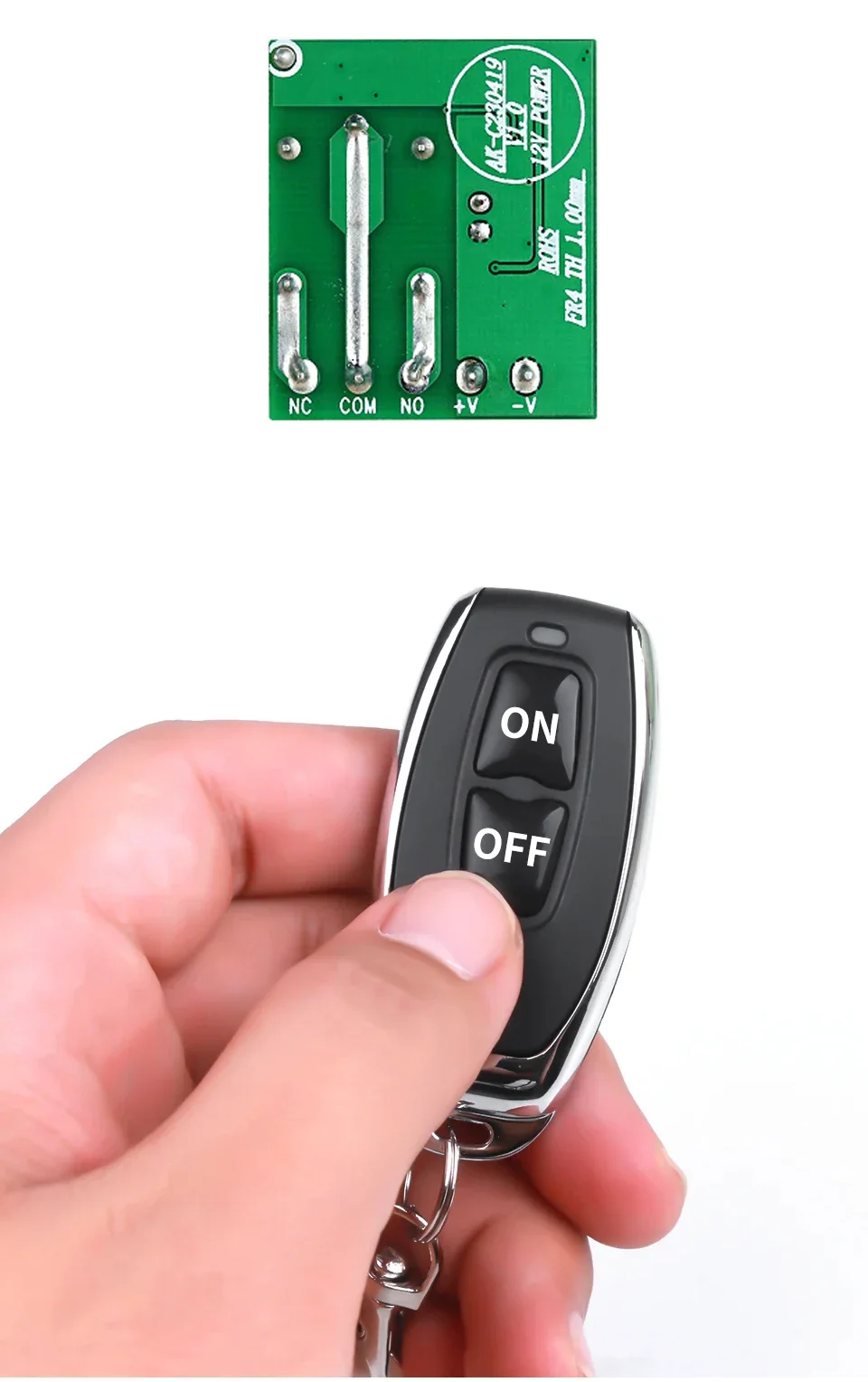

Wiring method: NC COM NO

Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

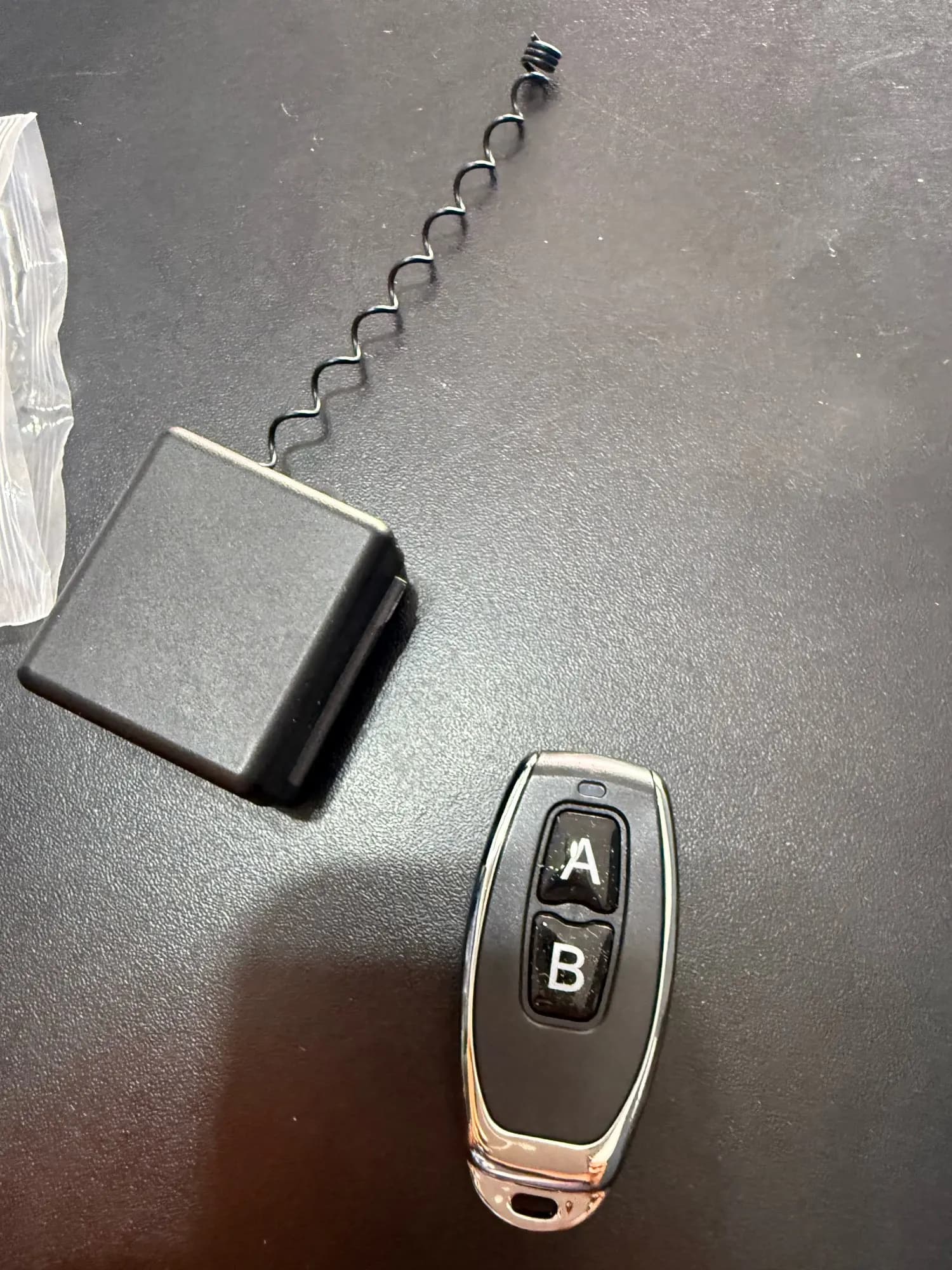

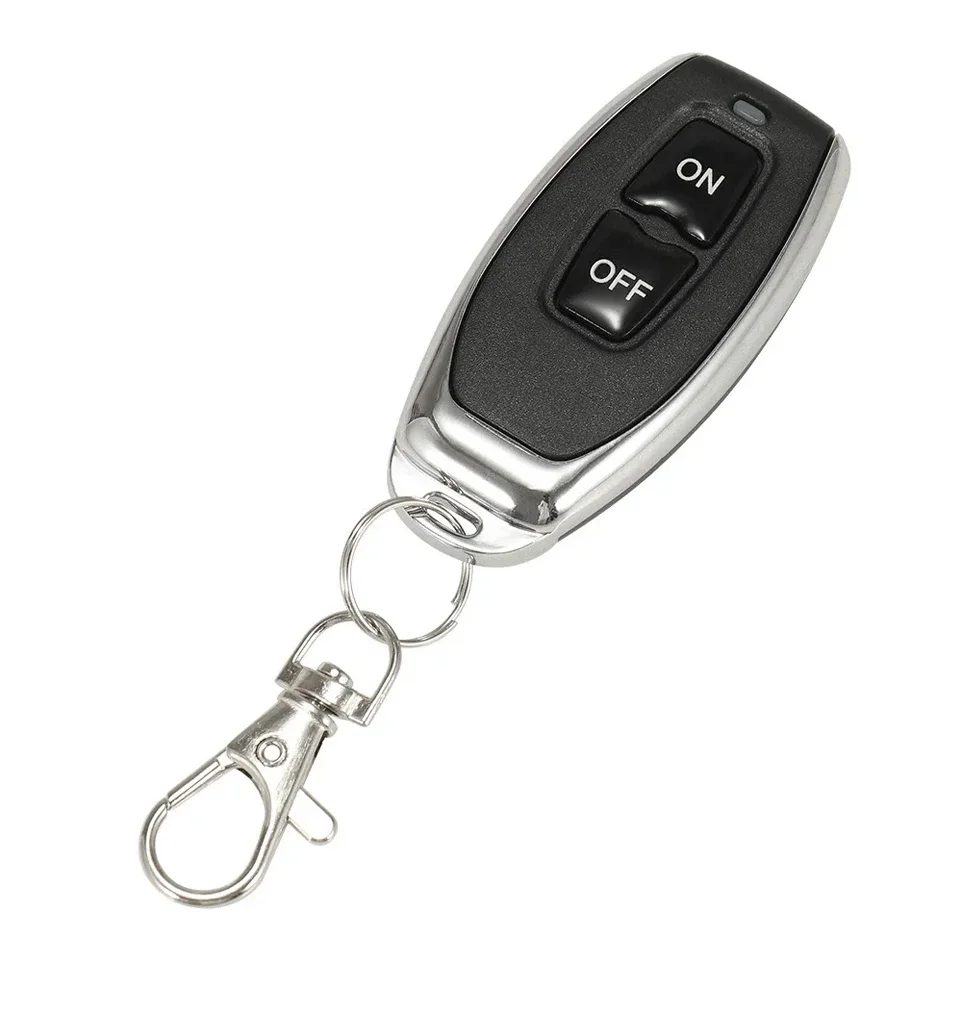

Remote Controller:

Operating RF Frequency: 433MHz.

Coded System: 1527 Learning Code.

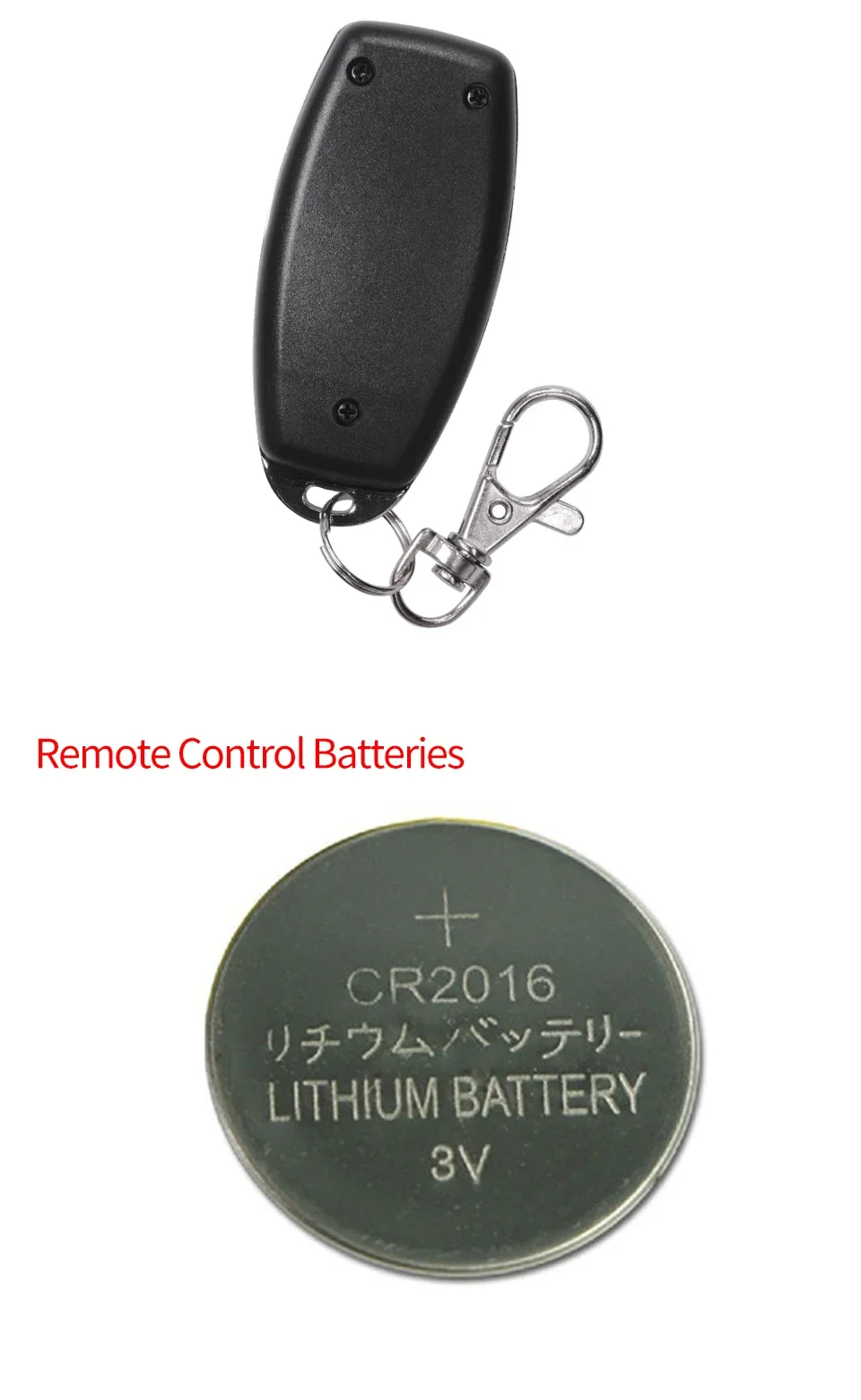

Working Voltage: DC 3V.

Working Current: <25mA

Transmitting Power: 10mW.

Wireless Operating Distance: 50m(Free Space).

Transmission Rate: 50 ~ 60KHz.

Frequency Deviation: +0.2MHz or -0.2MHz.

Color: Black.

Please Note:

The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
