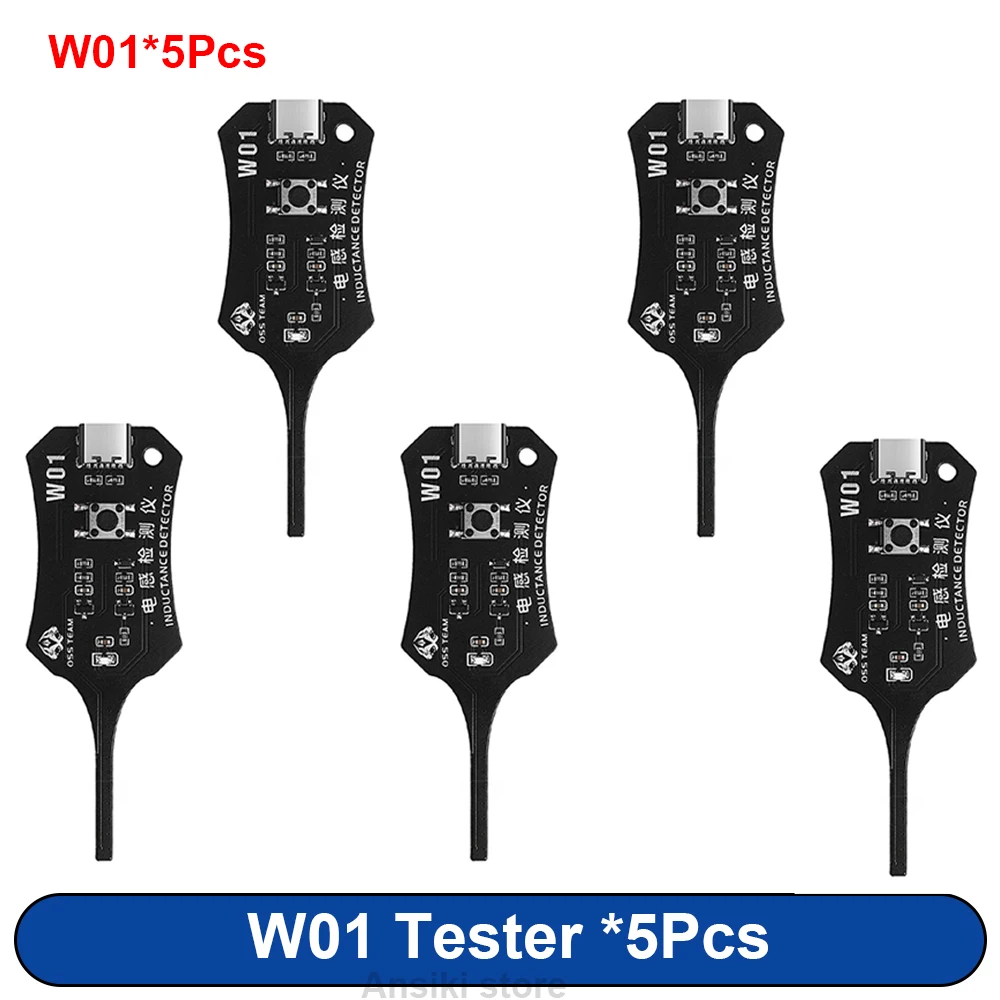

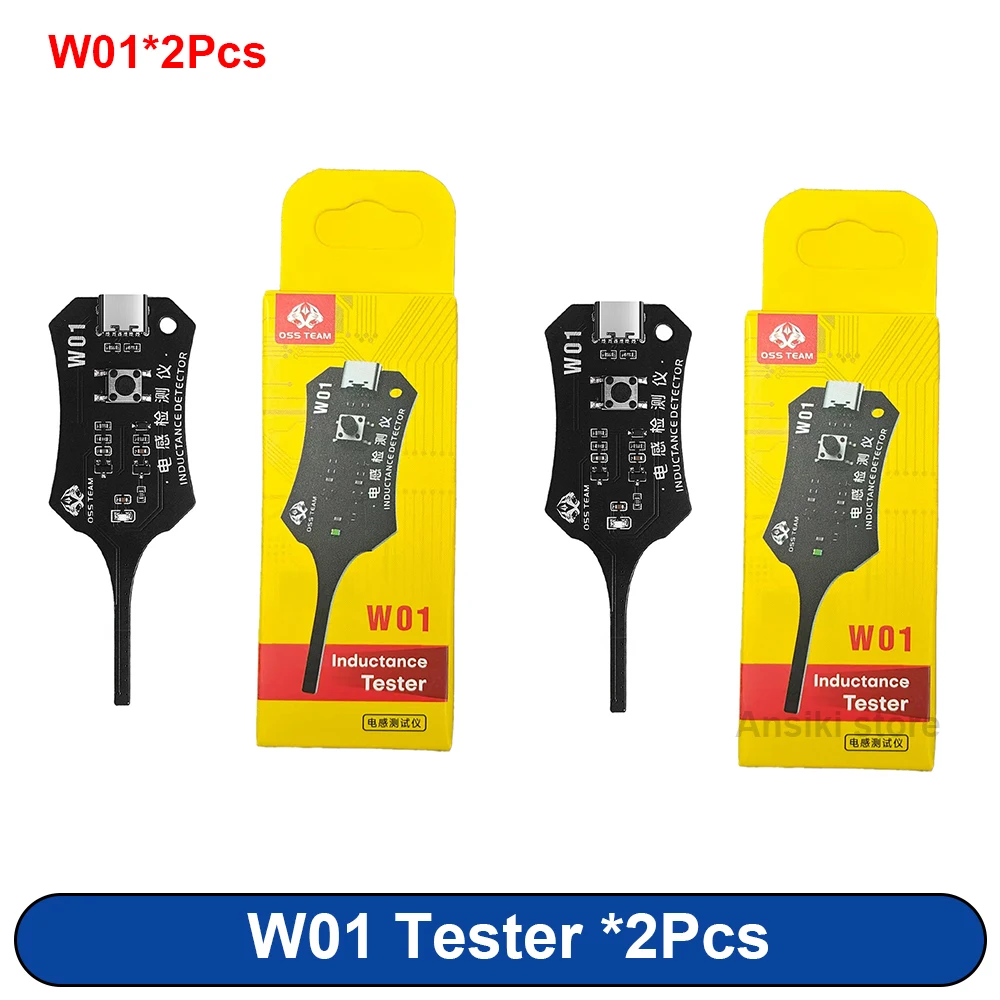

OSS W01 Type-C Inductance Tester Motherboard Coil Tester for Mobile Phone Component Fault Detection and Diagnosis Repair

OSS W01 Type-C Inductance Tester Motherboard Coil Tester for Mobile Phone Component Fault Detection and Diagnosis Repair

Description

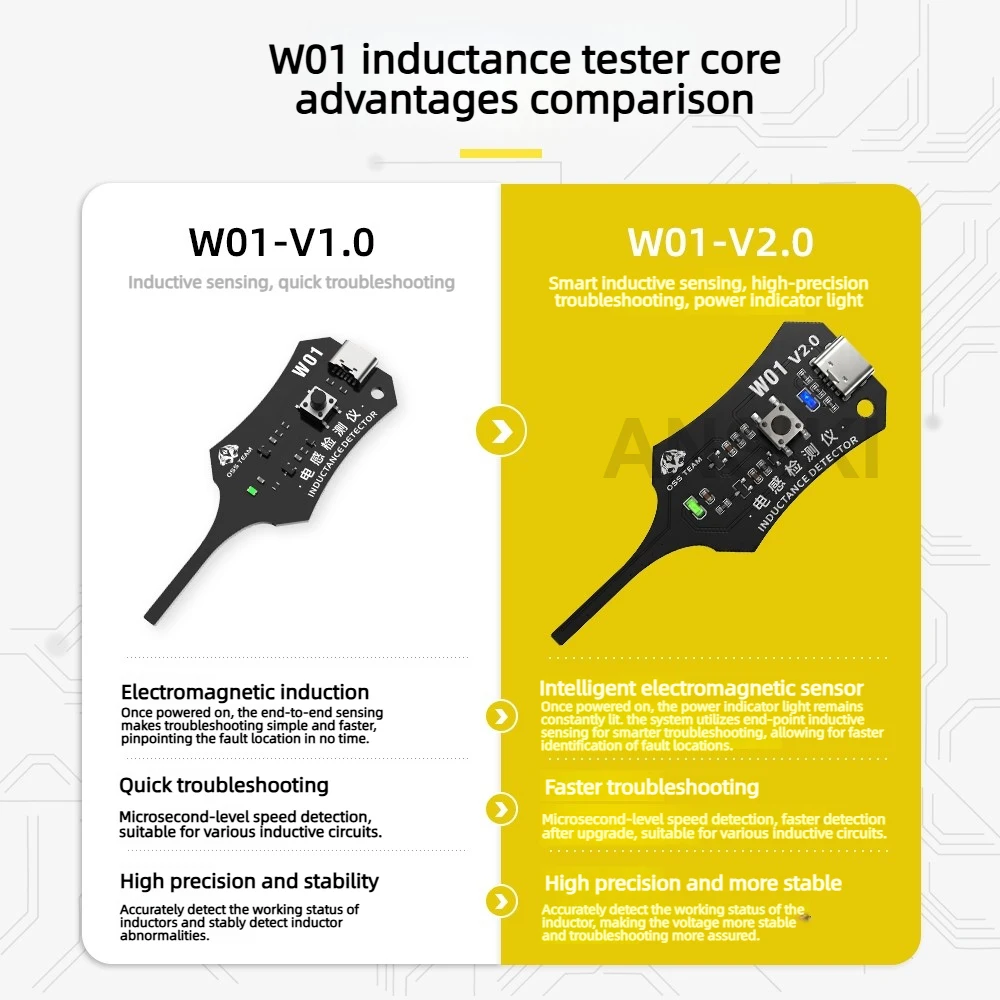

The OSS WO1 inductance tester features Type-C power supply, high precision, strong stability, easy operation, and quick troubleshooting. It detects inductance by proximity: indicator light on means normal, off means abnormal.

How to use:

1. Plug In charger lead

2. Press button, the sensing end is close to the inductance to be detected

3. When the indicator light is on, the inductance works normally.

4. When the indicator light is not on, it indicates that the inductanceworks abnormally.

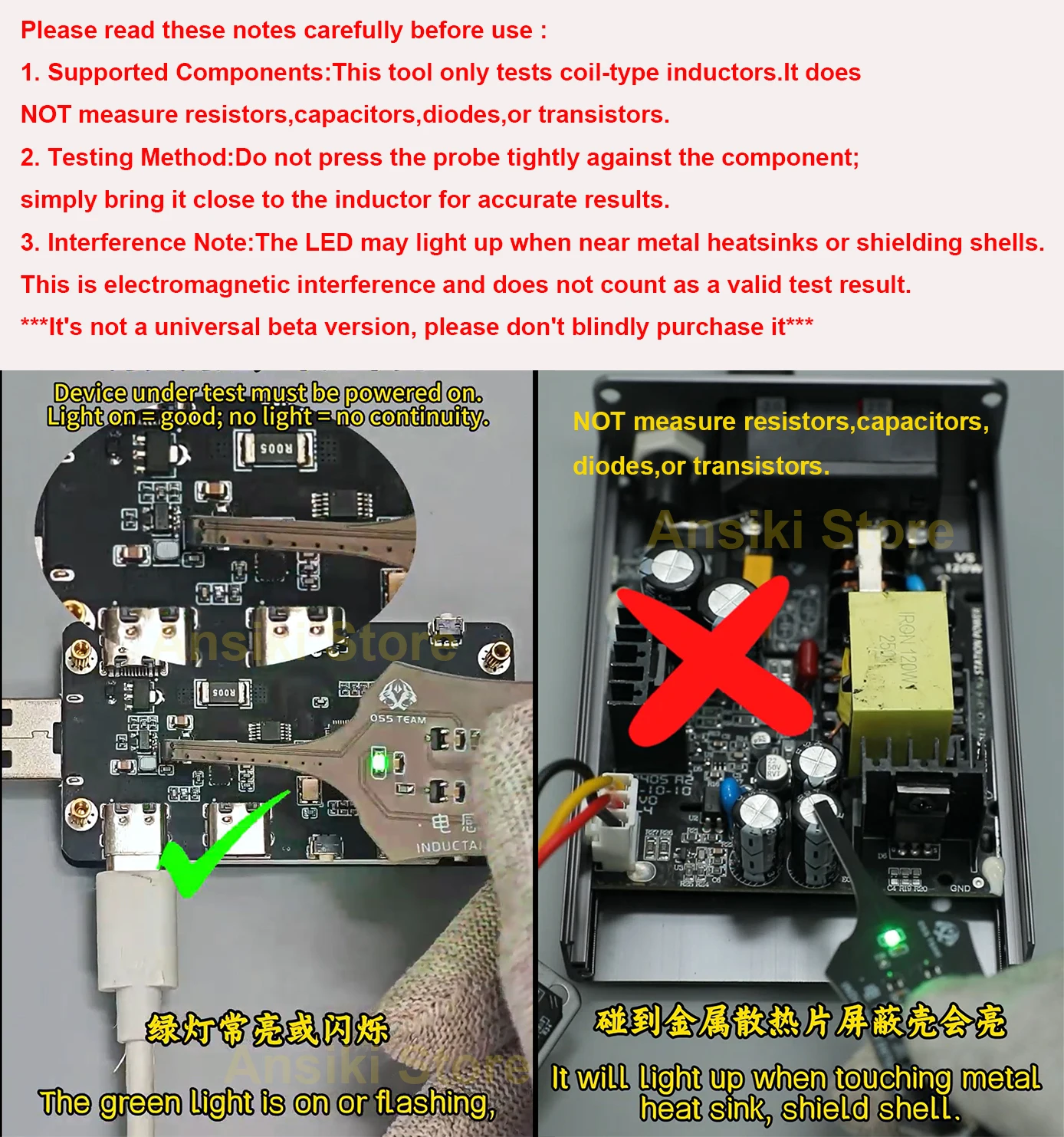

-The operation method is as follows: First, power the tester. At this time, the circuit board is not responding, and the tested circuit board needs to be powered on before testing. When testing the inductor, press and hold the switch, and place the front end of the small board close to the inductor (do not touch it, some inductors are not insulated). The indicator light on the board will light up, indicating that the tested inductor is normal. If the light on the front end of the inductor is not on, it indicates that there is a problem with the inductor and it needs to be repaired.

Kindly Remind

Please read these notes carefully before use :
*Please read the following precautions carefully before use: This tool only tests coil-type inductors!!! which are components marked with an `L` on the motherboard. It does not support measurements for other components, such as resistors, capacitors, diodes, or transistors.

Note: Due to the difficulty in testing inductors during maintenance, this specialized tool for testing inductors is produced to facilitate testing and maintenance.

-Special Reminder: This W01 model inductance tester only provides inductance testing function and is not a universal small board!!! Please make rational purchases!!

Product details
