AG A1-500 5-Axis Milling Machine for CAD/CAM Dental Milling Machine Smart grinder Ai400 Intelligent Grinder

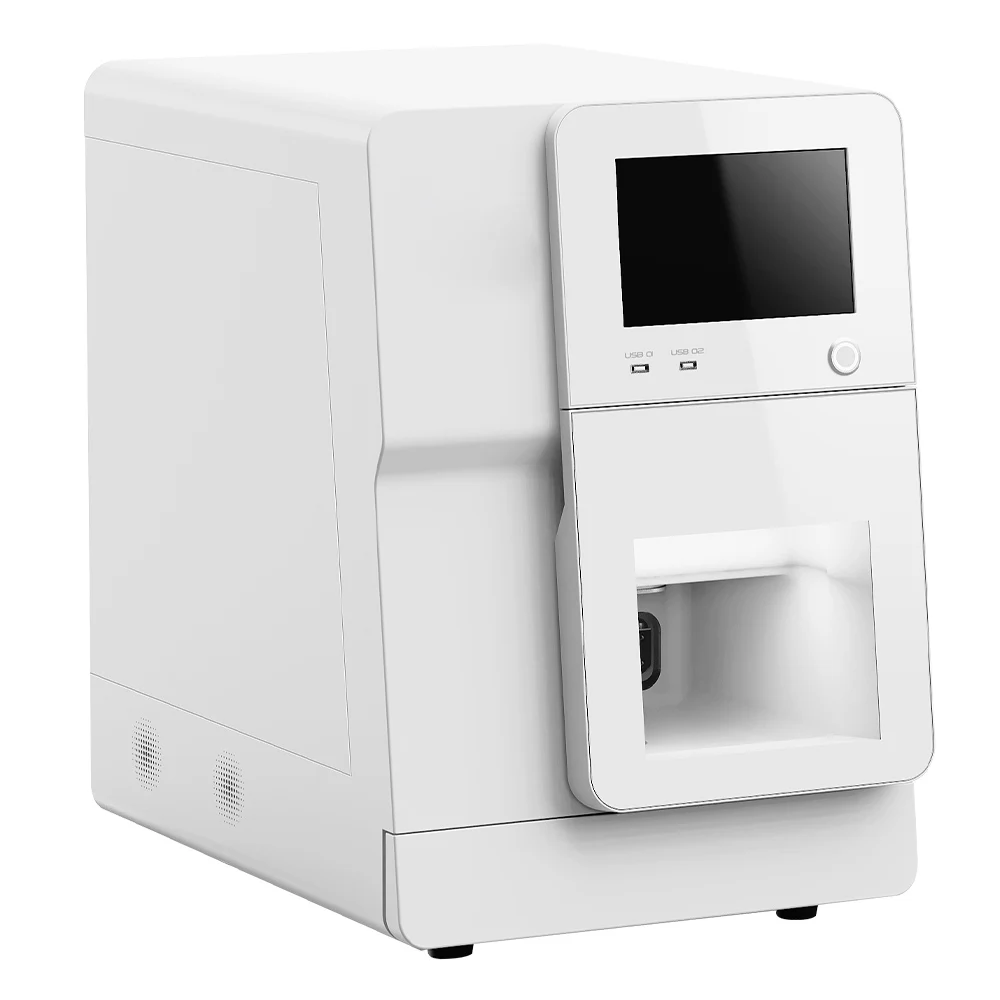

Product Name:Ai400 Intelligent Grinder
Tool magazine: Removable tool magazine design, accommodating six tools.
Integrated Structure: A one-piece casting frame provides long-term stability.
Embedded Computer: An 8-inch touchscreen provides easy operation.
Automatic Calibration: Eases maintenance, time, and effort.
Pure Water Processing: Only pure water is required for processing glass and ceramics.
Long-Life Spindle: Low pressure, high speed, and low heat generation.
Large-Capacity Water Tank: Equipped with a built-in water tank with a capacity of up to 3.5L.
Product Parameters:
Materials: Common block materials up to 45mm in length, glass ceramics, titanium posts, composite materials, cobalt-chromium, etc.
Restoration Types: Crowns, bridges, inlays, abutments, veneers
Data Interface: USB, RJ45 Ethernet
Air Pressure Requirement: 0.4-0.8 MPa; Air Purity Compliant with ISO 8573-1:2010, with refrigerated dryer
Processing Method: Wet Grinding
Construction: Solid cast aluminum
Axis Count: Four
XYZ Axis: Precision ball screws, precision stainless steel guides Repeatability ±0.005mm, precision motor.
A-axis: Utilizes a precision motor and precision harmonic reducer, with a repeatability of ±0.01°. A-axis travel: ±360°.
Spindle: Maximum speed 60,000 rpm, supports tools with a shank diameter of 4mm (optional 6mm) and a maximum total length of 45mm.
Power: 1300W (5S, Pmax), 750W (S6), 500W (S1).
Diameter: 516/386/560mm.
Weight: 60kg.

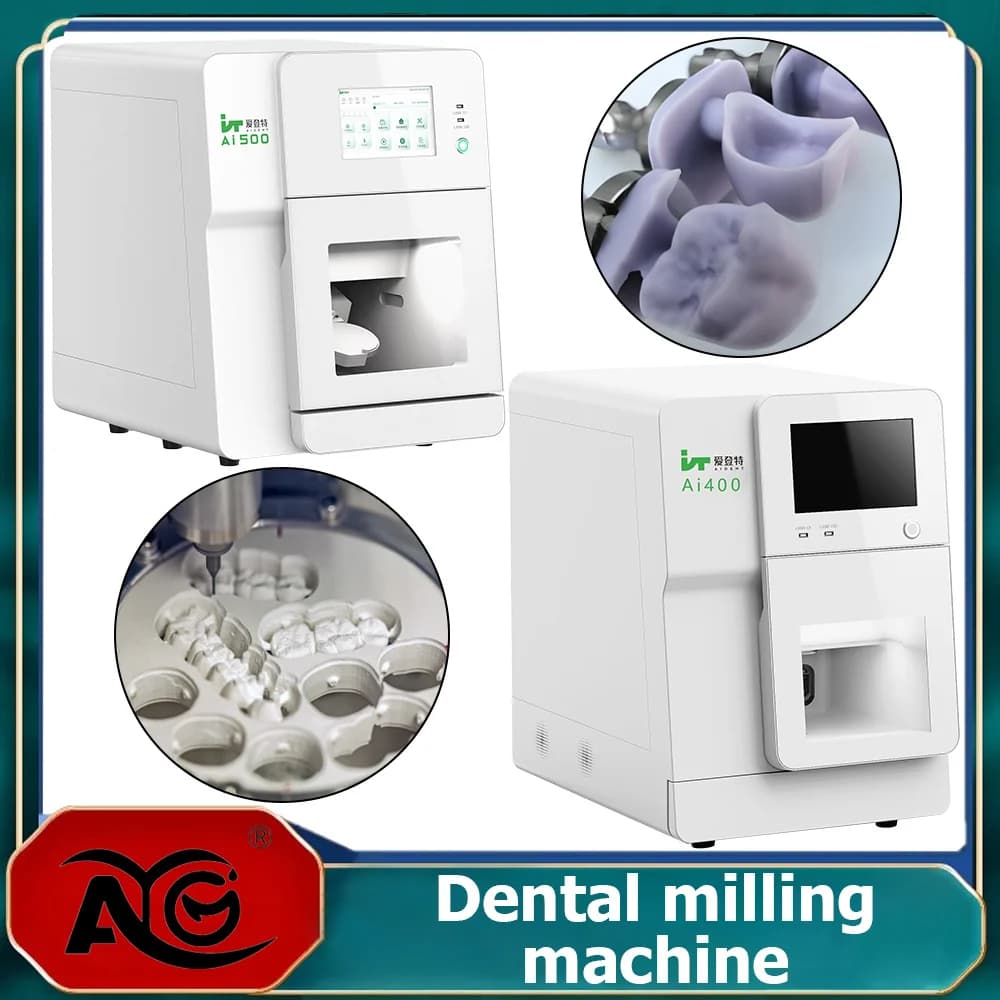

Name: Ai500 Oxide Intelligent Cutting Machine
Secondary Fixture: Saves 30% of material.
Integrated Structure: One-piece casting frame for long-term stability.
Embedded Computer: 8-inch touch screen for easy operation.
Automatic Calibration: Eases maintenance, time, and effort.
90-degree Machining: Provides more precise machining of front teeth.
Long-life Spindle: Low pressure, high speed, and low heat generation.
Excellent Dust Control: Dust collection is aerodynamically designed; dust guards prevent dust.
Product Parameters:
Materials: Zirconia, wax, resin, PEEK
Restoration Types: Crowns, bridges, inlays/onlays, veneers, full dentures
Data Interfaces: USB, RJ45 Ethernet
Air Pressure Requirement: 0.4-0.8 MPa; Air Purity Complies with ISO 8573-1:2010, with refrigeration and drying equipment
Processing Method: Dry Milling
Construction: One-piece solid casting
Axes: Five-axis linkage
XYZ: Precision ball screws, precision guides, repeatability ±0.005mm
A/B Axes: Precision motor, harmonic reducer. A-axis: ±32°, B-axis: 360°
Spindle: Maximum speed 60,000 rpm, shank diameter 4mm, length 50mm
Power: 900W
Body: 495/593/627mm
Weight: 80kg
