STEPPERONLINE Nema 17 Stepper Motor 0.9deg 38mm 30Ncm 1.5A Nema17 Stepping Motor with 4-lead 1m Cable CNC 3D Printer/ Extruder
26.14$
20.39$
Quantity:
1
Availability:
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Manufacturer Part Number: 17ME15-1504S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 30Ncm(42.48oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.0ohms
Inductance: 5.2mH ± 20%(1KHz)
Frame Size: 42 x 42mm
Body Length: 38mm
Shaft Diameter: Φ5mm
Shaft Length: 23.5mm
D-cut Length: 20mm

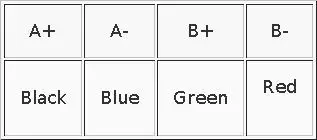

Number of Leads: 4
Lead Length: 1000mm
