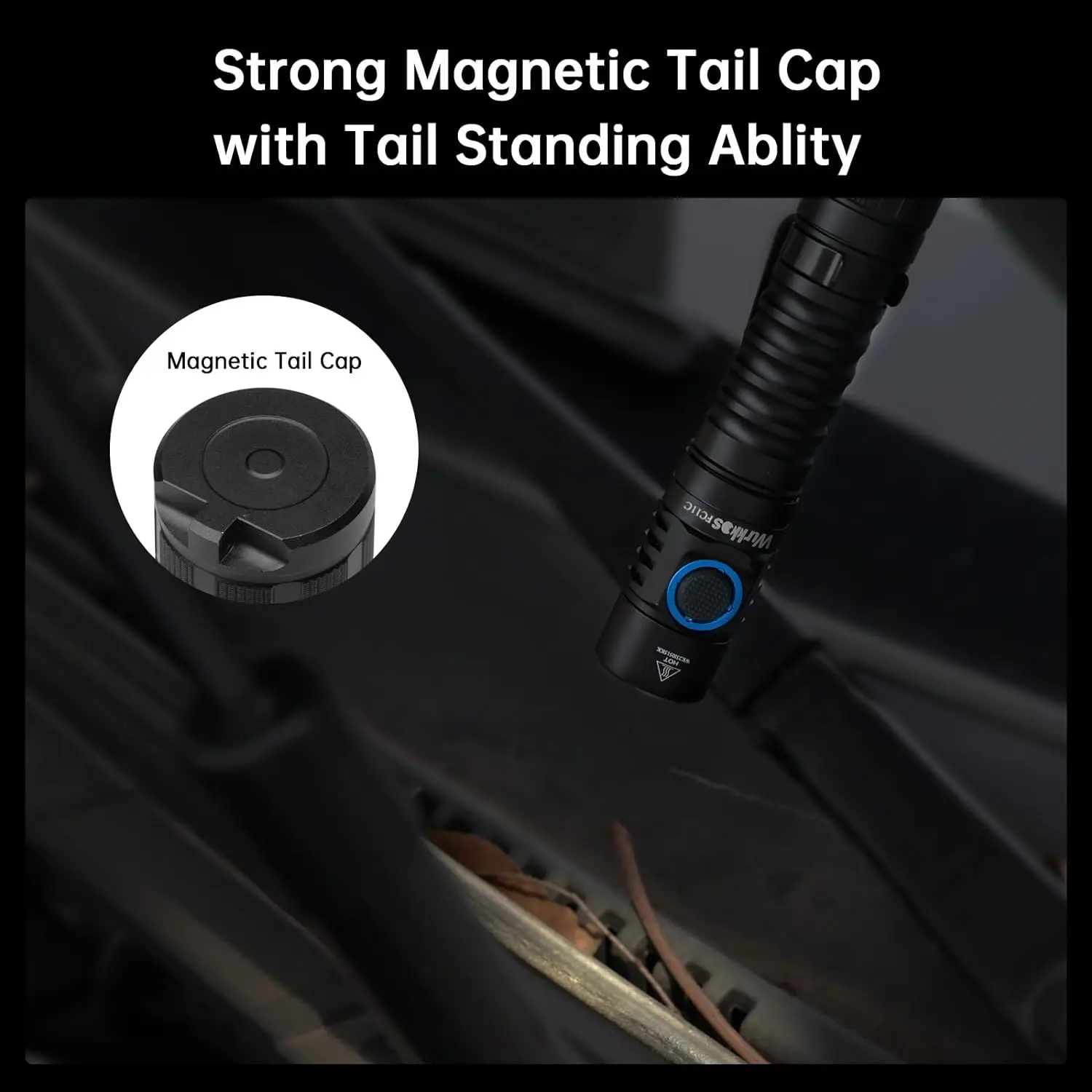

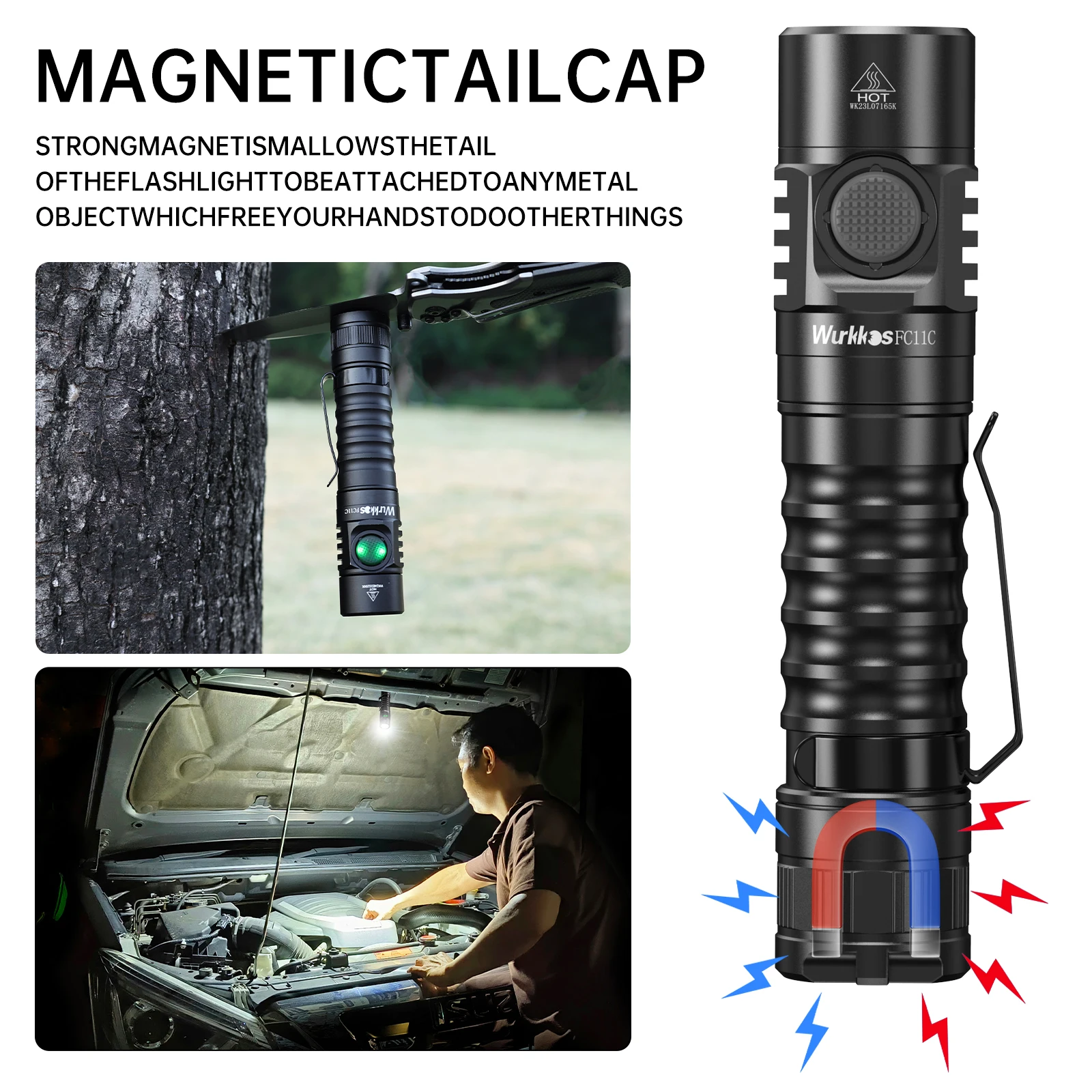

Wurkkos FC11C 519A USB-C Rechargeable EDC 18650 Flashlight Max Output 1200 LM IP68 Waterproof Magnetic Tail Hiking Travel Torch

Wurkkos FC11C

Wurkkos FC11C Nichia 519A Buck Circuit Camping 18650 Flashlight Max ouput 1200Lumens Magnetic Tail USB C Rechargeable EDC Torch

Specifications

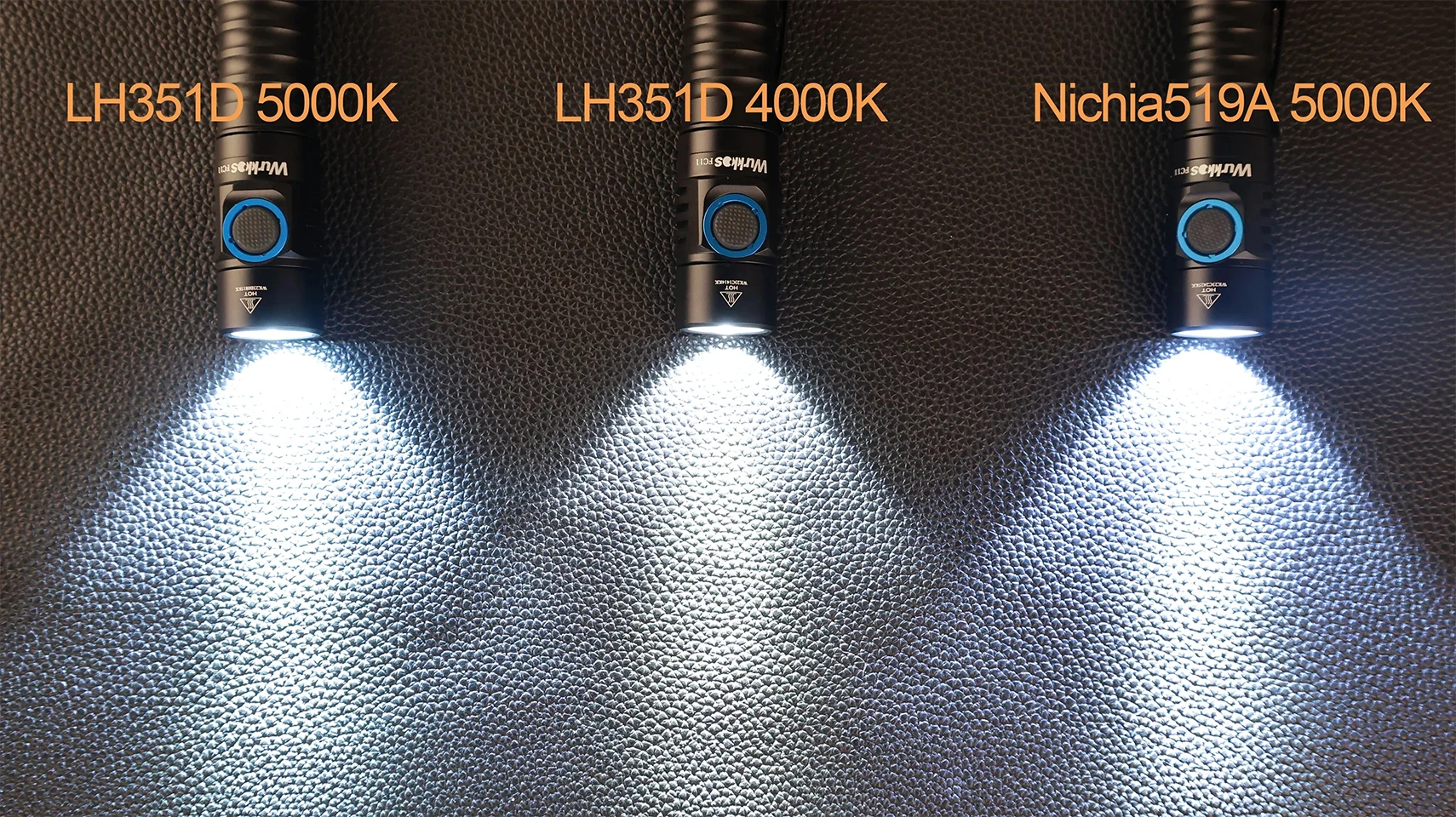

☀Emitter: 1x Nichia 519A 5000K

☀Reflector: Orange Peel reflector

☀Driver: Buck circuit (FC11C)

☀Operating voltage:2.7V-4.2V

☀Battery options: 1x 18650 Li-lon battery

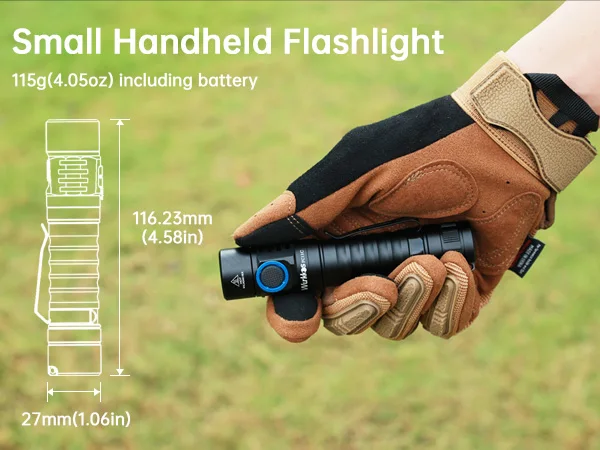

☀Dimension:116.23mm (length) x 27mm (head diameter)

☀Weight: 65 ±1 gram (without battery)

☀Flashlight body: Aerospace grade 6061 grade aluminum alloy, CNC manufactured to hard-anodized to military grade specification type Ill, anti-abrasive finish to get solid built body, anti-crash geometry and better heat exchange.

☀Toughened mineral glass lens

☀Water resistance i.a.w. IPX-8(FC11C)

☀Mode Memory:memorizes the last brightness level used in the general modes (except Strobe)

☀Reverse polarity protection to protect against improper battery installation.

☀Automatic stepdown: Turbo mode steps down after 90 seconds of operation to prevent overheating. To reactivate Turbo mode, doubleclick the side switch once again

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning FC12 on.

♣Green = remaining battery power is good.

♣Red = remaining battery power is poor (less than 30%).

♣Flashing Red = critical power, replace or recharge battery as soon as possible.

Operation Instructions

★ Group 1: Stepped modes (default)

Stepped modes give you fixed brightness levels to choose from: Eco – Low – Mid – High – Turbo.

From OFF single click to turn ON. Press and hold to cycle through stepped modes (Eco – Low – Mid – High). Single click to turn OFF.

Double click to activate Turbo mode. While in Turbo mode, single click to return to the previously used mode.

From OFF, press 1 second to Eco,then keep press and hold to cycle through stepped modes.

★ Group 2: Ramping mode

Ramping mode gives you full flexibility to adjust brightness steplessly from Eco to Turbo level.

From OFF single click to turn ON. Press and hold to change brightness steplessly (“ramp”). Ramping changes its direction when the button is being pressed again within 1,5 seconds. The light flashes once when it reaches the lower or upper end of the ramp. From ON single click to turn OFF again.

Double click to activate Turbo level, triple click to activate Strobe mode. Another single click to return to the previously used brightness level.

From OFF, press 1 second to Eco, then keep press will adjust brightness steplessly

★ Toggle between Group 1 and Group 2

From OFF press and hold the side switch for 3 seconds to switch between both mode groups. Two flashes will confirm the mode group change.

★ Strobe Mode

Triple click to activate Strobe mode. While in Strobe mode, single click to return to the previously used standard mode.

★ Electronic Lockout

FC11C comes with a lockout function to prevent accidental activation, e.g. in one’s pocket or backpack.

From OFF quadruple click to active lockout. Another quadruple click to deactive lockout again and return to the previous mode setting. When the light is locked, the main LED only blinks two times to show the status of being locked.
