Digital Oscilloscope DHO804 70MHz Frequency Band + 12-bit Vertical Resolution + Maximum 1.25 GSa/s Sample Rate + 1000,000

Digital Oscilloscope DHO804 70MHz Frequency Band + 12-bit Vertical Resolution + Maximum 1.25 GSa/s Sample Rate + 1000,000

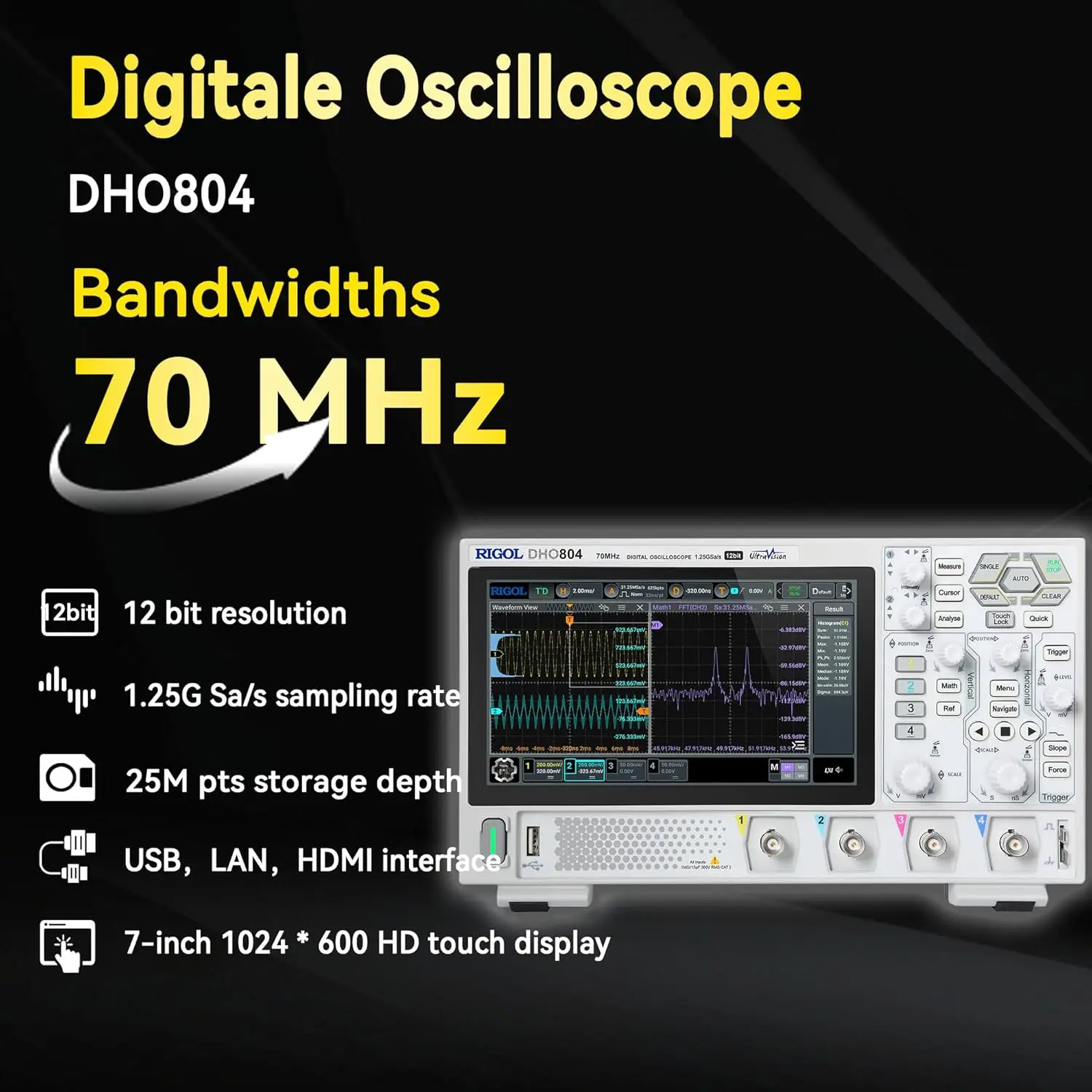

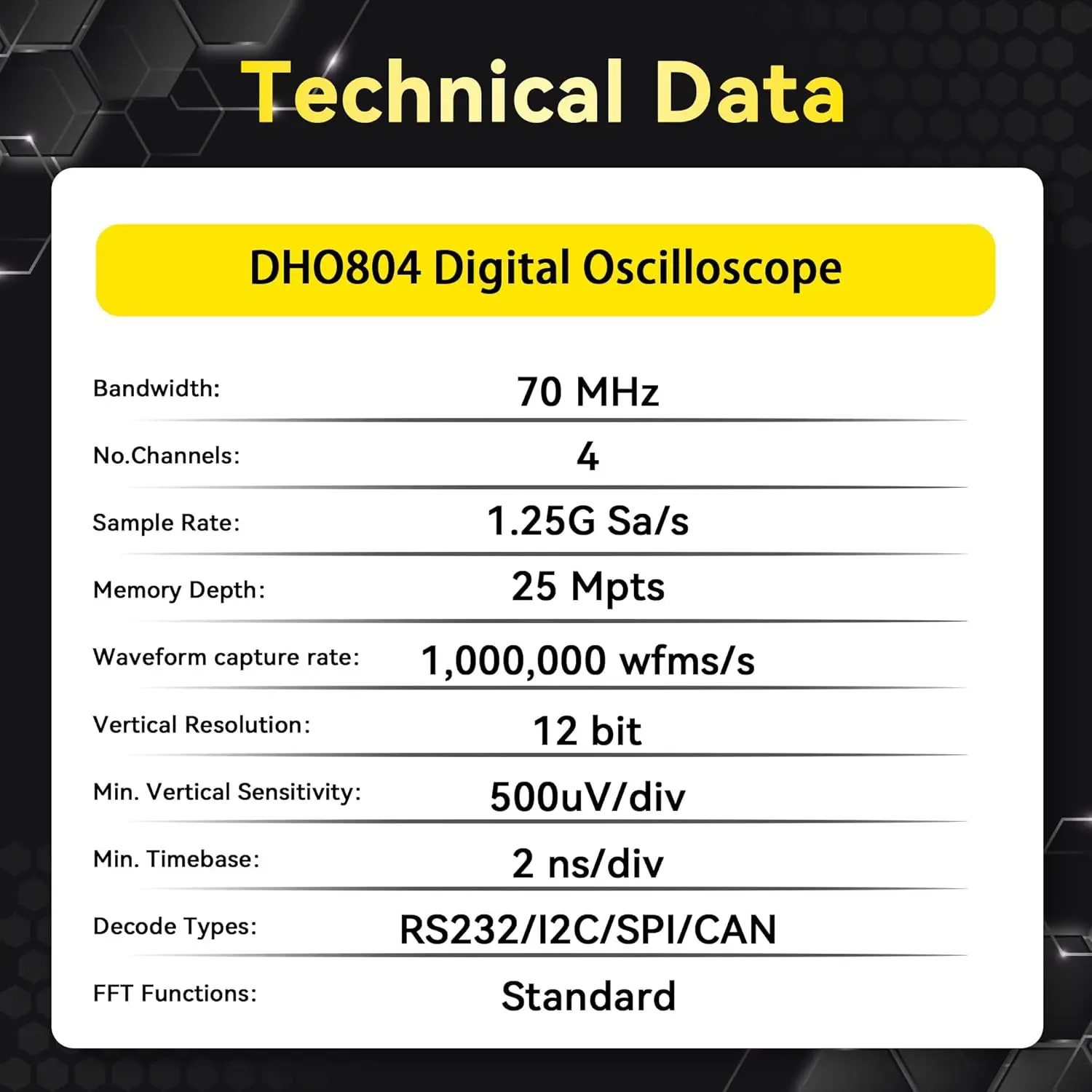

Ultra low background noise makes the signal more pure, no miss a small signal. Provides 12-bit hardware high resolution for all series. Up to 70 MHz analog bandwidth, up to 4 analog channels, dual channel models come standard with external trigger ports. Up to 1.25 GSa/s real-time sampling rates Storage depth up to 25 Mpts Vertical sensitivity range of 500 μV/div to 10 V/div Ultra Aqua mode provides up to 1 million wfms/s waveform capture rate
Supports gray scale digital real-time brightness function on the 256 floor. Supports waveform search and navigation function to quickly identify signal abnormalities. It has a 7 inch 1024 * 600 high definition touch screen. The new Flex knob provides an easier to use interactive experience. USB Device & Host, LAN, and HDMI ports come standard with all models. New design provides convenient maneuverability. Supports online version upgrade

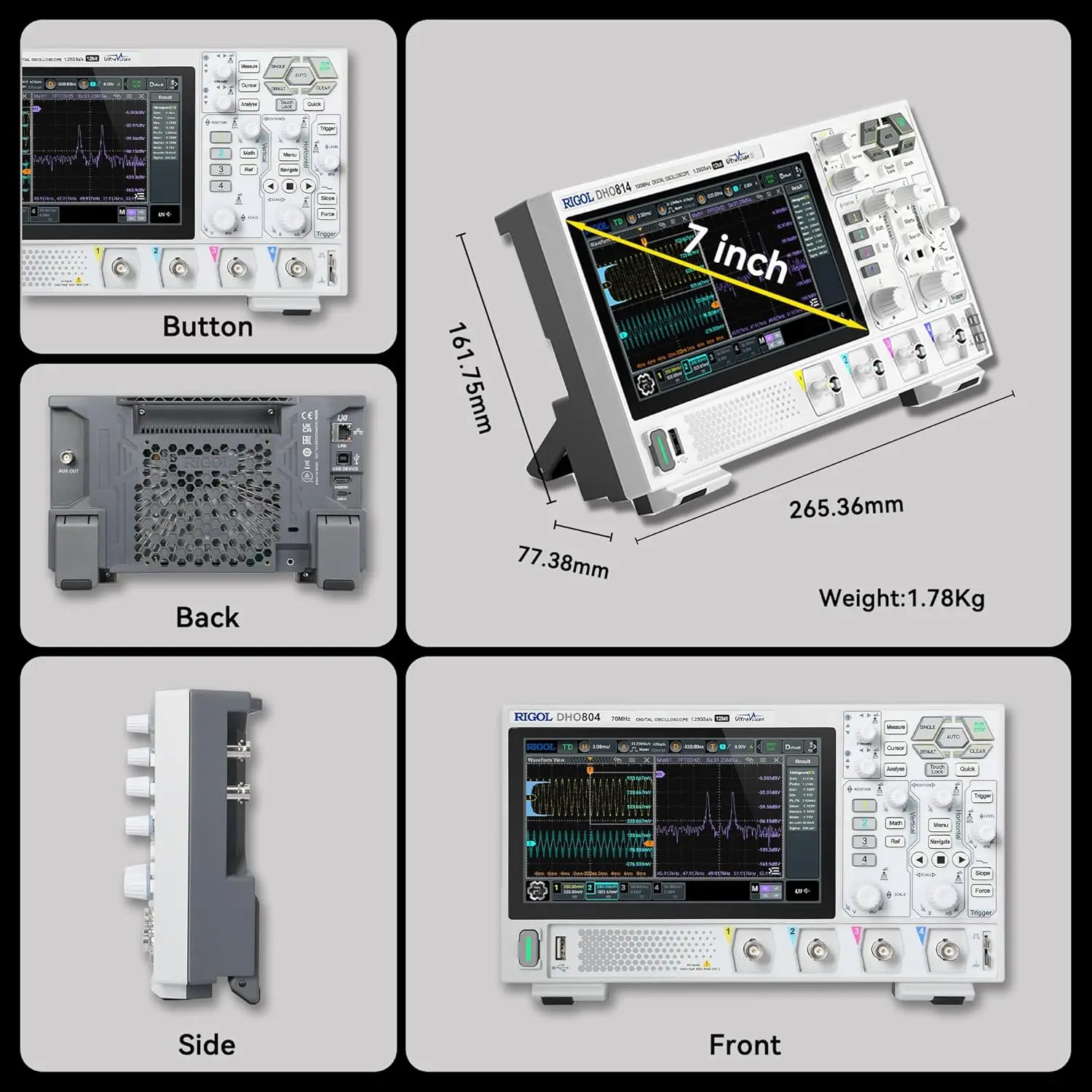

Product Weight: 3.9 lbs (1.78 kg). Dimensions: 10.5 x 6.4 x 3.0 inches (265.36 x 161.75 x 77.38 mm)

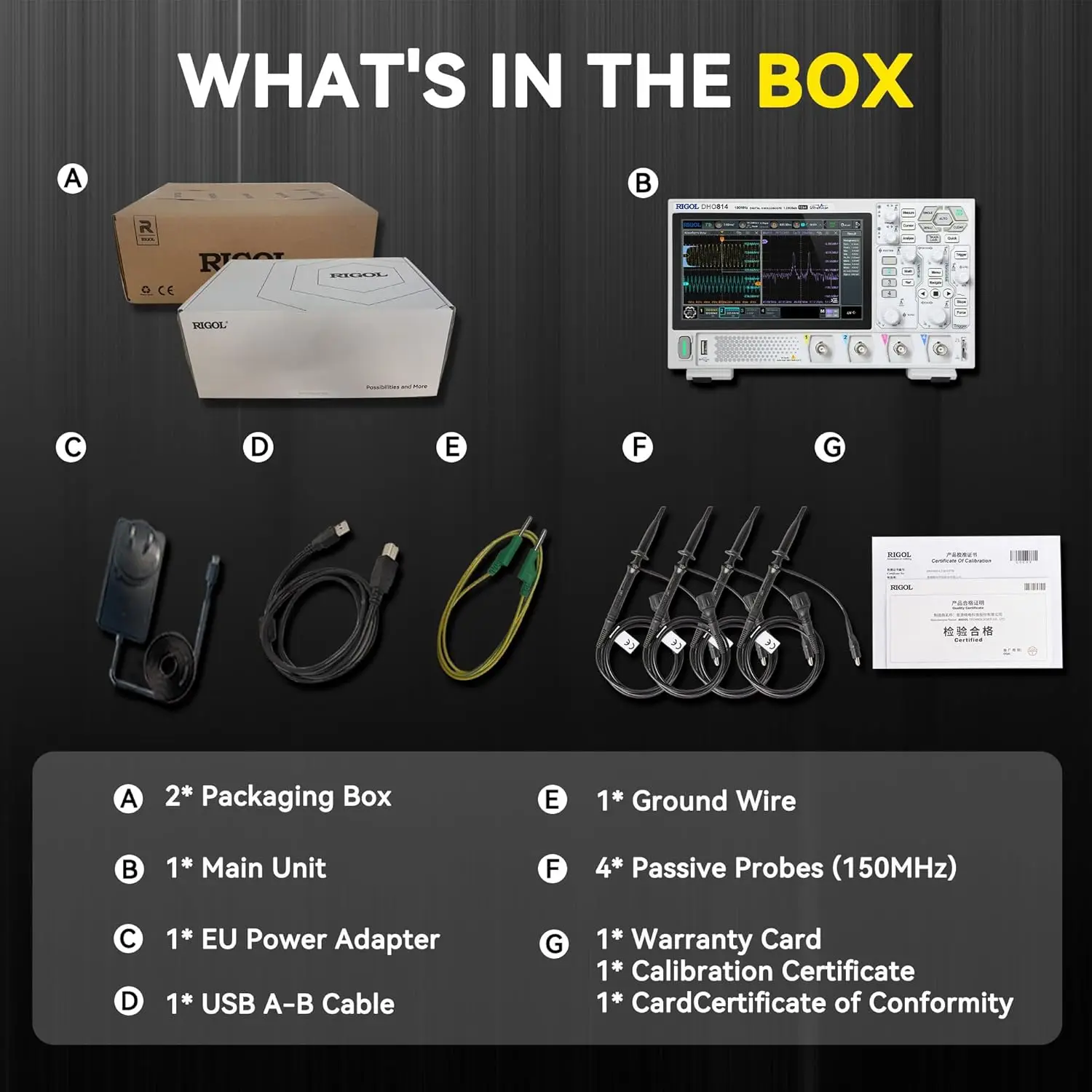

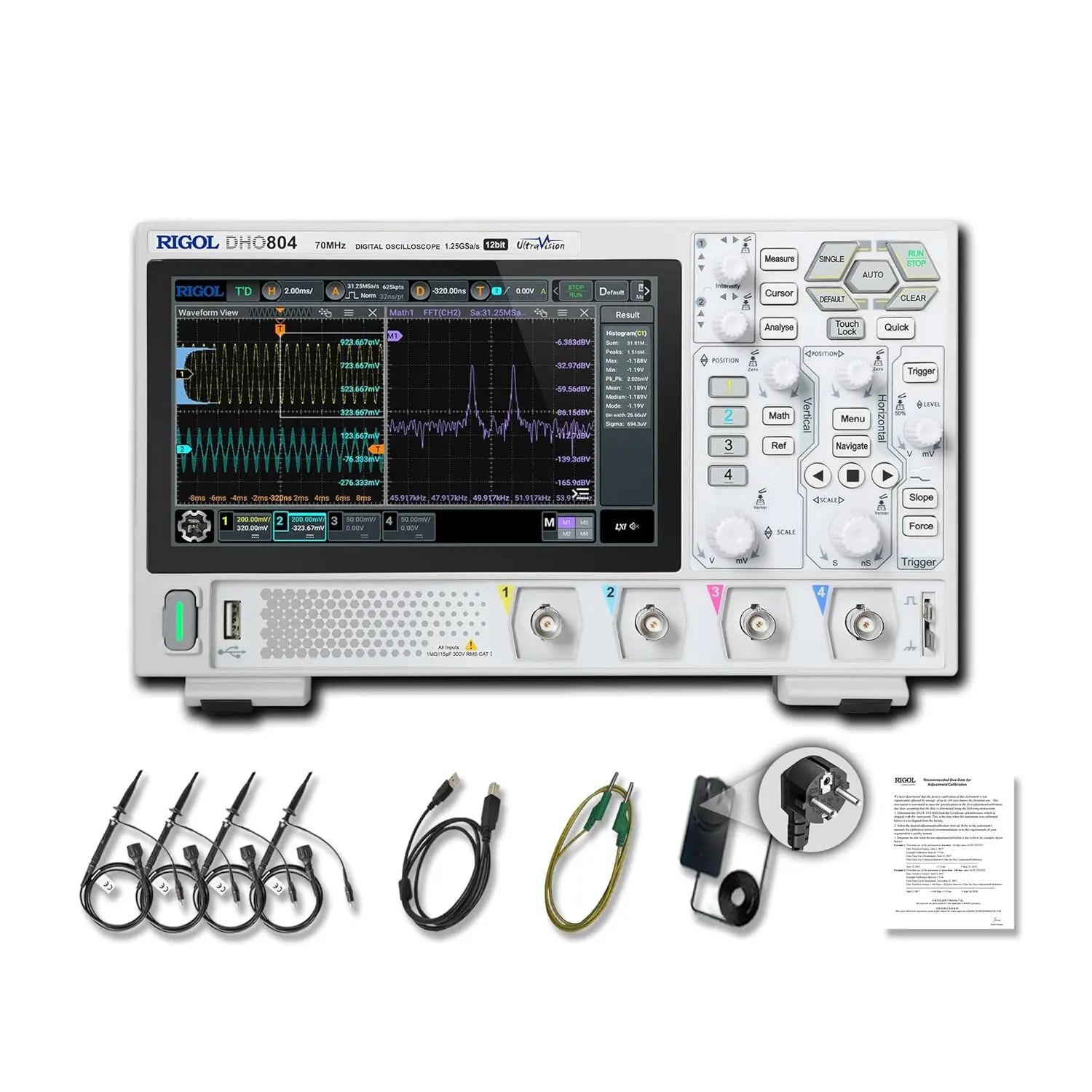

Accessories: Power cable, USB cable, ground wire, probe x 4
