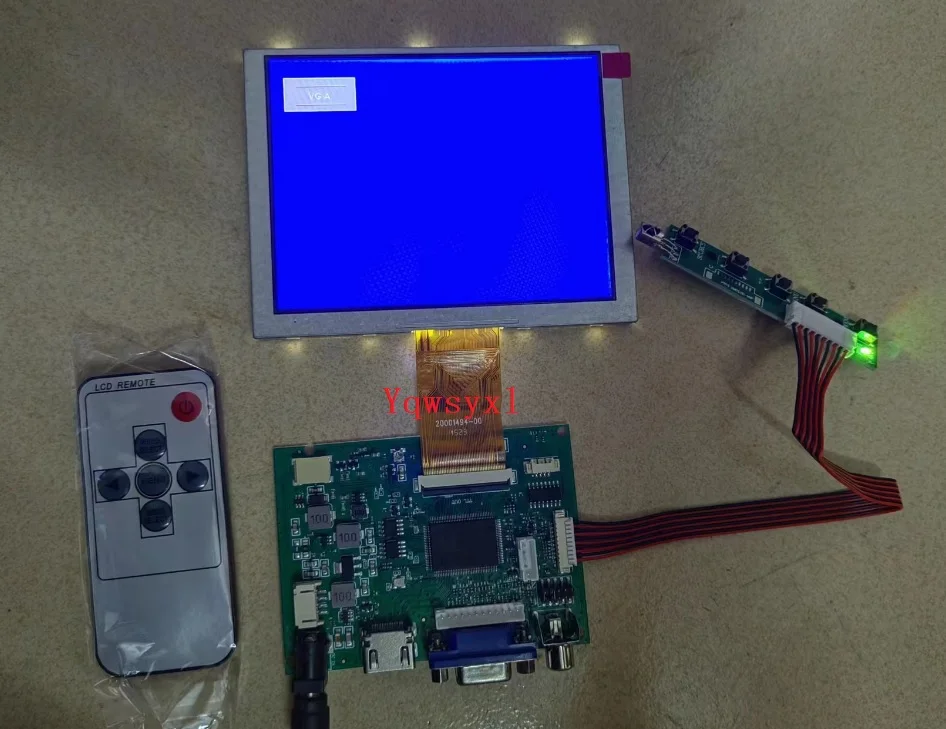

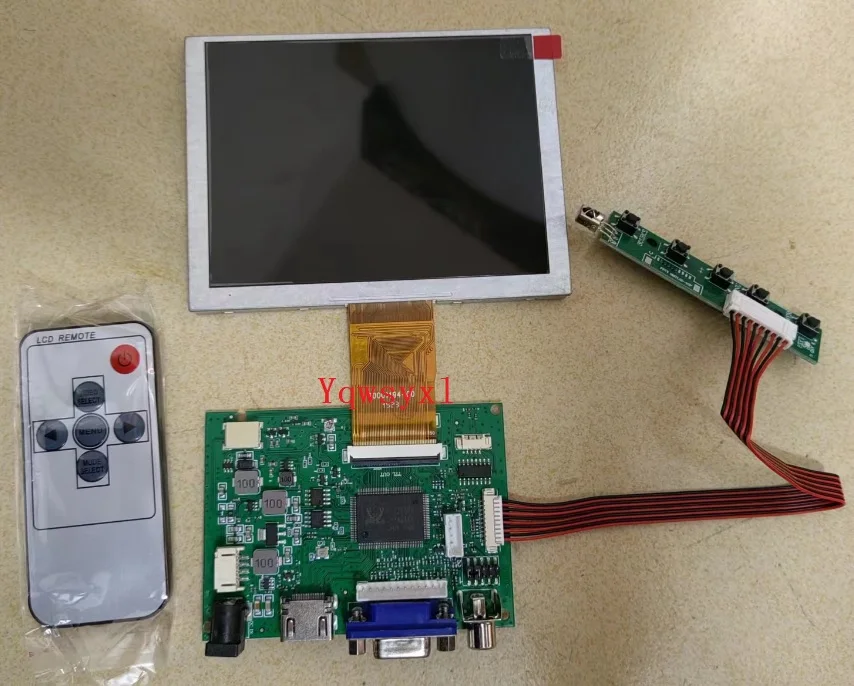

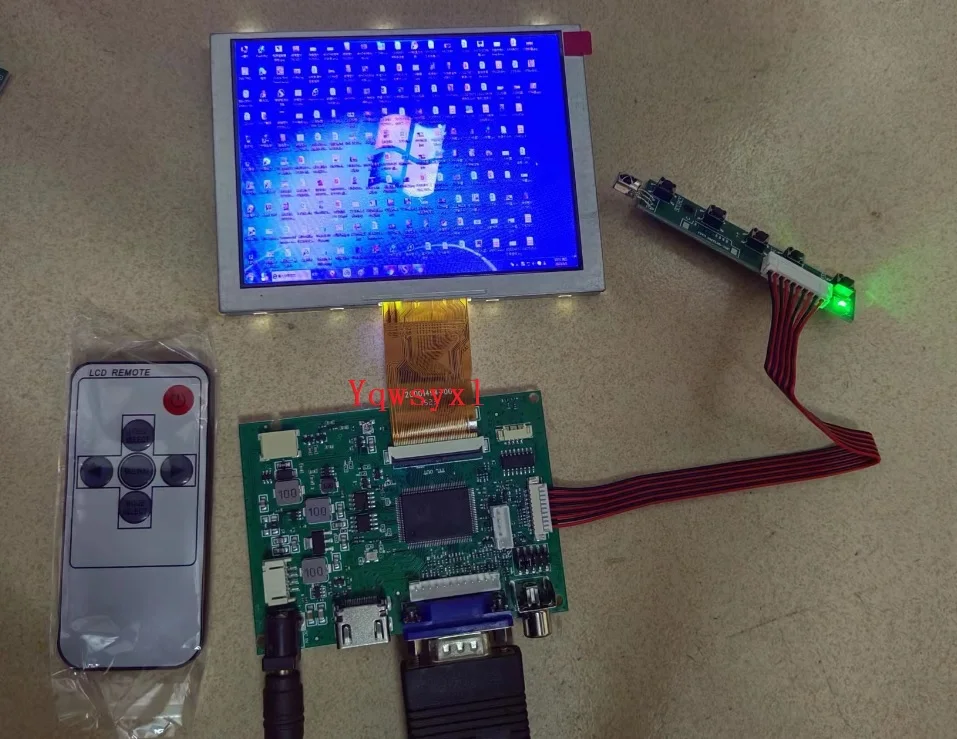

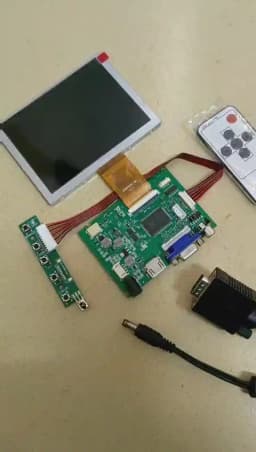

ZJ050NA-08C LCD Screen 5 inch 640x480 display panel HDMI VGA AV LCD Control Board Monitor Panel

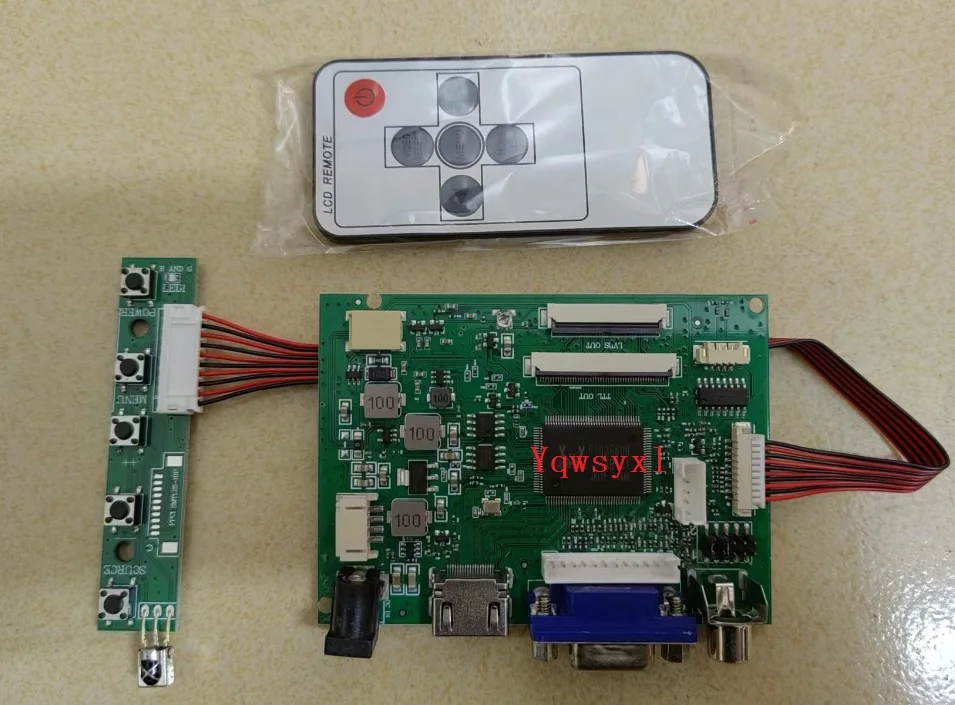

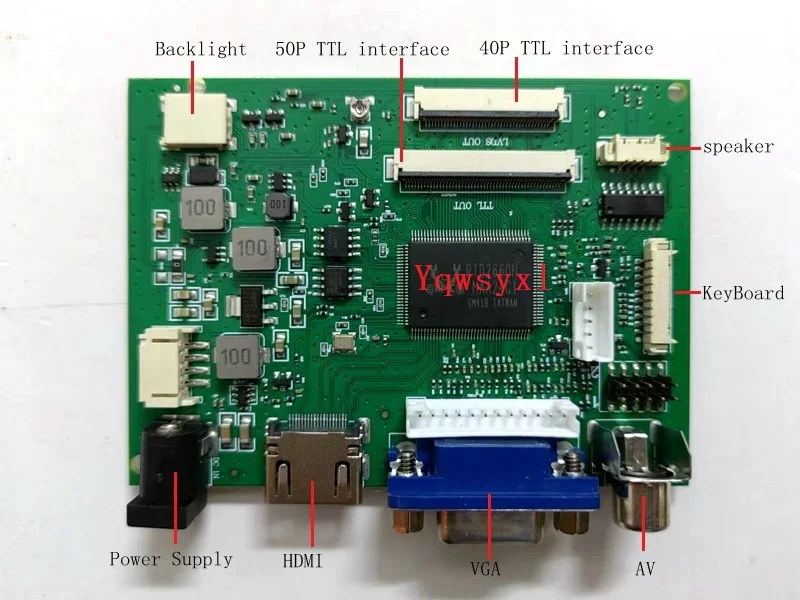

LCD Controller Board:

HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI VGA AV1 AV2

Reversing: SupportAutomatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language:English French German Spanish Italian And So On

Board Size:91mm x 66mm x 12mm

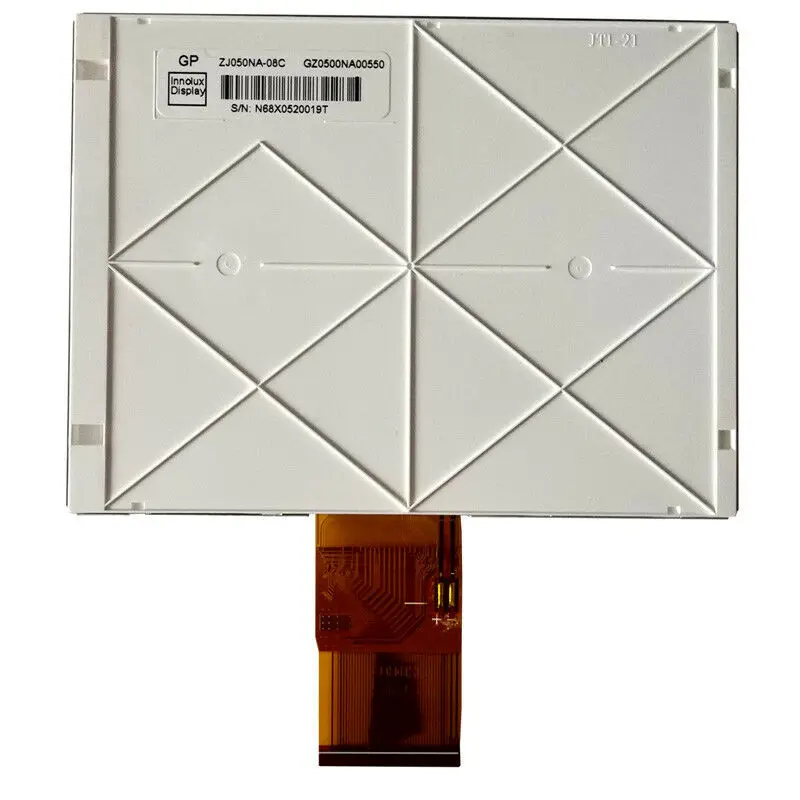

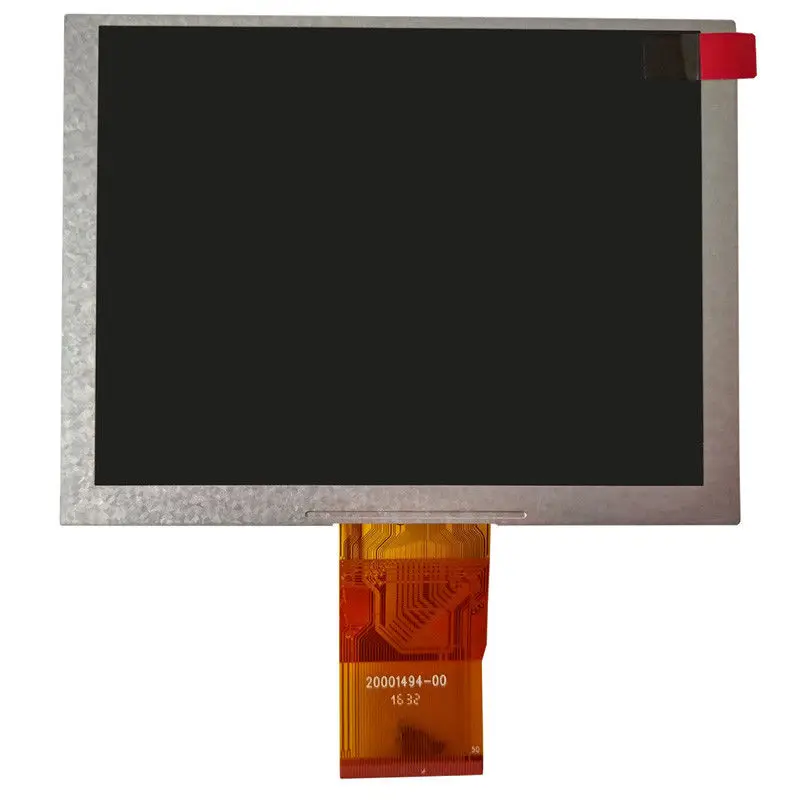

5.0" LCD Screen ZJ050NA-08C  640*480 :

Display Mode  TN, Normally White, Transmissive

Resolution 640（RGB)×480

Outline Size 117.65 × 88.43×5.9 (H×V×D)

Display Area 101.76 × 76.32 (H×V)

Brightness 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface 50 pins   Parallel RGB (1 ch, 8-bit) , FPC

Backlight  WLED

Input Voltage  3.3V (Typ.)
