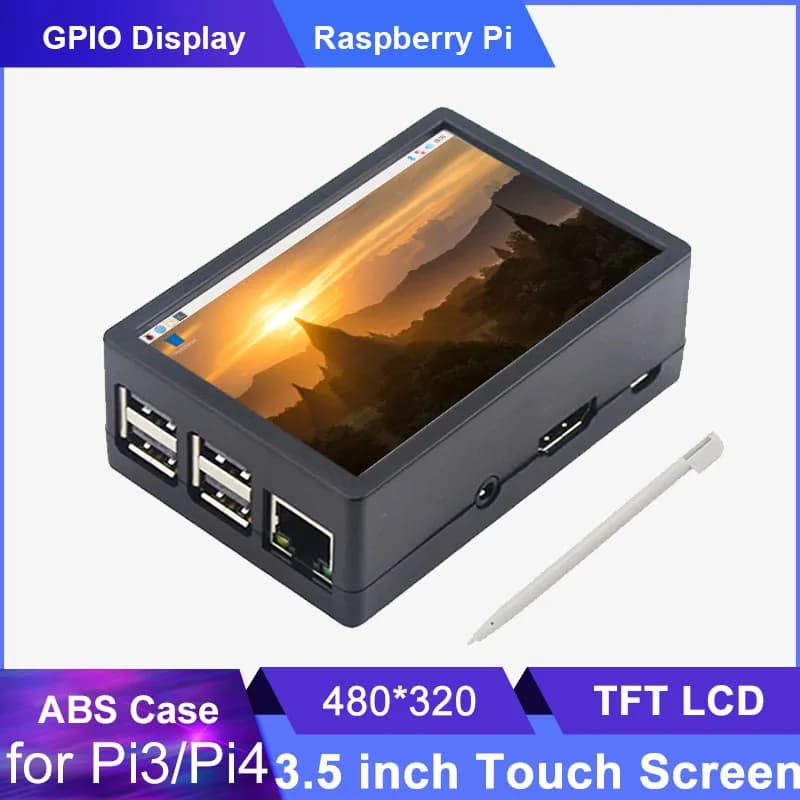

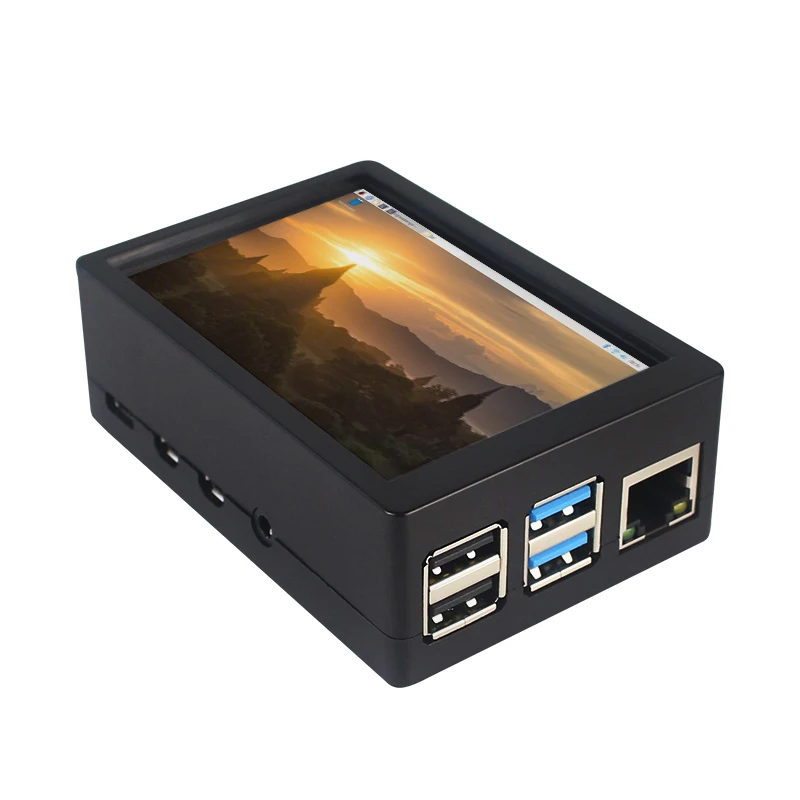

3.5 inch Raspberry Pi 3B/3B+/4B Touch Screen TFT LCD 480*320 GPIO Display Monitor ABS Case Box for Raspberry Pi 4 Model B 3B+ 3B

3.5 inch Raspberry Pi 3 B Plus Touch Screen TFT LCD 480*320 GPIO Display Monitor ABS Case Box for Raspberry Pi 4 Model B 3B+ 3B

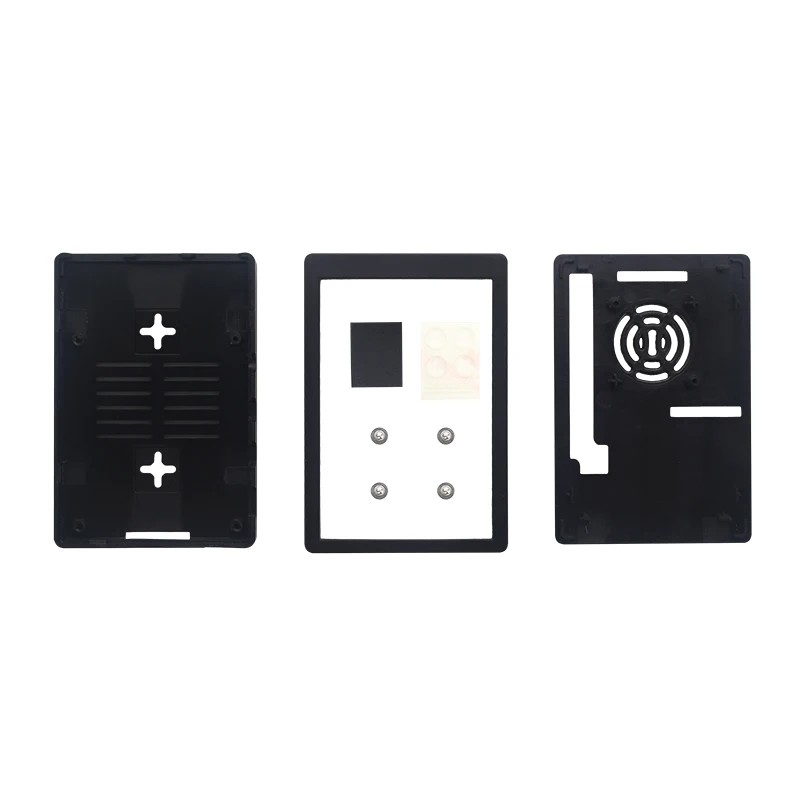

Description:

1. Material: ABS, it is well protective.

2. Brand new design for Raspberry Pi, you can also use 3.5 inch screen and Raspberry Pi together with the case.

3. The case is not completely closed, there are function hole on the top, such as GPIO, camera, cooling fan. There are many gaps at the bottom of the case, it helps to reduce the blocking the WiFi signal and better heat dissipation. You can hang the case on the wall with the gaps.

4. On the side of the case, you can clearly see the indicator light and you can easily insert the SD Card.

About the 3.5 inch screen

1. 480*320 resolution

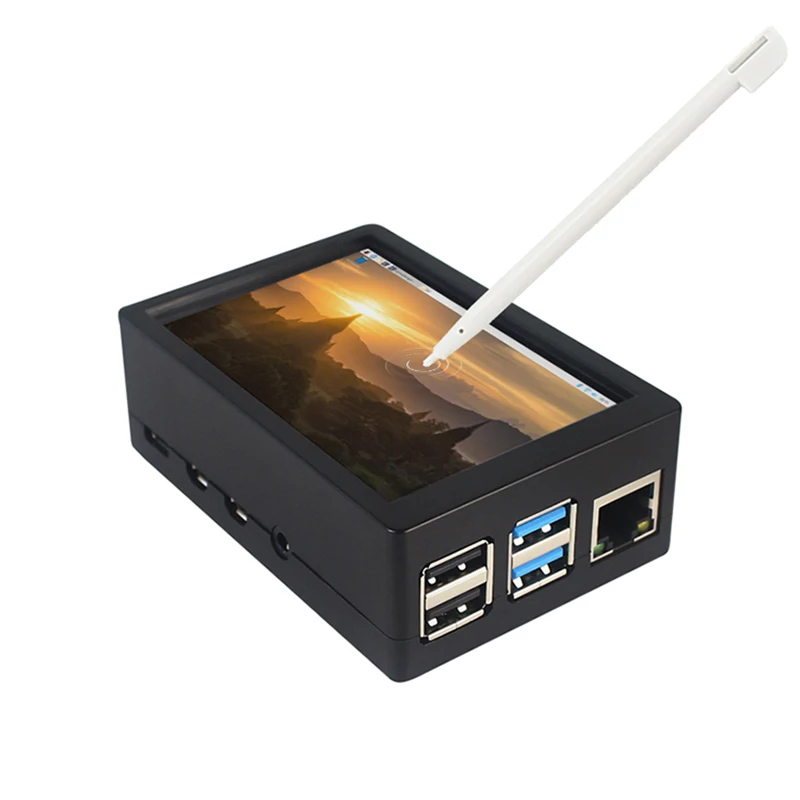

2. The screen is TFT screen, has touch function

3. Perfect size for Raspberry Pi

Note :

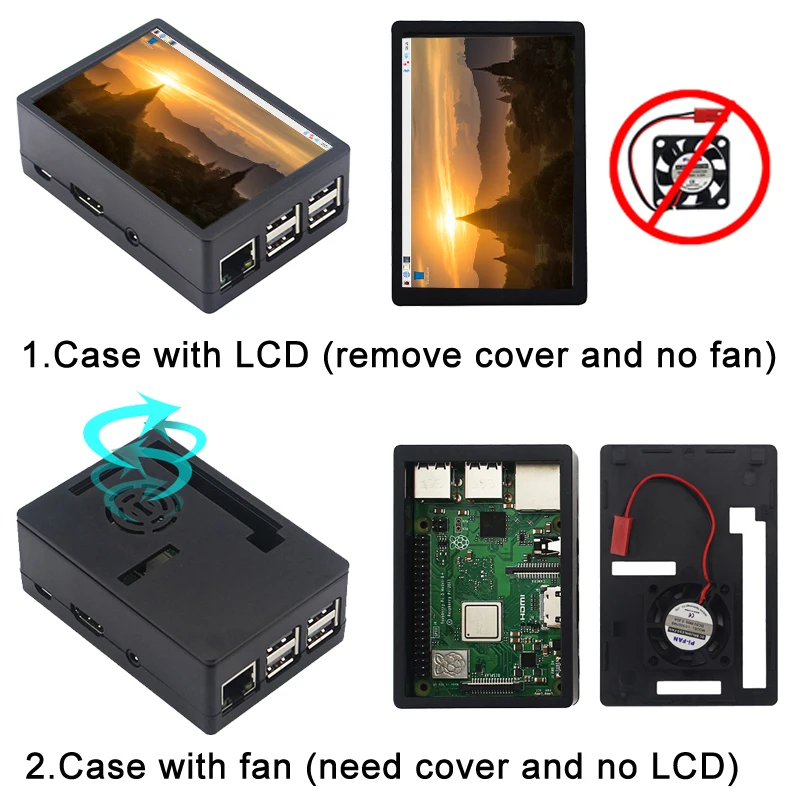

When you use the case with 3.5 inch screen, please remove the top piece, the 3.5 inch screen and cooling fan can't be used at the same.

About the pad - use to support the screen

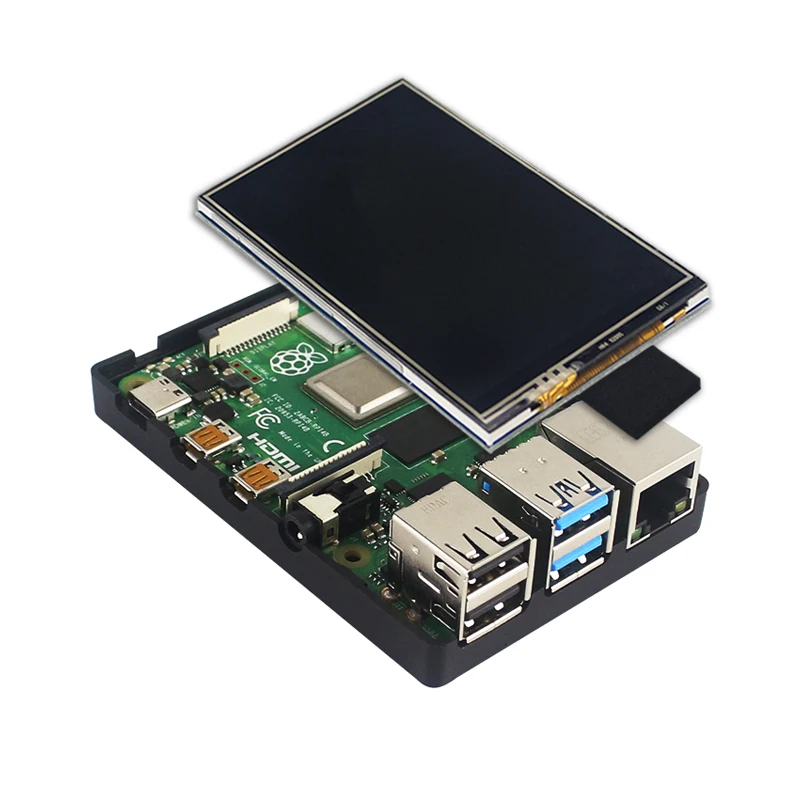

1). Install the Raspberry Pi on the base board

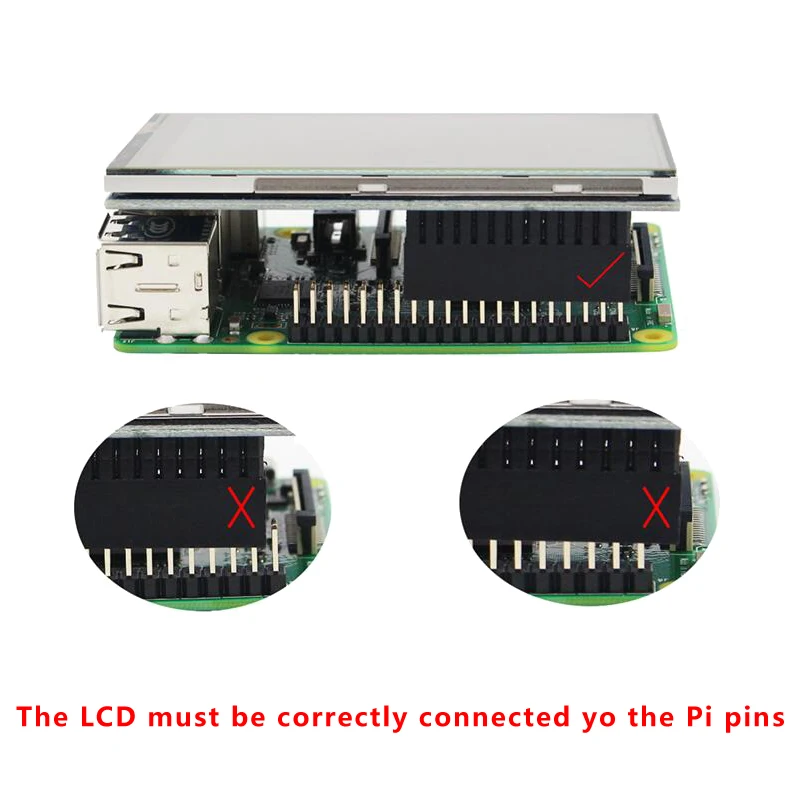

2). ​Please stick the pad on the back of 3.5 inch touchscreen ( as the picture show ) , then insert the 3.5 inch touchscreen on Raspberry Pi by GPIO pin correctly ( don't be malposed )

3). Install the cover board

(not include the cooling fan)

About the system image.

To use this touchsreen , you need to configure the raspberry pi system at first , here is the refer link for it:
http://www.lcdwiki.com/Main_Page#About_LCD_Wiki

This LCD Module need install driver first.

Step 1：Download the Raspbian IMG

https://www.raspberrypi.org/downloads/raspbian/



Step 2: Burn the system image

If you don't know how to do that,you can refer to the Raspberry Pi office tutorial


Step 3: Open terminal(SSH) and install the driver on RaspberryPi

(tested on RaspberryPi 3B+,3B,2B,2B+,1B,ZERO)


Run:

sudo rm -rf LCD-show

git clone https://github.com/goodtft/LCD-show.git

chmod -R 755 LCD-show

cd LCD-show/

sudo ./LCD35-show



Wait A Few Minutes, when the system reboot ok, you can see that.

Package List:

1 x 3.5 inch Screen ( not include Raspberry Pi )

1 x ABS Case
