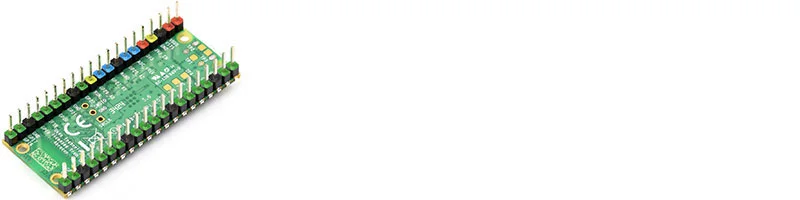

Raspberry Pi Pico 2 W RP2350 Pico2W ARM Cortex-M33 And RISC-V Hazard3 Wi-Fi4 Bluetooth5.2 CYW43439

【Overview】

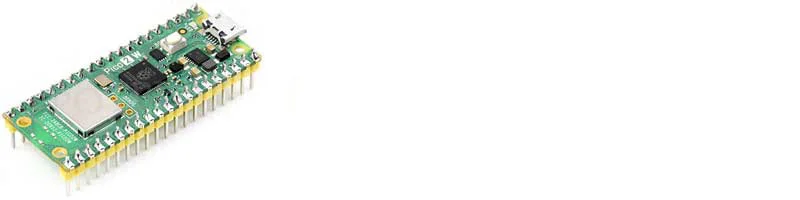

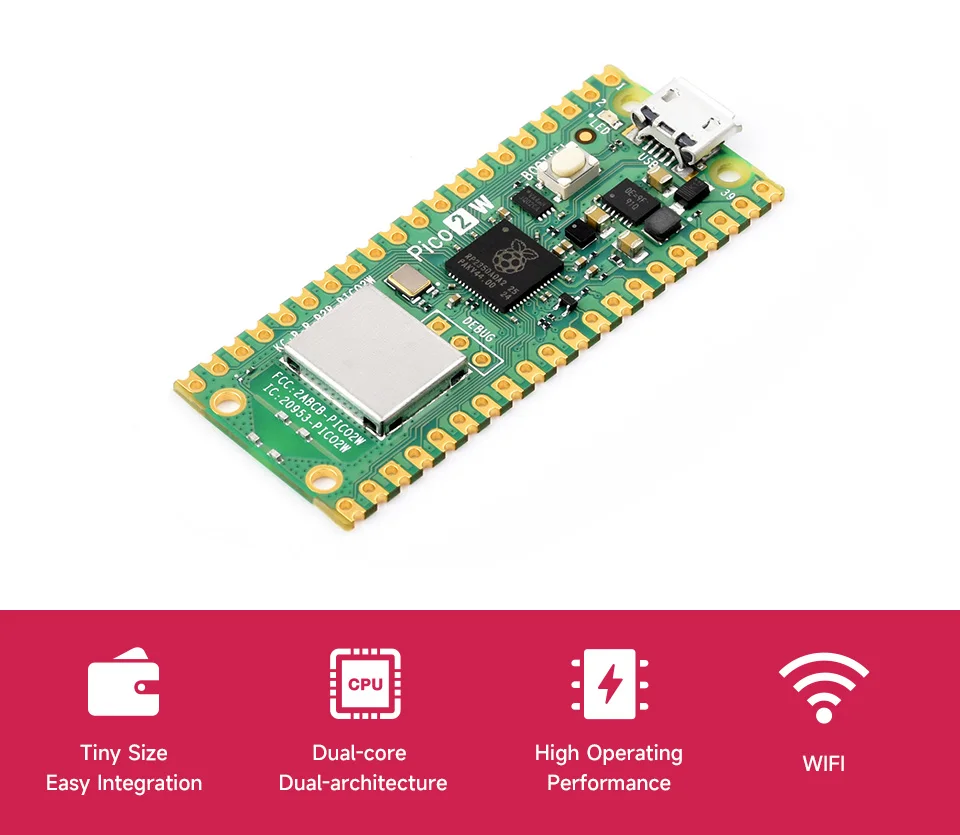

[] Raspberry Pi Pico 2 W Microcontroller Board, Based On Official RP2350 Chip, Dual-Core & Dual-Architecture Design, Supports WIFI And Bluetooth

【Features】

[] Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.

[] Key features include:

[] RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom

[] Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz

[] Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2

[] 520KB of SRAM, and 4MB of on-board Flash memory

[] Castellated module allows soldering direct to carrier boards

[] USB 1.1 with device and host support

[] Low-power sleep and dormant modes

[] Drag-and-drop programming using mass storage over USB

[] 26 × multi-function GPIO pins

[] 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

[] Temperature sensor

[] 12 × Programmable I/O (PIO) state machines for custom peripheral support

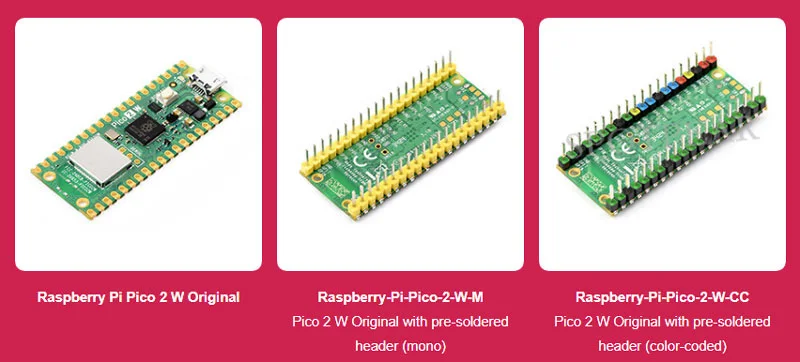

【Version Options】

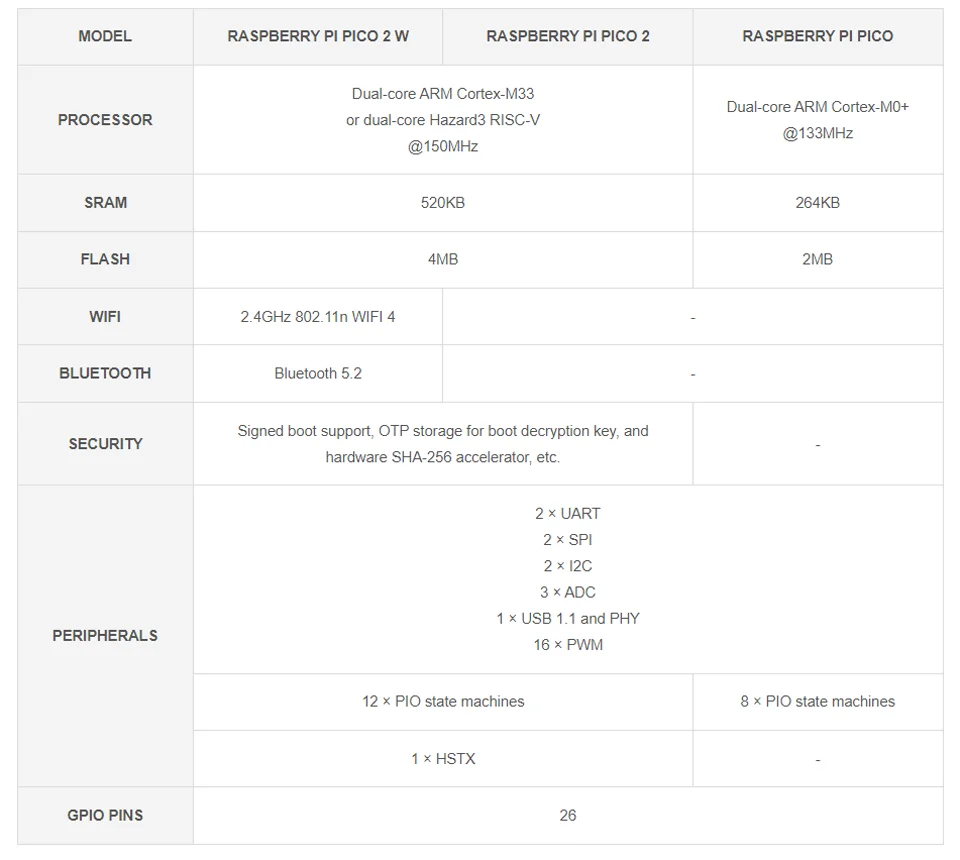

【Pico Comparison】

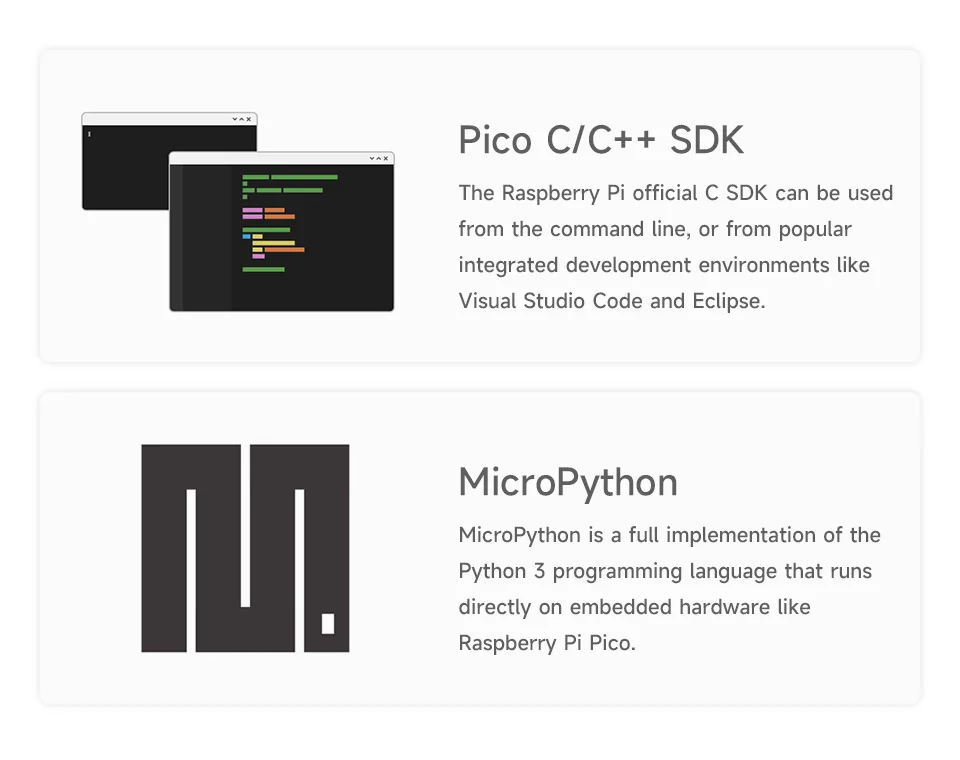

【C/C++, MicroPython Support】

[] Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

【Dual-Core, Dual-Architecture】

[] The Unique Dual-Core, Dual-Architecture Capability Of RP2350 Allows Users To Choose Between A Pair Of Industry-Standard Arm Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment

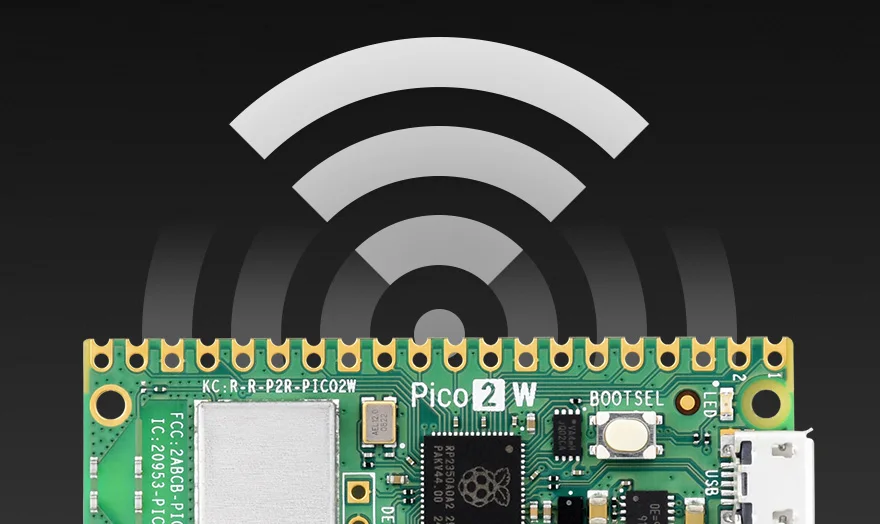

【WIFI And Bluetooth Support】

[] Onboard Infineon CYW43439 Wireless Chip, Supports WIFI 4 Wireless And Bluetooth 5.2

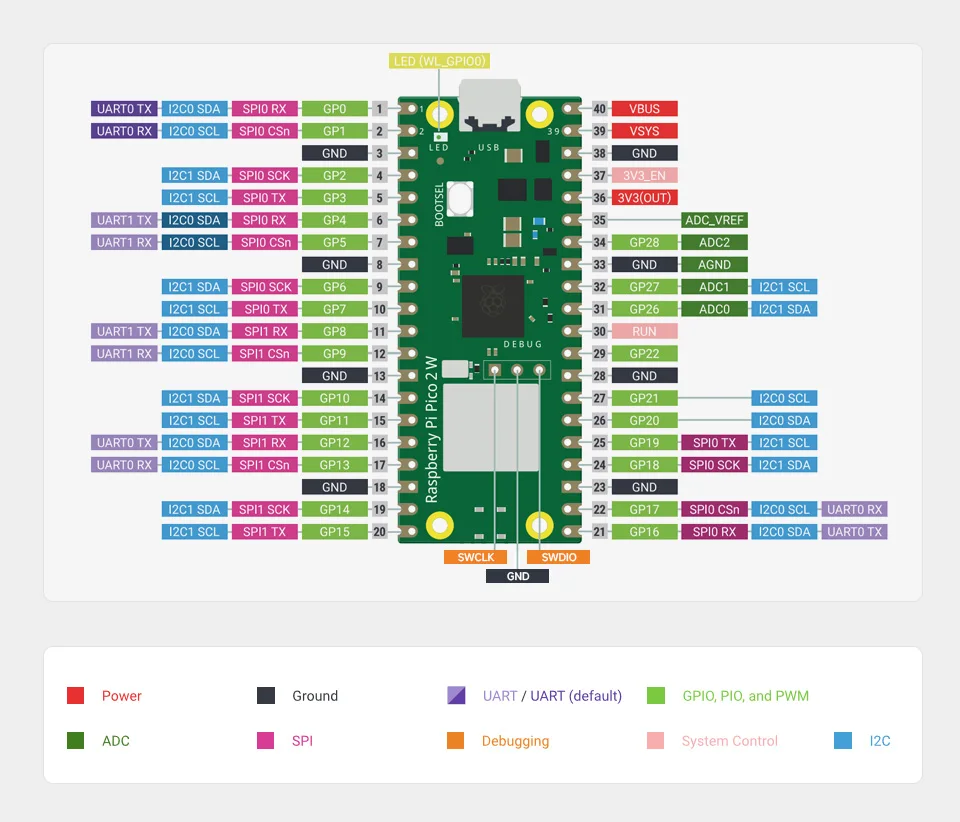

【26 × Multi-Function GPIO Pins】

[] Configurable Pin Function, Allows Flexible Development And Integration

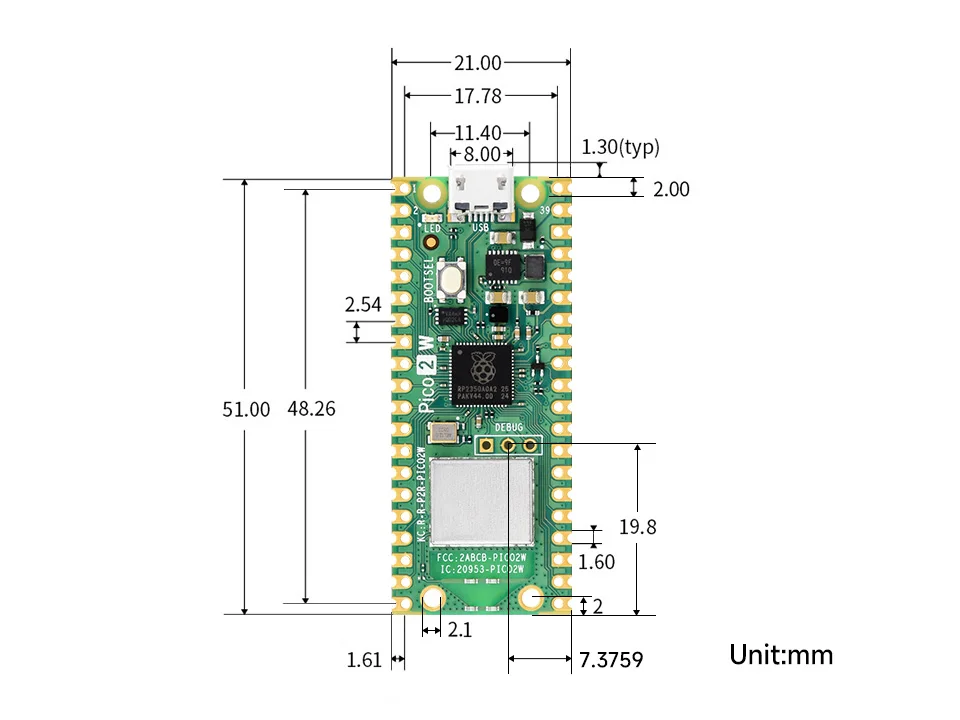

【Outline Dimensions】

Package Contains
