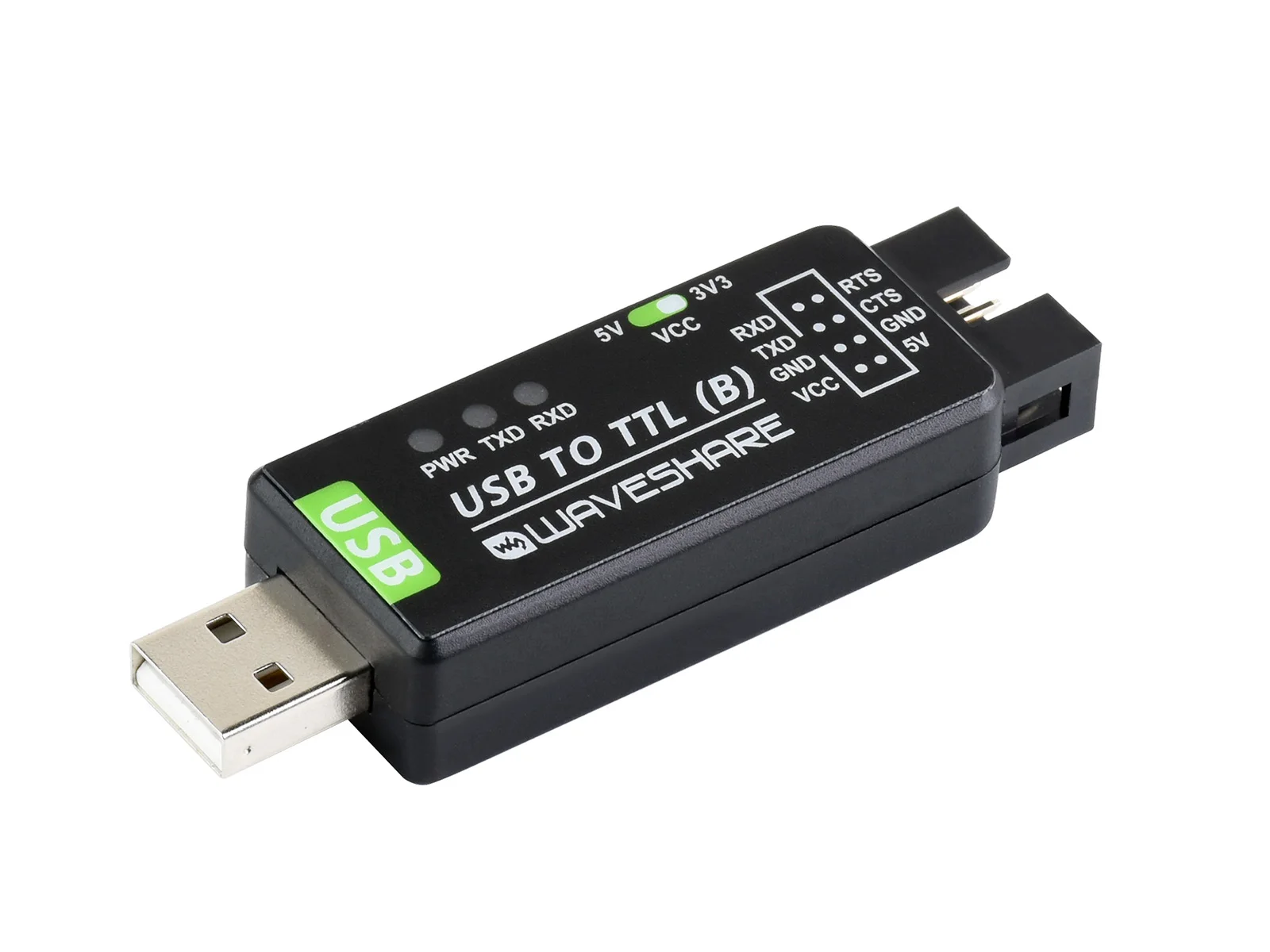

Industrial USB To TTL Converter Original FT232RL/CH343G Multi Protection & Systems Support Stable Transmission LED Indicators

Selection Guide

USB TO TTL CONVERTER - FT232RL version

Original FT232RL | Stable Transmission | Multi Devices | Multi Systems

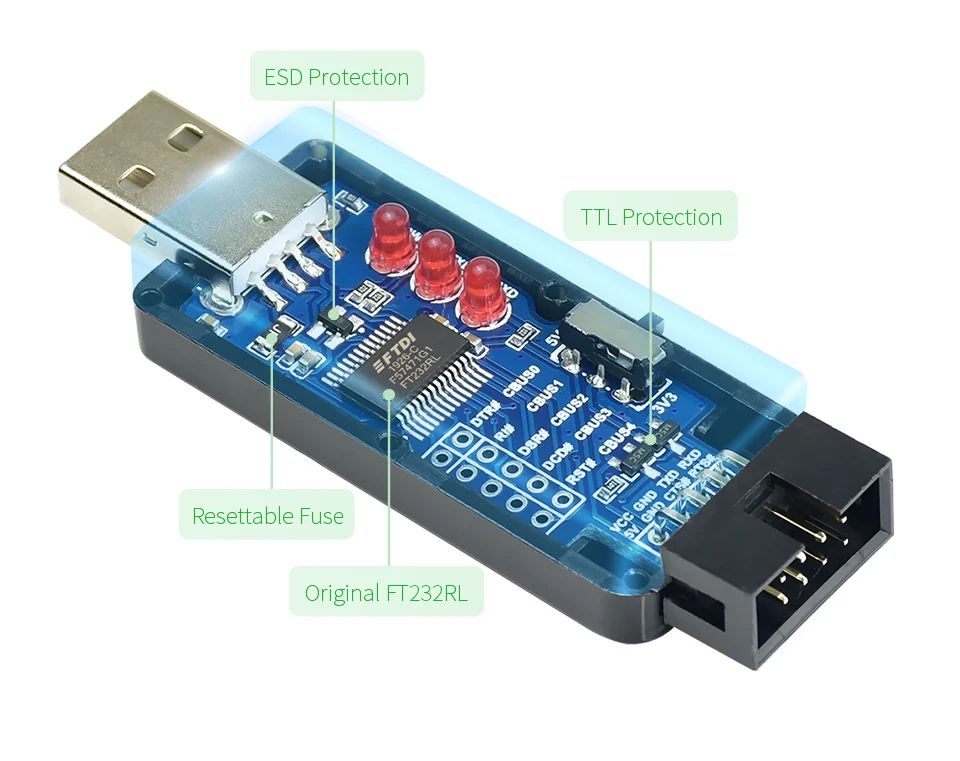

Original Chip Onboard

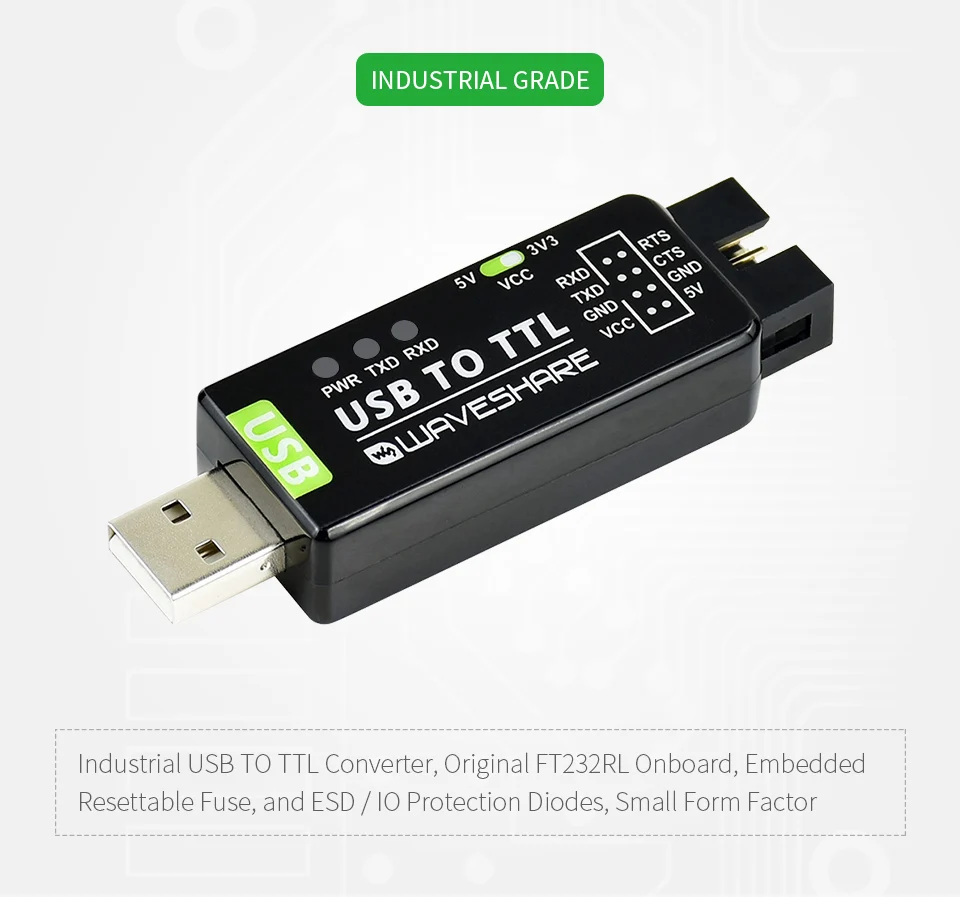

Adopts Original FT232RL Converter, Providing Better Stability And Compatibility, Enabling Industrial Grade High Performance Communication Between Computer And TTL Devices

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10, Mac, Linux, Android, WinCE...

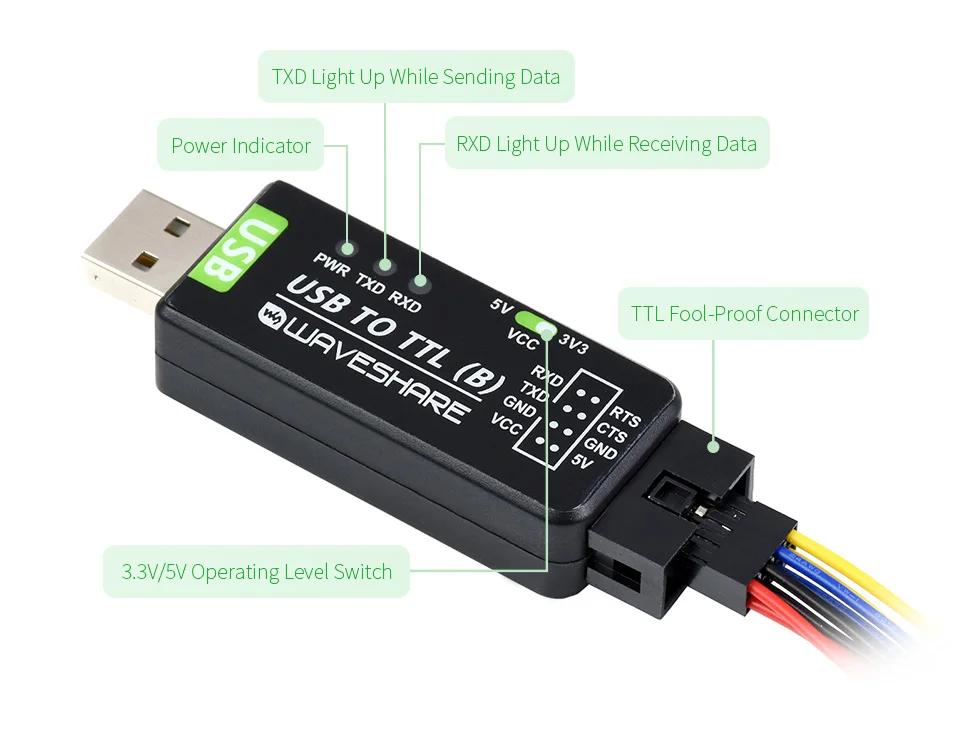

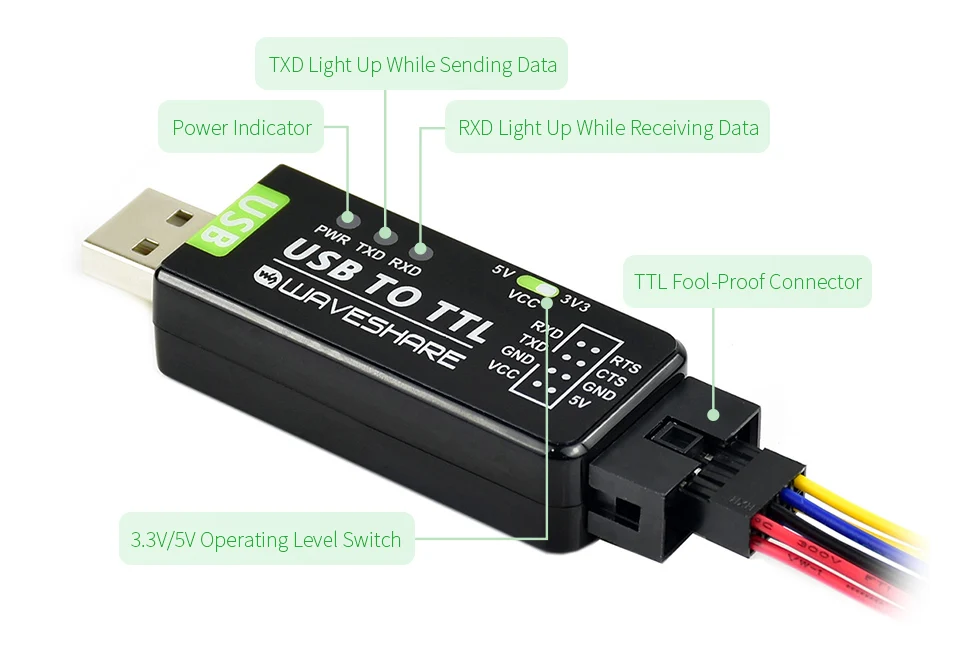

Three LED Indicators

Easily Checking The Operating Status, Convenient For Programming / Debugging

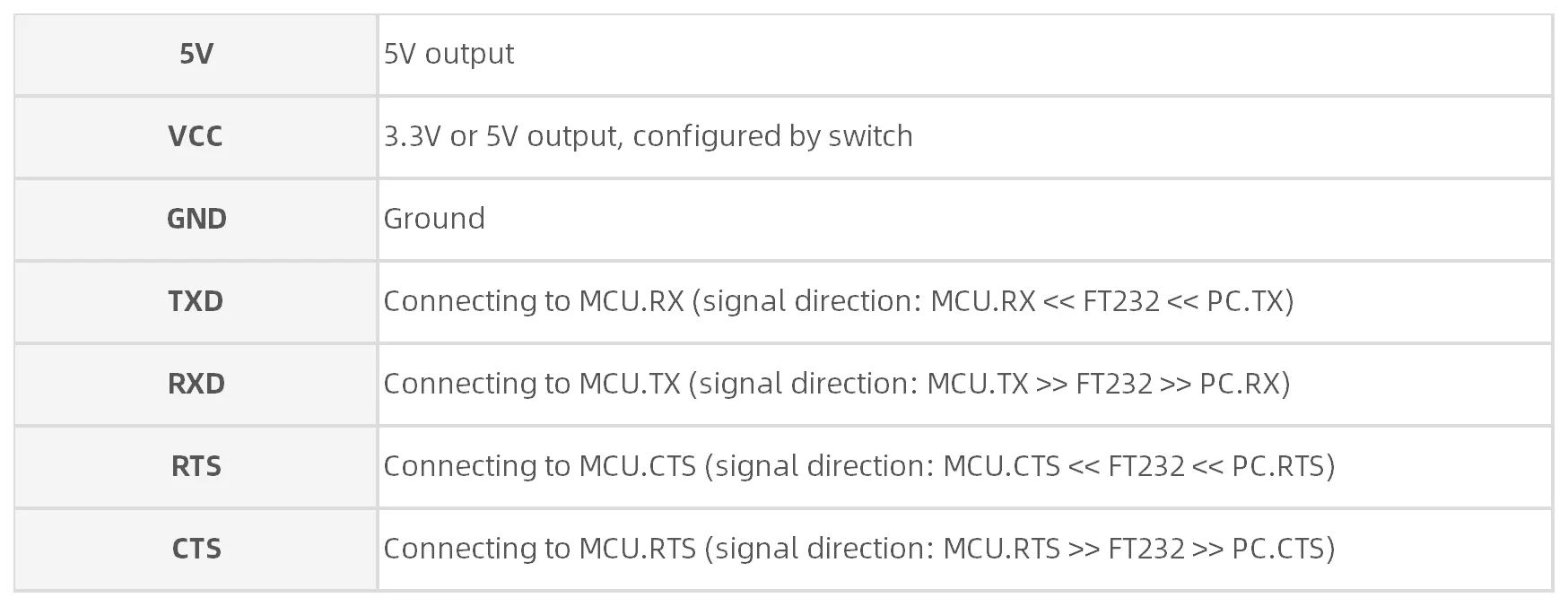

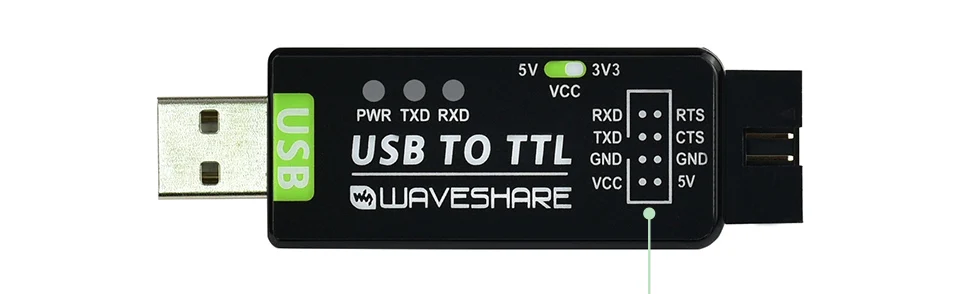

USB Signal & Pinouts Definition

Note:
USB cable is not included
This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage

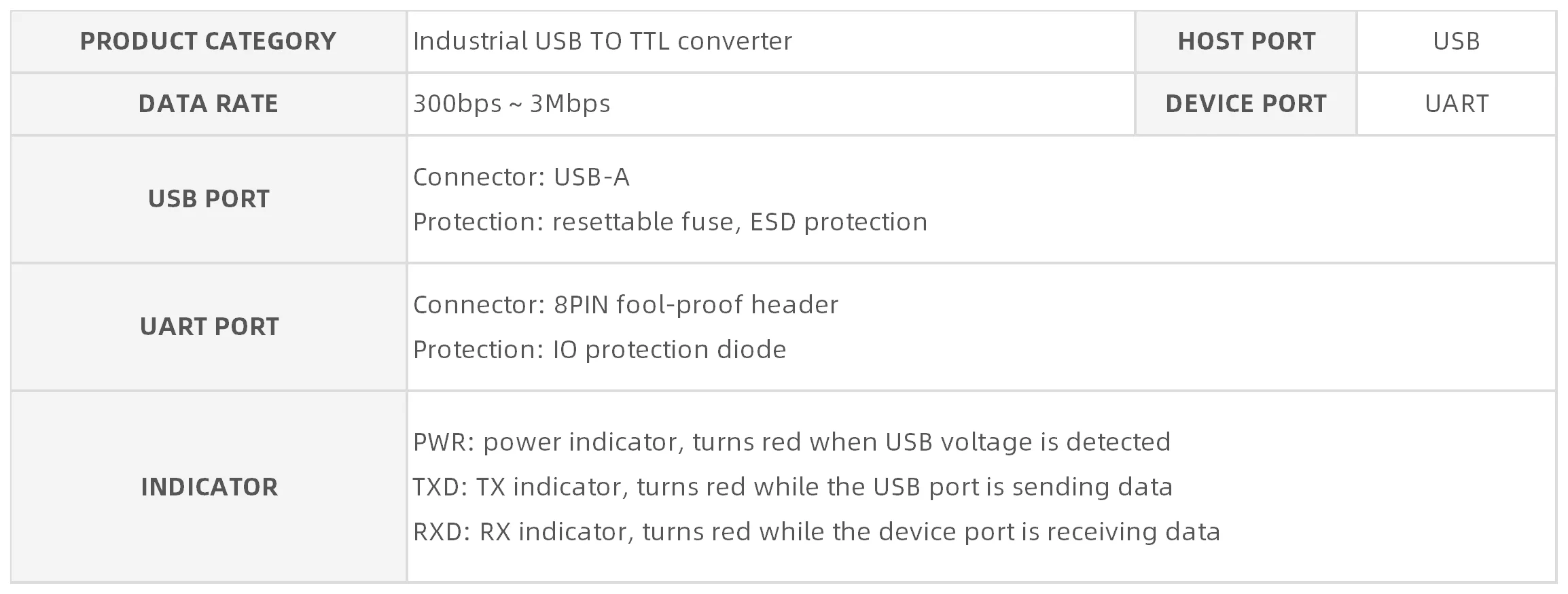

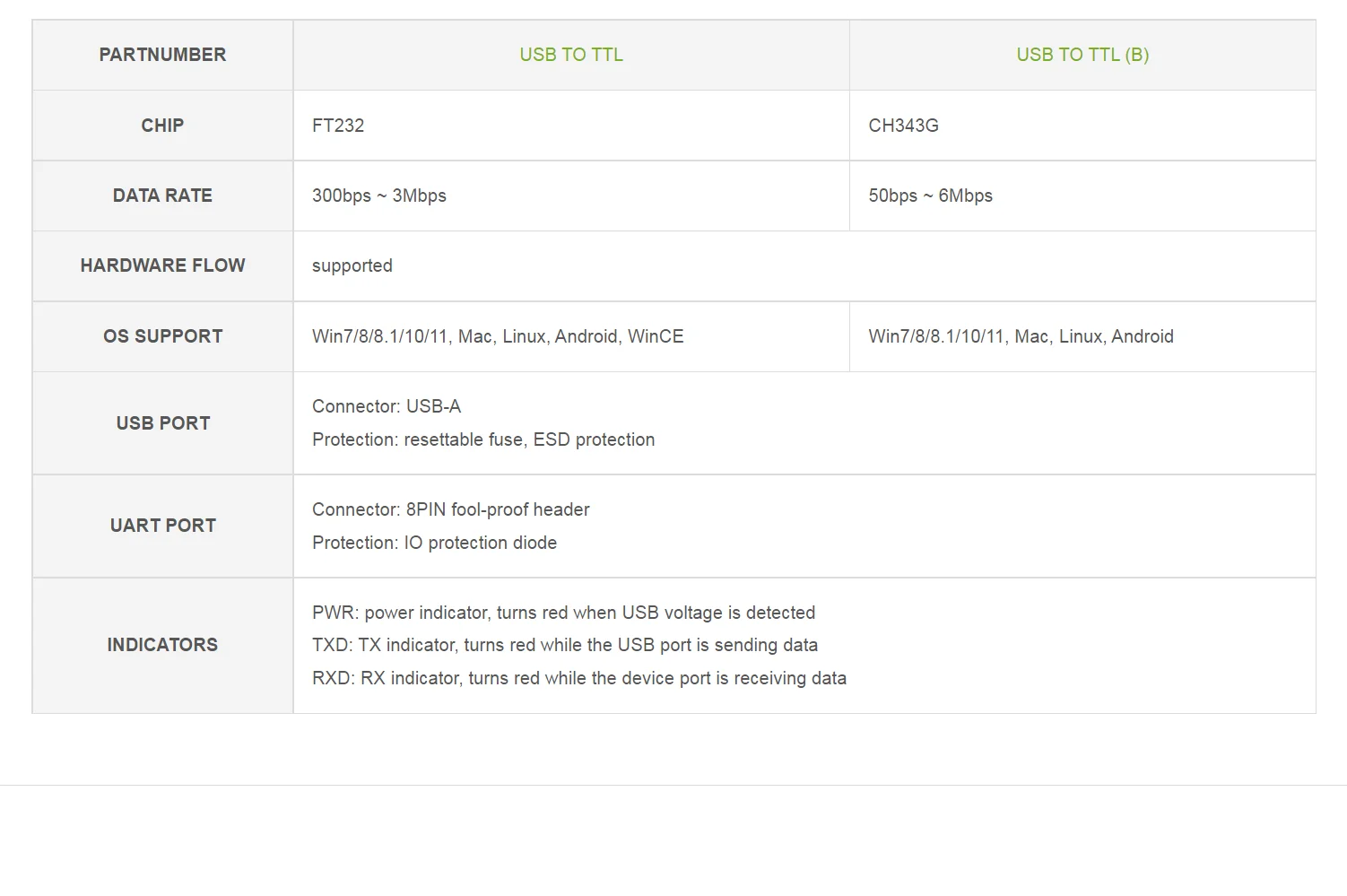

Specifications

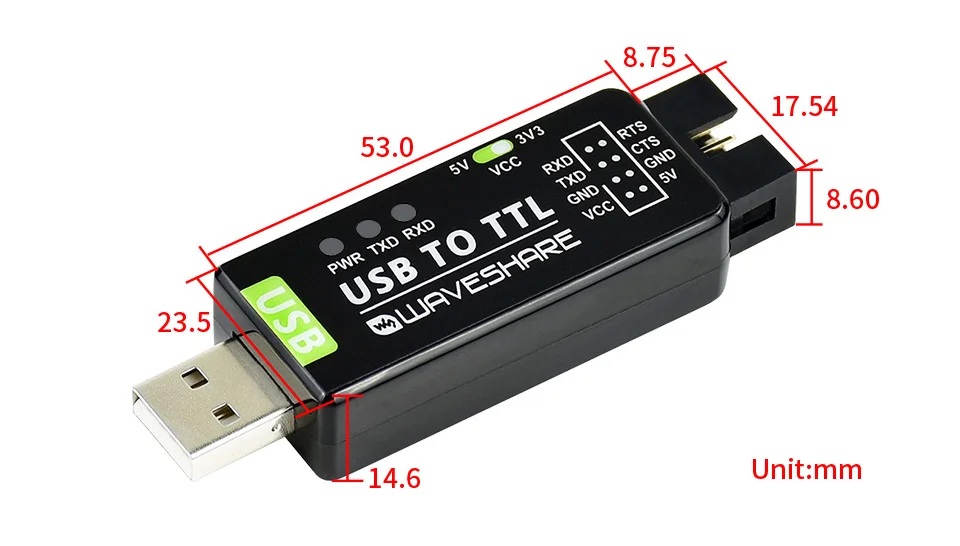

Outline Dimensions

* measured manually, for reference only

Resources & Services

Wiki: www.waveshare.com/wiki/USB_TO_TTL

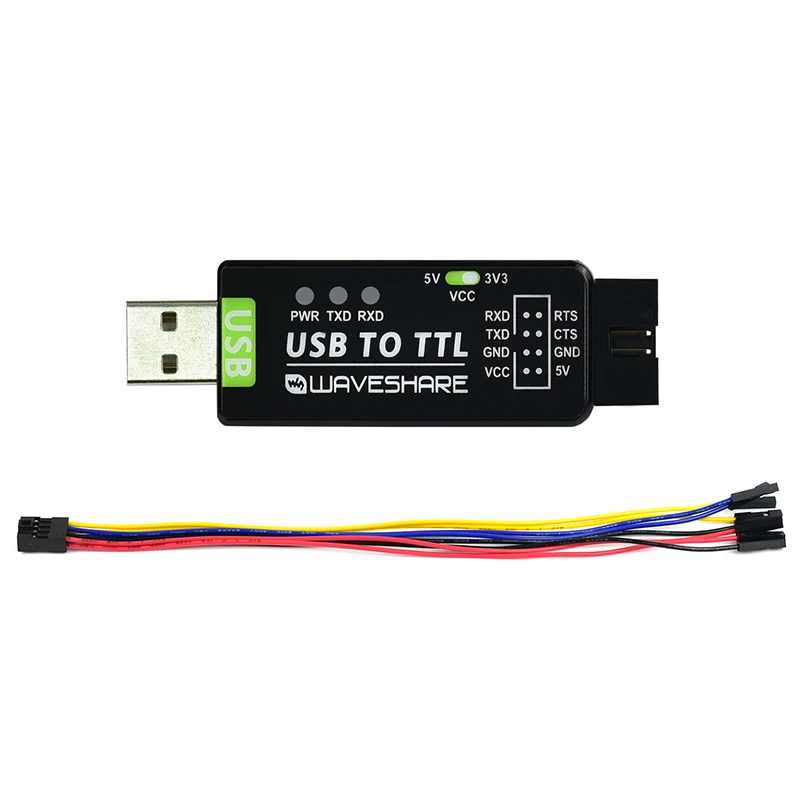

Packing List

USB TO TTL x1
8PIN fool-proof wire x1
Weight: 0.023 kg

USB TO TTL CONVERTER - CH343G Version

Original CH343G | Stable Transmission | Multi Devices | Multi Systems
Industrial Grade Quality

Features

1. Onboard resettable fuse and TVS diode, providing protections including over-current, over-voltage, backward-proof, and ESD protection, improving shock resistance, safe and stable communications

2. Onboard IO protection circuit for surge suppress

3. Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

4. 3x LED indicators for easily checking power connection and signal TX/RX statuses

5. Quality plastic case with dull-polish surface, well-crafted

6. IDC connector with fool-proof desig

Specifications

1. PRODUCT CATEGORY: Industrial USB TO TTL converter
2. HOST PORT: USB
3. DATA RATE: 50bps ~ 6Mbps
4. DEVICE PORT: UART
5. USB PORT:
Connector: USB-A
Protection: resettable fuse, ESD protection
6. UART PORT:
Connector: 8PIN fool-proof header
Protection: IO protection diode

7. INDICATOR:
PWR: power indicator, turns red when USB
voltage is detected
TXD: TX indicator, turns red while the USB port
is sending data
RXD: RX indicator, turns red while the device
port is receiving data

Multiple Protection, Safe And Stable

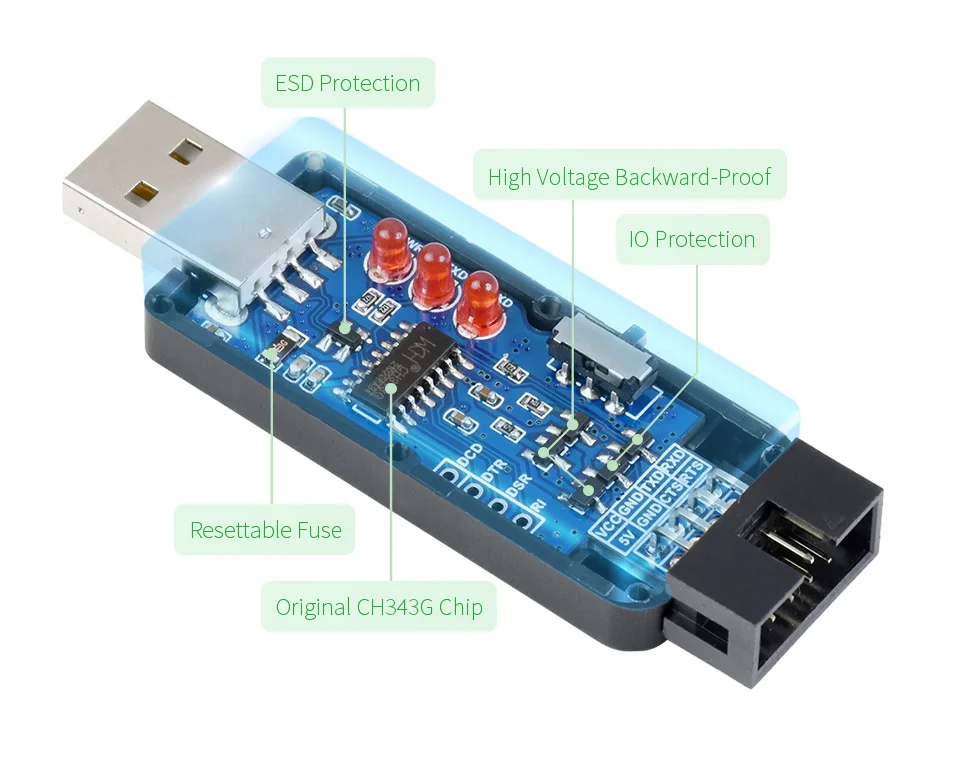

Onboard Resettable Fuse And TVS Diode, Providing Protections Including Over-Current, Over-Voltage, Backward-Proof, And ESD Protection, Improving Shock Resistance, Safe And Stable Communications

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

Three LED Indicators

Easily Checking The Operating Status, Convenient For Programming / Debugging

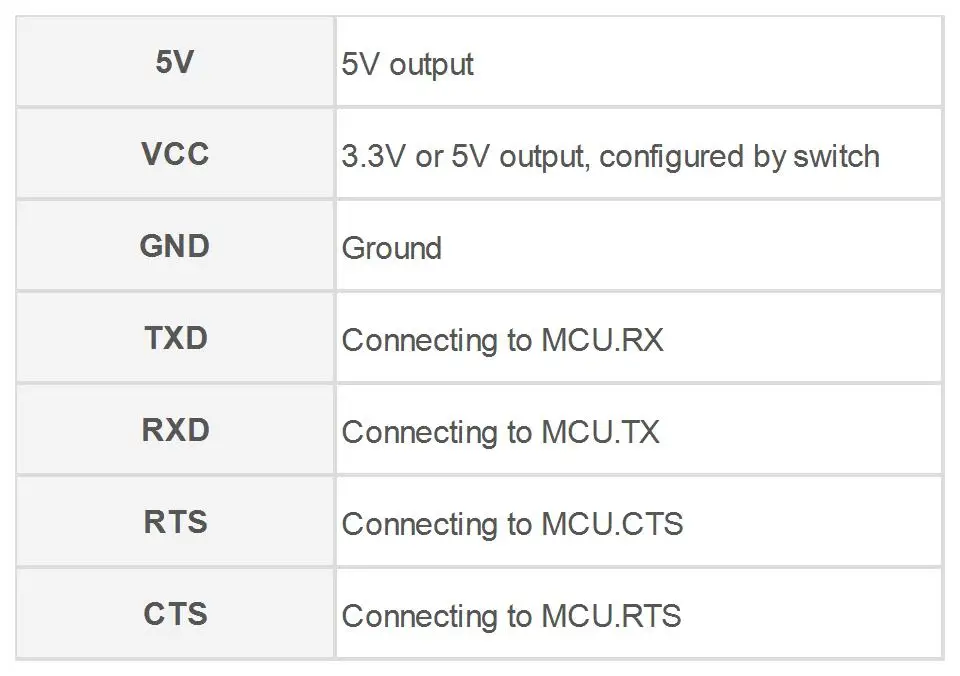

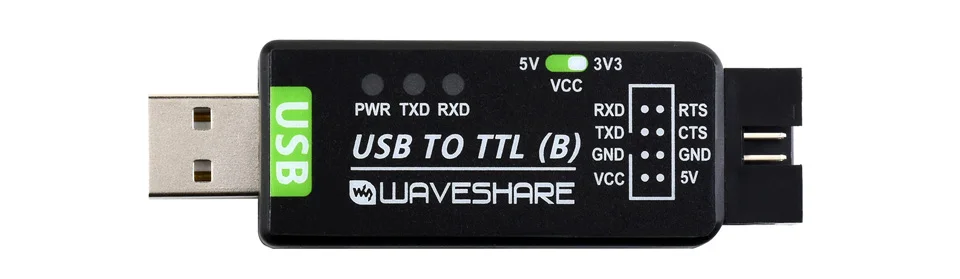

USB Signal & Pinouts Definition

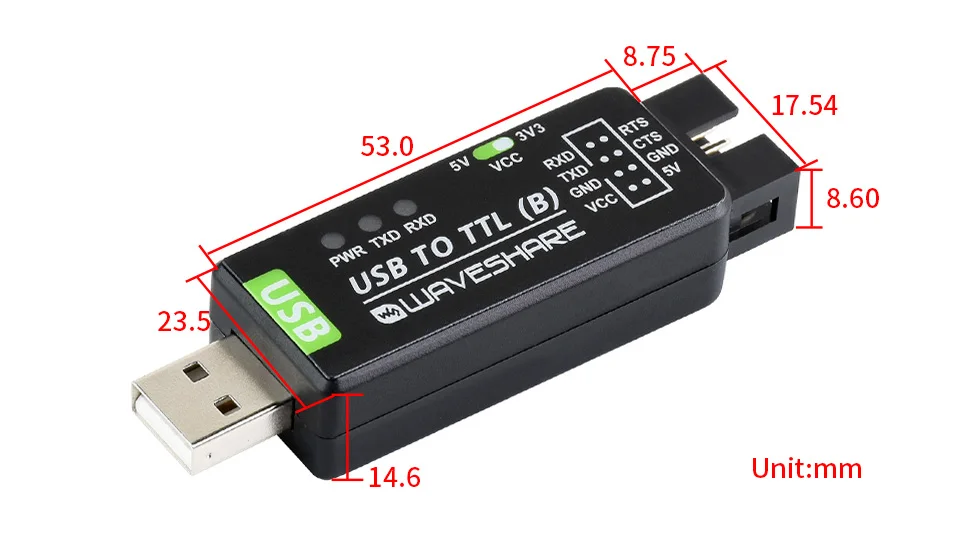

Outline Dimensions

Resources

Wiki:www.waveshare.com/wiki/USB_TO_TTL_(B)

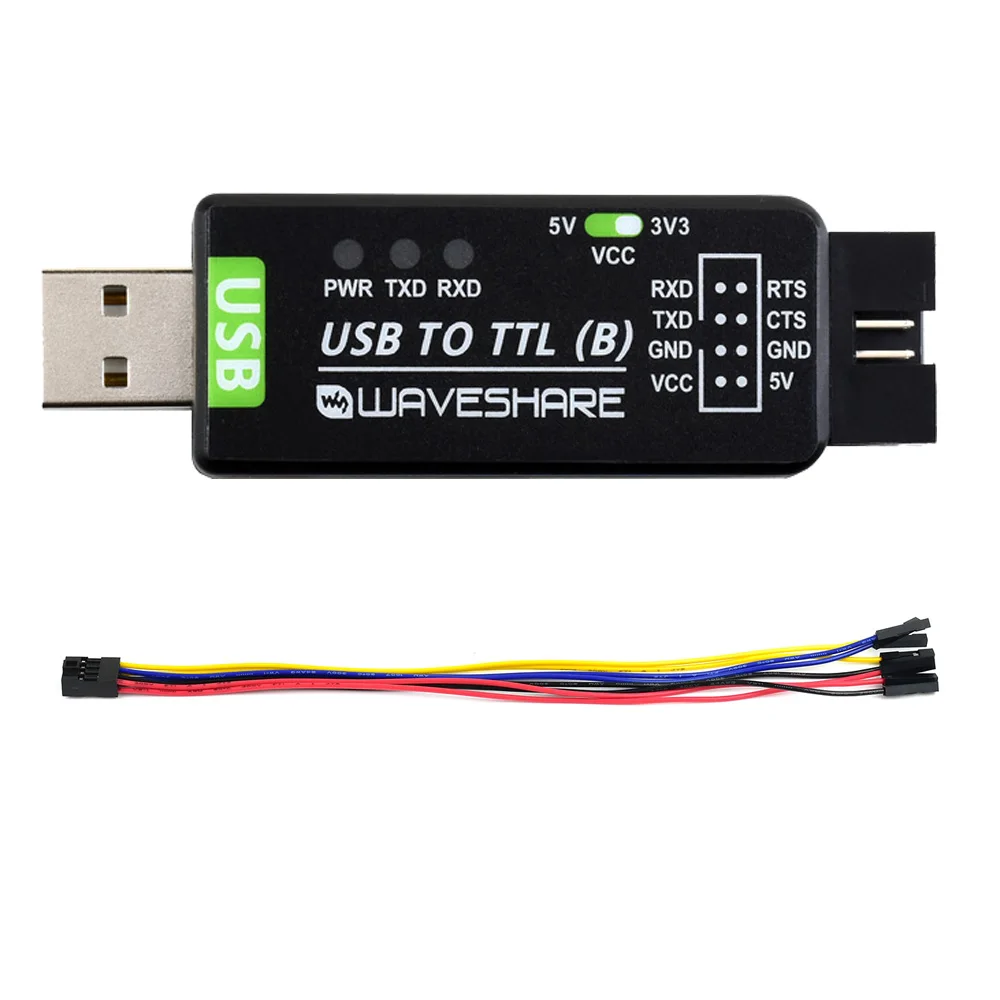

Packing List

USB TO TTL (B) CH343G x1

8PIN fool-proof wire x1
