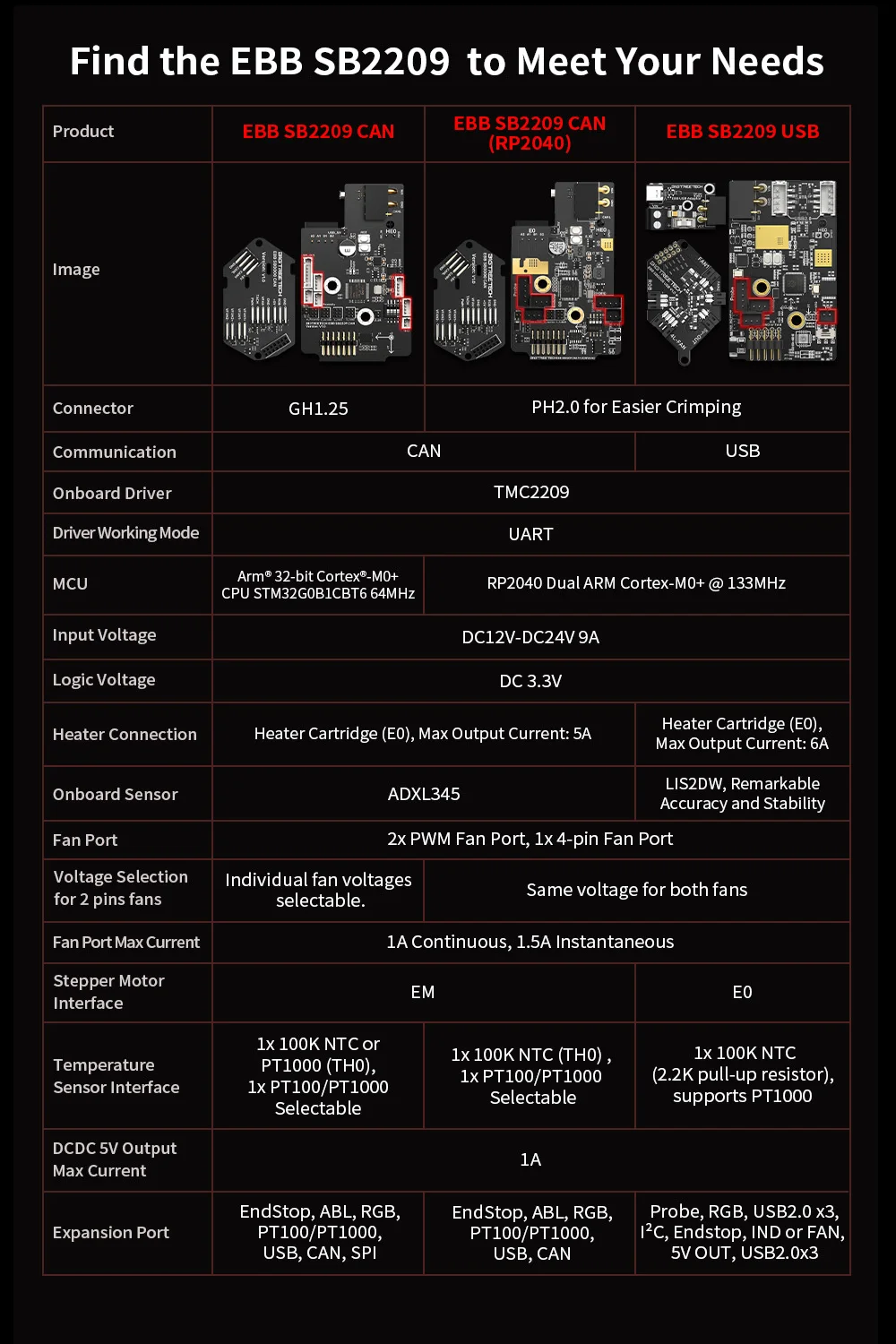

BIGTREETECH EBB SB2209 CAN/USB Board For Klipper Voron StealthBurner KNOMI Octopus Pro Raspberry Pi Canbus HeadTool PT1000

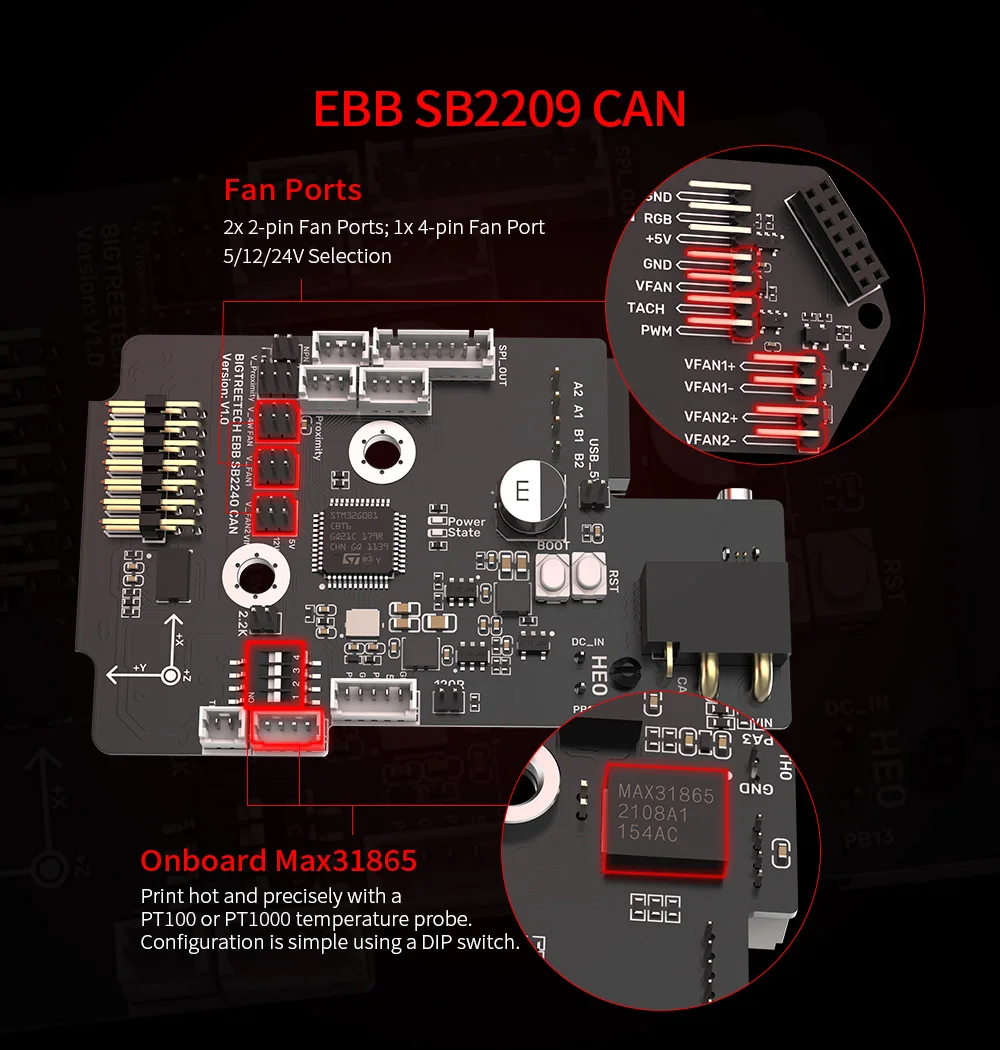

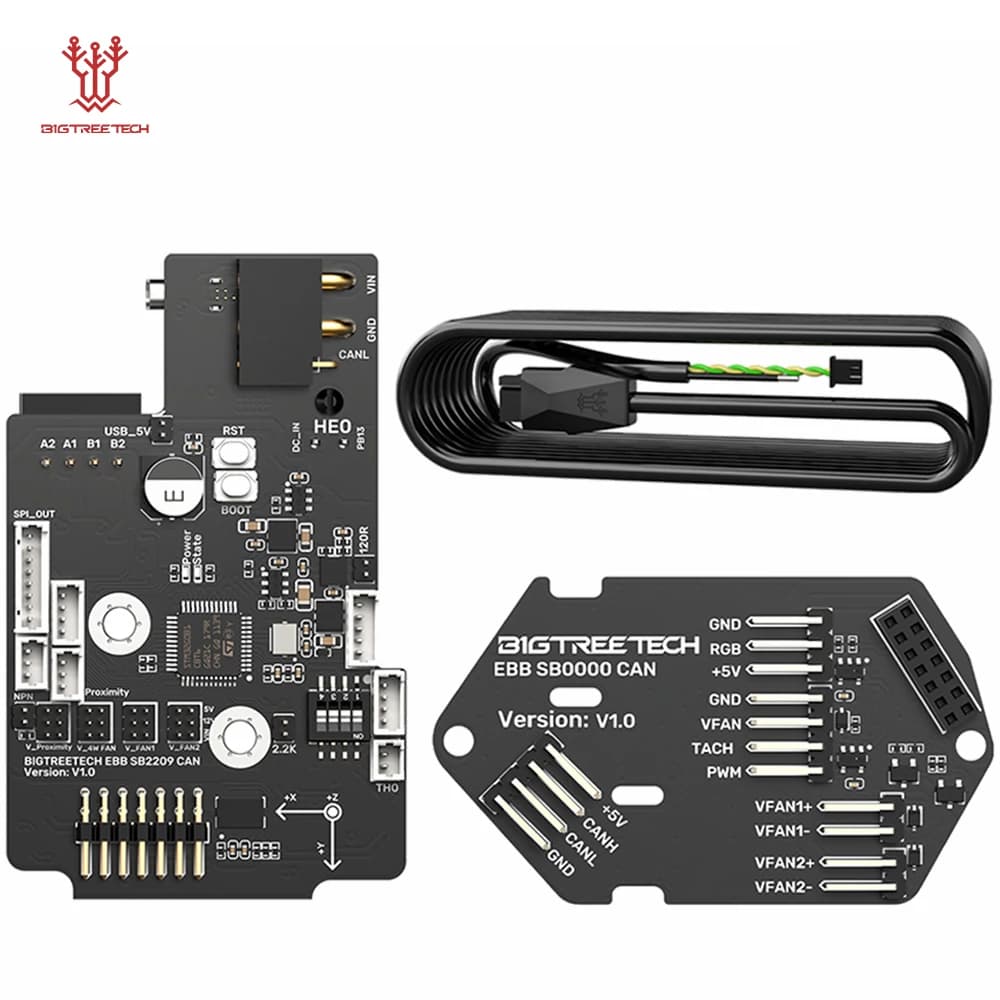

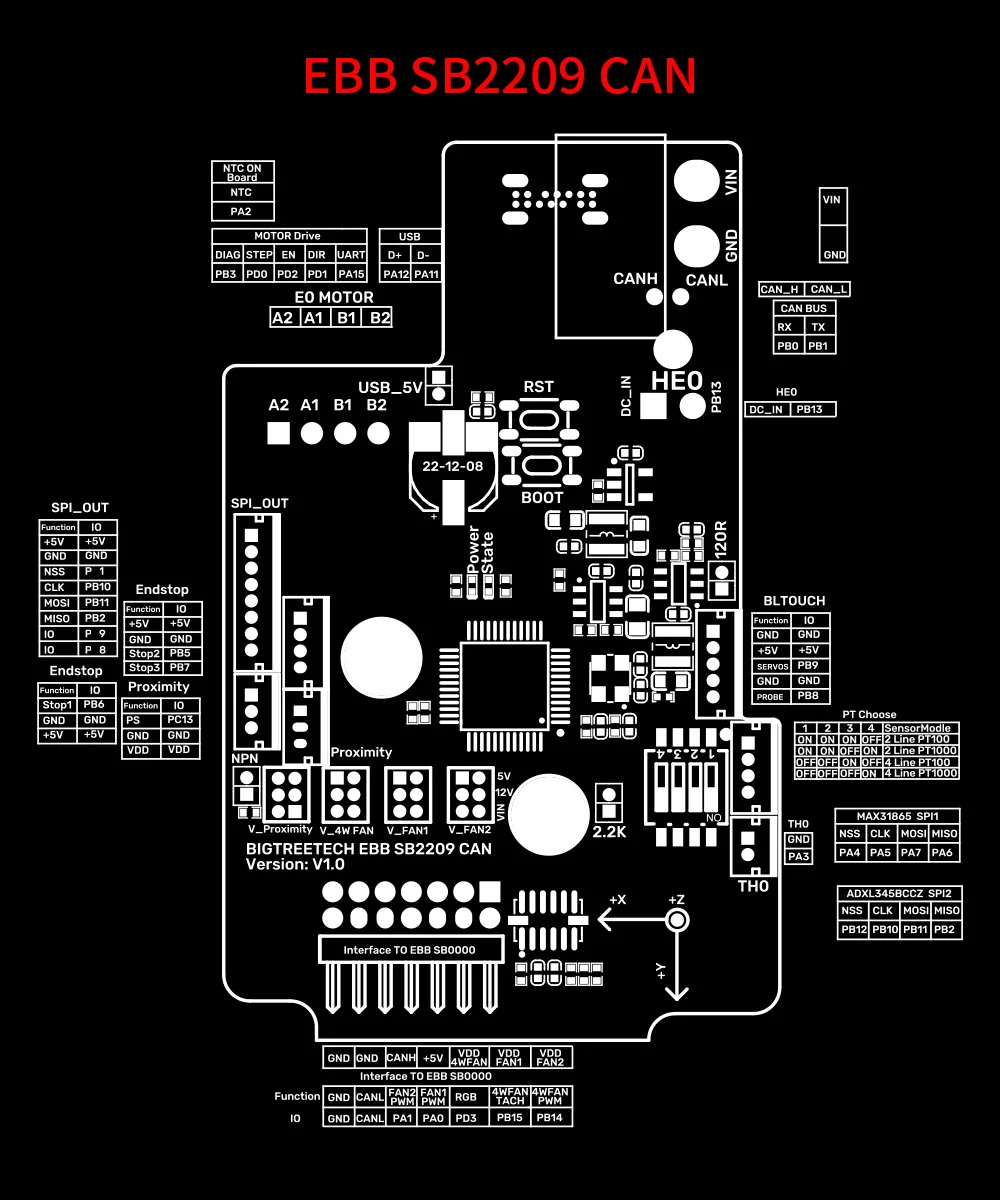

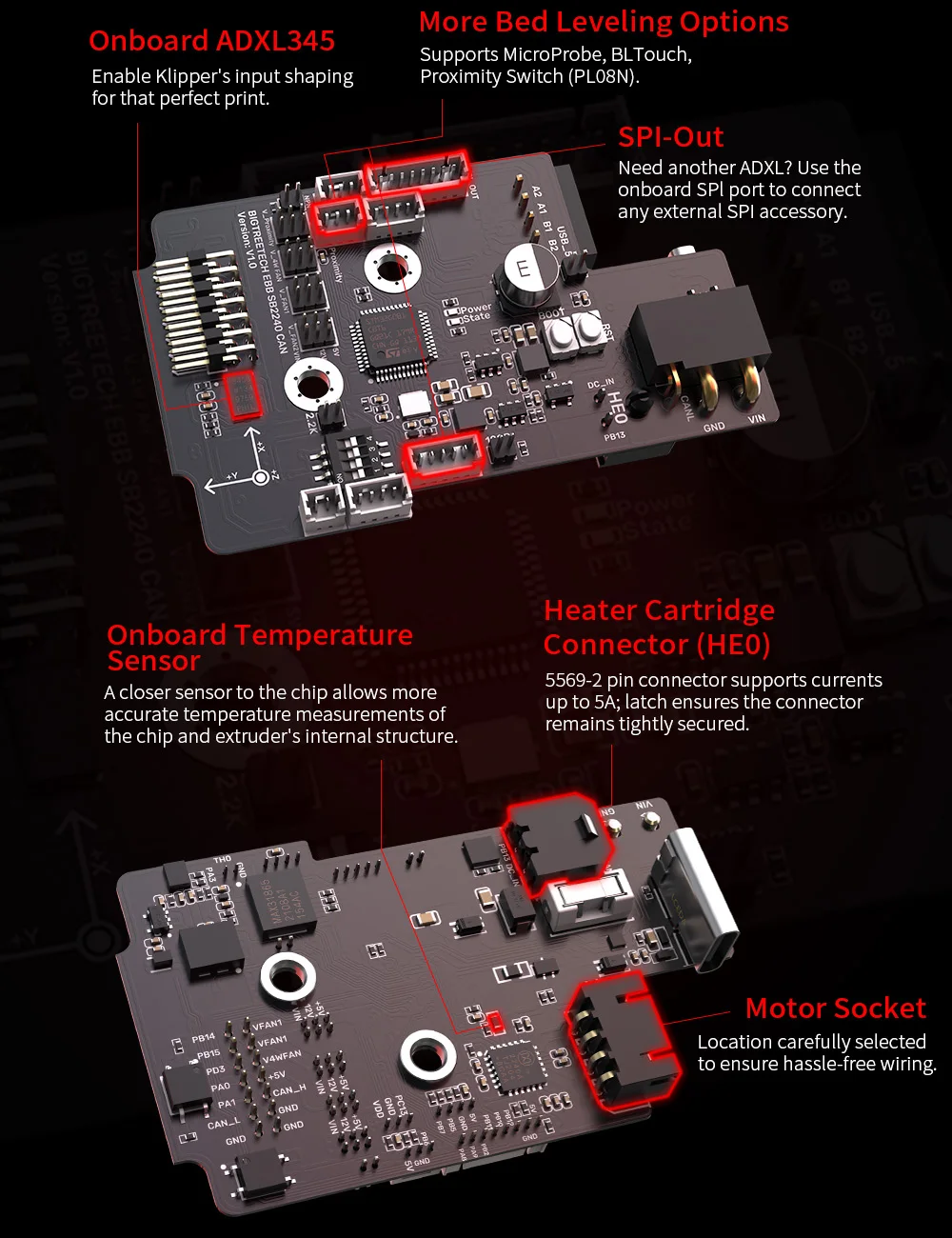

EBB SB2209 CAN

Connector：GH1.25

Communication：CAN

Onboard Driver：TMC2209

Driver Working Mode：UART

MCU：Arm 32-bit Cortex-M0+CPU STM32G0B1CBT6 64MHz

Input Voltage：DC12V-DC24V 9A

Logic Voltage：DC 3.3V

Heater Connection：Heater Cartridge (E0), Max Output Current: 5A

Onboard Sensor：ADXL345

Fan Port：2xPWM Fan Port, 1x 4-pin Fan Port

Voltage Selection for 2 pins fans：Individual fan voltages selectable

Fan Port Max Current：1A Continuous, 1.5A Instantaneous

Stepper Motor Interface：EM

Temperature Sensor Interface：1x 100K NTC or PT1000 (TH0),1x PT100/PT1000 Selectable

DCDC 5V Output Max Current：1A

Expansion Port：EndStop, ABL, RGB, PT100/PT1000,USB, CAN, SPI

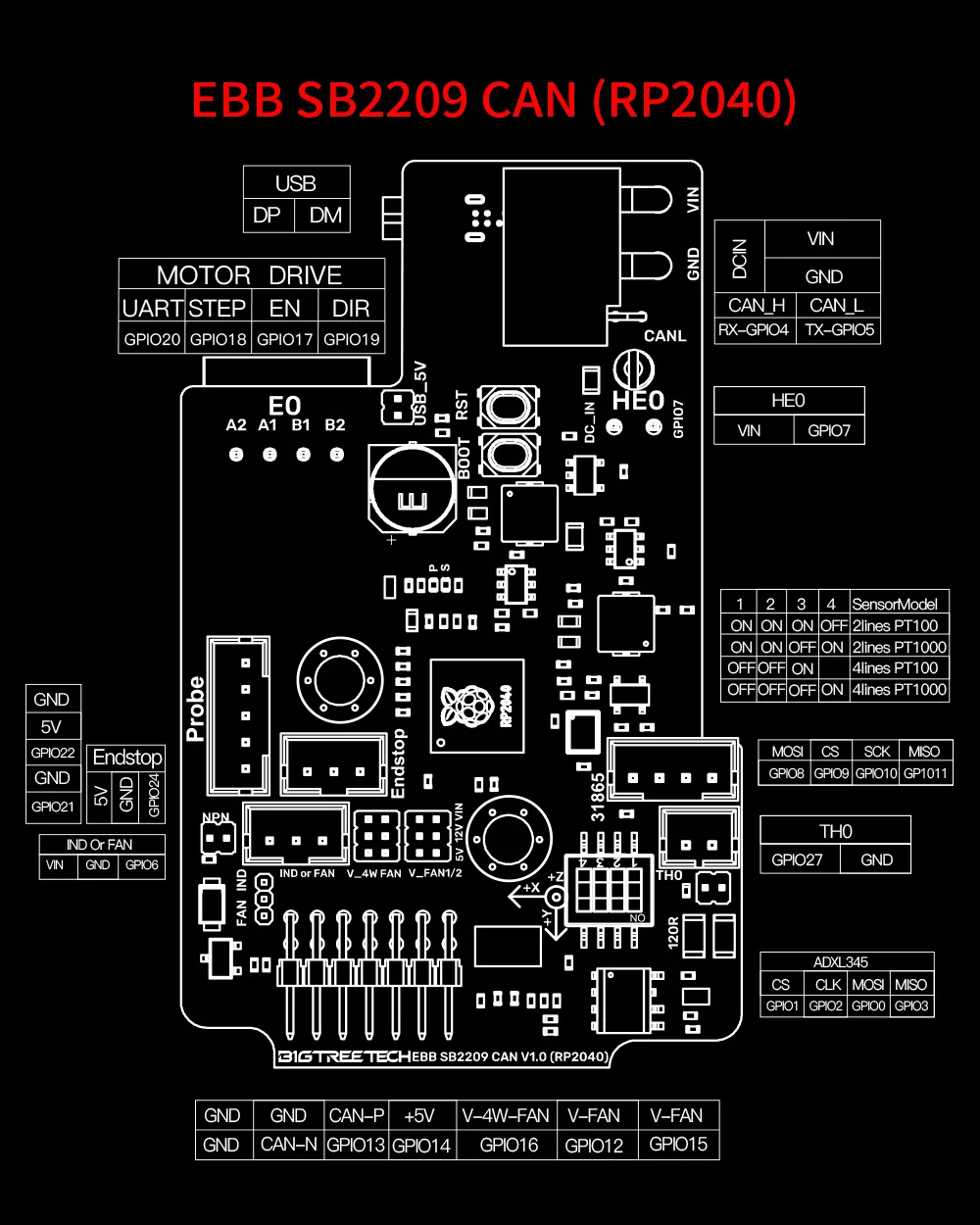

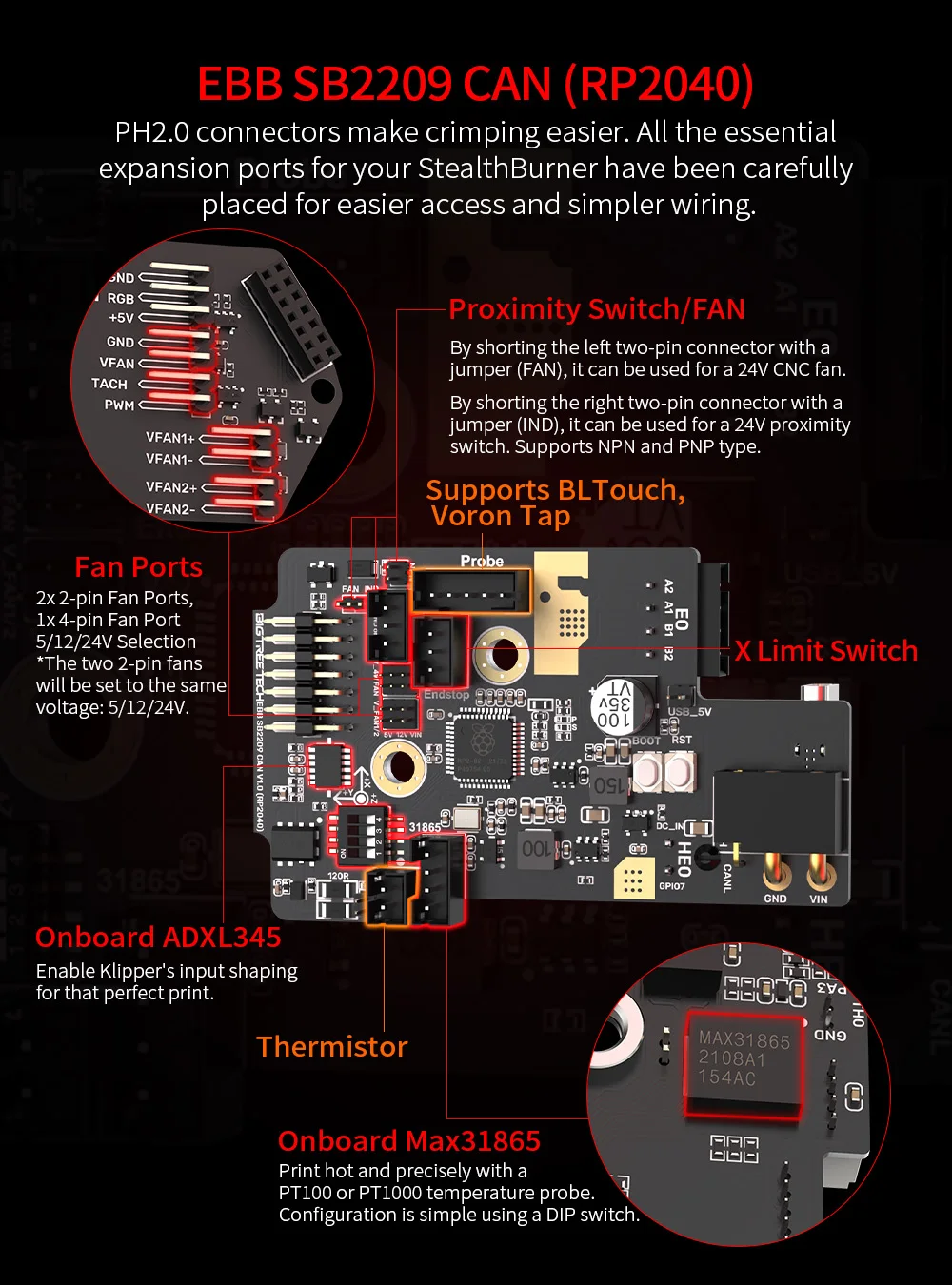

EBB SB2209 CAN（RP2040）

Connector：PH2.0 for Easier Crimping

Communication：CAN

Onboard Driver：TMC2209

Driver Working Mode：UART

MCU：RP2040 Dual ARM Cortex-M0+@133MHz

Input Voltage：DC12V-DC24V 9A

Logic Voltage：DC 3.3V

Heater Connection：Heater Cartridge (E0), Max Output Current: 5A

Onboard Sensor：ADXL345

Fan Port：2xPWM Fan Port, 1x 4-pin Fan Port

Voltage Selection for 2 pins fans：Same voltage for both fans

Fan Port Max Current：1A Continuous, 1.5A Instantaneous

Stepper Motor Interface：EM

Temperature Sensor Interface：1x 100K NTC (TH0),1x PT100/PT1000 Selectable

DCDC 5V Output Max Current：1A

Expansion Port：EndStop, ABL, RGB, PT100/PT1000,USB, CAN

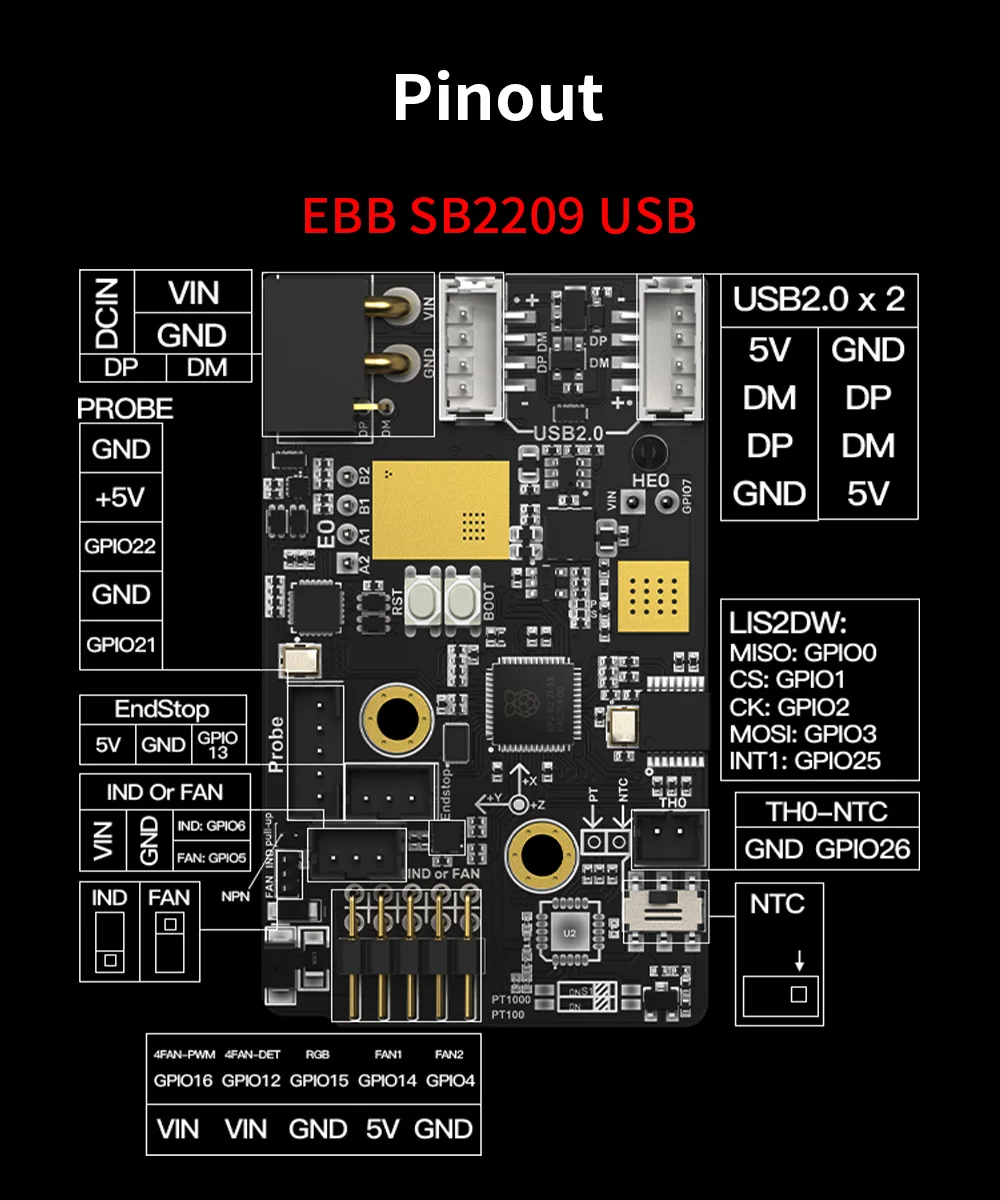

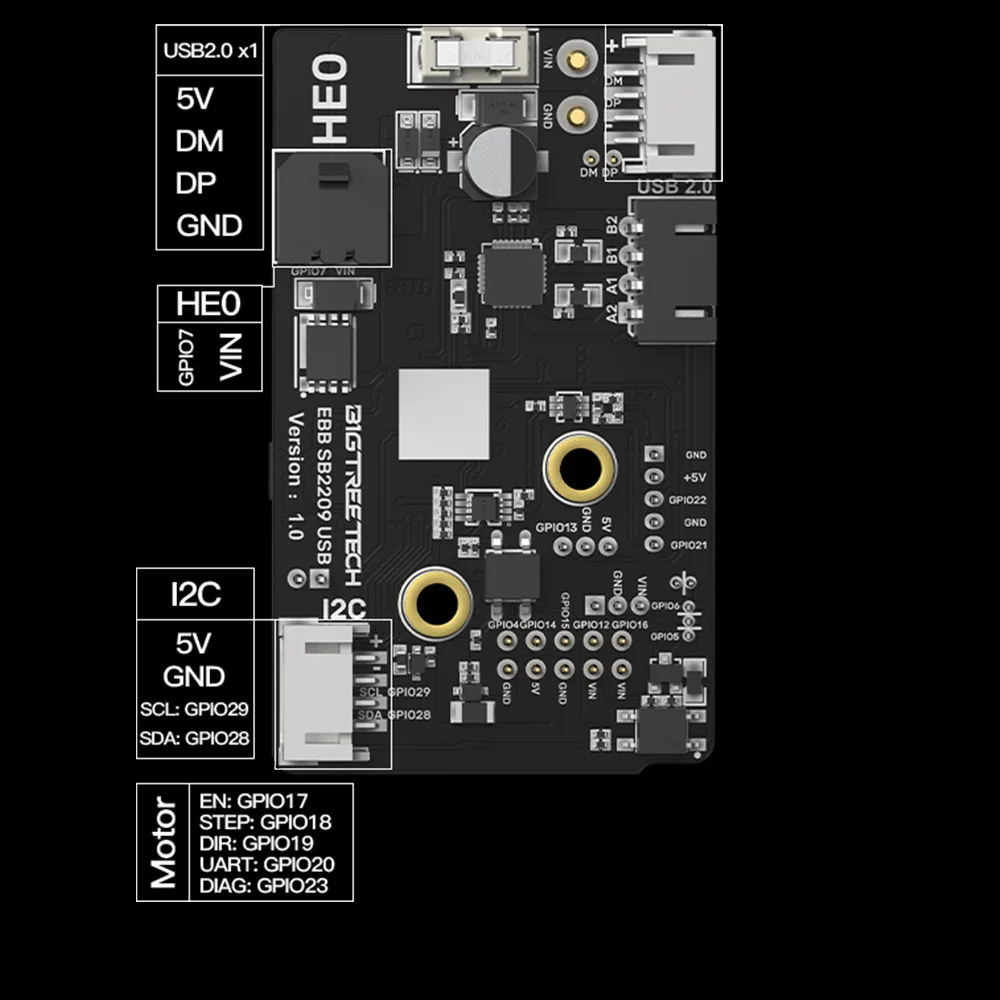

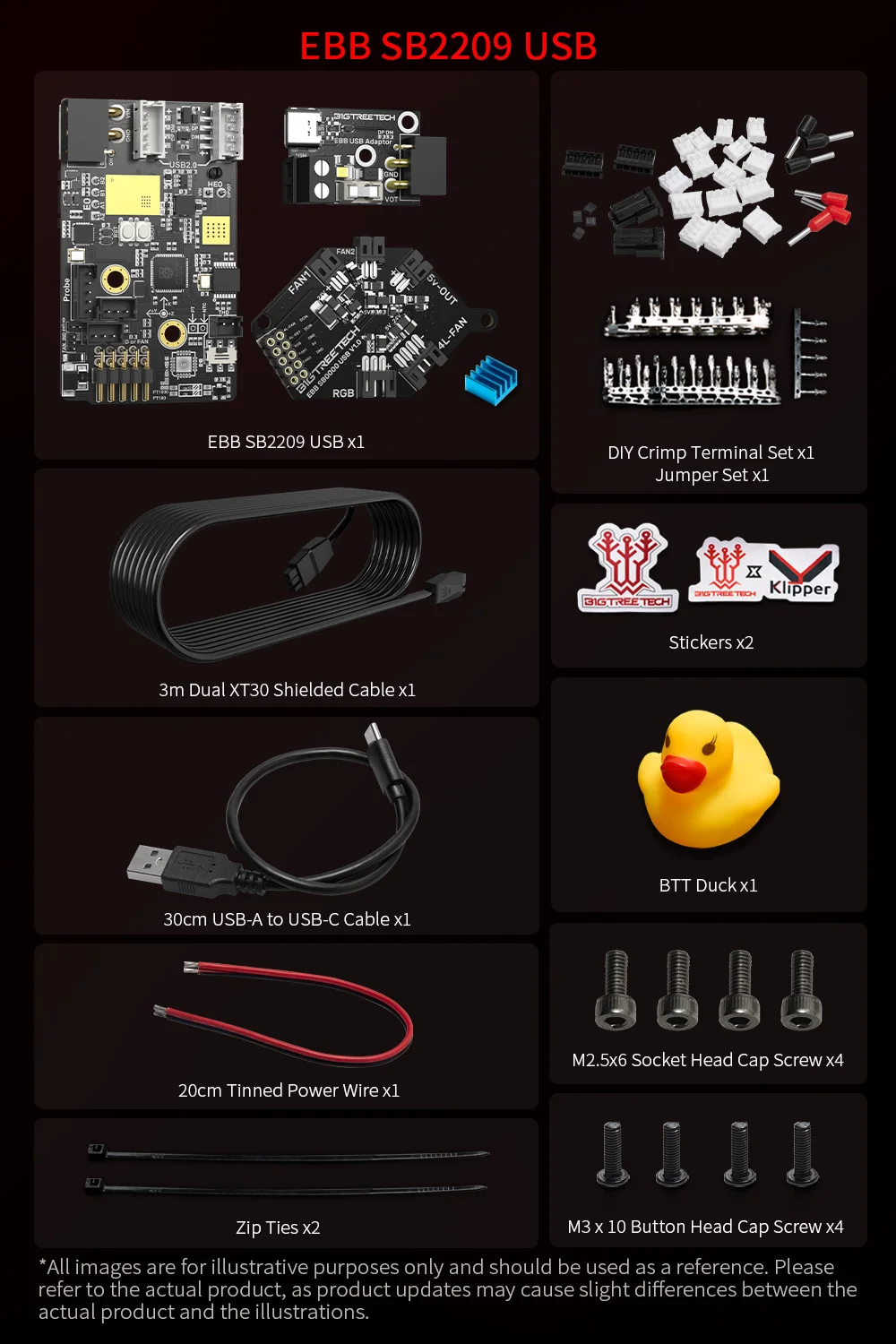

EBB SB2209 USB

Connector：PH2.0 for Easier Crimping

Communication：USB

Onboard Driver：TMC2209

Driver Working Mode：UART

MCU：RP2040 Dual ARM Cortex-M0+@133MHz

Input Voltage：DC12V-DC24V 9A

Logic Voltage：DC 3.3V

Heater Connection：Heater Cartridge (E0), Max Output Current: 6A

Onboard Sensor：LIS2DW, Remarkable Accuracy and Stability

Fan Port：2xPWM Fan Port, 1x 4-pin Fan Port

Voltage Selection for 2 pins fans：Same voltage for both fans

Fan Port Max Current：1A Continuous, 1.5A Instantaneous

Stepper Motor Interface：E0

Temperature Sensor Interface：1x 100K NTC (2.2K pull-up resistor),supports PT1000

DCDC 5V Output Max Current：1A

Expansion Port：Probe, RGB, USB2.0x3, I²C, Endstop, IND or FAN, 5V OUT, USB2.0x3

The cooperation between KLIPPER and BIGTREETECH makes firmware for 3D printing enthusiasts more convenient to use and helps to further enhance the printing experience. BIGTREETECH is committed to establishing a complate 3D printing ecosystem, striving to bring more possibilities to the 3D printing industry and pushing the technological advancement of 3D printers to make 3D printers faster, better, and easier.

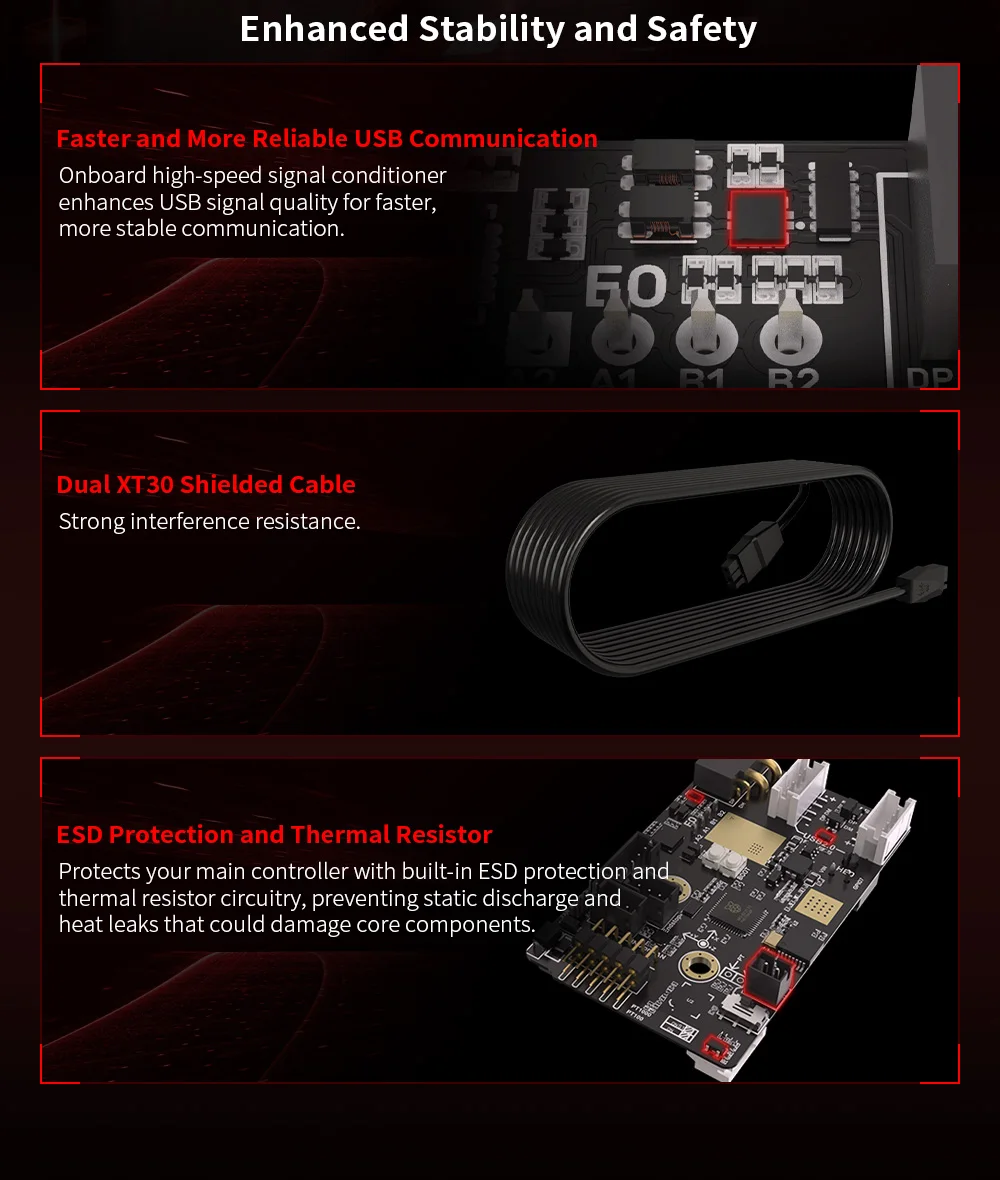

Why EBB SB2209

Designed for Klipper

Hi-Speed Communication

Onboard TMC2209 Driver

For VORON StealthBurner Drop-in nstallation

Onboard Accelerometer

High-Quality USB/CAN XT30 Cable

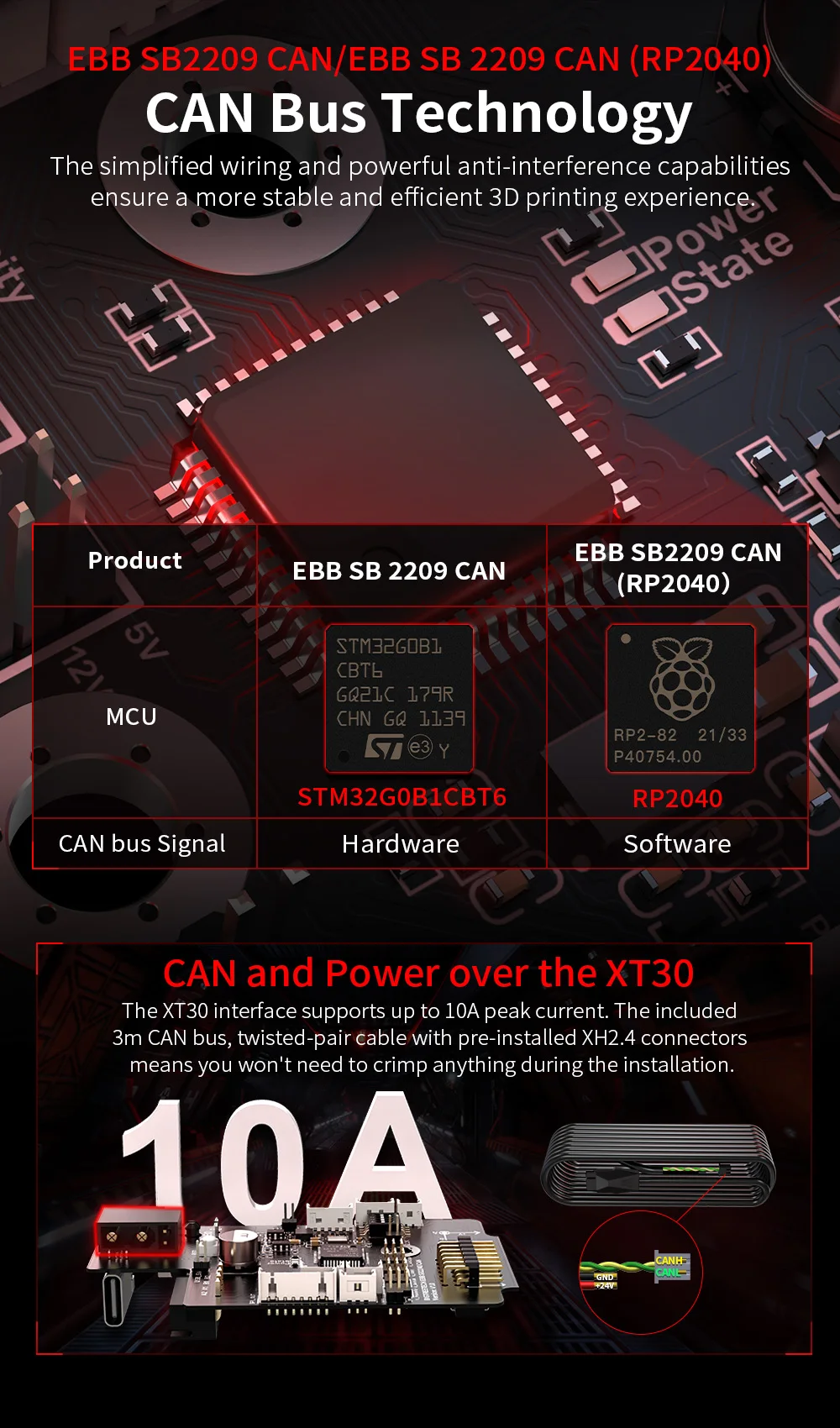

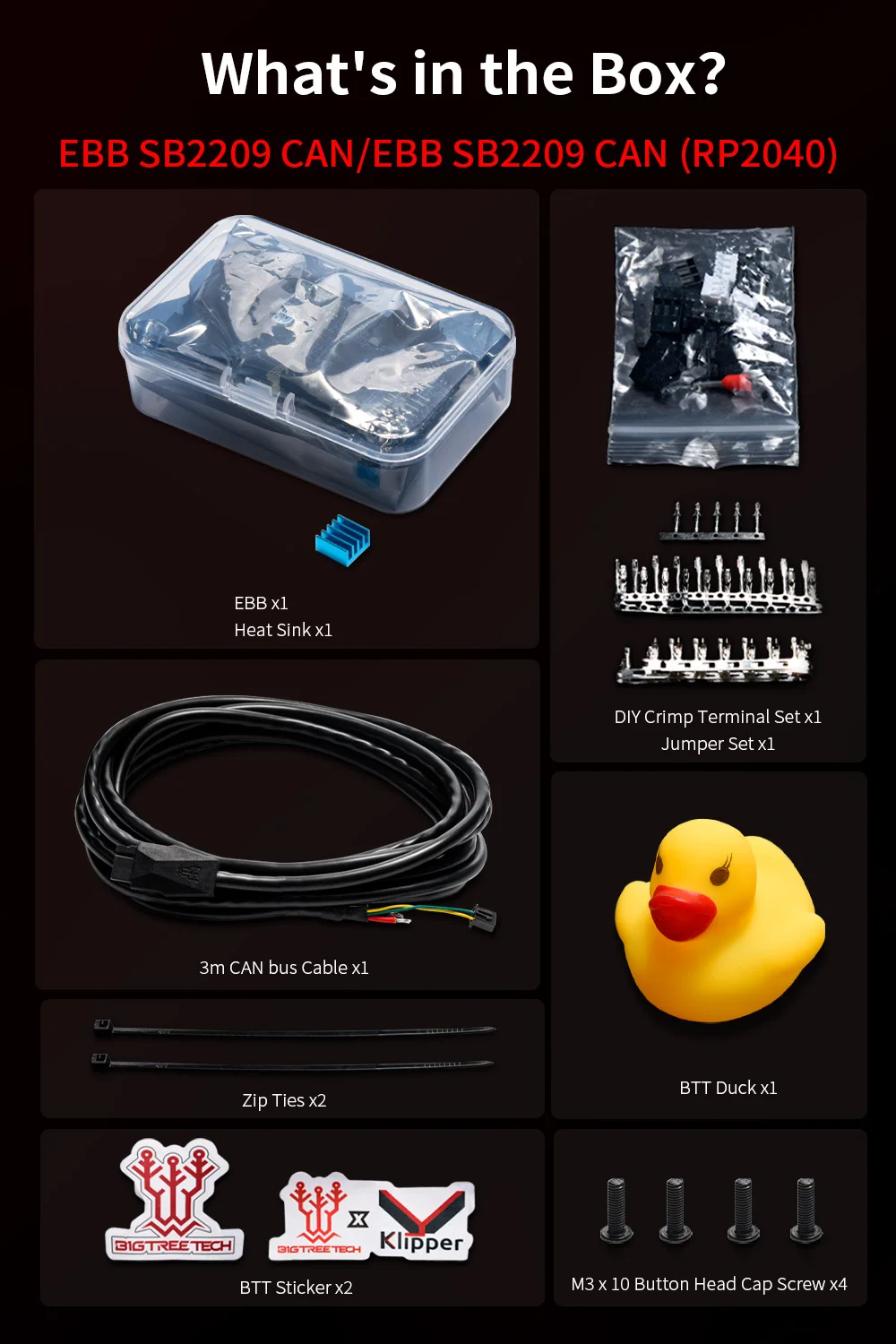

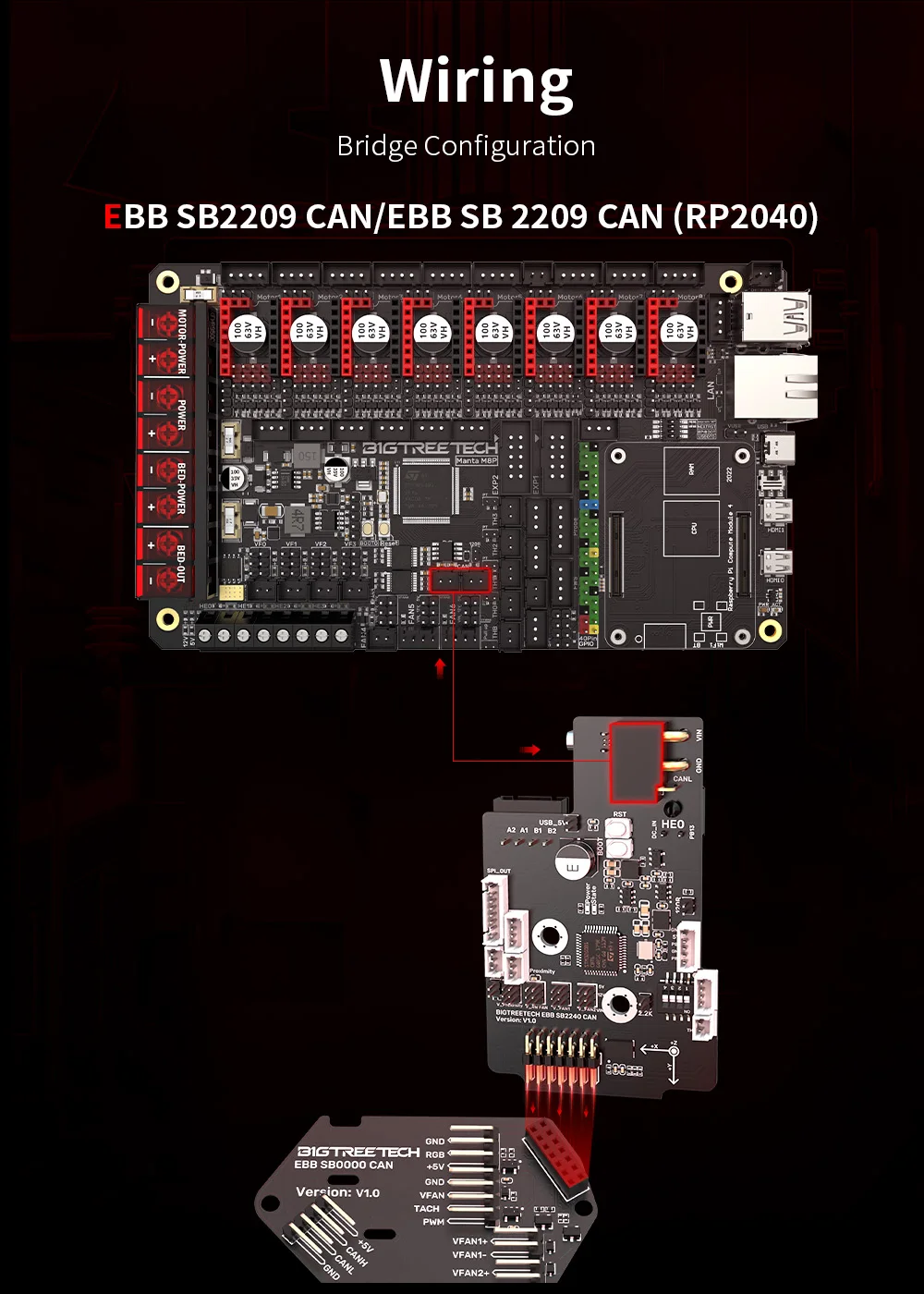

EBB SB2209 CAN/EBB SB2209 CAN（RP2040）

CAN Bus Technology

The simplified wiring and powerful anti-interference capabilities ensure a more stable and efficient 3D printing experience.

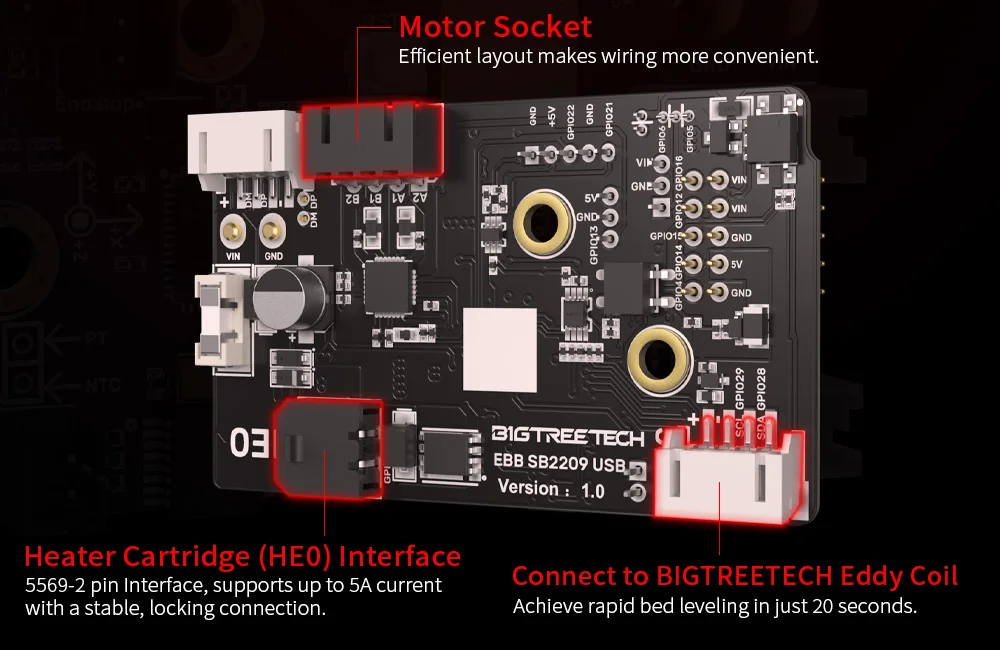

EBB SB2209 USB

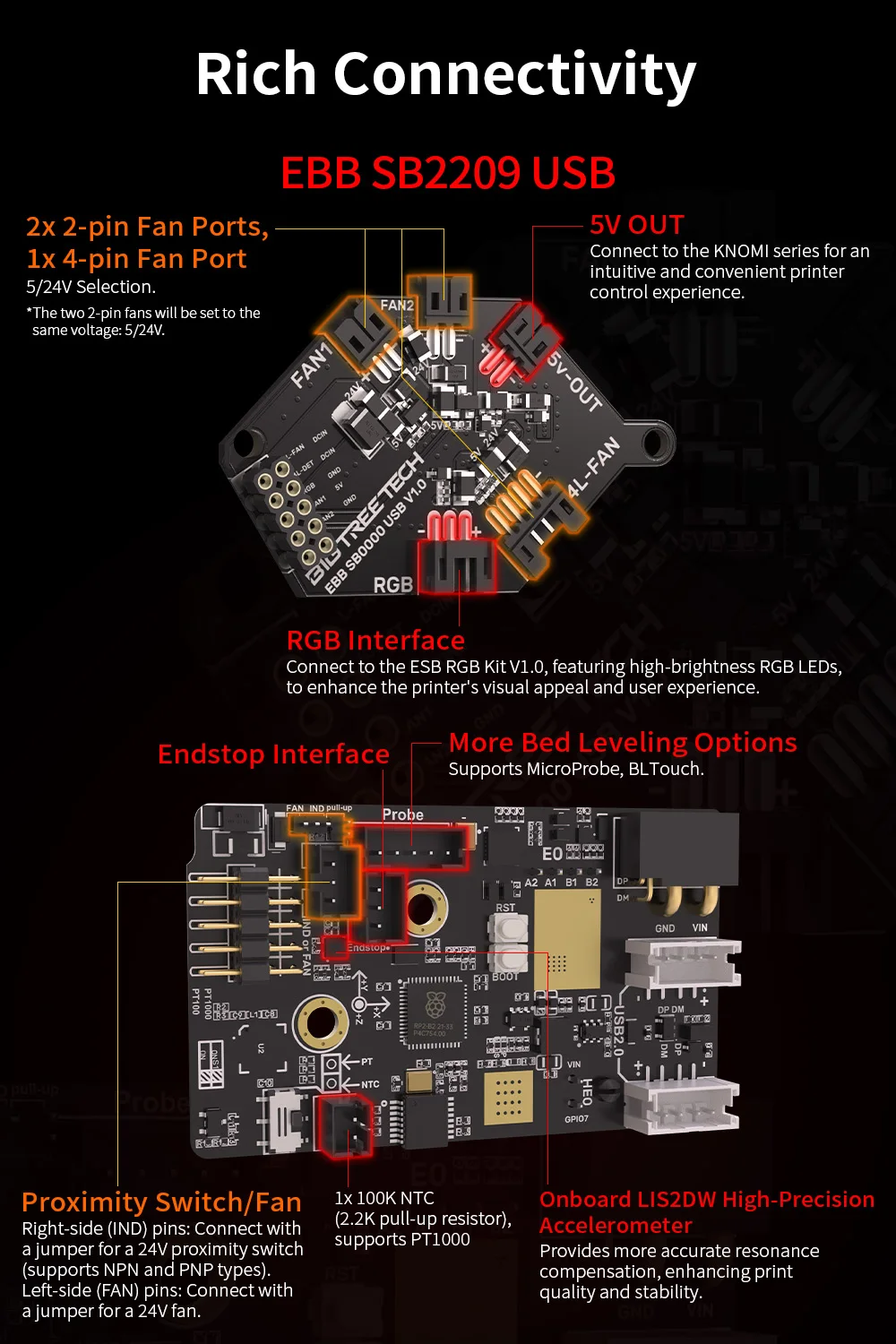

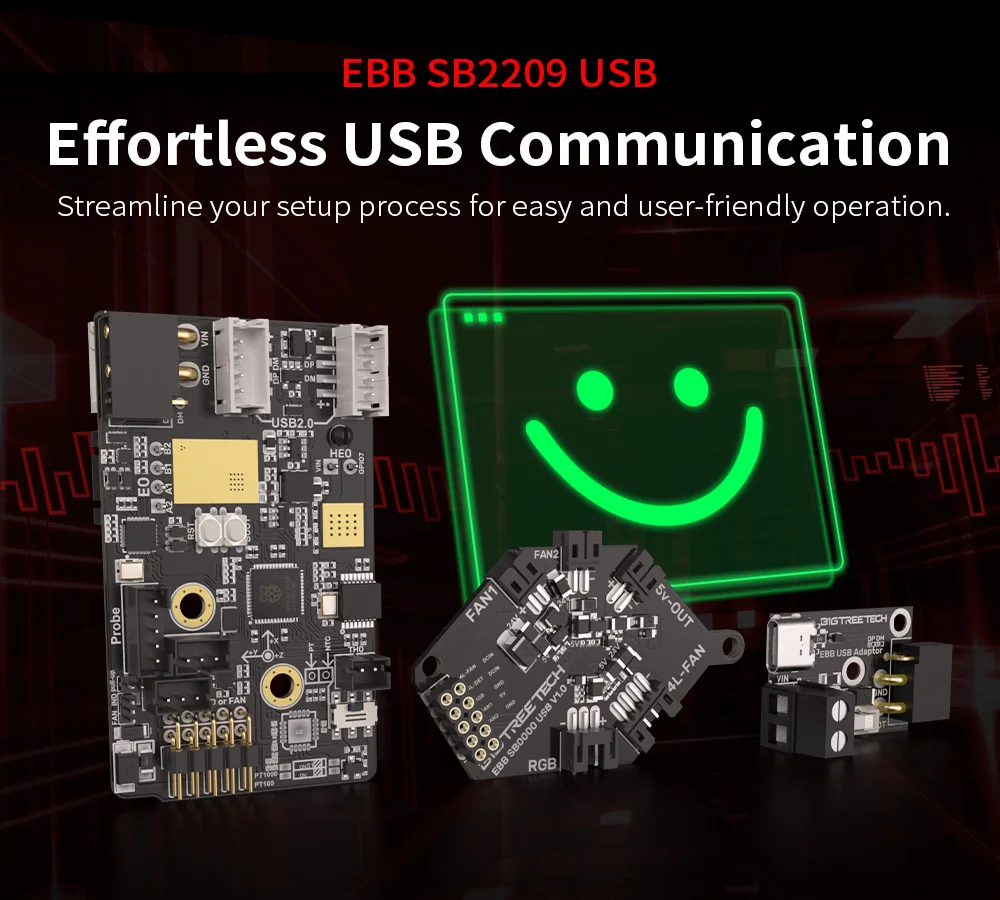

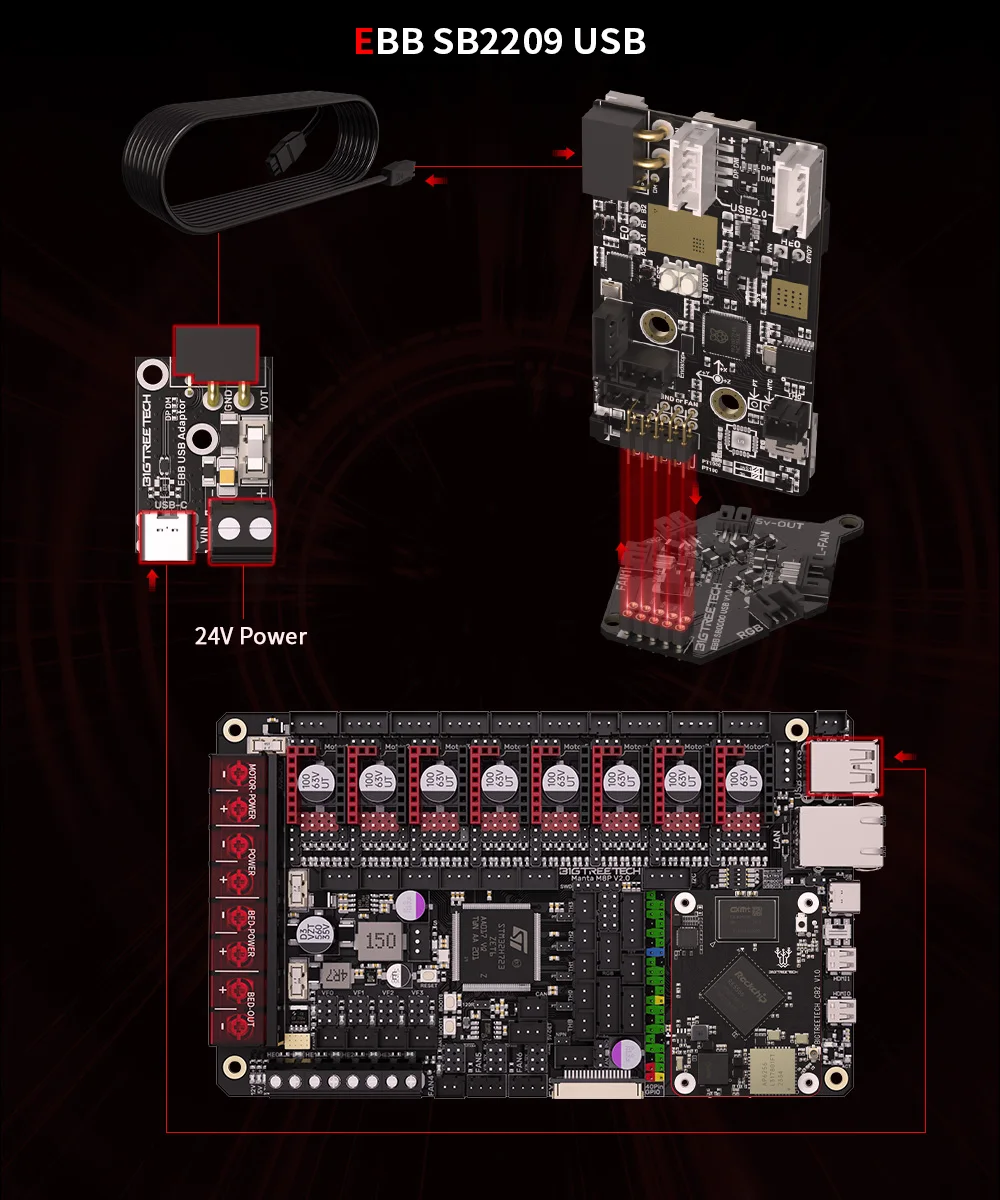

Effortless USB Communication

Streamline your setup process for easy and user-friendly operation.

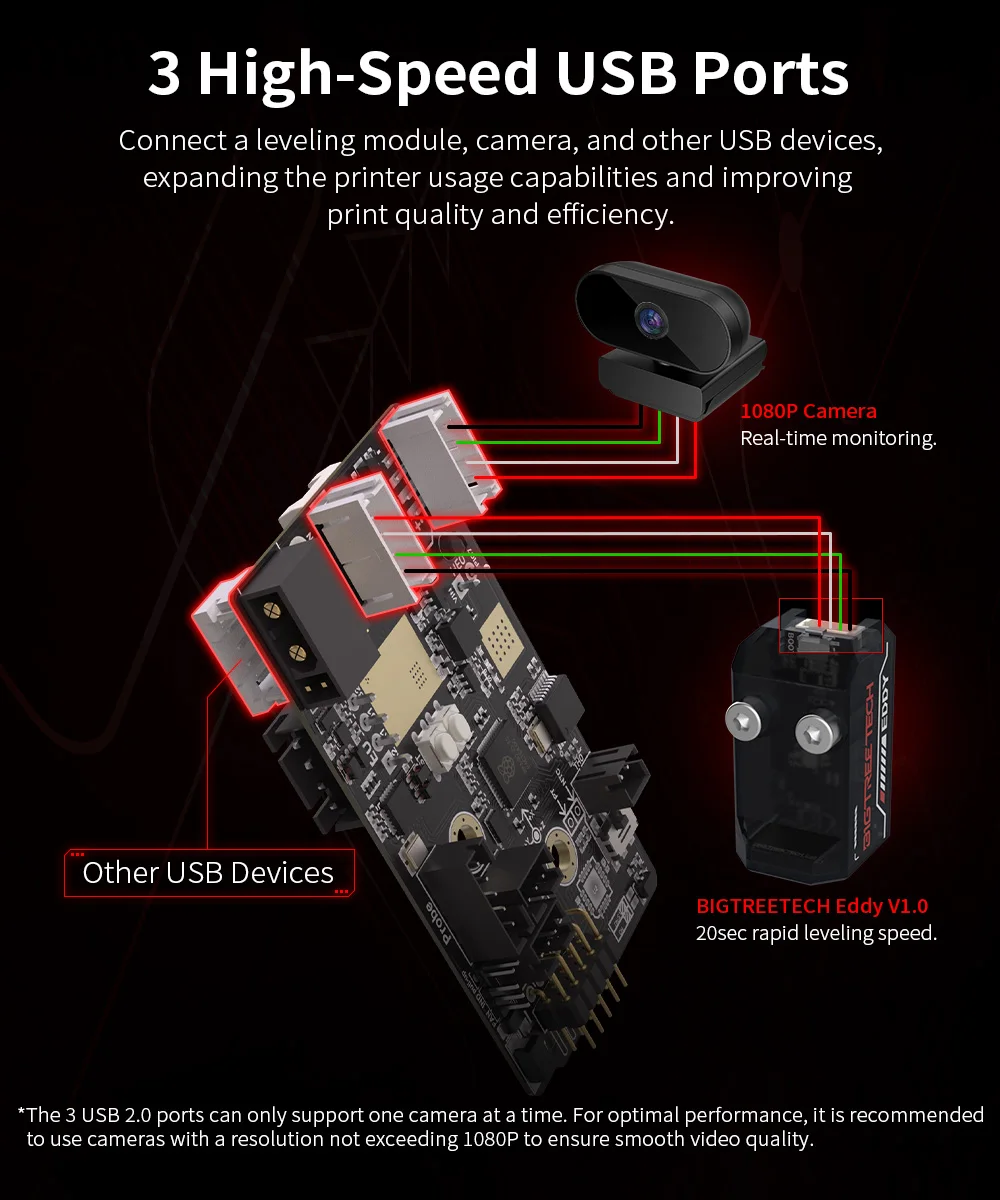

3 High-Speed USB Ports

Connect a leveling module, camera, and other USB devices,expanding the printer usage capabilities and improving print quality and efficiency.

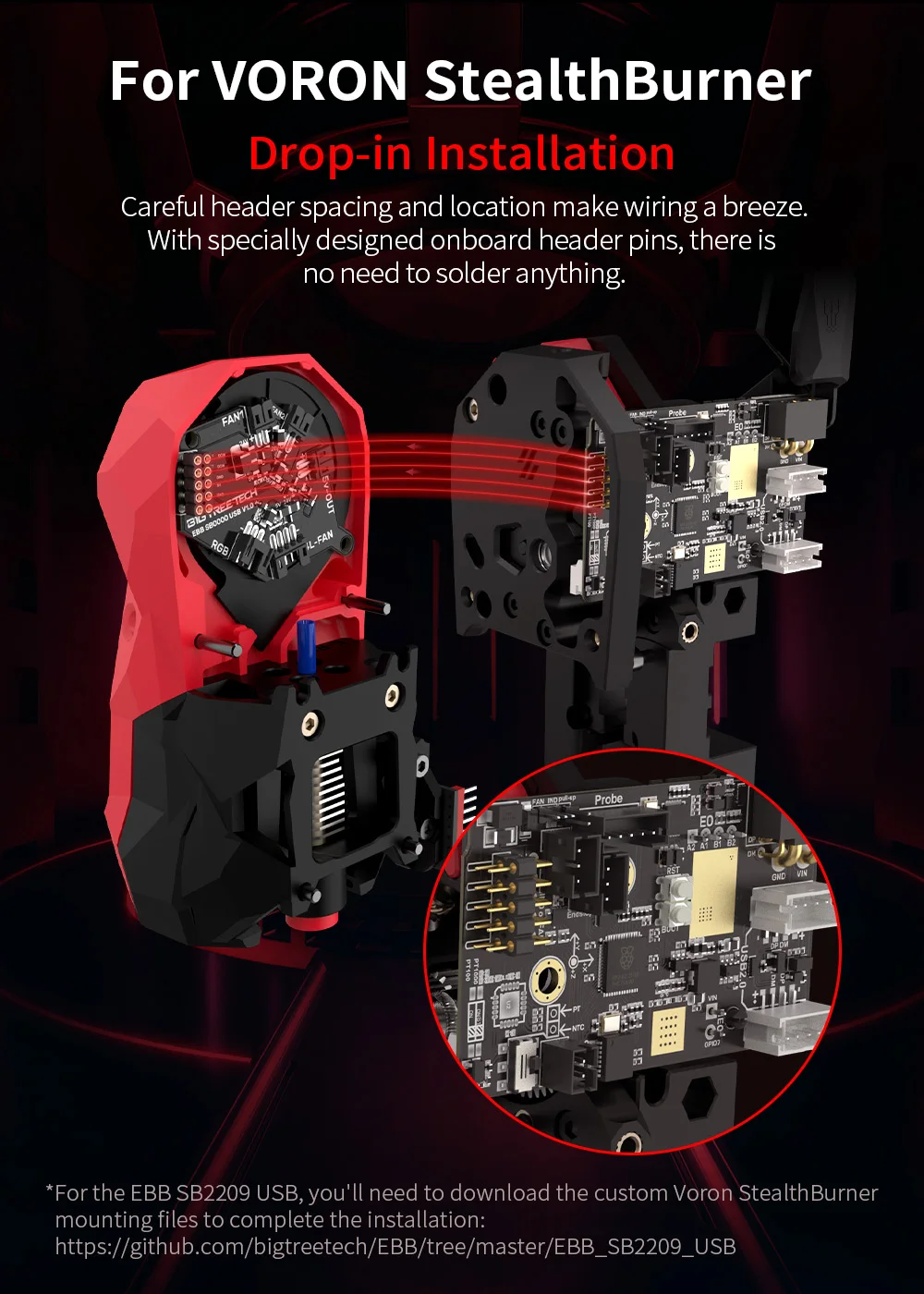

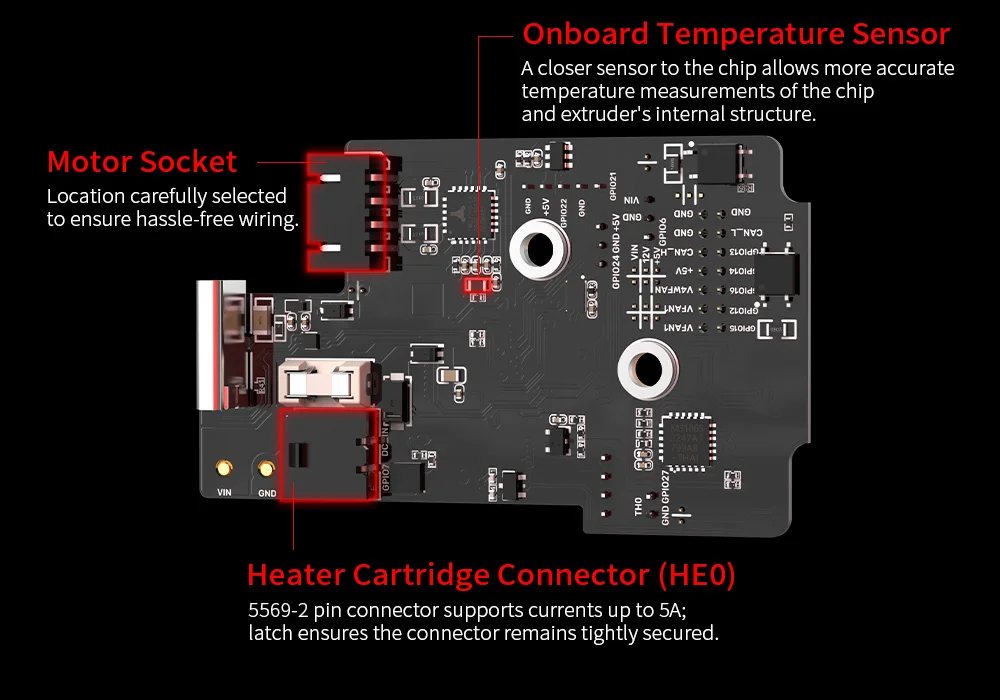

For VORON StealthBurner

Drop-in Installation

Careful header spacing and location make wiring a breeze.With specially designed onboard header pins, there is no need to solder anything.

One More Thing

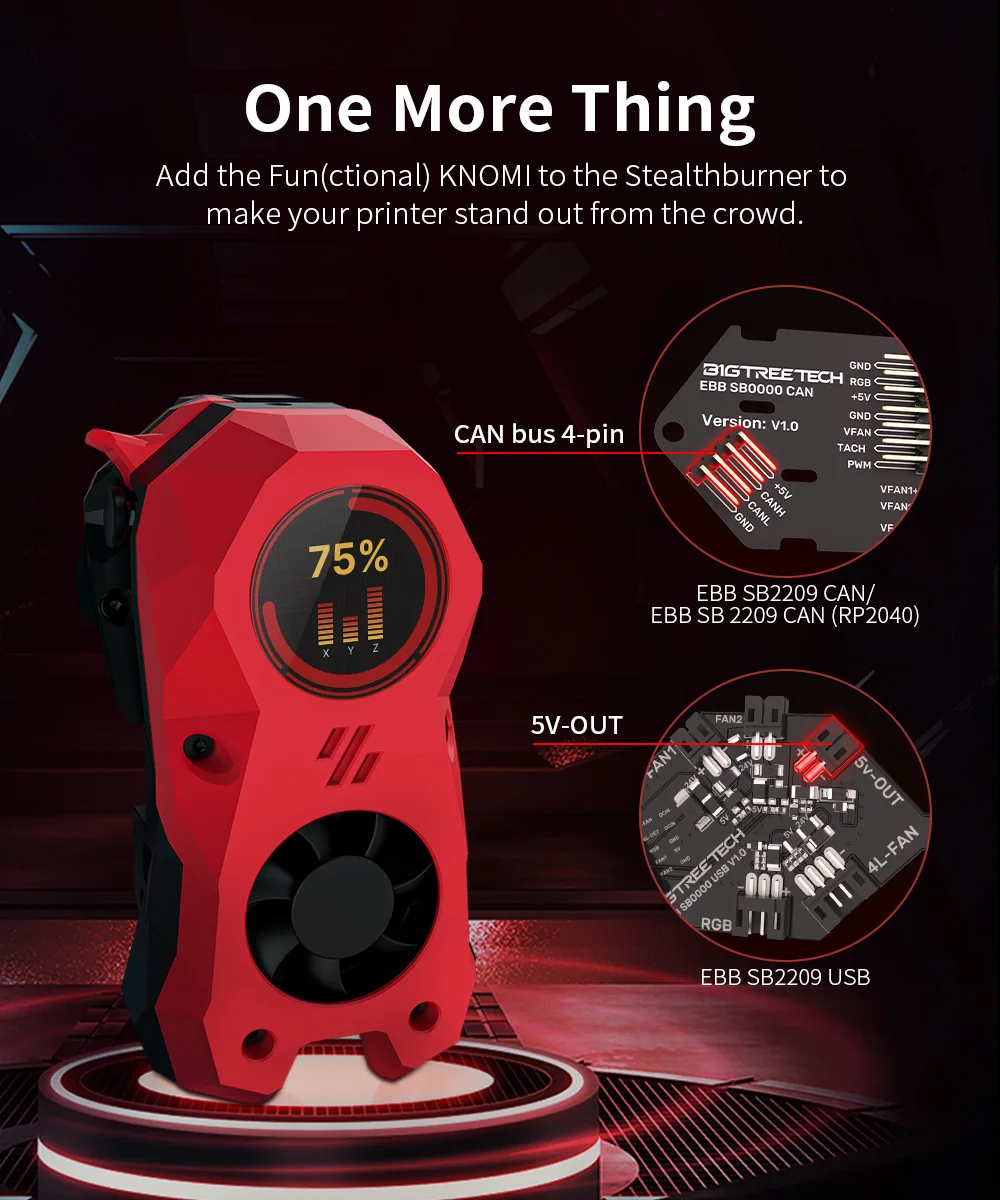

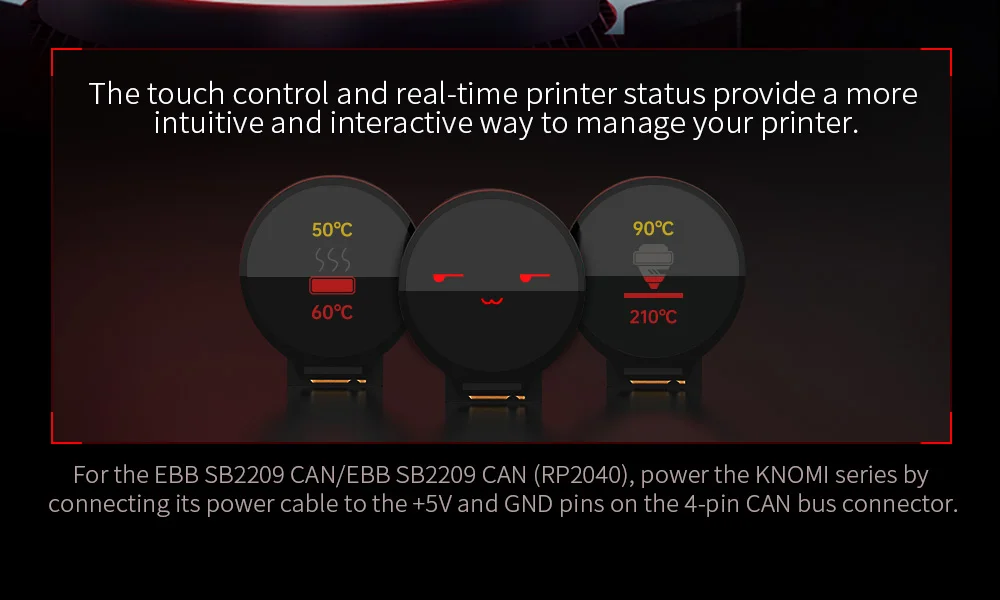

Add the Fun(ctional) KNOMI to the Stealthburner to make your printer stand out from the crowd.

https://github.com/bigtreetech/EBB

*The 3 USB 2.0 ports can only support one camera at a time. For optimal performance,it is recommended to use cameras with a resolution not exceeding 1080P to ensure smooth video quality.

*For the EBB SB2209 USB, you'll need to download the custom Voron StealthBurner mounting files to complete the installation:

https://github.com/bigtreetech/EBB/tree/master/EBB_SB2209_USB

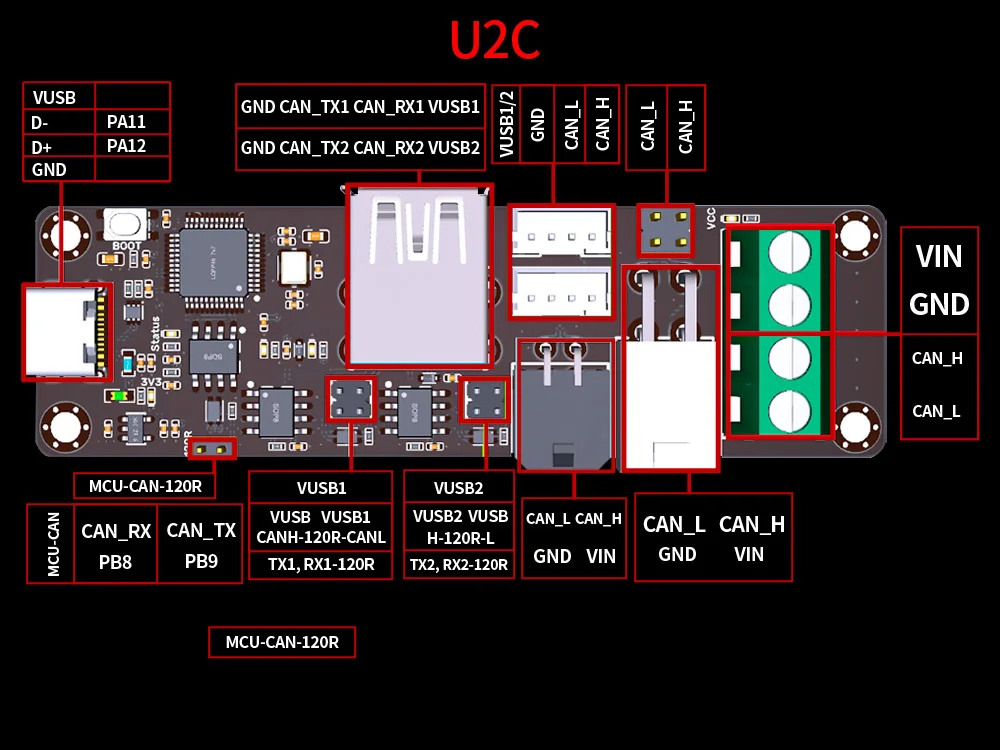

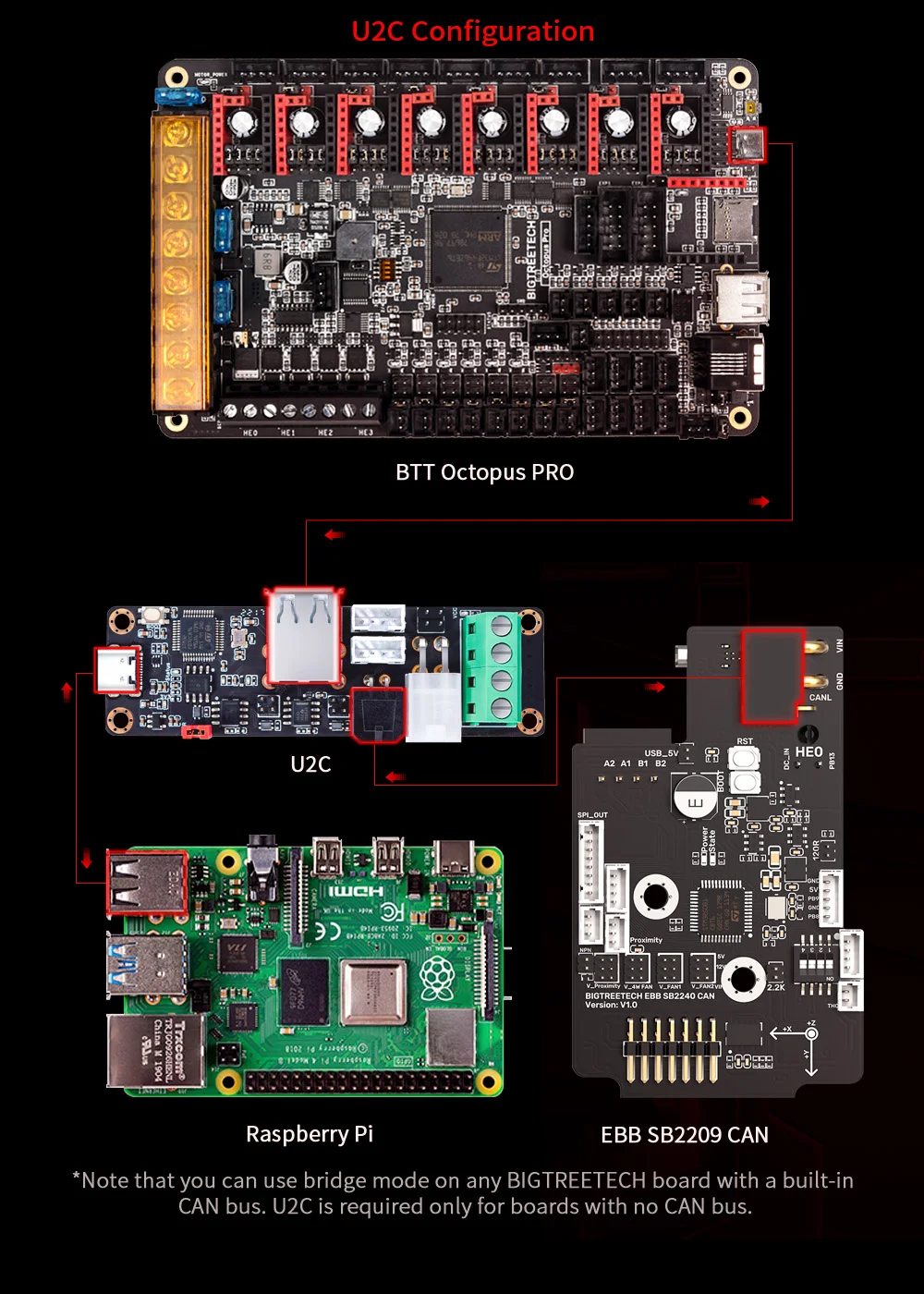

*Note that you can use bridge mode on any BIGTREETECH board with a built-in CAN bus. U2C is required only for boards with no CAN bus.
