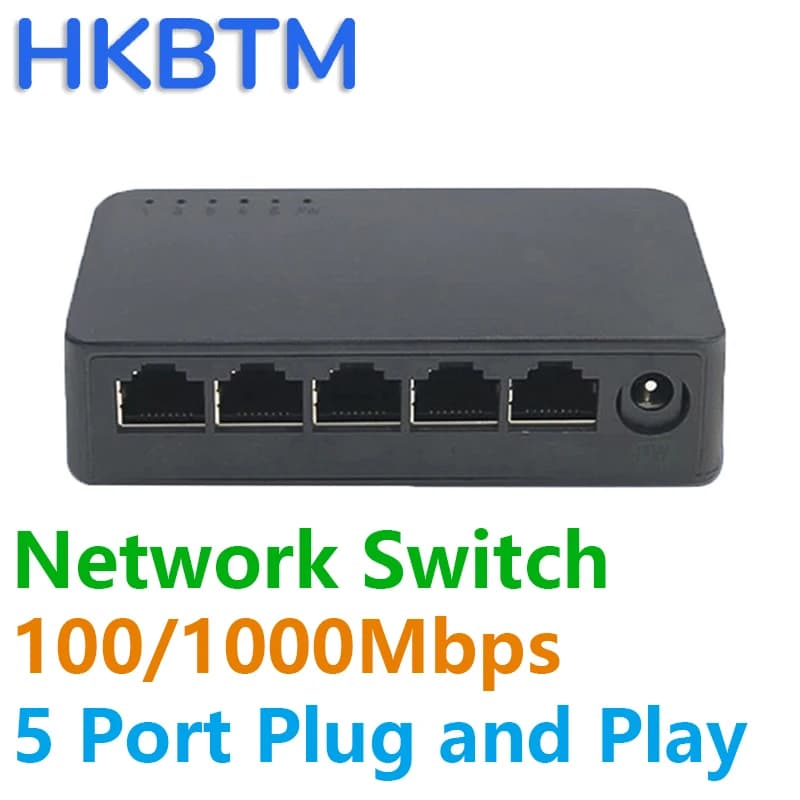

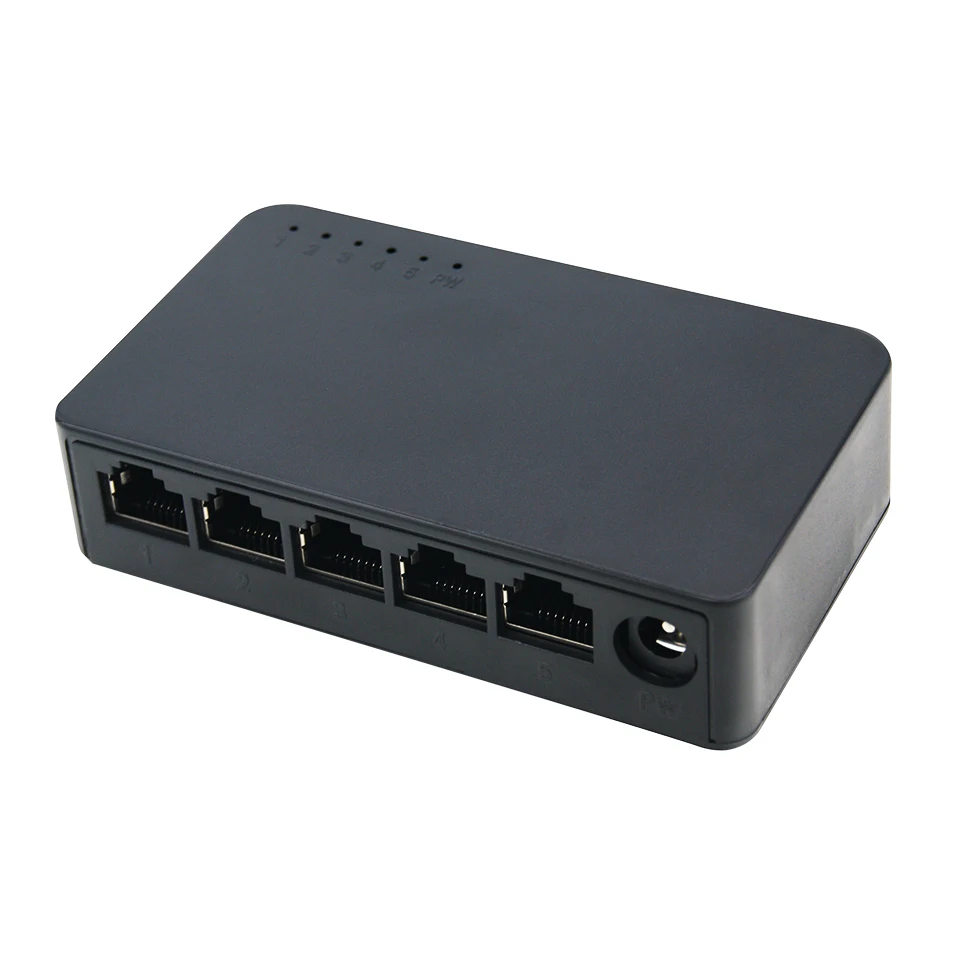

Network Switch Mini 5Ports Switch Ethernet 1000Mbps/100Mbps Gigabit High Performance Smart Switcher RJ45 Hub Internet Injector

Introduction:

These unmanaged switches are Fast Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 5 port 10/100Mbps or 10/100/1000Mbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 100Mbps or 1000Mbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.

Features:

5*100M or 5*1000M Ethernet port with auto-negotiation function

Support 100M/1000M speed rate,MDI/MDIX

Support IEEE802.3x Flow control and back pressure control

Each port has the complete LED Indicator light

Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed

Support multicast to avoid network congestion

Support 5-16V voltage input

Support 4K lightning protection of whole device.

Require no configuration and will instantly operate as soon as you power it up

Use low-power consumption chips,only 2.5W in full load conditions

Specification:

Standards：

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3x Flow control

Ethernet Port：

Connector: RJ45

Data Rate: 10/100M or 10/100/1000M

Distance: 100m

UTP Type: UTP-5E or higher level

Performance：

Processing Type: Store and Forward

Transmission Mode: half/full-duplex with auto-negotiation function

MAC Table Size: 1K

Buffer Space: 448K

Back bandwidth: 1G

Time Delay: ＜150μs

Power：

Power type: external power supply

Input Voltage: AC100V～240V 50/60Hz

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 1.8W～4W

Environment：

Storage Temperature: -40～70℃

Operating Temperature: -10～55℃

Relative Humidity: 5-90% ( no condensation)

Physical Characteristics：

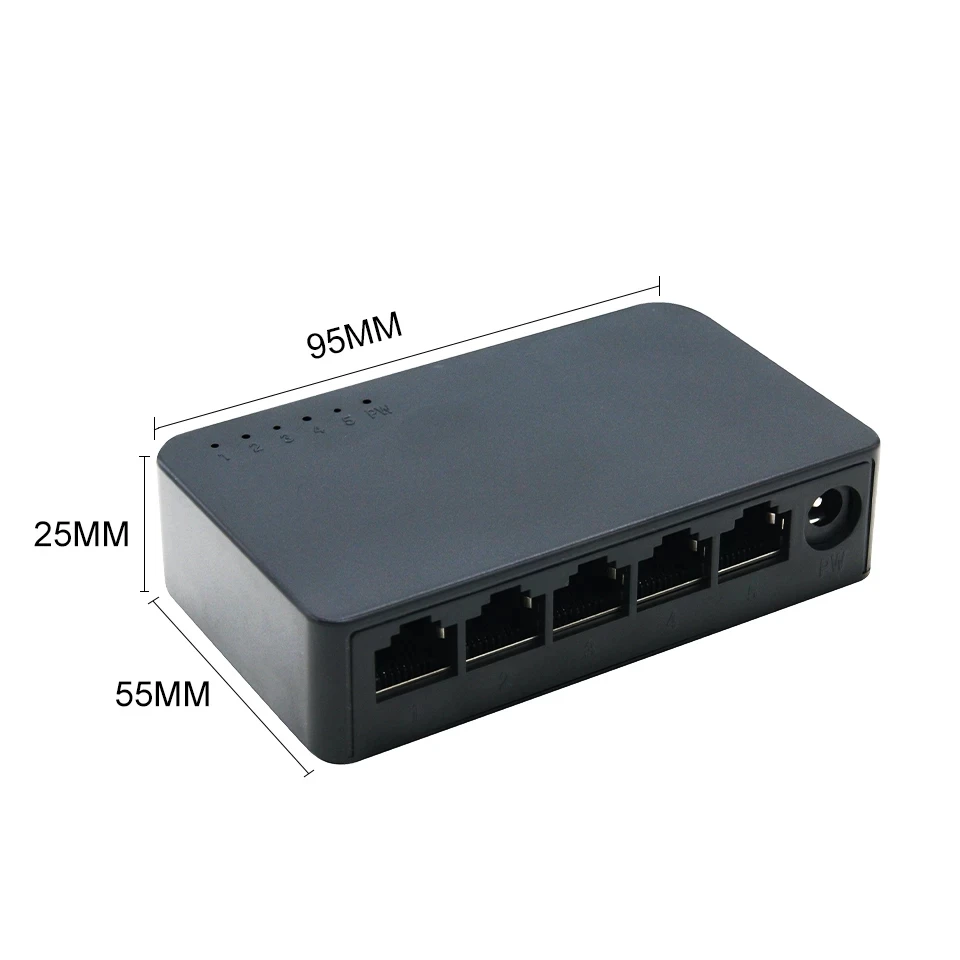

Dimension: 100×52×28mm

Weight: 0.30kg

Color: Black
