BIGTREETECH EBB SB2209 SB2240 CAN V1.0 CanBus HeadTool USB PT1000 for Klipper Voron StealthBurner VS Fly-SB2040 3D Printer Board

Note：

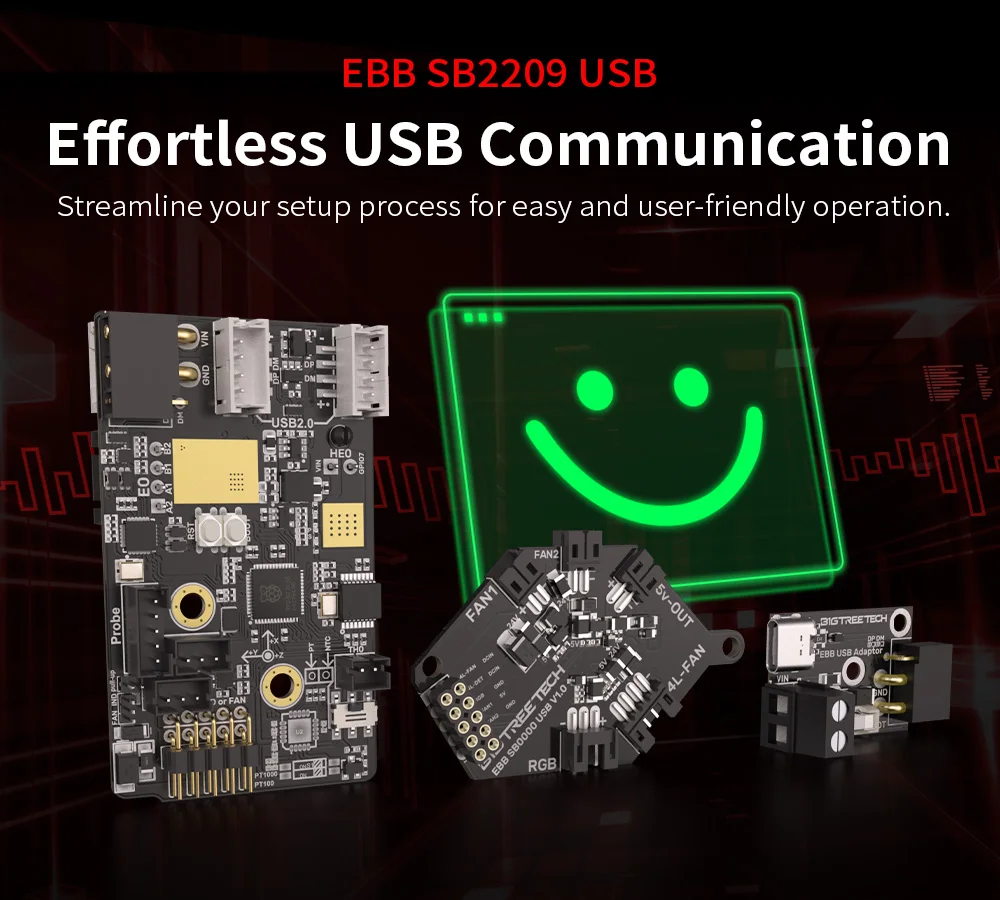

EBB SB2209 USB will arrive at the end of August

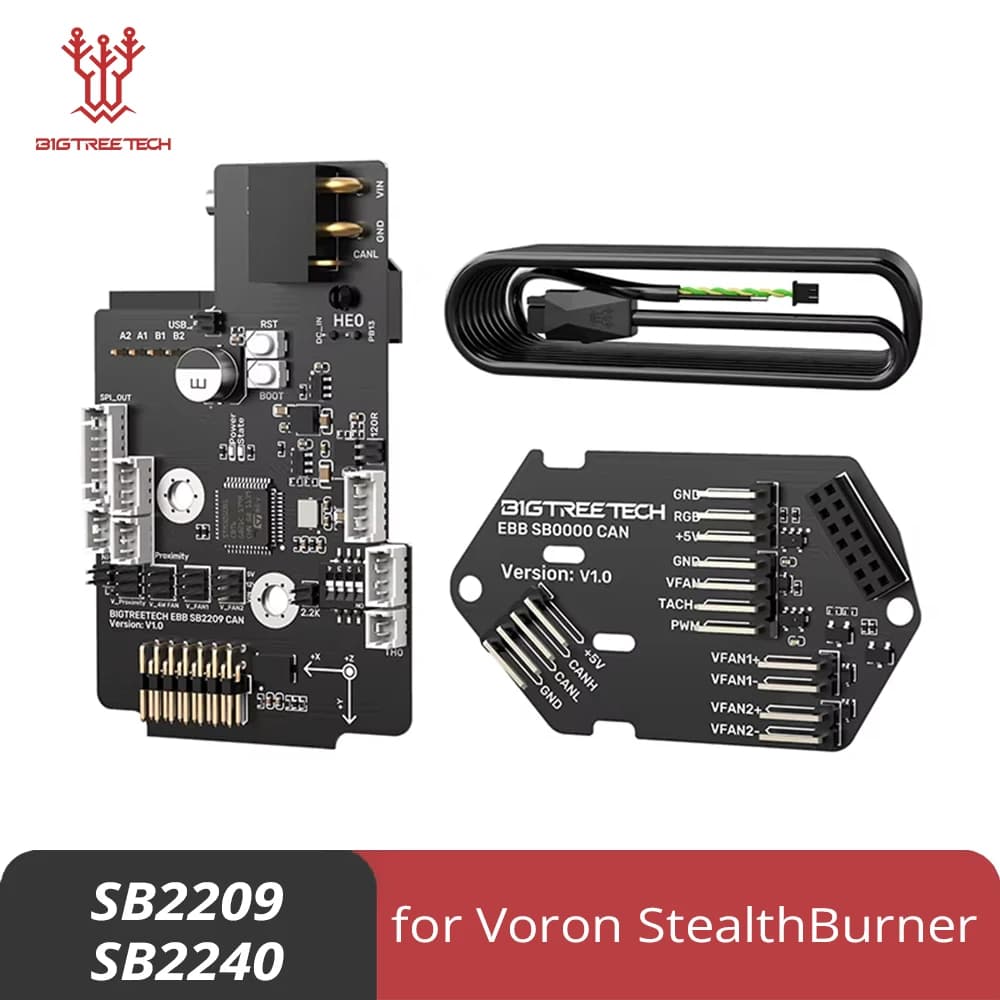

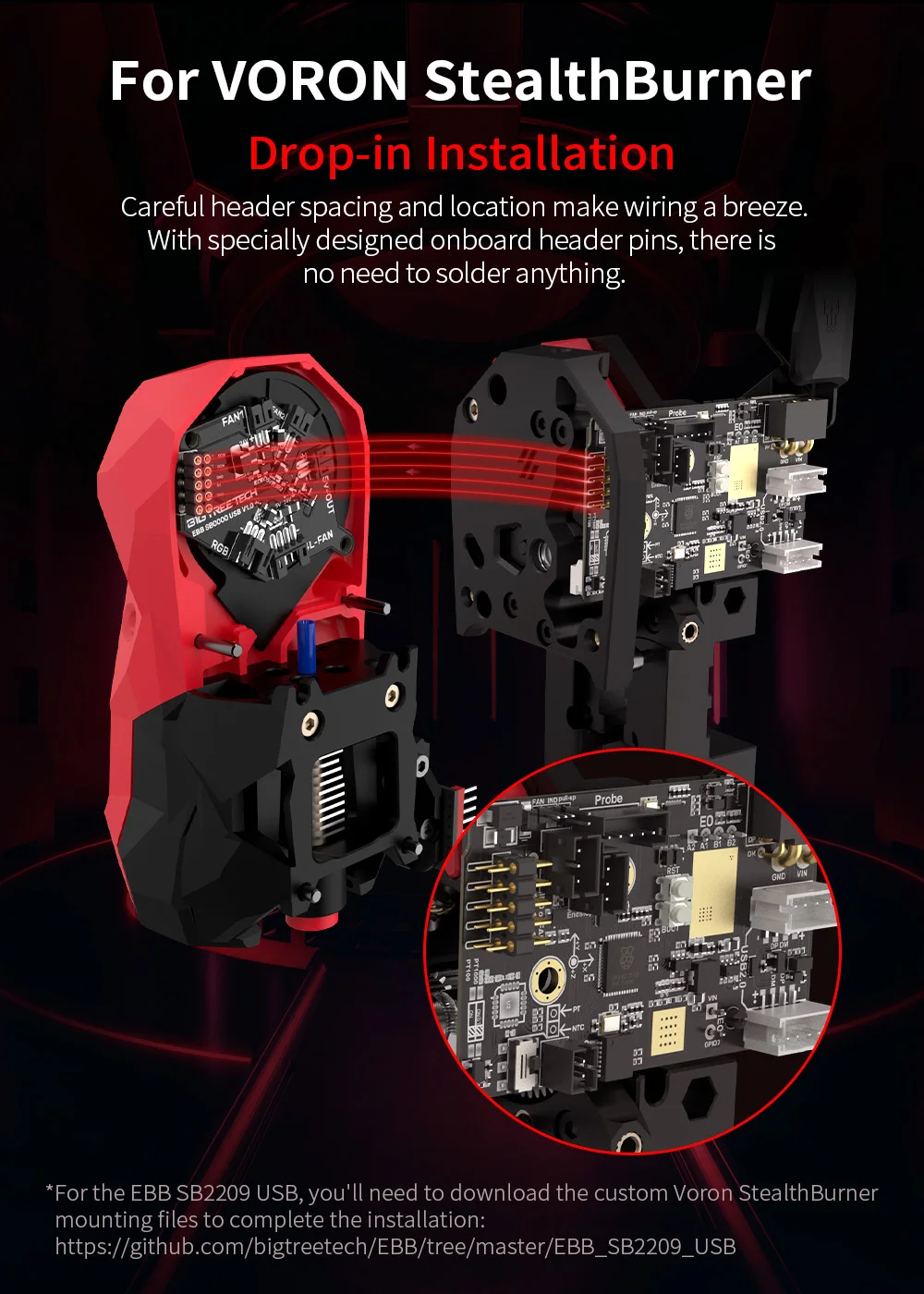

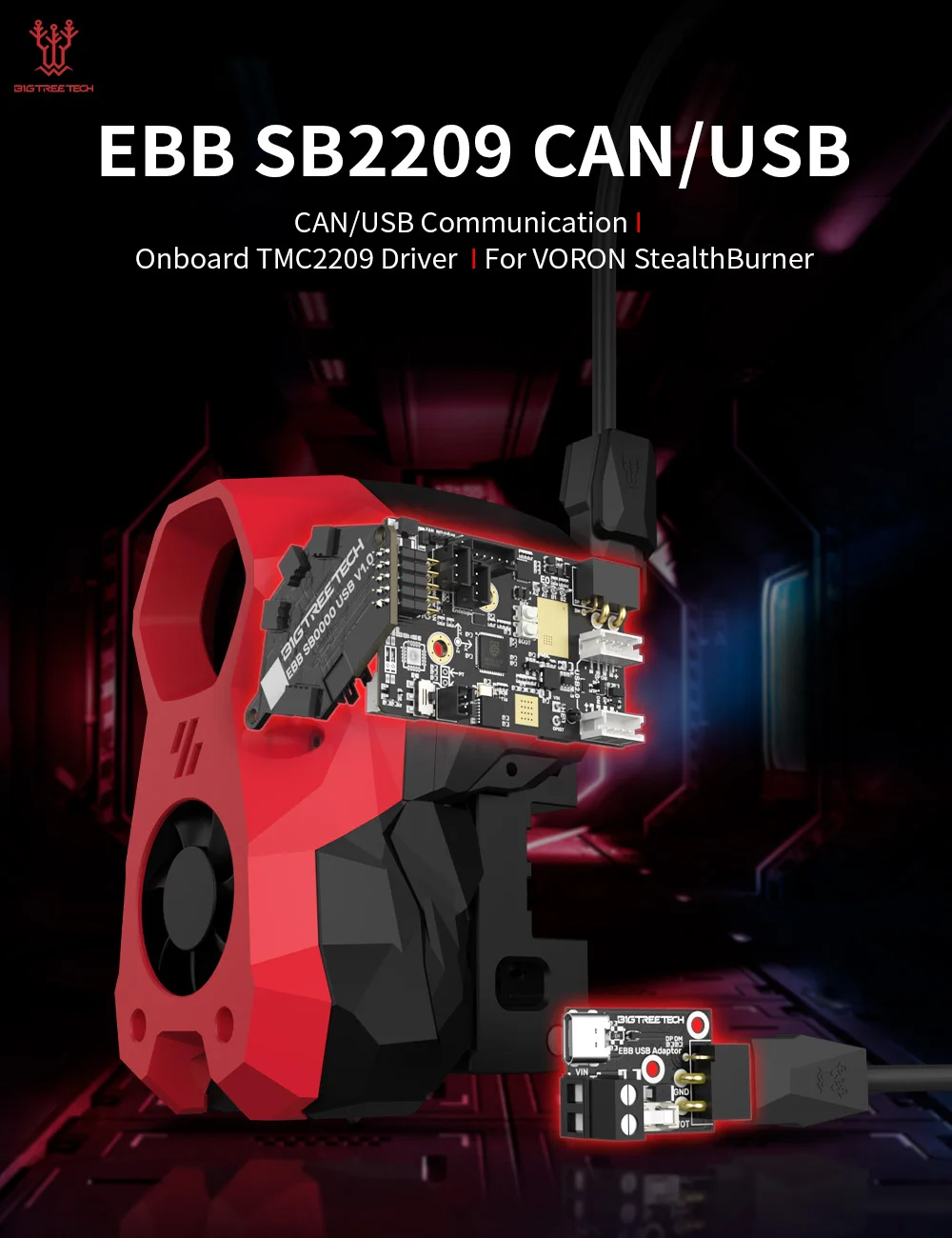

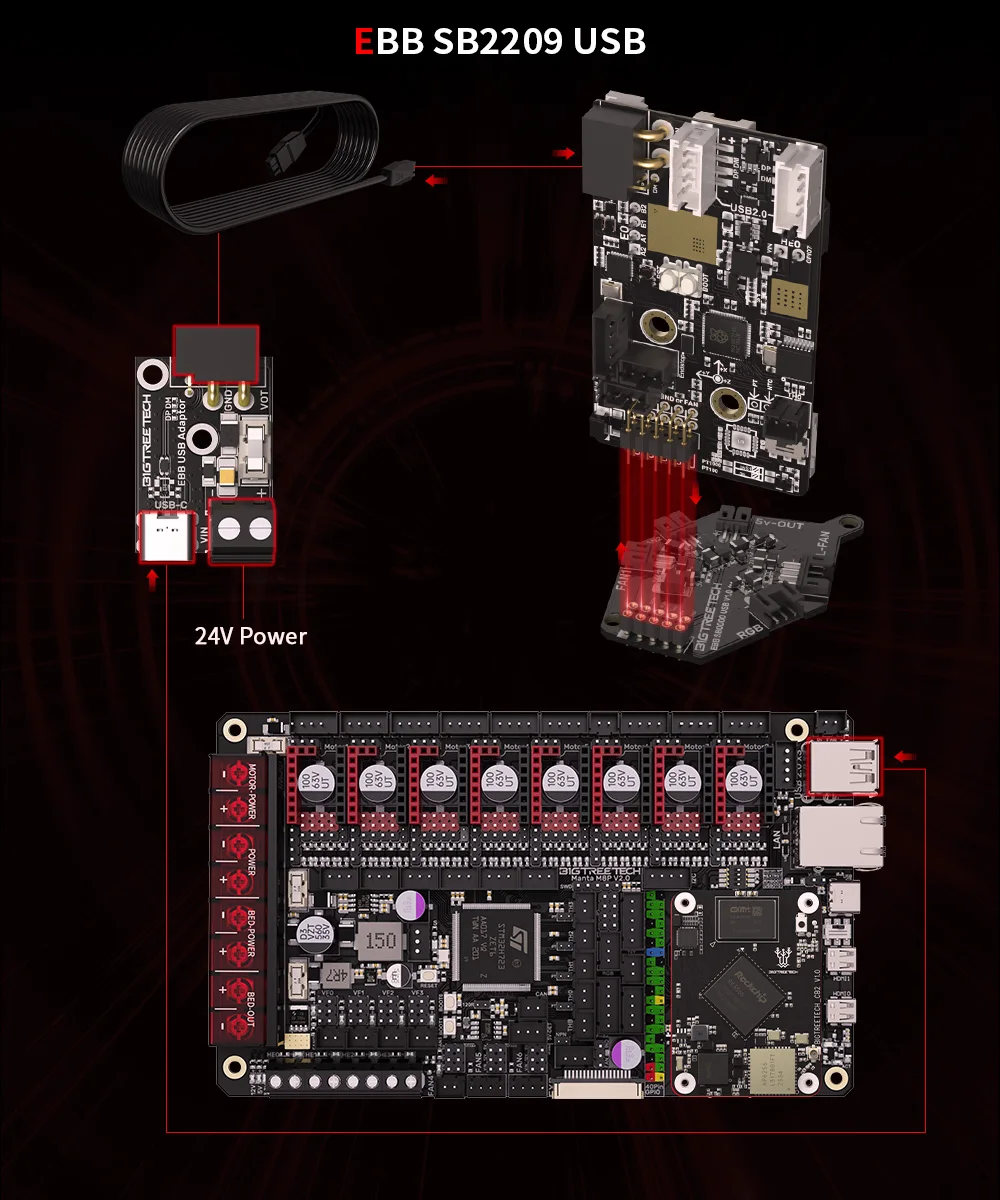

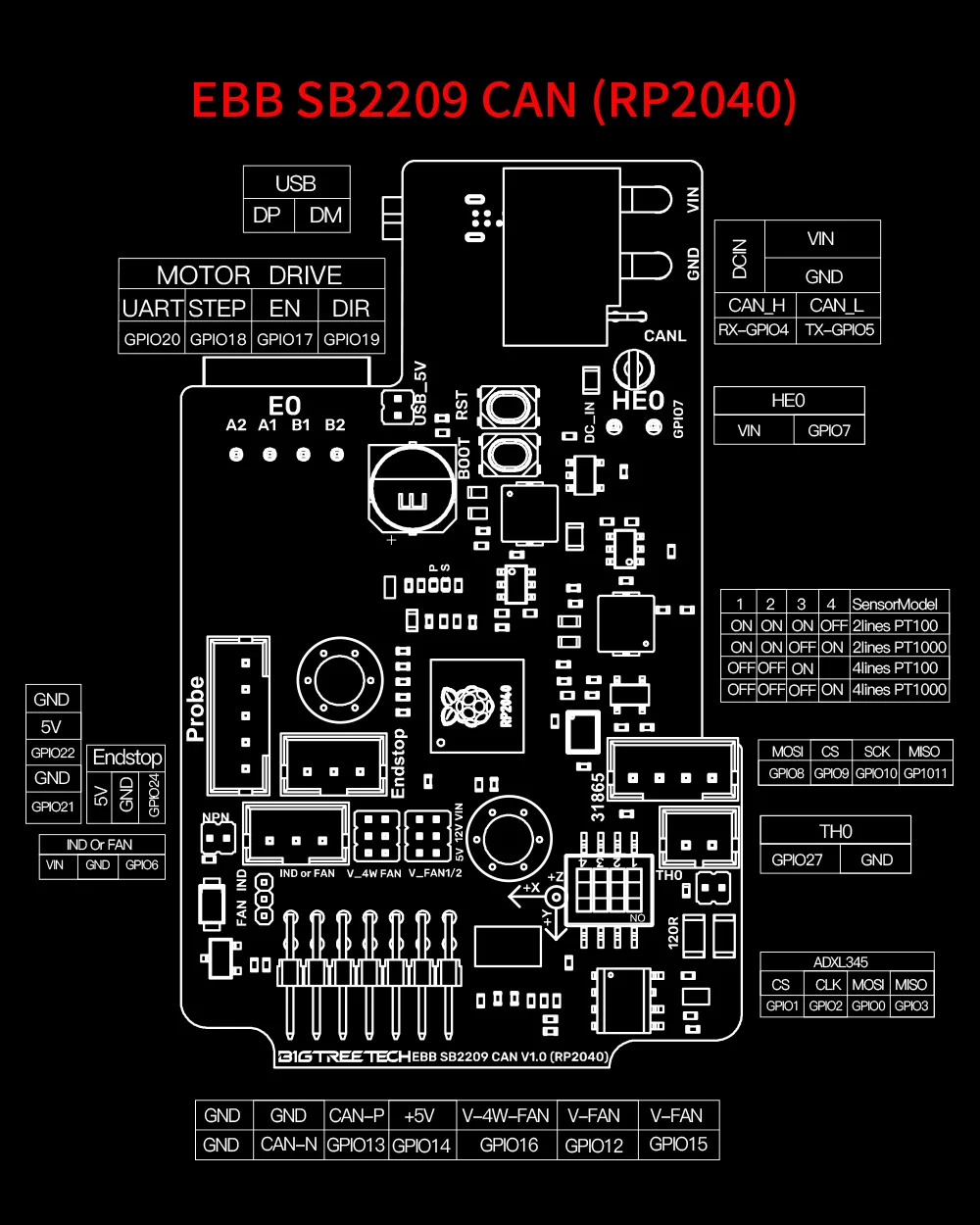

BIGTREETECH EBB SB2240/SB2209 CAN V1.0 is a tool board for the 3D printing team of Shenzhen BIGTREETECH Technology Co., Ltd. to adapt Voron StealthBurner. It can communicate via USB or CAN, greatly simplifying wiring.

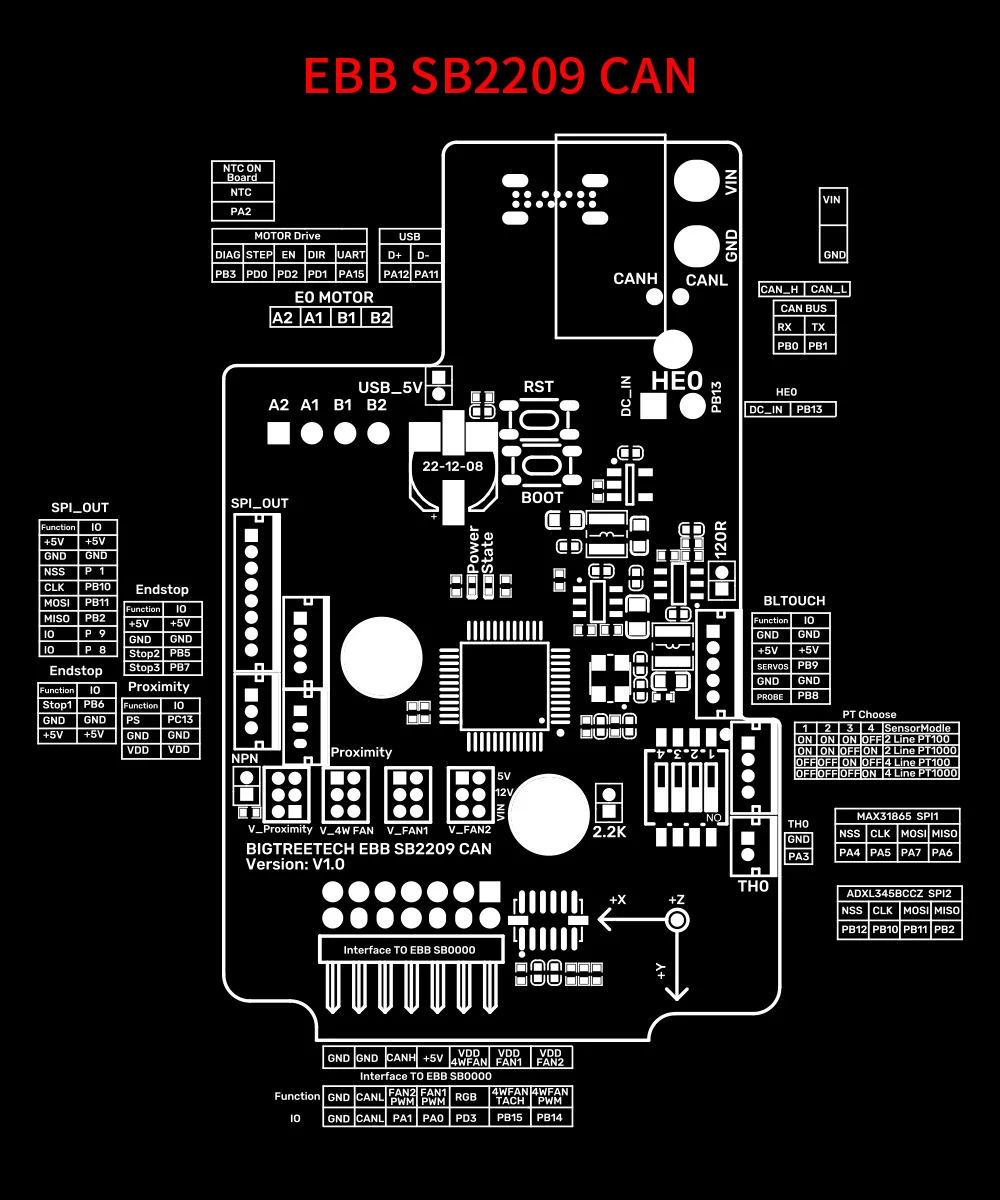

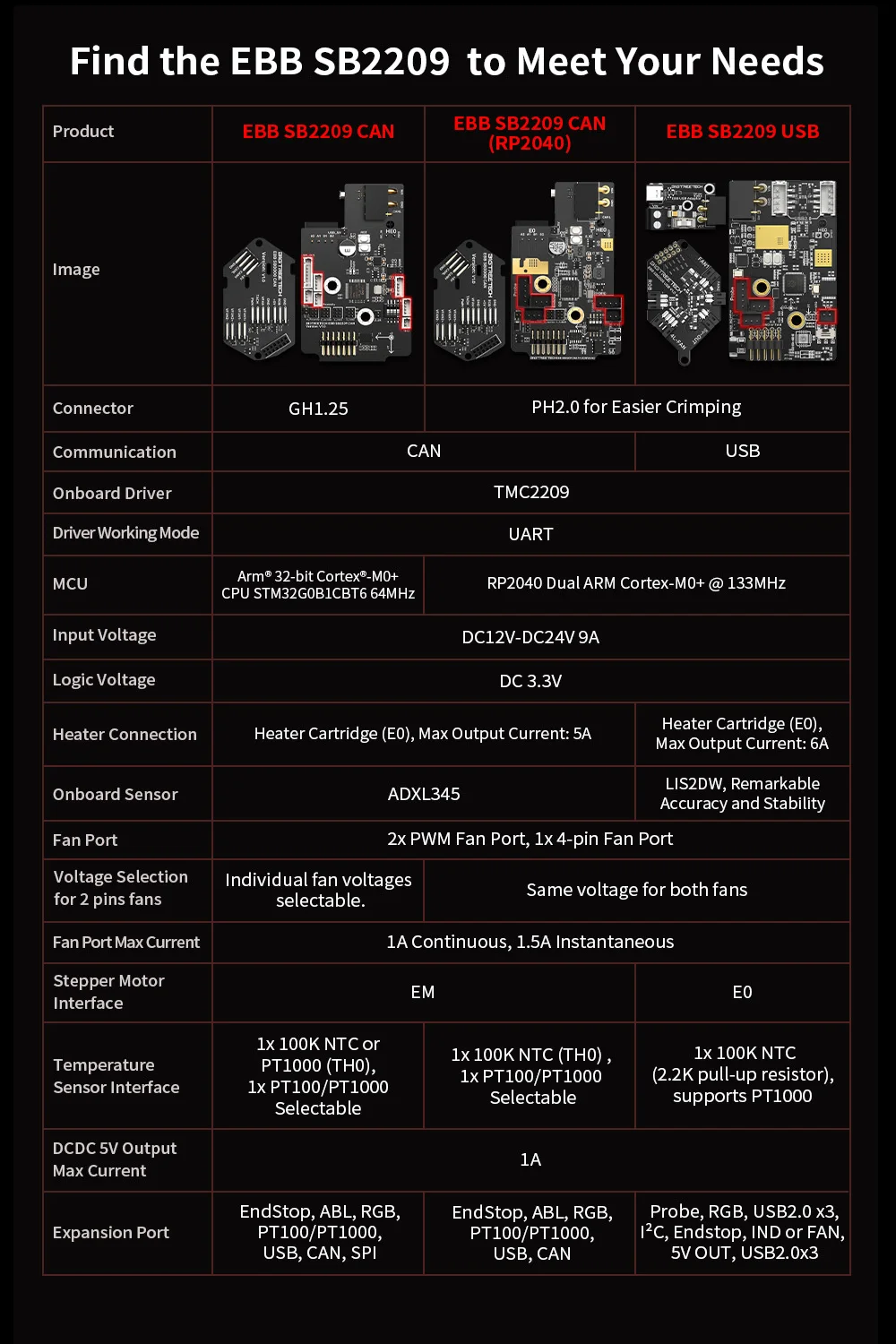

EBB SB2209 CAN V1.0 Parameter:

- Microprocessor: Arm® 32-bit Cortex®-M0+ CPU STM32G0B1CBT6 64MHz

- Input voltage: DC12V-DC24V 9A

- Logical voltage: DC 3.3V

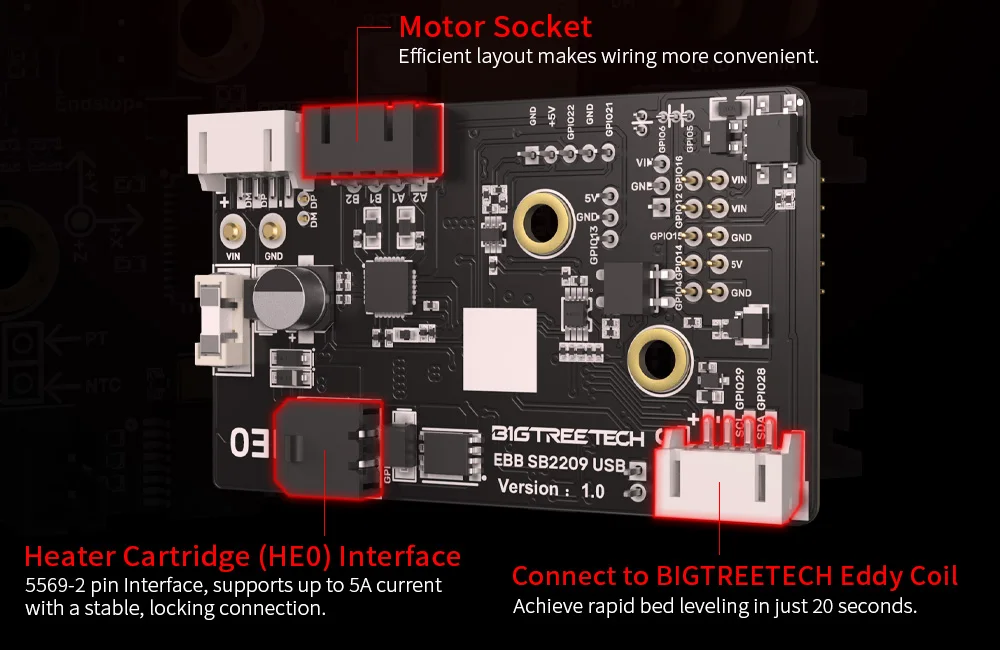

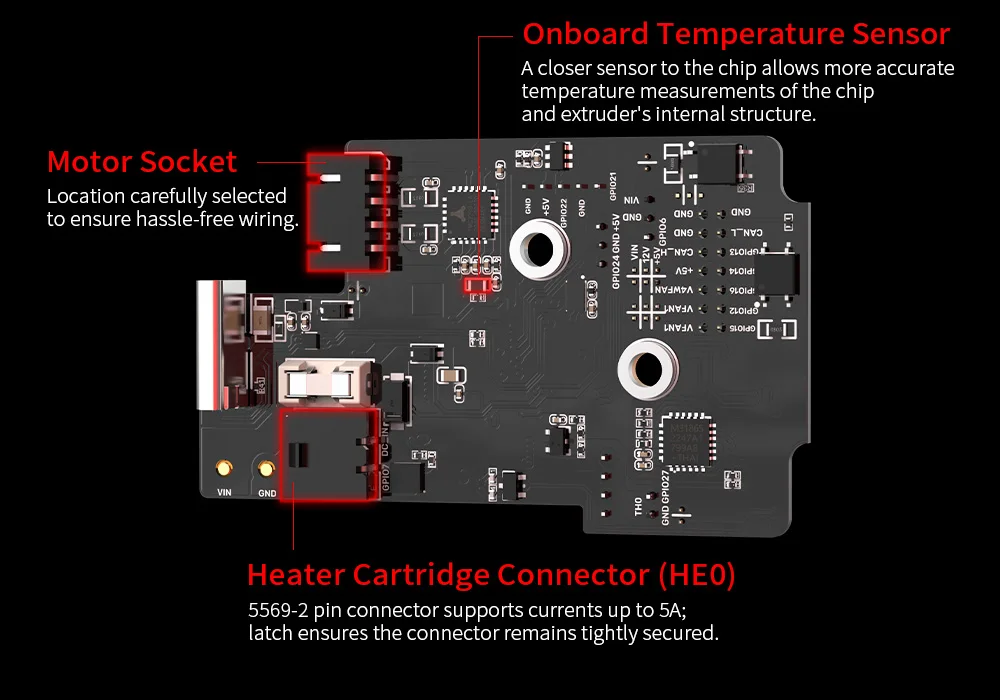

- Heating interface: heating rod (E0), maximum output current: 5A

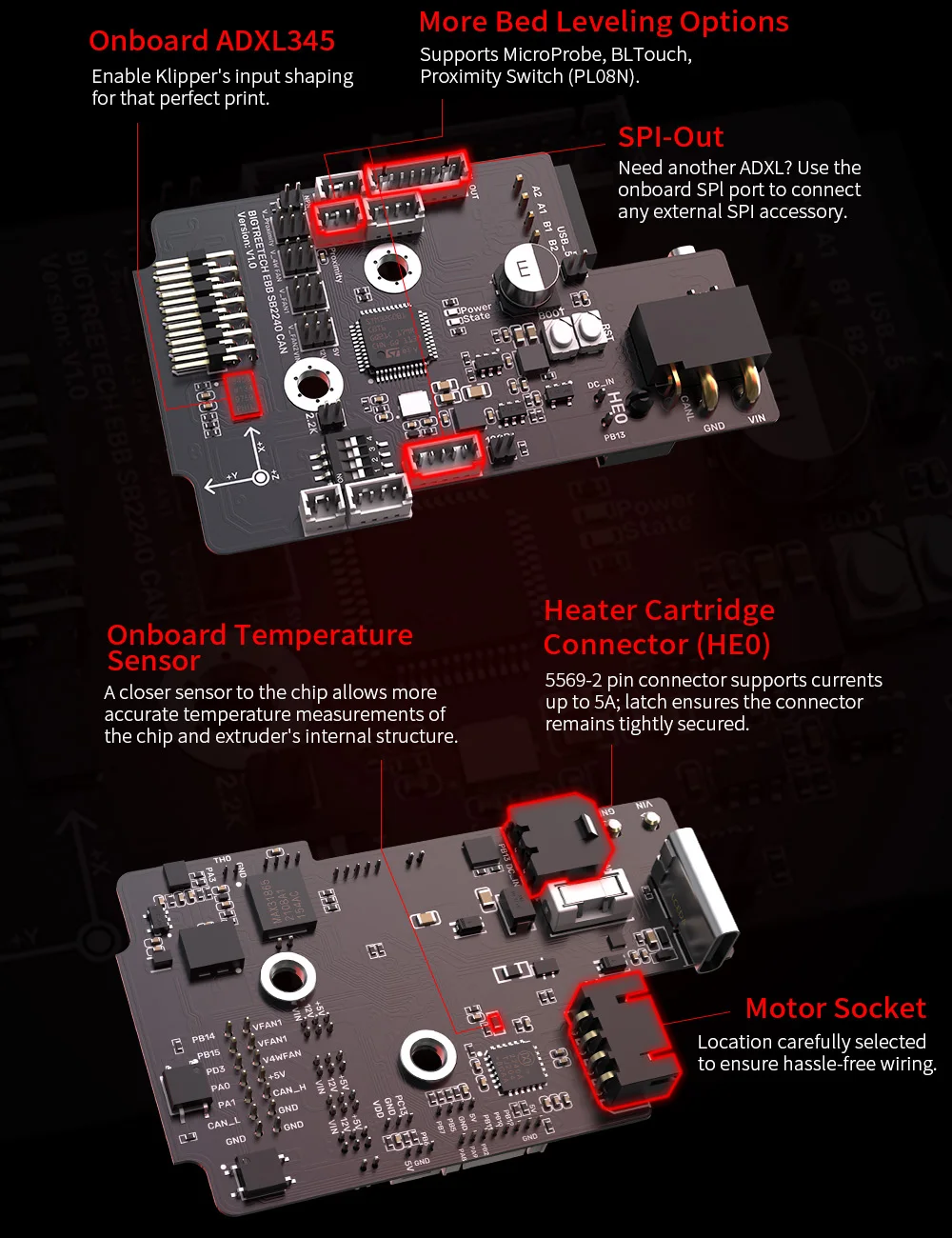

- Onboard sensor: ADXL345

- Fan interface: two CNC fans (FAN0, FAN1). One four-wire fan port.

- Fan port Maximum output current: 1A, peak value 1.5A

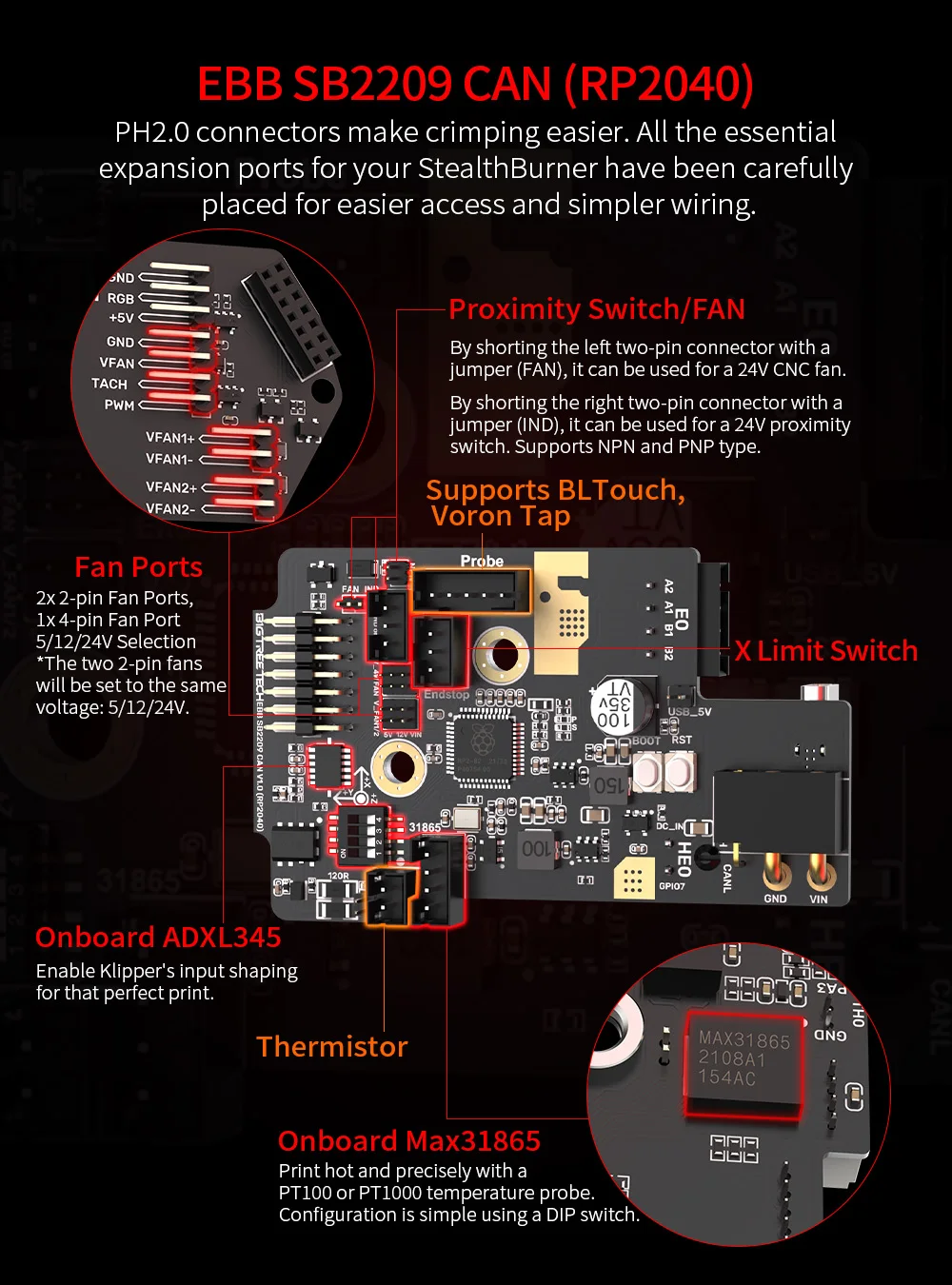

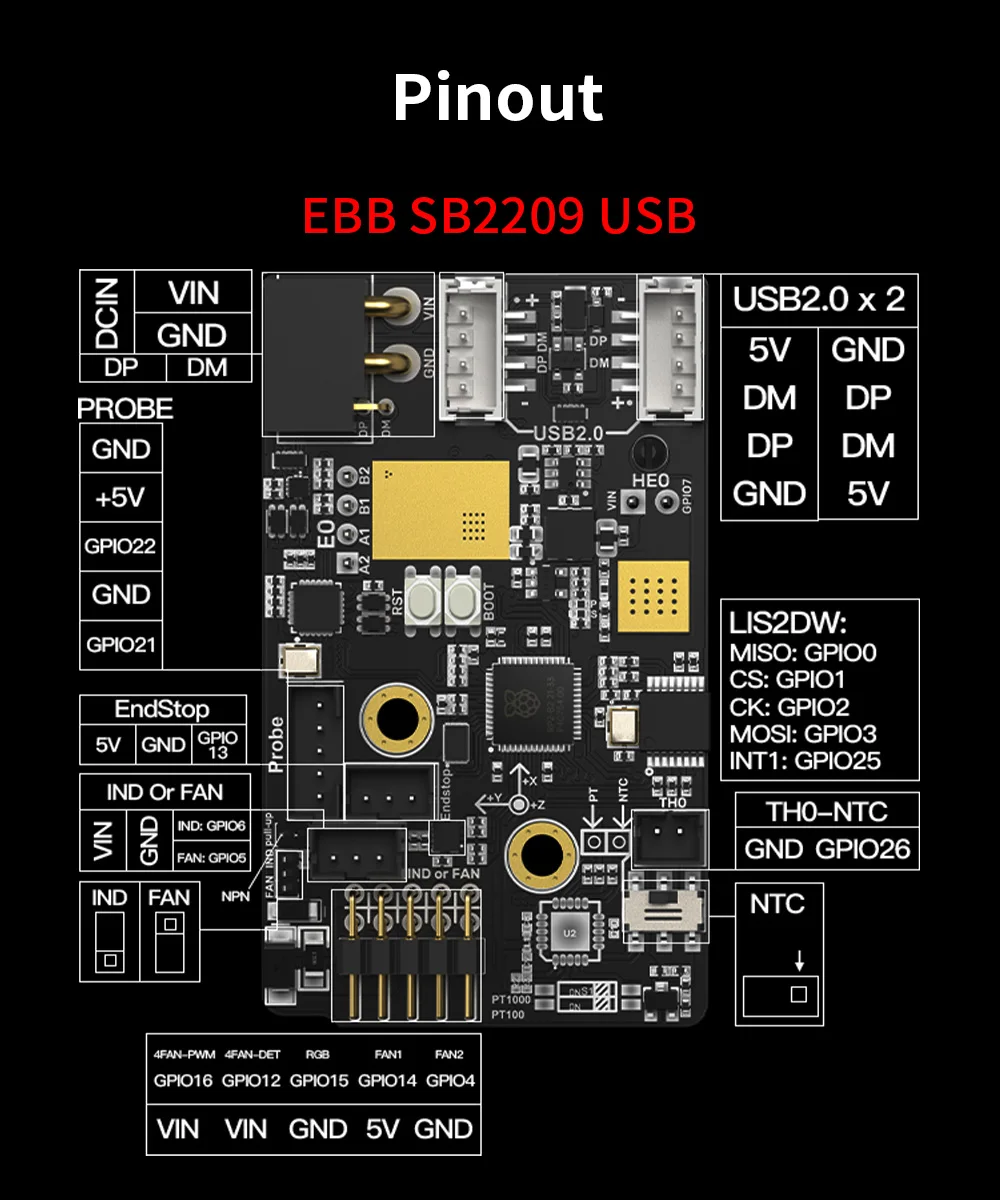

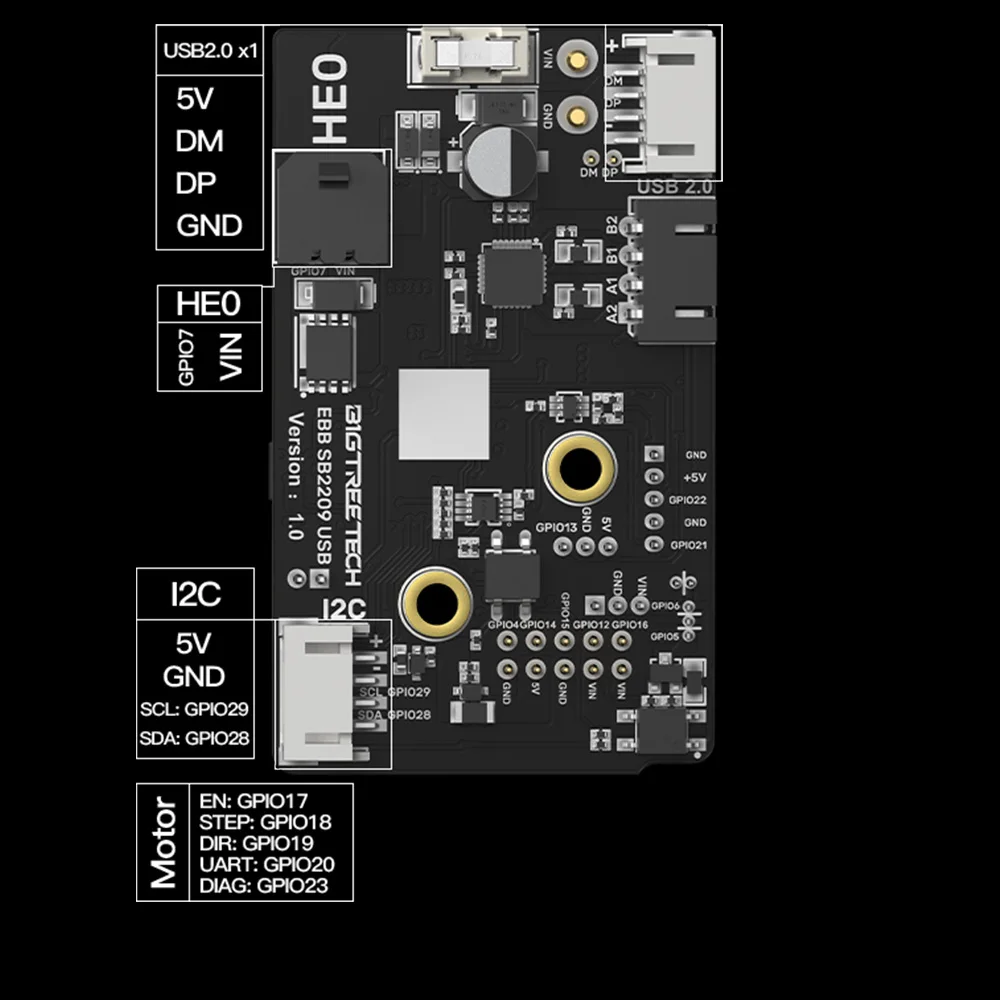

- Expansion interface: EndStop, ABL, RGB, PT100/PT1000, USB interface, CAN interface, SPI interface

- Motor drive: onboard TMC2209

Feature:

1. The board has reserved BOOT and RESET buttons. Users can use USB to enter the DFU mode to update firmware

2. Thermistor can select pull-up resistance value through jumper, in this way to support PT1000 (2.2K pull-up resistance), convenient for customers DIY use

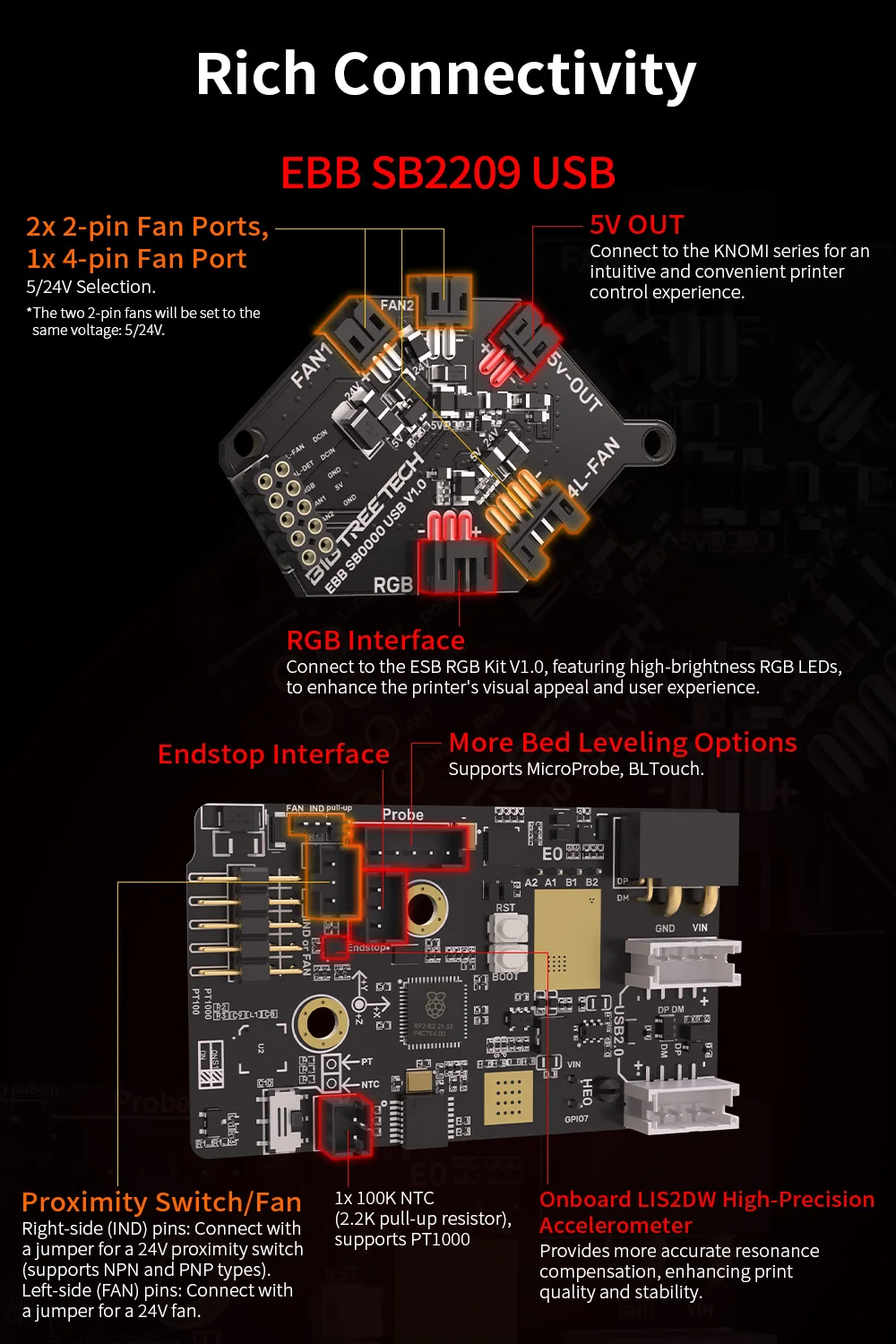

3. Onboard 2-way CNC fan, 1 way 4-wire fan interface

4. Proximity switch, CNC fan, 4-wire fan support VIN/12V/5V voltage selection

5. Onboard SPI output interface, this port is reserved with two independent IO ports, which can be used for material cut off, material blocking detection, or DIY operation of other functions

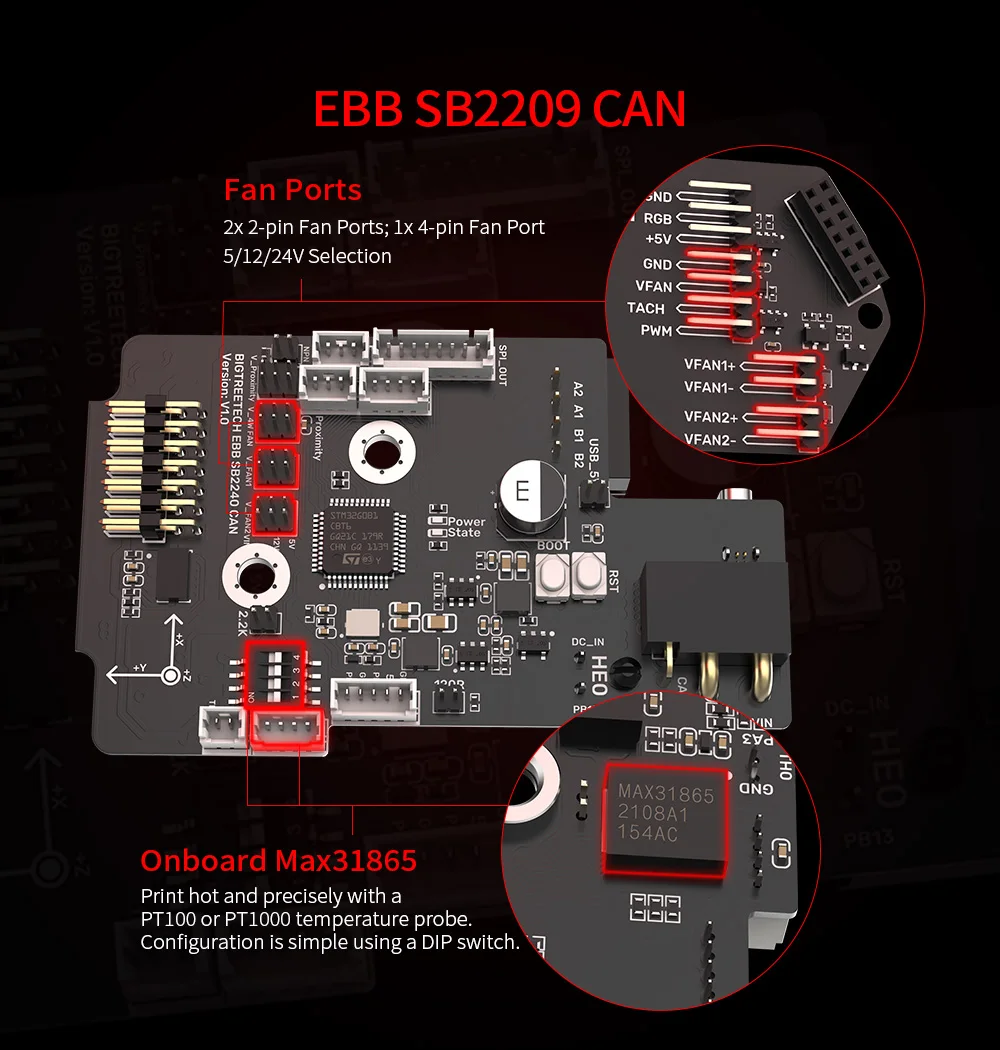

6. Onboard MAX31865, supporting 2-wire / 4-wire PT100/PT1000 option

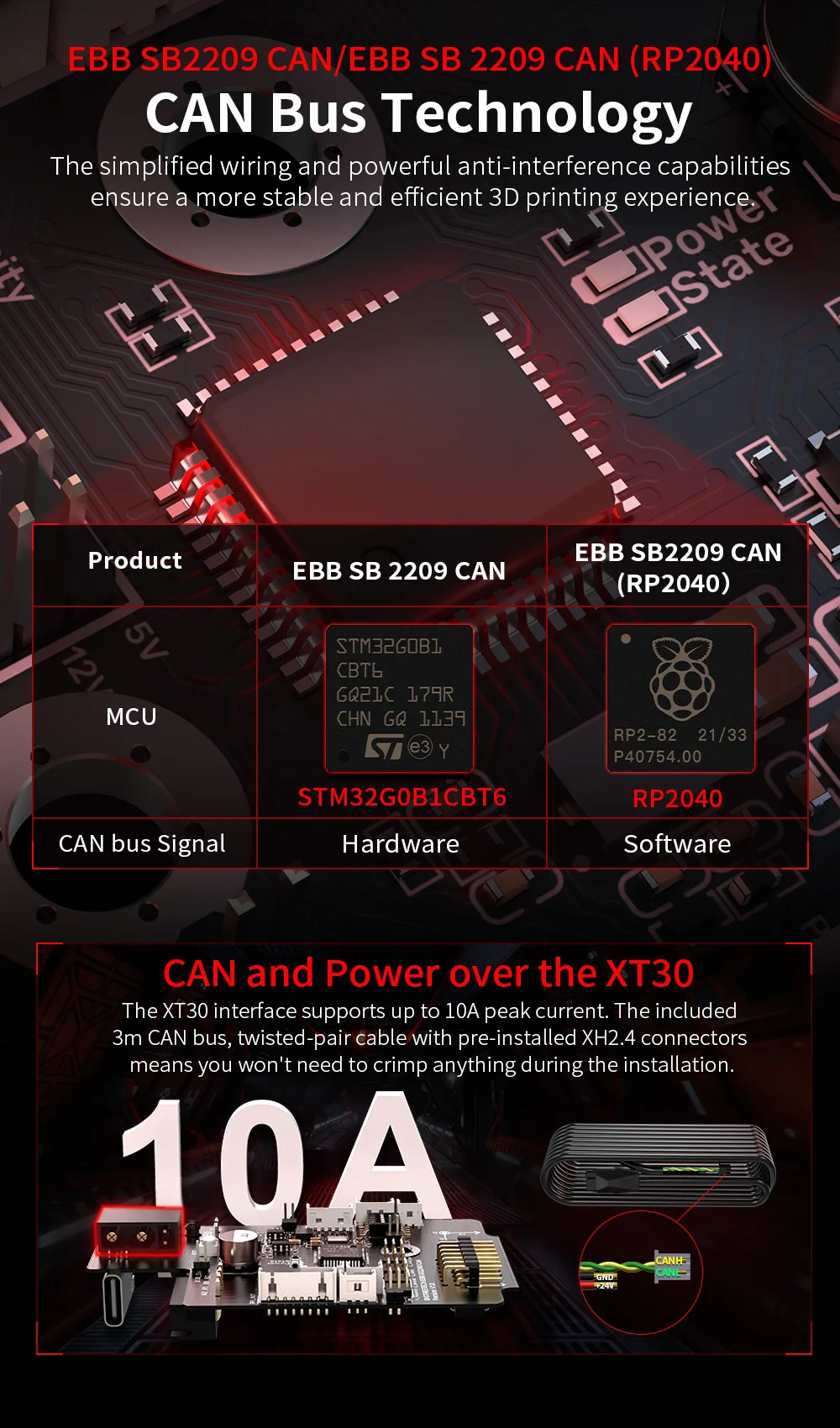

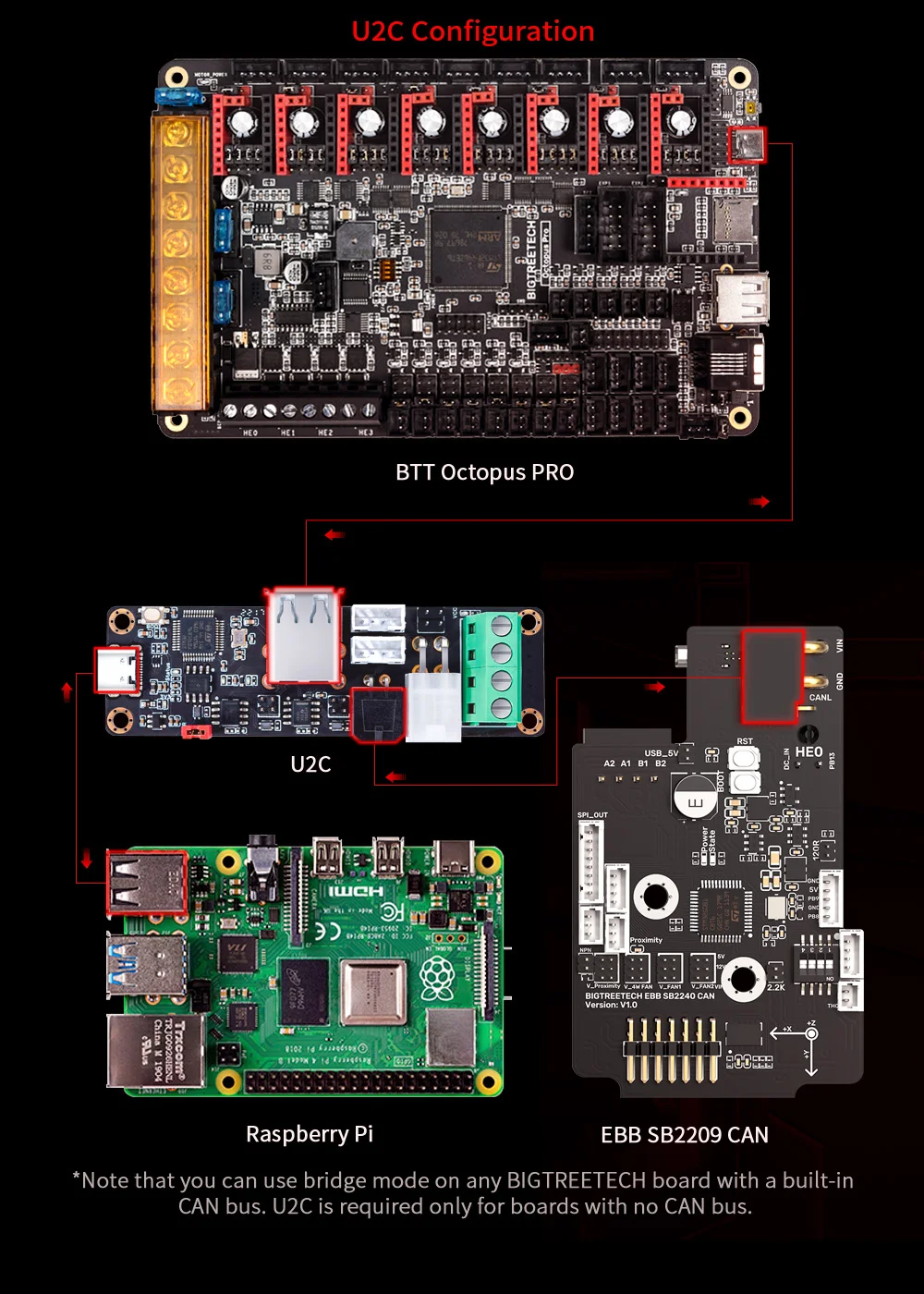

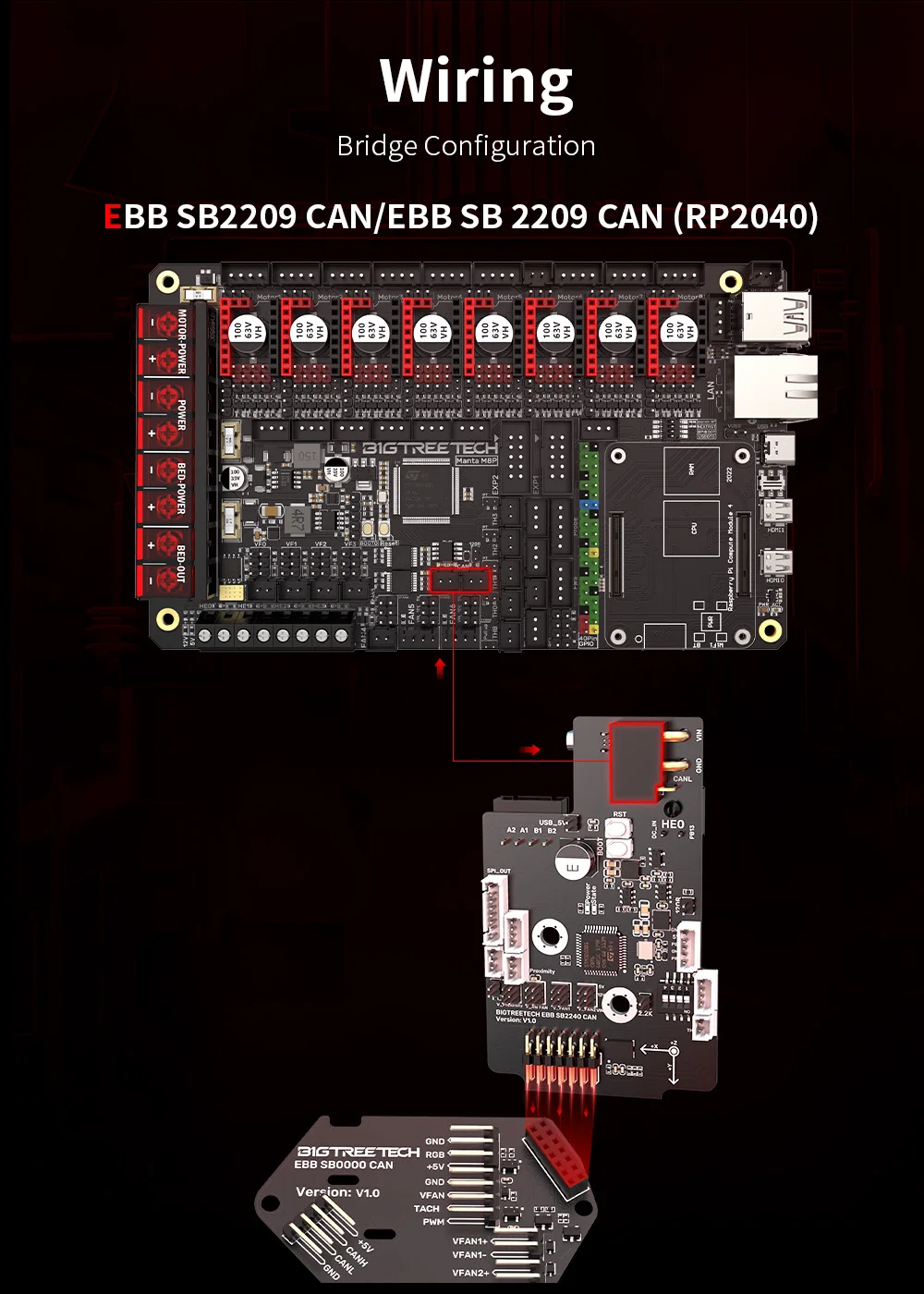

7. CAN or USB communication is supported. The 120R terminal resistance of CAN CAN be selected through the jumper cap, and CAN ports are reserved for expansion

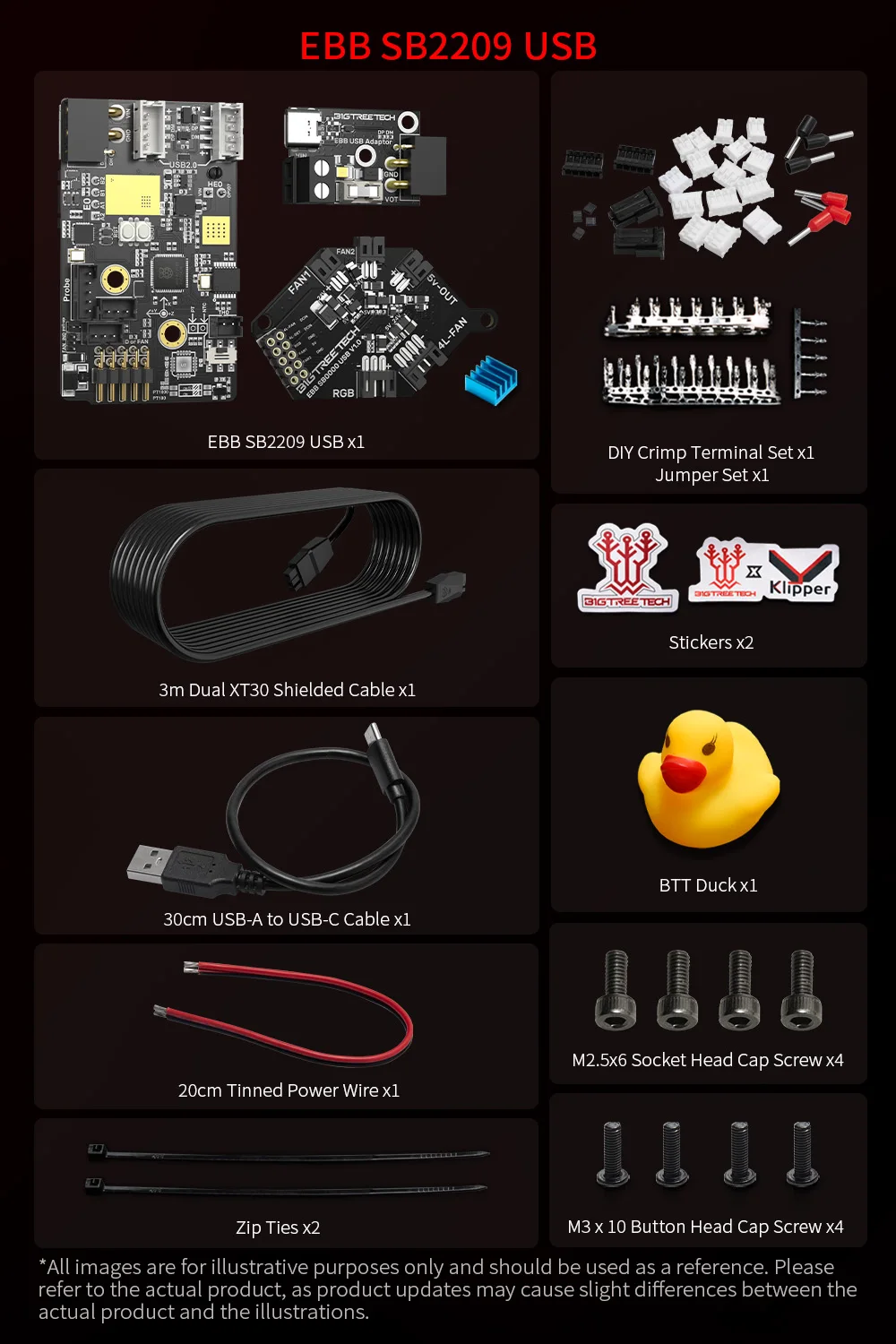

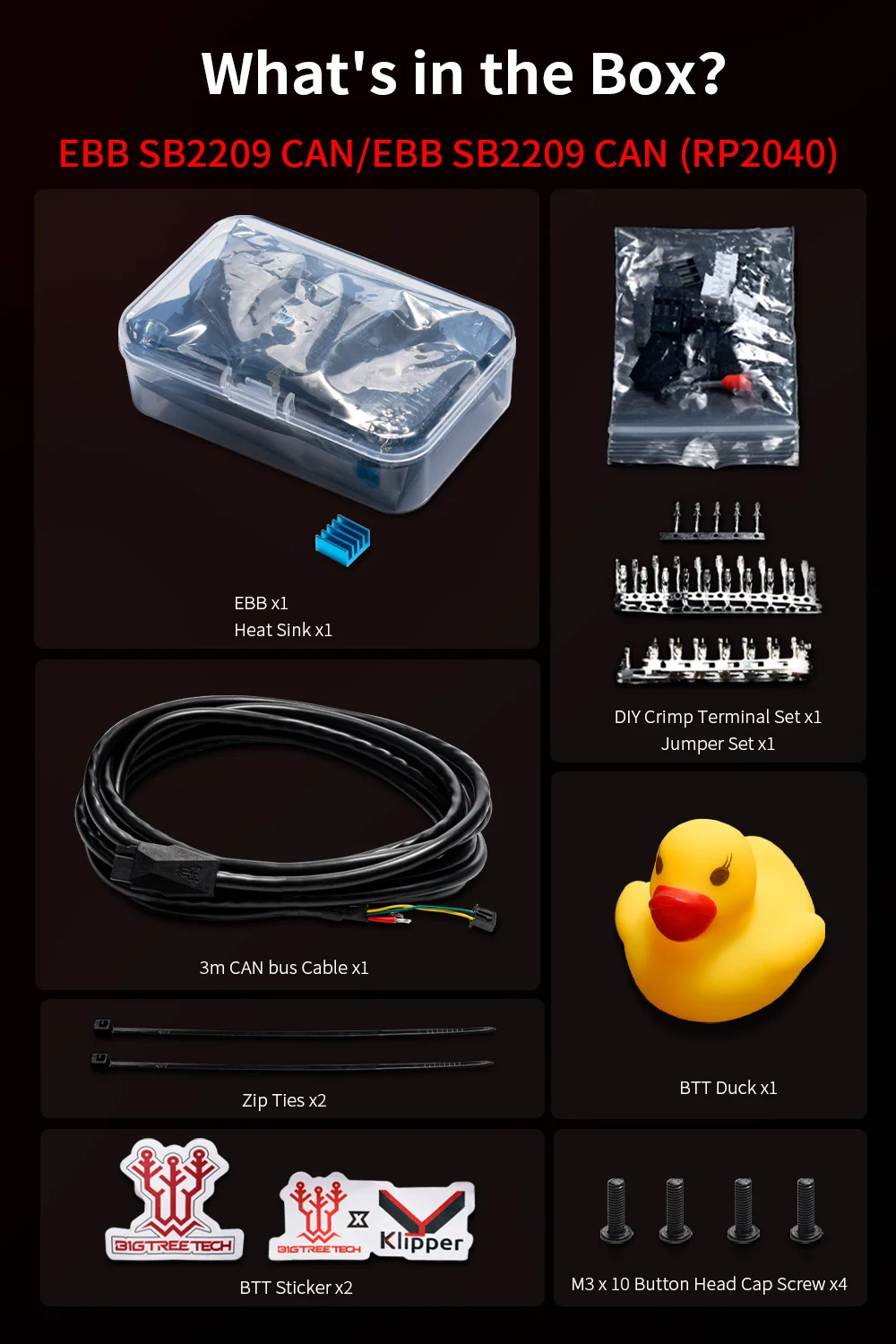

8. Equipped with DIY terminals, female reeds, double-way studs and screws, which greatly meet customers' DIY needs
