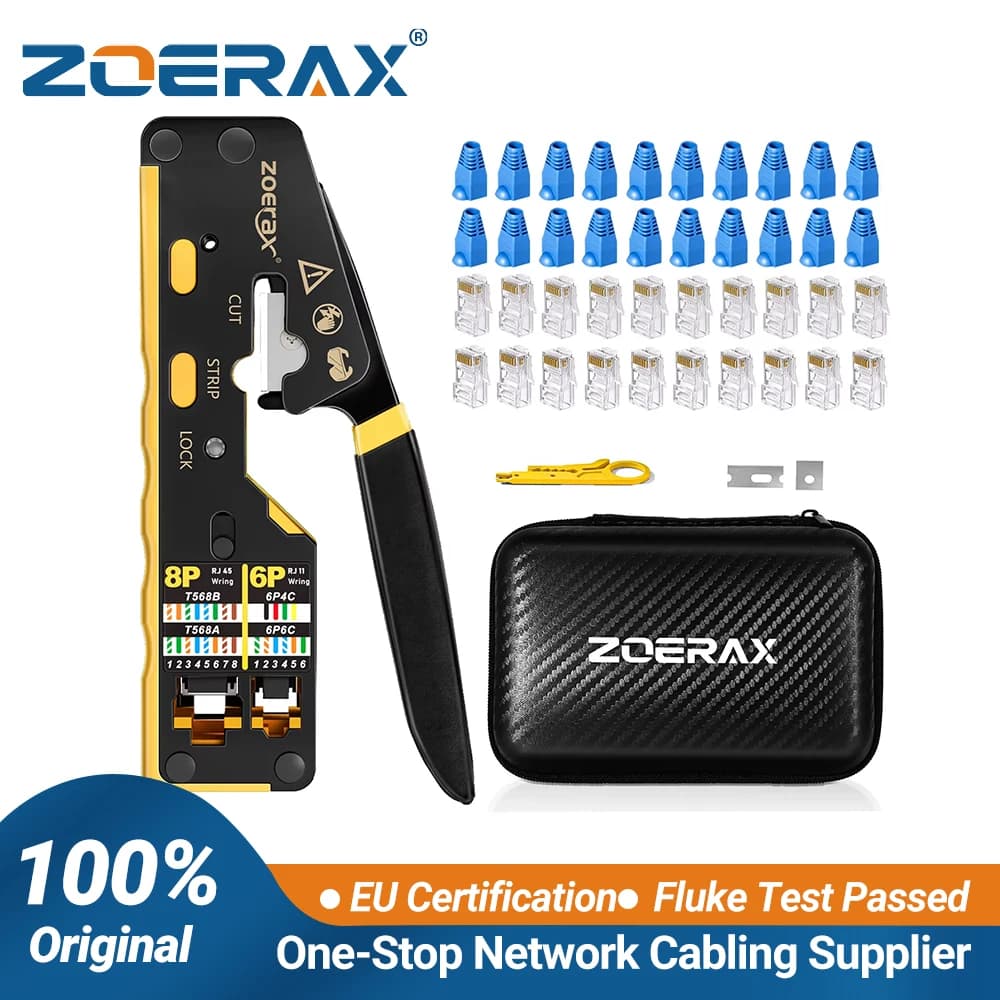

ZoeRax RJ45 Network Tool Kit with CAT6 Crimper Tool,20Pcs CAT6 CAT5 Connectors and Plug Covers,Mini Wire stripper,Blades,

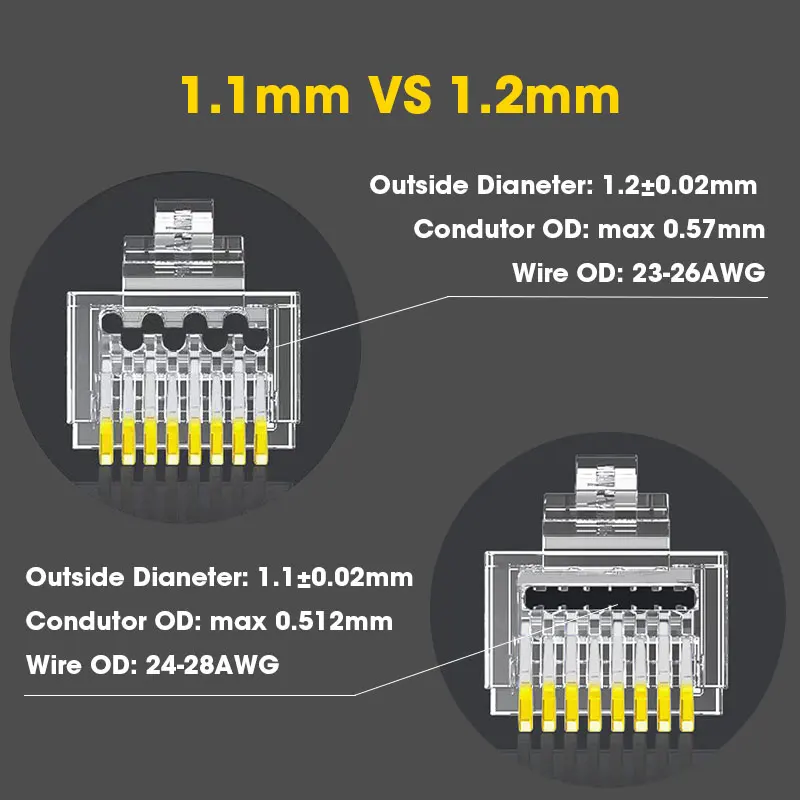

Cat6a

Outside Dianeter: 1.2±0.02mm

Condutor OD: max 0.57mm

Wire OD: 23-26AWG

Speed: 1000Mbps

Bandwidth: 550Mhz

Cat6/Cat5e

Outside Dianeter: 1.1±0.02mm

Condutor OD: max 0.512mm

Wire OD: 24-28AWG

Speed: 1000Mbps

Bandwidth: 250Mhz

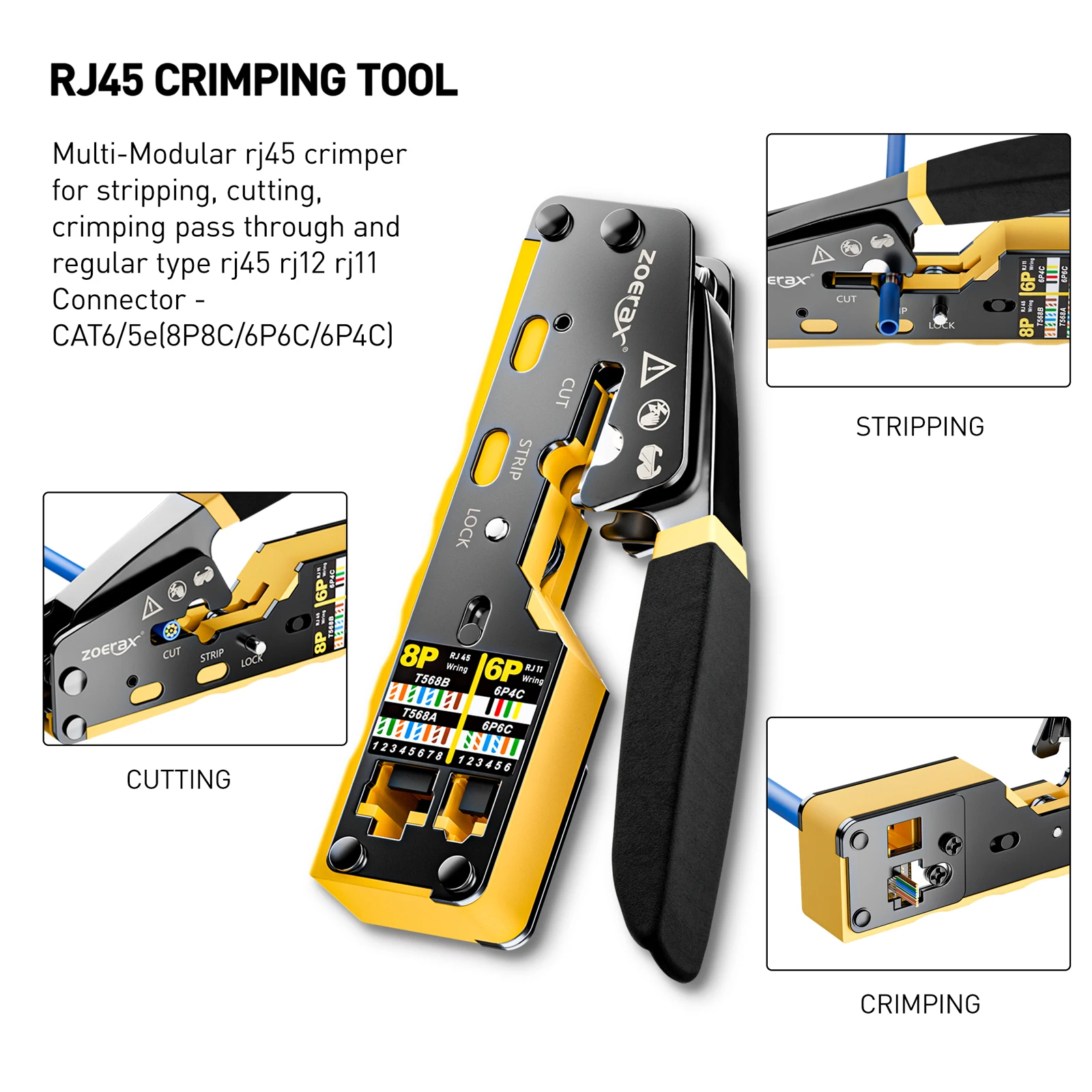

RJ45 CRIMPING TOOL

Multi-Modular rj45 crimper for stripping, cutting,crimping pass through and regular type rj45 rj12 rj11 Connector-CAT6/5e(8P8C/6P6C/6P4C)

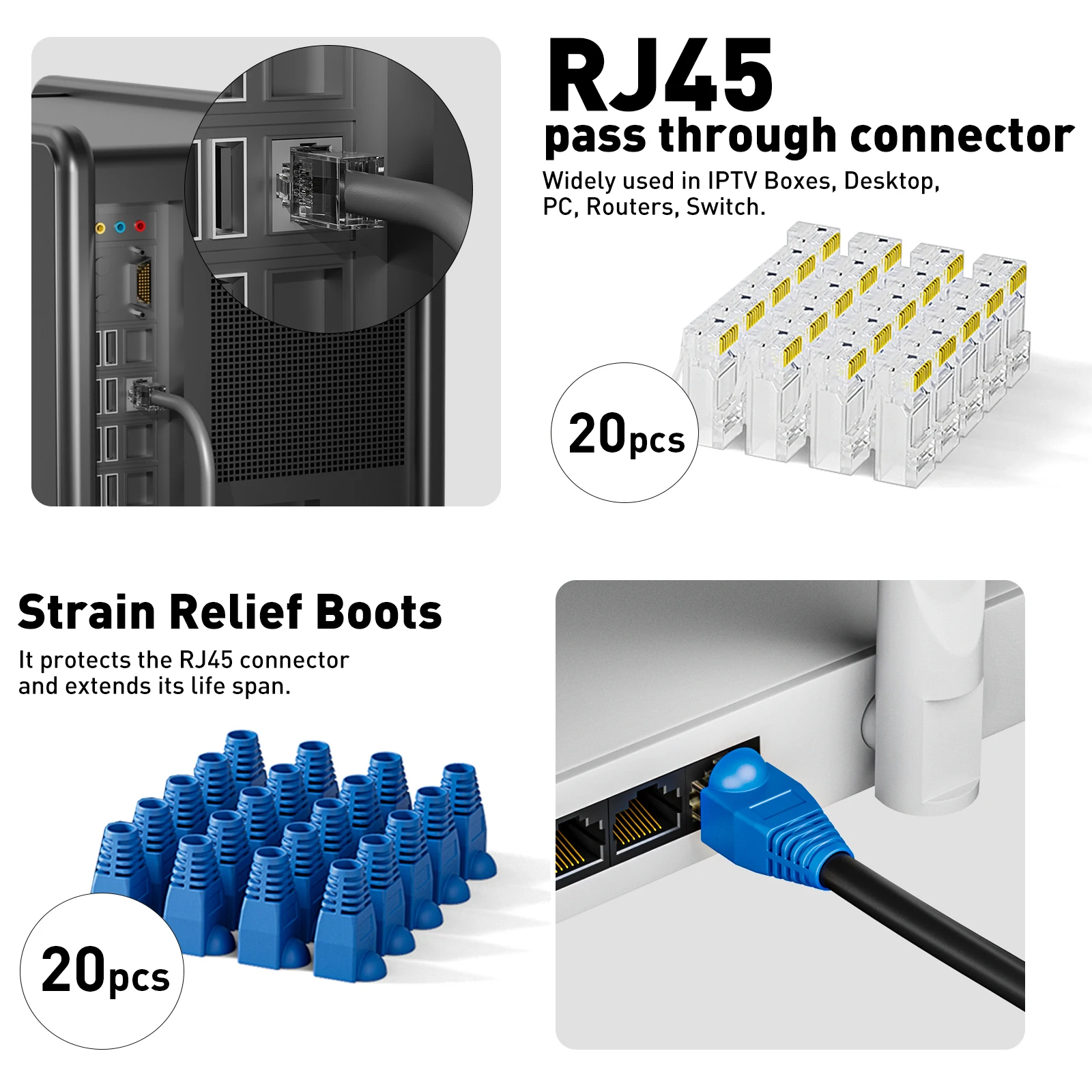

RJ45 pass through connector

Widely used in lPTV Boxes, Desktop PC.Routers, Switch.

Strain Relief Boots

It protects the RJ45 connector and extends its life span.

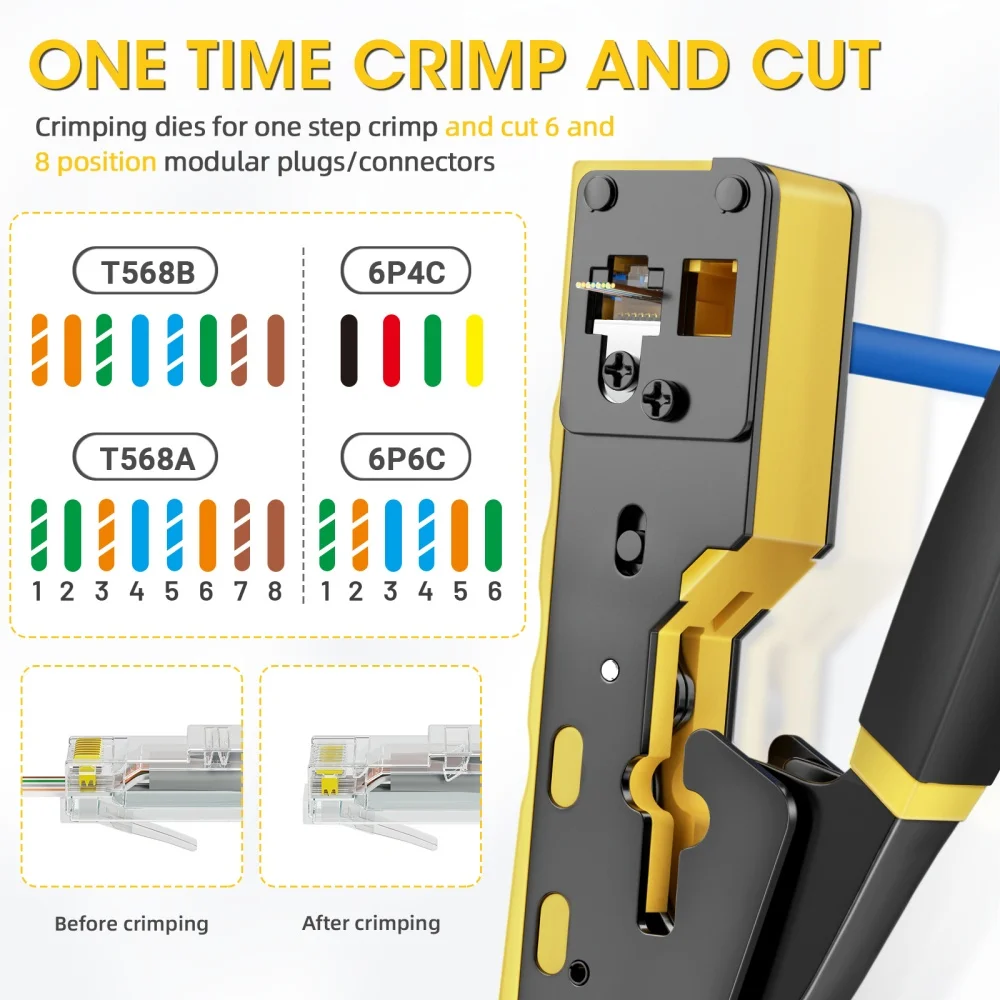

CRIMP AND CUTONE TIME

Crimping dies for one step crimp and cut 6 and 8 position modular plugs/connectors

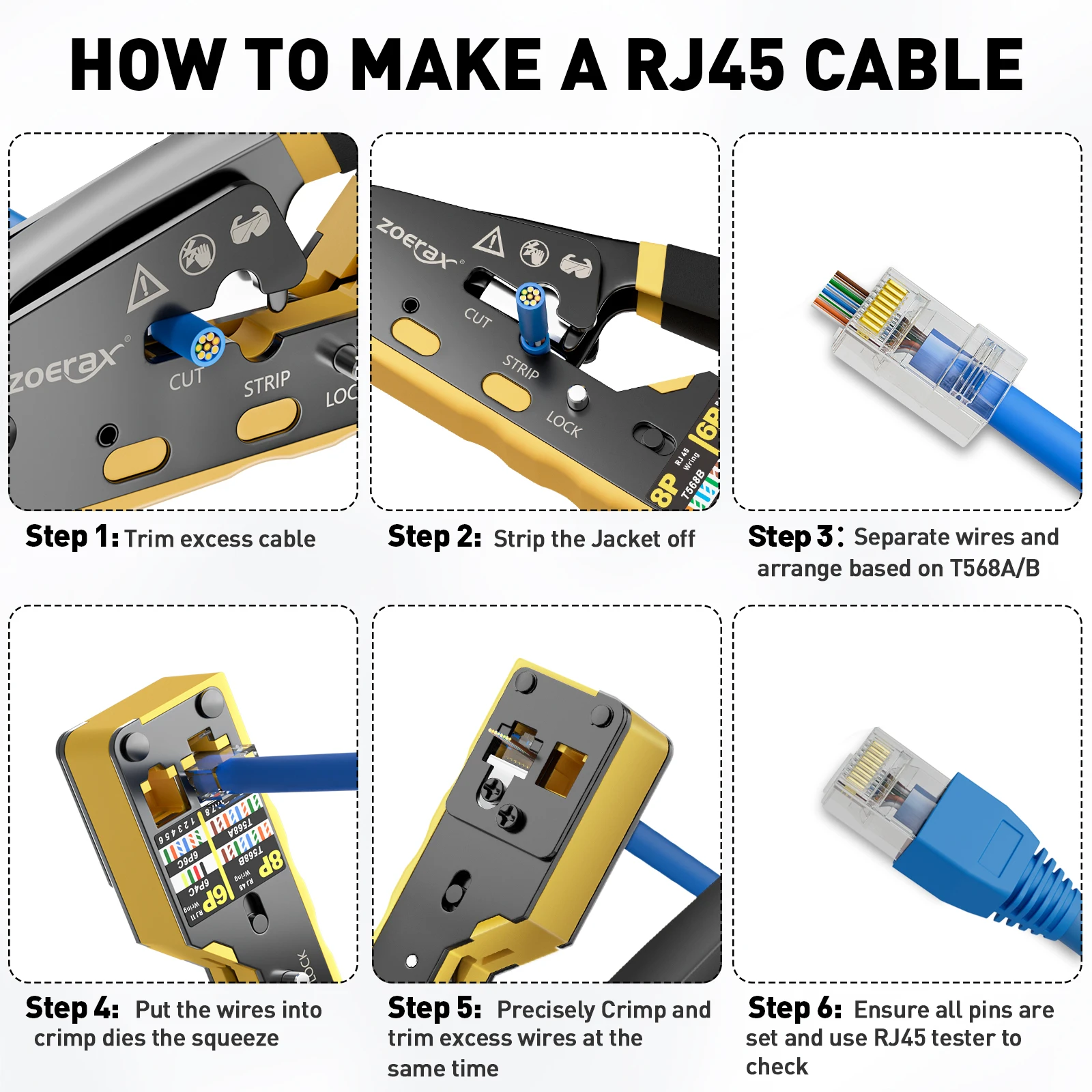

HOW TO MAKE A RJ45 CABLE

Step 1：Trim excess cable

Step 2： Strip the Jacket off

Step 3 ：Separate wires andarrange based on T568A/B

Step 4: Put the wires intocrimp dies the squeeze

Step 5: Precisely Crimp andtrim excess wires at the same time

Step 6: Ensure all pins areset and use RJ45 tester tocheck
