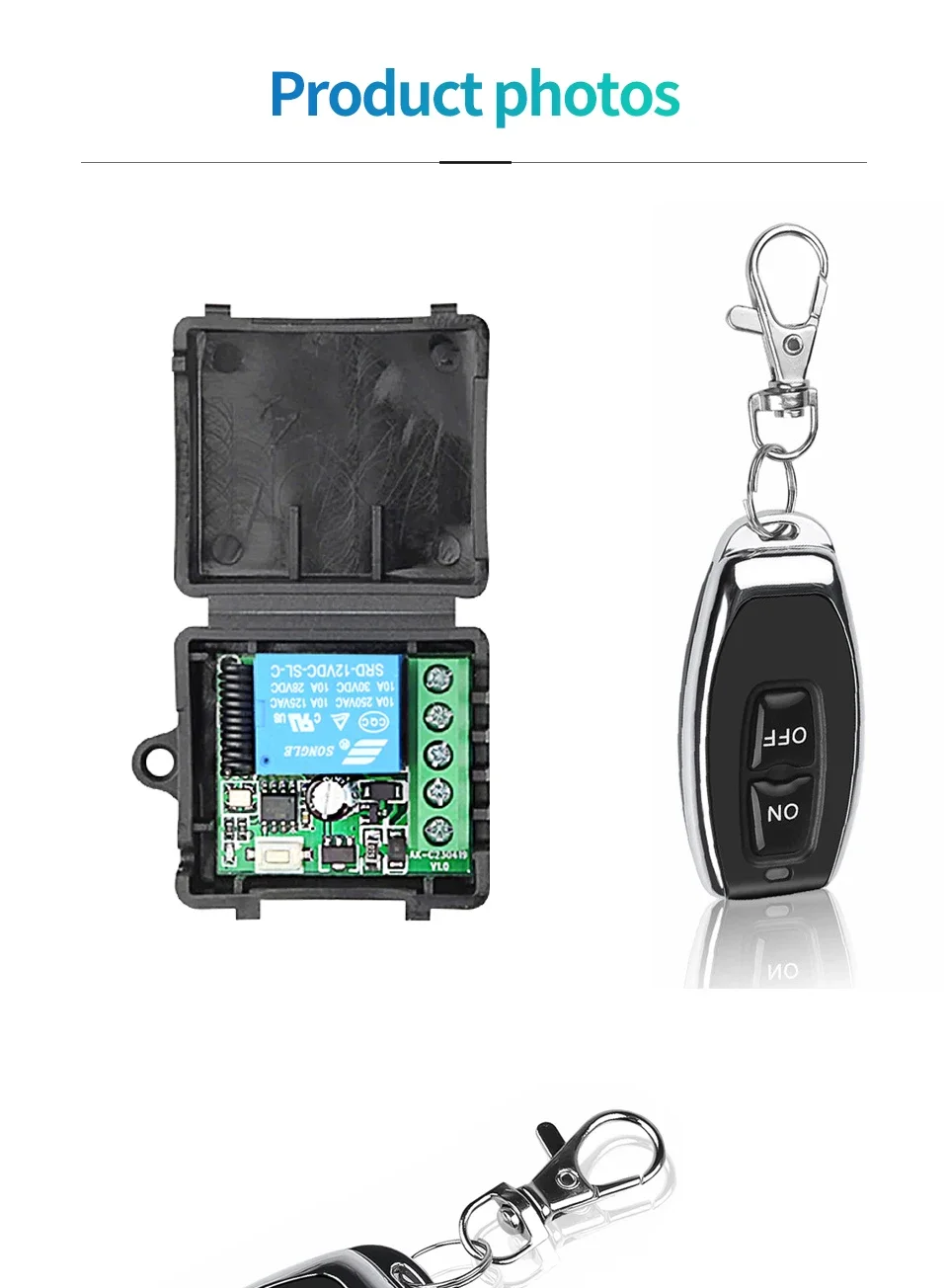

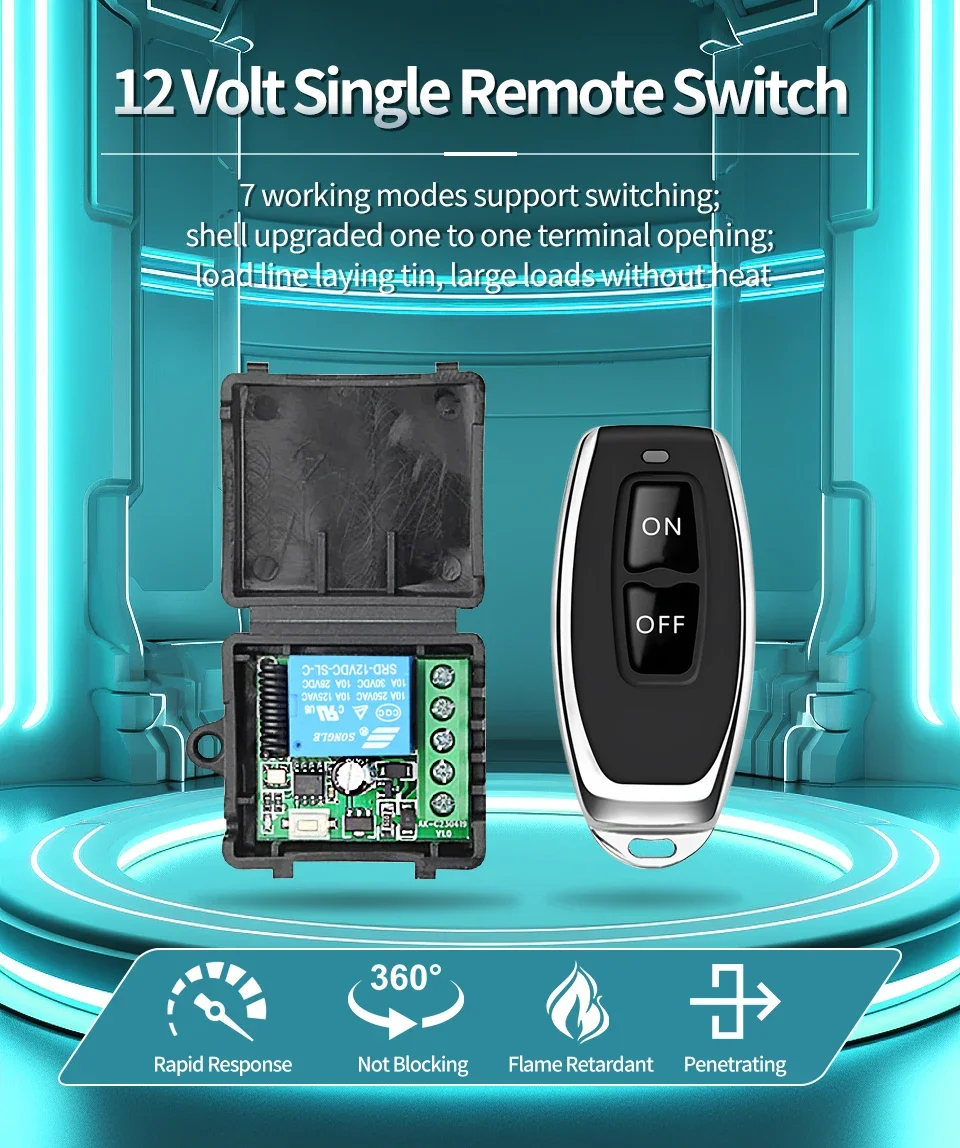

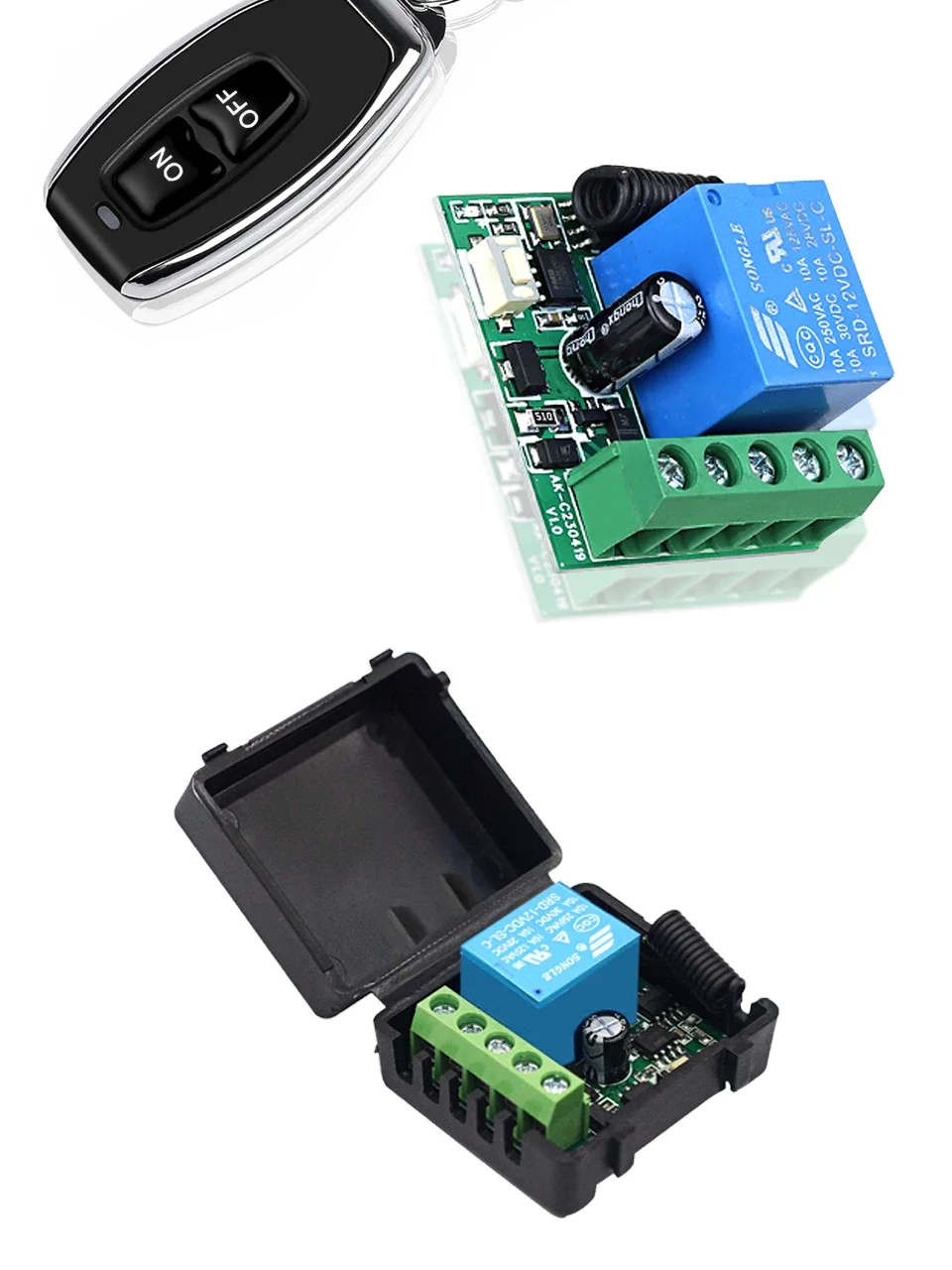

433Mhz Remote Control Wireless Switch DC 12V 1CH RF 10A Relay Receiver and 2CH Transmitter For Door Electromagnetic Lock

Note:Our products are a combination package, which can be used together or separately, so the products received by the buyer are based on the option picture of the SKU. If you only purchase the receiver, you will only receive the receiver without the remote switch. If you only purchase the remote switch, you will only receive the remote switch without the receiver.

• Universal Gate Remote Control :This 433 Mhz remote control is designed to be a universal solution for gate control, ensuring easy and convenient access to your property.

• DC 12V 10A Relay Receiver :Equipped with a DC 12V 10A relay receiver, this mini module provides reliable and consistent performance for your gate control needs.

• ROHS Certified :Originating from Mainland China and certified by ROHS, this remote control switch guarantees high-quality standards and safety compliance.

• Versatile Application :Not just for gates, this remote control can also be used for controlling LED garages and other home appliances, offering versatility in its usage.

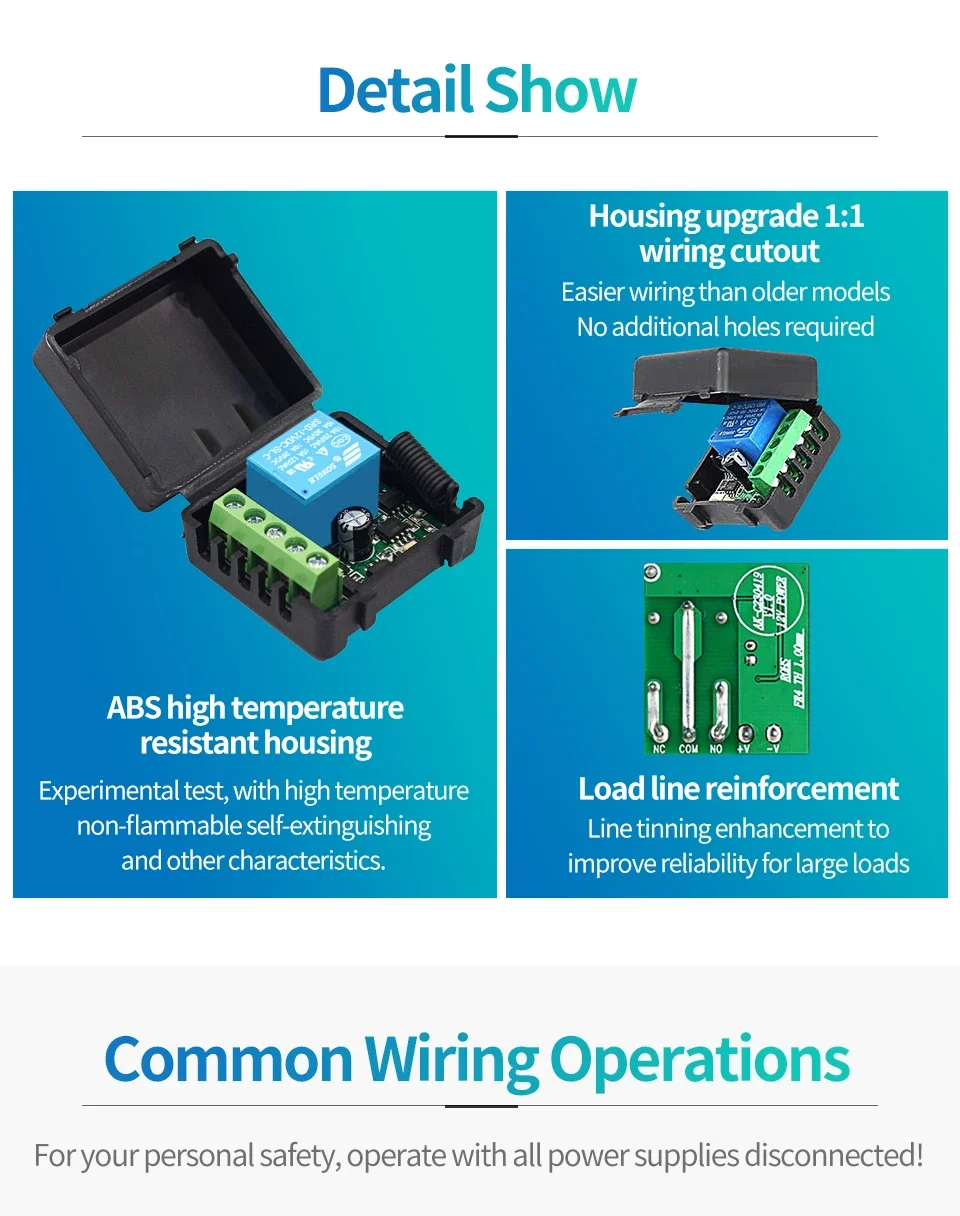

• Compact Mini Module Design :Its compact mini module design allows for easy installation and unobtrusive integration with your existing systems.

• Long Range Signal :With a strong long-range signal, this remote control ensures effective communication even in challenging environments.

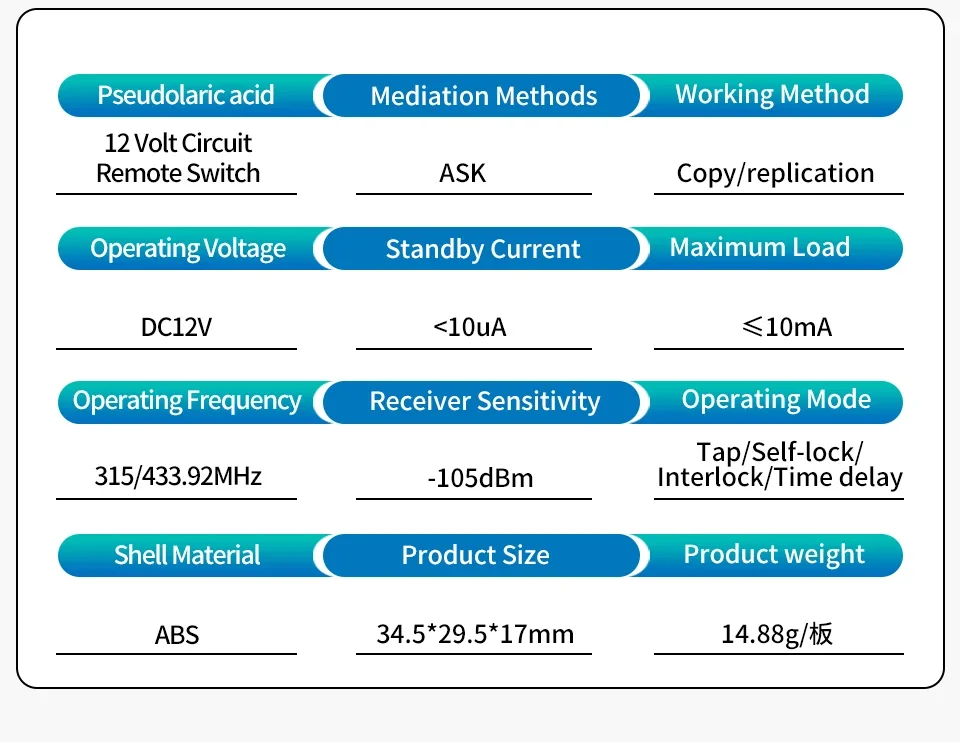

Technical Data

Working Vlots: DC 12V

Input Vlots: 1V~250V

OutputVlots: 1V~250V

Max Current: 10A

Standby Current: <5MA

RF Frequency: 433M

RF working fashion: Superheterodyne

Receive sensitivity: >97dbm

Transmitting distance: 50 meters above

Decoding mode: MCU software decoding

Remote storage: 25 PCs

Support remote type: 1527 Learning code, 2262 Fixed code

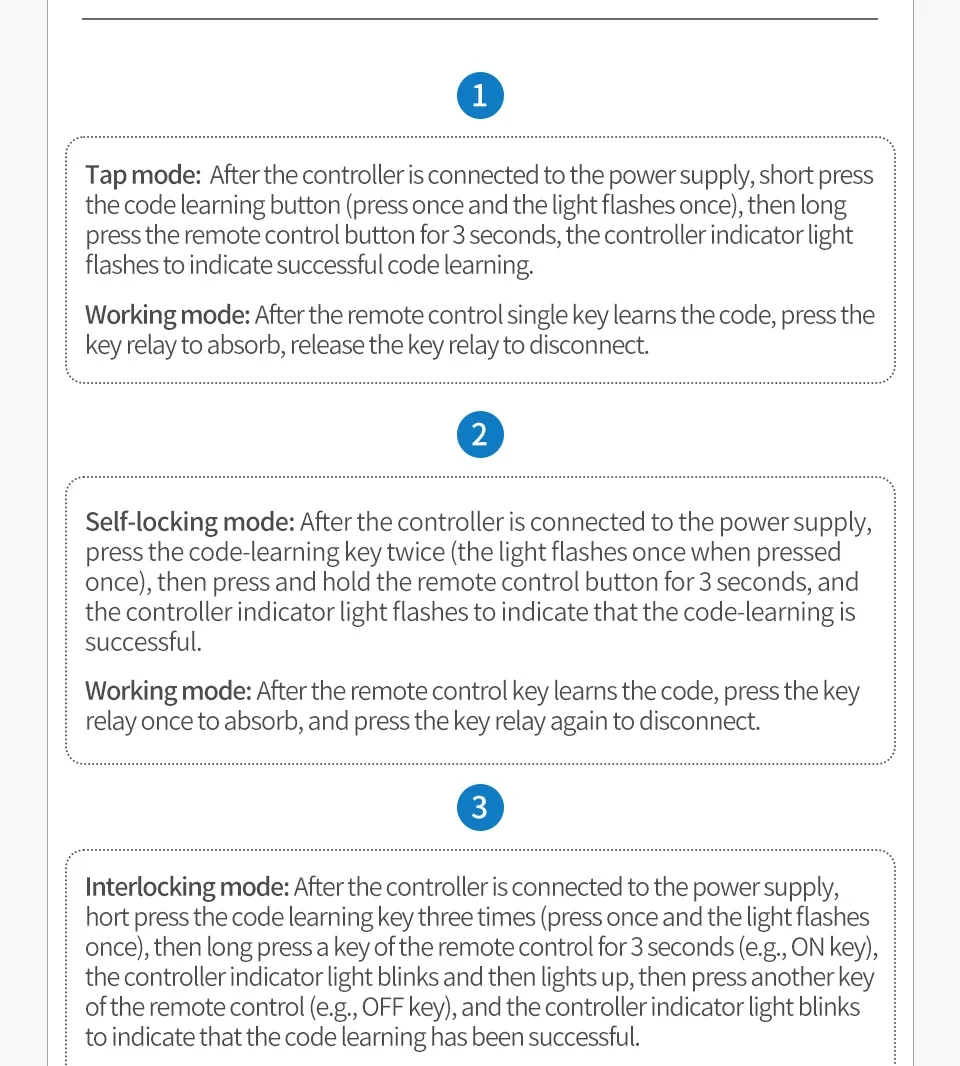

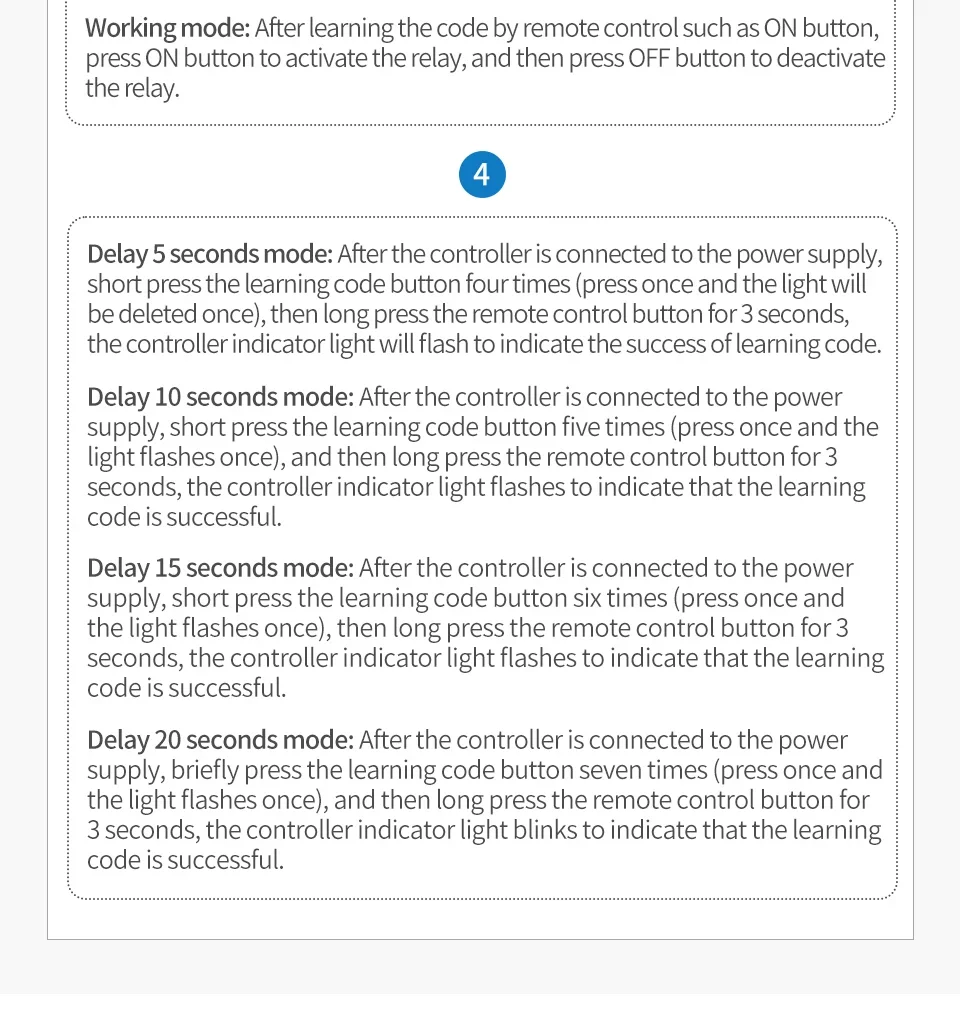

Working mode: Momentary mode, Toggle mode, Latching mode,Time Delay mode

Battery: No, NC, com

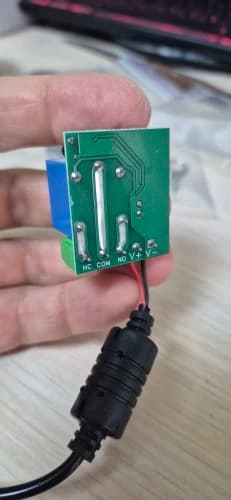

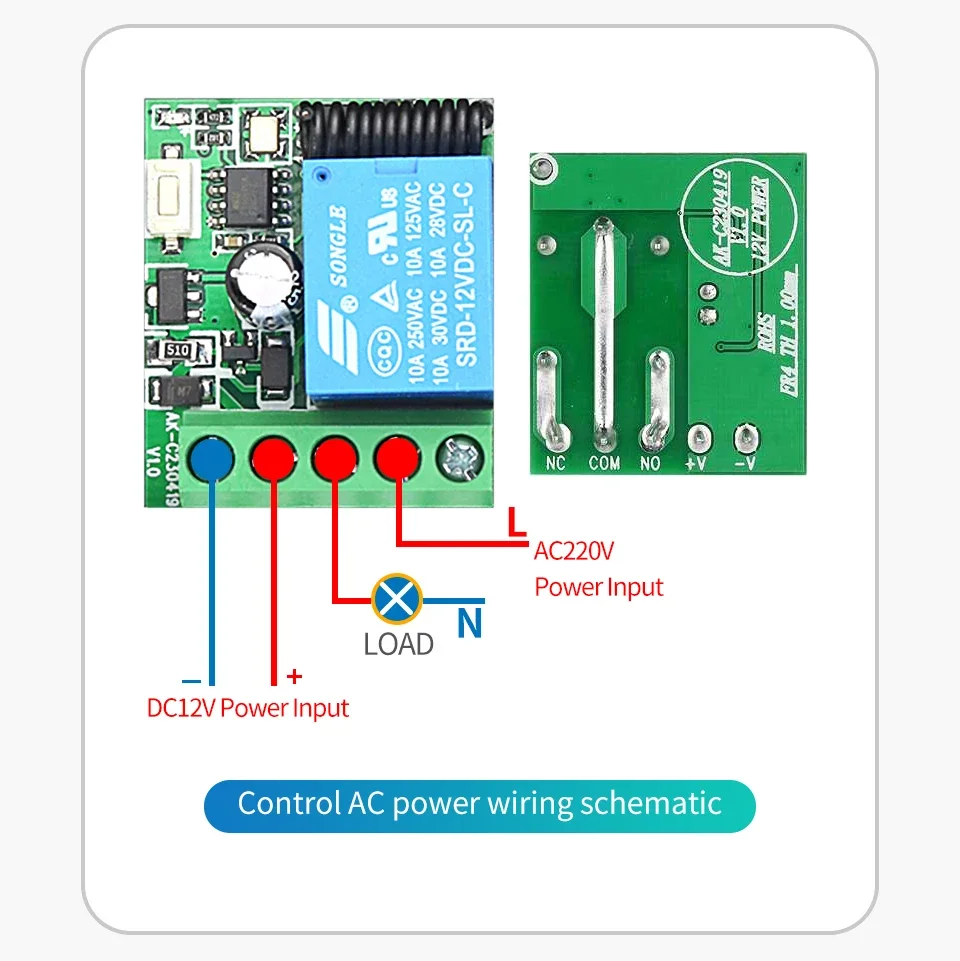

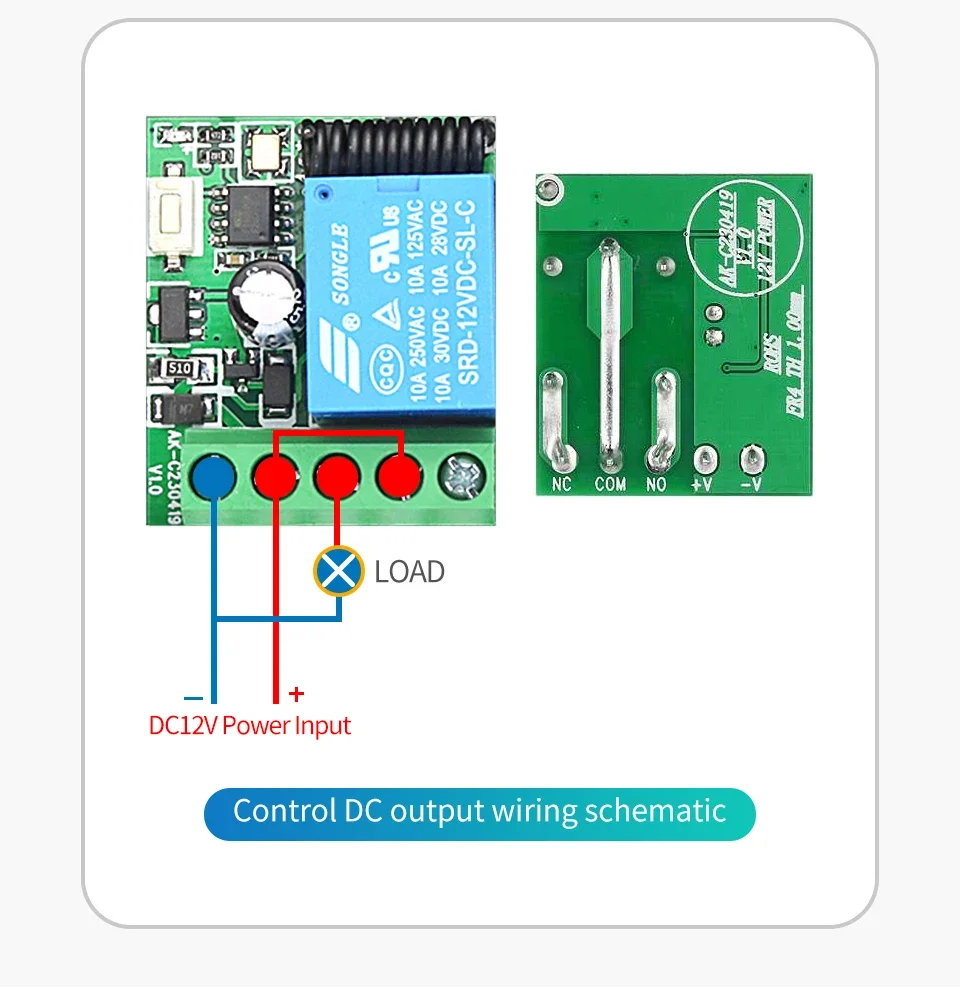

Pin functions:

+V: 12V + input ;

- V: 12V - input ;

NO: normal open;

COM: common ;

NC: normal close;

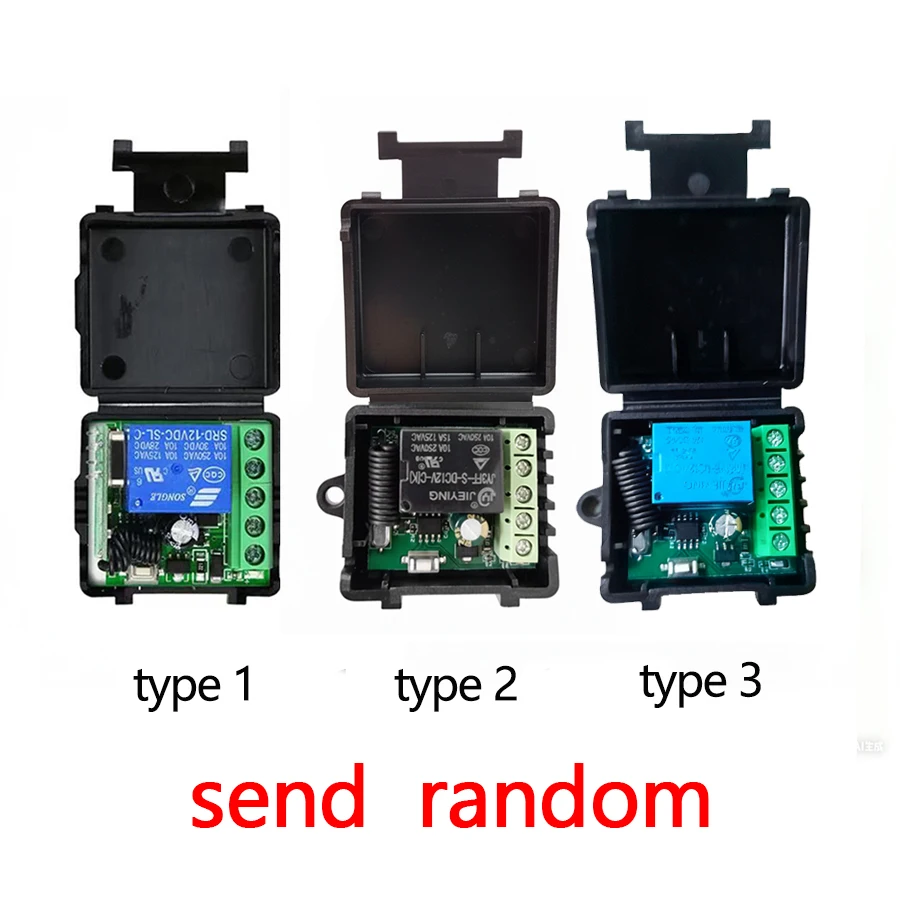

Note: Due to different product batches, Type 1 and Type 2 Type 3 ,sent randomly, but don't worry, the functionality is the same
