HD Digital TV Antenna Indoor Amplified DAB Antenna 200 Miles Ultra HDTV With Amplifier VHF/UHF Quick Response Outdoor Aerial Set

we have 3 kinds of Antenna for you to choose,please read the type details carefully and make a best choice,if you have any question,please contact us,we will try our best to help.

hope you have a good day and perfect shopping experience in our shop!!

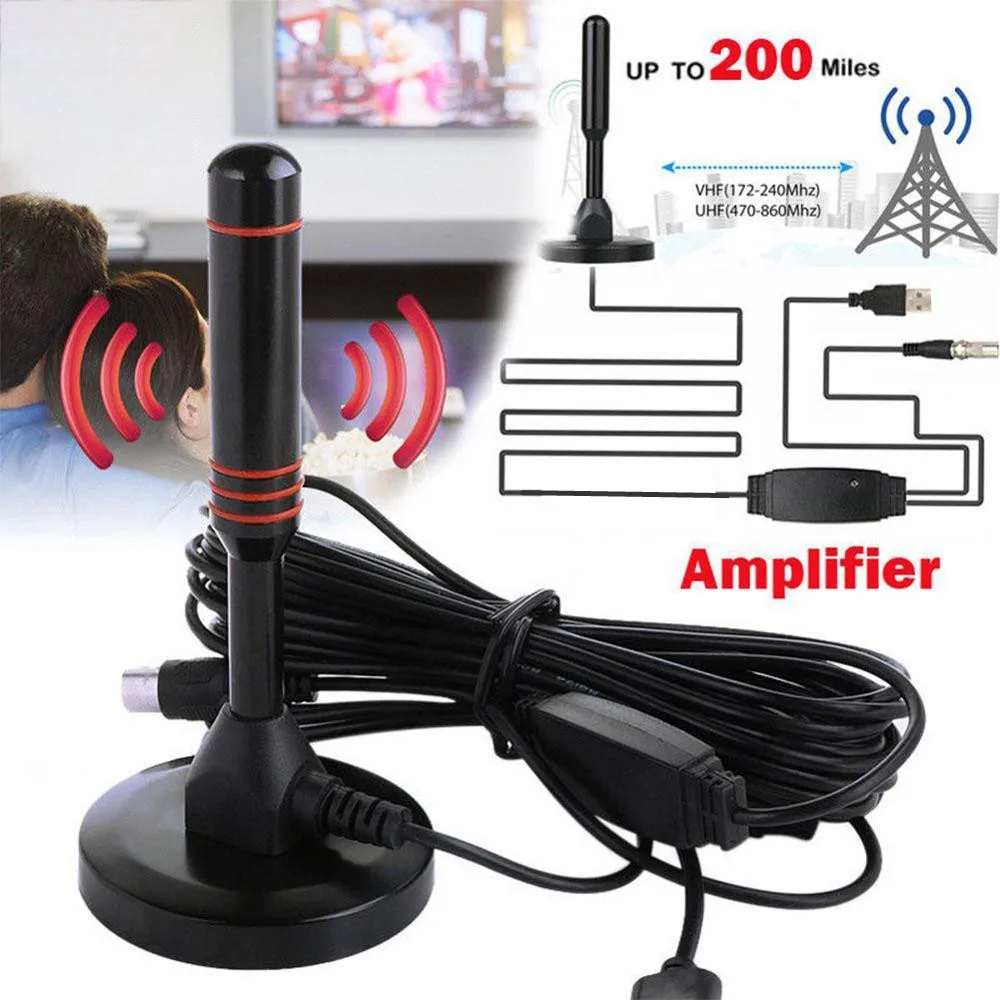

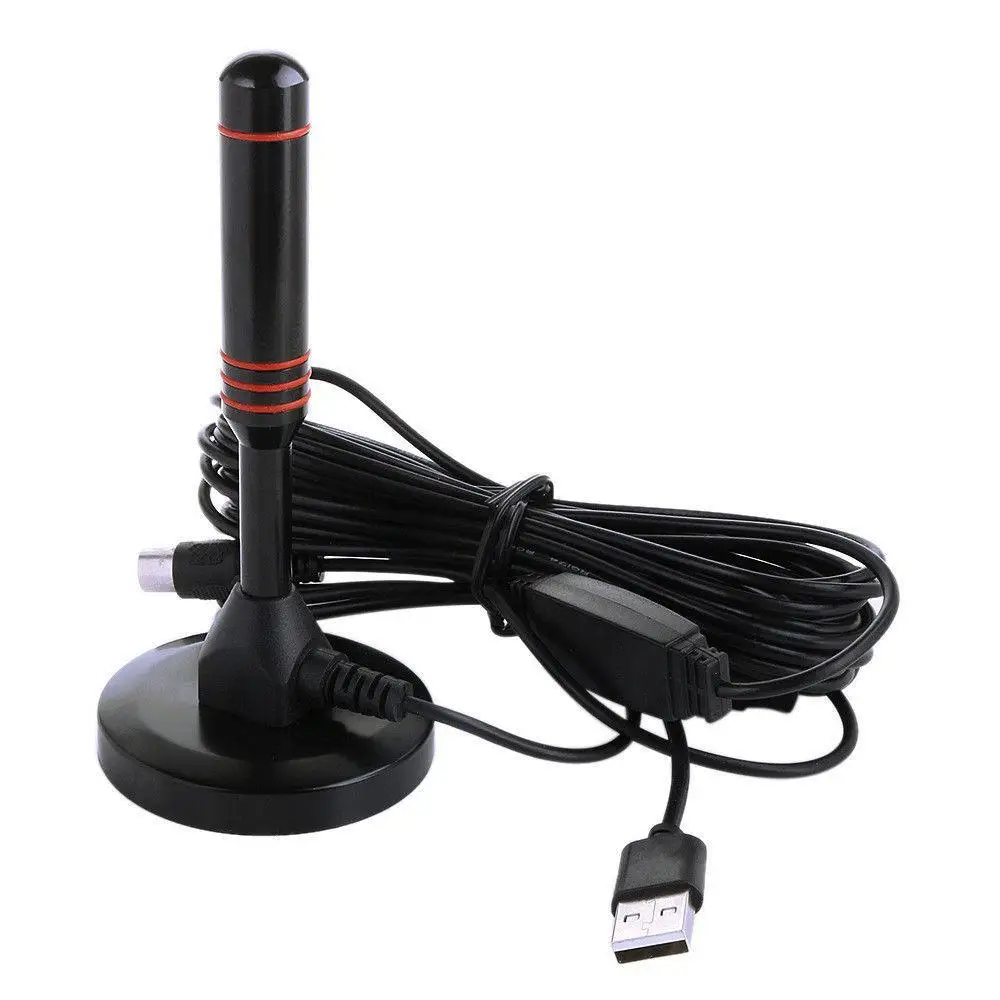

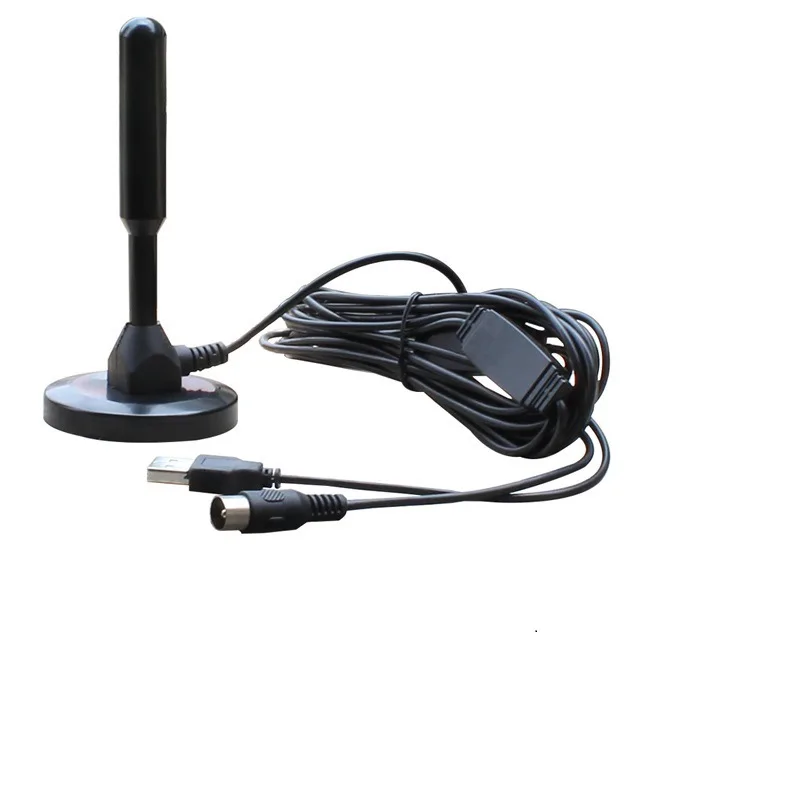

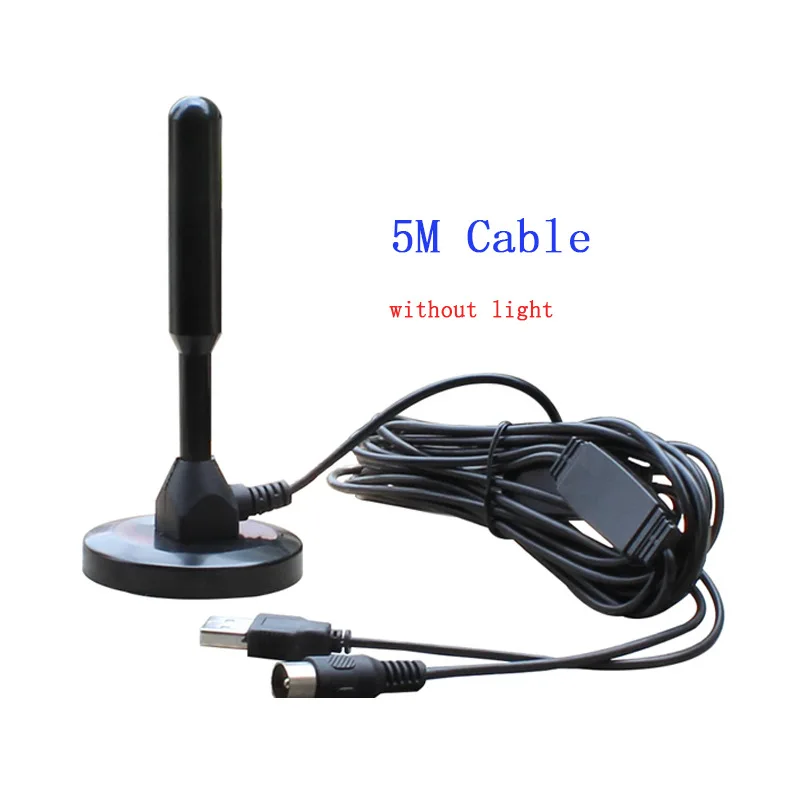

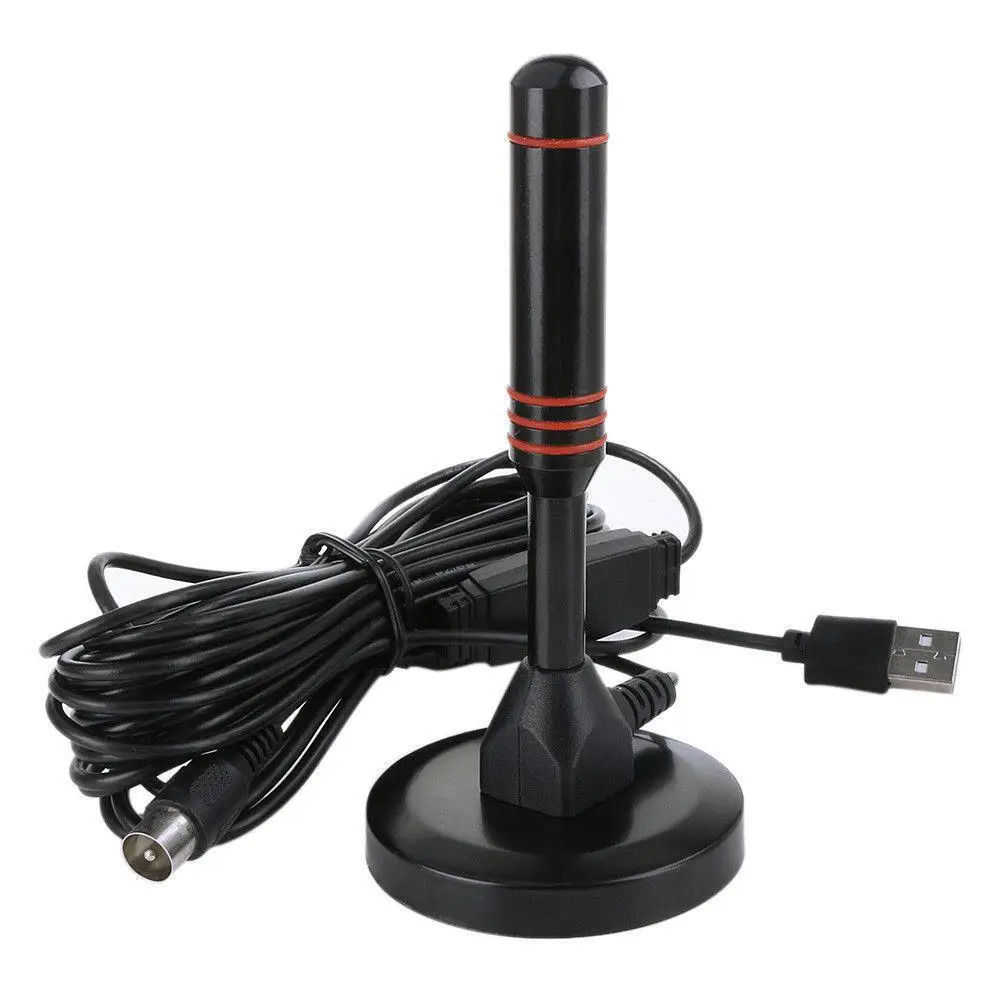

TYPE 1 ——5 meter length type

Description:

Item type: 200-mile Antenna

Working frequency: VHF (172-240MHz) / UHF (470-860MHz)

Connector: F male

Type: DVB-T2 Antenna

Received signal: ATSC, DVB-T, DVB-T2, ISDB

Signal range: 200 miles

Material: Metal

Dimension: 2.44 x 5.12 inch (62 x 130mm)

Current consumption: 20mA

Impedance: 75Ω

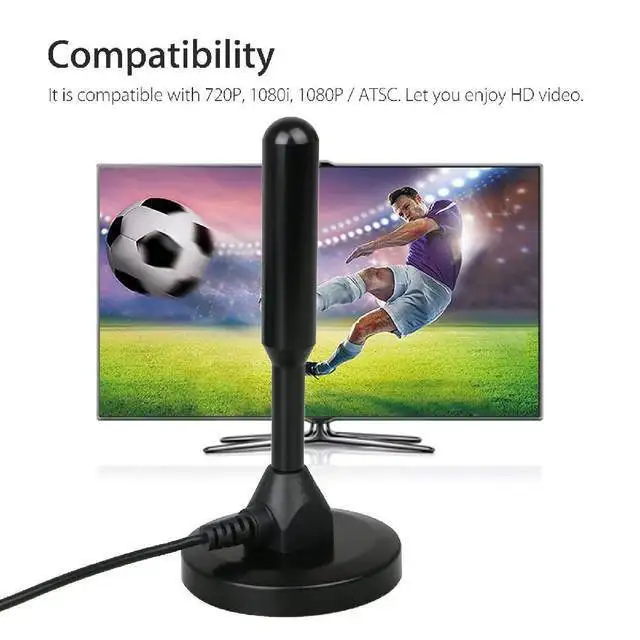

Compatibility: 720p, 1080i, 1080p / ATSC

Storage temperature: -45-85 ℃

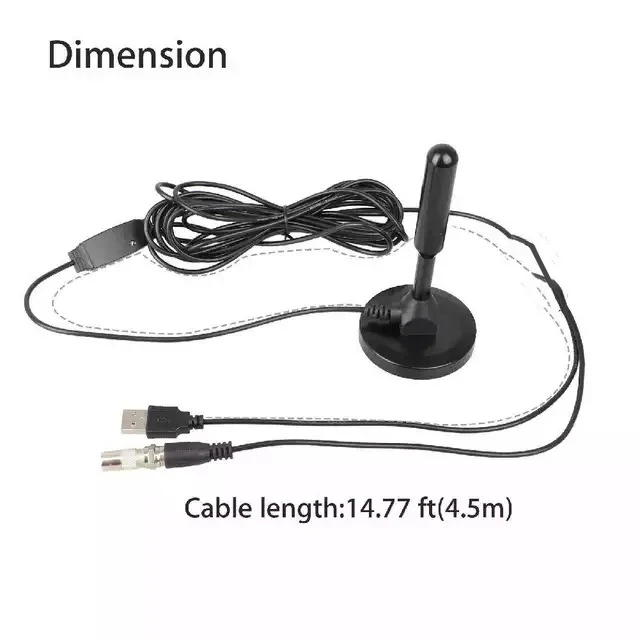

Cable length: approx. 4.5 meters / 14.77ft

Working temperature: -45-85 ℃

Net Weight: 7.6 oz (216g)

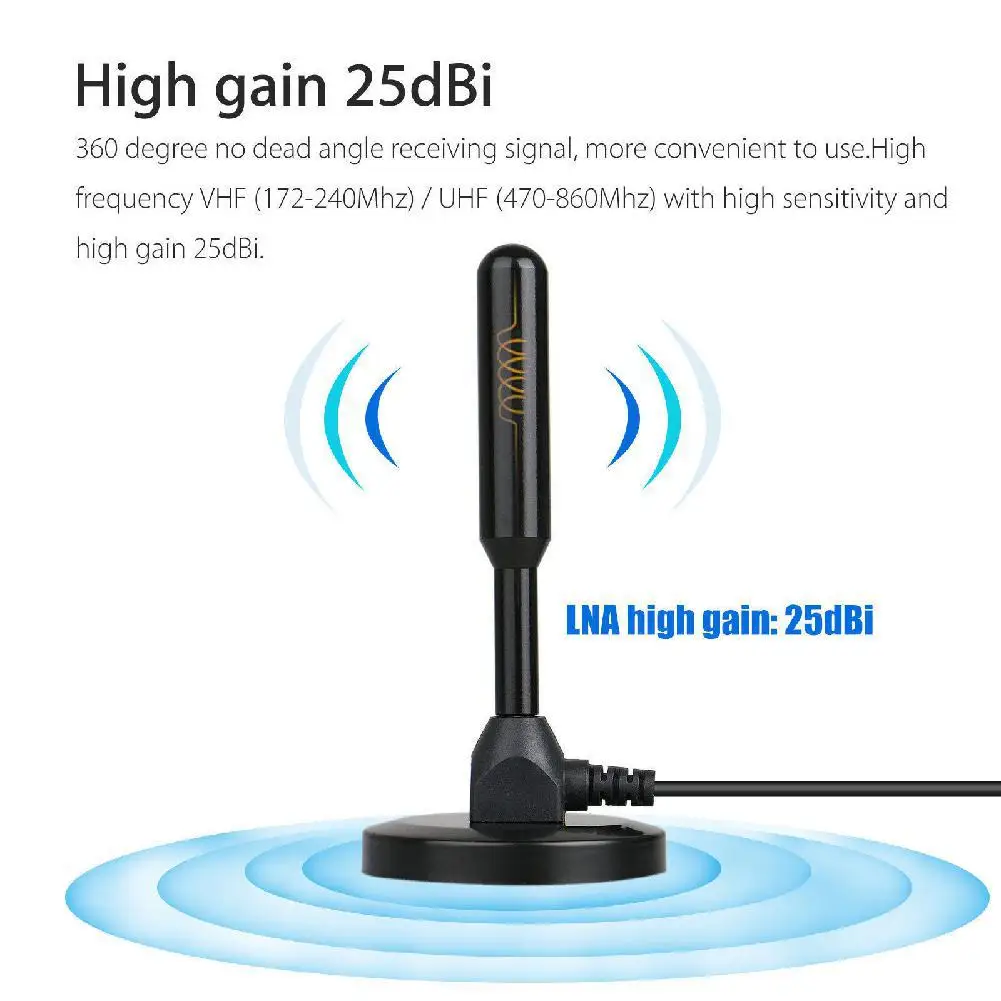

LNA high gain: 25dBi

Voltage: 5 v

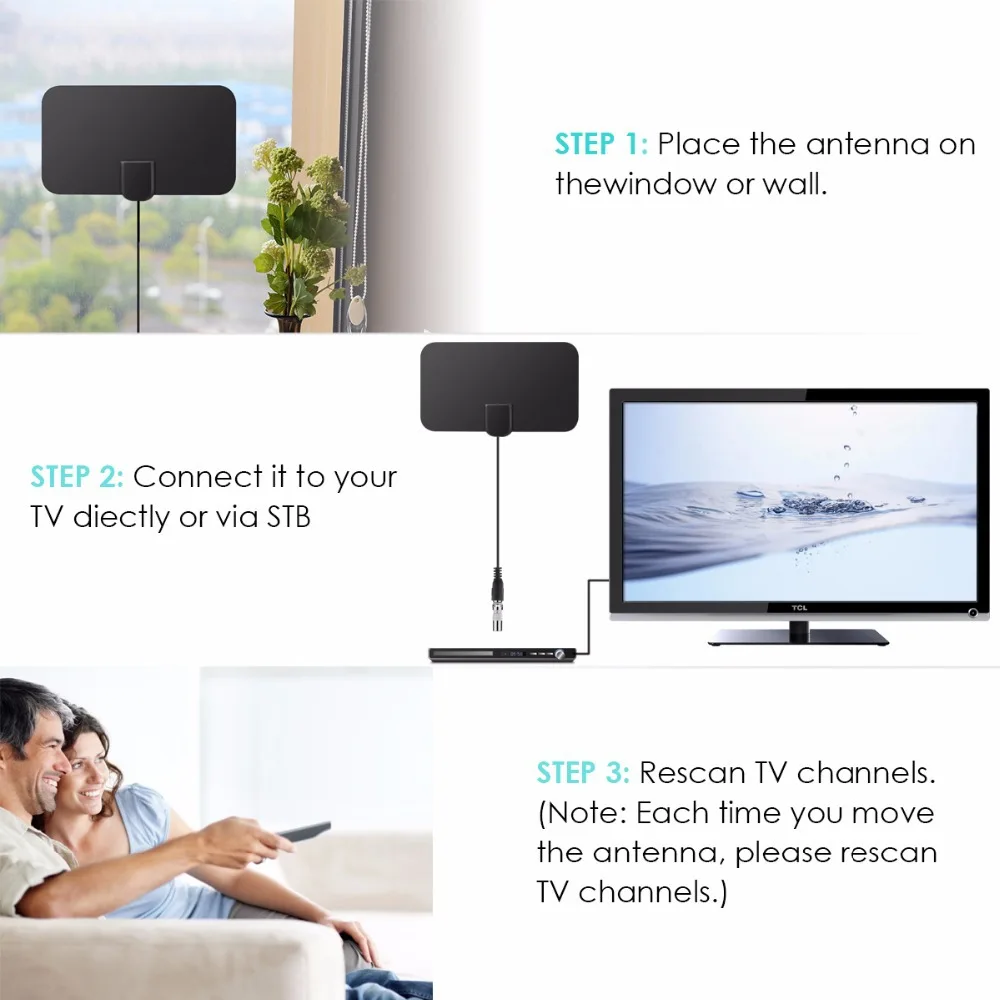

How to use:

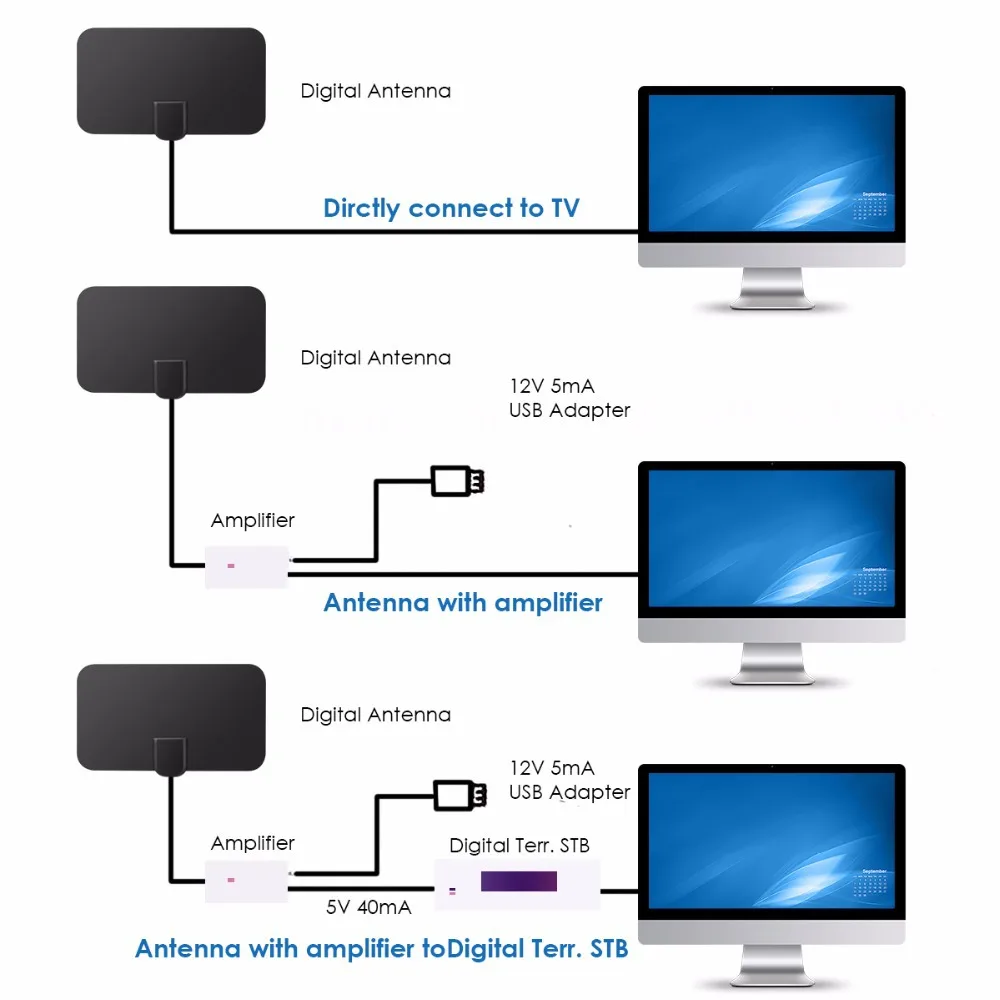

Step 1: Connect the end (f-male) of attached coaxial cable to the ANT / IN connector on the back of the TV or DVB-T tuner.

Step 2: In the TV's setup menu, set the tuner mode to "Antenna" or "Air". for more detailed instructions, please consult your TV manual.

Step 3: In the TV's setup menu, set TV to "scan" for channels. This can sometimes be referred to as auto program, auto scan, channel search or channel scan. Consult the TV manual for detailed instructions.

Step 4: If reception is sporadic, try moving the antenna to another location and rescanning the TV until optimal position is found.

Step 5: fix the antenna at the optimal position you found.

Package Includes:

1x200-mile Antenna

Note:

Color deviation may vary due to different monitor settings.

We will offer you the best product and service, if you have any problem, please let us know, and we will solve the problem ASAP. Thank you.

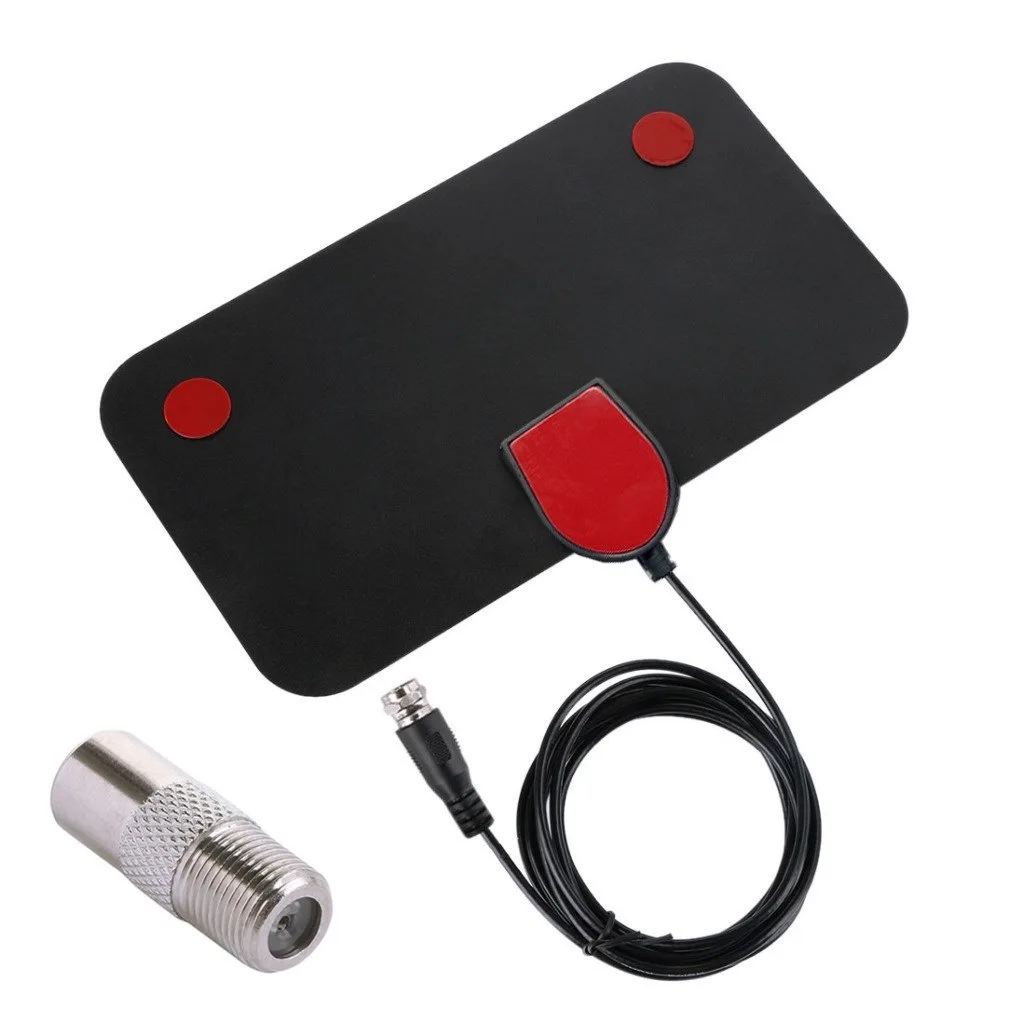

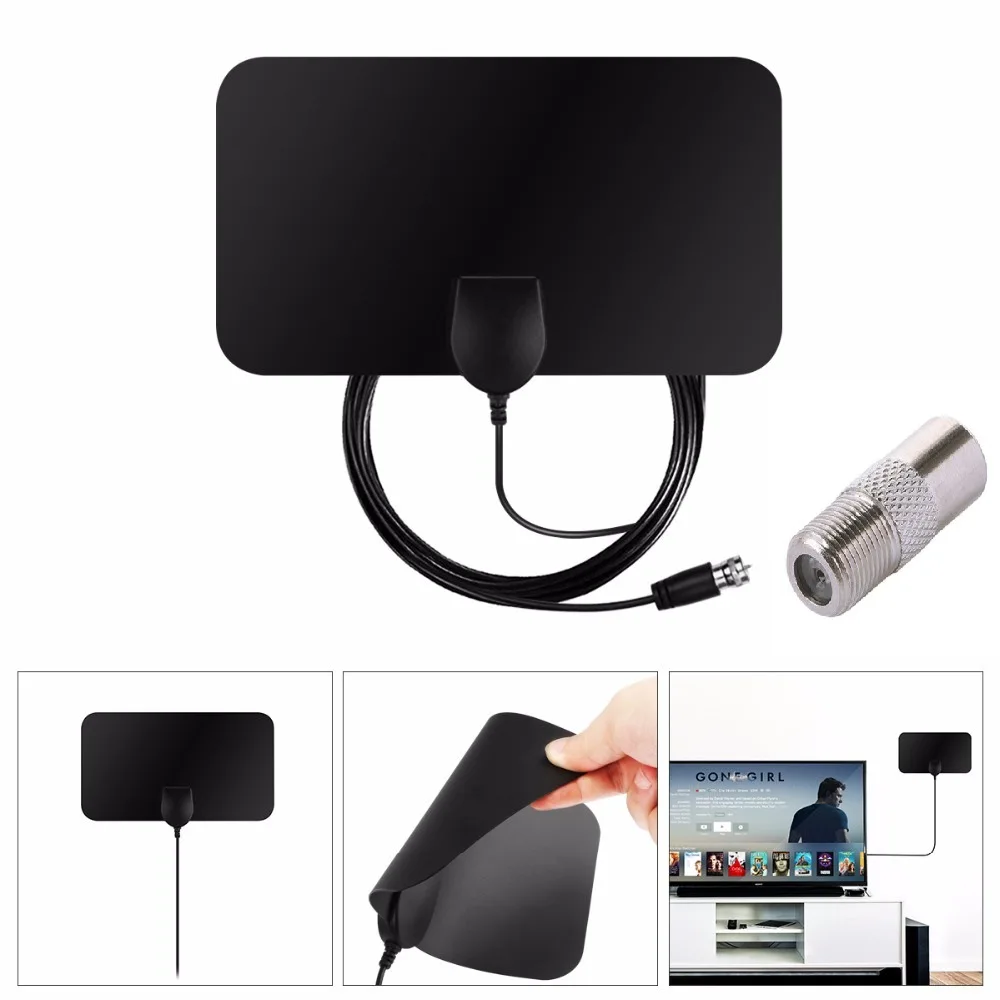

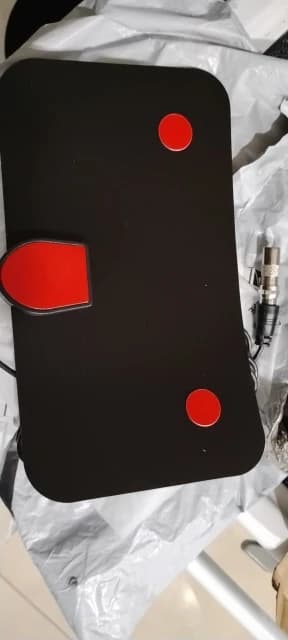

TYPE 2 ——Planar Antenna

European and American HDTV indoor TV antenna, appearance design elegant, thin, small size and other features, back with adhesive tear glue, easy to install, can do f head, the default shipment TV head

（ 1)Support 1080p

（2)50miles range

（3)Coaxial Cable: 3M length

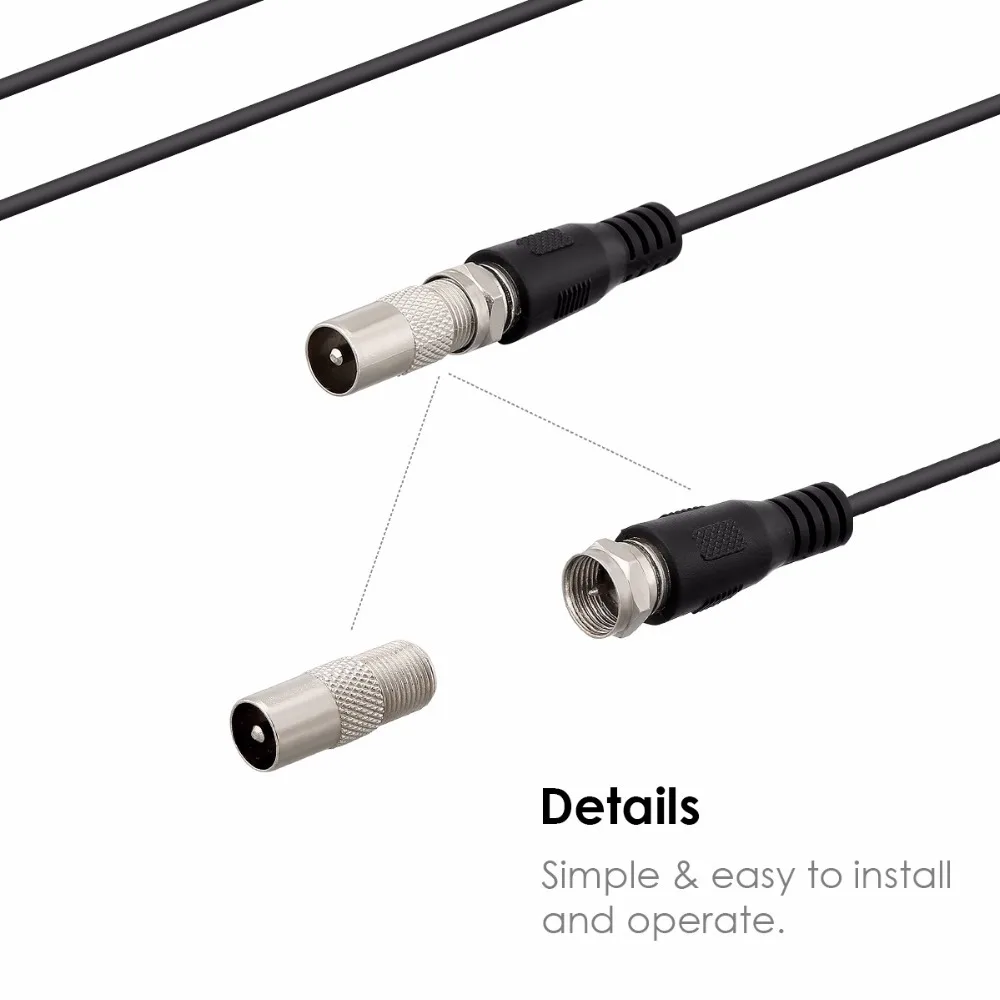

（4)Connector Type:F - head with TV adapter

（5)V.S.W.R.:<=1.5,Max:1

（6)Impedance:75Ohm

（7) Multi-directional capability

（8)call out all "Free" channels

（9)Gain:20 dBi(with amplifier)

（10) Conventional antenna panels are divided into white, black, transparent, support for samples and drawings to order

（11)Working Frequency: 174~240MHz,470~862MHz

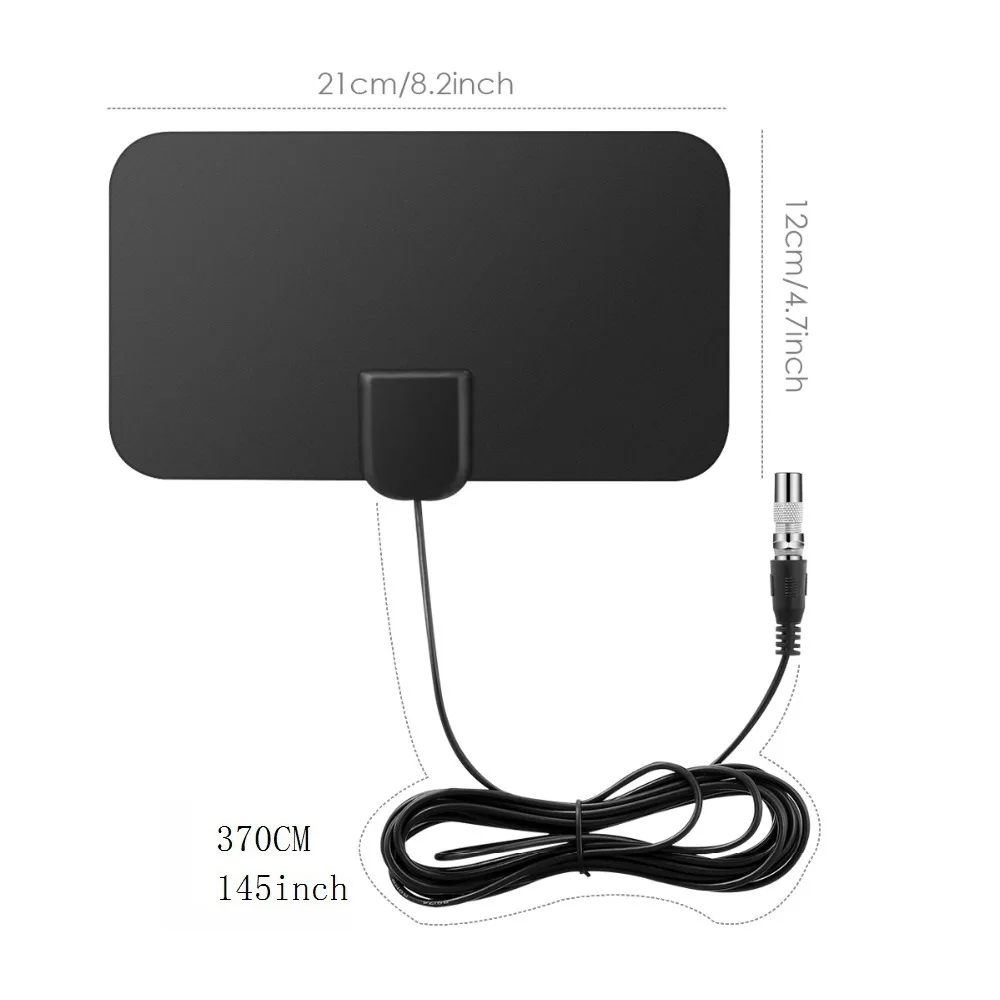

（12）Product size（MM）：210*120*0.8

（13）Mounting Paste

（14）Radome Color Black

（15）. Operation Temperature : -45 ~ 85℃

（16）. Storage Temperature : -45 ~ 85℃

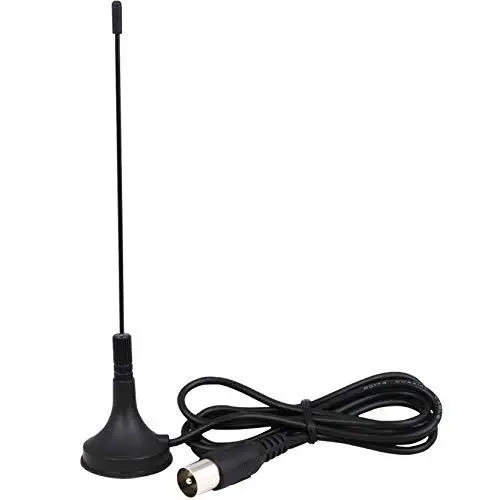

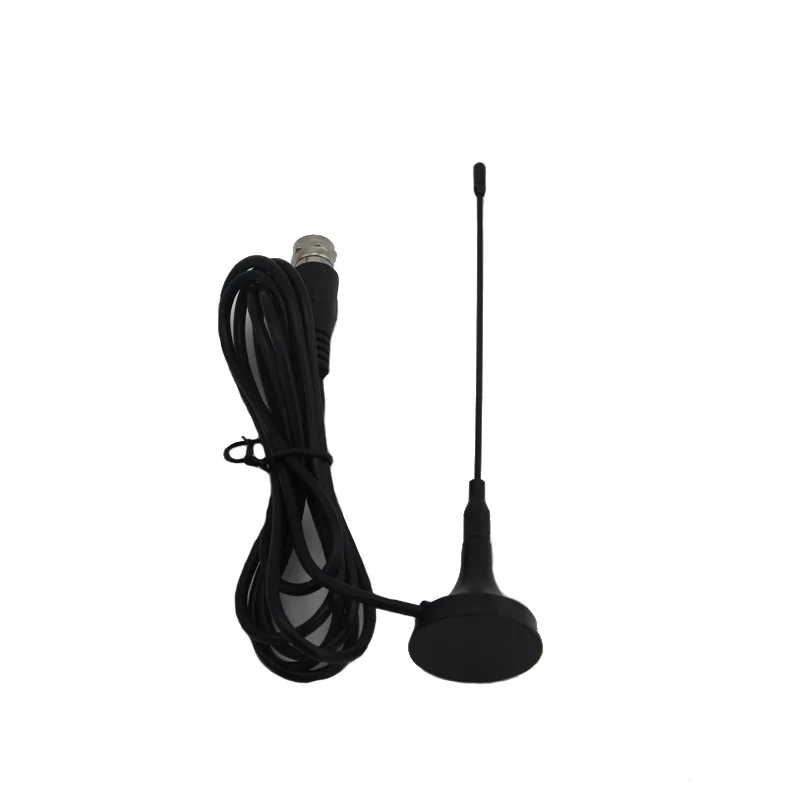

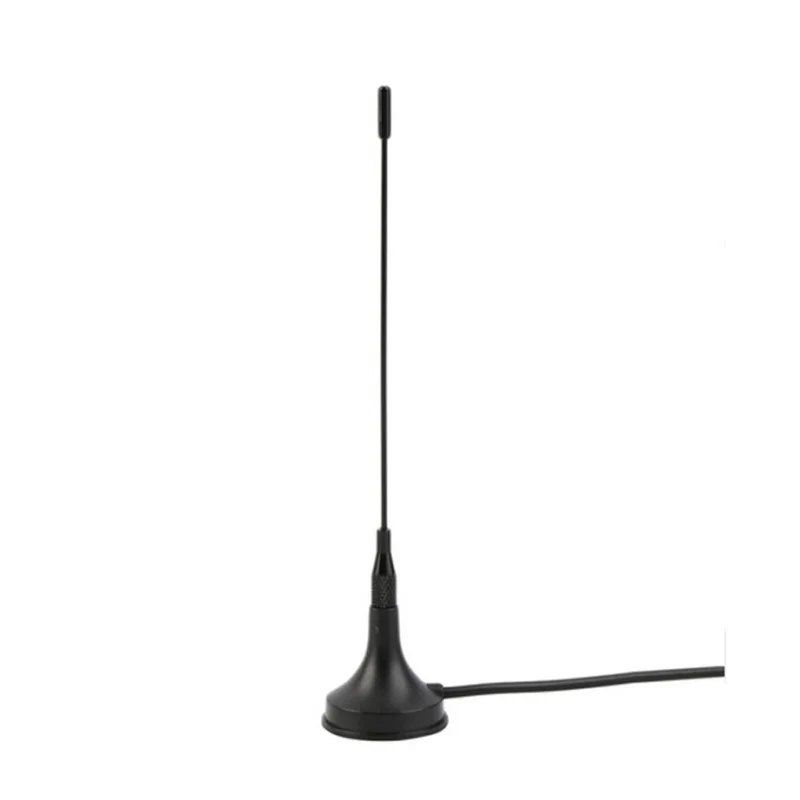

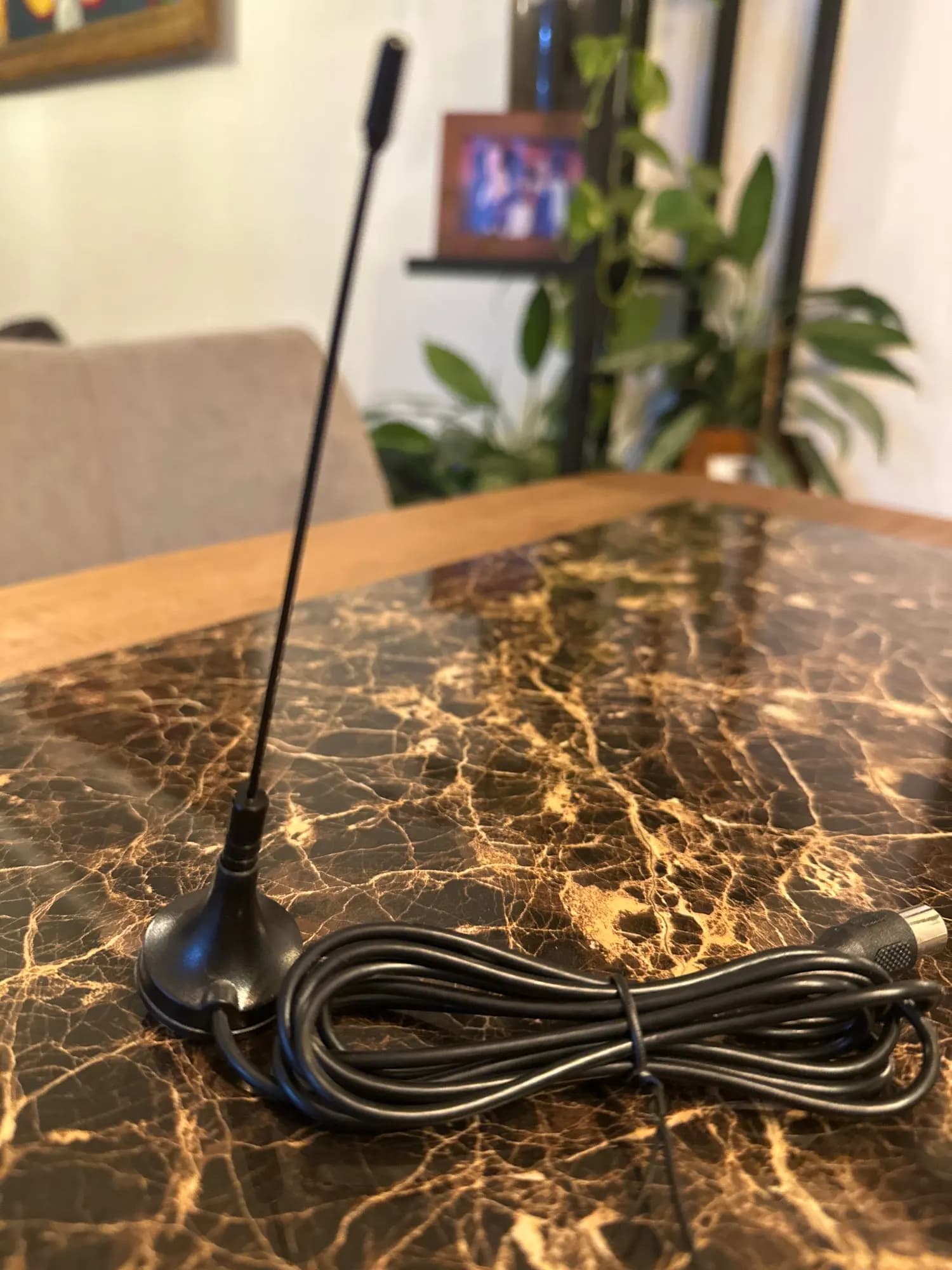

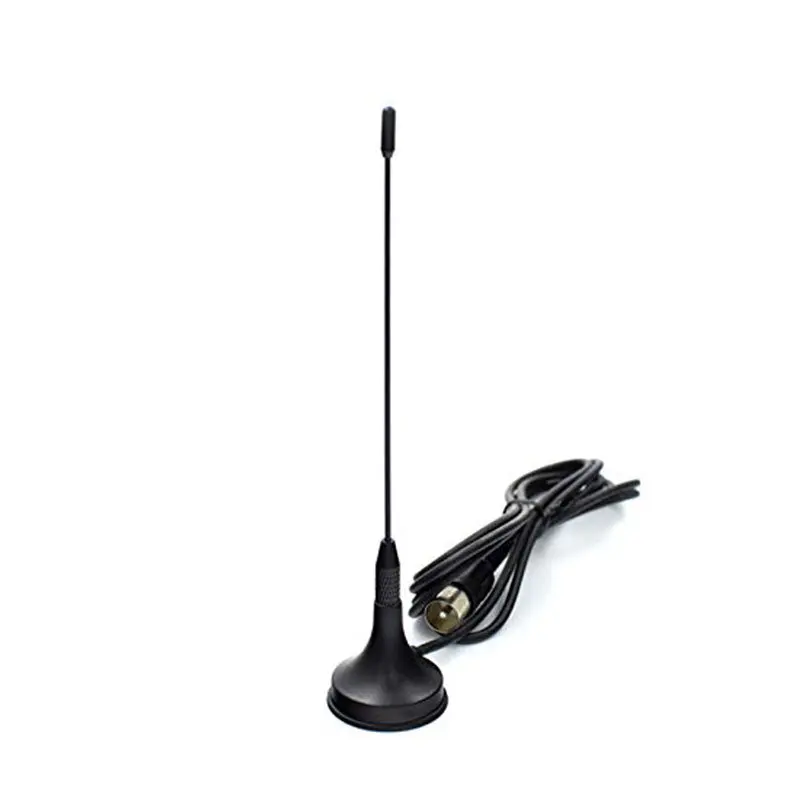

TYPE 3 ——MINI Antenna

Frequency：VHF174~230/UHF470~862MHZ

VSWR：≤1.5

Gain：  3dBi

Rated power：50W

Polarization：vertical

Input Impedcane ：50Ω

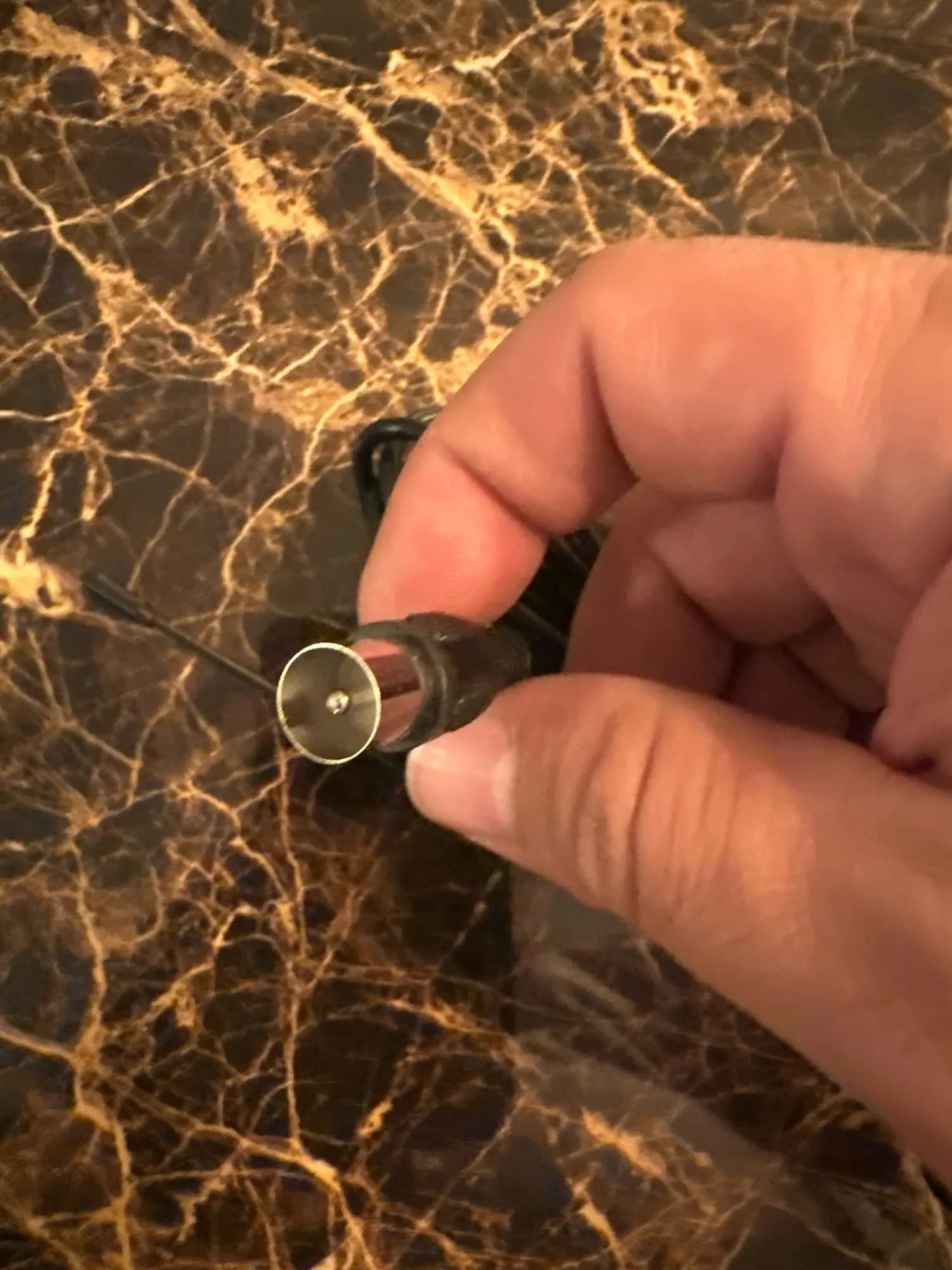

Connector Type：  IEC/F/others
