【EU】 2.2KW ER20 CNC Router Milling Kit Air cooled Cooling spindle motor With HY frequency converter vfd inverter

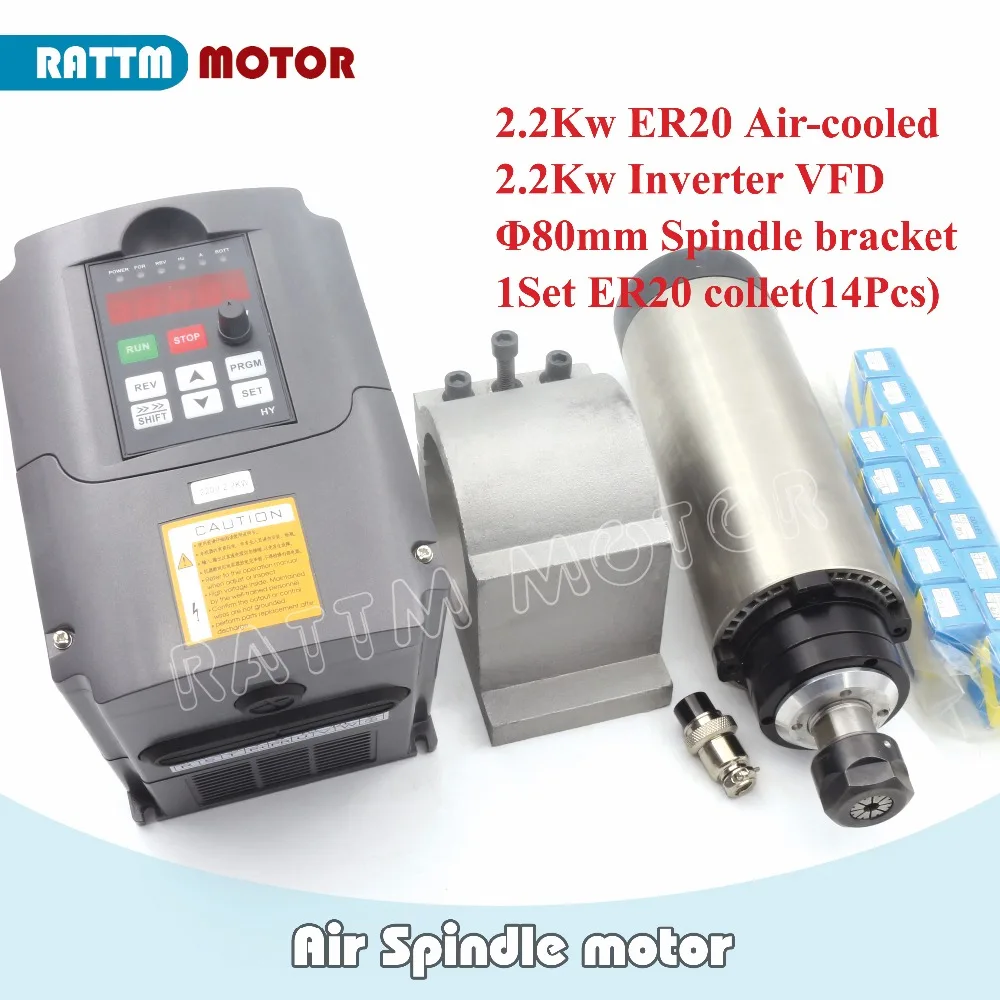

Package include:

1 x 2.2KW Air-cooled spindle motor (ER20, 220V,400Hz,24000rpm,4 bearing)

1 x 2.2KW HY  // mini Inverter 2HP 220V (optional）

1 x 80mm cast aluminium bracket (optional）

1 x 14pcs ER20 collets  (optional）

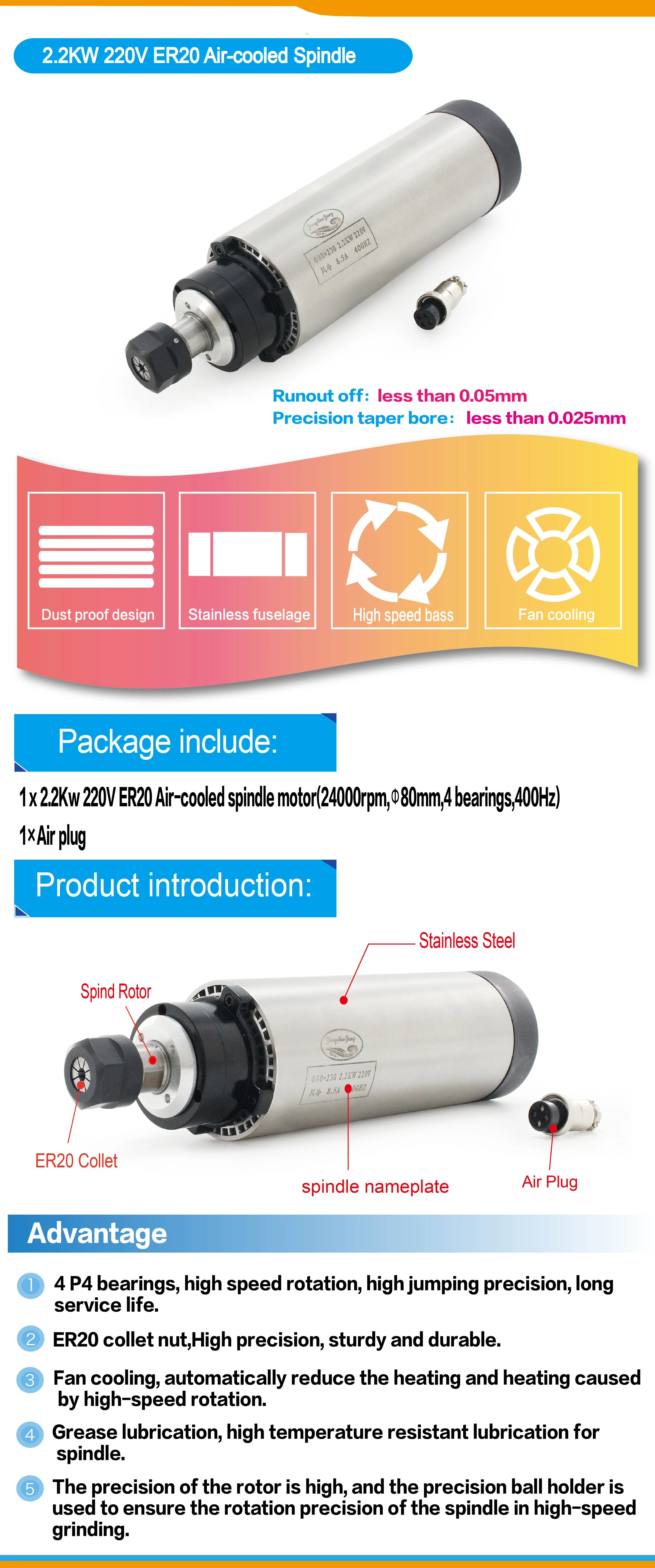

1.  2.2KW ER20 Air-cooled Spindle motor Engraving milling Grind

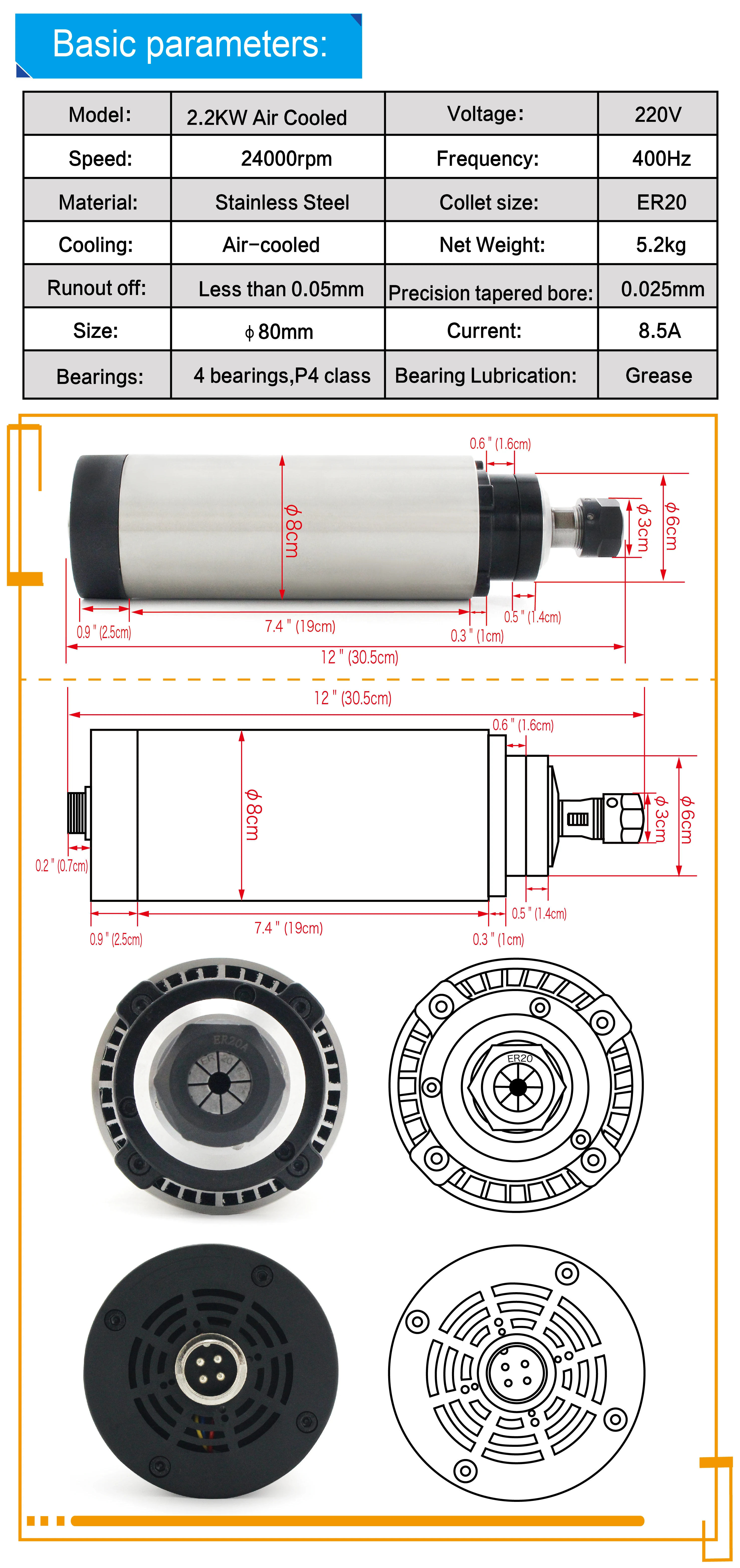

Specification:

Material:Stainless Steel

Size:80x230mm(Middle body diameter:80mm x Length:230mm)

Power:2.2Kw

Voltage:220VAC

Current:8.5A

Frequency:0-400Hz

Speed:0-24000rpm

Cooling:Air-cooled

Runout off:Less than 0.05mm

Precision tapered bore:Less than 0.025mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:4 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings

Net Weight:5.2kg

Power supply interface:Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC,PCB etc industry

1) Structural features

1) High speed electric main bearing all adopt the C-class high-speed angular contact ball bearing, axis sets of loading, Improve spindle in the high-speed rotation supporting stiffness and precision grinding.

2) Before driving, rotation of the shaft by hand.Spindle high speed rotation caused by temperature rise, use of cooling liquid circulating system to eliminate.

2) Instructions for use

1) In use, must first connect the cooling water pipe, make spindle connect cooling water and then start.

2) Before driving, turned by hand spindle. If sensory block is not flexible, you should troubleshoot, and then check the direction of rotation of the spindle from the spindle end to see if the match should rotate counterclockwise power wiring should be changed to make it consistent.

3) Before driving, cooling water for grinding workpiece can’t be in the front end of the spindle cover, to prevent the front bearing cover slot inlet burning motor and bearing. the motor must not enter the water, after turned on of the motor, when you live in grinding the workpiece to open the grinding of workpieces coolant. First off the workpiece coolant shutdown, and then close the spindle motor.

3) Maintenance and Service

1) Motorized spindle by medium frequency power supply rated voltage, frequency should be consistent with electric spindle technology parameters, motorized spindle rotational speed can change the frequency to adjust, also directly proportional voltage change.

2) When the spindle is temporarily not in use, should use compressed air to blow the coolant water,to avoid rusting, plug the hole. Spindle surface should be coated with anti rust oil. The shaft end protecting device, placed in dry place.

3) If replacement the spindle of bearings, best professional and technical personnel from the replacement. Use special tools, stator coil does not to be removed.

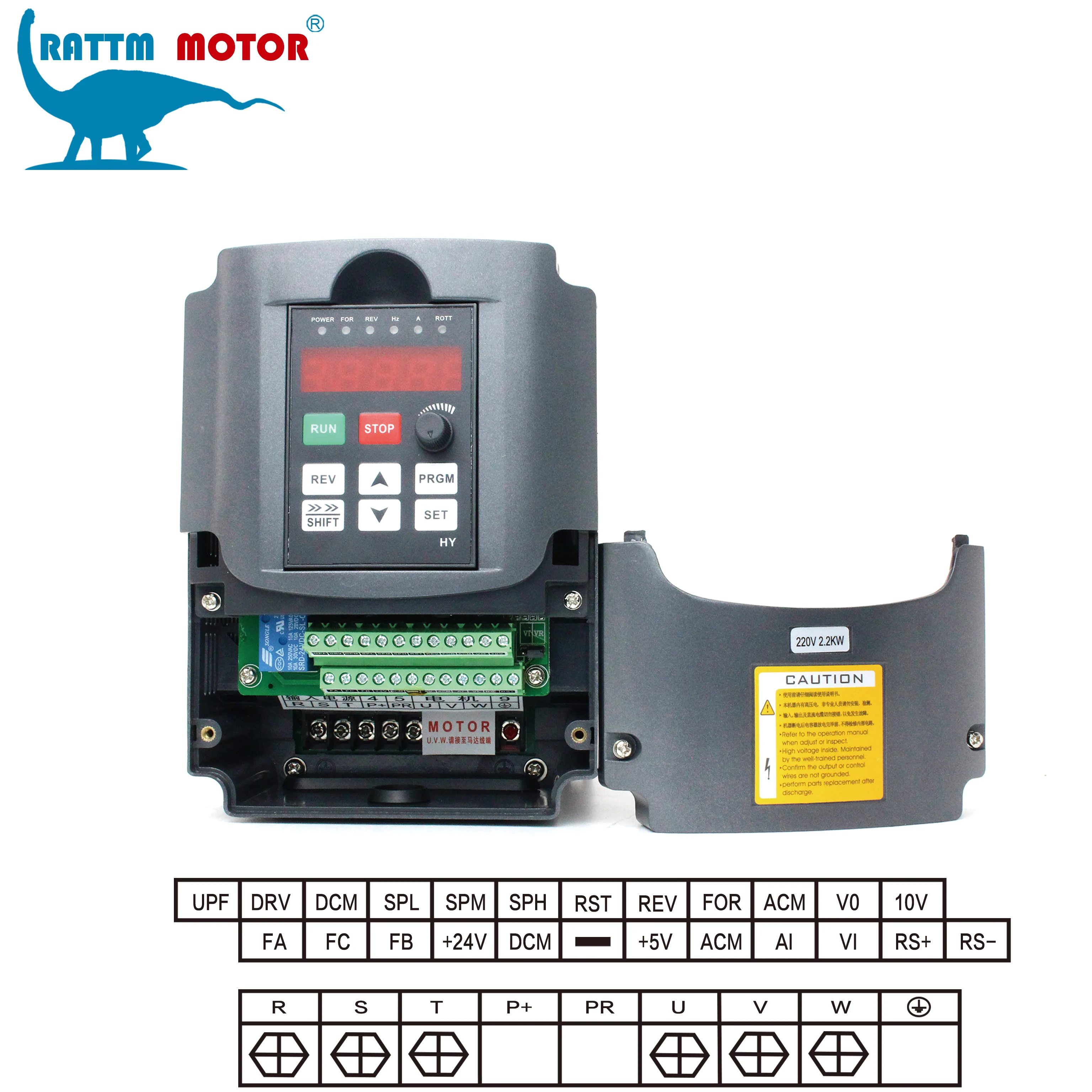

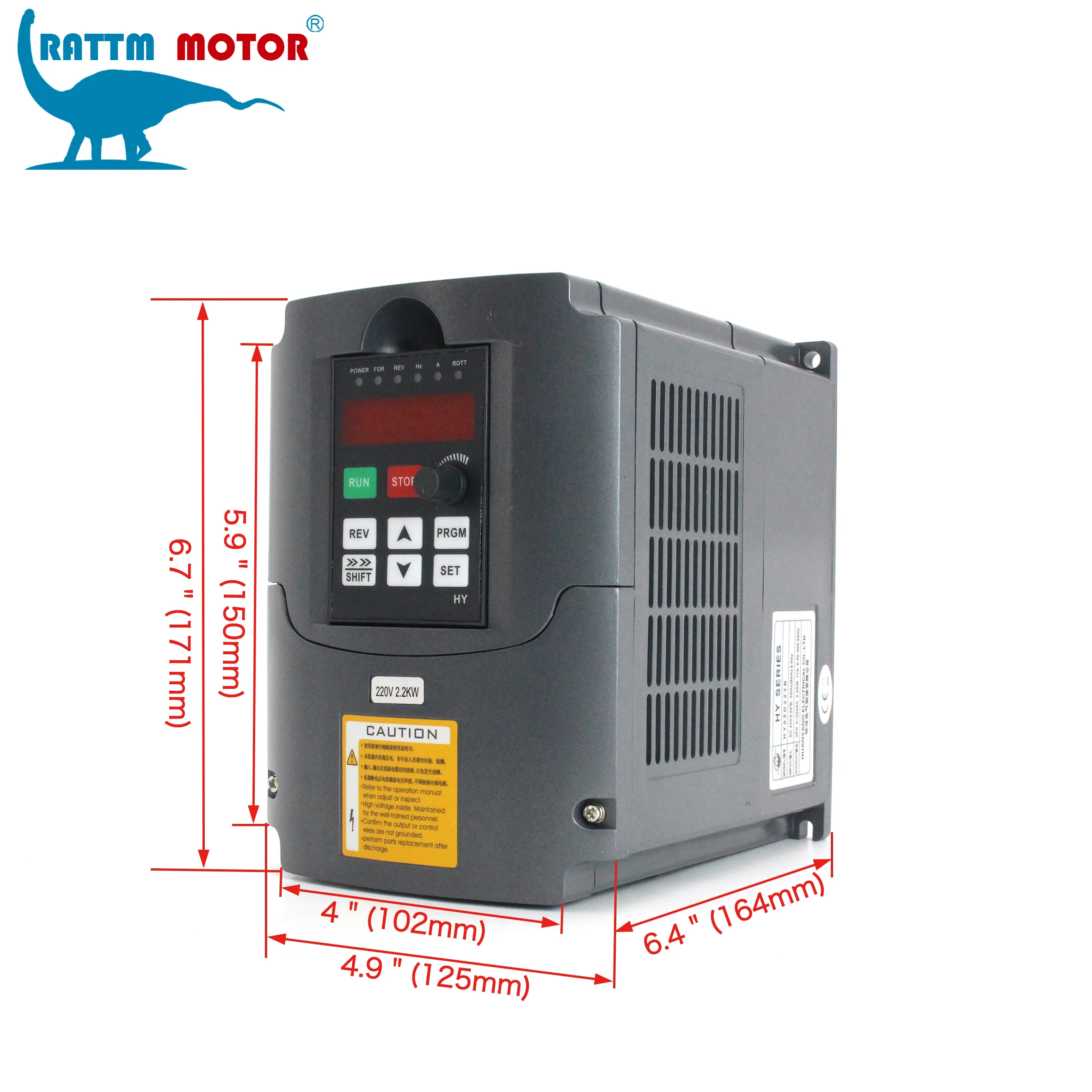

2.   2.2kw Inverter VFD

ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

Tech parameters:

1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 208VAC-240VAC

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

Advantage:

1)Control mode is SPWM,it is very easy to use and convenient;

2) Protection functions are very strong;

3) Fin over-heat protection;

4) Overload protection;

5) Fuse protection;

6) Restart after instant stop,stall protection;

7) Powful function;

8) Reliable quality.

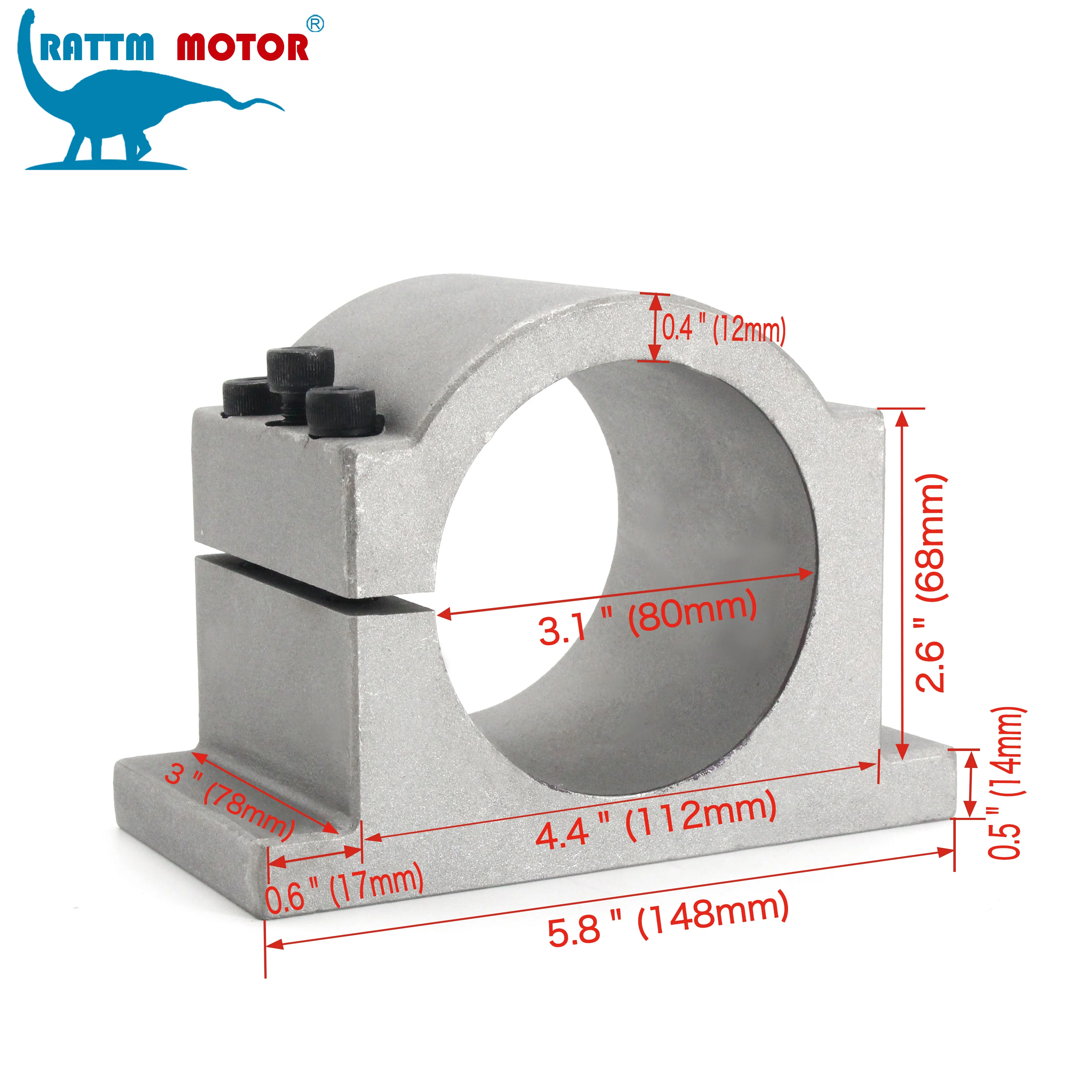

3. 80mm cast aluminium bracket
