2.2KW HY HUANYANG 110V/ 220v /380v Inverter CNC Spindle motor speed control Variable Frequency Drive 0-400Hz 3P output HY02D223B

Package include:

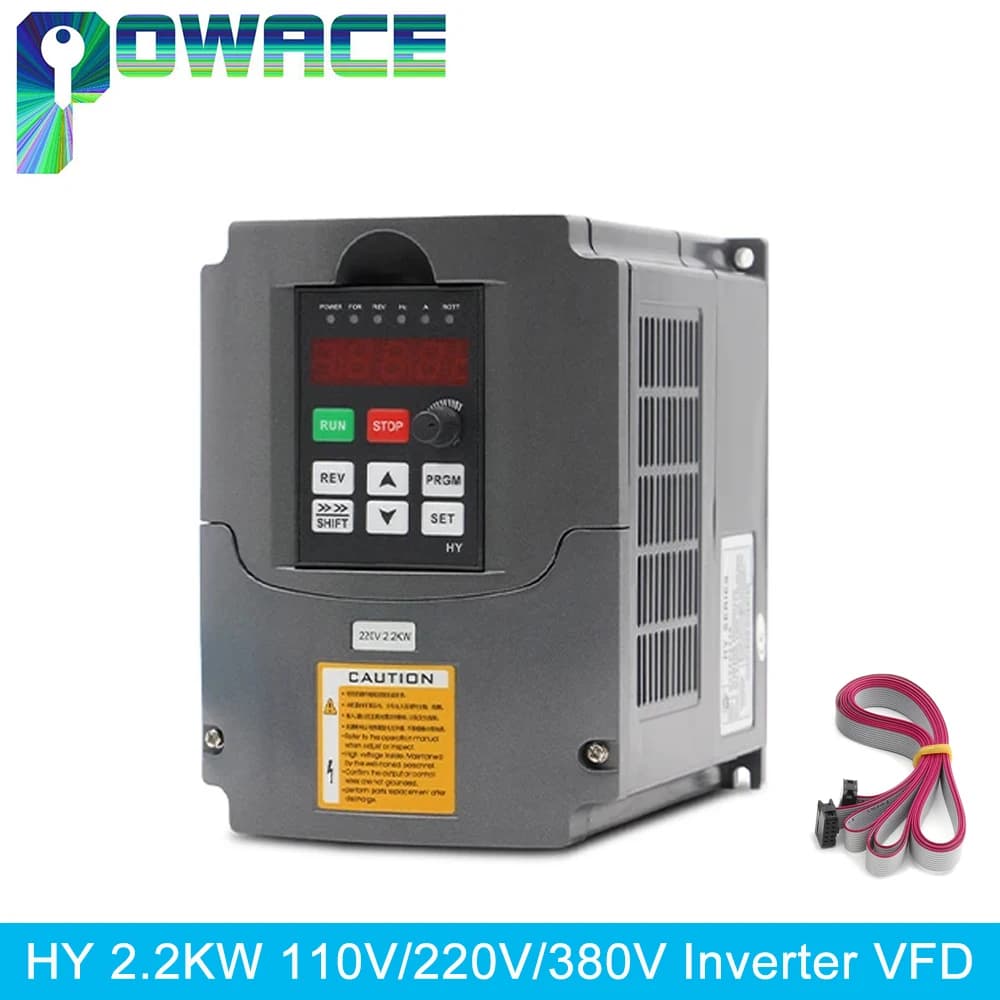

1 x HY 2.2KW Inverter VFD

1 x 2M extension cable

User Manual Files:

English user manual:https://drive.google.com/file/d/0B49xwe9ffk3fZ3VWR3NHMjB6VkU/view?usp=sharing

Setting video:

Spindle setting:

Features:

Inverter Type: 380v 4A

Input Voltage:380V(+/-15%)

Input Frequency:48-63 Hz

Output Voltage:380VAC

Output Frequency:0-400 Hz

Input Phase:3 phase

Output Phase:3 phase

Warranty:1 year from the date you purchased

Inverter Type: 220v 7A

Input Voltage:220V(+/-15%)

Input Frequency:48-63 Hz

Output Voltage:220VAC

Output Frequency:0-400 Hz

Input Phase:1 or 3 phase

Output Phase:3 phase

Warranty:1 year from the date you purchased

Inverter Type: 110v 13A

Input Voltage:110V(+/-15%)

Input Frequency:48-63 Hz

Output Voltage:110VAC

Output Frequency:0-400 Hz

Input Phase:1 or 3 phase

Output Phase:3 phase

Warranty:1 year from the date you purchased

Original HY (Huanyang) brand inverter, stable using.

Control Mode is SPWM,it is very easy to use and convenient Protection functions are very strong, Fin over-heat protection, Overload protection, Fuse protection, Restart after instant stop,stall protection. Powful function.

·PID control;advanced calculous PID closed-loop arithmetic,quick responding speed and high suitability;

·Easy PLC function can realize 16 legs of speed and inverter control function;

·RS485 communication port,adopting standard international MODBUS main circuit control;

·With extremely strong anti-jamming capability:

·Low output ratting torque 0.5HZ-150%,low speed running ability:

·Carrier adjustable by 16KHZ,completely soundless working environment;

·Broad voltage working area,normal running in 304V-456V:

·Auto voltage regulation(AVR)technique,for ensuring the inverter load capability:

·Various control technique by both synchronization and non-synchronization,dynamically realize fast starting without changing brakes;

·With perfect error protection and short circuit starting protection capability;

·Dead-time compensation and auto torque slip compensation function,can realize 180%high orque output at low frequency 0.25Hz；

·Unique EMC design,can minimize inverter's pollution to power；

·Overall reinforcement layer to suit all kinds of harsh enviroment；
