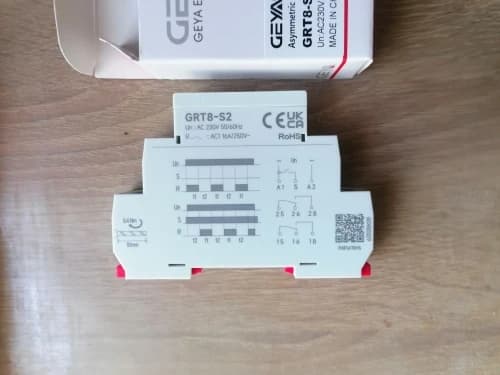

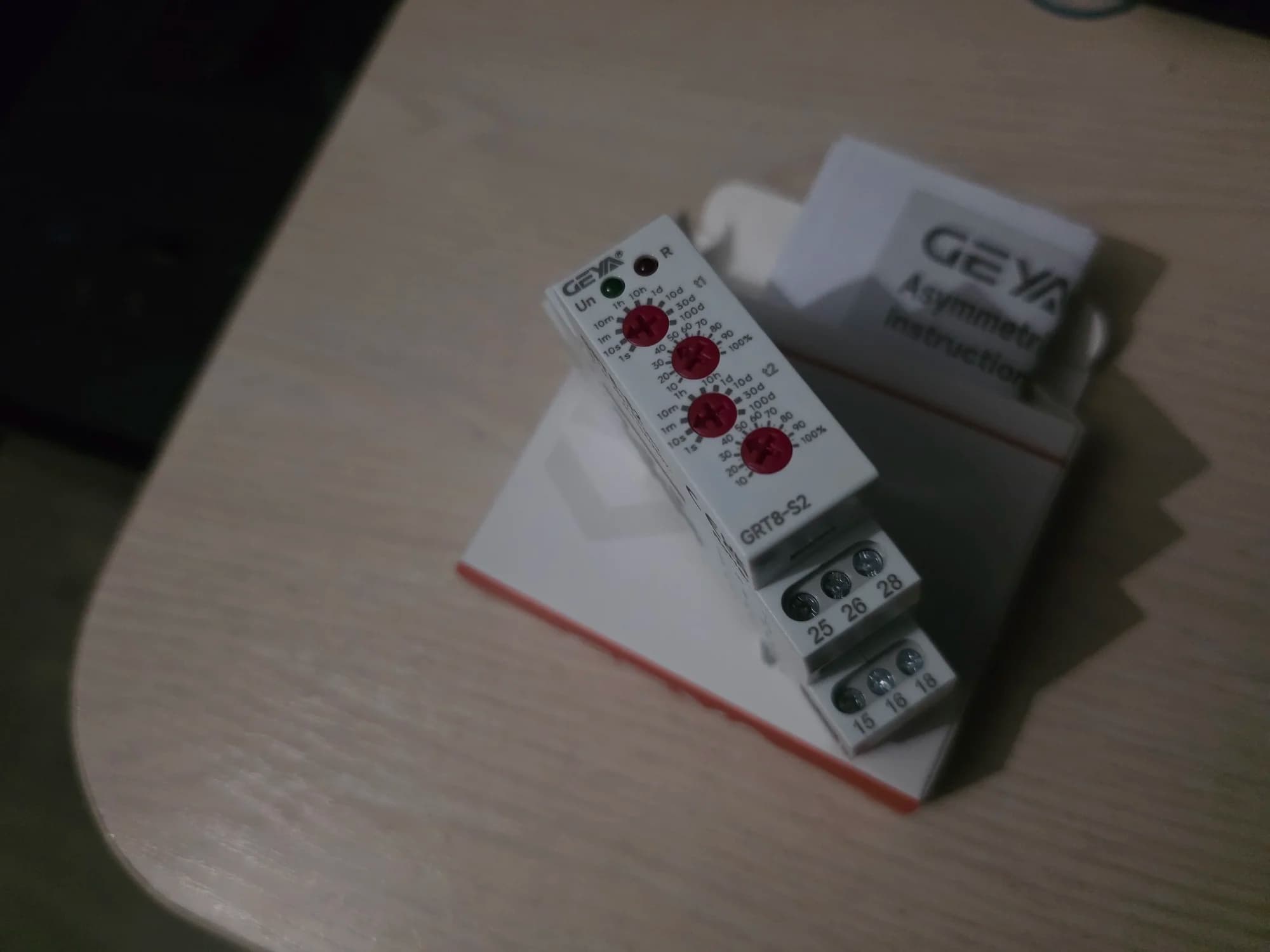

GEYA GRT8-S Asymmetric Cycle Timer Relay SPDT 220V 16A AC/DC12V-240V Electronic Repeat Relay

GEYA GRT8-S Asymmetric Cycle Timer Relay SPDT 220V 16A AC/DC12V-240V Electronic Repeat Relay

"GEYA NEW ARRIVAL GRT8-RL, Right-Left Inverser Time Relay Alternate Cycle Relay, the two groups of contacts are alternately cycled, for example, the first action is the first group of contacts, the second action is the second group of contacts, the third time returns to the first group of contacts, and the fourth time returns to the second group of contacts, and so on. if you need, please click this link!

General
Applications

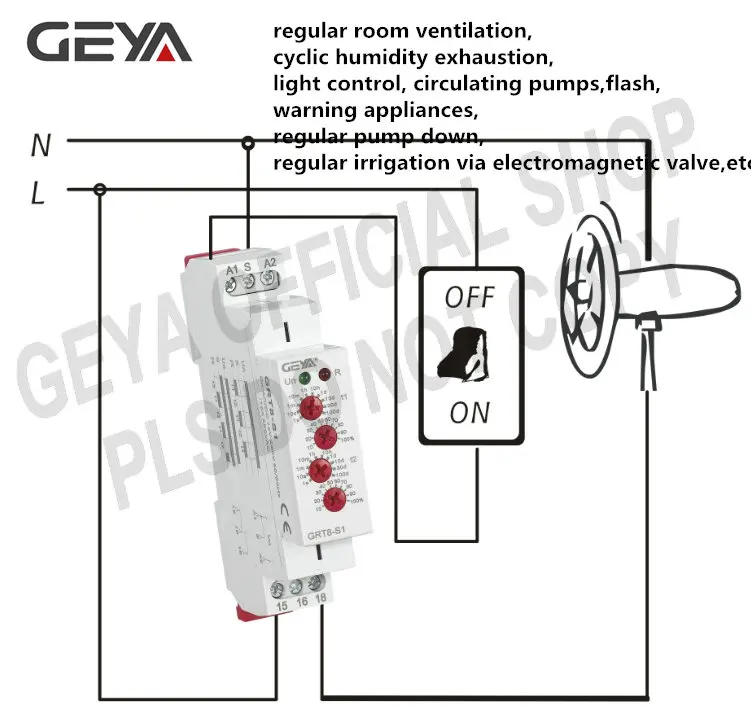

-It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.
GRT8-S: one group or two groups of contacts working in a cycle at the same time"

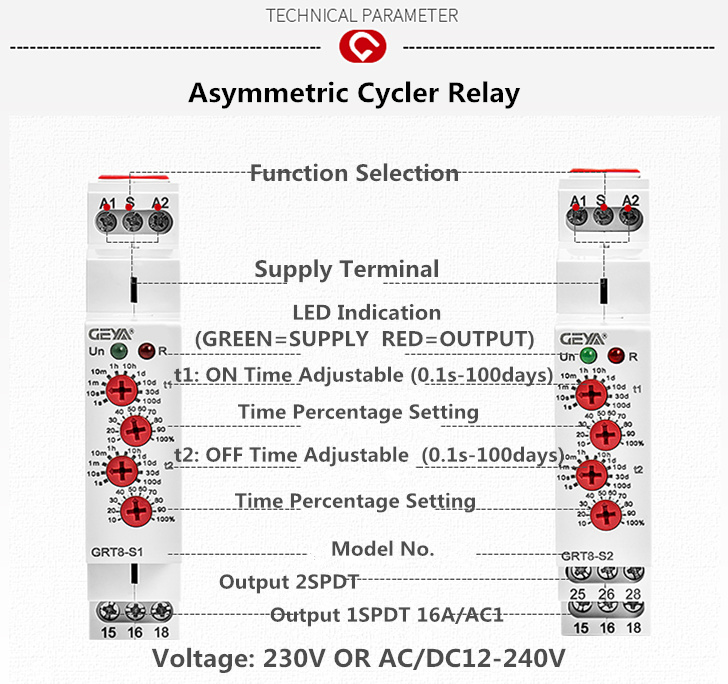

Function Features
-Voltage AC230V or AC/DC12V-240V
-Output 1SPDT or 2SPDT (16A/AC1)

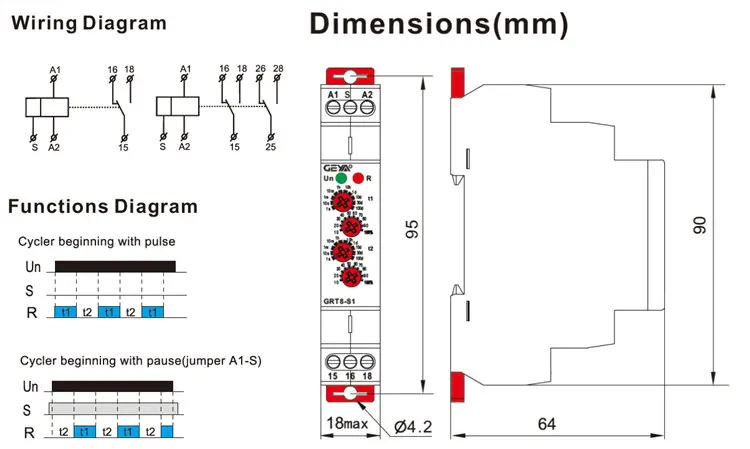

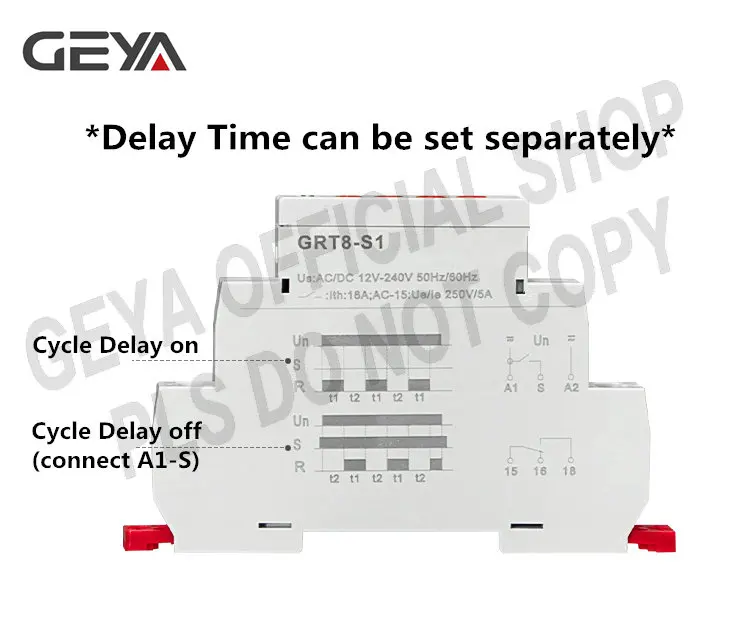

-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /10 days - 100 days).
-Relay status is indicated by LED.

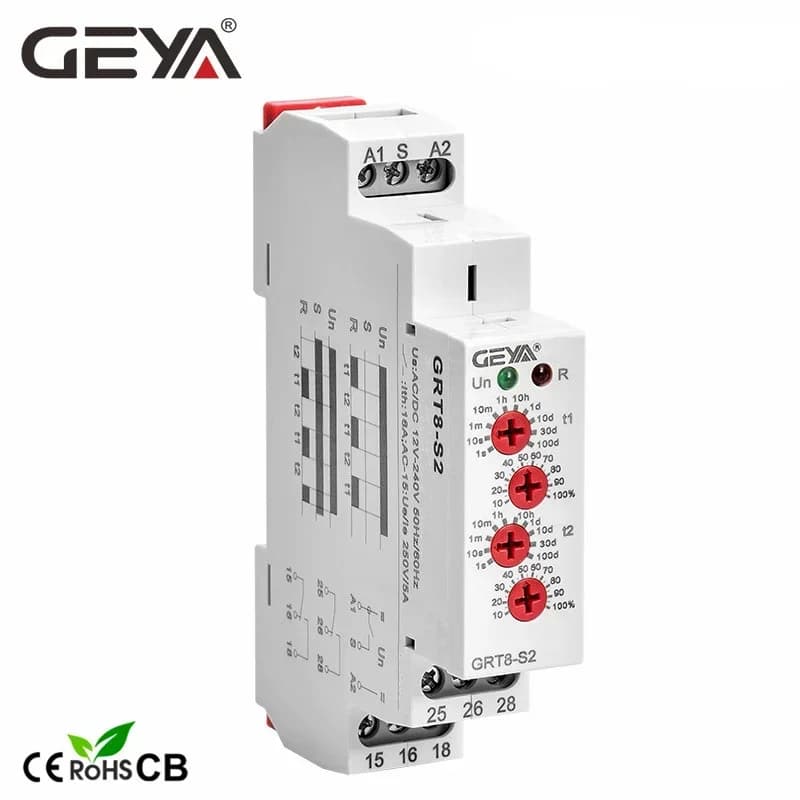

-1-MODULE,DIN rail mounting.

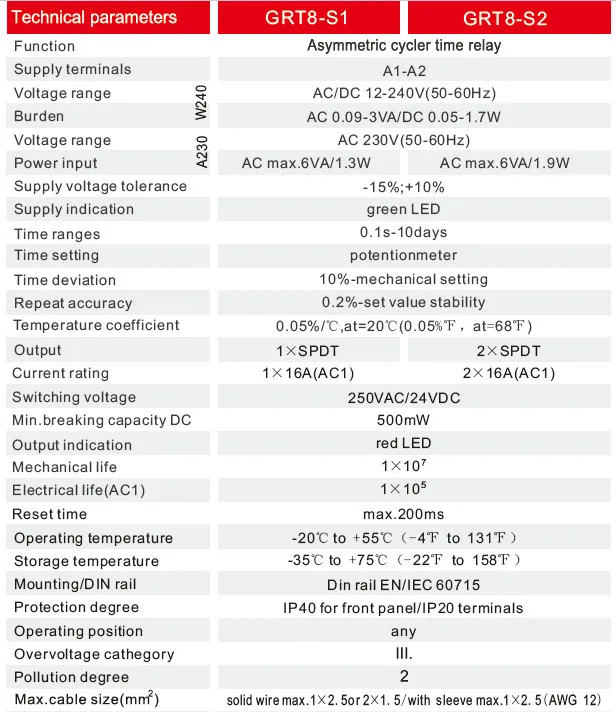

Technical Data
