Waterproof 20KG 25KG 30kg 35kg 40KG 60KG Servos 180 270 360 Degree Large Torque Digital Servo Metal Gears 25T Arm For RC Car

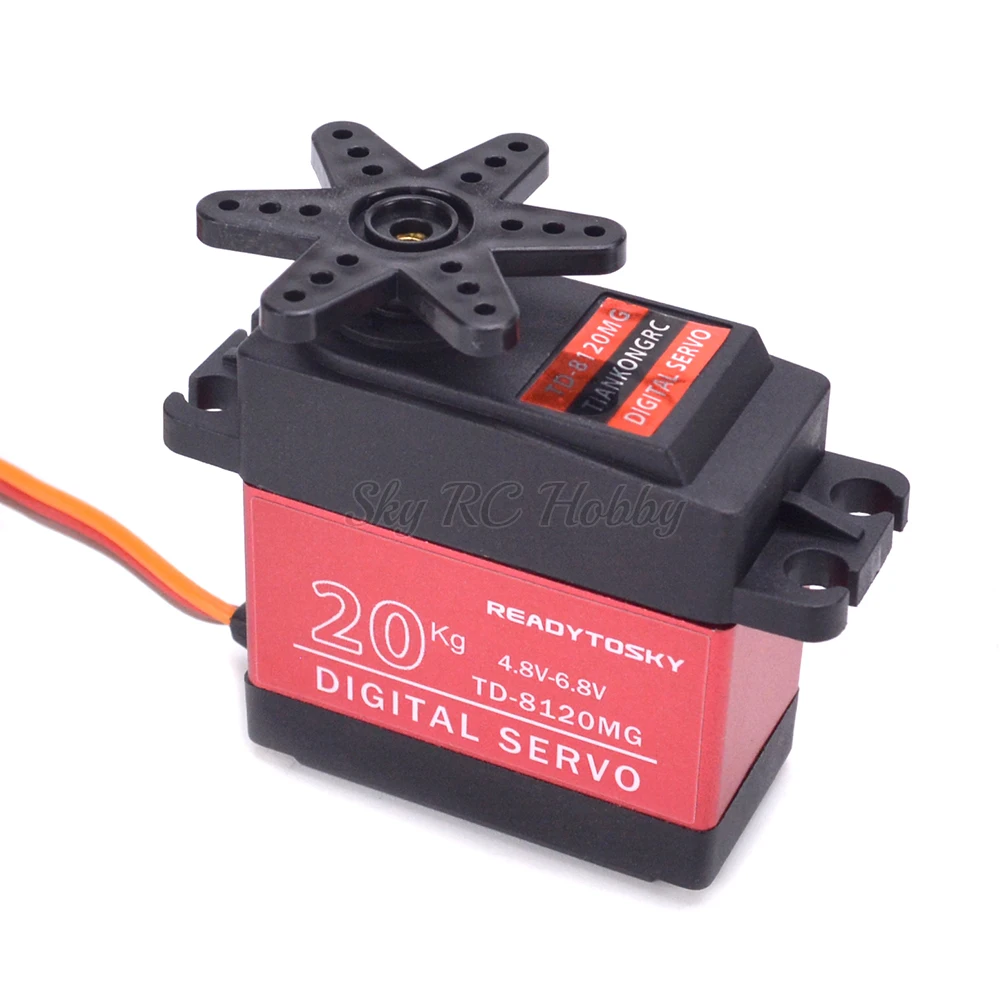

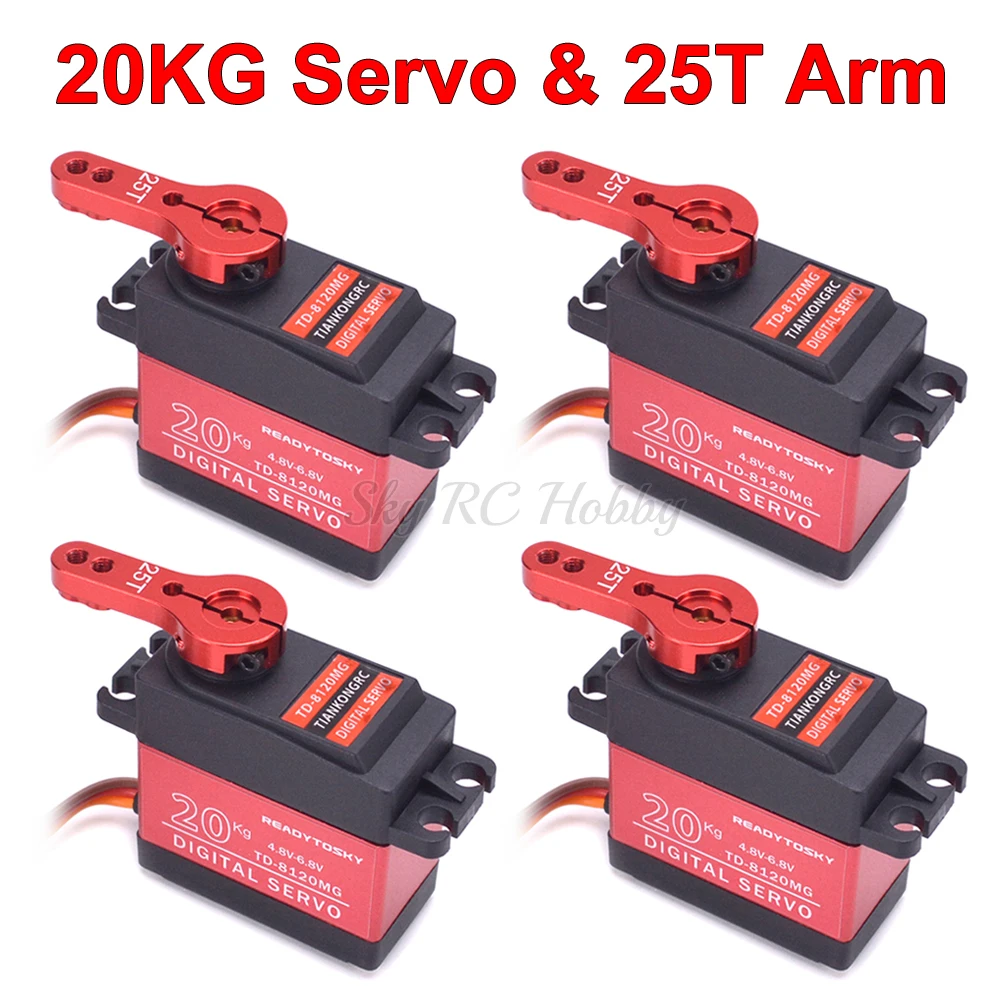

20KG Servo:

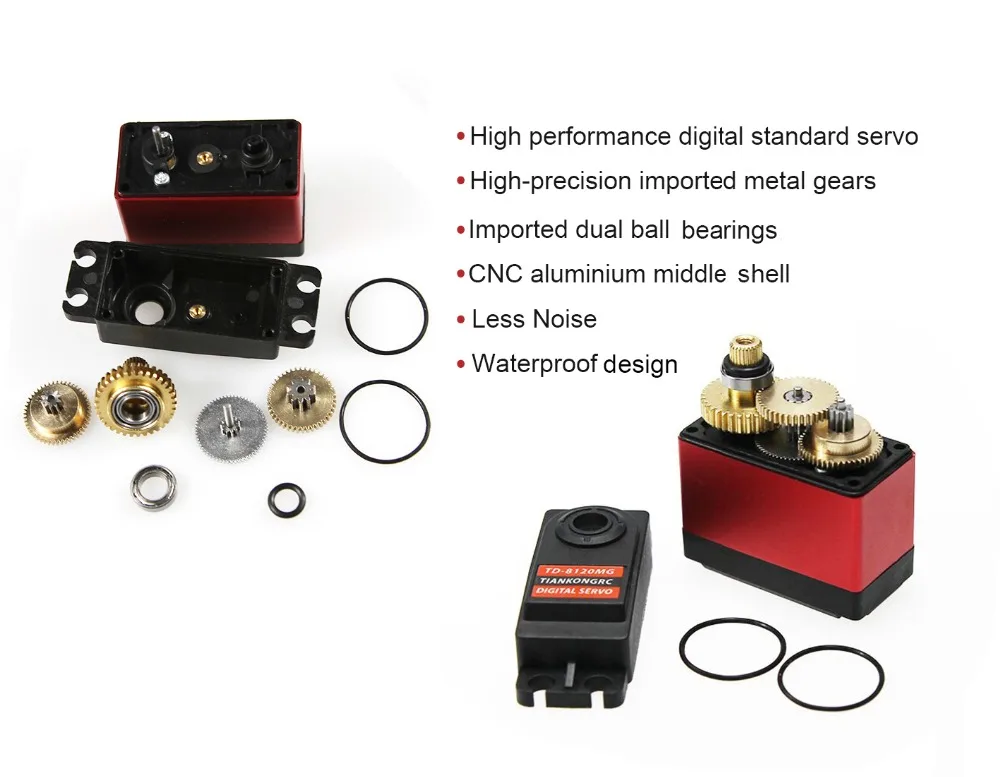

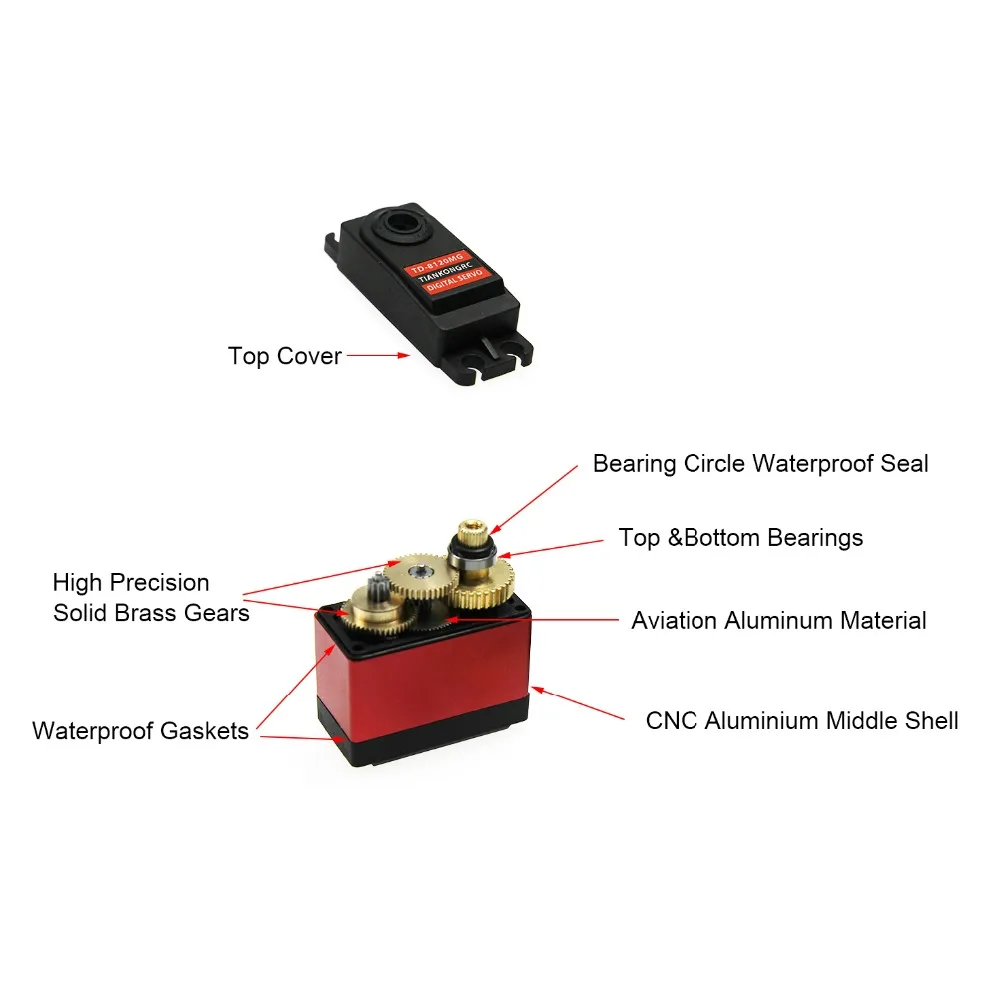

- High-precision metal gears with hard anodizing

- CNC aluminium middle Shell,

Control system :PWM control (1500 u-sec is the central point)

Working voltage:4.8V ~ 6V

Working temperature: -20C°~ +60C°

Torque :4.8V /17.2kg.cm

6.0V /20.3kg.cm

 Idle speed :4.8V/0.15sec / 60 deg

                    6.0V/0.13sec / 60 deg

Steering angle: 180 / 270 degree

Idle current:4.8V/470mA 6.0V /650mA

Load current :4.8V/750mA 6.0V /950mA

Dead band :2usec

Lifetime:>15000 times without load

Moving angle:60°±10°

Drive type: MOS drive

Motor type:Cored motor

Potentiometer type:Direct drive

Signal booster type:Digital

Size:40.5X20.2X40.3mm

Weight : 62g (without accessories)

Ball Bearing:2BB

Gear material:Metal gear

Case material: PA66+fiber40%

Wire length:260mm

Wire gauge No and plug type:26AWG,JR plug

Brown wire:Negative

Red wire:Positive

Orange wire:Singal

Application: RC car, RC airplane, Helicopter

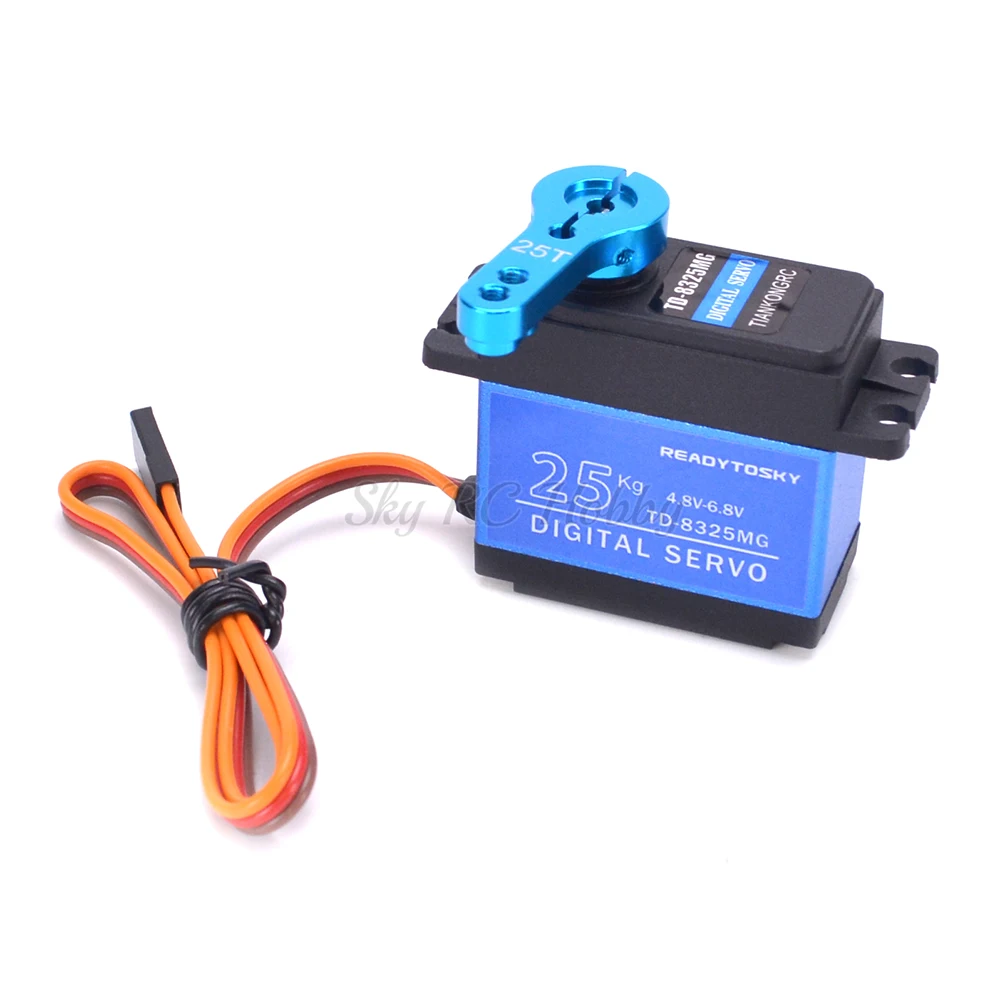

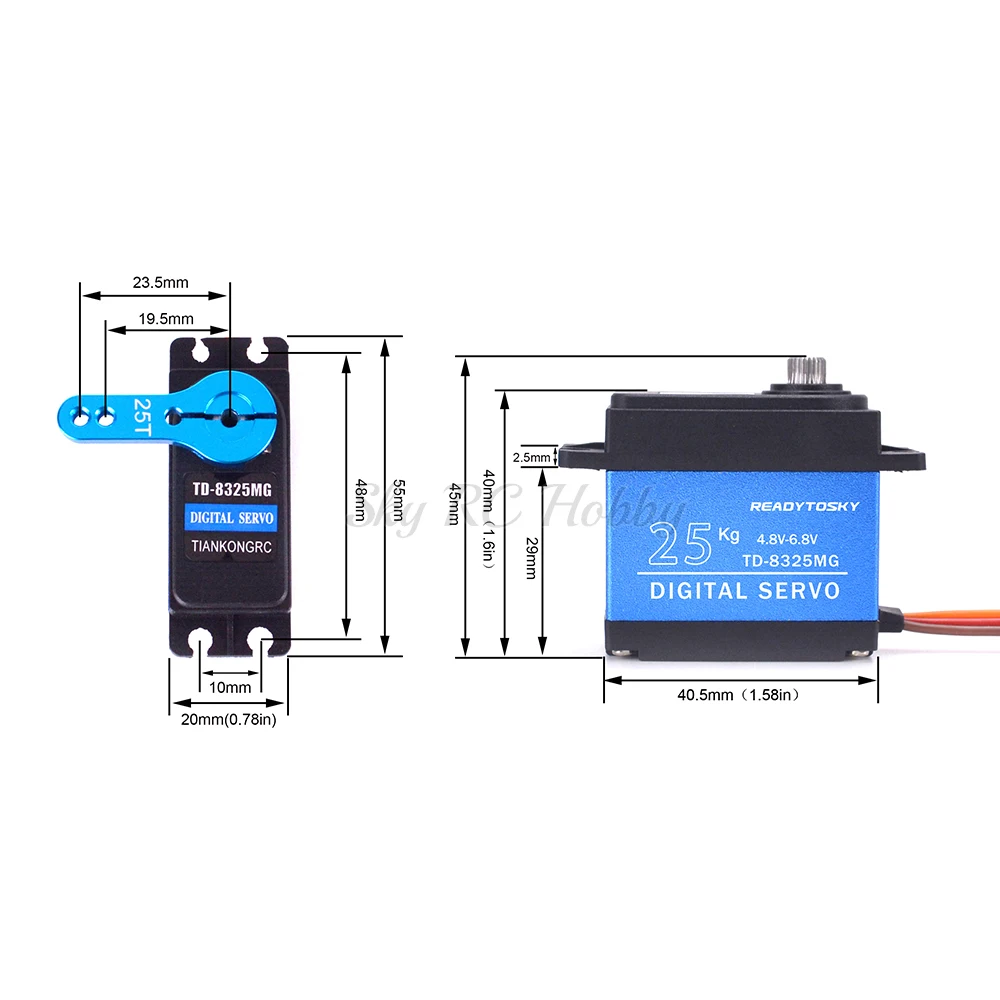

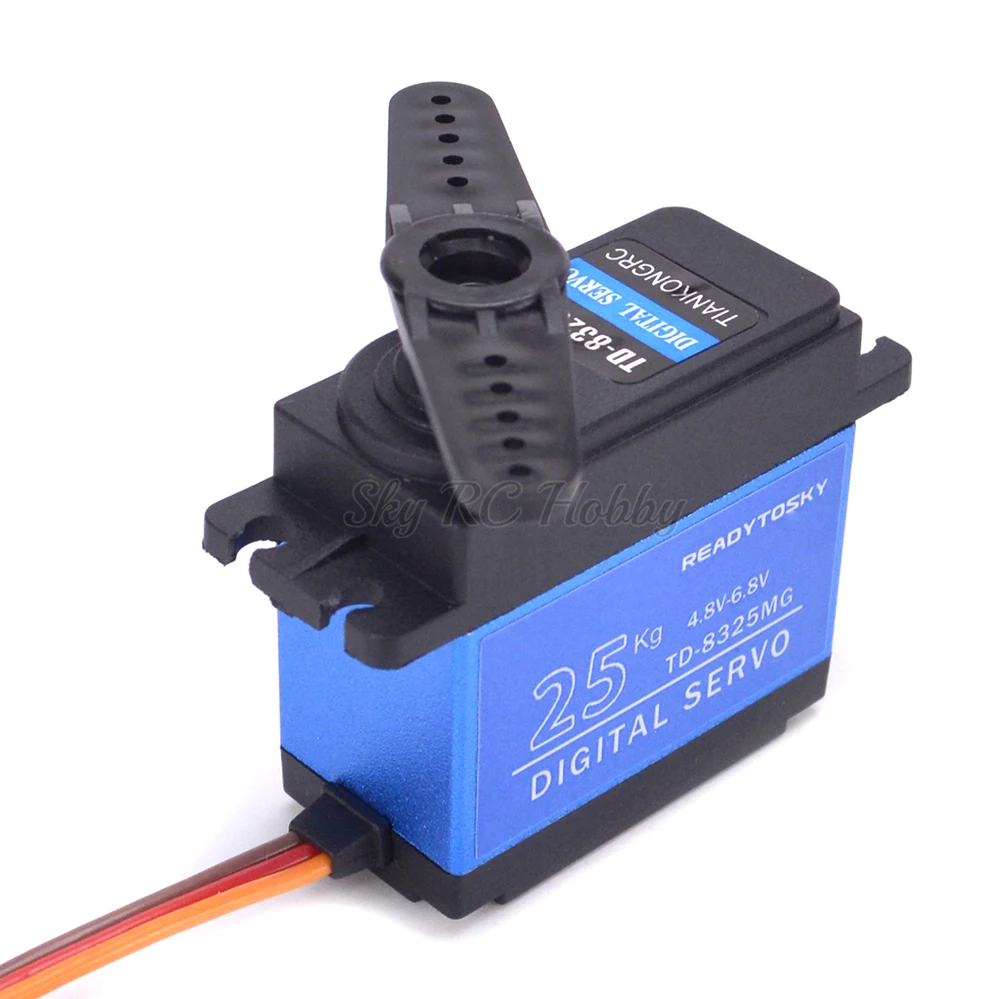

25KG Servo:

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type:  5 Metal

4. Limit angle: 360°

5.Bearing: 2BB

6. Horn gear spline: 25T   Diameter:5.9mm

7. Horn type: Plastic, POM

8.Case : Engineering plastics(PBT)+Aluminum alloy

9. Connector wire: 320mm±5mm

10.Motor: Carbon brush motor

Electrical Specification:

1.Operat voltage: 4.8V - 7.2V

2.No load speed: 0.18sec/60° -  0.14sec/60°

3.Running current: 140mA - 200mA

4.Peak stall torque: 23.5kg.cm-26.8kg.cm

5.Stall current: 2600mA±10% -  3400mA±10%

6.Working voltage range:  4.8 - 7.2V

Control Specification:

1.Command signal: Pulse width modification

2.Amplifier type: Digital controller

3.Pulse width range: 500～2500usec

4.Neutral position: 1500usec

5.Running degree: 180°±3°(when 500～2500usec)

6.Dead band width: 5 usec

7.Rotating direction Counterclockwise: (when 1000～2000usec)

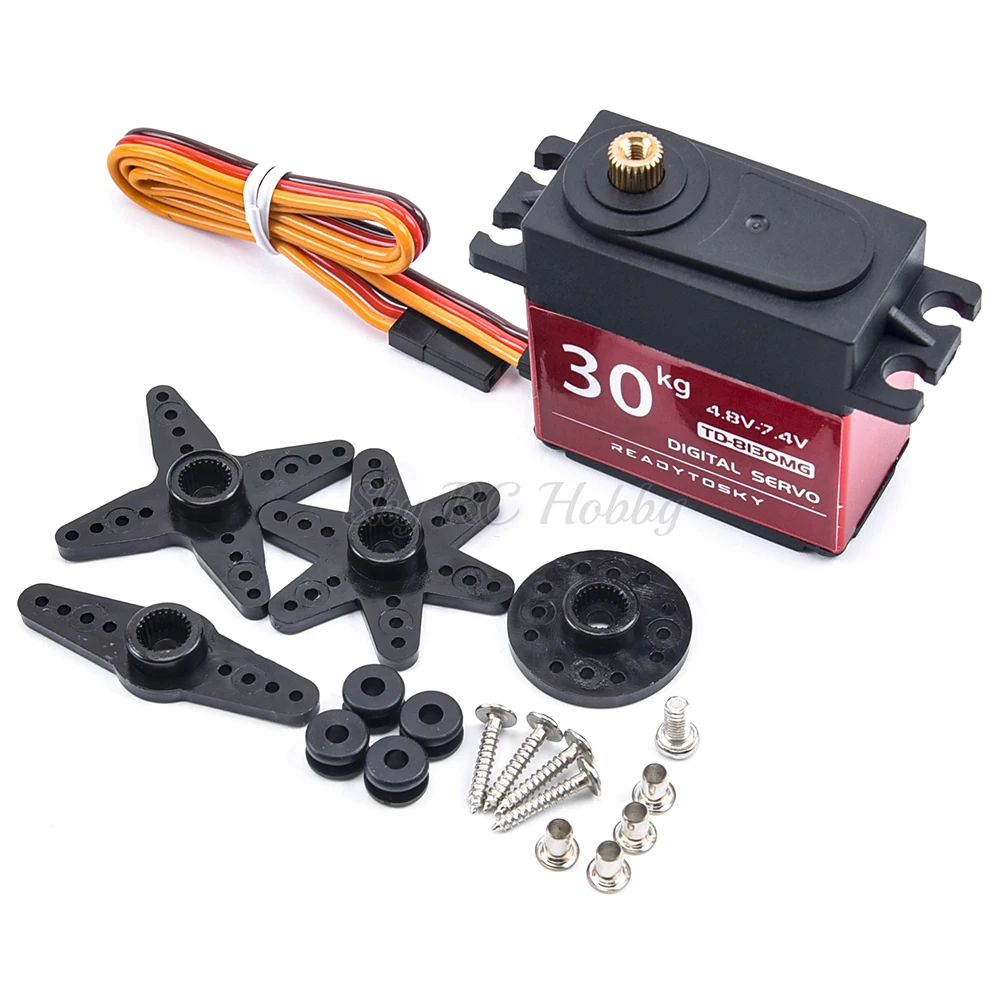

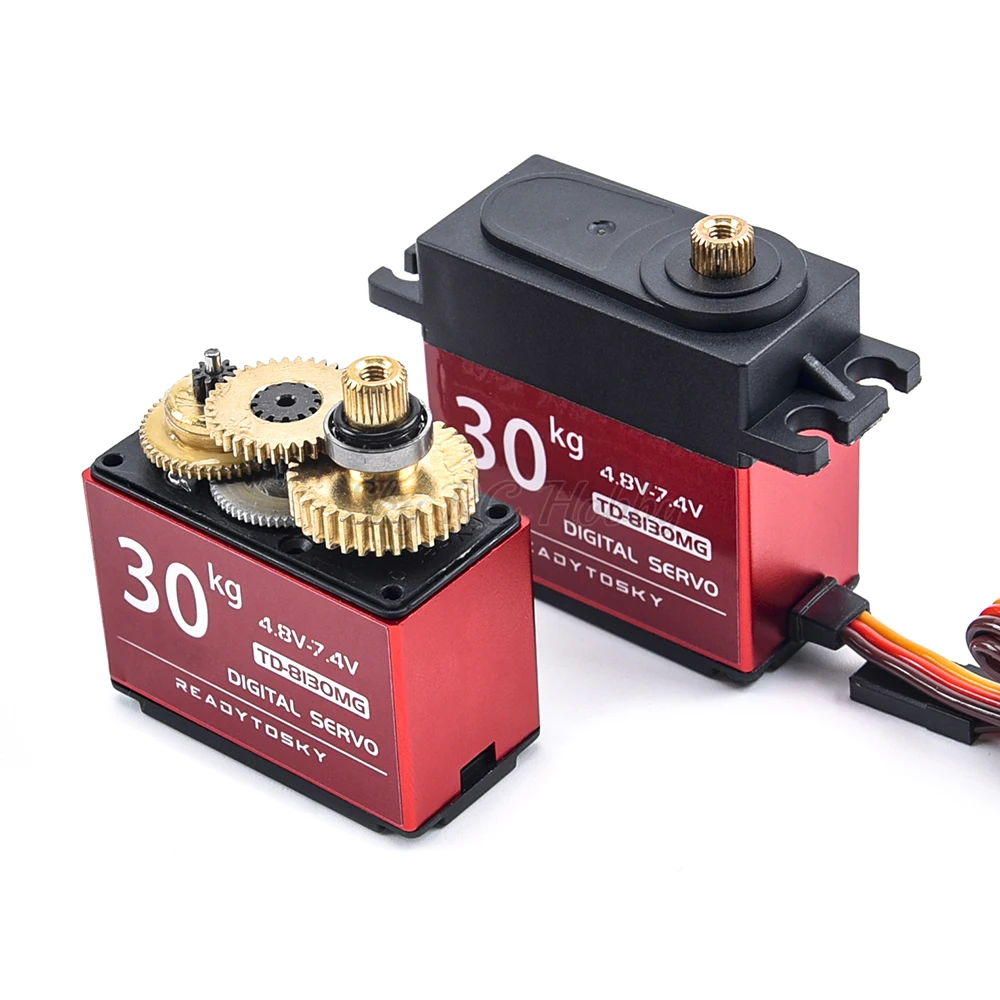

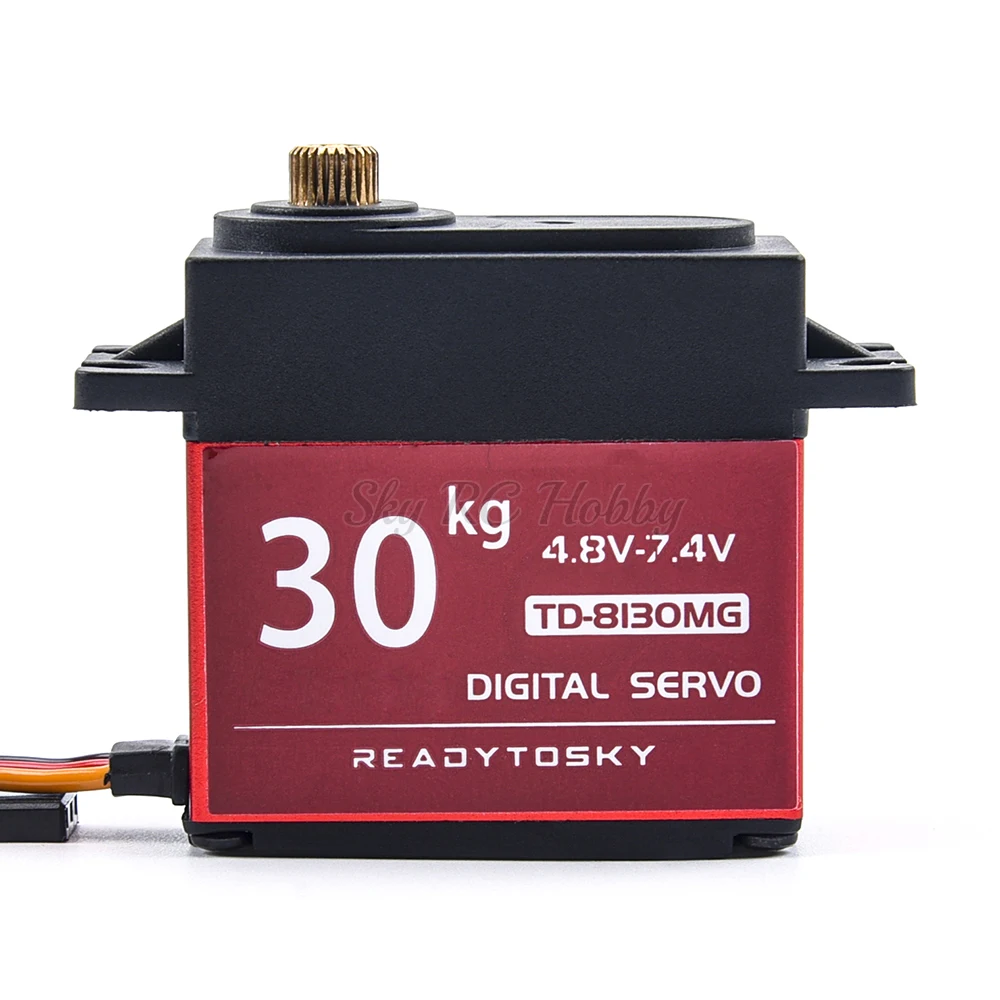

30KG Servo:

Mechanical Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle:360°

5. Bearing:2BB

6. Horn gear spline: 25T     Diameter: 5.9mm

7. Horn type: Plastic, POM

8. Case: Engineering plastics(PBT)+Aluminum alloy

9. Connector wire320mm±5mm

10. MotorCarbon brush motor

Electrical Specification:

1. Operat voltage: 4.8V - 7.2V

2. No load speed: 0.24sec/60° - 0.17sec/60°

3. Runnig current: 140mA - 200mA

4. Peak stall torque:29.5kg.cm - 32kg.cm

5. Stall current: 2600mA±10% - 3400mA±10%

6. Working voltage range: 4.8 - 7.2V

Control Specification:

1. Command signal: Pulse width modification

2. Amplifier type: Digital controller

3. Pulse width range: 500～2500usec

4. Neutral position: 1500usec

5. Running degree: 180°±3°(when 500～2500usec)

6. Dead band width: 5 usec

7. Rotating direction: Counterclockwise (when 1000～2000usec)

Note: Our 30KG 360 degree servo,  it rotates continuously.

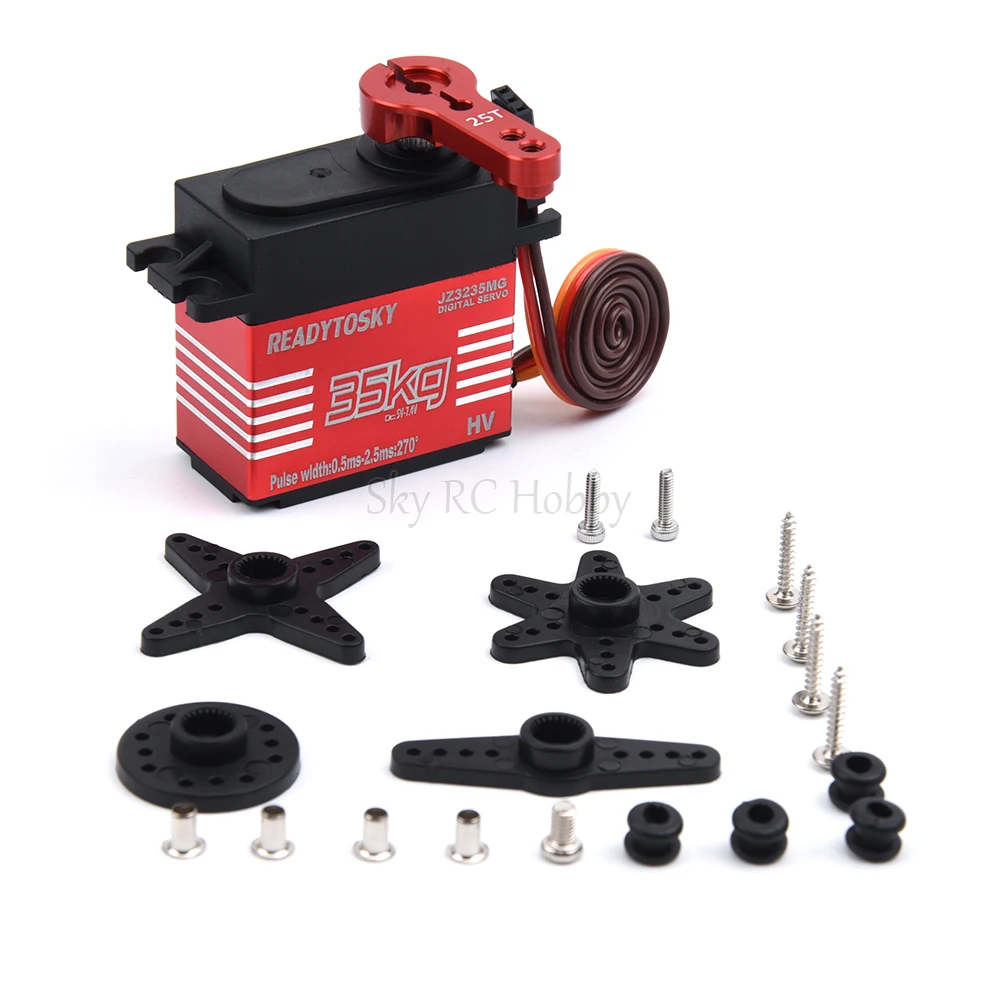

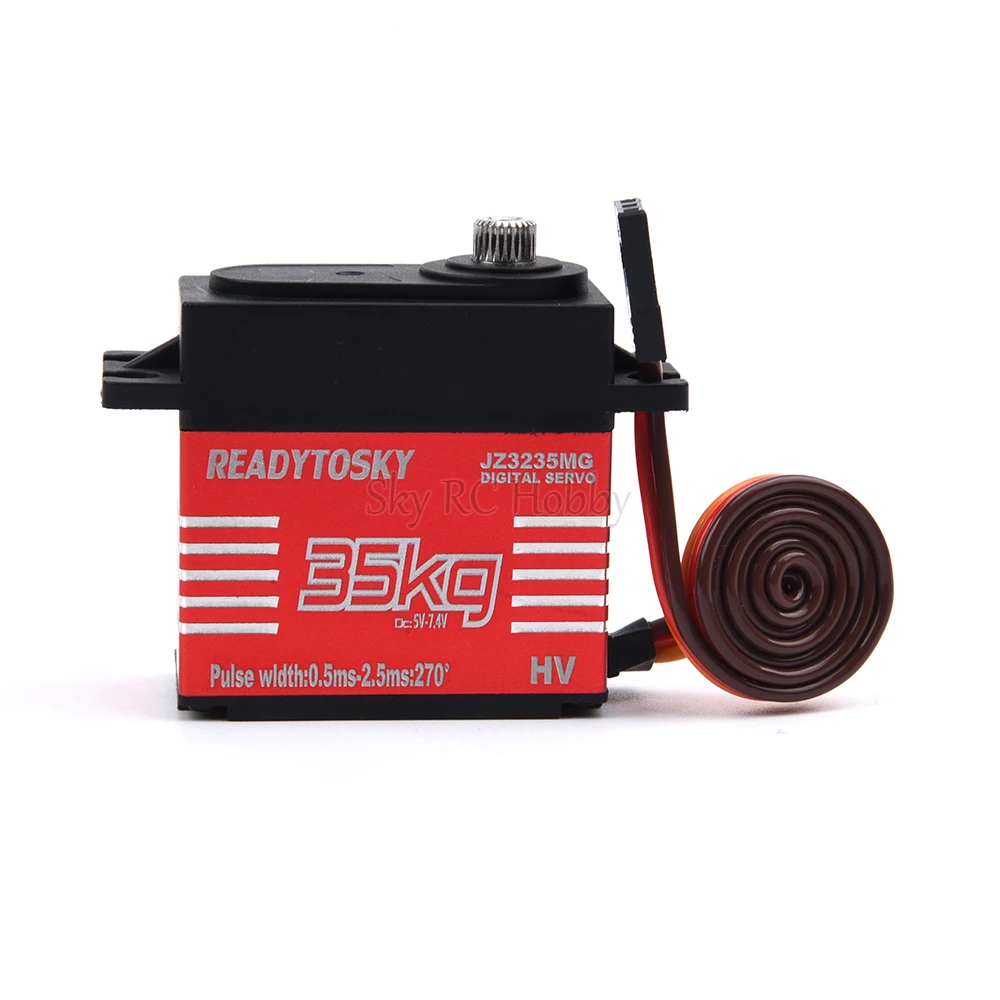

35KG Servo:

Specification:

1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle: 360°

5. Bearing: 2BB

6. Horn gear spline: 25T     Diameter :5.9mm

7. Horn type: Plastic, POM

8. Case: Engineering plastics(PBT)+Aluminum alloy

9. Connector wire: 320mm±5mm

10. Motor: Carbon brush motor

Electrical Specification:

1. Operat voltage: 4.8V - 7.2V

2. No load speed: 0.32sec/60° - 0.22sec/60°

3. Runnig current: 140mA - 200mA

4. Peak stall torque: 32.7kg.cm - 35.2kg.cm

5. Stall current: 2600mA±10% - 3400mA±10%

6. Working voltage range: 4.8 - 7.2V

Control Specification:

1. Command signal: Pulse width modification

2. Amplifier type: Digital controller

3. Pulse width range: 500～2500usec

4.Neutral position: 1500usec

5. Running degree: 180°±3°(when 500～2500usec)

6. Dead band width: 5 usec

7. Rotating direction: Counterclockwise (when 1000～2000usec)

60kg Servo:

Mechanical  Specification

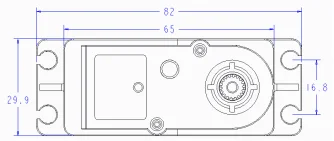

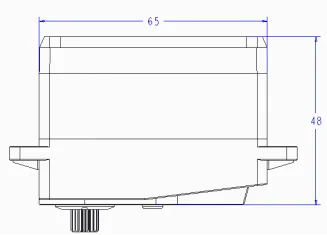

1. Size  65*30*48mm

2. Weight 158g±5%

3. Gear type "6 Metal"

4. Limit angle 360°

5.   Bearing 2BB

6. Horn gear spline 18T diameter:8.1mm

7. Horn type Plastic, POM

8. Case "Engineering plastics(PBT)+Aluminum alloy"

9. Connector wire 320mm±5mm

10. Motor Carbon brush motor

11. Splash water resistance

Electrical Specification

1. Operat voltage 6V 8.4V

2. Idle current 5mA 5mA

3. No load speed 0.17sec/60° 0.13sec/60°

4. Runnig current 400mA 510mA

5. Peak stall torque 58.5kg.cm 70kg.cm

6. Stall current 8.5A±10% 10.4A±10%

7. Working voltage range " 4.8-8.4V

Control Specification

1. Command signal Pulse width modification

2. Amplifier type Digital controller

3. Pulse width range 500～2500usec

4. Neutral position 1500usec

5. Running degree 180°±3°(when 500～2500usec)

6. Dead band width 5usec

7. Rotating direction Counterclockwise (when 1000～2000usec)

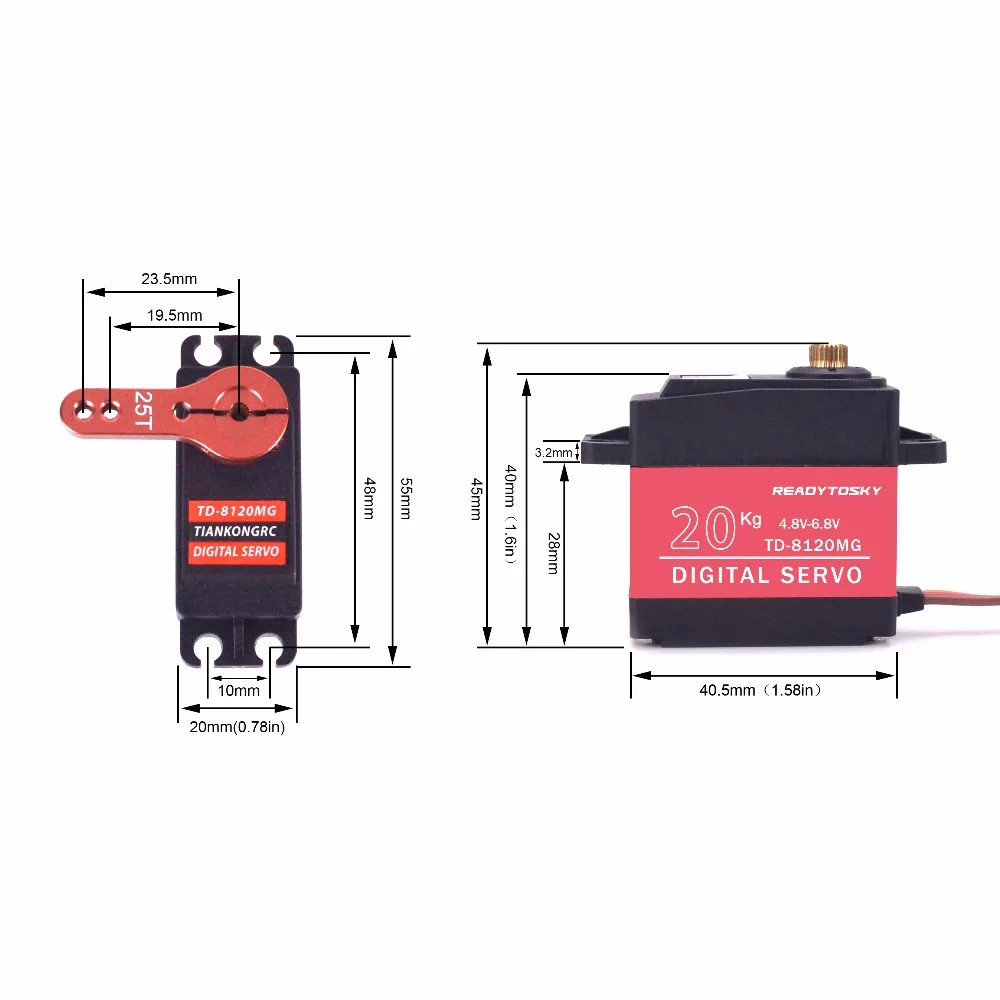

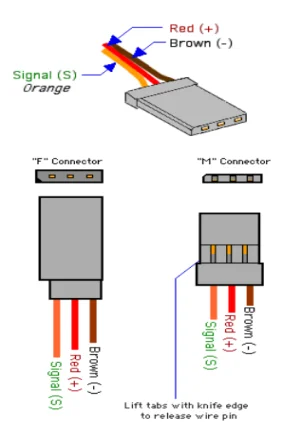

The Drawings: The Wire and plug:

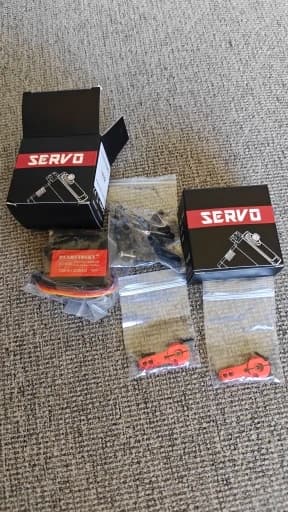

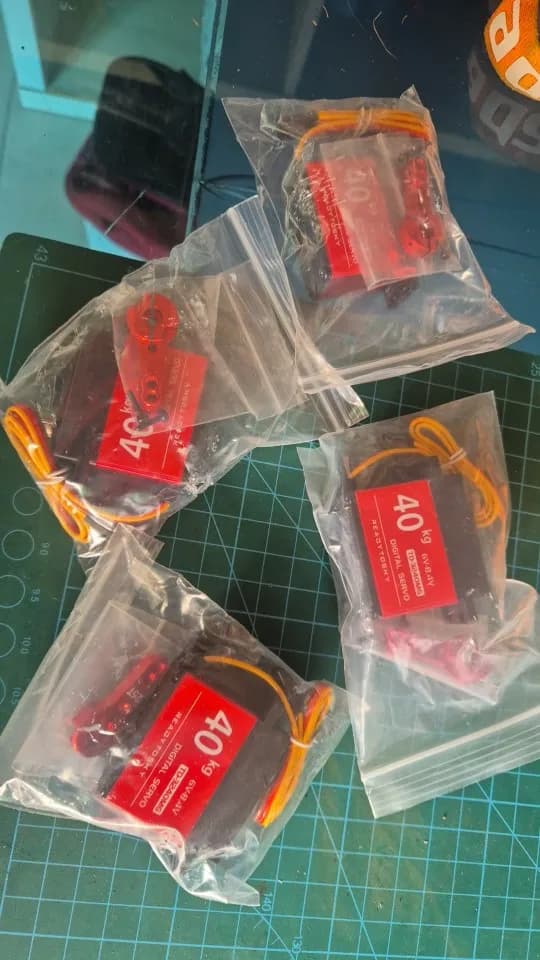

Package included: ( Send it as your choice, as the picture showed)

1PCS / 4PCS 20kg / 25kg / 30kg / 35kg / 60kg servo    (There are two kinds of 30KG Servo, send it at random)

1PCS / 4PCS 25T arm

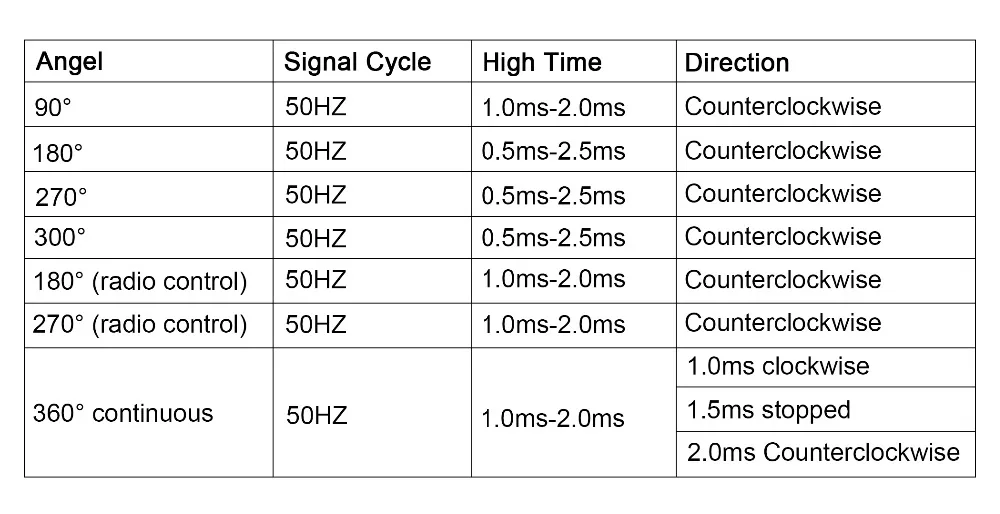

Note:The direction the servo rotates all depends on the signal the servo is receiving.

Special Notice:

The RC Use-Angle 180/270 marked in selections to be shipped by Angle-180/270 servo, Cuz the below signal match with Angle-180/270 servo support PWM signal width 500-2500us.

Transmitter only can generate 1000-2000us, it is half signal of the servo, thus the feedback angle will be half at 90/135.

The Angle 180/270 which request pwm signal width 500-2500us, if you use a transmitter to control them, the angle will be 90/135.

Note: If you need the servo reach 180 degree and controlled by your remote controller, Please buy here :
