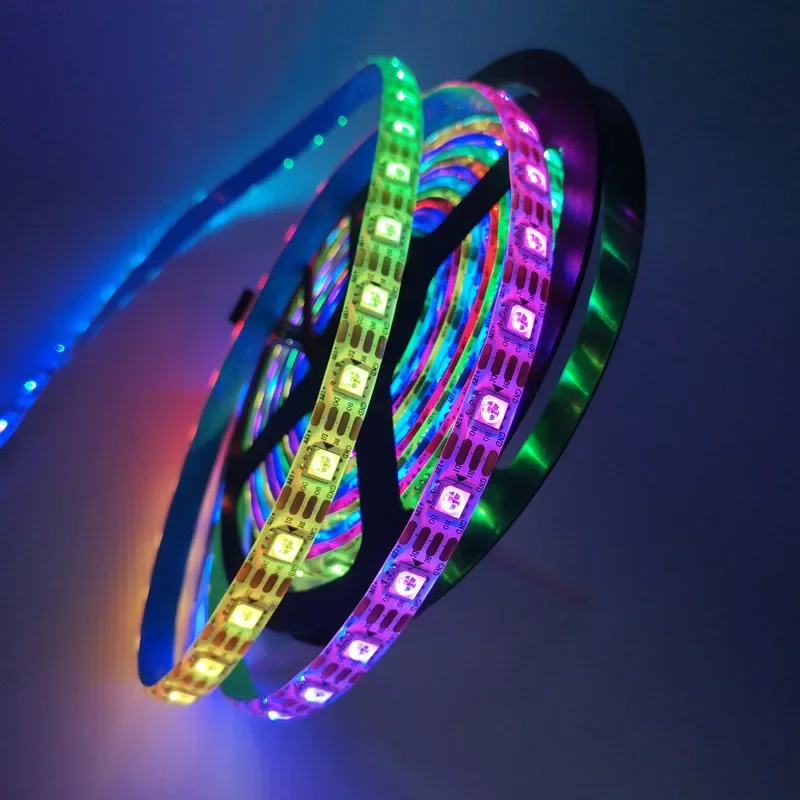

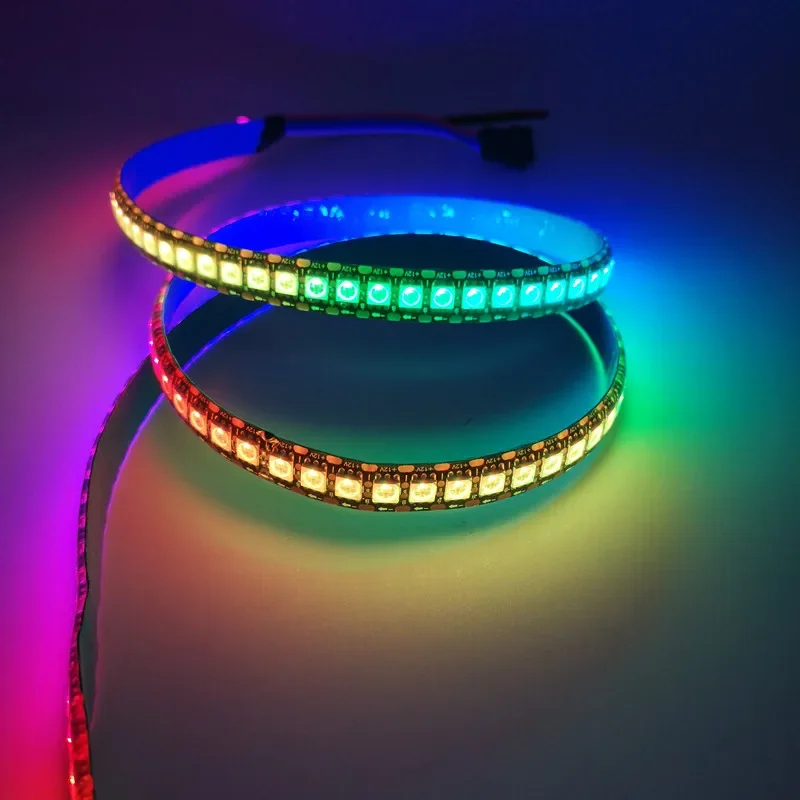

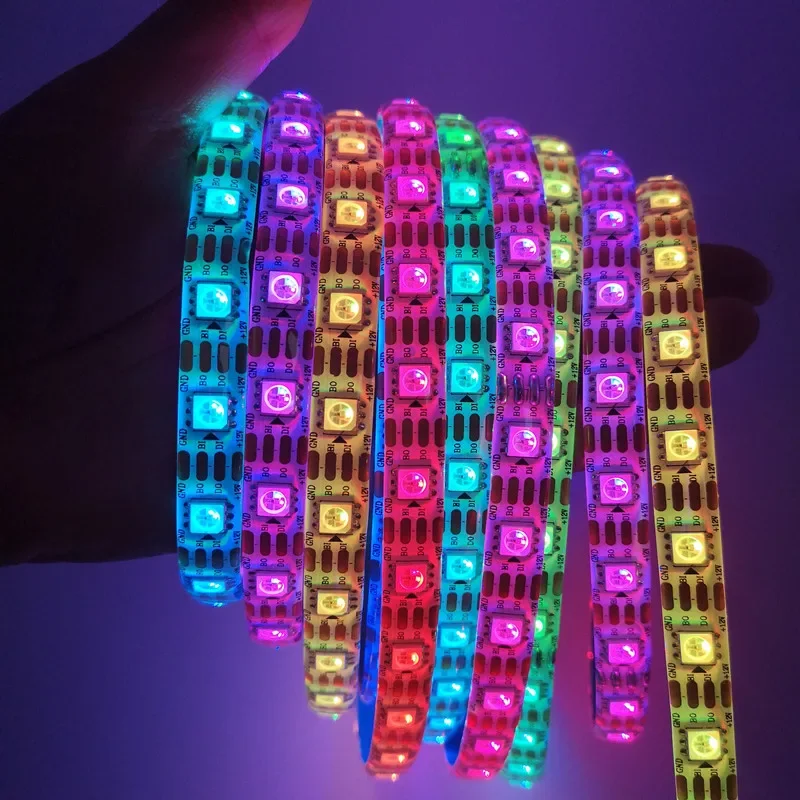

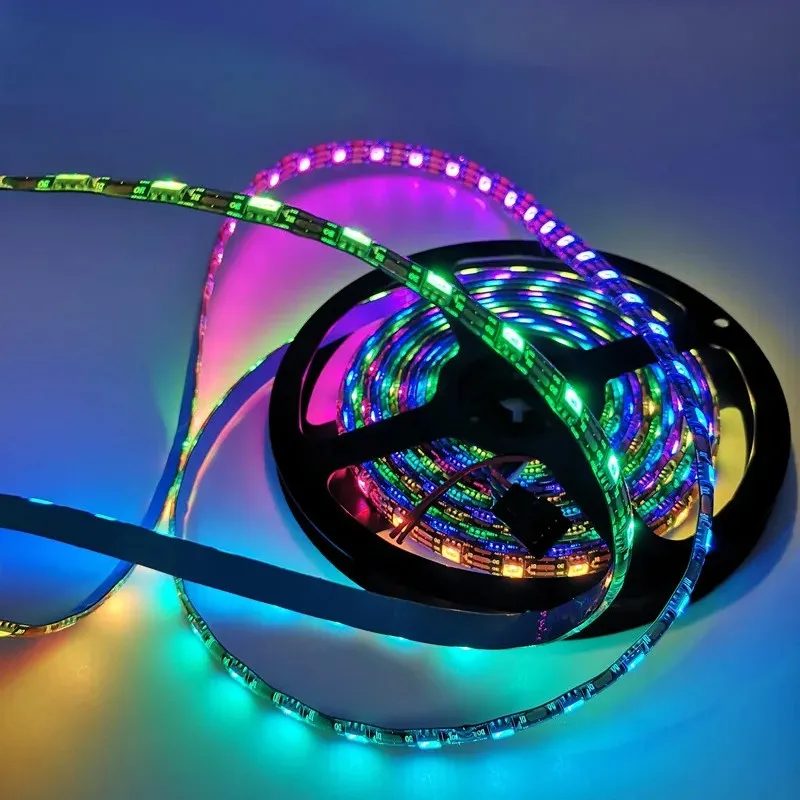

WS2815 DC12V (WS2812B WS2813 updated) RGB LED Pixels Strip Light 30/60/74/96/144Leds/m Individually Addressable LED Dual-Signal

Note:

The price is only Led Strip, Not Included Power Supply or Led Controller!

WS2815 Must Use DC12V Power Supply AND Led Controller to Control!

every 0.5meter with solder joints, please note!

Main feature:

(1)One pixel damaged will not affect the other LEDs working.

(2)The power protection,if +12V and GND reverse polarity,the LED will not be burned.

(3) Dual signal wires version, signal can jump to transfer.

(4)The original electronic devices integrated,it does not cause virtual welding in the installation process.

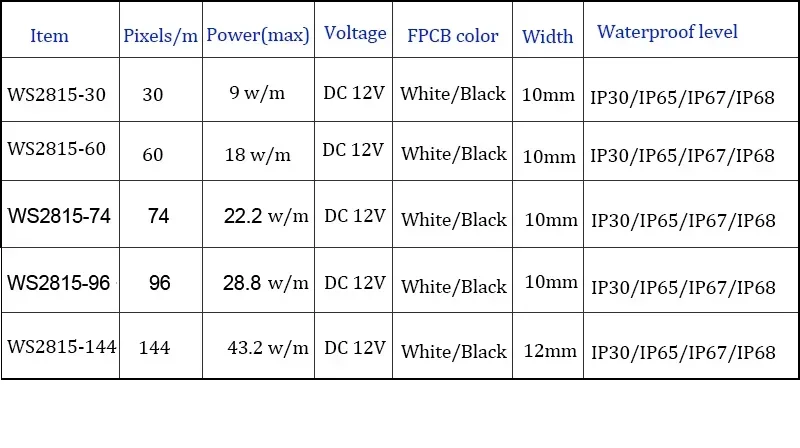

Product parameters:

* LED light source: WS2815 LEDs

*same protocol as WS2813S with Dual-signal wires,so can be controlled by the same WS2811/ws2812 controllers

*Input voltage:DC12V;

*Power:30leds/m----9watt/meter

60leds/m----18watt/meter

144leds/m----43.2watt/meter

*LED resource:WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

*LED:each LED is separately controlled

*IC Type:improved version ws2815 IC(built inside the 5050 smd rgb led)

*of IC:1 IC drives 1 led chip

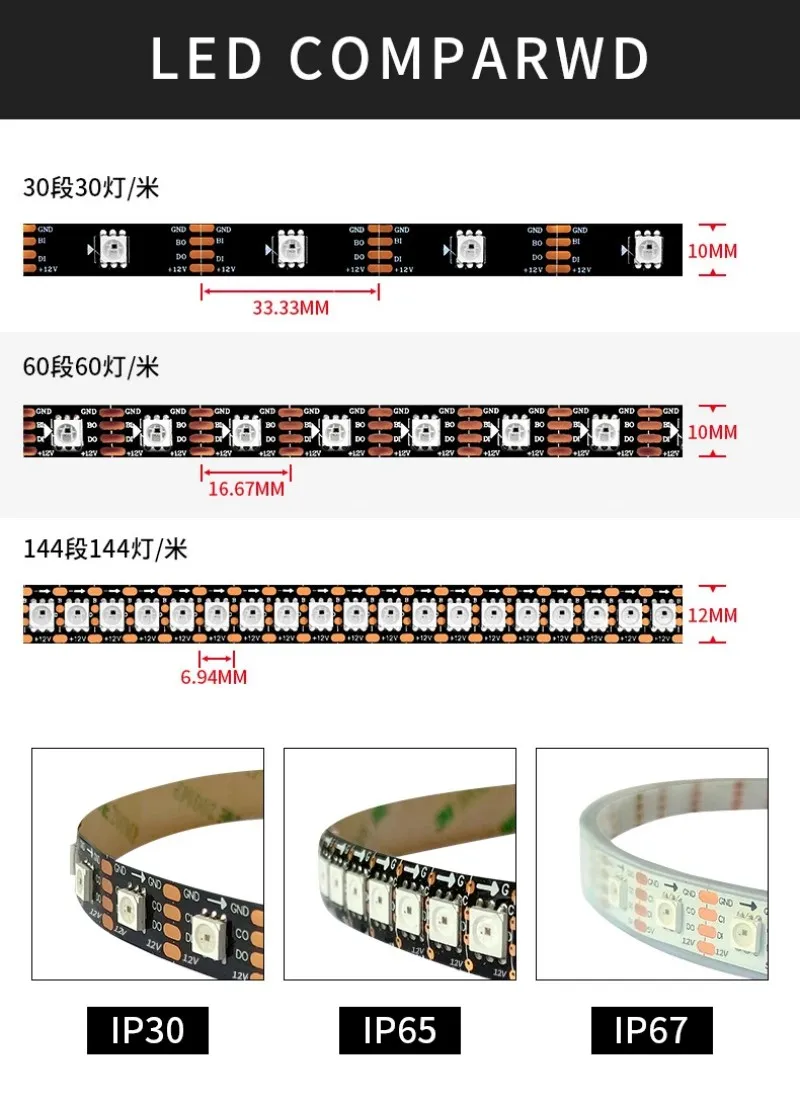

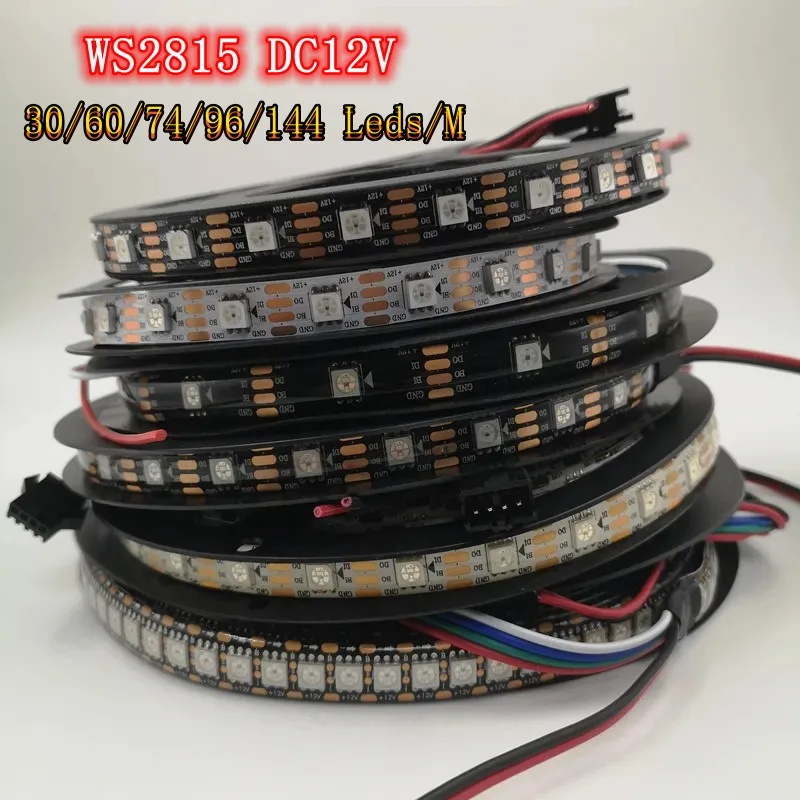

*Pixels:30/60/74/96/144/meter;

*Pitch:16.6mm(1000/64);

*Grey scale:256

*Bits/color:8-bits/color;

*FPC Width:30leds/m----10mm

60leds/m----10mm

144leds/m----12mm

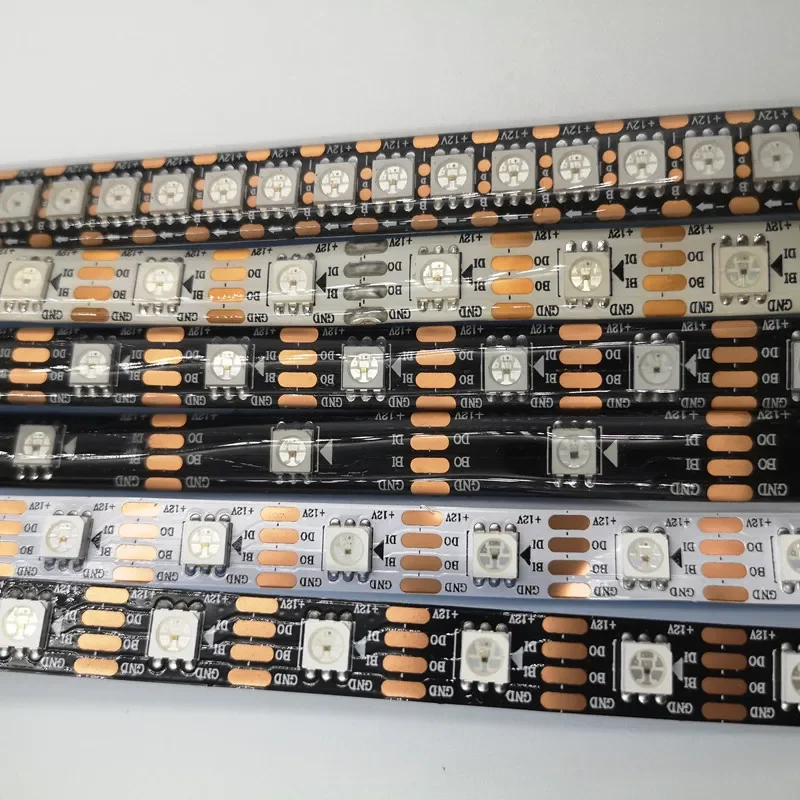

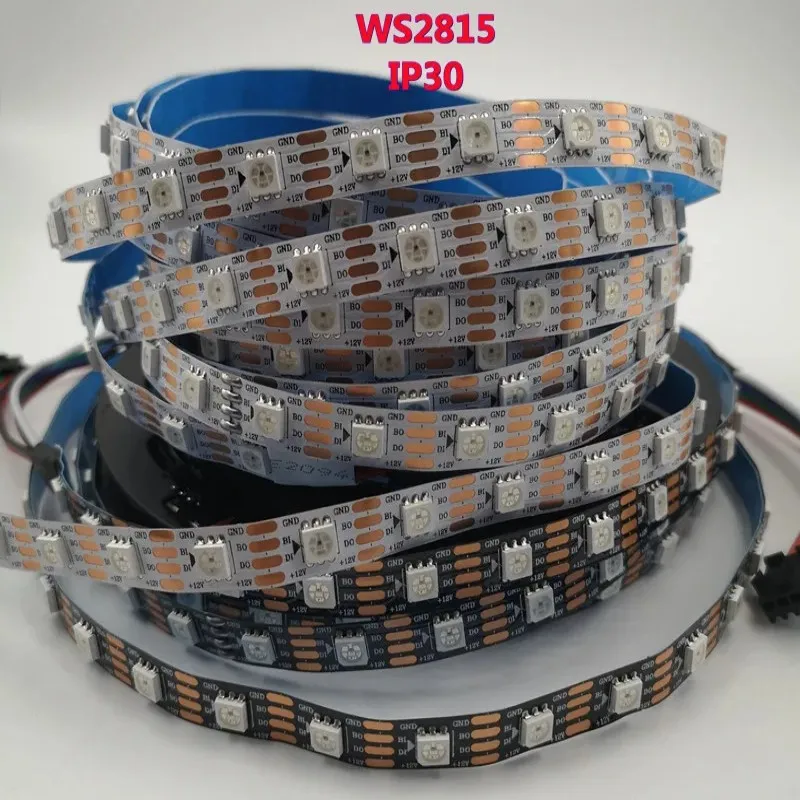

*FPC color:White PCB,blackPCB

*Protection rate:IP30/ IP65 /IP67

*Colors: Full color RGB, dream color changing;

*Cuttable:every LED is cuttable;

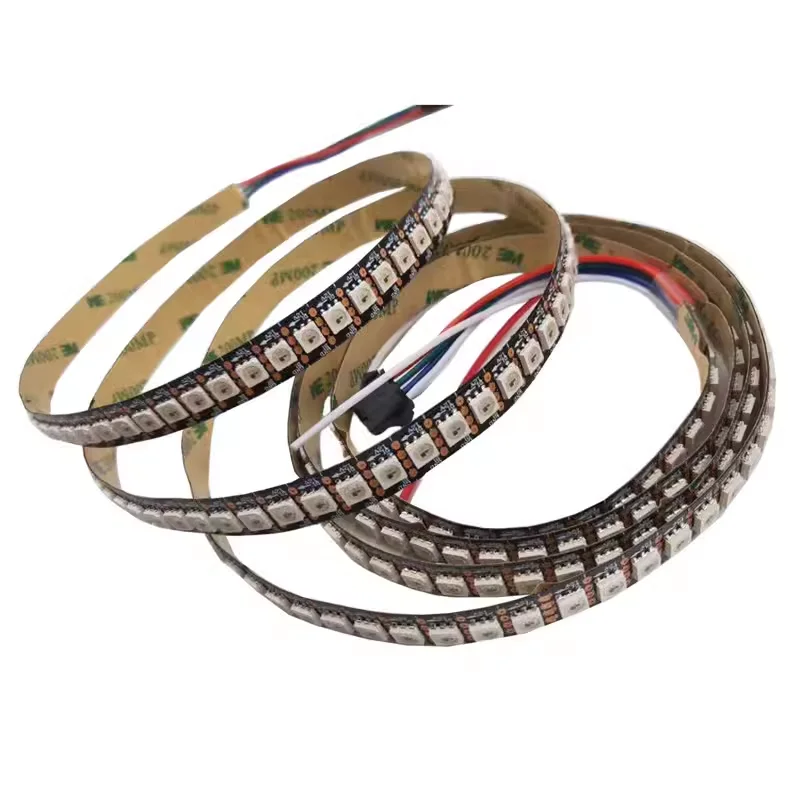

*Package:in anti-static bag,IP30 IP65 with 3M adhensive *tape on the *back(IP67 without 3M adhensive)

*working temperature:-40 ~ 70 °C

*Storage temperature:-50 ~ 80 °C

*Source life:50,000 hours

*Connector:4PIN connector terminal pair

(Red: 12V power , green: Date line, Blue: standby date line,Black: GND)
