BSIDE NEW Thermal Imager Camera HX1 HX3 Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical

BSIDE HX1/HX3 New Thermal Imager Camera Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical

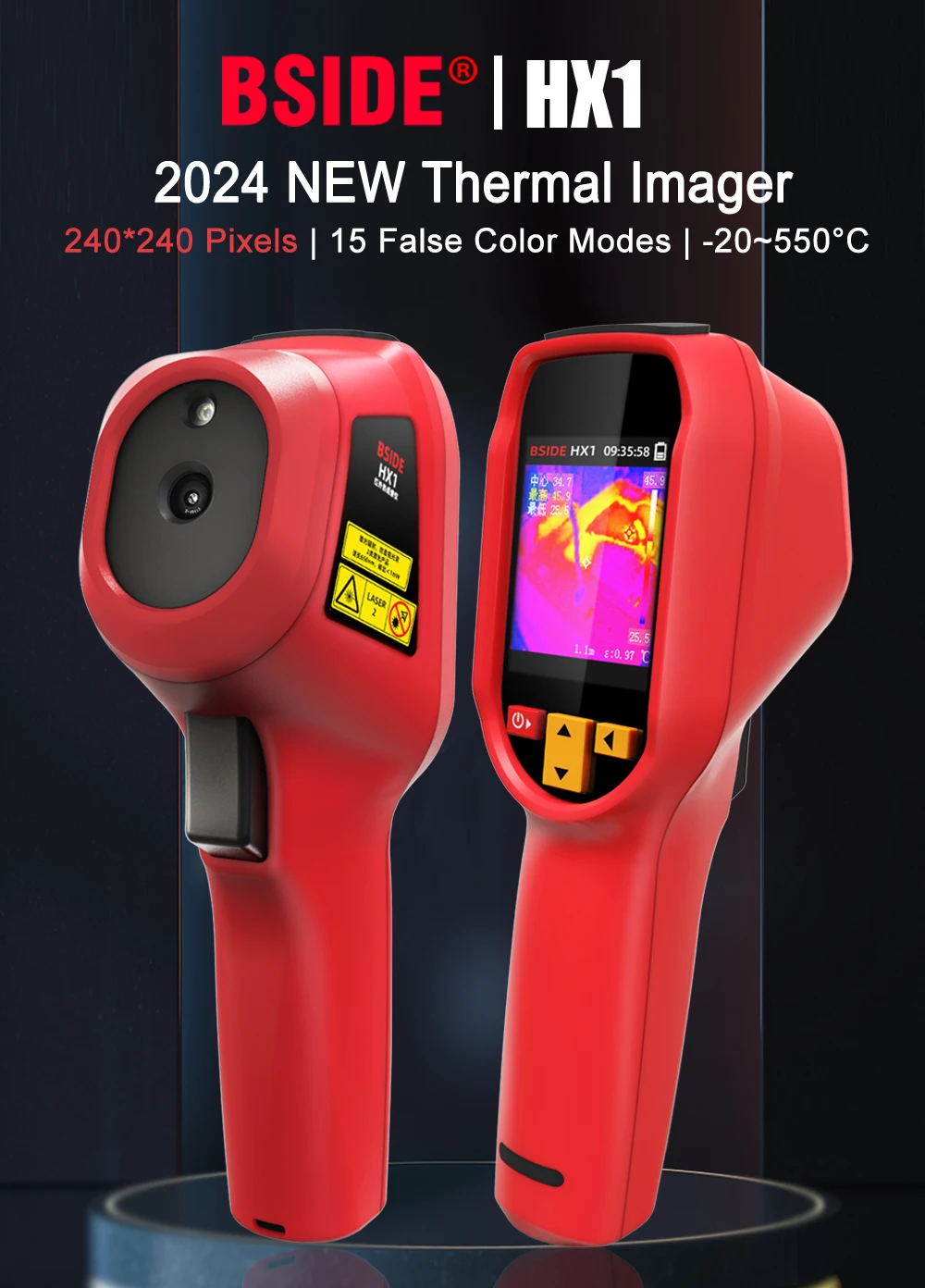

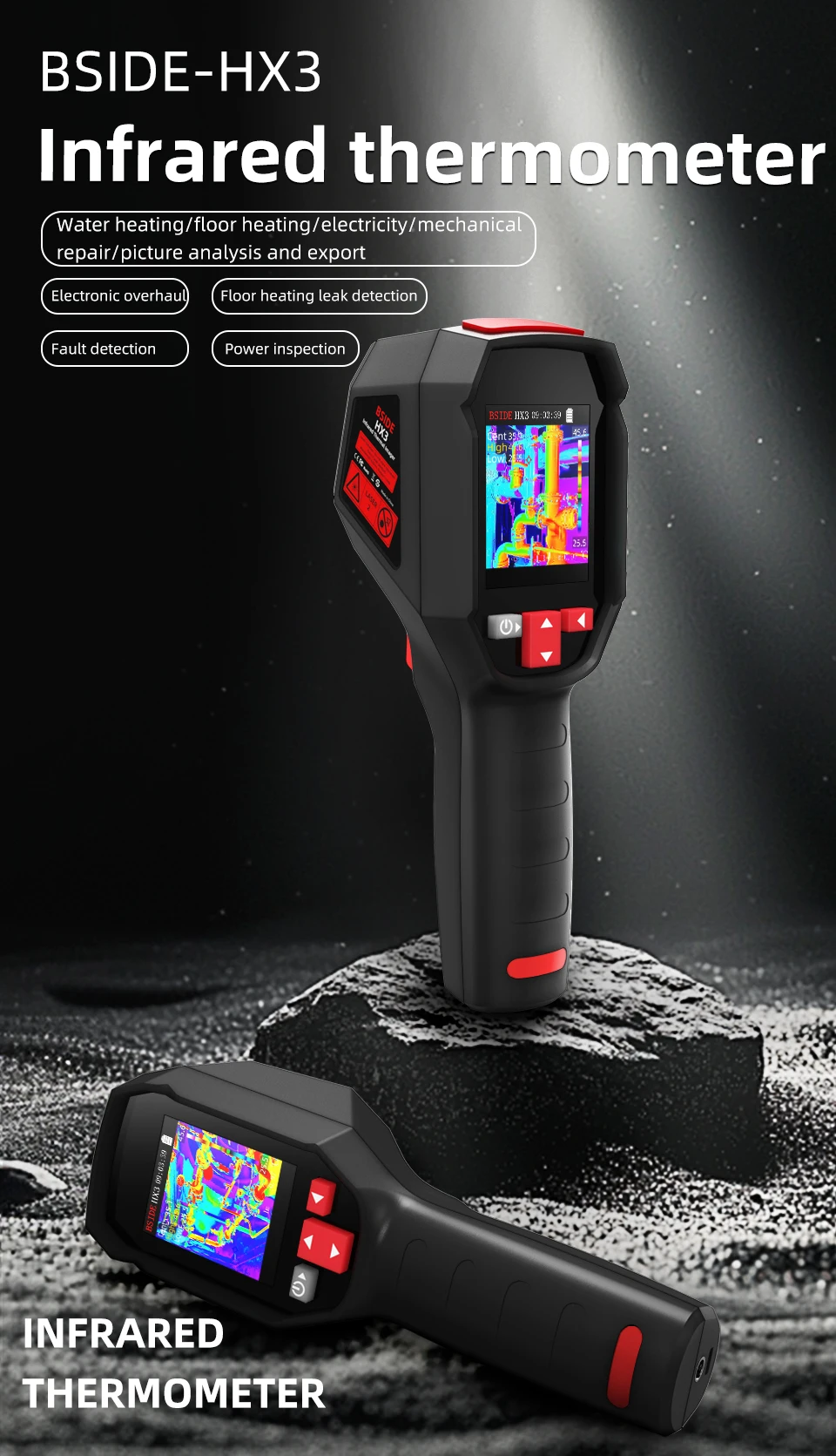

BSIDE HX1/HX3 is new handheld thermal imaging camera that combines temperature measurement and imaging.

2.4-inch screen，15 pseudo color modes.

Thermal image resolution: 240*240Px, ​Infrared Thermal Imager Pixels: 96x96(25Hz Frame rate), Uses cutting-edge image stabilization technology;

High-accuracy High/Low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

Also comes with a high-quality EVA handbag.

BSIDE HX1/HX3 products currently support upgrade to 8 language interfaces：

English / Spanish / German / French / Russian / Italian / Japanese / Chinese.

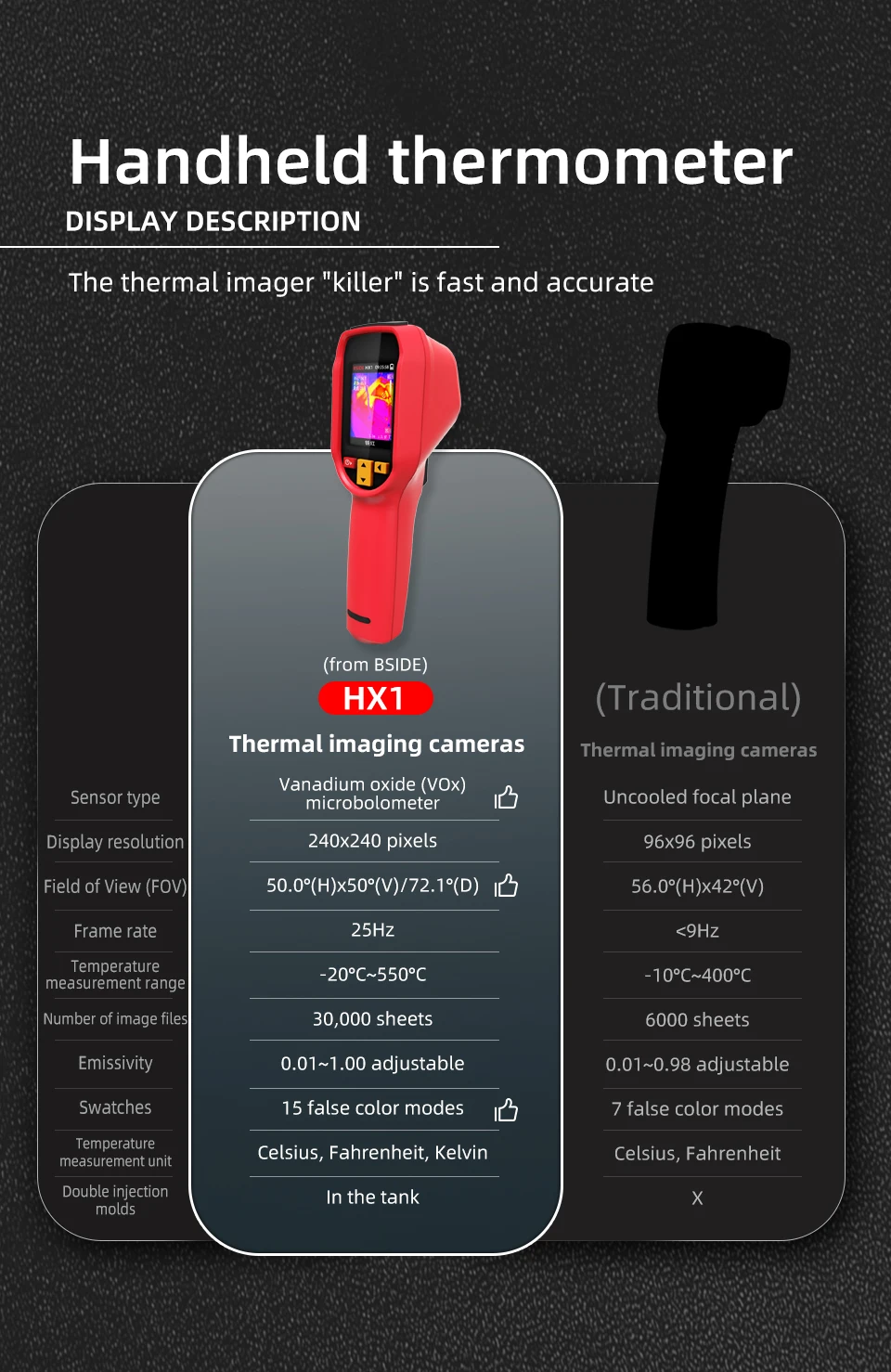

Differences between BSIDE HX1 and HX3.

The test performance and parameters of BSIDE HX1 and HX3 are exactly the same.

BSIDE HX1 : The body adopts double injection molding process Durable.

BSIDE HX3：The body adopts single injection molding process，Better value for money.

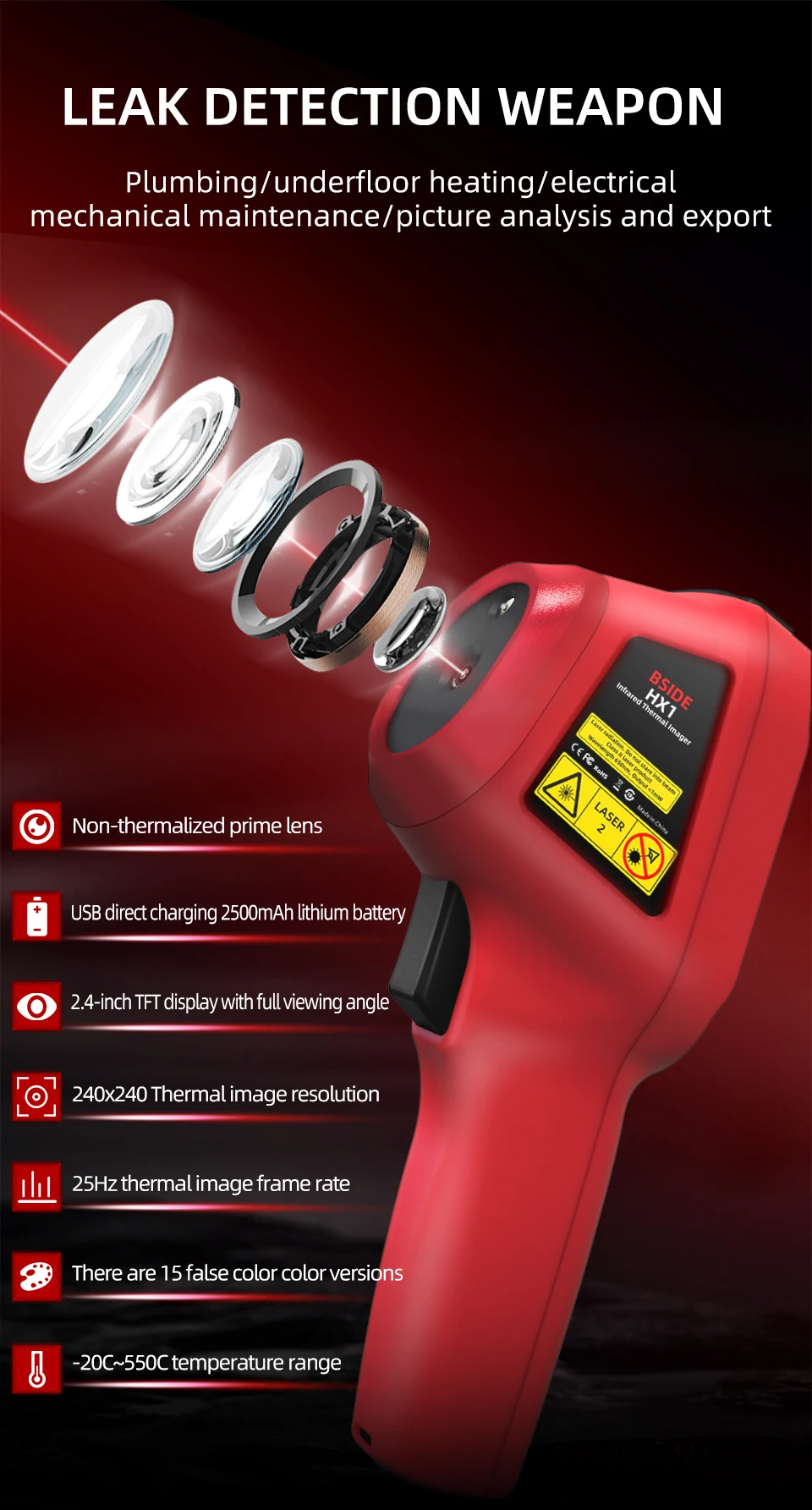

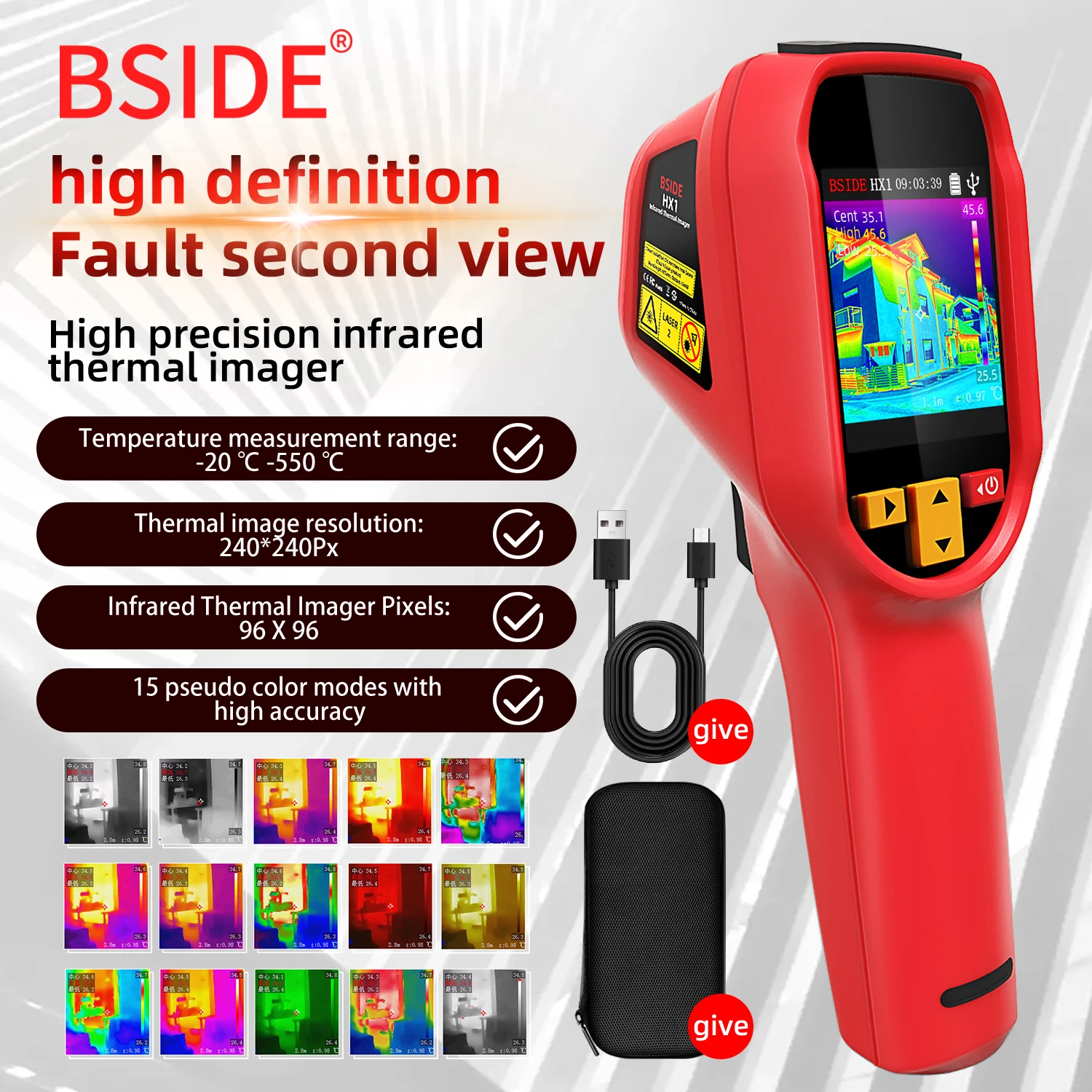

Main features

Screen: 2.4 inch LCD screen

Thermal image resolution: 240*240Px.
​Infrared Thermal Imager Pixels: 96 x 96.

Frame rate: 25Hz
Uses cutting-edge image stabilization technology.

15 pseudo color modes with

Temperature measurement range: -20 °C~550 °C

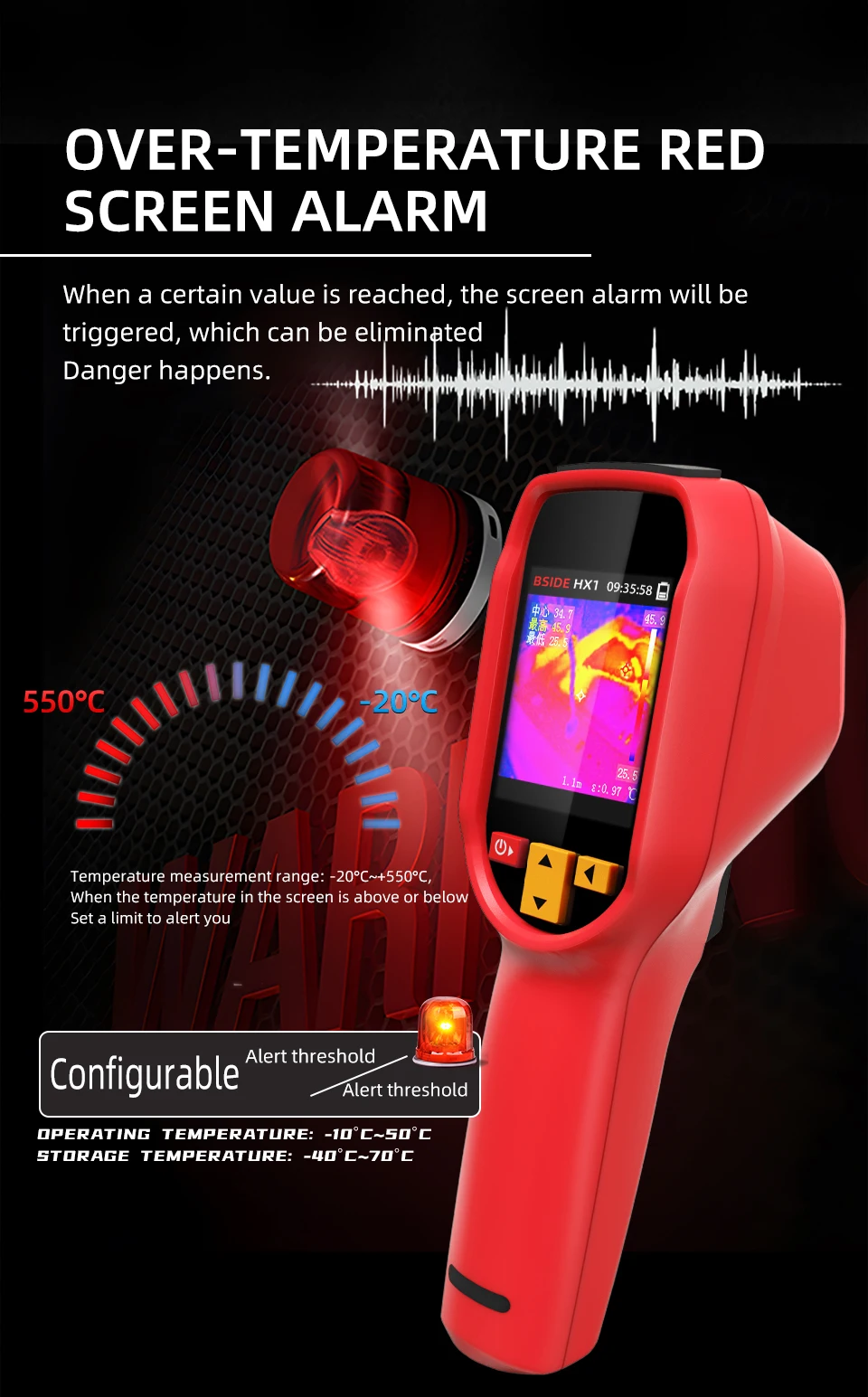

High and low temperature alarms: image, buzz, LED flashing

Laser Indicator/LED Illumination Laser Indicator/LED Illumination

Emissivity: 0.01~1

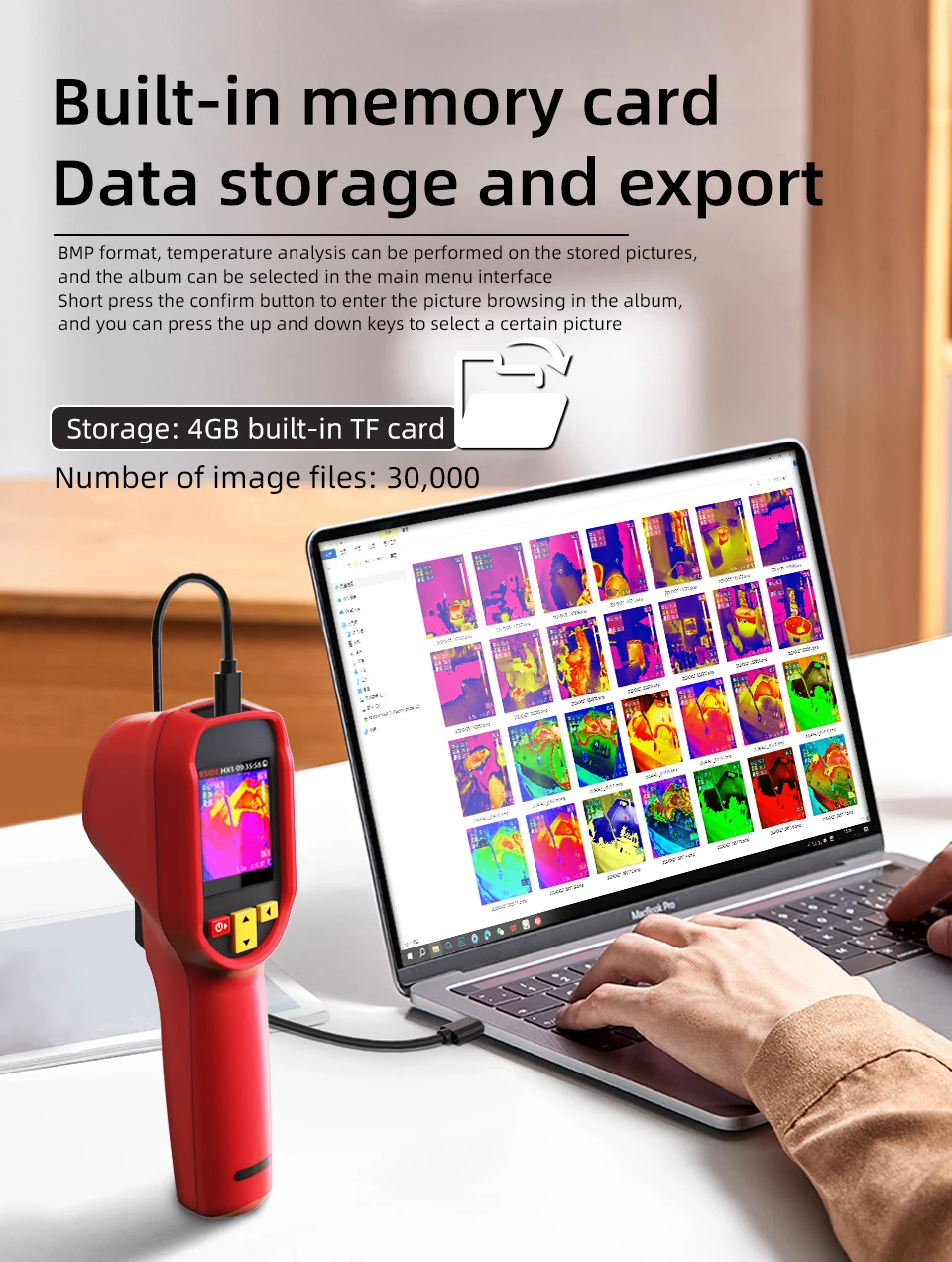

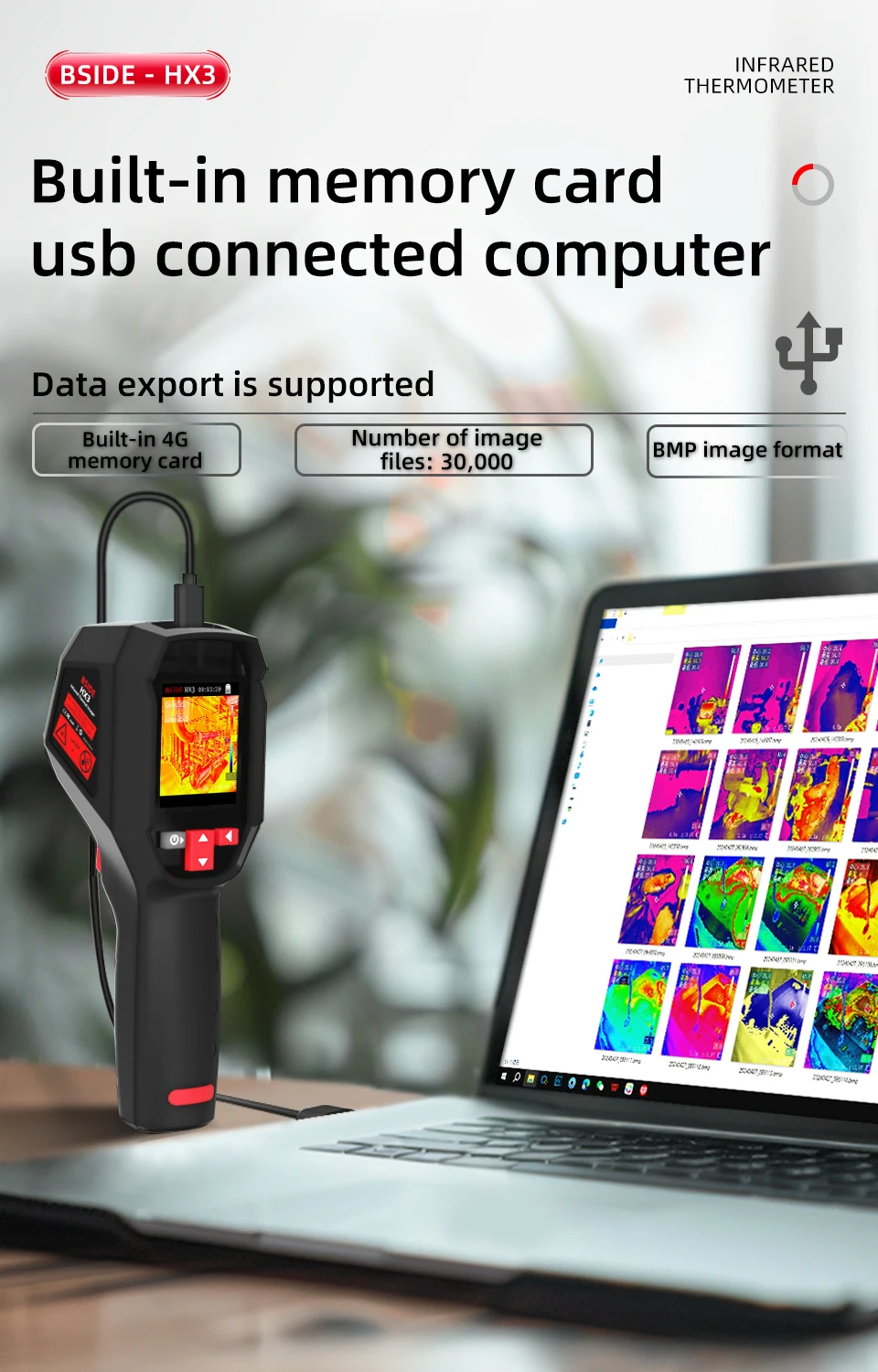

Storage: 4GB built-in TF card

Adjustable emissivity

Power supply: 2500mA lithium battery

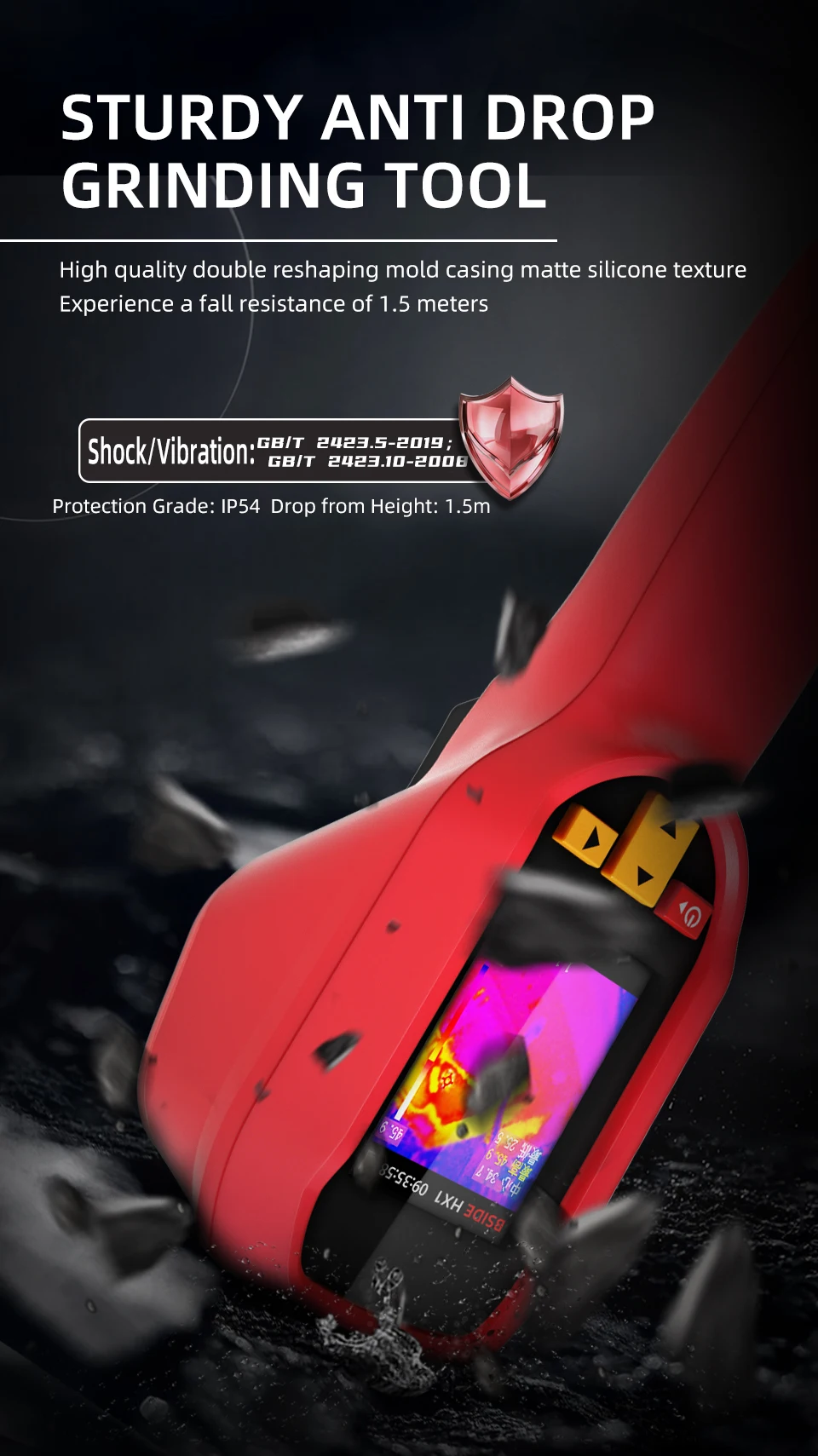

Three-proof design: IP54/1.5m anti-drop

The bottom design has screw holes for use with a tripod

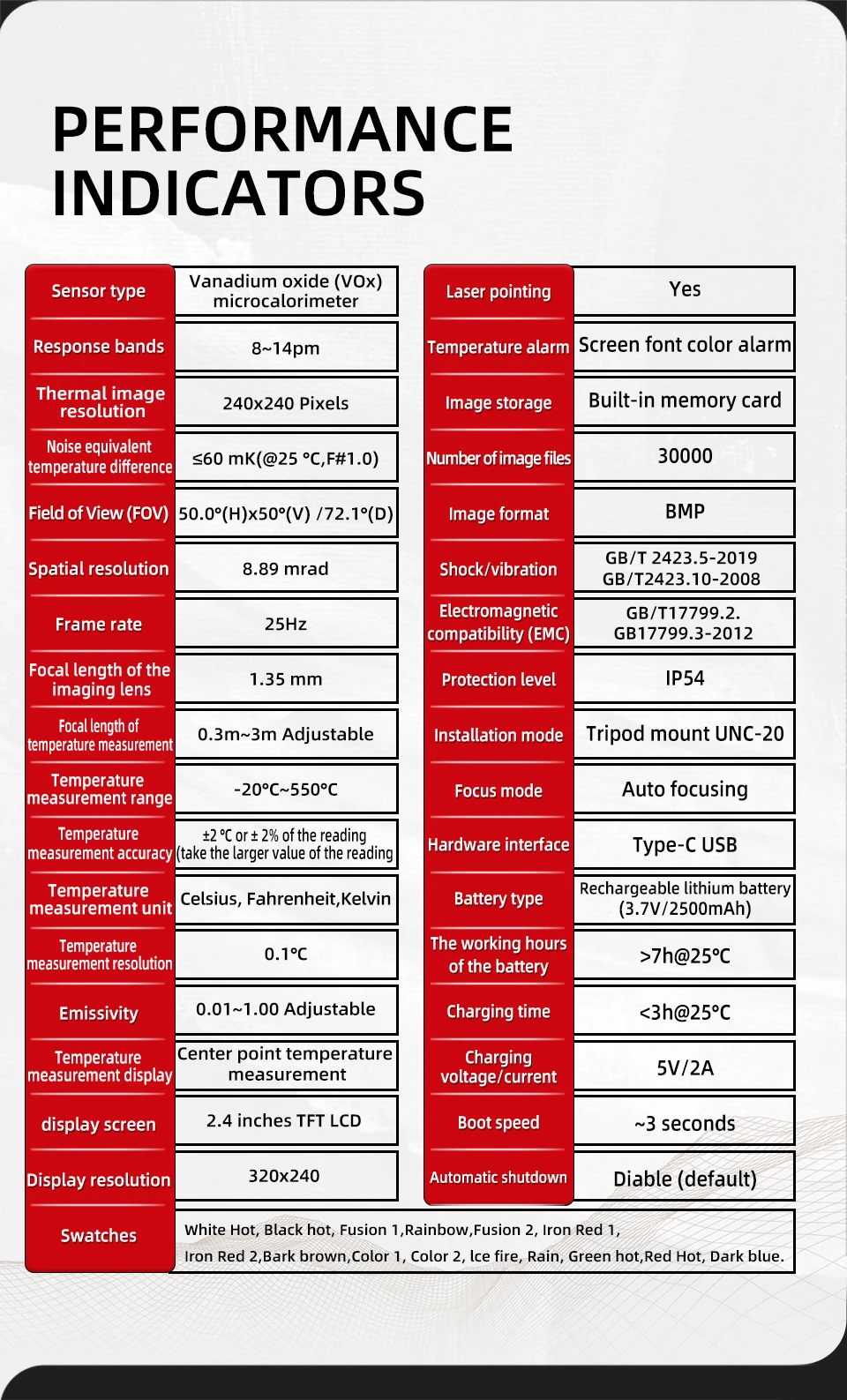

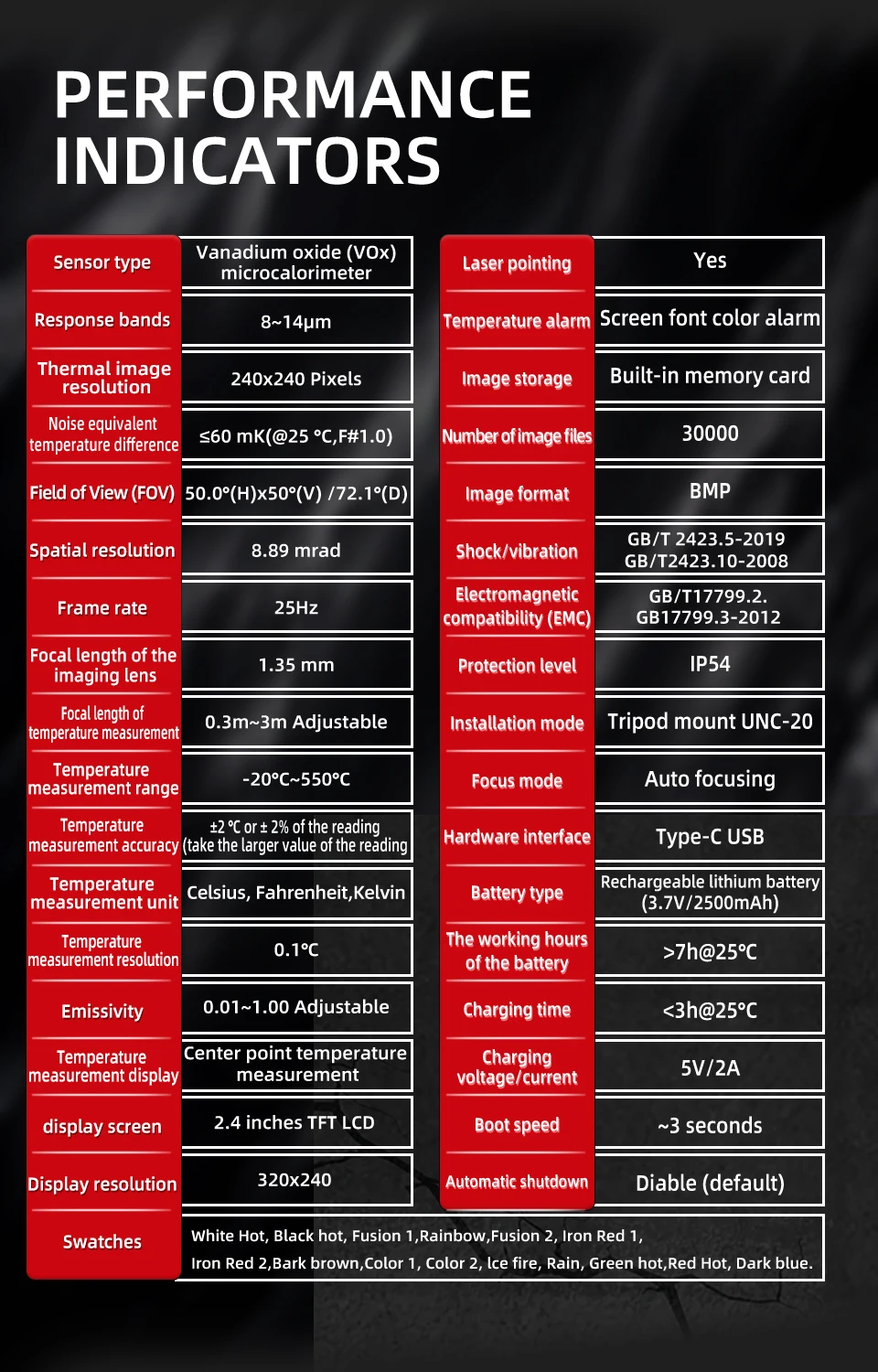

Product Description:

​Product Model: BSIDE HX1/HX3

Sensor type: Vanadium oxide microbolometer

Response band: 8-14 μ m

Frame rate: 25Hz

NETD：< 60mK @ 25 °C

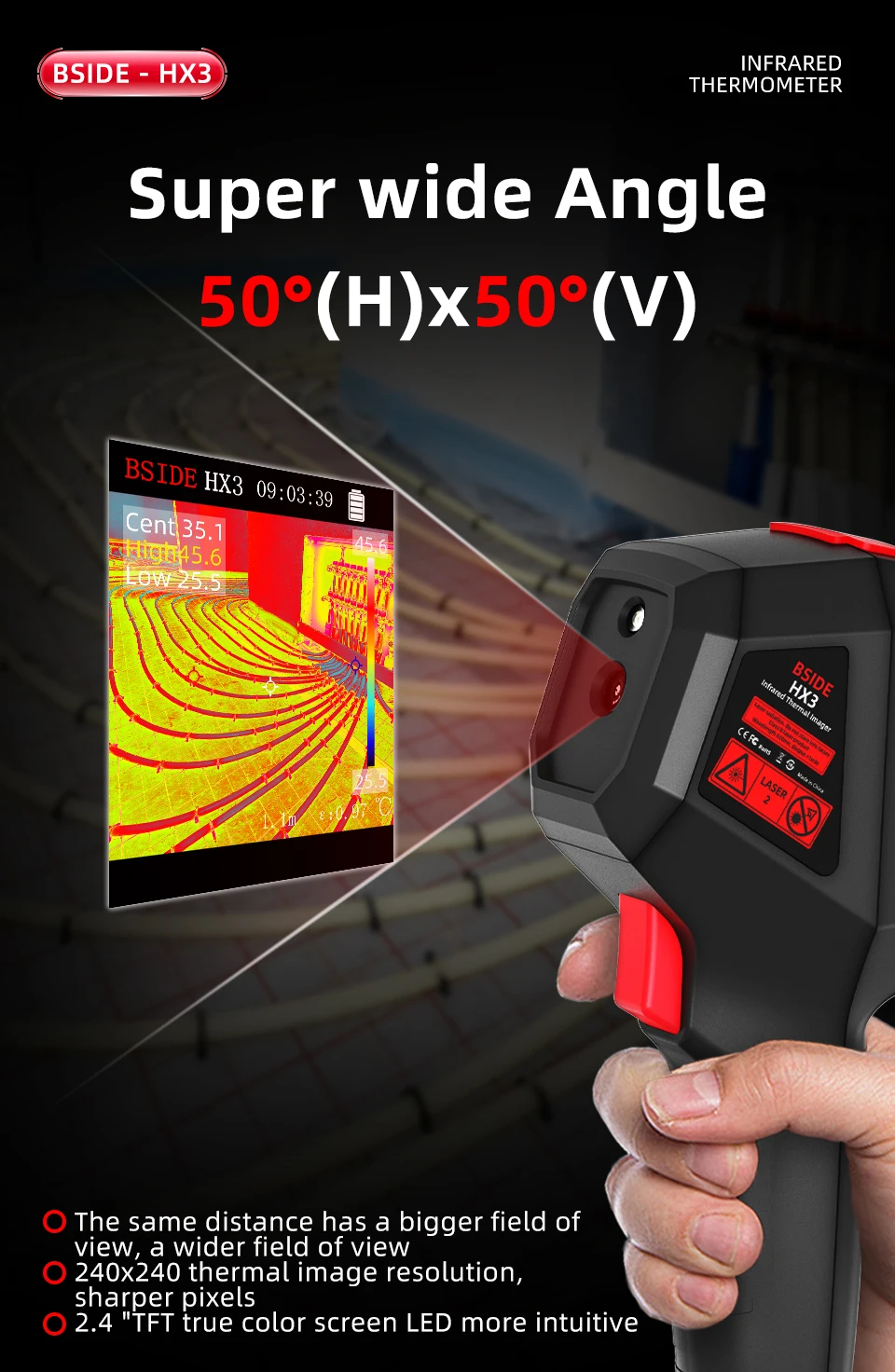

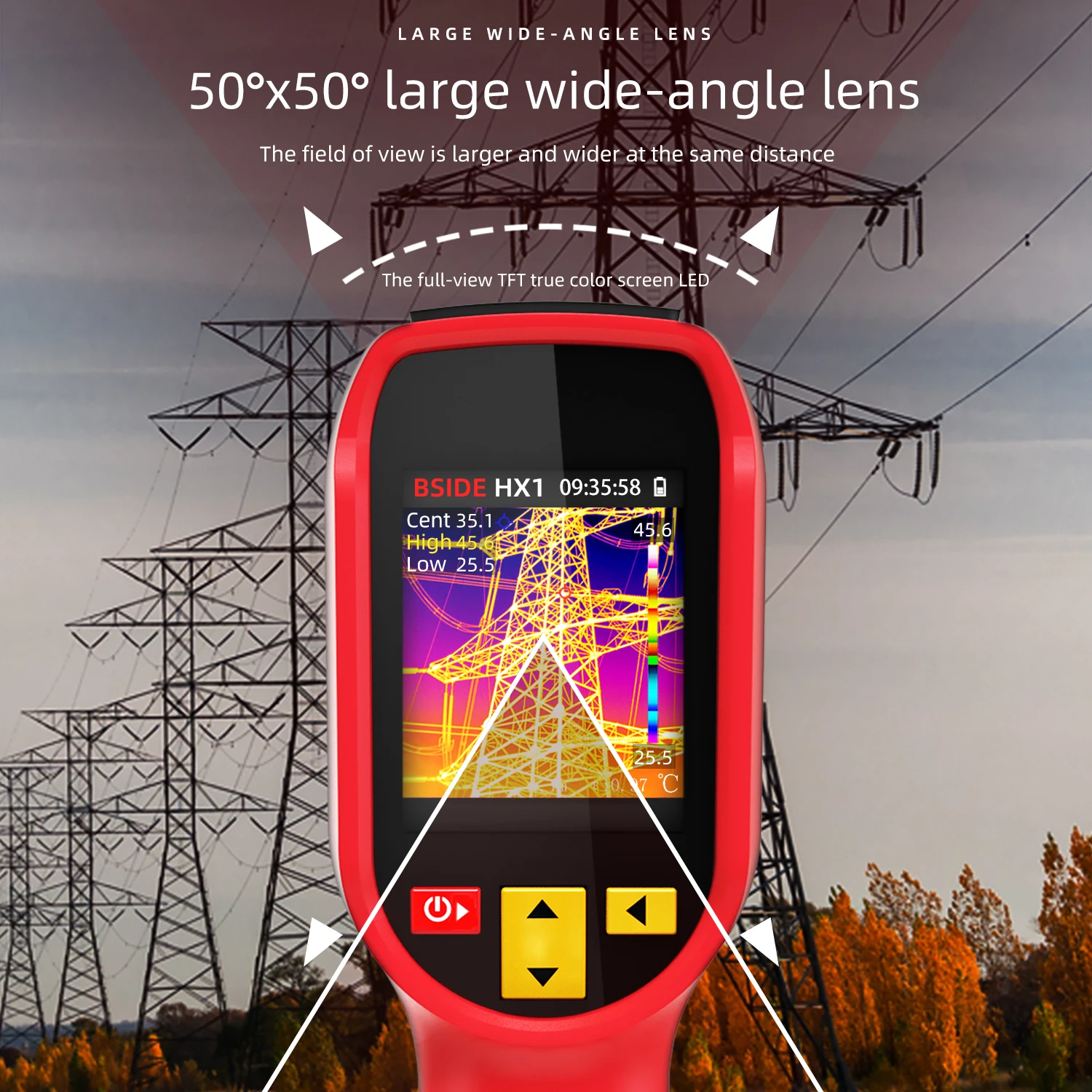

Field of view (FOV): 50°H×50°V/72.1°D

Spatial resolution (IFOV): 8.89mrad

Focal length of imaging lens: 1.35mm

Temperature measurement focal length: 0.3m~3m adjustable

Temperature measurement range: -20 °C to 550 °C

Temperature accuracy: ± 2 °C/± 2% (maximum reading)

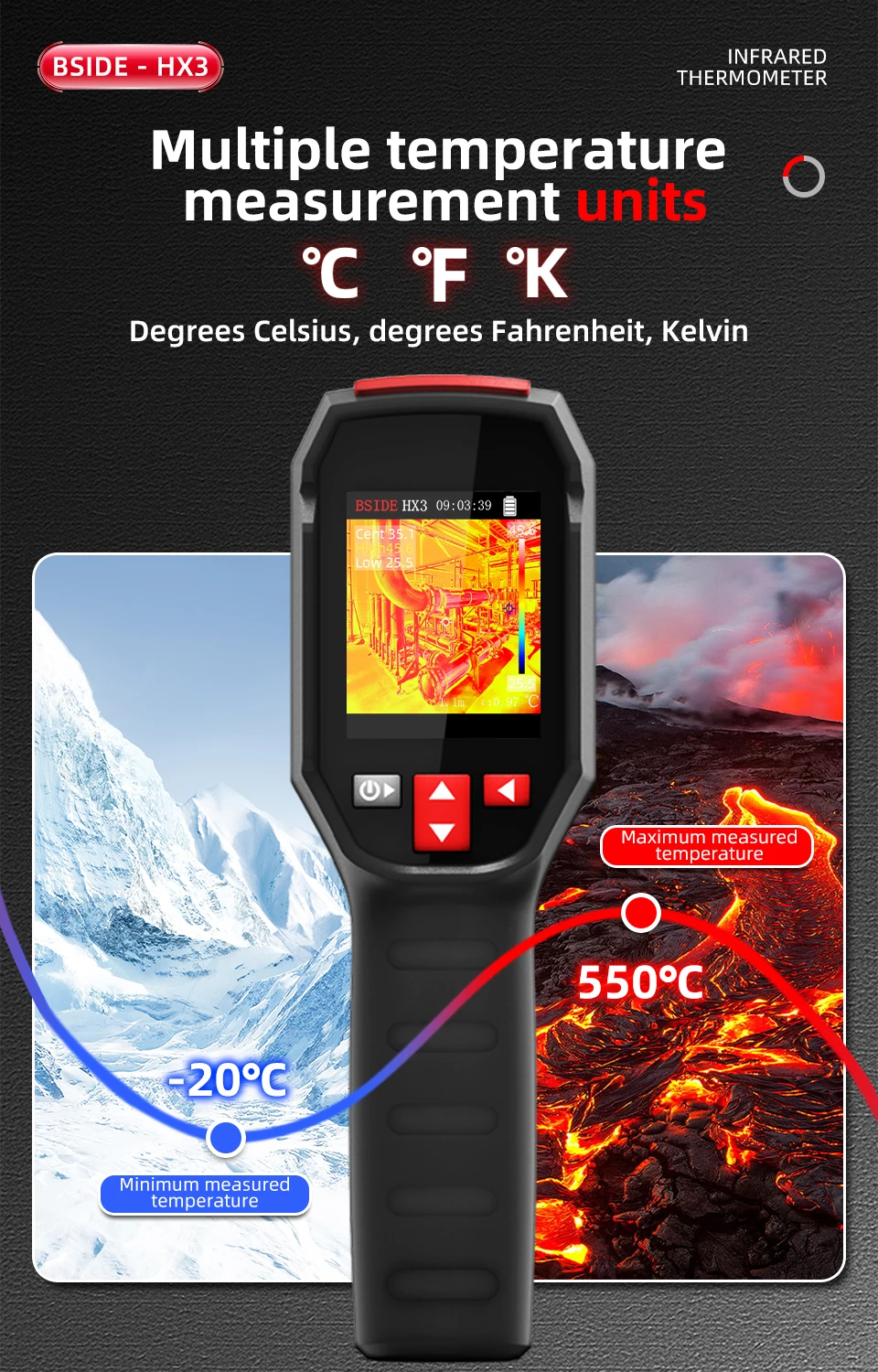

Temperature measurement unit: °C/°F/Kelvin

Temperature measurement resolution: 0.1°C

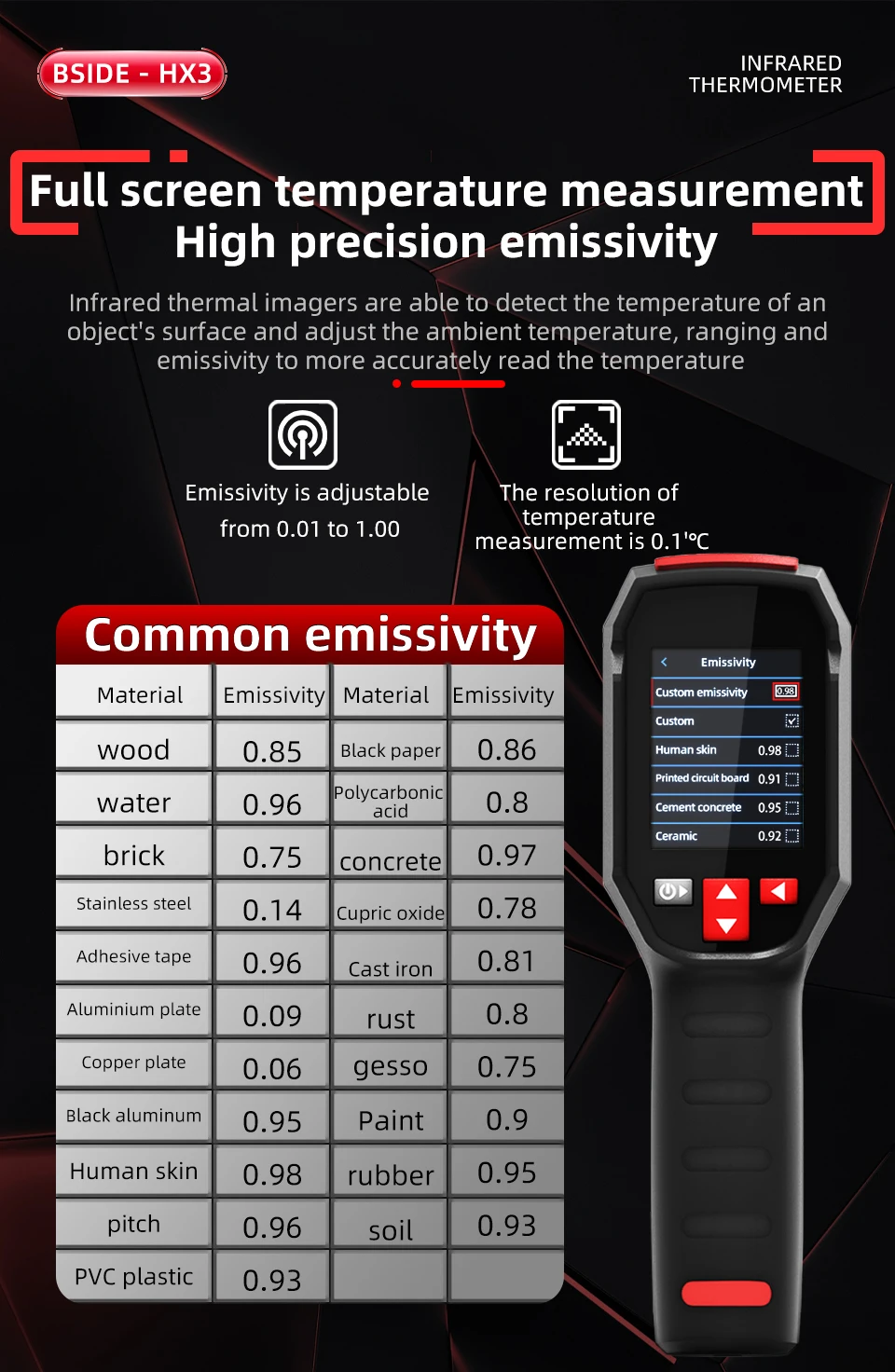

Emissivity: 0.01~1.0 adjustable

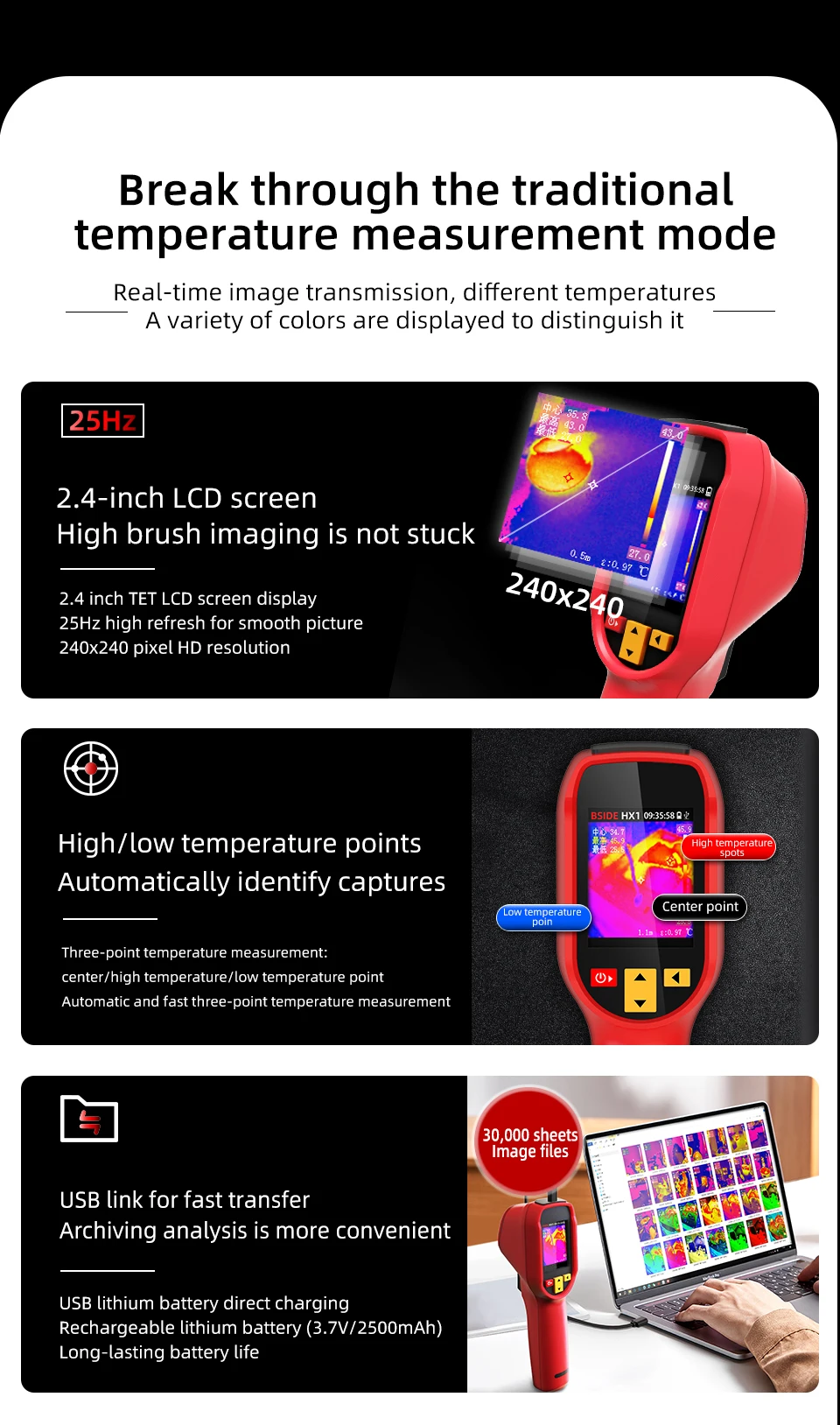

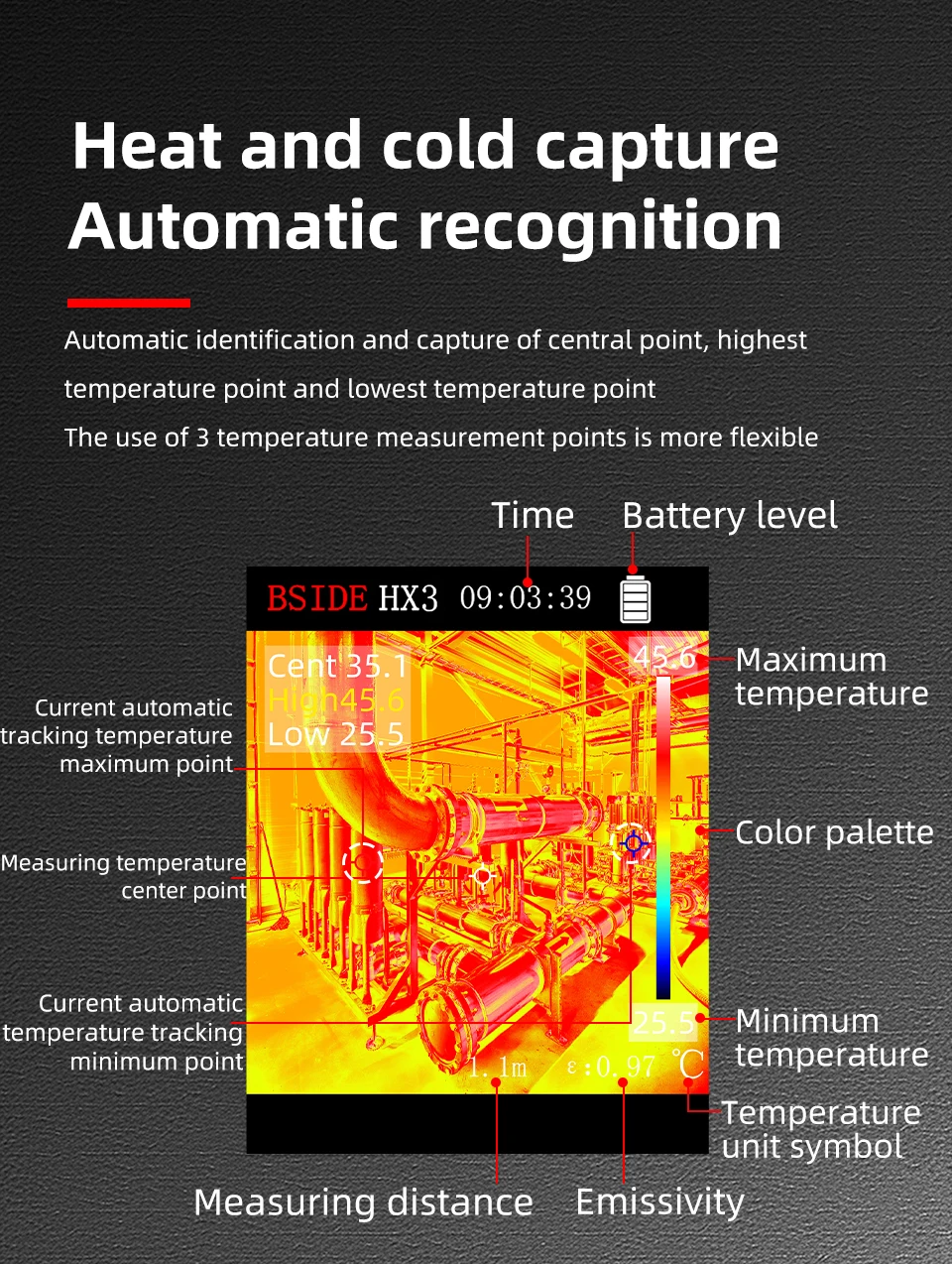

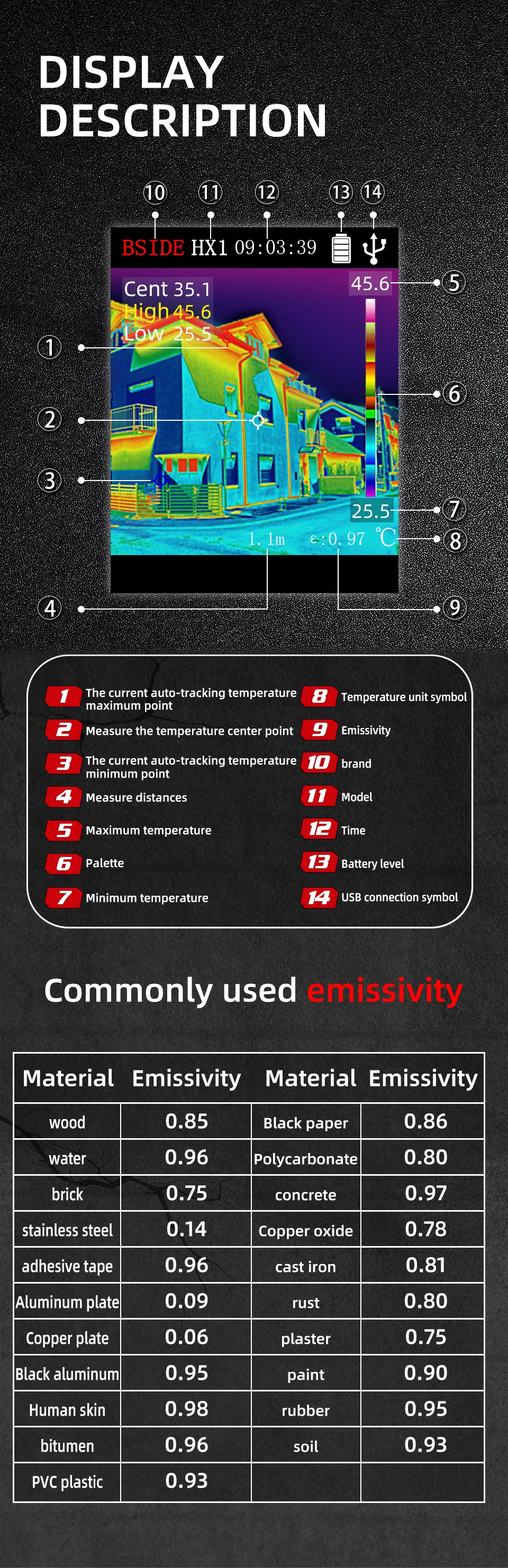

Temperature measurement display: central point temperature measurement, high and low temperature tracking

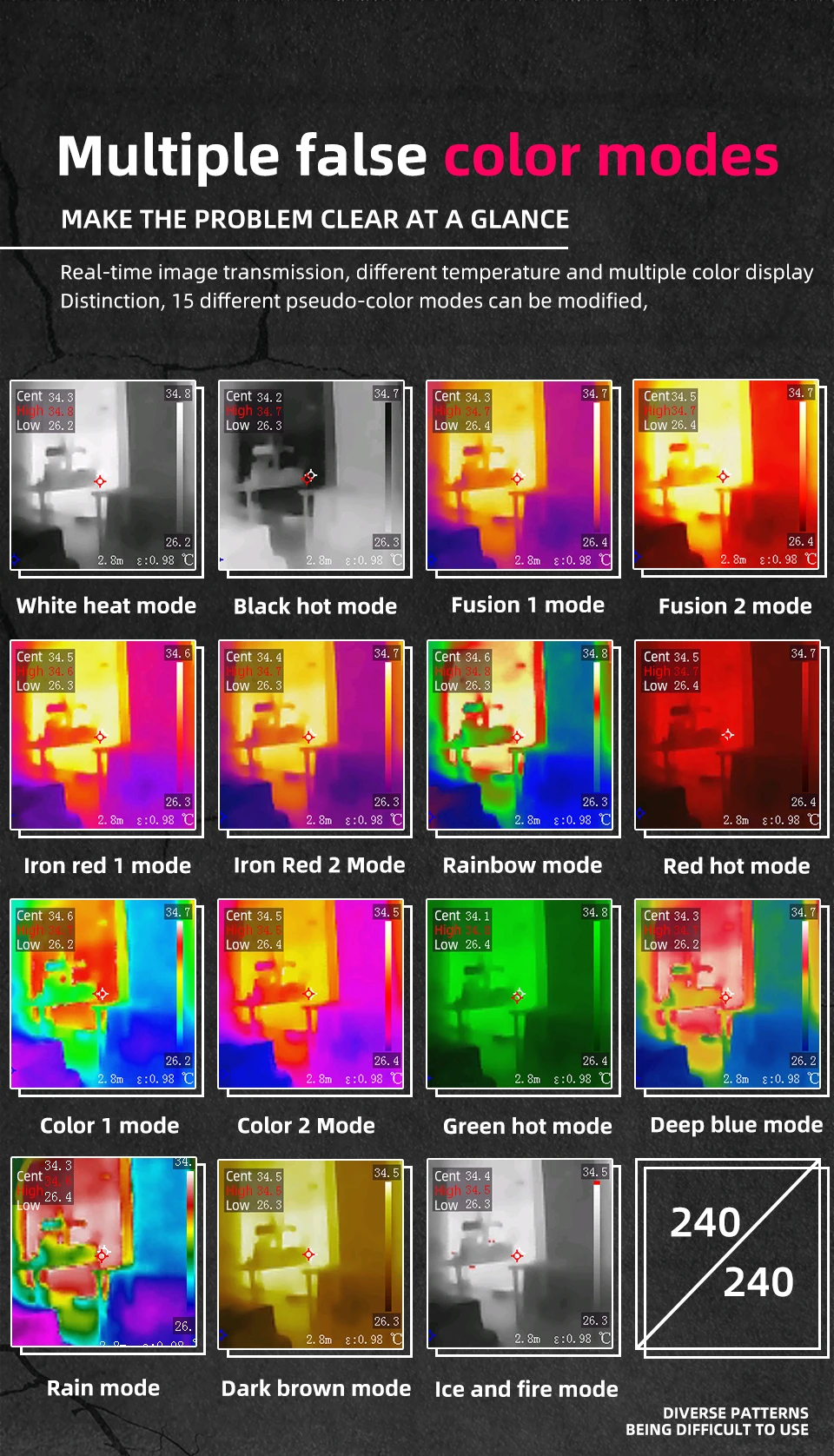

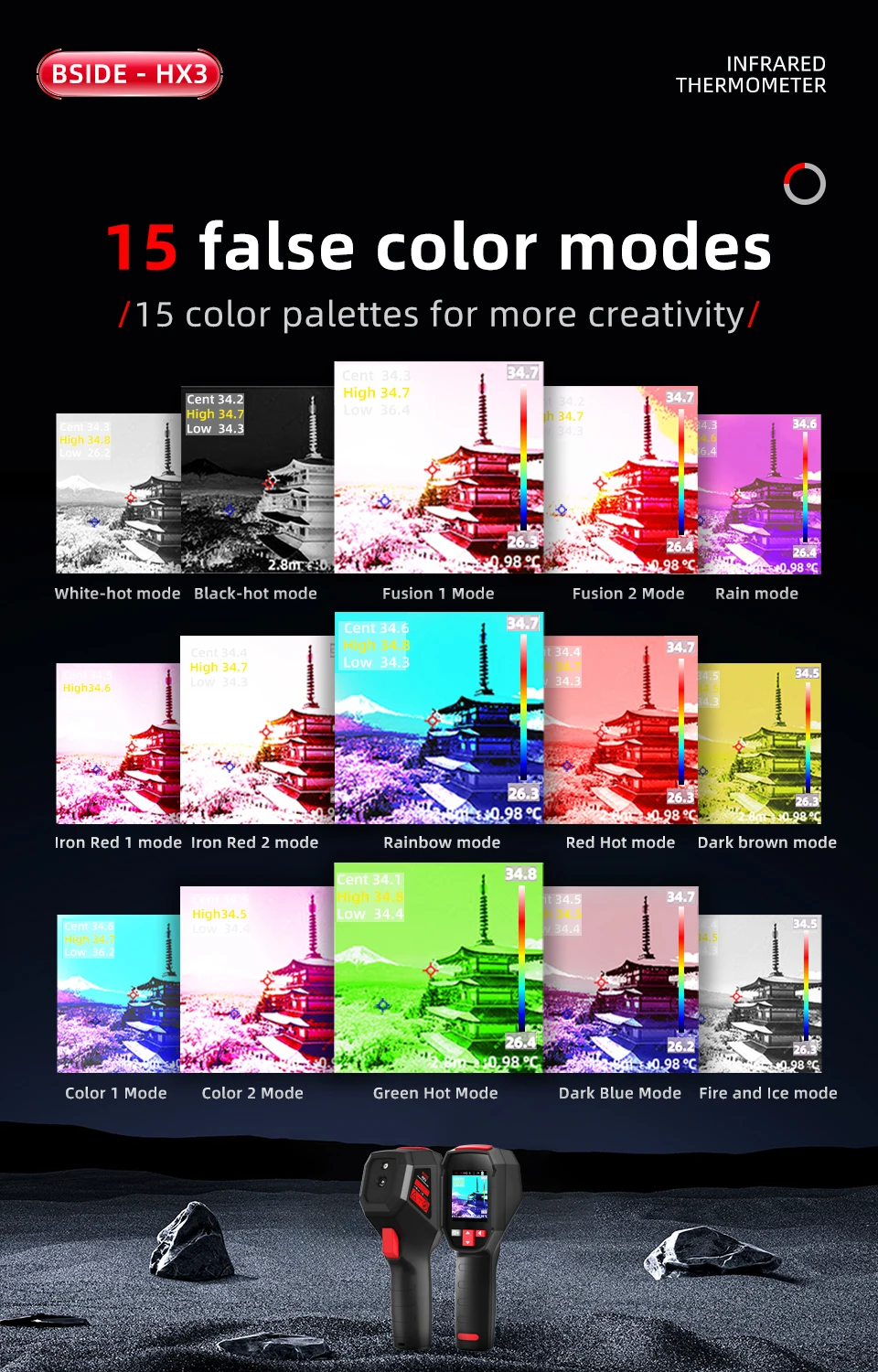

Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue

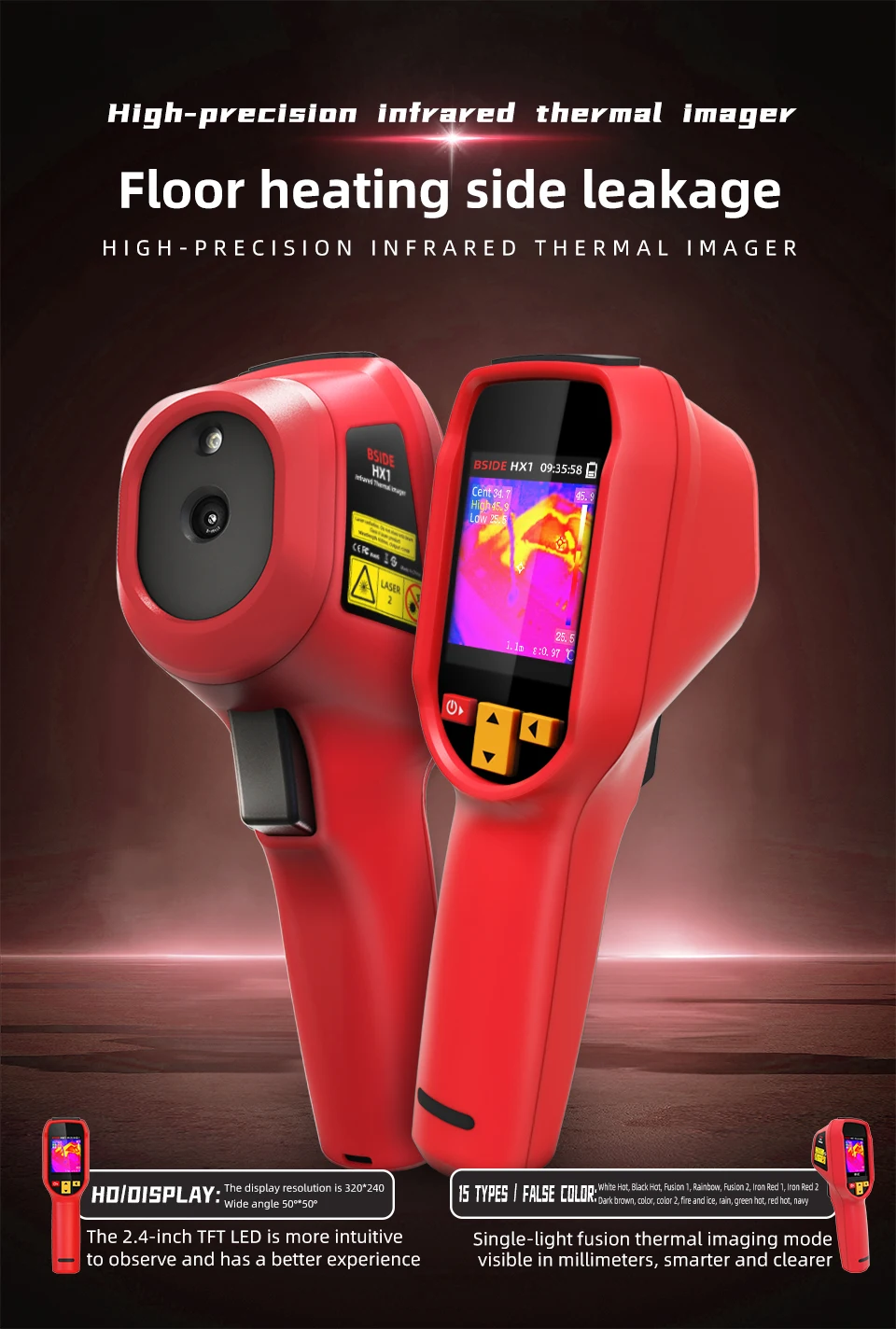

Display: 2.4 inch TFT LCD screen

Display resolution: 320 x 240px

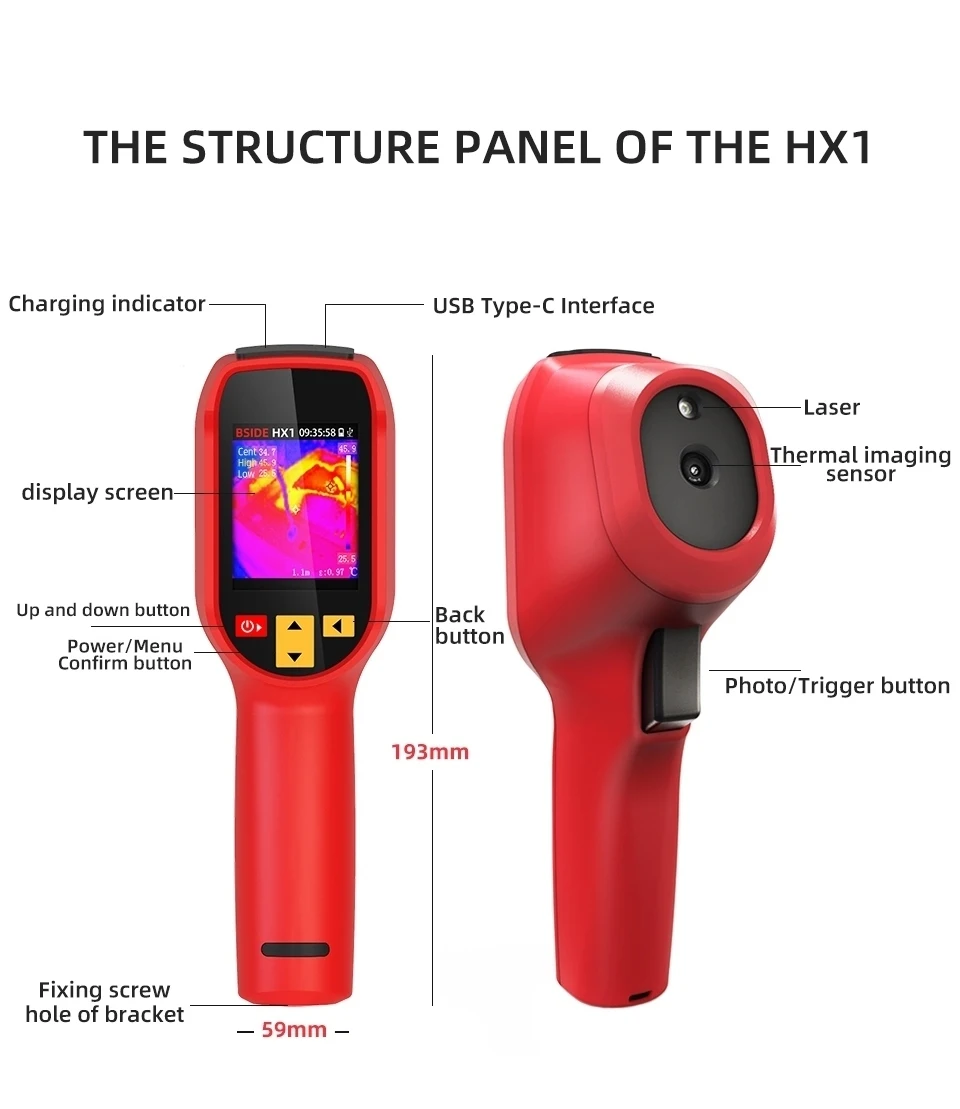

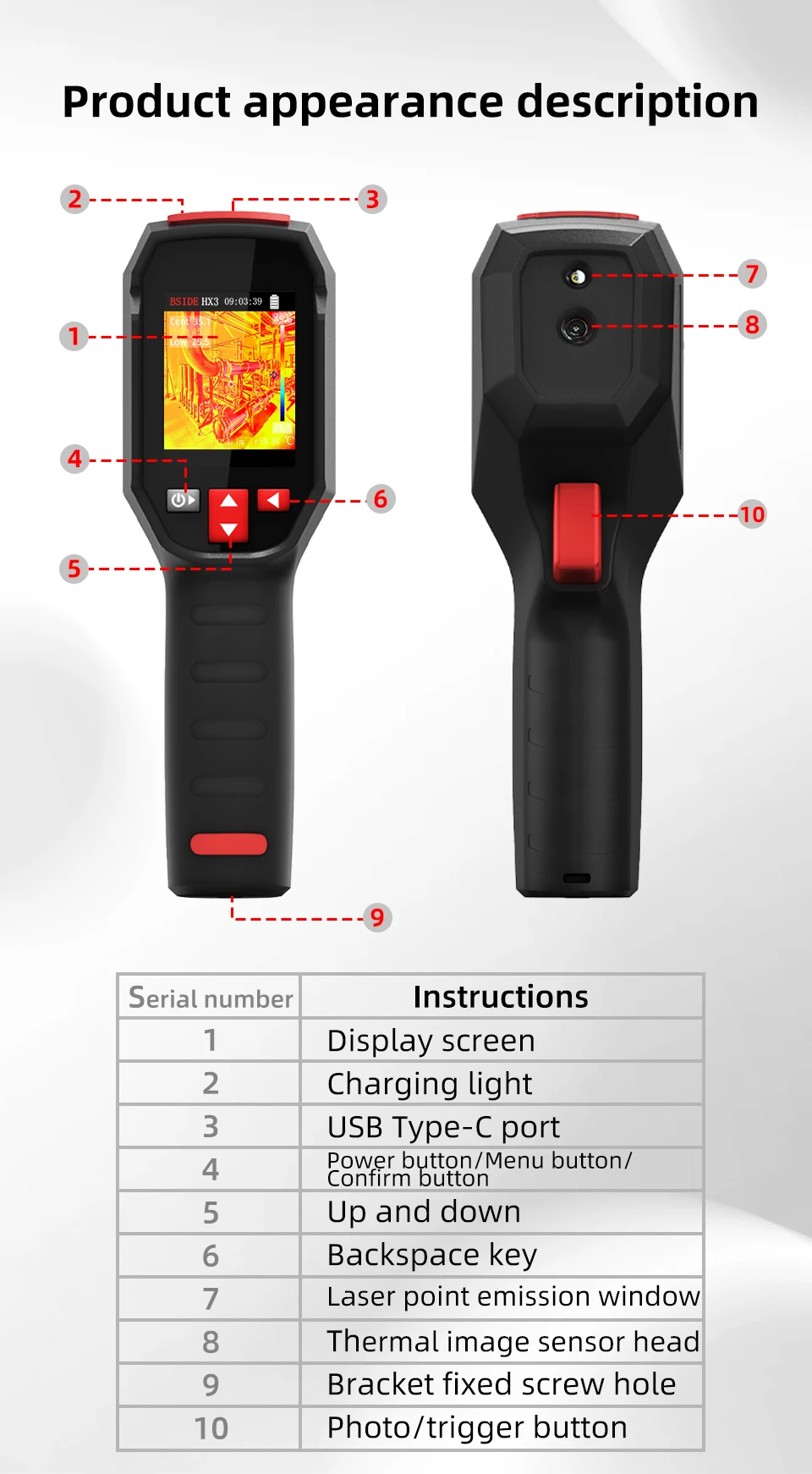

Buttons: Power button, Up button, Down button, Back button, Trigger button

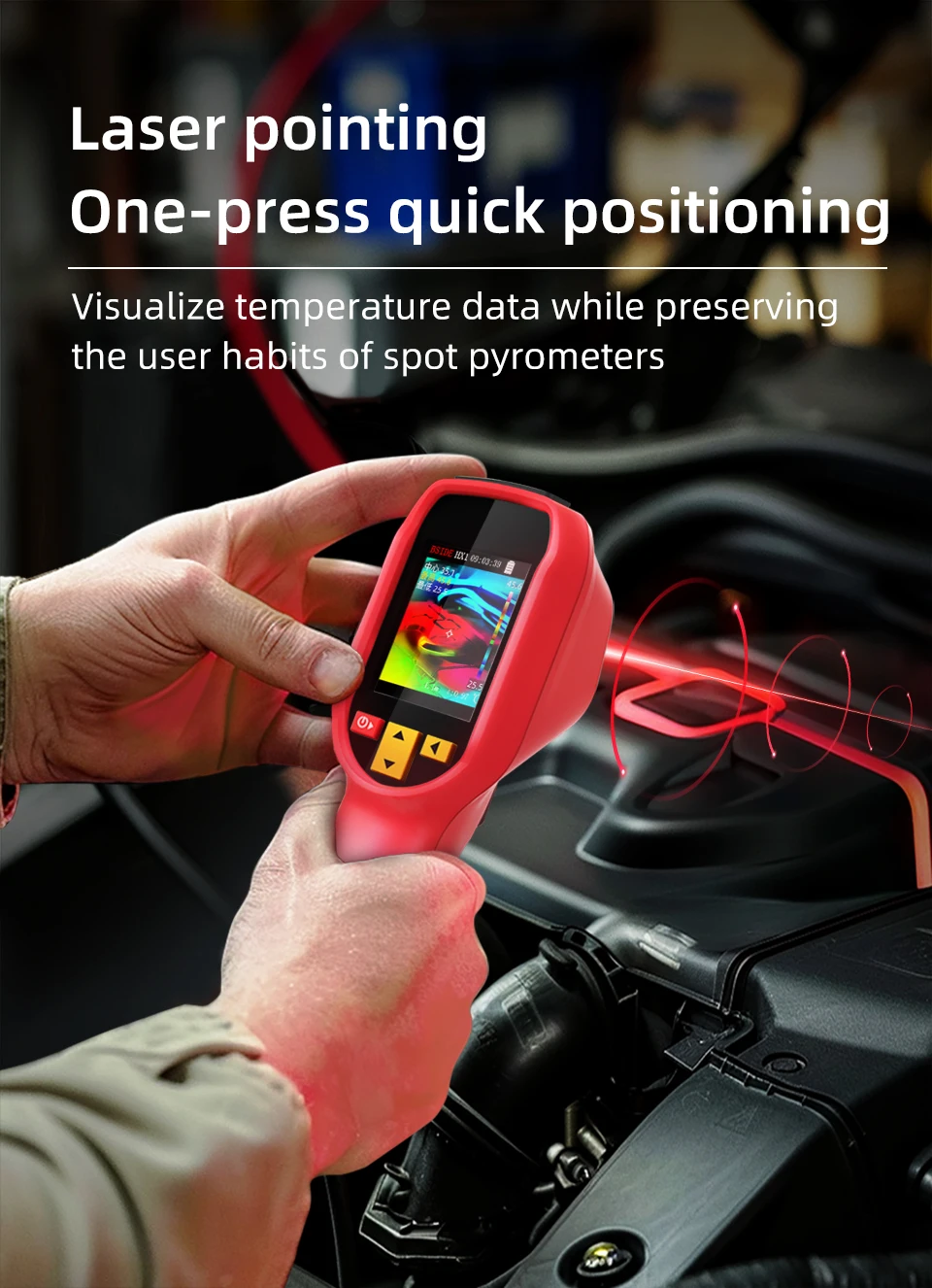

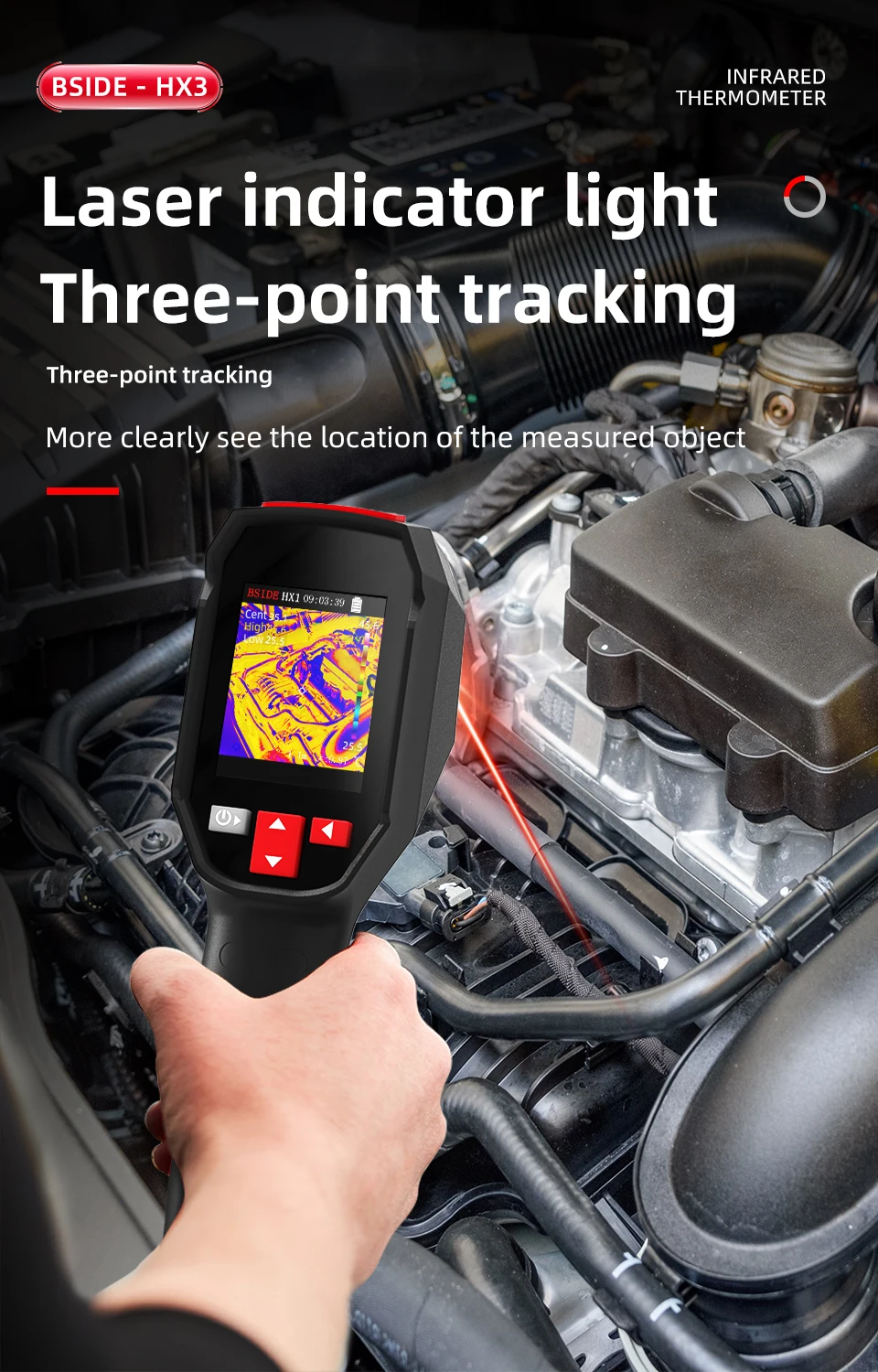

Laser indication: Yes

Storage: Built-in memory card

Number of image files: 30,000

Image format: BPM

Focusing method: Autofocus
High and low temperature tracking: √

Temperature alarm: Screen font color alarm

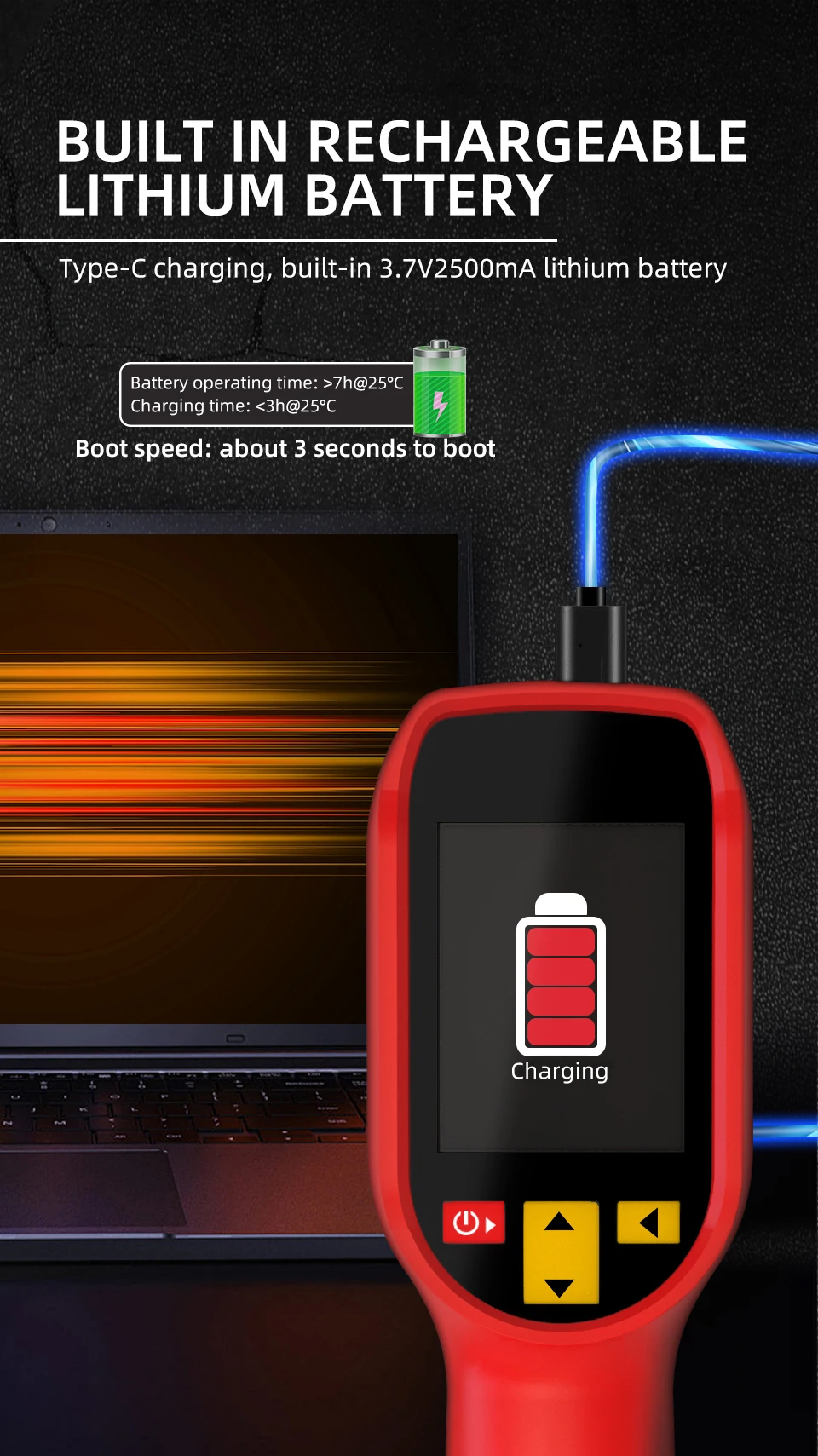

Battery type: Rechargeable lithium battery (3.7V/2500mAh)

Charging system: Type-C direct charging

Data interface: Type-C USB

Illumination/Laser Instruction: √

Protection Rating/Fall Protection Rating: IP54/1.5m

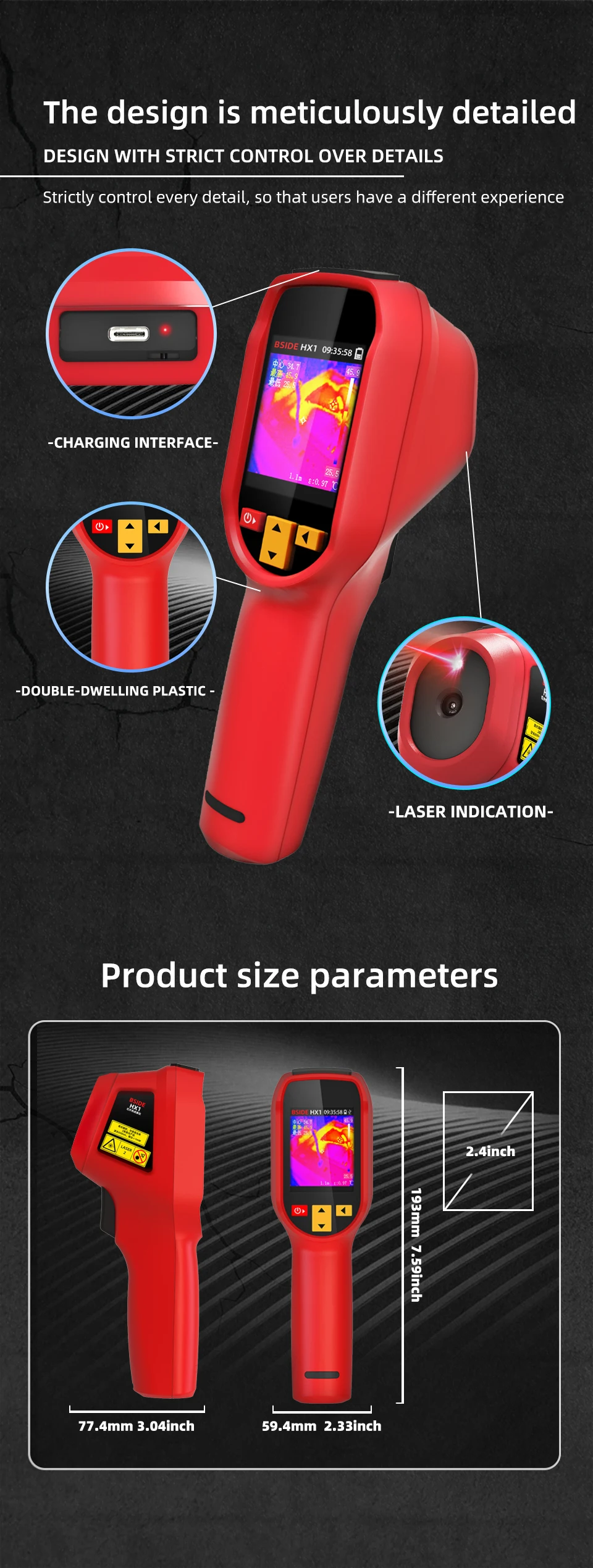

Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm

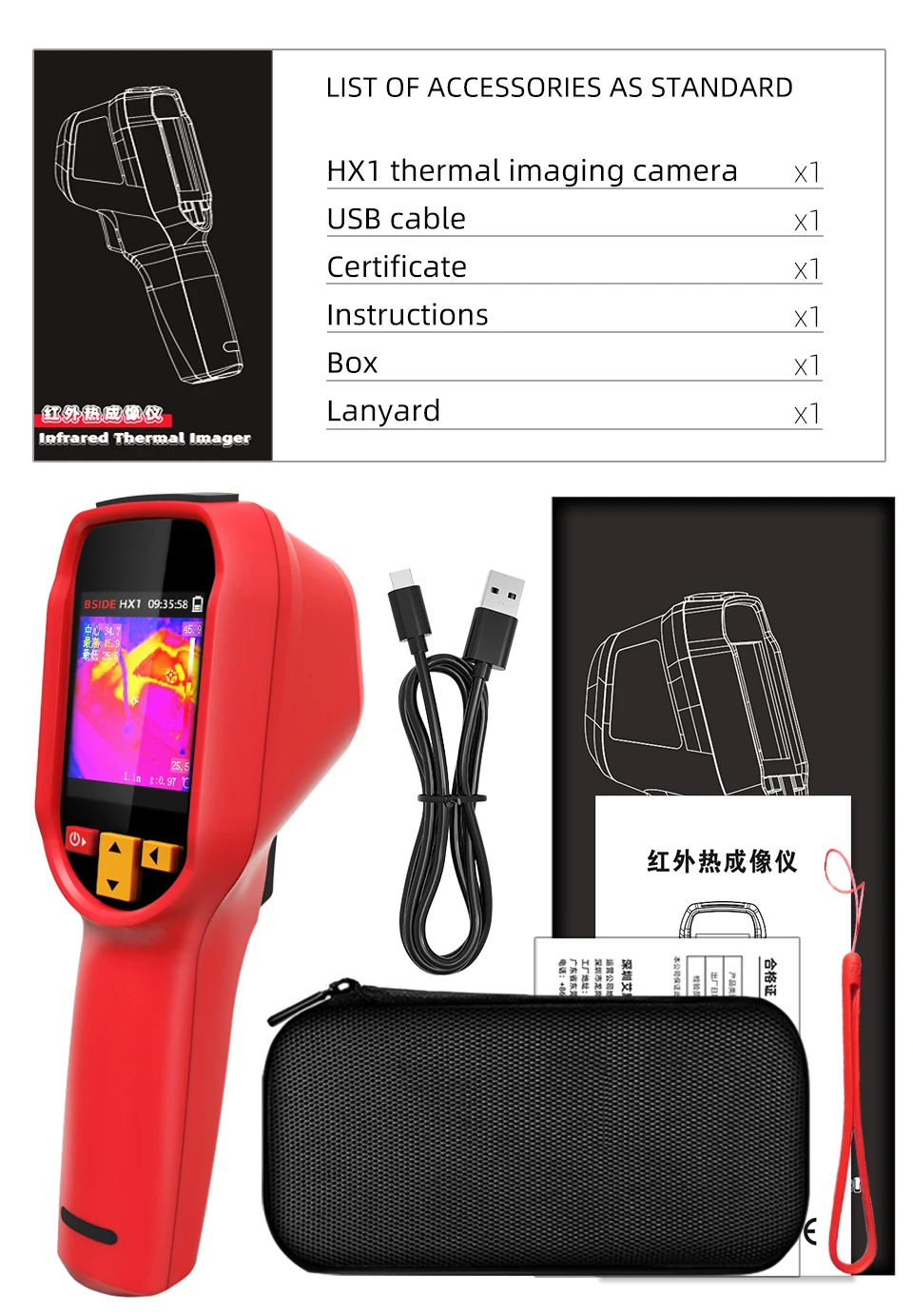

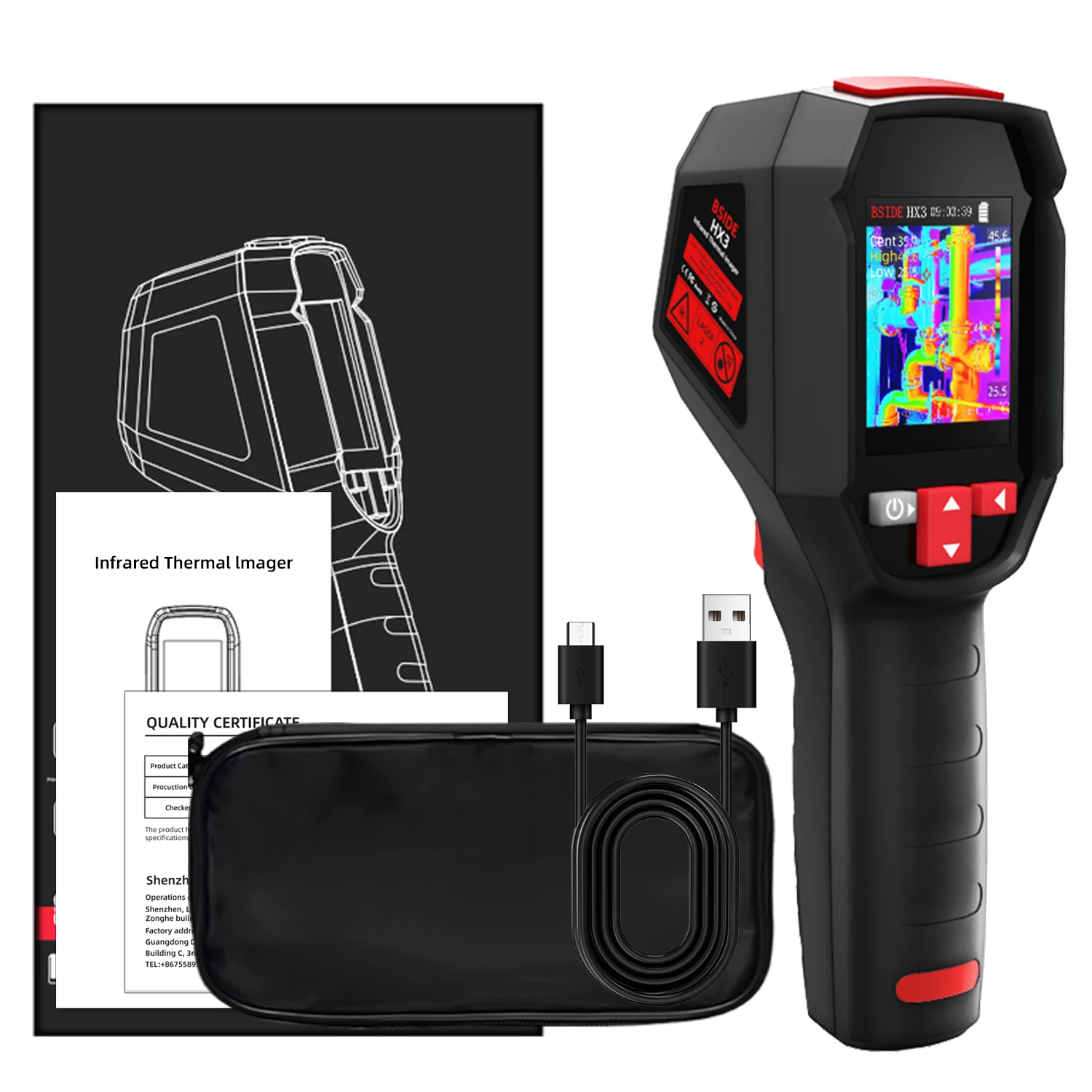

Package Includes:

1 x HX1/HX3 Thermal Imaging Camera.

1 x Charging Cable.

1 x Instruction Manual.

1 x User Manual.

1 x Color Box.

1 x Warranty card (12 months)

1 x High-quality lanyards (HX1 Limited Time Gift)
