【EU Stock】220v 2.2kw Air Cooled CNC Spindle Motor ER20 4 Bearing ER20 Collet & 2200w VFD / Inverter for Wood Milling

Good News:

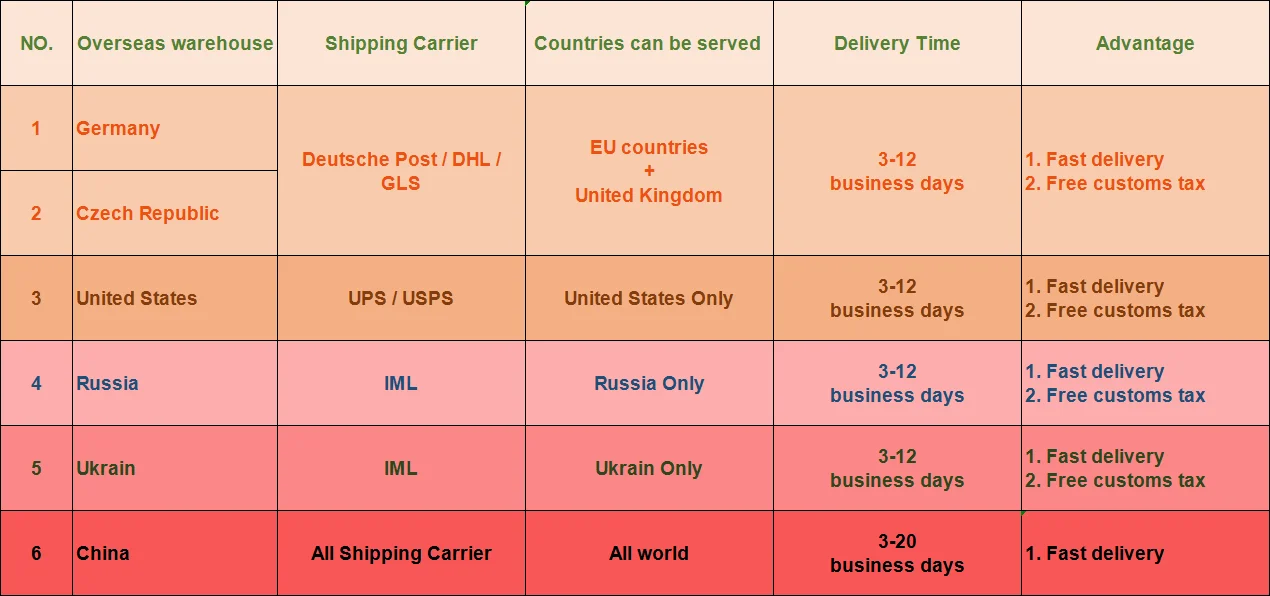

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

Package include:

1 x 2.2KW ER20 Air-cooled spindle motor( 220V,400Hz,24000rpm,4 bearing)

1 x 2.2KWInverter 2HP 220V

1 x 80mm Spindle clamp holder tool

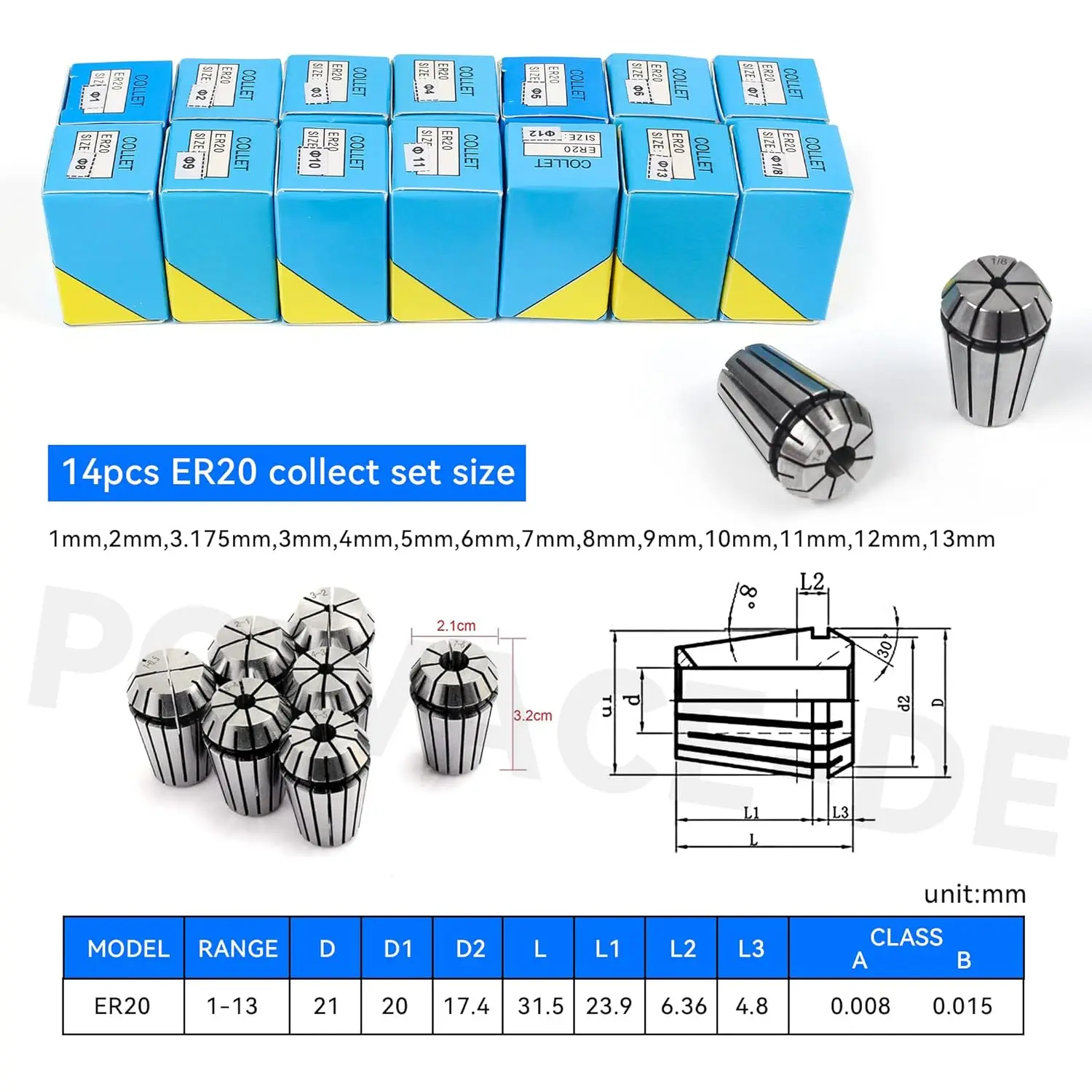

1 Set ER20 collet (1-13mm) 14Pcs

The manual for the Inverter will send via email.

Note:This listing is with several options, so pls check carefully when you place the order, thanks in advance.

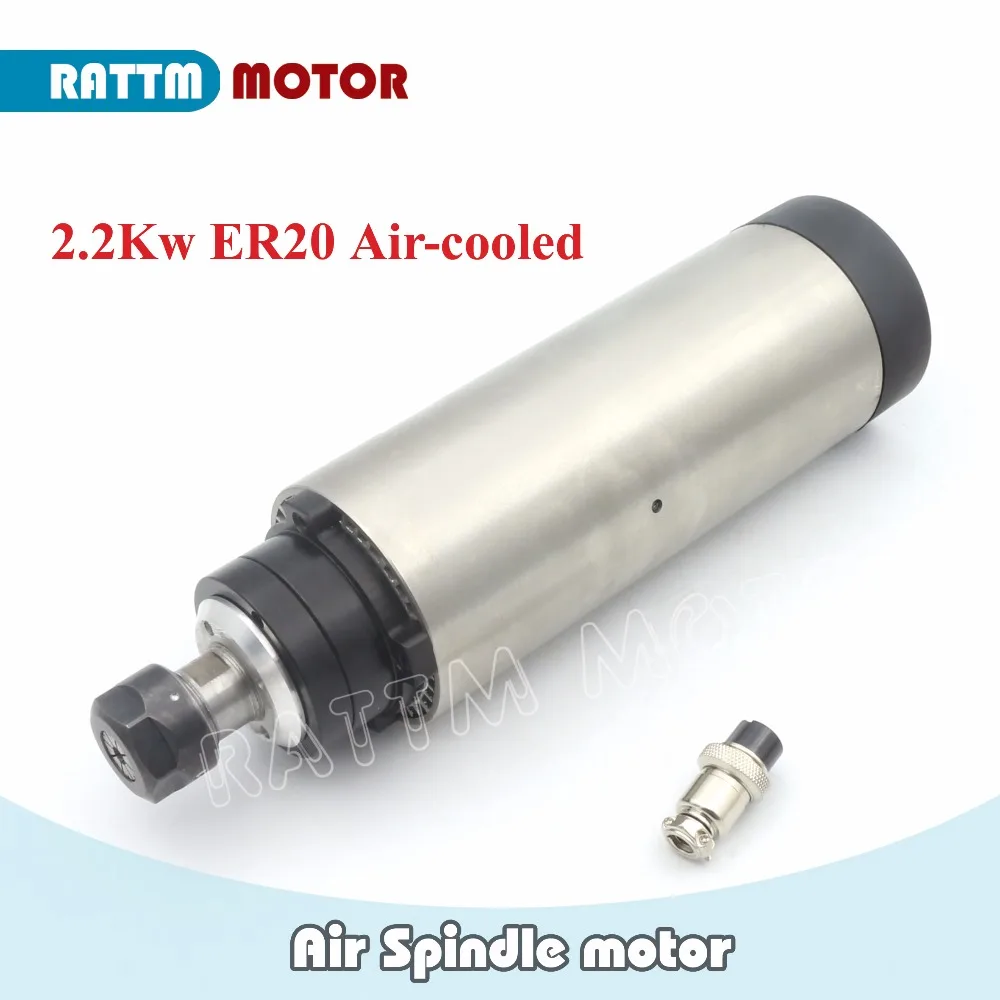

1.  2.2KW ER20 Air-cooled Spindle motor Engraving milling Grind

Specification:

Material:Stainless Steel

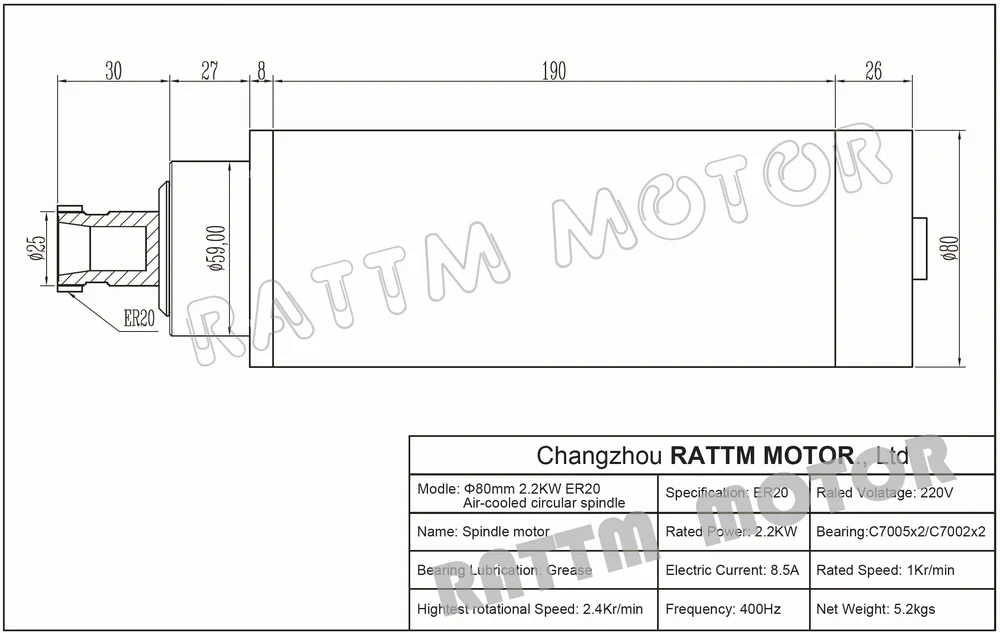

Size:80x230mm(Middle body diameter:80mm x Length:230mm)

Power:2.2Kw

Voltage:220VAC

Current:8.5A

Frequency:0-400Hz

Speed:0-24000rpm

Cooling:Air-cooled

Runout off:Less than 0.05mm

Precision tapered bore:Less than 0.025mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:4 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings

Net Weight:5.2kg

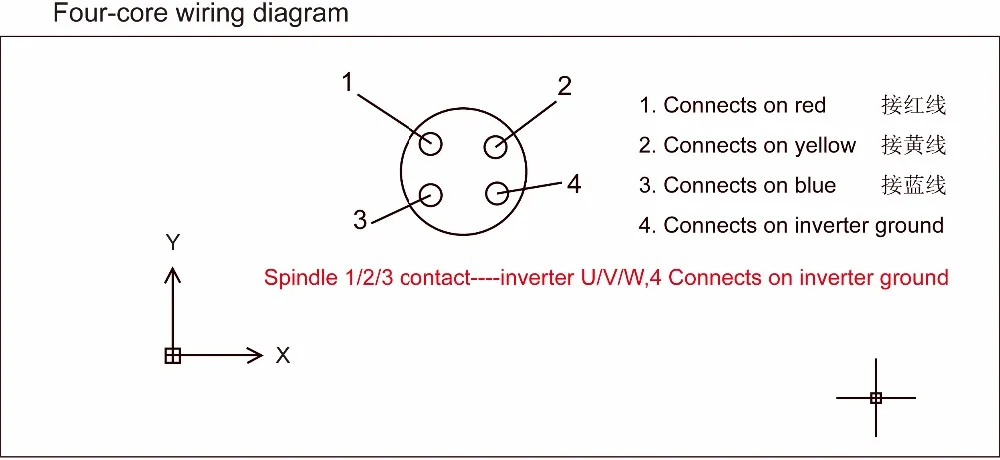

Power supply interface:Professional

aviation Interface, Interface 1234 marked 123 respectively connected to

the inverter output end of the (U, V, W), 4 ground wire this interface

must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC,PCB etc industry

1) Structural features

1) High speed electric main bearing all adopt the C-class high-speed

angular contact ball bearing, axis sets of loading, Improve spindle in

the high-speed rotation supporting stiffness and precision grinding.

2) Before driving, rotation of the shaft by hand.Spindle high speed

rotation caused by temperature rise, use of cooling liquid circulating

system to eliminate.

2) Instructions for use

1) In use, must first connect the cooling water pipe, make spindle connect cooling water and then start.

2) Before driving, turned by hand spindle. If sensory block is not

flexible, you should troubleshoot, and then check the direction of

rotation of the spindle from the spindle end to see if the match should

rotate counterclockwise power wiring should be changed to make it

consistent.

3) Before driving, cooling water for grinding workpiece can’t be in the

front end of the spindle cover, to prevent the front bearing cover slot

inlet burning motor and bearing. the motor must not enter the water,

after turned on of the motor, when you live in grinding the workpiece to

open the grinding of workpieces coolant. First off the workpiece

coolant shutdown, and then close the spindle motor.

3) Maintenance and Service

1) Motorized spindle by medium frequency power supply rated voltage,

frequency should be consistent with electric spindle technology

parameters, motorized spindle rotational speed can change the frequency

to adjust, also directly proportional voltage change.

2) When the spindle is temporarily not in use, should use compressed air

to blow the coolant water,to avoid rusting, plug the hole. Spindle

surface should be coated with anti rust oil. The shaft end protecting

device, placed in dry place.

3) If replacement the spindle of bearings, best professional and technical

personnel from the replacement. Use special tools, stator coil does not

to be removed.

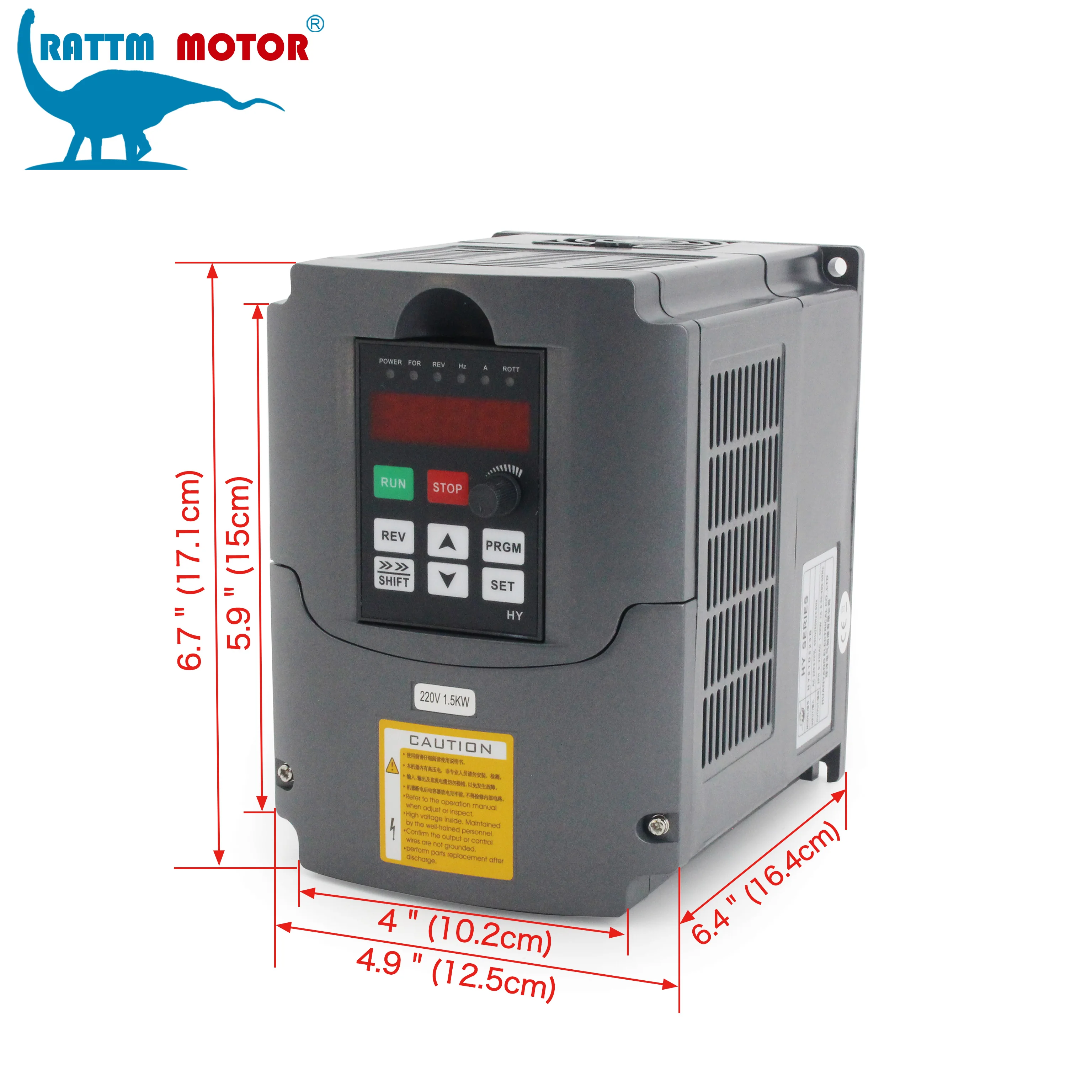

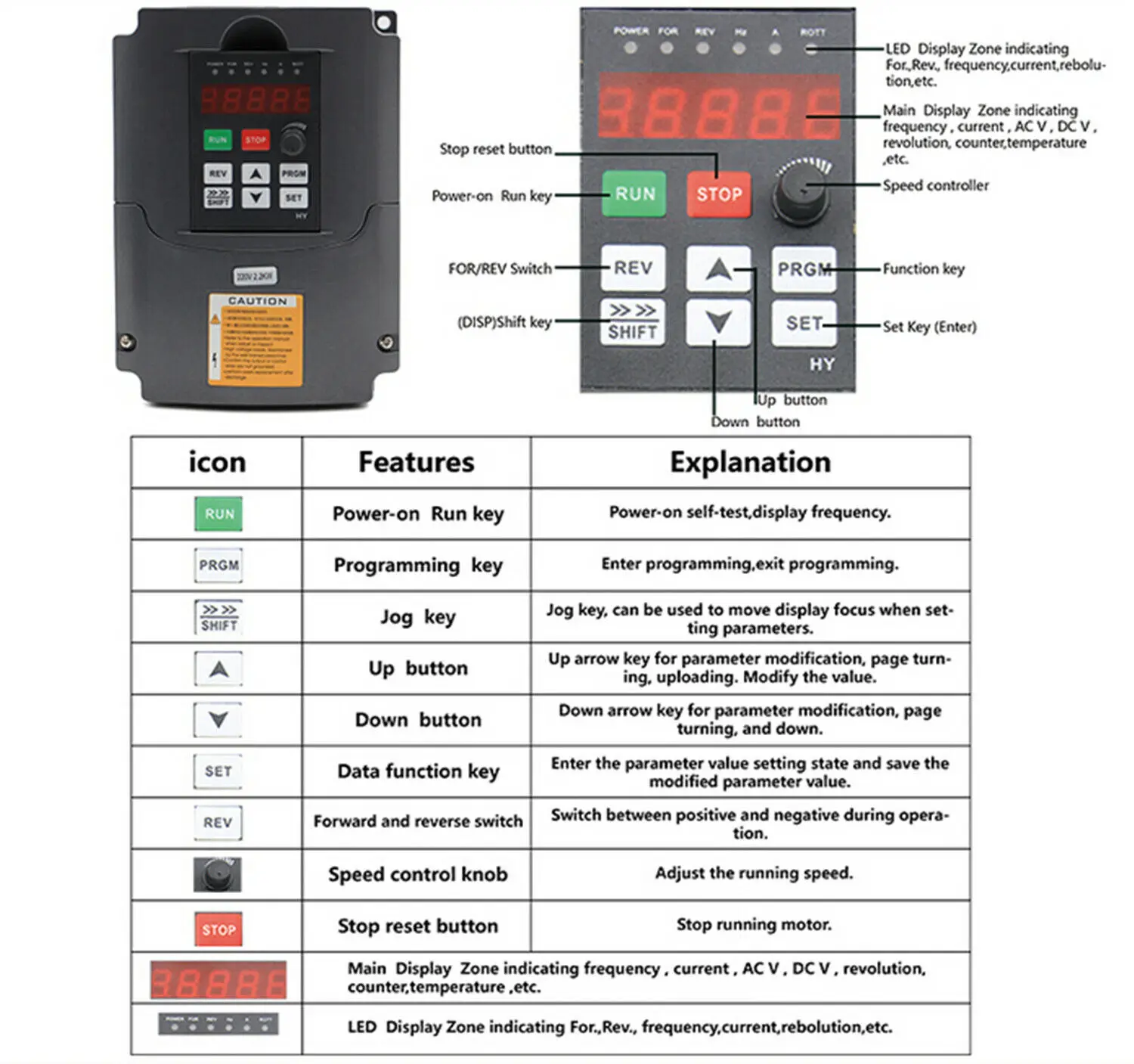

II. 2.2KW HY 220V3HP Variable Frequency Drive VFD Inverter

Product Features:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

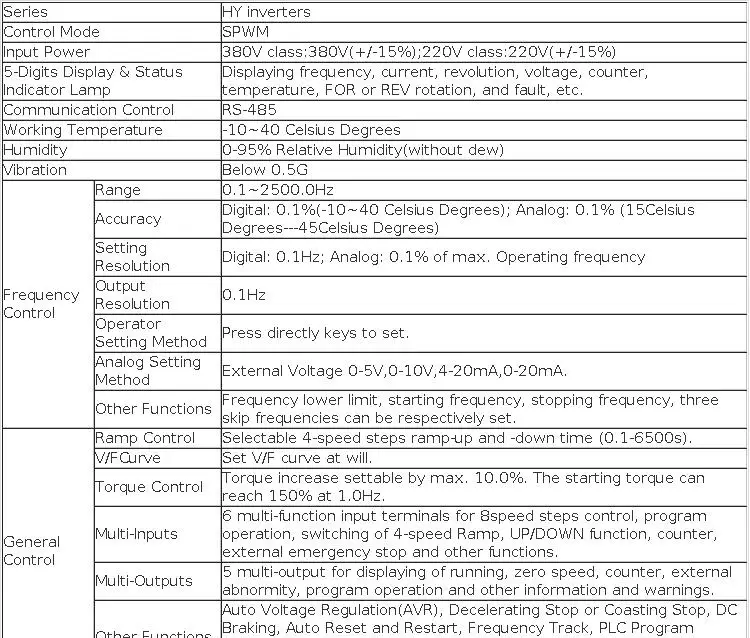

Tech parameters:

1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us

for item stock.

2) Output Voltage 208Vac-240VAC

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

Specification:

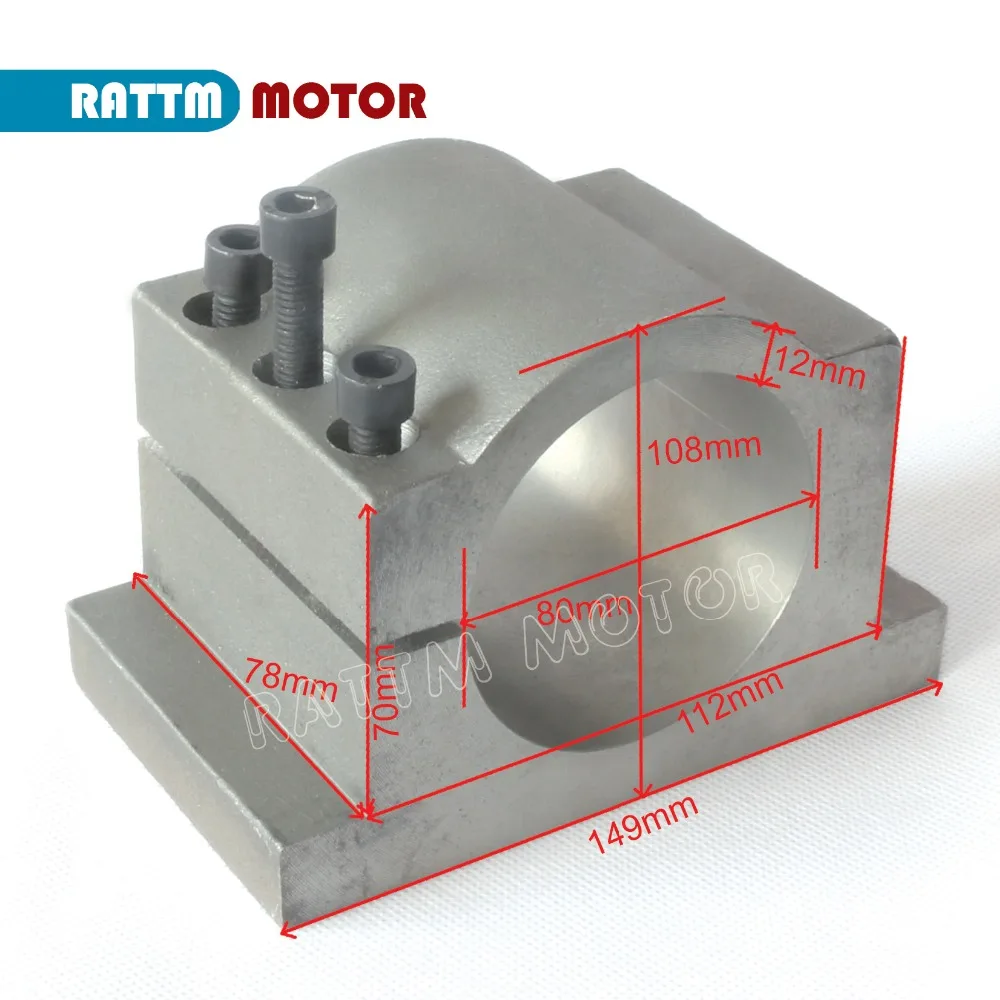

80mm Spindle clamp holder tool

1 Set ER20 Collets(1-13mm) 14Pcs
